UCE210030AGSM Cellular Mobile with Bluetooth�, WLAN and RFID

User Guide 942P Introduction Thank you for purchasing SoftBank 942P. ◦  For proper handset use, read User Guide (this guide). ◦ Accessible services may vary by service area, subscription, etc. SoftBank 942P is compatible with both 3G and GSM network technologies. Note ◦  Unauthorized copying of any part of this guide is prohibited. ◦  Guide content is subject to change without prior notice. ◦  Efforts have been made to ensure the accuracy and clarity of this guide. Please contact SoftBank Mobile Customer Center, General Information ( Z P.19-34) about unclear or missing information. i Content Search Function/Service Name Search Index Z P.19-27 Contents Z P.vi Objective Search Objective Search Z P.ii Index Z P.19-27 Function Search Overview Z P.iv Contents Z P.vi Using Your Handset Function List Z P.19-2 Display Z P.1-10 Guide Organization Contents Z P.vi Section Contents Z Chapter Top Pages Solving Problems Troubleshooting Z P.19-10 W arranty & Service Z P.19-33 Getting Started Call 1 2 Text Entry Phone Book 3 4 Digital TV 5 6 Camera Mobile Widget 7 8 News/Entertainment Music Player 9 10 Managing Files Connectivity 11 12 Handset Security Tools 13 14 Messaging Internet 15 16 S! Appli 17 18 19 S! GPS Navi Settings Appendix ii Objective Search Confirming & Using My Number & My Mail Address Customizing Handset Settings Mastering Basics Fun Stuff My Phone Number Confirm your phone number on handset in Standby without navigating menus . My Number: Z P.1-34 My Mail Address Customized address may reduce spam. Customizing Handset Address: Z P.14-3 Setting Ringtones Set Chaku-Uta Full ® files as ringtones. Ringtones: Z P.18-2 Downloading Tunes & Tones Download music (Chaku-Uta Full ® ) files from mobile websites . Downloading Music: Z P.9-3 Learning Your Handset Learn key assignments, and navigate menus to select & execute functions . Handset Menus: Z P.1-19 Parts & Functions: Z P.1-4 Making Mobile Calls Use voice telephony or enjoy video telephony with compatible mobiles . Voice Calls: Z P.2-2 Video Calls: Z P.2-6 Watching One Seg Digital TV Enjoy One Seg digital TV. Set channels in adv ance to view/record shows . Digital TV: Z P.5-1 Music Player Download music files from websites via Music Player directly . Music Player: Z P.9-1 iii Camera & Video Camera Capture still images or record videos. Use Camer a even when handset is closed. Camera: Z P.6-1 Sending Your Contact Info Save mail address and other details; send to compatible devices wirelessly . Account Details: Z P.4-12 Messaging Multiple Recipients Enter multiple mail addresses/numbers to send a message to all at one time . Sending Messages: Z P.14-4 Add/Edit/Delete Address: Z P.14-8 Sending Files Wirelessly Send files or your own mail address sa ved in Ac count De tails vi a In frared/IC tr ansmission to ot her co mpatible de vices. Infrared/IC Transmission: Z P.4-12 Customizing Standby Display Add wallpaper, set clock size/position or set calendar to appear in Standby . Wallpaper: Z P.10-6 Display: Z P.18-3, P.18-14 Customizing Menu Save frequently used functions in Private Menu. Private Menu: Z P.1-28 Using Shortcuts to Functions Access shortcuts to frequently used functions in Standby . Shortcuts: Z P.1-25 Mastering Text Entry Methods Enter text for Messaging functions or to add/edit Phone Book entry items . Text Entry: Z P.3-1 Using Messaging Services Send short or long text messages. Attach image/sound files , etc. to S! Mail. Messaging: Z P.14-1 Graphic Mail: Z P.14-5 Accessing the Mobile Internet Access Mobile Internet sites via Yahoo! Keitai to browse sites or download files. Yahoo! Keitai: Z P.15-2 Playing Games Download and install S! Appli Games via Y ahoo! K eitai. S! Appli: Z P.16-1 Getting News (Japanese) Set up S! Quick News to view a variety of information contents . S! Quick News: Z P.8-4 iv Overview 942P Features SoftBank Mobile Features Useful Features PC-related Functions Horizontal Open Position Enjoy Digital TV, Messaging, S! Appli, Camera, etc. in wide horizontal screen. Z P.1-7 Touchpad Use Touchpad to select items, move cursor or scroll page . Z P.1-23 Yahoo! Keitai Access Mobile Internet sites via Yahoo! Keitai to browse sites or download files. Z P.15-2 Graphic Mail Create HTML messages; select font color/size, background; insert images . Z P.14-5 Phone Book/ S! Addressbook Back-up Save Phone Book entries; back up handset entries on Server , etc. Z P.4-1, P.4-10 Camera/Video Capture still images or record videos with appro x. 8.1 mega pixel camer a. Set Image stabilizer/F ace detection for high-quality pictures and videos . Z P.6-6, P.6-7 PC Site Browser View PC-based websites on handset. Z P.15-5 Data Back-up/Management Transfer data between handset and PC for back-up and editing. Z P.11-16 v Wi-Fi Use wireless LAN (Wi-Fi) to connect to home/public access points . Enjoy high speed Internet access or stream media files. Z P.11-11 PC Mail Send/receive messages via PC mail account. Z P.14-24 S! GPS Navi Check your position on map, and navigate to a destination. Z P.17-1 Calendar & Alarm Add events by time/date and set Event Alarms to help manage your schedule . Z P.13-2, P.13-6 S! Information Channel/Weather (Japanese) Subscribe to content and periodically receive update information. Set Weather Indicator to check weather forecast in Standby . Z P.8-2 Music Player Play handset/microSD Card music files. Z P.9-1 Mobile Widget (Japanese) Download and paste widgets to St andby fo r qu ick ac cess to in formation and v arious tools . Z P.7-1 BD/HDD Recorder Save programs recorded on an HDD recorder to microSD and play back on handset. Z P.10-14 Digital TV Enjoy One Seg digital TV programs and video in wide horizontal screen. Osaifu-Keitai ® Use handset as an electronic cash card, rew ard card or membership card. Z P.13-9 Bluetooth ® Connect wirelessly to a Bluetooth ® - compatible speak er to enjoy TV in dynamic sound. Z P.11-6 Variety Photo Viewer View still images in Horizontal Open Position. Slideshows are a…

Text truncated - open the document above for the full version.

6 6-1 Camera Before Using Camera ............................................6-2 Image File Formats .....................................................................6-2 Notes .........................................................................................6-2 Camera ......................................................................................6-3 Camera Display Indicators ...........................................................6-4 Pictures/Videos .....................................................6-6 Capturing Still Images (Camera Mode) ........................................6-6 Recording Videos (V ideo Camer a Mode) ......................................6-7 Functions Available while Shooting .............................................6-7 Focus Functions ..................................................6-11 Changing Focus Settings ...........................................................6-11 Auto F ocus Lock .......................................................................6-12 Viewing Saved Images .......................................6-12 Camera 6-2 6 Before Using Camera 942P features approximately 8.1 Mega Pixel CMOS Auto-focus Camera capable of capturing still images and videos. ⿟ Use Variety Photo Viewer ( Z P.10-24) for viewing still images or slideshow. Image File Formats Still images/videos are saved to Data Folder. Image TypeFile FormatSave Location Still imagesJPEG (.jpg)Data Folder (Pictures) Videos MPEG-4 (.3gp), ASF (.asf) Data Folder (Videos) ⿟ To save to microSD Card, change Storage setting ( Z P.18-17, P.18-18). Notes ⿟ Remove dust/debris from lens cover with a soft cloth. ⿟ Handset movement may blur images especially in dark places; hold handset firmly . ⿟ Capturing/saving images immediately after handset has been left in a hot place may affect image quality . ⿟ Exposing lens to direct sunlight may affect image quality. ⿟ While Camera is active, Photo light illuminates or flashes. Photo light cannot be turned off . Shutter Click Shutter click sounds at fixed volume even in Manner Mode. ⿟ To change shutter click sound: Z P.18-17, P.18-18 Camera 6-3 6 Camera Press in Standby to activate Camera. Press and hold to activate Video Camera. Use Flash when shooting in dark locations. Note ⿟ Alternatively, to activate Camera: ・ From Main Menu 4 Camera 4 Camera or Video Camera ・ Press and hold ・ Open handset to Horizontal Open Position from Standby (Horizontal View: Z P.18-14) ⿟ Camera is not available when battery is low. ⿟ Incoming calls, Alarm and low battery cancel Camera. Captured images/ recorded videos are retained. Save data when Camer a restarts . ⿟ When left in Viewfinder for three minutes, Camera is canceled and previous window returns . Camera 6-4 6 Camera Display Indicators ⿟ Images shown below are for reference only. ■ Camera Mode ■ Video Camera Mode ❶❺ ❻ ❾       ❸❹     ❼ ❽ ❷ ❽ ❾      ❷❸ ❺       ❻  ❶ ❼     ❸❺ ❾ ❷❶   ❽   ❻     ❾  ❻  ❽❺  ❸❹❷❶  ❼❼ 6-5 Camera 6 ItemDescriptionOperation ❶ Photo mode ( Z P.6-9) Intelligent Auto Normal Scene My original set. (For Scene/My original set., indicators may vary depending on setting.) Press and hold A [] 7 Select a mode ( 7 For Scene/My original set., select an item) ❷ CHG Camera-mode Camera mode Video camera mode / / Action mode (Auto/ Auto br acket/Manual) (Cont. shooting set.: Z P.6-6) [Video/Cont./Camera] ⿟ Toggle Action mode ( Z P.6-10) ❸ Storage setting Phone microSD Card ❹ No. of framesShow number of remaining frames— ❺ Img. stabilizerCorrect camera shake( Z P.18-17, P.18-18) ❻ Flash setting (Still image) Auto Forced ON Always light ON Forced OFF Photo light setting (Action/Video) ON OFF ❼ Key GuidanceShow key operation guidance— ❽ Top indicatorIndicate vertical direction— ❾ Focus Guide Auto focus guide AF tracking guide—  Auto shutter 1 ( Z P.6-7) Love shutter (Sweetheart) Love shutter (Friends) Group shutter (Group) H  Zoom barIndicate zoom level ( Z P.6-8)/zoom in/out ⿟ Long press: continuous zoom  Image size 2 Show image size ( Z P.6-8) 7 Select a size  Image quality 2 Normal Fine Super fine 7 Select a mode  High sensitiv. 2 ON OFF 7 Select ON/OFF  Brightness 2 Adjust brightness (Level -3 to +3) 7 Select a level  White balance 2 Auto Fine Cloudy Light bulb Fluorescent light 7 Select a mode  Scene 2 Portr ait Sports Food Scenery Night mode Backlight Character Snow Sunset Pet 7 Select a scene  Focus 2 ( Z P.6-11) Face Detection Auto Close-up Landscape AF tracking 7 Select a mode  Auto timer( Z P.6-7) 7 Toggle ON/OFF  Memory capacity barIndicate memory status (appears in red when memory is full)—  File size setting Mail restrict'n(S) Mail restrict’n(L) Long time( Z P.18-18)  Movie type setRecord video without audio( Z P.18-18)  Recordable timeIndicate recordable time— 1 Key Guidance appears when Photo mode is set to Intelligent Auto and Auto shutter is not set. 2 Alternatively, A [ ] 7 to highlight an item 7 to select a setting Camera 6-6 6 Pictures/Videos ⿟ Confirm battery strength ( Z P.1-11) and memory ( Z P.18-17, P.18-18) before recording. When battery is low , video cannot be recorded. ⿟ Captured images and videos are automatically saved to Data Folder. To select save location each time , turn Auto save set to OFF ( Z P.18-17, P.18-18). ⿟ Operation descriptions are based on Portrait View. Note ⿟ For capturing images by , press firmly. Capturing Still Images (Camera Mode) 1 or press and hold Picture Viewfinder appears. 2 Frame subject Picture Viewfinder 3 [Record], or to capture the image Shutter click sounds at fixed volume. Image is automatically saved. ⿟ When Focus is set to Face Detection, Auto or AF tracking, Camera automatically focuses on subject before capturing image . 4 L to exit Return to Standby. Continuous Shooting Capture a succession of up to 20 still images automatically with a single press. ⿟ Number of captured images differs depending on image size and Continuous shooting setting ( Z P .6-10). 1 In Picture …

Text truncated - open the document above for the full version.

16 16-1 S! Appli Before Using S! Appli .........................................16-2 Downloading S! Appli ...............................................................16-2 Using S! Appli .....................................................16-3 Activating S! Appli ....................................................................16-3 Terminate/Suspend & Resume ...................................................16-3 Using S! Appli Startup History ...................................................16-3 Managing Applications .............................................................16-4 S! Appli 16-2 16 Before Using S! Appli S! Appli are Java™-based applications designed to run on SoftBank handsets. Download games and other real-time applications for use on handset. ⿟ Separate subscription required to use downloaded applications (not required for pre-installed S! Appli). ⿟ For usage on pre-installed applications, see Help menu for each S! Appli. Note ⿟ For more information, visit SOFTBANK MOBILE Corp. Website (http://www.softbank.jp). Network S! Appli Network S! Appli requires Network connection. ⿟ Connection fees apply. ■ License Information ＞ Main Menu 4 S! Appli 4 Information Downloading S! Appli Download up to 100 S! Appli files to handset/microSD Card. ⿟ End suspended S! Appli if any. However, S! Appli may not be ended during calls . Main Menu 4 S! Appli 4 S! Appli List 1 Download S! Appli 7 YES Handset connects to the Network, and download site appears. 2 Select an S! Appli Properties appear. 3 Follow onscreen instructions 4 Select a save location Downloaded S! Appli is saved to Data Folder automatically. ⿟ Download may take some time. 5 YES to activate Downloaded S! Appli starts. ⿟ To exit: NO ■ Download Lifestyle-Appli ＞ Main Menu 4 Tools or S! Appli 4 Osaifu-Keitai 4 Lifestyle-Appli 4 Download 4 YES 4 Select a Lifestyle-Appli ⿟ Lifestyle-Appli: Z P.13-10 S! Appli 16-3 16 Using S! Appli Activating S! Appli Main Menu 4 S! Appli 4 S! Appli List 1 Select an S! Appli Application starts and appears. ⿟ See application Help menu for usage information. ⿟ Confirmation appears when selecting Network S! Appli. ⿟ For a microSD Card S! Appli, press [microSD] before Step 1. Note ⿟ Activate an S! Appli; Main Menu 4 Data Folder 4 S! Appli 4 Select an S! Appli ⿟ Incoming transmissions pause S! Appli. ⿟ AV output compatible applications may be viewed on a TV set ( Z P.11-18). Tip Settings ● Volume ● Backlight On/Off ● Deactivate Vibration ● Update S! Appli Information on microSD Card from Another Ha ndset ( Z P. 18-26) Terminate/Suspend & Resume Terminating/Pausing S! Appli 1 While running an S! Appli, L 2 Suspended or Stopped appears for a suspended application. Resuming/Terminating Paused S! Appli Main Menu 4 S! Appli 4 S! Appli List 1 Replayed or Stopped Resumed application starts from paused point. Using S! Appli Startup History Main Menu 4 S! Appli 4 S! Appli History 1 Highlight a record 7 S [Menu] 7 Start, S! Appli info or Delete S! Appli 16-4 16 Managing Applications Moving S! Appli between Handset and microSD Card Main Menu 4 S! Appli 4 S! Appli List 1 Highlight an S! Appli 7 S [Menu] 7 Move to microSD or Move to phone ⿟ Some S! Appli may not be moved to microSD Card. Deleting S! Appli Main Menu 4 S! Appli 4 S! Appli List 1 Highlight an S! Appli 7 S [Menu] 7 Delete 7 YES ⿟ Some pre-installed S! Appli may not be deleted. Viewing S! Appli Properties Main Menu 4 S! Appli 4 S! Appli List 1 Highlight an S! Appli 7 S [Menu] 7 S! Appli info Setting Security Level while Running S! Appli ⿟ Security Level cannot be set for some applications. Main Menu 4 S! Appli 4 S! Appli List 1 Highlight an S! Appli 7 S [Menu] 7 Security level 2 Select an item (See below) ItemOperation/Description Network Access Connect to the Network Auto Invocation Activ ate S! Appli Multimedia Recording Activ ate Camer a Data Reading Access Read data in Data F older Data Rewrtng Accss Write/delete data in Data F older Location Access Retrieve Location information 3 Always Allowed, Ask First Time*, Ask Every Time or Not Allowed * Confirmation appears the first time application is activated. ■ Reset Security Level Settings Reset security level settings to default or condition when downloading. ＞ In Step 2, Reset Sec. Setting 7 YES 17-1 17 S! GPS Navi About S! GPS Navi ..............................................17-2 Using S! GPS Navi...............................................17-2 Checking Your Current Position .................................................17-2 Activating Navi Appli ................................................................17-3 Using Location Navi (J apanese) .................................................17-3 Using Location Log ...................................................................17-3 17-2 S! GPS Navi 17 About S! GPS Navi S! GPS Navi provides location information by communicating with base stations and by GPS satellite. Check your position on map, area information or route to your destination using a Navi Appli. Note ⿟ Location information may be inaccurate due to location or signal conditions. ⿟ SoftBank is not liable for any resulting damages. ⿟ Position cannot be determined while Positioning Lock is active ( Z P.18-27). ⿟ For more information, visit SOFTBANK MOBILE Corp. Website (http://www.softbank.jp). Using S! GPS Navi Checking Your Current Position Activate Navi Appli to check your position. Main Menu 4 Tools 4 S! GPS Navi 1 Current Location 7 YES Positioning starts. ⿟ To check your current position during positioning: When [Use] appears at lower right, S 7 OK 2 When positioning is complete, [Map] 7 YES Handset connects to the Network and web page opens. ⿟ To reposition: A [Retry] ■ Save to Phone Book Save obtained location information to Phone Book. ＞ Positioning is complete 7 S [Menu] 7 Add to Phone Book 7 YES 7 Follow the steps for saving to Phone Book ( Z From Step 2 on P.4-5) Indicating Positioning Accuracy Level Accuracy Level ...Fairly accurate Accuracy Level ...Re…

Text truncated - open the document above for the full version.

19-20 Appendix 19 19-21 Appendix 19

19-22 Appendix 19

Appendix 19-23 19 19-24 Appendix 19 Weather Indicator List ⿟ Indicators and categories are subject to change without prior notice . Weather Clear (day) Clear (night) Cloudy Rain Snow Thunderstorm – Precipitation 0%-100% Later Occasionally Pollen Level Low Moderate High Very High Cherry Blossom Blossoms Opening Near Full Bloom Peak Bloom Past Peak Fall Foliage No Color Moderate Color Peak Color Past Peak UV Level Low Moderate High Very High Typhoon Formed Approaching Severe Other Information Heavy Rain Strong Winds Notifications Appendix 19-25 19 Memory List Data Folder Up to 3500 items/up to 300 MB (Including pre-installed data) ⿟ Shared with S! Appli List (One S! Appli corresponds up to 6 MB .) Calendar EventsUp to 1000 items Phone BookUp to 1000 items Messaging Incoming MailUp to 3000 items Sent/UnsentUp to 1000 items ⿟ Combined total of SMS, S! Mail and PC Mail Internet Saved Pages [Yahoo! Keitai] Up to 20 items/750KB [PC Site Browser/Direct Browser] Up to 20 items/1150KB Bookmarks [Yahoo! Keitai] Up to 100 items [PC Site Browser/Direct Browser] Up to 100 items URL History [Yahoo! Keitai] URL Entry: Up to 20 items URL Access: Up to 100 items* [PC Site Browser/Direct Browser] URL Entry: Up to 20 items URL Access: Up to 100 items* Cache [Yahoo! Keitai] 750KB [PC Site Browser/Direct Browser] 1150KB * The number of sav able items v aries depending on URL length. Appendix 19-26 19 Specifications 942P Weight (including battery)XXX g* Dimensions (closed)51 x 114 x 119 mm* Standby Time 3G600 hours* GSM350 hours* Talk Time 3G220 minutes* Video Call140 minutes* GSM230 minutes* TV Reception Time Normal Mode3.4 hours* ECO Mode4.7 hours* Charging Time AC Charger130 minutes* In-Car Charger130 minutes* Maximum Output 3G0.25 W GSM2.0 W * Approximate value ⿟ Values above were calculated with battery installed. ⿟ Charging time is an average measured within temperatures of 5°C to 35°C. ⿟ Talk Time is an average measured with a new, fully charged battery, with stable signals. ⿟ Standby Time is an average measured with a new, fully charged battery, with handset closed without calls or operations, in Standby with stable signals. ⿟ TV-Reception Time is an average measured using Earphone Microphone, with stable signals. ⿟ Talk Time and Standby Time may vary by environment (battery status, temperature, etc.). ⿟ Talk Time and Standby Time may decrease when an S! Appli is active. Battery Voltage3.7 V Battery TypeLithium-ion Capacity800 mAh Dimensions37 x 5.4 x 37 mm* * Approximate v alue Desktop Holder Input Voltage/CurrentDC 5.4 V/700 mA Output Voltage/CurrentDC 5.4 V/700 mA Charging Temperature5°C to 35°C Dimensions66 x 24 x 128 mm* * Approximate v alue ⿟ Specifications subject to change without notice. 19-27 Appendix 19 Index Numerics 3G .........................................................2-10 B Back Light Display ..............................................18-5 S! Appli ...........................................18-26 Video Calls ........................................2-12 Background Music ..................................9-7 Backup microSD Car d ..................................10-21 S! Addr ess Back-up ..........................4-10 Bar Code Reader .................................13-15 Basic Operations Handset ..................................................x Internet ............................................15-6 Battery ..................................................1-13 Battery Level ......................1-11, 1-12, 1-14 BD/DVD Recorder................................10-14 Blogging .................................................8-7 Bluetooth ® ............................................11-6 Bluetooth ® Passkey ...............................11-8 Bookmarks ............................................15-8 Books folder .........................................10-3 BookSurfing ® ..........................................8-6 Brightness Back Light .........................................18-5 Camera ...............................................6-5 External Display ...............................18-6 Video Calls ......................................18-13 Browser (Initializing) ..........................18-25 A AC Charger ...........................................1-16 Access History PC Site Browser ................................15-5 Yahoo! K eitai ....................................15-4 Account Details ...........................1-34, 4-12 Addr ess (Adding/editing/deleting) .......14-8 After-Sales Service .............................19-33 Alarms ..................................................13-6 All Reset .............................................12-14 Alternative Image................................... 2-6 Answer Phone.......................................2-15 Answering Calls Video Calls..........................................2-8 Voice Calls ..........................................2-5 Attachments Adding ..............................................14-8 Deleting ............................................14-8 Opening/saving ..............................14-13 Auto Answer .........................................18-8 Auto Focus Lock ...................................6-12 Auto Save (Camera) ............................18-17 Auto shutter ....................................6-5, 6-7 Auto timer ..............................................6-7 Auto-sort ............................................14-16 AV Output ...........................................11-18 19-28 Appendix 19 C Cache Memory ......................................15-2 Calculator .............................................13-8 Calendar ...............................................13-2 Calendar Events ....................................13-2 Call Barring ...........................................2-20 Call Cost ...............................................18-9 Call Forwar ding ....................................2-17 Call Log .................................................2-13 Show/Hide ..........…

Text truncated - open the document above for the full version.

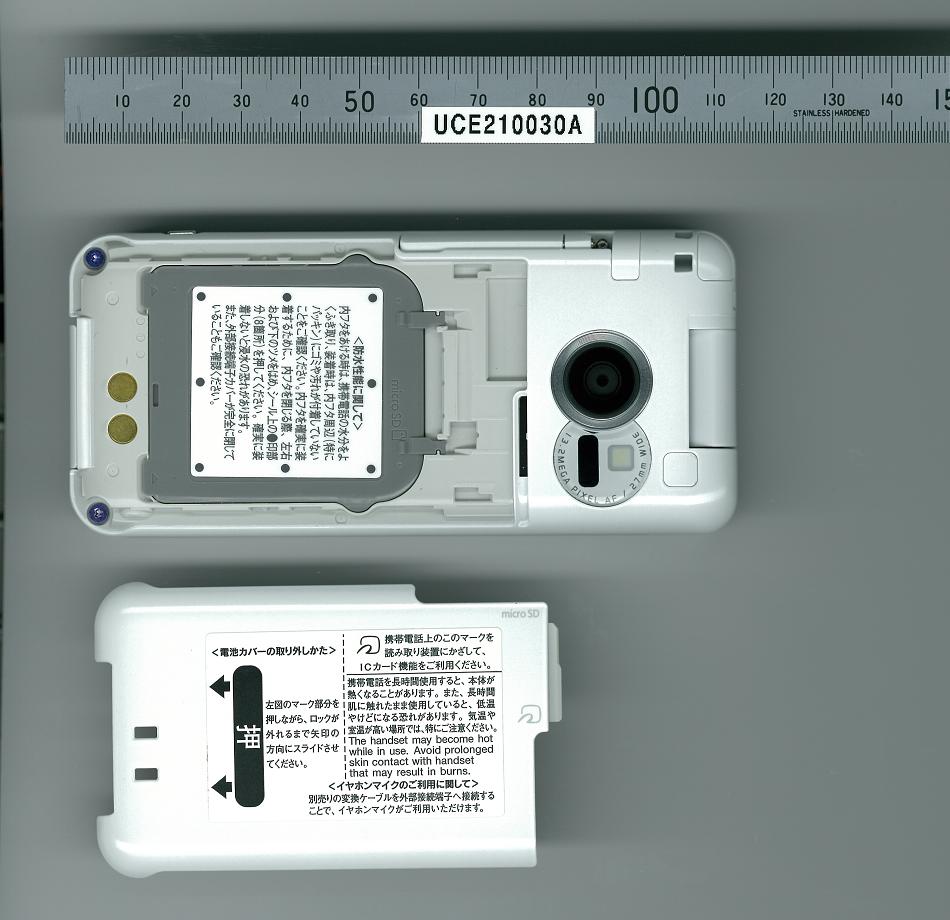

This outline drawing showsthe label in position withinthe battery compartment.The label is visible to theuser at the point of saleprior to fitting the USIM,battery pack and cover.Battery is placed inrear side of the phoneLabel Area :Battery Area : ① Model Name ② Color ③ Commodity Code ④ Operator Name ⑤ ID for JATE ⑥ ID for TELEC ⑦ Production Year & Month ⑧ Bar Code of IMEI ⑨ IMEI (Production Serial Number) 942P FCC ID Label and Location FCC ID:UCE210030A FCC ID label Label location (Rear View) ①③ ⑥ ⑧ ② ④ ⑤ ⑦ ⑨

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: SoftBank 942P To: FCC Part 15.225: 2009 Subpart C Test Report Serial No: RFI-RPT-RP77768JD05A This Test Report Is Issued Under The Authority Of Brian Watson, COO Payments and Consultancy: Checked By: A. Henriques Signature: Date of Issue: 08 June 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 Page 2 of 21 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 RFI Global Services Ltd Page 3 of 21 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 5. Measurements, Examinations and Derived Results ................................................................ 10 6. Measurement Uncertainty .......................................................................................................... 20 Appendix 1. Test Equipment Used ................................................................................................21 TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 Page 4 of 21 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 RFI Global Services Ltd Page 5 of 21 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.225 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart C (Radio Frequency Devices) - Section 15.225 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 15 Subpart B (Radio Frequency Devices) - Sections 15.107 and 15.109 Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 17 May 2010 to 19 May 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109, 15.225(d) Receiver/Idle Mode Radiated Spurious Emissions Part 15.225(a)(b)(c)(d) Transmitter Fundamental Field Strength Part 15.209(a), 15.225(d) Transmitter Radiated Spurious Emissions Part 15.209(a), 15.225(c)(d) Transmitter Band Edge Radiated Emissions Part 2.1049 Transmitter 20 dB Bandwidth Part 15.225(e) Transmitter Frequency Stability (Temperature & Voltage Variation) Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 Page 6 of 21 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: SoftBank Model Name or Number: 942P IMEI Number: 004401220967141 (Radiated Sample) 004401220967158 (Conducted Sample) Hardware Version Number: Rev C Software Version Number: 942PVA15 FCC ID Number: UCE210030A Description: Battery Brand Name: Softbank Model Name or Number: PMBAY1 Description: AC Charger Brand Name: Softbank Model Name or Number: ZTDAA1 Description: DC Charger Brand Name: Softbank Model Name or Number: PMJAA1 Description: USB Data Cable Brand Name: Softbank Model Name or Number: ZTFE01 Description: Personal Hands-Free Brand Name: Softbank Model Name or Number: ZTCK01 Description: Personal Hands-Free Converter Brand Name: Softbank Model Name or Number: PMLAJ1 Description: USB Hub Brand Name: Buffalo Model Name or Number: BSH3U01 TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 RFI Global Services Ltd Page 7 of 21 Description: Micro SD memory card Brand Name: Not Stated Model Name or Number: Not Stated 3.2. Description of EUT The equipment under test was a dual mode cellular mobile telephone with Bluetooth, WLAN and RFID 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP77768JD05A VERSION 1.0 ISSUE DATE: 08 JUNE 2010 Page 8 of 21 RFI Global Services Ltd 3.4…

Text truncated - open the document above for the full version.
