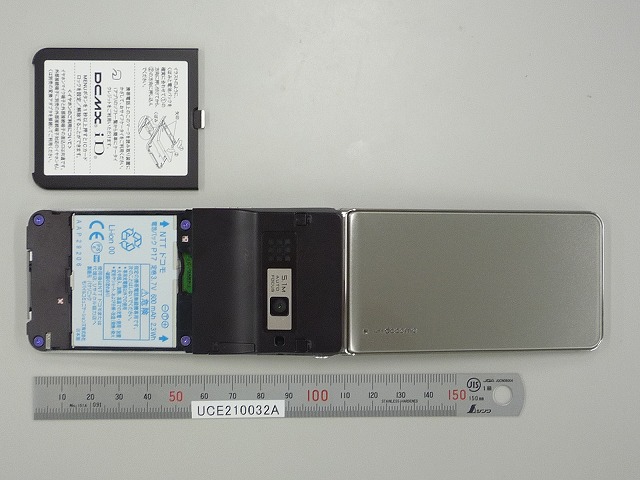

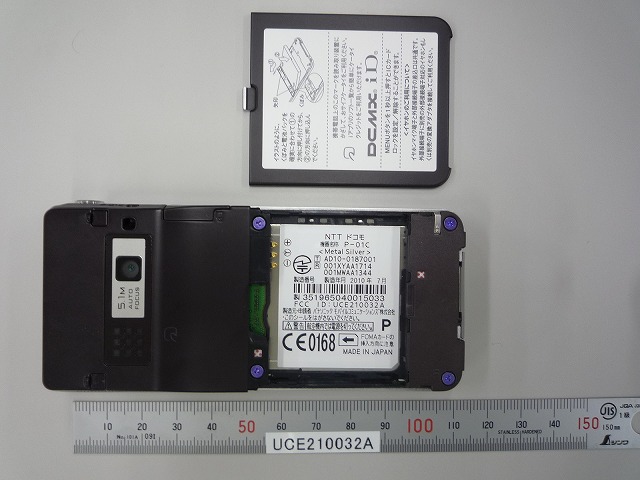

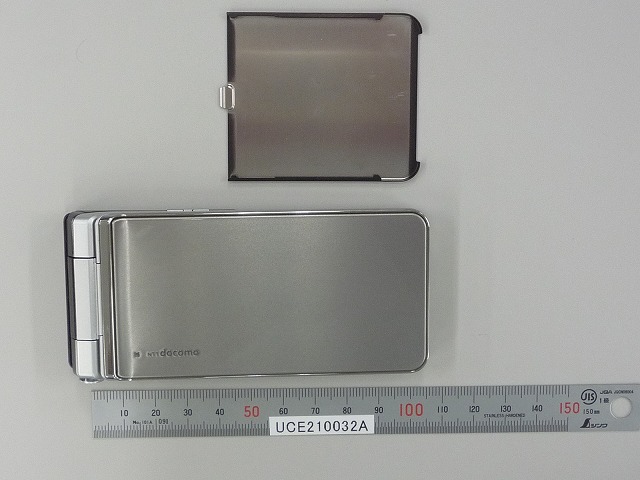

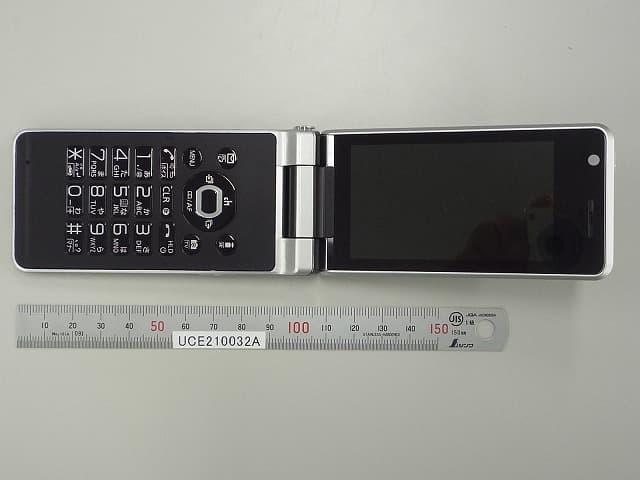

UCE210032AUMTS/ GSM Cellular Mobile with RFID

P-01C INSTRUCTION MANUAL ’10.11 DOCOMO W-CDMA · GSM/GPRS System Thank you for selecting the “docomo SMART series P-01C”. Read this manual before use to correctly operate your P-01C. About manual of P-01C The operating procedures for the P-01C are also published as in “ 使いかたナビ (Guide)” on-screen manual installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) ◆ “Instruction Manual” (this manual) ◆ Description of the displayed content and operating procedures for basic functions ◆ “ 使いかたナビ (Guide)” (installed onto your FOMA terminal) ◆ Description of the outline and operations of frequently used functions From the P-01C +m ▶ LifeKit ▶ 使いかたナビ (Guide) ※ This function is available in Japanese mode only. ◆ “Instruction Manual (Detailed Version)” (PDF) ◆ From a PC, download detailed information about all the functions and the operating procedures. (In Japanese only) http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠ P-01C Handset (With Warranty and Back Cover P46) ⿠ Battery Pack P17 ⿠ Instruction Manual (Japanese version) ⿠ P-01C CD-ROM ⿠ See page 85 for optional items that support this FOMA terminal. For Using This Manual ⿠ Note that “P-01C” is referred to as “FOMA terminal” in this manual. ⿠ Most operating procedures and displays in this manual are shown with the default settings of the “Onyx Black” handset. Further, displays and illustrations shown in this manual are for reference. The actual ones might differ. 1 FOMA Terminal ····································2 What You can Do with P-01C ···············3 Part Names and Functions ··················4 Precautions ··········································6 Handling Precautions ························14 Introduction ▶ P.1 ～ Before Using ·····························17 Charging, Power ON/OFF, etc. Screen Explanation ··················21 Viewing Display/Icon, etc. Character Entry·························27 Sound/Screen Setting ··············29 Select Ring Tone, Changing Displays, etc. Lock/Security ····························35 Various Security Codes, Various Lock Functions, Resetting to Default, etc. Basic Operation ▶ P.17 ～ Call Telephone···························39 Making a Call/Videophone Call, Receiving a Call/Videophone Call, Network Services, WORLD WING, etc. Mail ·············································47 Send i-mode Mail, Deco-mail, Decome-Anime, Receive i-mode Mail, Area Mail, etc. Phonebook ································52 Store Phonebook, Edit Phonebook, Delete Phonebook Connect ▶ P.39 ～ i-mode/Full Browser ·················54 Access Sites, Full Browser, Viewing and Operating Sites, Add Bookmark, Screen Memo, etc. i-Channel ···································57 Search ▶ P.54 ～ Camera ······································58 Shoot Still Images/Moving Pictures, etc. 1Seg ···········································61 Watching 1Seg, etc. Music ·········································65 Music&Video Channel, MUSIC Player, etc. i- α ppli ·········································67 Starting i- α ppli, etc. i-motion/Movie ··························68 Play i-motion/Movie, etc. Enjoy ▶ P.58 ～ Osaifu-Keitai ·····························69 Osaifu-Keitai/ToruCa i-concier ·····································70 Displaying i-concier, etc. Convenient Tools ······················71 Schedule, Alarm, Bar Code Reader Data Management ·····················73 microSD Card, Infrared Communication, iC Communication, PC Connection More Convenient ▶ P.69 ～ Support ······································78 Troubleshooting, Warranty and After-sales Service, i-mode Fault Diagnosis Site, Updating Software, etc. Appendix ···································86 Function List, Main Specifications, SAR, Export Administration Regulations, Intellectual Property Right Index ··········································99 Others ▶ P.78 ～ ※ It is prohibited to copy all or part of this manual without permission. ※ The instructions contained in this manual may be changed without notice. Contents Introduction 2 ⿠ Because the FOMA terminal uses a radio wave, you cannot use it in places where the radio wave do not reach, where it is weak even outdoors, or where are out-of-service area, such as inside tunnels, basements, or buildings. You might not be able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high-rise building or apartment. Note that you may experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠ Use the FOMA terminal carefully to avoid disturbing other people when in public, or in crowded or quiet places. ⿠ Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W-CDMA· GSM/GPRS system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party, because it is recognized as mere noise. ⿠ The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual one. ⿠ The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any representation and warranty as for the security in the use of SSL/TLS. In the event that the user shall sustain damage or loss due to the use of SSL/TLS, neither DOCOMO nor the certifi ers shall be responsible for any such damage or loss. Certifi ers: VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd., and Entrust, Inc., Go Daddy, Inc. ⿠ This FOMA terminal supports FOMA P…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 22 nd September 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE210032A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-01C Schematics.pdf Parts list (BOM) P-01C BOM.pdf Block Diagrams P-01C GSM_UMTS RF Block Diagram.pdf P-01C RFID Block Diagram.pdf Operational Descriptions * P-01C GSM_UMTS RF Product Specification.pdf P-01C RFID Operational Description.pdf Tune up Information P-01C RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR2/RP78574JD11A Supersedes Test Report Serial No: RFI/SAR1/RP78574JD11A This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Scott D'Adamo Report Copy No: PDF01 Issue Date: 21 September 2010 Test Dates: 16 August 2010 to 17 August 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 2 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 3 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ........................................................................ 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results ............................................................................................... 13 7. Measurements, Examinations and Derived Results .................................................... 14 8. Measurement Uncertainty .............................................................................................. 22 Appendix 1. Test Equipment Used .................................................................................... 27 Appendix 2. Measurement Methods ................................................................................. 30 Appendix 3. SAR Distribution Scans ................................................................................ 32 Appendix 4. Photographs .................................................................................................. 51 Appendix 5. Validation of System ..................................................................................... 70 Appendix 6. Simulated Tissues ......................................................................................... 71 Appendix 7. DASY4 System Details .................................................................................. 72 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 4 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 5 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: P-01C Serial Number: None Stated IMEI Number: 351965040007097 Hardware Version Number: REV C Software Version Number: B-D02CS1-00.01.012 D02CS1_Cv20092804 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE210032A Country of Manufacture: None Stated Date of Receipt: 16 August 2010 2.2. Description of EUT The equipment under test was a dual mode cellular mobile telephone with PCS, UMTS FDD V and UMTS Release 5 HSDPA capabilities, incorporating RFID. The Cellular Mobile Telephone operates on PCS / GPRS Class 10 1900 MHz Band, UMTS/UMTS Release 5 HSDPA 850 MHz Band and RFID 13.5 MHz Band. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT during the test. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 6 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Micro-SD Memory Card Brand Name: None Stated Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: not Applicable Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port Description: Personal Hands Free Kit (PHF) Brand Name: NTT docomo Model Name or Number: Stereo Earphone Set 01 Serial Number: None Stated Cable Length and Type: 1.8m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer Description: Battery Brand Name: NTT Model Name or Number: P17 Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port 3 Pin Contact Point RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 7 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Communication Test Set Brand Name: Rohde & Schwarz Model Name or Number: CMU200 Serial Number: 116284 Cable Length and Type: ~2.0 m Utiflex RF cable Connected to Port: RF (Input/Output) Air Link RFI GLOBAL SERVICE…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 70 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900 MHz and 1900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 MHz and 1900 MHz dipole. The applicable verification (normalised to 1 Watt). Date: 16/08/2010 Validation Dipole and Serial Number: D900V2 SN: 124 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 ºC 22.6 ºC ε r 41.50 41.35 -0.37 5.00 σ 0.97 0.94 -3.24 5.00 1g SAR 11.00 10.92 -0.73 5.00 10g SAR 7.06 7.04 -0.28 5.00 Date: 16/08/2010 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.5 ºC ε r 55.00 55.88 1.61 5.00 σ 1.05 1.05 0.12 5.00 Date: 17/08/2010 Validation Dipole and Serial Number: D1900V2 SN: 540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 23.0 ºC 22.5 ºC ε r 40.00 41.23 3.08 5.00 σ 1.40 1.41 0.87 5.00 1g SAR 40.30 40.0 -0.74 5.00 10g SAR 21.10 20.92 -0.85 5.00 Date: 17/08/2010 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 23.0 ºC 22.5 ºC ε r 53.30 53.85 1.04 5.00 σ 1.52 1.59 4.70 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 71 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) Appendix 6. Simulated Tissues The body mixture consists of water and glycol. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient Frequency 1800/1900 MHz Body De-Ionized Water 71.50 Polysorbate 20 (Tween 20) 28.00 Salt 0.50 Ingredient Frequency 1800/1900 MHz Head De-Ionized Water 55.40 Polysorbate 20 (Tween 20) 44.22 Salt 0.38 Ingredient Frequency 835/850/900 MHz Body De-Ionized Water 71.30 Polysorbate 20 (Tween 20) 28.00 Salt 0.70 Ingredient Frequency 835/850/900 MHz Head De-Ionized Water 52.87 Polysorbate 20 (Tween 20) 46.10 Salt 1.03 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 72 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16-bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 73 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:394 PC Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY4 Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP78574JD11A Page: 74 of 74 Issue Date: 21 September 2010 Test of: NTT docomo P-01C To: OET Bulletin 65 Supplement C: (2001-01) DASY4 SAR System Specifications (Continued) E-Field Probe Model: EX3DV3 Serial No: 3508 Construction: Triangular core Frequency: 10 MHz to >6 GHz Linearity: ±0.2 dB (30 MHz to 6 GHz) Probe Length (mm): 330 Probe Diameter (mm): 12 Tip Length (mm): 20 Tip Di…

Text truncated - open the document above for the full version.

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re: FCC ID UCE210032A SAR Report RFI-SAR2-RP78574JD11A Additional information on DASY4 SAR Probe Calibration The version of DASY system used by RFI for SAR measurements is v4.7. The SAR probe for the DASY v4.4 and higher has a validity of +/- 100 MHz from the spot frequency at which the system is calibrated. The SAR probe was calibrated at 750 MHz (covering 650 MHz to 850 MHz) and 900 MHz (covering 800 MHz to 1000 MHz) for the Head tissue with both the 750 MHz and 900 MHz calibration parameters imported on the same data file of the DASY4 system. For GSM850 (head SAR test) the DASY4 v4.7 system uses the conversion factor for 750 MHz calibration as this covers the frequency range of 650 MHz to 850 MHz. The SAR system uses the 900 MHz conversion factor which is valid from 800 MHz to 1000 MHz for the system validation performed at 900 MHz. The 900 MHz validation is applicable for the 850 band as this is within 50 MHz of the of the centre frequency. RFI Global Services Ltd 22 September 2010

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re: FCC ID UCE210032A SAR Report RFI-SAR2-RP78574JD11A Additional explanation of EUT test orientations and SAR scans The DASY 4 system details are in SAR Report Part 3 Appendix 7 (Page 72-74). The “Touch Right” EUT position considerations are explained in SAR Report Part1 Page 11, referring to procedures from your KDB 648474 D01 (KDB Section 5). ie: Some point in the “Touch Right” position could not be fully evaluated, therefore the zoom scan was unable to fully enclose the peak SAR location as required by IEEE 1528 and OET Bulletin 65 Supplement C. This was overcome by the scan being repeated in the Mouth / Jaw configuration on the flat section as per KDB 648474 D01. The DASY system generates the scans and provides a full cube for only the highest SAR point identified for each scan. Other hot spot zoom scans shown on the area scan are not measured by the DASY system as they are not within 2dB of the highest SAR level. This is standard characteristic of the DASY system. (Ref. SAR Report Part 2). Relevant SAR Scans and results are shown in SAR Report Part 1, Appendix 3 (Page 32) contained in “RF Exposure Info” exhibit folder of this filing . All required SAR test orientations are shown in “SAR Report Part 2 Test Set Up” confidential exhibit contained in the “Test Set Up Photos” exhibit folder of this filing. (Ref. SAR Report Part 2 Appendix 4). RFI Global Services Ltd 22 September 2010

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-01C To: FCC Part 22: 2009 Subpart H Test Report Serial No: RFI-RPT-RP78574JD09A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 16 September 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 Page 2 of 34 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 RFI Global Services Ltd Page 3 of 34 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 5. Measurements, Examinations and Derived Results ................................................................ 10 6. Measurement Uncertainty .......................................................................................................... 33 Appendix 1. Test Equipment Used ................................................................................................ 34 TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 Page 4 of 34 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 RFI Global Services Ltd Page 5 of 34 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2009: Part 22 Subpart H (Public Mobile Services) Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 11 August 2010 to 23 August 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107 Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 22.913(a) Transmitter Effective Radiated Power (ERP) Part 2.1046 Transmitter Conducted Average Output Power Note 1 Part 22.355 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 2.1049 Transmitter Occupied Bandwidth Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply Note 1: The measurement was performed to support SAR tests. 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 Page 6 of 34 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT docomo Model Name or Number: P-01C IMEI Number: 351965040007097 (Radiated sample) 351965040007105 (Conducted RF port sample) Hardware Version Number: Rev C Software Version Number: B-D02CS1-00.01.012 D02CS1_Cv20092804 FCC ID Number: UCE210032A Description: Battery Brand Name: NTT docomo Model Name or Number: P17 Description: AC Charger Brand Name: NTT docomo Model Name or Number: FOMA AC Adapter 01 for Global use / MAS-BH0008-A 002 Description: DC Charger Brand Name: NTT docomo Model Name or Number: FOMA DC Adapter 02 Description: Charge/USB Data cable Brand Name: NTT docomo Model Name or Number: FOMA USB Cable with Charge Function 01 Description: Personal Hands-Free Brand Name: NTT docomo Model Name or Number: Stereo Earphone Set 01 TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09A V2.0 VERSION 2.0 ISSUE DATE: 16 SEPTEMBER 2010 RFI Global Services Ltd Page 7 of 34 3.2. Description of EUT The equipment under test was a dual mode UMTS/GSM cellular handset with RFID. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. 3.4. Additional Information Related to Testing Technology Tested: UMTS Type of Radio Device: Transceiver Mode: UMTS FDD V and UMTS Release 5 HSDPA Modulation Type: QPSK Channel Spacing: 5 MHz Power Supply Requirement(s): Nominal 3.7 V Minimum 3.4 V Maximum 4.2 V Maximum Output Power (ERP): Voice (RMC 12.2kbps) 18.9 dBm HSDPA Set 1 19.9 dBm Transmit Frequency Range: 824 MHz to 849 MHz Transmit Channels Tested: Channel ID Channel Number Channel Frequency (MHz) Bottom 4132 826.4 Middle 4182 836.6 Top 4233 846.6 Receive Frequency Range: 869 MHz to 894 MHz Receive Channels Tested: Chan…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-01C To: FCC Part 24: 2009 Subpart E Test Report Serial No: RFI-RPT-RP78574JD09B This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 24 August 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09B VERSION 2.0 ISSUE DATE: 24 AUGUST 2010 Page 2 of 31 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP78574JD09B VERSION 2.0 ISSUE DATE: 24 AUGUST 2010 RFI Global Services Ltd Page 3 of 31 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5…

Text truncated - open the document above for the full version.
