UCE210034AUMTS/ GSM Cellular Mobile with Bluetooth�, WLAN and RFID

P-03C INSTRUCTION MANUAL ’10.11 DOCOMO W-CDMA ・ GSM/GPRS ・ Wireless LAN System Thank you for selecting the “docomo PRIME series P-03C”. Read this manual before use to correctly operate your P-03C. About manual of P-03C The operating procedures for the P-03C are also published as in “ 使いかたガイド (Guide)” on-screen manual installed onto your FOMA terminal, and “Instruction Manual (Detailed Version)” as a PDF. (In Japanese only) ◆ “Instruction Manual” (this manual) ◆ Description of the displayed content and operating procedures for basic functions ◆ “ 使いかたガイド (Guide)” (installed onto your FOMA terminal) ◆ Description of the outline and operations of frequently used functions From the P-03C m ▶ 便利ツール (Tool) ▶ 使いかたガイド (Guide) ※ This function is available in Japanese mode only. ◆ “Instruction Manual (Detailed Version)” (PDF) ◆ From a PC, download detailed information about all the functions and the operating procedures. (In Japanese only) http://www.nttdocomo.co.jp/support/trouble/manual/ download/index.html ※ Note that the URL and published contents may be modified without notice. Basic Package ⿠ P-03C Handset (With Warranty and LUMIX Phone Panel P48) ⿠ See page 95 for optional items that support this FOMA terminal. For Using This Manual ⿠ Note that “P-03C” is referred to as “FOMA terminal” in this manual. ⿠ Most operating procedures and displays in this manual are shown with the default settings of the “BLUE” handset. Further, displays and illustrations shown in this manual are for reference. The actual ones might differ. ⿠ Operating procedures and displays in this manual are mainly explained using key operations. For the functions that can be controlled with both key and touch operations, key operations are preferentially explained in this manual. See page 28 for the instructions on using the touch panel. ⿠ Instruction Manual (Japanese version) ⿠ P-03C CD-ROM ⿠ Battery Pack P20 1 FOMA Terminal ····································2 What You can Do with P-03C ···············3 Part Names and Functions ··················4 Precautions ··········································6 Handling Precautions ························14 Introduction ▶ P.1 ～ Before Using ·····························18 Charging, Power ON/OFF, etc. Screen Explanation ··················23 Viewing Display/Icon, etc. Character Entry·························32 Sound/Screen Setting ··············34 Select Ring Tone, Stand-by Display, etc. Lock/Security ····························40 Various Security Codes, Various Lock Functions, Resetting to Default, etc. Basic Operation ▶ P.18 ～ Call Telephone···························44 Making a Call/Videophone Call, Receiving a Call/Videophone Call, Network Services, WORLD WING, etc. Mail ·············································52 Send i-mode Mail, Deco-mail, Decome-Anime, Receive i-mode Mail, Area Mail, etc. Phonebook ································57 Store Phonebook, Edit Phonebook, Delete Phonebook Connect ▶ P.44 ～ i-mode/Full Browser ·················59 Access Sites, Full Browser, Viewing and Operating Sites, Add Bookmark, Screen Memo, etc. i-Channel ···································62Map/GPS ····································62 Using Auto-GPS Search ▶ P.59 ～ Camera ······································65 Shoot Still Images/Moving Pictures, etc. 1Seg ···········································68 Watching 1Seg, etc. Music ·········································72 Music&Video Channel, MUSIC Player, etc. i- α ppli/i-Widget ·························74 Starting i- α ppli, etc. i-motion/Movie ··························76 Play i-motion/Movie, etc. Enjoy ▶ P.65 ～ Osaifu-Keitai ·····························77 Osaifu-Keitai/ToruCa i-concier ·····································78 Displaying i-concier, etc. Convenient Tools ······················79 Schedule, Alarm, Bluetooth Function, Wi-Fi, Pedometer, Handwriting Photo/Memo, etc. Data Management ·····················83 microSD Card, Infrared Communication, iC Communication, PC Connection More Convenient ▶ P.77 ～ Support ······································88 Troubleshooting, Warranty and After-sales Service, i-mode Fault Diagnosis Site, Updating Software, etc. Appendix ···································96 Function List, Main Specifications, SAR, Export Administration Regulations, Intellectual Property Right Index ········································108 Others ▶ P.88 ～ ※ It is prohibited to copy all or part of this manual without permission. ※ The instructions contained in this manual may be changed without notice. Contents Introduction 2 ⿠ Because the FOMA terminal uses a radio wave, you cannot use it in places where the radio wave do not reach, where it is weak even outdoors, or where are out-of-service area, such as inside tunnels, basements, or buildings. You might not be able to operate the FOMA terminal even when you are in a place with a fi ne view such as in a high-rise building or apartment. Note that you may experience interruption of calls even if the three antennas respond to a strong radio wave, and you remain without moving to use the FOMA terminal. ⿠ Use the FOMA terminal carefully to avoid disturbing other people when in public, or in crowded or quiet places. ⿠ Since the FOMA terminal uses radio waves as the medium of telecommunication, calls may be tapped by a third party. However, the W-CDMA·GSM/GPRS·Wireless LAN system automatically supports tapping prevention, so your conversation will be incomprehensible to the third party, because it is recognized as mere noise. ⿠ The FOMA terminals change your voice into digital signals and send them to the other party. In places where the radio waves are weak, the digital signals may not be converted correctly, and in such a case, the voice may sound different from the actual one. ⿠ The user hereby agrees that the user shall be solely responsible for the result of the use of SSL/TLS. Neither DOCOMO nor the certifi ers as listed herein make any representation and warranty as f…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 28 th October 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE210034A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams P-03C Schematics.pdf Parts list (BOM) P-03C BOM.pdf Block Diagrams P-03C GSM_UMTS RF Block Diagram.pdf P-03C RFID Block Diagram.pdf P-03C BT Block Diagram.pdf P-03C WLAN Block Diagram.pdf Operational Descriptions * P-03C GSM_UMTS RF Product Specification.pdf P-03C RFID Operational Description.pdf P-03C Bluetooth Operational Description.pdf P-03C WLAN Operational Description.pdf Tune up Information P-03C RF Calibration Spec.pdf P-03C WLAN Tune up information.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re FCC ID UCE210034A This is to confirm that the WLAN Test Report exhibit has been superseded due to a small typographical error. The technical information and test data is unaffected and remains the same in the superseded report. The exhibit was available in its original form for less than one day from 03 November 2010. RFI Global Services TCB 04 November 2010

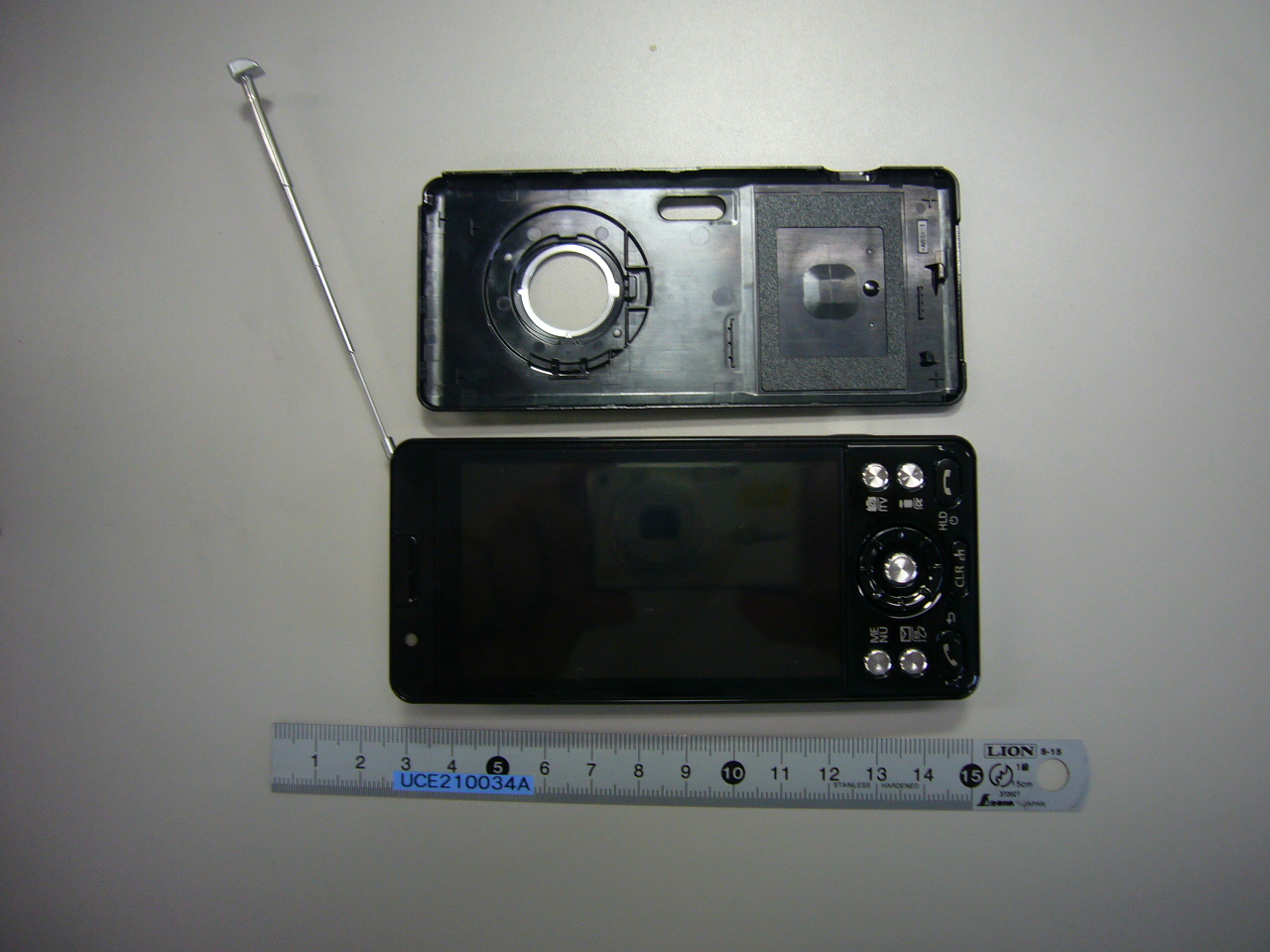

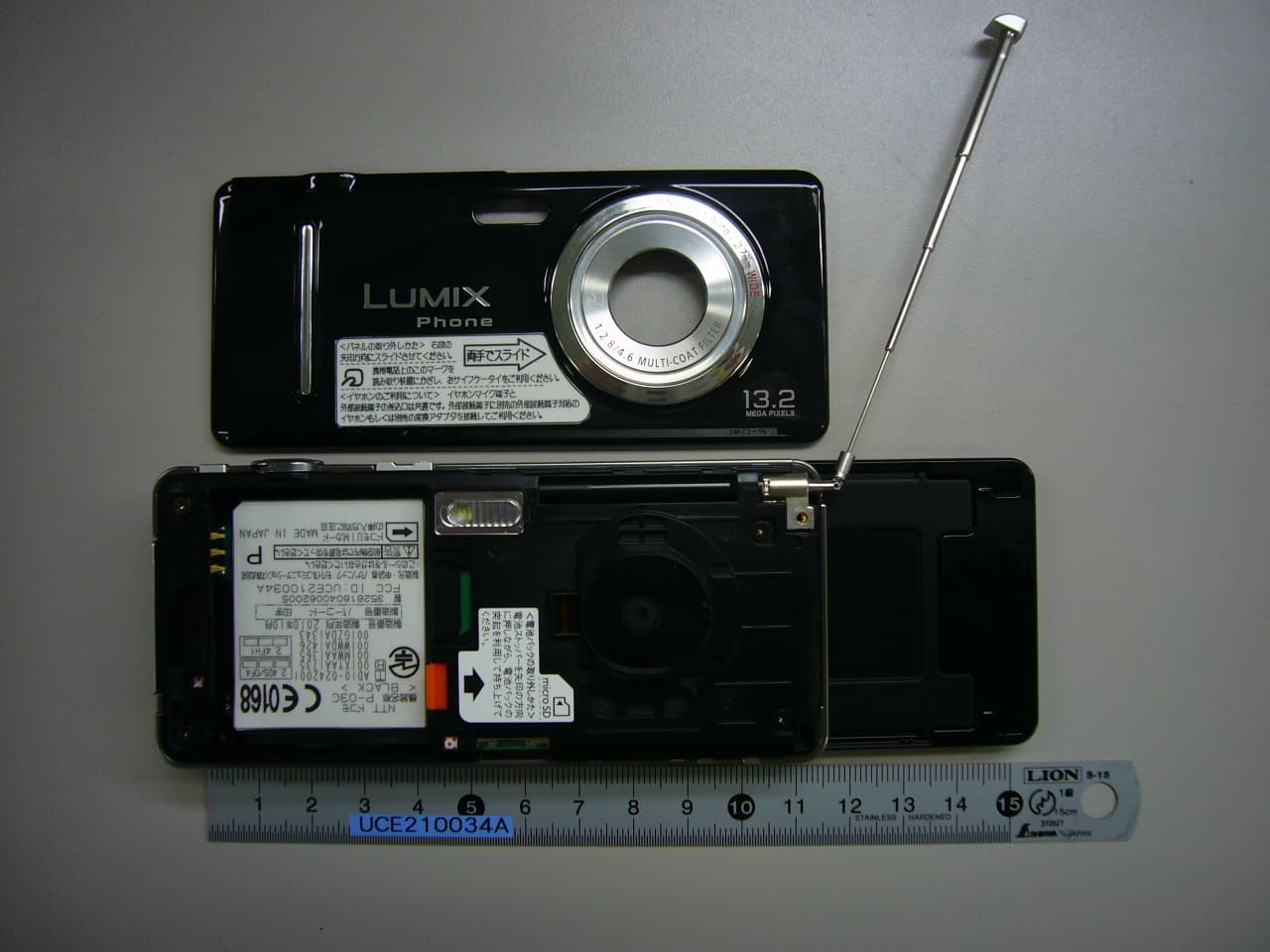

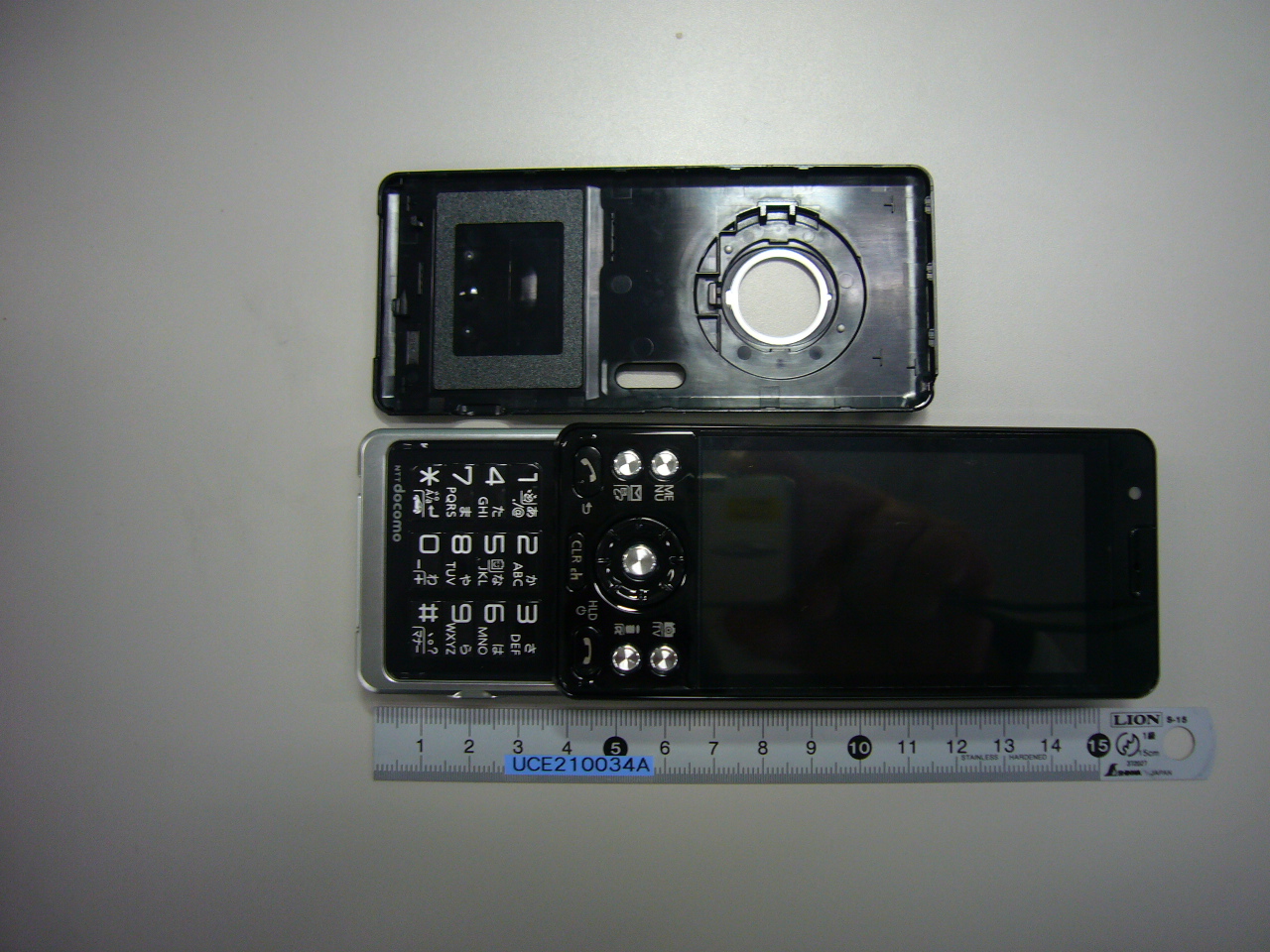

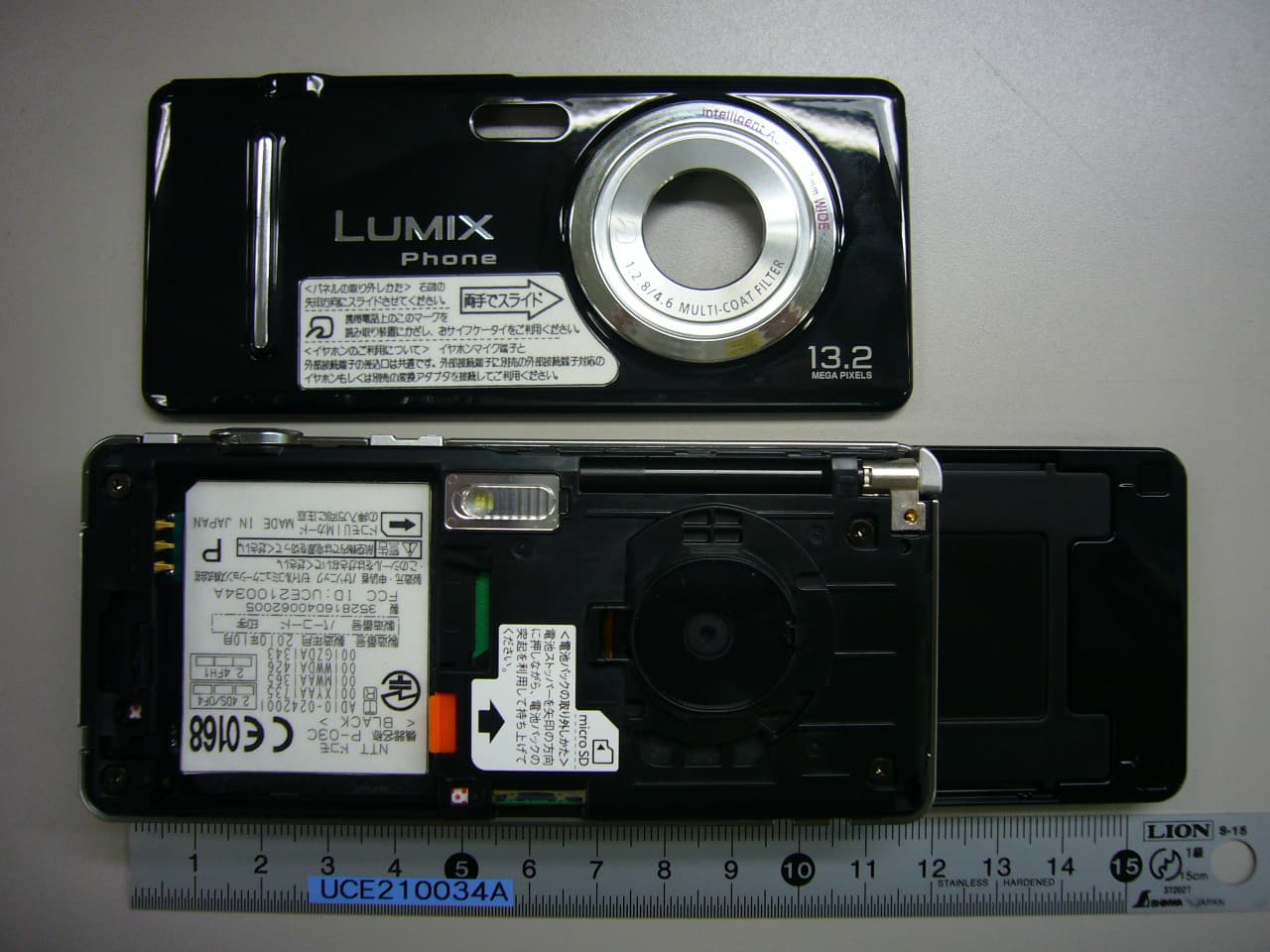

P-03 Ｃ FCC ID Label and -FCC ID Battery Area :Battery is placed inrear side of thephone Label Area :This outline drawingshows the label inposition within thebattery compartment.The label is visible tothe user at the point ofsale prior to fitting theUSIM, battery pack andcover (Rear View) -Label location ① Operator Name ② Model Name ③ Color ④ ID for JATE ⑤ ID for TELEC ⑥ Production Year & Month ⑦ Bar Code of IMEI ⑧ IMEI(Production Serial Number ） FCC ID:UCE210034 A ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR2/RP79094JD19A Supersedes Test Report Serial No: RFI/SAR1/RP79094JD19A This Test Report Is Issued Under The Authority Of Scott D’Adamo, Operations Manager Global Approvals: Checked By: Richelieu Quoi Report Copy No: PDF01 Issue Date: 26 October 2010 Test Dates: 06 October to 11 October 2010 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 2 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) This page has been left intentionally blank. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 3 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) Table of Contents 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures .............................................................. 10 4. Deviations from the Test Specification ........................................................................ 11 5. Operation and Configuration of the EUT during Testing ............................................ 12 6. Summary of Test Results ............................................................................................... 15 7. Measurements, Examinations and Derived Results .................................................... 16 8. Measurement Uncertainty .............................................................................................. 31 Appendix 1. Test Equipment Used .................................................................................... 37 Appendix 2. Measurement Methods ................................................................................. 40 Appendix 3. SAR Distribution Scans ................................................................................ 42 Appendix 4. Photographs ................................................................................................ 112 Appendix 5. Validation of System ................................................................................... 159 Appendix 6. Simulated Tissues ....................................................................................... 161 Appendix 7. DASY4 System Details ................................................................................ 163 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 4 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 5 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: P-03C Serial Number: None Stated (Sample C7) IMEI Number: 352816040059126 Hardware Version Number: Rev C Software Version Number: B-D02SL1-01.04.004 D02SL1_Cv30081110 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE210034A Country of Manufacture: Japan Date of Receipt: 06 October 2010 2.2. Description of EUT The equipment under test was a Dual mode mobile handset operating in the UMTS FDD V, PCS1900, WiFi 2450 bands with Bluetooth and RFID capabilities. The EUT operates on UMTS Release 5 HSDPA 850 MHz Band, GPRS class 10, 802.11b/g and Bluetooth 2400 MHz Band. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT. RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 6 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: NTT Model Name or Number: P20* Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port 3 point contact Description: Personal Hands-Free Brand Name: NTT docomo Model Name or Number: Earphone Set 01 (Stereo) Serial Number: None Stated Cable Length and Type: 1.8m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer Description: Micro-SD Memory Card Brand Name: Generic Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 7 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Serie…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 42 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/79094JD19/001 Touch Left EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/79094JD19/002 Touch Left EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/79094JD19/003 Touch Left EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/79094JD19/004 Touch Left EUT Slide Open With Antenna Extended FDD V CH4183 SCN/79094JD19/005 Tilt Left EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/79094JD19/006 Tilt Left EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/79094JD19/007 Tilt Left EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/79094JD19/008 Tilt Left EUT Slide Open With Antenna Extended FDD V CH4183 SCN/79094JD19/009 Touch Right EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/79094JD19/010 Touch Right EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/79094JD19/011 Touch Right EUT Slide Open With Antenna Retracted FDD V CH4183 SCN/79094JD19/012 Touch Right EUT Slide Open With Antenna Extended FDD V CH4183 SCN/79094JD19/013 Tilt Right EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/79094JD19/014 Tilt Right EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/79094JD19/015 Tilt Right EUT Slide Closed With Antenna Retracted FDD V CH4183 SCN/79094JD19/016 Tilt Right EUT Slide Closed With Antenna Extended FDD V CH4183 SCN/79094JD19/017 Front of EUT Facing Phantom With Slide Closed Antenna Retracted FDD V CH4183 SCN/79094JD19/018 Front of EUT Facing Phantom With Slide Closed Antenna Extended FDD V CH4183 SCN/79094JD19/019 Front of EUT Facing Phantom With Slide Open Antenna Retracted FDD V CH4183 SCN/79094JD19/020 Front of EUT Facing Phantom With Slide Open Antenna Extended FDD V CH4183 SCN/79094JD19/021 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted FDD V CH4183 SCN/79094JD19/022 Rear of EUT Facing Phantom With Slide Closed Antenna Extended FDD V CH4183 SCN/79094JD19/023 Rear of EUT Facing Phantom With Slide Open Antenna Retracted FDD V CH4183 SCN/79094JD19/024 Rear of EUT Facing Phantom With Slide Open Antenna Extended FDD V CH4183 SCN/79094JD19/025 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted FDD V + HSDPA CH4183 SCN/79094JD19/026 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted With PHF FDD V + HSDPA CH4183 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 43 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SAR Distribution Scans (continued) Scan Reference Number Title SCN/79094JD19/027 Touch Left EUT Slide Closed With Antenna Retracted PCS CH660 SCN/79094JD19/028 Touch Left EUT Slide Closed With Antenna Extended PCS CH660 SCN/79094JD19/029 Touch Left EUT Slide Open With Antenna Retracted PCS CH660 SCN/79094JD19/030 Touch Left EUT Slide Open With Antenna Extended PCS CH660 SCN/79094JD19/031 Tilt Left EUT Slide Closed With Antenna Retracted PCS CH660 SCN/79094JD19/032 Tilt Left EUT Slide Closed With Antenna Extended PCS CH660 SCN/79094JD19/033 Tilt Left EUT Slide Open With Antenna Retracted PCS CH660 SCN/79094JD19/034 Tilt Left EUT Slide Open With Antenna Extended PCS CH660 SCN/79094JD19/035 Touch Right EUT Slide Closed With Antenna Retracted PCS CH660 SCN/79094JD19/036 Touch Right EUT Slide Closed With Antenna Extended PCS CH660 SCN/79094JD19/037 Touch Right EUT Slide Open With Antenna Retracted PCS CH660 SCN/79094JD19/038 Touch Right EUT Slide Open With Antenna Extended PCS CH660 SCN/79094JD19/039 Tilt Right EUT Slide Closed With Antenna Retracted PCS CH660 SCN/79094JD19/040 Tilt Right EUT Slide Closed With Antenna Extended PCS CH660 SCN/79094JD19/041 Tilt Right EUT Slide Open With Antenna Retracted PCS CH660 SCN/79094JD19/042 Tilt Right EUT Slide Open With Antenna Extended PCS CH660 SCN/79094JD19/043 Front of EUT Facing Phantom With Slide Closed Antenna Retracted GPRS CH660 SCN/79094JD19/044 Front of EUT Facing Phantom With Slide Closed Antenna Extended GPRS CH660 SCN/79094JD19/045 Front of EUT Facing Phantom With Slide Open Antenna Retracted GPRS CH660 SCN/79094JD19/046 Front of EUT Facing Phantom With Slide Open Antenna Extended GPRS CH660 SCN/79094JD19/047 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted GPRS CH660 SCN/79094JD19/048 Rear of EUT Facing Phantom With Slide Closed Antenna Extended GPRS CH660 SCN/79094JD19/049 Rear of EUT Facing Phantom With Slide Open Antenna Retracted GPRS CH660 SCN/79094JD19/050 Rear of EUT Facing Phantom With Slide Open Antenna Extended GPRS CH660 SCN/79094JD19/051 Front of EUT Facing Phantom With Slide Closed Antenna Extended With PHF GPRS CH660 SCN/79094JD19/052 Front of EUT Facing Phantom With Slide Closed Antenna Extended PCS CH660 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 44 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SAR Distribution Scans (continued) Scan Reference Number Title SCN/79094JD19/053 Front of EUT Facing Phantom With Slide Closed Antenna Retracted WiFi802.11b CH6 1Mbps SCN/79094JD19/054 Front of EUT Facing Phantom With Slide Closed Antenna Extended WiFi 802.11b CH6 1Mbps SCN/79094JD19/055 Front of EUT Facing Phantom With Slide Open Antenna Retracted WiFi 802.11b CH6 1Mbps SCN/79094JD19/056 Front of EUT Facing Phantom With Slide Open Antenna Extended WiFi 802.11b CH6 1Mbps SCN/79094JD19/057 Rear of EUT Facing Phantom With Slide Closed Antenna Retracted WiFi 802.11b CH6 1Mbps SCN/79094JD19/058 Rear of EUT Facing Phantom With Slide Closed Antenna Extended WiFi 802.11b CH6 1Mbps SCN/79094JD19/059 Rear of EUT Facing Phantom With Slide Open Antenna Retracted WiFi 802.11b CH6 1Mbps SCN/79094JD19/06…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 77 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SCN/79094JD19/033: Tilt Left EUT Slide Open With Antenna Retracted PCS CH660 Date 06/10/2010 DUT: Panasonic P-03C; Type: P-03C (Sample C7); Serial: 352816040059126 0 dB = 0.100mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.38 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508 (Add. ConvF); ConvF(8.75, 8.75, 8.75); Calibrated: 15/07/2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/04/2010 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Tilt Left - Middle/Area Scan (61x131x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.105 mW/g Tilt Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.56 V/m; Power Drift = 0.040 dB Peak SAR (extrapolated) = 0.143 W/kg SAR(1 g) = 0.092 mW/g; SAR(10 g) = 0.056 mW/g Maximum value of SAR (measured) = 0.100 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 78 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SCN/79094JD19/034: Tilt Left EUT Slide Open With Antenna Extended PCS CH660 Date 06/10/2010 DUT: Panasonic P-03C; Type: P-03C (Sample C7); Serial: 352816040059126 0 dB = 0.710mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.38 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508 (Add. ConvF); ConvF(8.75, 8.75, 8.75); Calibrated: 15/07/2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/04/2010 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Tilt Left - Middle/Area Scan (61x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.747 mW/g Tilt Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.0 V/m; Power Drift = -0.105 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.652 mW/g; SAR(10 g) = 0.360 mW/g Maximum value of SAR (measured) = 0.710 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 79 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SCN/79094JD19/035: Touch Right EUT Slide Closed With Antenna Retracted PCS CH660 Date 06/10/2010 DUT: Panasonic P-03C; Type: P-03C (Sample C7); Serial: 352816040059126 0 dB = 0.567mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.38 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV3 - SN3508 (Add. ConvF); ConvF(8.75, 8.75, 8.75); Calibrated: 15/07/2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/04/2010 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Right - Middle/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.592 mW/g Touch Right - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = -0.127 dB Peak SAR (extrapolated) = 0.879 W/kg SAR(1 g) = 0.527 mW/g; SAR(10 g) = 0.299 mW/g Maximum value of SAR (measured) = 0.567 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 80 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SCN/79094JD19/036: Touch Right EUT Slide Closed With Antenna Extended PCS CH660 Date 06/10/2010 DUT: Panasonic P-03C; Type: P-03C (Sample C7); Serial: 352816040059126 0 dB = 0.659mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.38 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV3 - SN3508 (Add. ConvF); ConvF(8.75, 8.75, 8.75); Calibrated: 15/07/2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 19/04/2010 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Right - Middle/Area Scan (61x171x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.704 mW/g Touch Right - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.3 V/m; Power Drift = 0.026 dB Peak SAR (extrapolated) = 1.00 W/kg SAR(1 g) = 0.616 mW/g; SAR(10 g) = 0.353 mW/g Maximum value of SAR (measured) = 0.659 mW/g RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 81 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) SCN/79094JD19/037: Touch Right EUT Slide Open With Antenna Retracted PCS CH660 Date 06/10/2010 DUT: Panasonic P-03C; Type: P-03C (Sample C7); Serial: 352816040059126 0 dB = 0.163mW/g Communication System: PCS 1900; Frequency: 1879.8 MHz;Duty Cycle: 1:8.3 Medium: 1900 MHz HSL Medium parameters used (interpolated): f = 1879.8 MHz; σ = 1.38 mho/m; ε r = 39.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV3 - SN3508 (Add. ConvF); ConvF(8.75, 8.75, 8.75)…

Text truncated - open the document above for the full version.

RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 159 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900, 1900 and 2450 MHz dipole were used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the A 900, 1900 and 2450 MHz dipoles. The applicable verification (normalised to 1 Watt). Date: 08/10/2010 Validation Dipole and Serial Number: D900V2 SN:185 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 ºC 22.9 ºC ε r 41.50 40.97 -1.28 5.00 σ 0.97 0.93 -4.31 5.00 1g SAR 11.00 11.00 0.00 5.00 10g SAR 7.06 7.12 0.85 5.00 Date: 10/10/2010 Validation Dipole and Serial Number: D900V2 SN:185 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 23.0 ºC ε r 55.00 54.77 -0.42 5.00 σ 1.05 1.07 1.86 5.00 1g SAR 11.00 11.48 4.36 5.00 10g SAR 7.16 7.44 3.91 5.00 Date: 10/10/2010 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 ºC 23.0 ºC ε r 41.50 41.13 -0.90 5.00 σ 0.97 0.95 -2.06 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 160 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) Date: 06/10/2010 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 23.0 ºC 23.0 ºC ε r 40.00 39.84 -0.39 5.00 σ 1.40 1.40 -0.18 5.00 1g SAR 40.30 39.36 -2.33 5.00 10g SAR 21.10 20.36 -3.51 5.00 Date: 07/10/2010 Validation Dipole and Serial Number: D1900V2:SN:540 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 23.0 ºC 23.0 ºC ε r 40.00 39.84 -0.39 5.00 σ 1.40 1.40 -0.18 5.00 1g SAR 40.30 40.80 1.24 5.00 10g SAR 21.10 21.04 -0.28 5.00 Date: 07/10/2010 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 23.0 ºC 23.7 ºC ε r 53.30 52.05 -2.34 5.00 σ 1.52 1.58 3.83 5.00 Date: 11/10/2010 Validation Dipole and Serial Number: D2450V2:SN:725 Simulant Frequency (MHz) Room Temperature Liquid Temperature Parameters Target Value Measured Value Deviation (%) Limit (%) Body 2450 23.0 ºC 23.0 ºC ε r 52.70 52.47 -0.44 5.00 σ 1.95 1.94 -0.32 5.00 1g SAR 52.20 54.80 4.98 5.00 10g SAR 24.70 25.04 1.38 5.00 RFI GLOBAL SERVICES LTD Test Report Serial No: RFI/SAR2/RP79094JD19A Page: 161 of 165 Issue Date: 26 October 2010 Test of: NTT docomo P-03C To: OET Bulletin 65 Supplement C: (2001-01) Appendix 6. Simulated Tissues Th…

Text truncated - open the document above for the full version.
