UCE210036AUMTS/ GSM Cellular Mobile Radio

002P English User Guide Introduction Thank you for purchasing SoftBank 002P. ◦. . For proper handset use, read User Guide (this guide). ◦ Accessible services may vary by service area, subscription, etc. SoftBank 002P is compatible with both 3G and GSM network technologies. Note ◦. .. Unauthorized copying of any part of this guide is prohibited. ◦ ... Guide content is subject to change without prior notice. ◦ . Efforts have been made to ensure the accuracy and clarity of this guide. Please contact SoftBank Mobile Customer Center, General Information ( Z P.XX-XX) about unclear or missing information. 1-1 Getting Started Getting Started Contents ..........................................................1-1 Package Contents ............................................1-2 Using This Guide ..............................................1-2 USIM Card Installation ....................................1-5 Charging Battery .............................................1-6 Memory Card Installation ................................1-7 Parts & Functions .............................................1-8 Basic Operations ............................................1-10 Display ...........................................................1-11 Function List ..................................................1-13 Handset Security ...........................................1-14 Manner Mode ................................................1-15 Universal Operations, etc. Text Entry .........................................................2-1 Entering Text ....................................................2-2 Editing T ext ......................................................2-4 Calling Emergency Calls ..............................................3-1 Voice Calls .......................................................3-1 Video Calls .......................................................3-4 Optional Services ............................................3-5 Phone Book ...................................................3-10 Contents Messaging Basics ...............................................................4-1 Customizing Handset Address .........................4-2 Sending S! Mail & SMS ....................................4-3 Receiving Messages ........................................4-4 Internet Getting Started ...............................................5-1 Yahoo! Keitai ...................................................5-1 Browsing Using PC Sites ..................................5-2 Internet Settings .............................................5-3 Connectivity Infrared ............................................................6-1 External Device................................................6-3 Camera & Imaging Before Using Camera .......................................7-1 Capturing Still Images .....................................7-4 Recording Videos .............................................7-5 Other Camera Functions ..................................7-5 Others Digital TV .........................................................8-1 Appendix Handset Data Backup ......................................9-1 Software Update .............................................9-2 Tr oubleshooting ...............................................9-3 Safety Precautions ...........................................9-5 Handling Precautions ....................................9-12 Copyrights and Others ...................................9-15 Specific Absorption Rate (SAR) .....................9-17 Specifications ................................................9-19 Support ..........................................................9-19 1-2 Getting Started Package Contents  Handset (002P)  Battery (PMBAS1)  Quick Start Guide (Japanese)  Safety Precautions (Japanese) Note ⿟ Use SoftBank specified AC Charger (sold separately) to charge battery. ⿟ 002P accepts microSD Card (not included). Purchase microSD Card to use related functions . Using This Guide Screenshots Before reading this guide, make a note of the following: ⿟ In this guide, SoftBank 002P English User Guide, SoftBank 002P is abbreviated as 002P . ⿟ “microSD Card” is referred to as “Memory Card” in this guide. ⿟ Sample screenshots, etc. are provided for reference only. Actual handset windows, menus, etc. may differ in appear ance. ⿟ Key icons use simplified labels. ⿟ Most operation descriptions begin in Standby. ⿟ Pressing a key for more than one second is described as “Press and hold.” 1-3 Getting Started Guide Symbols Press the corresponding key to execute the function or operation indicated at the bottom of Display. Example: ⿟ Images shown above are for reference only. Multi Selector Use Multi Selector to select items, navigate menus, etc. In this guide, Multi Selector operations are indicated as shown below. Up Up/Down Up /Down/ Left/Right Down Left Left/RightCenter Right LeftRight Up DownCenter Japanese Functions & Services When “(Japanese)” appears in a title, Japanese ability is required to use full range of the function or service. 1-4 Getting Started Operation Descriptions ⿟ The following examples are for reference only and may differ from actual operations . Basic Operations Operations are expressed as shown here. Example 1: Main Menu 4 Phone 4 Group 1 Highlight a group 7 A [Menu] 7 Rename 7 Enter group name A Menu Selection B Steps A Menu Selection ❶. Press in Standby to open Main Menu. ❷. Use to highlight Phone; then press . ❸. Use to highlight Group; then press . B Steps ❶. Use to highlight a group; then press A [Menu] . ❷. Use to highlight Rename; then press . ❸. Enter Group name. Example 2: C Check Box Selection ❶. Use to highlight an item; then press . changes to . Repeat to select multiple items . ❷. To deselect an item, use to highlight item; then press . Check mark disappears . 1 A 7 Settings 2 Universal Settings 7 Mail Security Setting 3 Enter Phone Password 7 Check items 7 A [OK] C Check Box Selection 1-5 Getting Started USIM Card Instal…

Text truncated - open the document above for the full version.

Panasonic Mobile Communications Development of Europe limited Willoughby Road, Bracknell, Berkshire, RG12 8FP Tel: +44 (0) 1344 862444 Fax: +44 (0) 1344 706796 VAT Reg No. GB787451290 Web: http:Panasonic.net/pmc Registered in England No. 4188880 Panasonic Mobile Communications Development of Europe Limited 16 th December 2010 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: UCE210036A It is requested that the following information is held Confidential on behalf of Panasonic Mobile Communications Development of Europe Ltd., on the confidentiality basis outlined below: 1. Permanent Confidentiality (FCC Rules Part 0.459 refers). Exhibit Category Exhibit Filenames Schematic Diagrams 002P Schematics.pdf Parts list (BOM) 002P BOM.pdf Block Diagrams 002P GSM_UMTS RF Block Diagram.pdf Operational Descriptions * 002P GSM_UMTS RF Production Specification.pdf Tune up Information 002P RF Calibration Spec.pdf The above information contains trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjust benefits to its competitors. The applicant understands that pursuant to rule 0.457d, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. * The Operational Descriptions contain proprietary information relating to the device implementation used. This information is not customarily released to the public. continued........

㽲 Model Name 㽳 Color 㽴 Commodity code 㽵 Production Year & Month 㽶 ID for JATE 㽷 ID for TELEC 㽸 Operator Name 㽹 Bar Code of IMEI 㽺 IMEI (Production Serial Number) Label Area :This outline drawing shows the label in position within the battery compartment. The label is visible to the user at the point of sale prior to fitting the USIM, battery pack and cover.Battery Area :Battery is placed in rear side of the phone 002P/002Pe FCC ID Label and Location FCC ID:UCE210036A -FCC ID label -Label location 㽶 㽲 㽴 㽳 㽷 㽵 㽸 㽹 㽺

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: SoftBank 002P To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approval: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 15 December 2010 Test Dates: 19 November 2010 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 2 of 61 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 3 of 61 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ......................................................................... 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results ............................................................................................... 13 7. Measurements, Examinations and Derived Results .................................................... 14 8. Measurement Uncertainty .............................................................................................. 19 Appendix 1. Test Equipment Used .................................................................................... 22 Appendix 2. Measurement Methods .................................................................................. 25 Appendix 3. SAR Distribution Scans ................................................................................ 27 Appendix 4. Photographs .................................................................................................. 39 Appendix 5. Validation of System ..................................................................................... 57 Appendix 6. Simulated Tissues ......................................................................................... 58 Appendix 7. DASY4 System Details .................................................................................. 59 Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 4 of 61 RFI Global Services Ltd. 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 5 of 61 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: SoftBank 002P Model Name or Number: EB-3228 Serial Number: None Stated (Sample C8) IMEI Number: 004401221024082 Hardware Version Number: Rev D Software Version Number: 002PVA12 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE210036A Country of Manufacture: None Stated Date of Receipt: 19 November 2010 2.2. Description of EUT The equipment under test was a Dual mode mobile handset operating in the PCS1900 bands. The EUT operates on GPRS class 10 Band. 2.3. Modifications Incorporated in the EUT There were no modifications incorporated in the EUT. Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 6 of 61 RFI Global Services Ltd. 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Battery Brand Name: SoftBank Model Name or Number: PMBAS1 Serial Number: None Stated Cable Length and Type: Not Applicable Country of Manufacture: None Stated Connected to Port 3 pin contact Description: Micro-SD Memory Card Brand Name: Generic Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: Not applicable Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port Description: Personal Hands-Free Brand Name: SoftBank Model Name or Number: ZTCK01 Serial Number: None Stated Cable Length and Type: ~1.15 m Country of Manufacture: None Stated Connected to Port Dedicated micro-SD card port Description: Personal Hands-Free Converter Brand Name: SoftBank Model Name or Number: PMLAJ1 Serial Number: None Stated Cable Length and Type: ~0.08 m Country of Manufacture: None Stated Connected to Port Unique to manufacturer Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 7 of 61 RFI Global Services Ltd. 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Series 10 Serial Number: GB46311280 Cable Length and Type: ~4.0m Utiflex Cable Connected to Port: RF (Input / Output) Air Link Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 8 of 61 RFI Global Services Ltd. 2.6. Additional Information Related to Testing Equipment Category PCS1900 Type of Unit Portable Transceiver Intended Operating Environment: Within GSM Coverage Transmitt…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 57 of 61 RFI Global Services Ltd. Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 1900 MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 1900 MHz dipole. The applicable verification (normalised to 1 Watt). Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 23.0 ºC 23.3 ºC ε r 53.30 51.03 -4.26 5.00 σ 1.52 1.58 3.88 5.00 1g SAR 40.90 42.40 3.67 5.00 10g SAR 21.50 21.52 0.09 5.00 Date: 19/11/2010 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 23.0 ºC 22.0ºC ε r 40.00 38.28 -4.30 5.00 σ 1.40 1.37 -1.95 5.00 Date: 19/11/2010 Validation Dipole and Serial Number: D1900V2; SN: 540 Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 58 of 61 RFI Global Services Ltd. Appendix 6. Simulated Tissues The body mixture consists of water and glycol. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient Frequency 1800/1900 MHz Head De-Ionized Water 55.40 Polysorbate 20 (Tween 20) 44.22 Salt 0.38 Ingredient Frequency 1800/1900 MHz Body De-Ionized Water 71.50 Polysorbate 20 (Tween 20) 28.00 Salt 0.50 Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 59 of 61 RFI Global Services Ltd. Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching multiplexer, a fast 16- bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collision detection. The robot uses its own controller with a built in VME-bus computer. Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 60 of 61 RFI Global Services Ltd. A.7.2. DASY4 SAR System Specifications Robot System Positioner: Stäubli Unimation Corp. Robot Model: RX90L Repeatability: 0.025 mm No. of Axis: 6 Serial Number: F00/SD89A1/A/01 Reach: 1185 mm Payload: 3.5 kg Control Unit: CS7 Programming Language: V+ Data Acquisition Electronic (DAE) System Serial Number: DAE3 SN:394 PC Controller PC: Dell Precision 340 Operating System: Windows 2000 Data Card: DASY4 Measurement Server Serial Number: 1080 Data Converter Features: Signal Amplifier, multiplexer, A/D converted and control logic. Software: DASY4 Software Connecting Lines: Optical downlink for data and status info. Optical uplink for commands and clock. PC Interface Card Function: 24 bit (64 MHz) DSP for real time processing Link to DAE3 16 nit A/D converter for surface detection system serial link to robot direct emergency stop output for robot. Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 61 of 61 RFI Global Services Ltd. DASY4 SAR System Specifications (Continued) E-Field Probe Model: EX3DV3 Serial No: 3508 Construction: Triangular core Frequency: 10 MHz to >6 GHz Linearity: ±0.2 dB (30 MHz to 6 GHz) Probe Length (mm): 330 Probe Diameter (mm): 12 Tip Length (mm): 20 Tip Diameter (mm): 2.5 Sensor X Offset (mm): 1 Sensor Y Offset (mm): 1 Sensor Z Offset (mm): 1 Phantom Phantom: SAM Phantom Shell Material: Fibreglass Thickness: 2.0 ±0.1 mm

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re: FCC ID UCE210036A SAR Report RFI/SAR/RP79867JD07A Additional explanation of EUT test orientations and SAR scans The DASY 4 system details are in SAR Report Part 3 Appendix 7 (Page 59-61). Relevant SAR Scans and results are shown in SAR Report Part 1, Appendix 3 (Page 27-61) contained in “RF Exposure Info” exhibit folder of this filing. The DASY system generates the scans and provides a full cube for only the highest SAR point identified for each scan. Other hot spot zoom scans shown on the area scan are not measured by the DASY system as they are not within 2dB of the highest SAR level. This is standard characteristic of the DASY system. (Ref. SAR Report Part 1). All required SAR test orientations are shown in “SAR Report Part 2 Test Set Up” confidential exhibit contained in the “Test Set Up Photos” exhibit folder of this filing. (Ref. SAR Report Part 2 Appendix 4). RFI Global Services Ltd 17 December 2010

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: SoftBank 002P FCC ID: UCE210036A To: FCC Part 24: 2010 Subpart E Test Report Serial No: RFI-RPT-RP79867JD05A This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: A. Henriques Signature: Date of Issue: 02 December 2010 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP79867JD05A VERSION 1.0 ISSUE DATE: 02 DECEMBER 2010 Page 2 of 29 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP79867JD05A VERSION 1.0 ISSUE DATE: 02 DECEMBER 2010 RFI Global Services Ltd Page 3 of 29 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) ....................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ................................................................ 10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Receiver/Idle Mode AC Conducted Spurious Emissions 11 5.2.2. Receiver/Idle Mode Radiated Spurious Emissions 12 5.2.3. Transmitter Effective Isotropic Radiated Power (EIRP) 16 5.2.4. Transmitter Conducted Output Power 17 5.2.5. Transmitter Frequency Stability (Temperature Variation) 18 5.2.6. Transmitter Frequency Stability (Voltage Variation) 20 5.2.7. Transmitter Occupied Bandwidth 21 5.2.8. Transmitter Out of Band Radiated Emissions 23 5.2.9. Transmitter Band Edge Radiated Emissions 26 6. Measurement Uncertainty .......................................................................................................... 28 Appendix 1. Test Equipment Used ................................................................................................ 29 TEST REPORT SERIAL NO: RFI-RPT-RP79867JD05A VERSION 1.0 ISSUE DATE: 02 DECEMBER 2010 Page 4 of 29 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP79867JD05A VERSION 1.0 ISSUE DATE: 02 DECEMBER 2010 RFI Global Services Ltd Page 5 of 29 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 24 Subpart E (Personal Communication Services) Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 25 November 2010 to 28 November 2010 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 15.107(a) Receiver/Idle Mode AC Conducted Spurious Emissions Part 15.109 Receiver/Idle Mode Radiated Spurious Emissions Part 24.232 Transmitter Effective Isotropic Radiated Power (EIRP) Part 2.1046 Transmitter Conducted Output Power Note 1 Parts 2.1055/24.235 Transmitter Frequency Stability (Temperature and Voltage Variation) Part 2.1049 Transmitter Occupied Bandwidth Part 2.1053/24.238 Transmitter Out of Band Radiated Emissions Part 2.1053/24.238 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply Note 1: The measurement was performed to support SAR tests. 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP79867JD05A VERSION 1.0 ISSUE DATE: 02 DECEMBER 2010 Page 6 of 29 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: SoftBank 002P Model Name or Number: EB-3228 IMEI: 004401221024082 (Radiated sample) Hardware Version Number: Rev. D Software Version Number: 002PVA12 FCC ID: UCE210036A Brand Name: SoftBank 002P Model Name or Number: EB-3228 IMEI: 004401221024090 (Conducted RF port sample) Hardware Version Number: Rev. D Software Version Number: 002PVA12 FCC ID: UCE210036A Brand Name: SoftBank Description: Battery Model Name or Number: PMBAS1 Brand Name: SoftBank Description: AC Charger Model Name or Number: ZTDAA1 Brand Name: SoftBank Description: DC Charger Model Name or Number: PMJAA1 Brand Name…

Text truncated - open the document above for the full version.

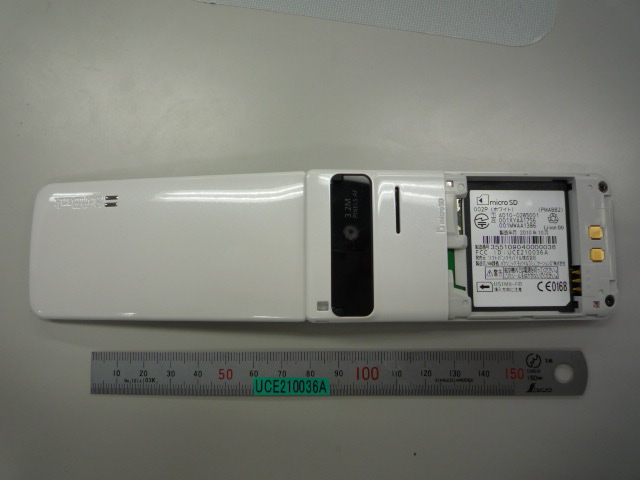

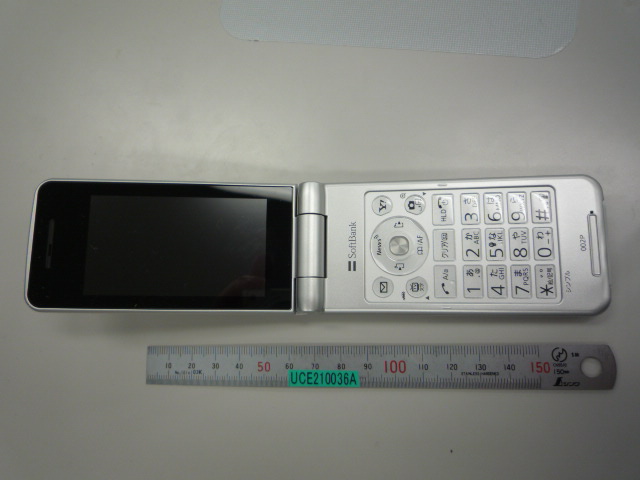

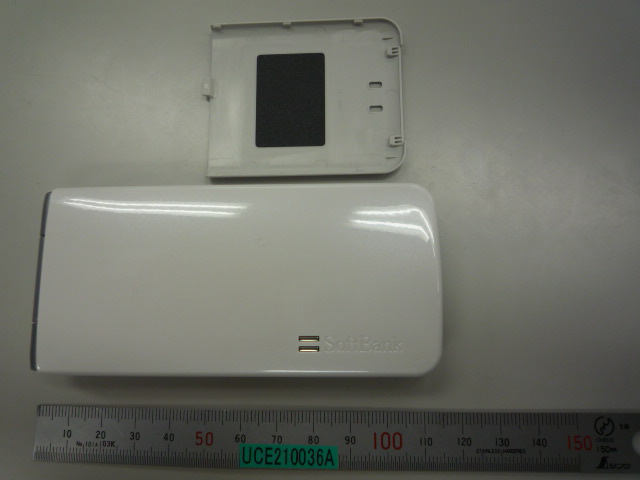

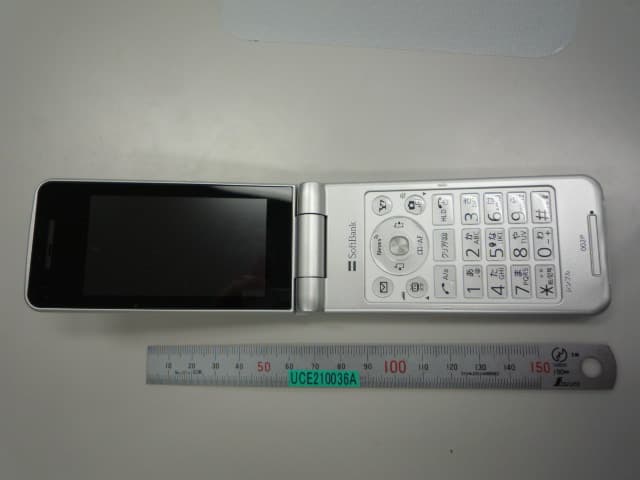

Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 39 of 61 RFI Global Services Ltd. Appendix 4. Photographs This appendix contains the following photographs: Photo Reference Number Title PHT/79867JD07/001 Test configuration for the measurement of Specific Absorption Rate (SAR) PHT/79867JD07/002 Touch Left PHT/79867JD07/003 Tilt Left PHT/79867JD07/004 Touch Right PHT/79867JD07/005 Tilt Right PHT/79867JD07/006 Front of EUT Facing Phantom PHT/79867JD07/007 Rear of EUT Facing Phantom PHT/79867JD07/008 Rear of EUT Facing Phantom with PHF Setup PHT/79867JD07/009 General Setup With PHF PHT/79867JD07/010 Front View of EUT PHT/79867JD07/011 Rear View of EUT PHT/79867JD07/012 Internal View of EUT PHT/79867JD07/013 Battery View PHT/79867JD07/014 PHF PHT/79867JD07/015 PHF Converter PHT/79867JD07/016 1900 MHz Head Fluid Level PHT/79867JD07/017 1900 MHz Body Fluid Level Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 40 of 61 RFI Global Services Ltd. PHT/79867JD07/001: Test configuration for the measurement of Specific Absorption Rate (SAR) Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 41 of 61 RFI Global Services Ltd. PHT/79867JD07/002: Touch Left Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 42 of 61 RFI Global Services Ltd. PHT/79867JD07/003: Tilt Left Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 43 of 61 RFI Global Services Ltd. PHT/79867JD07/004: Touch Right Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 44 of 61 RFI Global Services Ltd. PHT/79867JD07/005: Tilt Right Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 45 of 61 RFI Global Services Ltd. PHT/79867JD07/006: Front of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 46 of 61 RFI Global Services Ltd. PHT/79867JD07/007: Rear of EUT Facing Phantom Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 47 of 61 RFI Global Services Ltd. PHT/79867JD07/008: Rear of EUT Facing Phantom with PHF Setup Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 48 of 61 RFI Global Services Ltd. PHT/79867JD07/009: General Setup With PHF Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 49 of 61 RFI Global Services Ltd. PHT/79867JD07/010: Front View of EUT Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 50 of 61 RFI Global Services Ltd. PHT/79867JD07/011: Rear View of EUT Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 51 of 61 RFI Global Services Ltd. PHT/79867JD07/012: Internal View of EUT Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 52 of 61 RFI Global Services Ltd. PHT/79867JD07/013: Battery View Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 53 of 61 RFI Global Services Ltd. PHT/79867JD07/014: PHF Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 2010 Page: 54 of 61 RFI Global Services Ltd. PHT/79867JD07/015: PHF Converter Test Report Serial No: RFI/SAR/RP79867JD07A V2.0 Version 2.0 Issue Date: 15 December 20…

Text truncated - open the document above for the full version.
