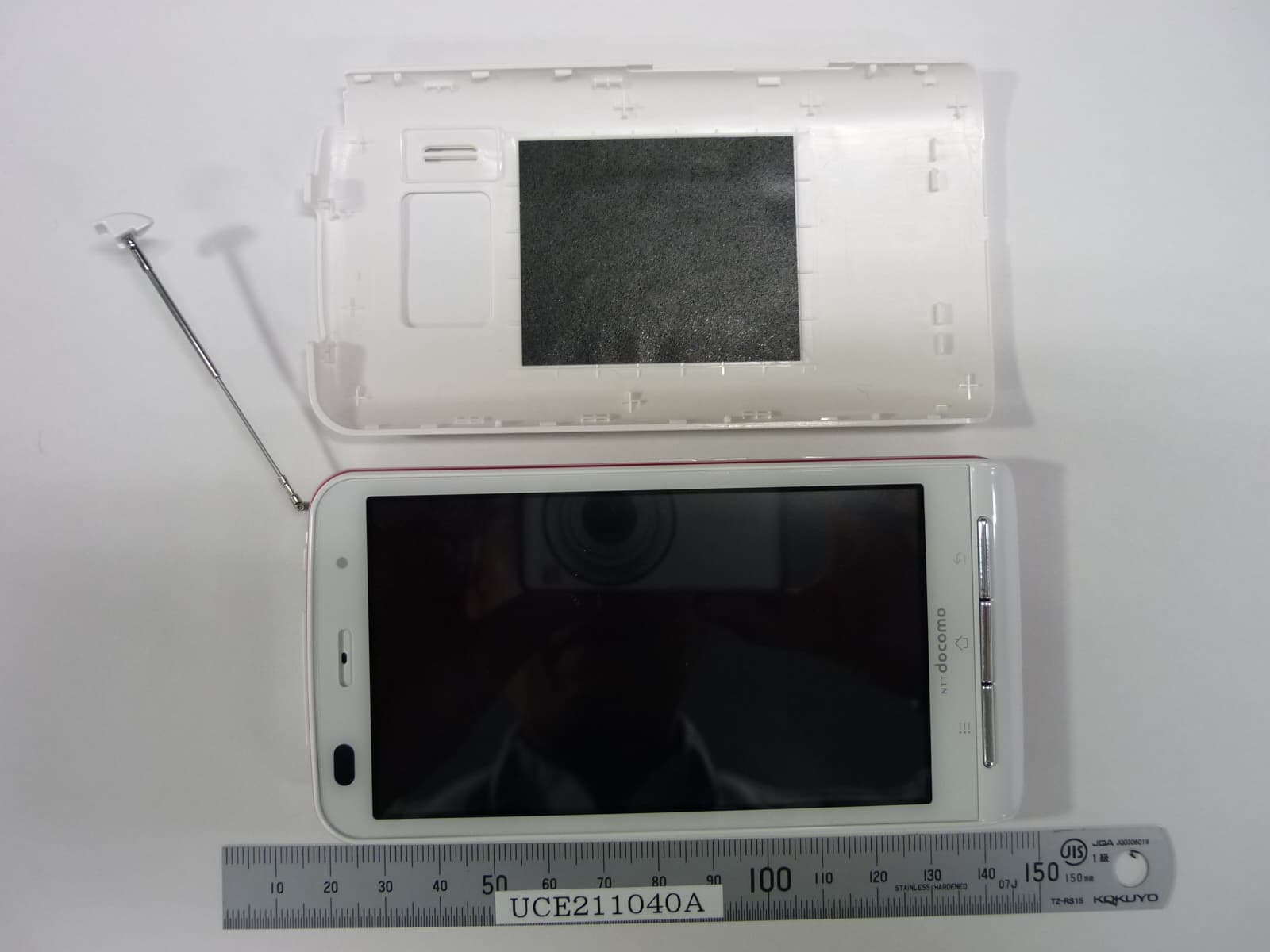

UCE211040AUMTS/ GSM Cellular Mobile with Bluetooth�, and WLAN

P-07C INSTRUCTION MANUAL ISSUE DATE: NAME: PHONE NUMBER: MAIL ADDRESS: Contents/Precautions Preliminary Check Initial Setting Phone/Network Services Various Settings E Mail/Internet Multimedia Data Communication Applications Cross-Border Usages Appendix General Inquiries <docomo Information Center> Repairs From DOCOMO mobile phones (in Japanese only) (No prefix) 151(toll free) Unavailable from land-line phones, etc. Business hours: 9:00 a.m. to 8:00 p.m. (open all year round)Business hours: 24 hours (open all year round) From land-line phones (in Japanese only) 0120-800-000 Unavailable from part of IP phones From DOCOMO mobile phones (in Japanese only) (No prefix) 113(toll free) Unavailable from land-line phones, etc. From land-line phones (in Japanese only) 0120-800-000 Unavailable from part of IP phones Please confirm the phone number before you dial. For Applications or Repairs and After-Sales Service, please contact the above-mentioned information center or the docomo Shop, etc. near you on the NTT DOCOMO website. NTT DOCOMO website http://www.nttdocomo.co.jp/english/ Loss or theft of FOMA terminal or payment of cumulative cost overseas <docomo Information Center> (available 24 hours) Failures encountered overseas <Network Support and Operation Center> (available 24 hours) From DOCOMO mobile phones -81-3-6832-6600* (toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. If you use P-07C, you should dial the number +81-3-6832-6600. (To enter “+”, long-touch [0].) From DOCOMO mobile phones -81-3-6718-1414*(toll free) * You are charged a call fee to Japan when calling from a land-line phone, etc. If you use P-07C, you should dial the number +81-3-6718-1414. (To enter “+”, long-touch [0].) From land-line phones <Universal number> -8000120-0151* * You might be charged a domestic call fee according to the call rate for the country you stay at. For international call access codes for major countries and universal number international prefix, refer to the DOCOMO International Services website. From land-line phones <Universal number> -8005931-8600* * You might be charged a domestic call fee according to the call rate for the country you stay at. For international call access codes for major countries and universal number international prefix, refer to the DOCOMO International Services website. If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal. If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO after returning to Japan. International call access code for the country you stay at International call access code for the country you stay at Universal number international prefix Universal number international prefix When using your mobile phone in a public place, don’t forget to show common courtesy and consideration for others around you. Don’t forget your mobile phone... or your manners! Sales: NTT DOCOMO, INC. Manufacturer: Panasonic Mobile Communications Co., Ltd. ’11.6 P-07C INSTRUCTION MANUAL May ’11 (1st Edition) 3TR100383AAA A0511-1 To prevent damage to the environment, bring used battery packs to a docomo service counter, a docomo agent or a recycle center. P-07C_English_Cover1-4 Access t he fo llo wing fo r checking o r chang ing t he co nt ent s o f yo ur co nt ract , ap p lying t o resp ect ive services, o r asking fo r related documents: My docomo (http://www.mydocomo.com/) (Resp ect ive ap p licat io ns/p ro ced ures) You will need your “docomo ID/password” to access the site. If you do not have or you have forgotten your “docomo ID/password”, contact “General Inquiries” listed on the back page of this manual. You may not be able to access the site depending on the details of your subscription. You may not be able to access the site due to system maintenance, etc. Where use is prohibited Be sure to turn off your FOMA terminal in airplanes and hospitals. Turn off your FOMA terminal in hospital lobbies and waiting rooms as well as in hospital wards, because electronic medical equipment may be in use. Where you may be near to people with implanted cardiac pacemakers or implanted defibrillators, such as in crowded trains The FOMA terminal may adversely affect implanted cardiac pacemakers or implanted defibrillators. Functions for maintaining good manners in public places The FOMA terminal is equipped with useful functions for not answering incoming calls or muting the sound. Public mode (Power Off) ( Z page 54) Guidance is played telling the caller that you cannot answer calls as you are currently in a place where the power should be turned off, and the call is disconnected. Vibration ( Z page 57) Your FOMA terminal vibrates when receiving a call. Silent mode ( Z page 47) Sounds emitted from your FOMA terminal, such as phone ringtone and audible touch tones are muted. Shutter sound is not muted in silent mode. You can also use optional services such as voicemail service ( Z page 51) and call forwarding service ( Z page 52). While driving Using a mobile phone in your hand while driving is subject to punishment. This does not apply in unavoidable circumstances such as helping someone who is sick or injured, or maintaining public safety. In theaters, movie theaters, art museums, and similar venues Using your FOMA terminal in public places where quietness is the norm annoys people around you. Keep your voice down in quiet places such as restaurants and hotel lobbies. When using your FOMA terminal in the street, make sure you do not disturb traffic. Please be considerate of the privacy of individuals around you when shooting and sending photos using camera-equipped mobile phones. Don’t forget your mobile phone... or your manners! When using your FOMA terminal, don’t forget to show common courtesy and consideration for others around you. In the following cases, turn off the power. In the following cases, set Public mode…

Text truncated - open the document above for the full version.

RFI Global Services Ltd Pavilion A, Ashwood Park, Ashwood Way, Basingstoke, Hampshire, RG23 8BG Tel: +44 (0) 1256 312000 Fax: +44 (0) 1256 312001 Email: [email protected] Website: www.rfi-global.com Registered in England and Wales Company number: 2117901 Re: FCC ID: UCE211040A Correction to Listed Tx Power This is to confirm a correction to the listed conducted output power for WLAN operation of FCC ID: UCE211040A grant, issued on 06/08/2011. Tested maximum output power as reported in the filed test report is 22.5dBm (0.18W). A power of 0.018W was listed in the grant, and has been corrected to 0.18W. This is a typographical error correction only. RFI Global Services Ltd 04 July 2011

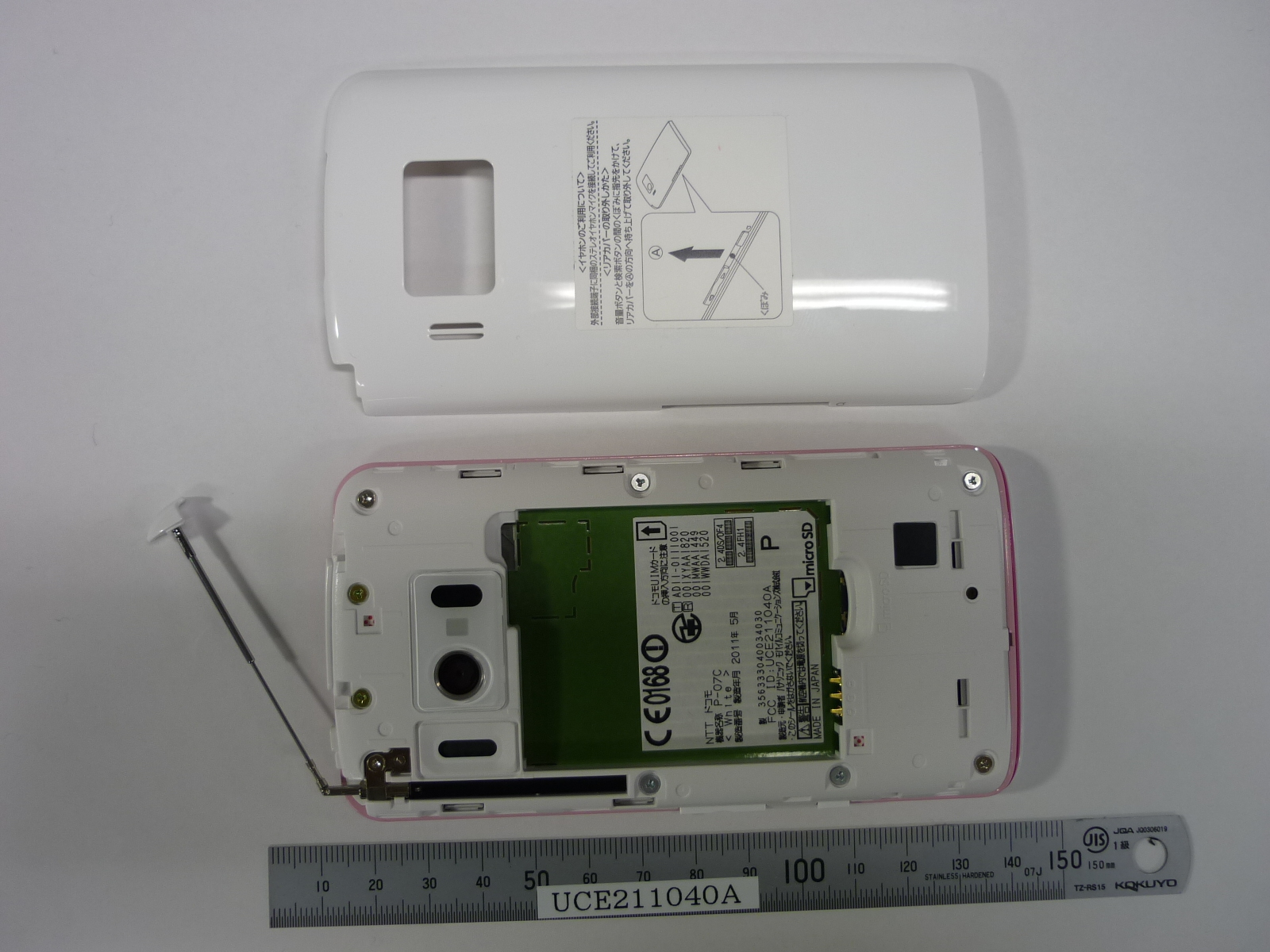

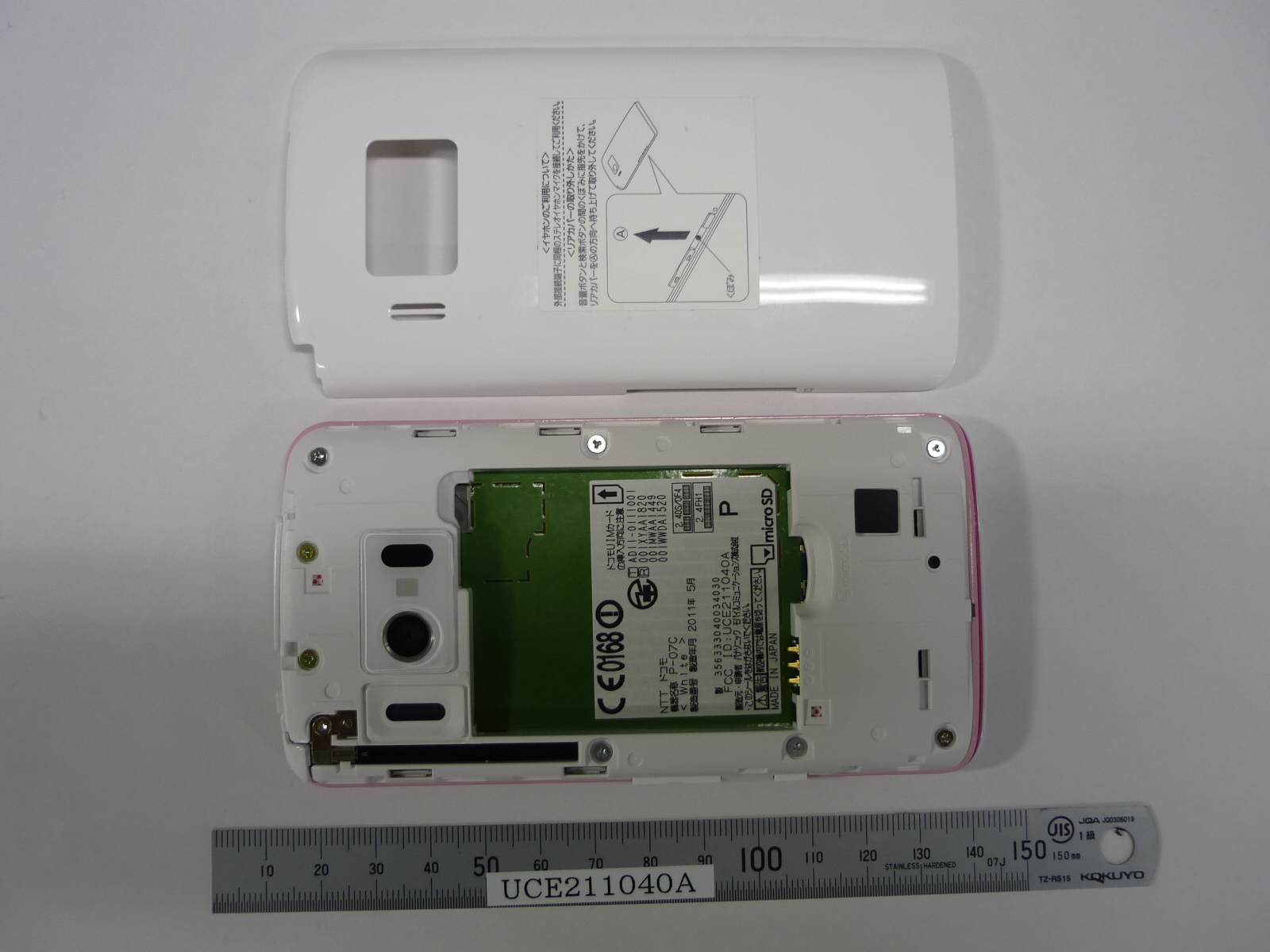

■ ■ P P - - 0 0 7C 7C _FCCID Label and Location FCCID _FCCID Label and Location FCCID ： ： UCE211040A ① Operator Name ② Model Name ③ Color ④ ID for JATE ⑤ ID for TELEC ⑥ Production Year & Month ⑦ Bar Code of IMEI ⑧ IMEI (Production Serial Number) ① ④ ⑤ ⑥ ⑦ -FCC ID label -Label location Battery Area : Battery is placed in rear side of the phone. Label Area : This outline drawing shows the label in position within the battery compartment.The label is visible to the user at the point of sale prior to fitting the USIM, battery pack and cover. (Rear View) ②③ UCE211040A ⑧

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: P-07C To: OET Bulletin 65 Supplement C: (2001-01) Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 supersedes all previous versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 07 June 2011 Test Dates: 28 April to 09 May 2011 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 2 of 215 RFI Global Services Ltd. This page has been left intentionally blank. Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 3 of 215 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures ................................................................ 9 4. Deviations from the Test Specification ......................................................................... 10 5. Operation and Configuration of the EUT during Testing ............................................ 11 6. Summary of Test Results ............................................................................................... 13 7. Measurements, Examinations and Derived Results .................................................... 15 8. Measurement Uncertainty .............................................................................................. 36 Appendix 1. Test Equipment Used .................................................................................... 45 Appendix 2. Measurement Methods .................................................................................. 48 Appendix 3. SAR Distribution Scans ................................................................................ 50 Appendix 4. Photographs ................................................................................................ 166 Appendix 5. Validation of System ................................................................................... 209 Appendix 6. Simulated Tissues ....................................................................................... 212 Appendix 7. DASY4 System Details ................................................................................ 213 Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 4 of 215 RFI Global Services Ltd. 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 5 of 215 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: P-07C Serial Number: Sample C1 IMEI Number: 35 6333040014081 Hardware Version Number: Rev C Software Version Number: A:DCM-07-0249 C:RIE-ECO6-005 Hardware Revision of GSM Module: Not Stated Software Revision of GSM Module: Not Stated FCC ID Number: UCE211040A Country of Manufacture: Japan Date of Receipt: 28 April 2011 2.2. Description of EUT The equipment under test was a Dual-Band mobile handset operating in the GSM850, PCS1900 band, UMTS FDD V and WiFi 2450 band. The EUT supports UMTS FDD V HSDPA Release 5, GPRS class 12, WiFi802.11b/ g and Wireless Personal Hotspot Mode. 2.3. Modifications Incorporated in the EUT There were no modifications during the test period. Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 6 of 215 RFI Global Services Ltd. 2.4. Accessories The following accessories were supplied with the EUT during testing: Description: Personal Hands Free Brand Name: NTT docomo Model Name or Number: P-07C Serial Number: L0ZZ00OOOO27 Cable Length and Type: ~1.8m / multi-core Country of Manufacture: None Stated Connected to Port AV Out Port Unique to Manufacturer 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: Wireless Communication Test Set Brand Name: Agilent Model Name or Number: 8960 Series 10 Serial Number: GB46311280 Cable Length and Type: ~4.0m Utiflex Cable Connected to Port: RF (Input / Output) Air Link Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 7 of 215 RFI Global Services Ltd. 2.6. Additional Information Related to Testing Equipment Category UMTS FDD V / GSM850/GPRS850 / PCS1900/GPRS1900 / WiFi802.11b/g Type of Unit Portable Transceiver Intended Operating Environment: Within UMTS FDD, GSM and WiFi Coverage Transmitter Maximum Output Power Characteristics: UMTS Band V Communication Test Set was configured to allow the EUT to transmit at a maximum power of up to 24dBm. GSM850 Communication Test Set was configured to allow the EUT to transmit at a maximum power of up to 33dBm. PCS1900 Communication Test Set was configured to allow the EUT to transmit at a maximum power of up to 30dBm. WiFi802.11b/g ‘b’ Mode: EUT setup in test mode to allow the EUT to transmit at a maximum power of up to 15dBm. ‘g’ Mode: EUT setup in test mode to allow the EUT to transmit at a maximum power of up to 13dBm. Bluetooth < 2 dBm Transmitter Frequency Range: UMTS Ban…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 50 of 215 RFI Global Services Ltd. Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are included in the total number of pages for this report. Scan Reference Number Title SCN/81533JD05/001 Touch Left Antenna Retracted PCS CH660 SCN/81533JD05/002 Touch Left Antenna Extended PCS CH660 SCN/81533JD05/003 Tilt Left Antenna Retracted PCS CH660 SCN/81533JD05/004 Tilt Left Antenna Extended PCS CH660 SCN/81533JD05/005 Touch Right Antenna Retracted PCS CH660 SCN/81533JD05/006 Touch Right Antenna Extended PCS CH660 SCN/81533JD05/007 Tilt Right Antenna Retracted PCS CH660 SCN/81533JD05/008 Tilt Right Antenna Extended PCS CH660 SCN/81533JD05/009 Touch Left Antenna Extended GPRS CH660 SCN/81533JD05/010 Front of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH660 SCN/81533JD05/011 Front of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH660 SCN/81533JD05/012 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH660 SCN/81533JD05/013 Rear of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH660 SCN/81533JD05/014 Left Hand Side of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH660 SCN/81533JD05/015 Left Hand Side of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH660 SCN/81533JD05/016 Right Hand Side of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH660 SCN/81533JD05/017 Right Hand Side of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH660 SCN/81533JD05/018 Base of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH660 SCN/81533JD05/019 Front of EUT Facing Phantom Antenna Extended Hotspot Mode PCS CH660 SCN/81533JD05/020 Front of EUT Facing Phantom Antenna Extended with PHF Hotspot Mode GPRS CH660 SCN/81533JD05/021 Touch Left Antenna Retracted GSM CH189 SCN/81533JD05/022 Touch Left Antenna Extended GSM CH189 SCN/81533JD05/023 Tilt Left Antenna Retracted GSM CH189 SCN/81533JD05/024 Tilt Left Antenna Extended GSM CH189 SCN/81533JD05/025 Touch Right Antenna Retracted GSM CH189 SCN/81533JD05/026 Touch Right Antenna Extended GSM CH189 SCN/81533JD05/027 Tilt Right Antenna Retracted GSM CH189 SCN/81533JD05/028 Tilt Right Antenna Extended GSM CH189 Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 51 of 215 RFI Global Services Ltd. Scan Reference Number Title SCN/81533JD05/029 Touch Right Antenna Retracted GPRS CH189 SCN/81533JD05/030 Front of EUT facing Phantom Antenna Retracted Hotspot Mode GSM CH189 SCN/81533JD05/031 Front of EUT facing Phantom Antenna Retracted Hotspot Mode GSM CH128 SCN/81533JD05/032 Front of EUT facing Phantom Antenna Retracted Hotspot Mode GSM CH251 SCN/81533JD05/033 Front of EUT facing Phantom Antenna Extended Hotspot Mode GSM CH189 SCN/81533JD05/034 Rear of EUT facing Phantom Antenna Retracted Hotspot Mode GSM CH189 SCN/81533JD05/035 Rear of EUT facing Phantom Antenna Retracted Hotspot Mode GSM CH128 SCN/81533JD05/036 Rear of EUT facing Phantom Antenna Retracted Hotspot Mode GSM CH251 SCN/81533JD05/037 Rear of EUT facing Phantom Antenna Extended Hotspot Mode GSM CH189 SCN/81533JD05/038 Rear of EUT facing Phantom Antenna Extended Hotspot Mode GSM CH128 SCN/81533JD05/039 Rear of EUT facing Phantom Antenna Extended Hotspot Mode GSM CH251 SCN/81533JD05/040 Left Hand Side of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH189 SCN/81533JD05/041 Left Hand Side of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH189 SCN/81533JD05/042 Right Hand Side of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH189 SCN/81533JD05/043 Right Hand Side of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH189 SCN/81533JD05/044 Base of EUT Facing Phantom Antenna Extended Hotspot Mode GPRS CH189 SCN/81533JD05/045 Base of EUT Facing Phantom Antenna Retracted Hotspot Mode GPRS CH189 SCN/81533JD05/046 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode GSM CH189 SCN/81533JD05/047 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode GSM CH128 SCN/81533JD05/048 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode GSM CH251 SCN/81533JD05/049 Rear of EUT Facing Phantom Antenna Retracted with PHF Hotspot Mode GSM CH189 SCN/81533JD05/050 Rear of EUT Facing Phantom Antenna Retracted with PHF Hotspot Mode GSM CH128 SCN/81533JD05/051 Rear of EUT Facing Phantom Antenna Retracted with PHF Hotspot Mode GSM CH251 Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 52 of 215 RFI Global Services Ltd. Scan Reference Number Title SCN/81533JD05/052 Touch Left Antenna Retracted UMTS FDD V CH4183 SCN/81533JD05/053 Touch Left Antenna Extended UMTS FDD V CH4183 SCN/81533JD05/054 Tilt Left Antenna Retracted UMTS FDD V CH4183 SCN/81533JD05/055 Tilt Left Antenna Extended UMTS FDD V CH4183 SCN/81533JD05/056 Touch Right Antenna Retracted UMTS FDD V CH4183 SCN/81533JD05/057 Touch Right Antenna Extended UMTS FDD V CH4183 SCN/81533JD05/058 Tilt Right Antenna Retracted UMTS FDD V CH4183 SCN/81533JD05/059 Tilt Right Antenna Extended UMTS FDD V CH4183 SCN/81533JD05/060 Touch Right Antenna Extended UMTS FDD V + HSDPA CH4183 SCN/81533JD05/061 Front of EUT Facing Phantom Antenna Retracted with PHF Hotspot Mode UMTS FDD V CH4183 SCN/81533JD05/062 Front of EUT Facing Phantom Antenna Extended Hotspot Mode UMTS FDD V CH4183 SCN/81533JD05/063 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode UMTS FDD V CH4183 SCN/81533JD05/064 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode UMTS FDD V CH4132 SCN/81533JD05/065 Rear of EUT Facing Phantom Antenna Retracted Hotspot Mode UMTS FDD V CH4233 SCN/81533JD05/066 Rear of EUT Facing Phantom Antenna Extended Hotspot Mode UMTS FDD V CH4183 SCN/81533JD05/067 Rear of EUT Facing Phantom Antenna Extended Hotspot Mode UMTS FDD V CH4132 SCN/81533JD05/068 Rear of EUT Facing Phantom Antenna Extended Hotspot Mode UMTS FDD V CH4233 SCN/81533JD05/069 Base of EUT Facing Phantom Antenna …

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 104 of 215 RFI Global Services Ltd. SCN/81533JD05/050: Rear of EUT Facing Phantom Antenna Retracted with PHF Hotspot Mode GSM CH128 Date 07/05/2011 DUT: Panasonic Mobile Comms Dev of Europe Ltd; Type: P-07C (Antenna Retracted); Serial: 356333040014081 0 dB = 0.793mW/g Communication System: 850 MHz; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 824.2 MHz; σ = 1.04 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.54, 10.54, 10.54); Calibrated: 15/02/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 09/02/2011 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Rear Of EUT Facing Phantom Antenna Retracted - Middle/Area Scan (121x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.756 mW/g Rear Of EUT Facing Phantom Antenna Retracted - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.7 V/m; Power Drift = -0.115 dB Peak SAR (extrapolated) = 0.900 W/kg SAR(1 g) = 0.699 mW/g; SAR(10 g) = 0.523 mW/g Maximum value of SAR (measured) = 0.793 mW/g Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 105 of 215 RFI Global Services Ltd. SCN/81533JD05/051: Rear of EUT Facing Phantom Antenna Retracted with PHF Hotspot Mode GSM CH251 Date 07/05/2011 DUT: Panasonic Mobile Comms Dev of Europe Ltd; Type: P-07C (Antenna Retracted); Serial: 356333040014081 0 dB = 0.979mW/g Communication System: 850 MHz; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz MSL Medium parameters used (interpolated): f = 848.8 MHz; σ = 1.06 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.27, 10.27, 10.27); Calibrated: 15/02/2011 - Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 09/02/2011 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Rear Of EUT Facing Phantom Antenna Retracted - High/Area Scan (121x181x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.930 mW/g Rear Of EUT Facing Phantom Antenna Retracted - High/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.5 V/m; Power Drift = -0.129 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.860 mW/g; SAR(10 g) = 0.641 mW/g Maximum value of SAR (measured) = 0.979 mW/g Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 106 of 215 RFI Global Services Ltd. SCN/81533JD05/052: Touch Left Antenna Retracted UMTS FDD V CH4183 Date 06/05/2011 DUT: Panasonic Mobile Comms Dev of Europe Ltd; Type: P-07C; Serial: 356333040014081 0 dB = 0.561mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.895 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.73, 10.73, 10.73); Calibrated: 15/02/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 09/02/2011 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle/Area Scan (71x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.554 mW/g Touch Left - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.39 V/m; Power Drift = -0.043 dB Peak SAR (extrapolated) = 0.629 W/kg SAR(1 g) = 0.501 mW/g; SAR(10 g) = 0.380 mW/g Maximum value of SAR (measured) = 0.561 mW/g Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 107 of 215 RFI Global Services Ltd. SCN/81533JD05/053: Touch Left Antenna Extended UMTS FDD V CH4183 Date 06/05/2011 DUT: Panasonic Mobile Comms Dev of Europe Ltd; Type: P-07C; Serial: 356333040014081 0 dB = 0.540mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.895 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(10.73, 10.73, 10.73); Calibrated: 15/02/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn450; Calibrated: 09/02/2011 - Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1207 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left Extended - Middle/Area Scan (71x141x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.537 mW/g Touch Left Extended - Middle/Zoom Scan (5x5x7) (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.83 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 0.608 W/kg SAR(1 g) = 0.484 mW/g; SAR(10 g) = 0.368 mW/g Maximum value of SAR (measured) = 0.540 mW/g Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 108 of 215 RFI Global Services Ltd. SCN/81533JD05/054: Tilt Left Antenna Retracted UMTS FDD V CH4183 Date 06/05/2011 DUT: Panasonic Mobile Comms Dev of Europe Ltd; Type: P-07C; Serial: 356333040014081 0 dB = 0.359mW/g Communication System: UMTS-FDD V; Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.895 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV3 - SN3508; ConvF(…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 209 of 215 RFI Global Services Ltd. Appendix 5. Validation of System Prior to the assessment, the system was verified in the flat region of the phantom. A 900MHz, 1900MHz and a 2450MHz dipole was used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900MHz, 1900MHz and a 245MHz dipole. The applicable verifications were normalised to 1 Watt: Date: 04/05/2011 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 ºC 22.1 ºC ε r 41.50 41.18 -0.77 5.00 σ 0.97 0.93 -4.20 5.00 1g SAR 11.00 11.28 2.55 5.00 10g SAR 7.01 7.28 3.85 5.00 Date: 05/05/2011 Validation Dipole and Serial Number: D900V2; SN: 185 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.2 ºC ε r 55.00 53.47 -2.79 5.00 σ 1.05 1.07 1.72 5.00 1g SAR 11.00 11.00 0.00 5.00 10g SAR 7.16 7.12 -0.56 5.00 Date: 06/05/2011 Validation Dipole and Serial Number: D900V2; SN: 185 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 23.0 ºC 21.8 ºC ε r 41.50 41.75 0.60 5.00 σ 0.97 0.93 -4.12 5.00 1g SAR 11.00 10.60 -3.64 5.00 10g SAR 7.06 6.88 -2.55 5.00 Date: 07/05/2011 Validation Dipole and Serial Number: D900V2; SN: 185 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.2 ºC ε r 55.00 53.96 -1.89 5.00 σ 1.05 1.08 2.60 5.00 1g SAR 11.00 11.40 3.64 5.00 10g SAR 7.16 7.16 0.00 5.00 Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 210 of 215 RFI Global Services Ltd. Date: 08/05/2011 Validation Dipole and Serial Number: D900V2; SN: 185 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.2 ºC ε r 55.00 53.96 -1.89 5.00 σ 1.05 1.08 2.60 5.00 1g SAR 11.00 10.80 -1.82 5.00 10g SAR 7.16 6.88 -3.91 5.00 Date: 09/05/2011 Validation Dipole and Serial Number: D900V2; SN: 185 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.2 ºC ε r 55.00 53.22 -3.24 5.00 σ 1.05 1.07 2.02 5.00 1g SAR 11.00 11.08 0.73 5.00 10g SAR 7.16 7.16 0.00 5.00 Note: The version of DASY system used by RFI for SAR measurements is v4.7. The SAR probe for the DASY v4.4 and higher has a validity of +/- 100 MHz from the spot frequency at which the system is calibrated. The SAR probe was calibrated at 750 MHz (covering 650 MHz to 850 MHz) and 900 MHz (covering 800 MHz to 1000 MHz) for the Head tissue with both the 750 MHz and 900 MHz calibration parameters imported on the same data file of the DASY4 system. For GSM850 (head SAR test) the DASY4 v4.7 system uses the conversion factor for 750 MHz calibration as this covers the frequency range of 650 MHz to 850 MHz. The SAR system uses the 900 MHz conversion factor which is valid from 800 MHz to 1000 MHz for the system validation performed at 900 MHz. The 900 MHz validation is applicable for the 850 band as this is within 50 MHz of the of the centre frequency. Test Report Serial No: RFI/SAR/RP81533JD05A V3.0 Version 3.0 Issue Date: 07 June 2011 Page: 211 of 215 RFI Global Services Ltd. Date: 28/04/2011 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 23.0 ºC 23.0 ºC ε r 40.00 40.19 0.46 5.00 σ 1.40 1.37 -1.98 5.00 1g SAR 40.30 40.80 1.24 5.00 10g SAR 21.00 20.88 -0.57 5.00 Date: 29/04/2011 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 23.0 ºC 22.0 ºC ε r 53.30 52.29 -1.89 5.00 σ 1.52 1.51 -0.47 5.00 1g SAR 40.70 40.40 -0.74 5.00 10g SAR 21.60 20.72 -4.07 5.00 Date: 03/05/2011 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 22.0 ºC 22.8 ºC ε r 53.30 52.79 -0.95 5.00 σ 1.52 1.56 2.71 5.00 1g SAR 40.70 41.60 2.21 5.00 10g SAR 21.60 21.68 0.37 5.00 Date: 08/05/2011 Validation Dipole and Serial Number: D2450V2; SN: 725 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 2450 23.0 ºC 23.2 ºC ε r 39.20 38.43 -1.97 5.00 σ 1.80 1.82 1.29 5.00 1g SAR 52.90 55.20 4.35 5.00 10g SAR 24.70 25.12 1…

Text truncated - open the document above for the full version.
