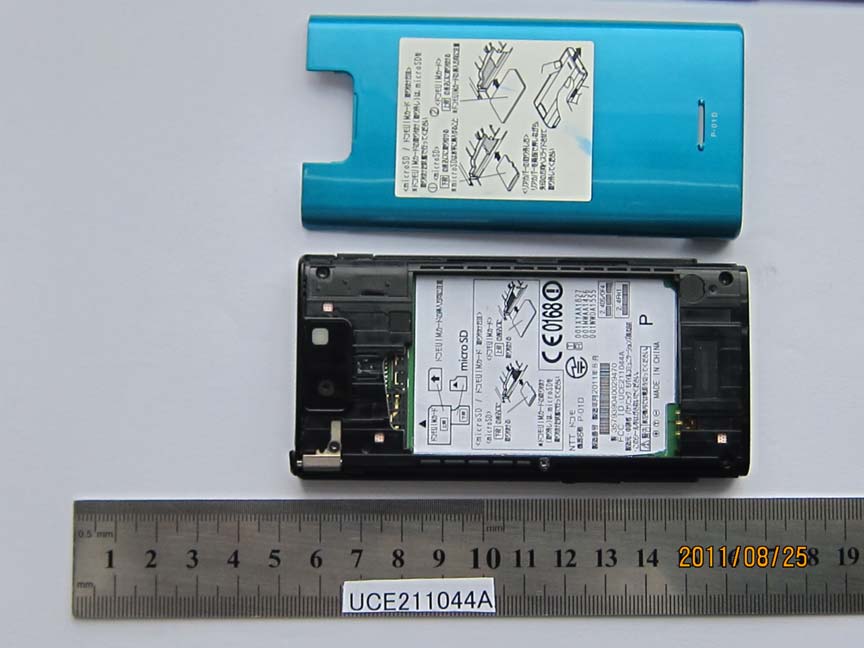

P P - - 01D_FCCID Label and Location FCCID 01D_FCCID Label and Location FCCID ： ： UCE211044A ① Operator Name ② Model Name ③ Color ④ ID for JATE ⑤ ID for TELEC ⑥ Production Year & Month ⑦ Bar Code of IMEI ⑧ IMEI (Production Serial Number) ① ④ ⑤ ⑥ ⑦ -FCC ID label -Label location Battery Area : Battery is placed in rear side of the phone. Label Area : This outline drawing shows the label in position within the battery compartment.The label is visible to the user at the point of sale prior to fitting the USIM, battery pack and cover. (Rear View) ② ③ ⑧

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1108-1469SAR01R3 Page 1 of 142 TESTING No. L2264 OET 65 TEST REPORT Product Name Mobile Phone Model EB-4052 FCC ID UCE211044A Client Panasonic Mobile communications Co.,LTD TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1108-1469SAR01R3 Page 2 of 142 GENERAL SUMMARY Product Name Mobile Phone Model EB-4052 FCC ID UCE211044A Report No. RZA1108-1469SAR01R3 Client Panasonic Mobile communications Co.,LTD Manufacturer Shanghai Sunrise Simcom Limited Reference Standard(s) IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radiofrequency Electromagnetic Fields, 3 kHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 447498 D01 “Mobile Portable RF Exposure v04” KDB 648474 D01 “SAR Handsets Multi Xmiter and Ant v01r05” KDB 941225 D03 “ SAR Test Reduction GSM/GPRS/EDGE v01’’ KDB 941225 D06 "Hot Spot SAR v01" Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards. General Judgment: Pass (Stamp) Date of issue: October 15 th , 2011 Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RZA1108-1469SAR01R3 Page 3 of 142 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report.......................................................................................................5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT................................................................................................................ 7 1.6. The Maximum SAR 1g Values ................................................................................................ 8 1.7. Maximum Conducted Power of each tested Mode................................................................ 9 1.8. Test Date .............................................................................................................................. 9 2. Operational Conditions during Test ............................................................................................ 10 2.1. General Description of Test Procedures............................................................................. 10 2.2. GSM Test Configuration ...................................................................................................... 10 2.3. WCDMA Test Configuration ................................................................................................ 11 2.3.1. Output Power Verification ............................................................................................ 11 2.3.2. Head SAR Measurements ........................................................................................... 11 2.3.3. Body SAR Measurements ........................................................................................... 11 2.4. HSDPA Test Configuration .................................................................................................. 12 2.5. HSUPA Test Configuration .................................................................................................. 14 2.6. Test Positions...................................................................................................................... 16 2.6.1. Against Phantom Head ................................................................................................ 16 2.6.2. Body Worn Configuration............................................................................................. 16 3. SAR Measurements System Configuration ................................................................................ 17 3.1. SAR Measurement Set-up .................................................................................................. 17 3.2. DASY4 E-field Probe System ............................................................................................. 18 3.2.1. EX3DV4 Probe Specification ....................................................................................... 18 3.2.2. E-field Probe Calibration .............................................................................................. 19 3.3. Other Test Equipment .........................................................................................................19 3.3.1. Device Holder for Transmitters .................................................................................... 19 3.3.2. Phantom...................................................................................................................... 20 3.4. Scanning Procedure........................................................................................................... 20 3.5. Data Storage and Evaluation ...................…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT DoCoMo EB-4052 FCC ID: UCE211044A To: FCC Parts 22.913, 22.917, 24.232 and 24.238 Test Report Serial No: RFI-RPT-RP84537JD02A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 20 October 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 Page 2 of 29 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 RFI Global Services Ltd Page 3 of 29 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 Summary of Test Results 6 2.2. Methods and Procedures 6 2.3. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) .................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 9 4. Operation and Monitoring of the EUT during Testing ............................................................10 4.1. Operating Modes 10 4.2. Configuration and Peripherals 10 5. Measurements, Examinations and Derived Results ...............................................................11 5.1. General Comments 11 5.2. Test Results 12 5.2.1. Transmitter Output Power (ERP) 12 5.2.2. Transmitter Out of Band Radiated Emissions 13 5.2.3. Transmitter Radiated Emissions at Band Edges 16 5.2.4. Transmitter Output Power (EIRP) 19 5.2.5. Transmitter Out of Band Radiated Emissions 20 5.2.6. Transmitter Band Edge Radiated Emissions 25 6. Measurement Uncertainty ........................................................................................................28 Appendix 1. Test Equipment Used ..............................................................................................29 TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 Page 4 of 29 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 RFI Global Services Ltd Page 5 of 29 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 22 Subpart H (Public Mobile Services) Specification Reference: 47CFR24 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 24 Subpart E (Personal Communication Services) Site Registration: FCC: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH Test Dates: 11 October 2011 to 14 October 2011 TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 Page 6 of 29 RFI Global Services Ltd Summary of Test Results FCC Reference (47CFR) Measurement Result Part 22 – GSM 850 Band Part 22.913(a) Transmitter Output Power (ERP) Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 Transmitter Band Edge Radiated Emissions Part 24 – GSM 1900 Band Part 24.232 Transmitter Output Power (EIRP) Part 2.1053/24.238 Transmitter Out of Band Radiated Emissions Part 2.1053/24.238 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.2. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards 2.3. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 RFI Global Services Ltd Page 7 of 29 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT DoCoMo Model Name or Number: EB-4052 IMEI: 357939040050427 Hardware Version Number: V2.3 Software Version Number: ACPU: ponyo-ginger-dcm-07-0050 CCPU: M7630A-ABBQMAZM-4.1.3010 V0.36 FCC ID: UCE211044A Description: Battery Brand Name: NTT DoCoMo Model Name or Number: P25 Description: AC Charger with Data Cable Brand Name: NTT DoCoMo Model Name or Number: P01 Description: Personal Hands Free Brand Name: Jabra Model Name or Number: Not Known 3.2. Description of EUT The equipment under test was a dual mode UMTS/GSM cellular handset with Bluetooth and WLAN 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02A VERSION 2.0 ISSUE DATE: 20 OCTOBER 2011 Page 8 of 29 RFI Global Services Ltd 3.4. Additional Information Related to Testing Type of Radio Device: Transceiver Mode: GSM/GPRS Modulation Type: GMSK / 8PSK Channel Spacing: 200 kHz Power Supply Requirement(s): Nominal 3.7 V Technology Tested: GSM850 Maximum Output Power (ERP): GSM 29.9 dBm GPRS 29.9 dBm EGPRS…

Text truncated - open the document above for the full version.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: NTT DoCoMo EB-4052 FCC ID: UCE211044A To: FCC Part 22.913 & 22.917 Test Report Serial No: RFI-RPT-RP84537JD02B V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: Checked By: Ian Watch Signature: Date of Issue: 21 October 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 Page 2 of 27 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 RFI Global Services Ltd Page 3 of 27 Table of Contents 1. Customer Information ................................................................................................................ 4 2. Summary of Testing ................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 5 2.4. Deviations from the Test Specification 5 3. Equipment Under Test (EUT) .................................................................................................... 6 3.1. Identification of Equipment Under Test (EUT) 6 3.2. Description of EUT 6 3.3. Modifications Incorporated in the EUT 6 3.4. Additional Information Related to Testing 7 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................. 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ...............................................................10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Transmitter Effective Radiated Power (ERP) 11 5.2.2. Transmitter Out of Band Radiated Emissions 13 5.2.3. Transmitter Radiated Emissions at Band Edges 16 6. Measurement Uncertainty ........................................................................................................26 Appendix 1. Test Equipment Used ..............................................................................................27 TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 Page 4 of 27 RFI Global Services Ltd 1. Customer Information Company Name: Panasonic Mobile Communications Development of Europe Ltd. Address: Panasonic House Willoughby Road Bracknell Berkshire RG12 8FP United Kingdom TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 RFI Global Services Ltd Page 5 of 27 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR22 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2011: Part 22 Subpart H (Public Mobile Services) Site Registration: 209735 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 11 October 2011 to 14 October 2011 2.2. Summary of Test Results FCC Reference (47CFR) Measurement Result Part 22.913(a) Transmitter Effective Radiated Power (ERP) Part 2.1053/22.917 Transmitter Out of Band Radiated Emissions Part 2.1053/22.917 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply 2.3. Methods and Procedures Reference: ANSI/TIA-603-C-2004 Title: Land Mobile Communications Equipment, Measurements and performance Standards 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 Page 6 of 27 RFI Global Services Ltd 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: NTT DoCoMo Model Name or Number: EB-4052 IMEI: 357939040050427 Hardware Version Number: V2.3 Software Version Number: ACPU: ponyo-ginger-dcm-07-0050 CCPU: M7630A-ABBQMAZM-4.1.3010 V0.36 FCC ID: UCE211044A Brand Name: NTT DoCoMo Description: Battery Model Name or Number: P25 Brand Name: NTT DoCoMo Description: AC Charger Model Name or Number: P01 Brand Name: NTT DoCoMo Description: Charge/USB Data cable Model Name or Number: Not Stated Brand Name: Jabra Description: Personal Hands-Free Model Name or Number: Not Known 3.2. Description of EUT The equipment under test was a dual mode UMTS/GSM cellular handset with Bluetooth and WLAN. 3.3. Modifications Incorporated in the EUT No modifications were applied to the EUT during testing. TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 RFI Global Services Ltd Page 7 of 27 3.4. Additional Information Related to Testing Technology Tested: UMTS Type of Radio Device: Transceiver Mode: UMTS FDD V and 3GPP Rel. 5 HSDPA / Rel. 6 HSUPA Modulation Type: QPSK Channel Spacing: 5 MHz Power Supply Requirement(s): Nominal 3.7 V Maximum Output Power (ERP): Voice (12.2 kbps) 22.8 dBm HSDPA Sub-Test 3 22.9 dBm HSUPA Sub-Test 1 22.3 dBm Transmit Frequency Range: 824 to 849 MHz Transmit Channels Tested: Channel ID Channel Number Channel Frequency (MHz) Bottom 4132 826.4 Middle 4183 836.6 Top 4233 846.6 Receive Frequency Range: 869 to 894 MHz Receive Channels Tested: Channel ID Channel Number Channel Frequency (MHz) Bottom 4357 871.4 Middle 4407 881.6 Top 4458 891.6 TEST REPORT SERIAL NO: RFI-RPT-RP84537JD02B VERSION 2.0 ISSUE DATE: 21 OCTOBER 2011 Page 8 of 27 RFI Global Services Ltd 3.5. Support Equipment The followin…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services(Shanghai) Co., Ltd. 588 West Jindu Road, Songjiang District, Shanghai, China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM110700097308-02 Page 1 of 44 E&E Section Head Project Engineer SGS-CSTC(Shanghai) Co., Ltd. SGS-CSTC(Shanghai) Co., Ltd. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only Member of the SGS Group (Société Générale de Surveillance) PARTIAL TEST REPORT Application No. : SHEM110700097308-02 Applicant: Panasonic Mobile communications Co.,LTD Address: 600 Saedo-cho,Tsuzuki-ku,Yokohama;224-8539,Japan FCC ID: UCE211044A Equipment Under Test (EUT): Product Name: WCDMA Digital Mobile Phone Model Name: EB-4052 Brand Name: NTT DOCOMO Serial number ： D26B729N3351290 Standards: FCC Part 2, 22H & 24E Date of Receipt: Jul 28, 2011 Date of Test: Aug 03, 2011 to Sep 30 ,2011 Date of Issue: Sep 30, 2011 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Please refer to section 2 of this report for further details. SGS-CSTC Standards Technical Services(Shanghai) Co., Ltd. ReportNo.: SHEM110700097308 Page: 2 of 44 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary Description of Test FCC Rules Result 99% Occupied Bandwidth 2.1049(h) Compliant Frequency Stability vs. Temperature and Voltage 2.1055(a)&(d) 22.863 24.235 Compliant Out of Band Emissions at antenna Terminals and Band Edge 2.1051 22.917(a) 24.238(a) Compliant SGS-CSTC Standards Technical Services(Shanghai) Co., Ltd. ReportNo.: SHEM110700097308 Page: 3 of 44 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY................................................…
