UCE212051ADual Mode UMTS / GSM Cellular Mobile Radio with Bluetooth, WLAN and RFID

’12.7 P-07D W W 䂾౏౒䈱႐ᚲ䈪៤Ꮺ㔚⹤䉕䈗೑↪䈱㓙䈲䇮๟࿐䈱ᣇ䈻䈱ᔃ䈒䈳䉍䉕ᔓ䉏䈝䈮䇯 本体付属品／試供品 Q Q Q Q Q Q 目次／注意事項 1 目次 本体付属品／試供品. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 本端末のご利用について. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 安全上のご注意（必ずお守りください）. . . . . . . . . . . . . . . . . . . . . . 6 取り扱い上のご注意. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 防水／防塵性能. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 ご使用前の確認 35 各部の名称と機能. . . . . . . . . . . . . . . . . . 35 ドコモminiUIMカード. . . . . . . . . . . . . . . 36 microSDカード. . . . . . . . . . . . . . . . . . . 38 電池パック. . . . . . . . . . . . . . . . . . . . . . 39 充電. . . . . . . . . . . . . . . . . . . . . . . . . . 40 電源を入れる／切る. . . . . . . . . . . . . . . . 42 基本操作. . . . . . . . . . . . . . . . . . . . . . . . 44 ホーム画面. . . . . . . . . . . . . . . . . . . . . . 46 アプリケーション画面. . . . . . . . . . . . . . . 51 Playストア. . . . . . . . . . . . . . . . . . . . . . 52 文字入力. . . . . . . . . . . . . . . . . . . . . . . . 53 ロック／セキュリティ. . . . . . . . . . . . . . . 54 初期設定 56 初期設定. . . . . . . . . . . . . . . . . . . . . . . . 56 Google アカウント. . . . . . . . . . . . . . . . . 57 アクセスポイントを設定する. . . . . . . . . . 57 Eメール設定. . . . . . . . . . . . . . . . . . . . . 60 SDカードバックアップ. . . . . . . . . . . . . . 60 Wi-Fi. . . . . . . . . . . . . . . . . . . . . . . . . . 62 電話／メール／ウェブブラウ ザ 64 電話. . . . . . . . . . . . . . . . . . . . . . . . . . 64 sp モードメール. . . . . . . . . . . . . . . . . . . 66 メッセージ（SMS）. . . . . . . . . . . . . . . . 66 Eメール. . . . . . . . . . . . . . . . . . . . . . . . 66 Gmail. . . . . . . . . . . . . . . . . . . . . . . . . 67 緊急速報「エリアメール」. . . . . . . . . . . . 67 ウェブブラウザ. . . . . . . . . . . . . . . . . . . 69 本体設定 70 設定メニュー. . . . . . . . . . . . . . . . . . . . . 70 目次／注意事項 2 付録 72 トラブルシューティング（FAQ）. . . . . . . . 72 スマートフォンあんしん遠隔サポート. . . . . 77 端末初期化. . . . . . . . . . . . . . . . . . . . . . 78 保証とアフターサービス. . . . . . . . . . . . . 78 ソフトウェア更新. . . . . . . . . . . . . . . . . . 81 携帯電話機の比吸収率（SAR）. . . . . . . . . 87 European RF Exposure Information. . . . 88 Declaration of Conformity. . . . . . . . . . . 89 FCC Notice. . . . . . . . . . . . . . . . . . . . . . 89 FCC RF Exposure Information. . . . . . . . 90 Important Safety Information. . . . . . . . 91 Handling Precautions. . . . . . . . . . . . . . 92 輸出管理規制. . . . . . . . . . . . . . . . . . . . . 92 知的財産権. . . . . . . . . . . . . . . . . . . . . . 93 SIMロック解除. . . . . . . . . . . . . . . . . . . 97 Quick Manual (English). . . . . . . . . . . . . 97 索引. . . . . . . . . . . . . . . . . . . . . . . . . . 109 目次／注意事項 3 本端末のご利用について • 本端末は、LTE・W-CDMA・GSM ／ GPRS・無線LAN方式に対応してい ます。 • 本端末は無線を使用しているため、トンネル ・地下・建物の中などで電波 の届かない所、屋外でも電波の弱い所、XiサービスエリアおよびFOMAサ ービスエリア外ではご使用になれません。また、高層ビル・マンションな どの高層階で見晴らしのよい場所であってもご使用になれない場合があり ます。なお、電波が強くアンテナマークが4本たっている状態で、移動せ ずに使用している場合でも通話が切れる場合がありますので、ご了承くだ さい。 • 本端末は電波を利用している関係上、第三者により通話を傍受されるケー スもないとはいえません。しかし、LTE ・W-CDMA・GSM ／ GPRS 方式 では秘話機能をすべての通話について自動的にサポートしますので、第三 者が受信機で傍受したとしても、ただの雑音としか聞きとれません。 • 本端末は、音声をデジタル信号に変換して無線による通信を行っているこ とから 、電波状態の悪い所へ移動するなど送信されてきたデジタル信号を 正確に復元することができない場合には、実際の音声と異なって聞こえる 場合があります。 • 本端末は、Xiエリア、FOMAプラスエリアおよびFOMAハイスピードエリ アに対応しております。 • お客様ご自身で本端末に登録された情報内容は、別にメモを取るなどして 保管してくださるようお願いします。 本端末の故障や修理、機種変更やそ の他の取り扱いなどによって、 万が一 、登録された情報内容が消失してし まうことがあっても、当社としては責任を負いかねますのであらかじめご 了承ください。 • 大切なデータはmicroSDカードに保存することをおすすめします。 • 本端末はパソコンなどと同様に、お客様がインストールを行うアプリケー ションなどによっては、お客様の端末の動作が不安定になったり、 お客様 の位置情報や端末に登録された個人情報などがインターネットを経由して 外部に発信され不正に利用される可能性があります 。このため、ご利用に なるアプリケーションなどの提供元および動作状況について十分にご確認 の上ご利用ください。 • 本端末はｉモードのサイト（ 番組 ）への接続、ｉアプリなどには対応して おりません。 • 本端末は、データの同期や最新のソフトウェアバージョンをチェックする ための通信、サーバーとの接続を維持するための通信など一部自動的に通 信を行う仕様となっています。また 、アプリケーションのダウンロードや 動画の視聴などデータ量の大きい通信を行うと、パケット通信料が高額に なりますので、パケット定額サービスのご利用を強くおすすめします。 • 本端末では、マナーモードに設定中でも、 着信音 、操作音、各種通知音以 外の動作音声（カメラのシャッター音など）は消音されません。 • ご利用の端末のソフトウェアバージョンについてはZP.71 目次／注意事項 4 • 本端末は、オペレーティングシステム（OS）のバージョンアップにより 機能が追加されたり、操作方法が変更になったりすることがあります。機 能の追加や操作方法の変更などに関する最新情報は、ドコモのホームペー ジでご確認ください。 • OSをバージョンアップすると、古いバージョンのOSで使用していたアプ リケーションが使えなくなる場合や意図しない不具合が発生する場合があ ります。 • Googleが提供するサービスについては、 Google Inc.の利用規約をお読み ください 。またその他のウェブサービスについては、それぞれの利用規約 をお読みください。 • Googleアプリケーションおよびサービス内容は、将来予告なく変更され る場合があります。 • 紛失に備え、画面ロックを設定し端末のセキュリティを確保してください （ZP.55） 。 • 万が一紛失した場合は、Googleトーク、Gmail、Google Play などの GoogleサービスやFacebookを他の人に利用されないように、パソコンよ り各種サービスアカウントのパスワードを変更してください。 • spモード、mopera Uおよびビジネスmoperaインターネット以外のプロ バイダはサポートしておりません。 • microSDカードを挿入しなくても本端末をお使いいただくことはできます が 、カメラで撮影した画像など 、microSDカードにしか保存できないデー タがございます。 このため、本端末をご利用になるときは、microSDカードを挿入すること をおすすめします。 • テザリングのご利用にはspモードのご契約が必要です。 • テザリングを有効にした状態では、インターネット接続・メールサービス 以外のspモードの機能をご利用になれません。 • テザリングを利用してインターネットに接続した場合、ご利用の環境によ っては外部機器においてアプリケーション（ブラウジング・ゲームなど） が正常に動作しない場合があります。 • ご利用の料金プランにより、テザリングご利用時のパケット通信料が異な ります。パケット定額サービスのご利用を強くおすすめします。 • ご利用時の料金など詳細については、 http://www.nttdocomo.co.jp/ をご覧ください。 目次／注意事項 5 安全上のご注意（必ずお守りください） ■ご使用の前に、この「安全上のご注意」をよくお読みの上、正しくお使い ください。また、お読みになった後は大切に保管してください。 ■ここに示した注意事項は、お使いになる人や、他の人への危害、財産への 損害を未然に防ぐための内容を記載していますので、必ずお守りください。 ■次の表示の区分は、表示内容を守らず、誤った使用をした場合に生じる危 害や損害の程度を説明しています。 この表示は、取り扱いを誤った場合、「死亡また は重傷を負う危険が切迫して生じることが想定さ れる」内容です。 この表示は、取り扱いを誤った場合、「死亡また は重傷を負う可能性が想定される」内容です。 この表示は、取り扱いを誤った場合、「軽傷を負 う可能性が想定される場合、および、物的損害の 発生が想定される」内容です。 ■次の絵表示の区分は、お守りいただく内容を説明しています。 禁止（してはいけないこと）を示します。 分解してはいけないことを示す記号です。 水がかかる場所で使用したり、水に濡らしたりしてはいけないこ とを示す記号です。 濡れた手で扱ってはいけないことを示す記号です。 目次／注意事項 6 指示に基づく行為の強制（必ず実行していただくこと）を示しま す。 電源プラグをコンセントから抜いていただくことを示す記号です。 ■「安全上のご注意」は下記の7項目に分けて説明しています。 本端末、電池パック、アダプタ、ドコモminiUIMカードの取り扱いについて ＜共通＞ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.7 本端末の取り扱いについて. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.9 電池パックの取り扱いについて. . . . . . . . . . . . . . . . . . . . . . . . . P.12 アダプタの取り扱いについて. . . . . . . . . . . . . . . . . . . . . . . . . . . P.14 ドコモminiUIMカードの取り扱いについて. . . . . . . . . . . . . . . . . . P.16 医用電気機器近くでの取り扱いについて. . . . . . . . . . . . . . . . . . . . P.16 材質一覧. . . . . . …

Text truncated - open the document above for the full version.

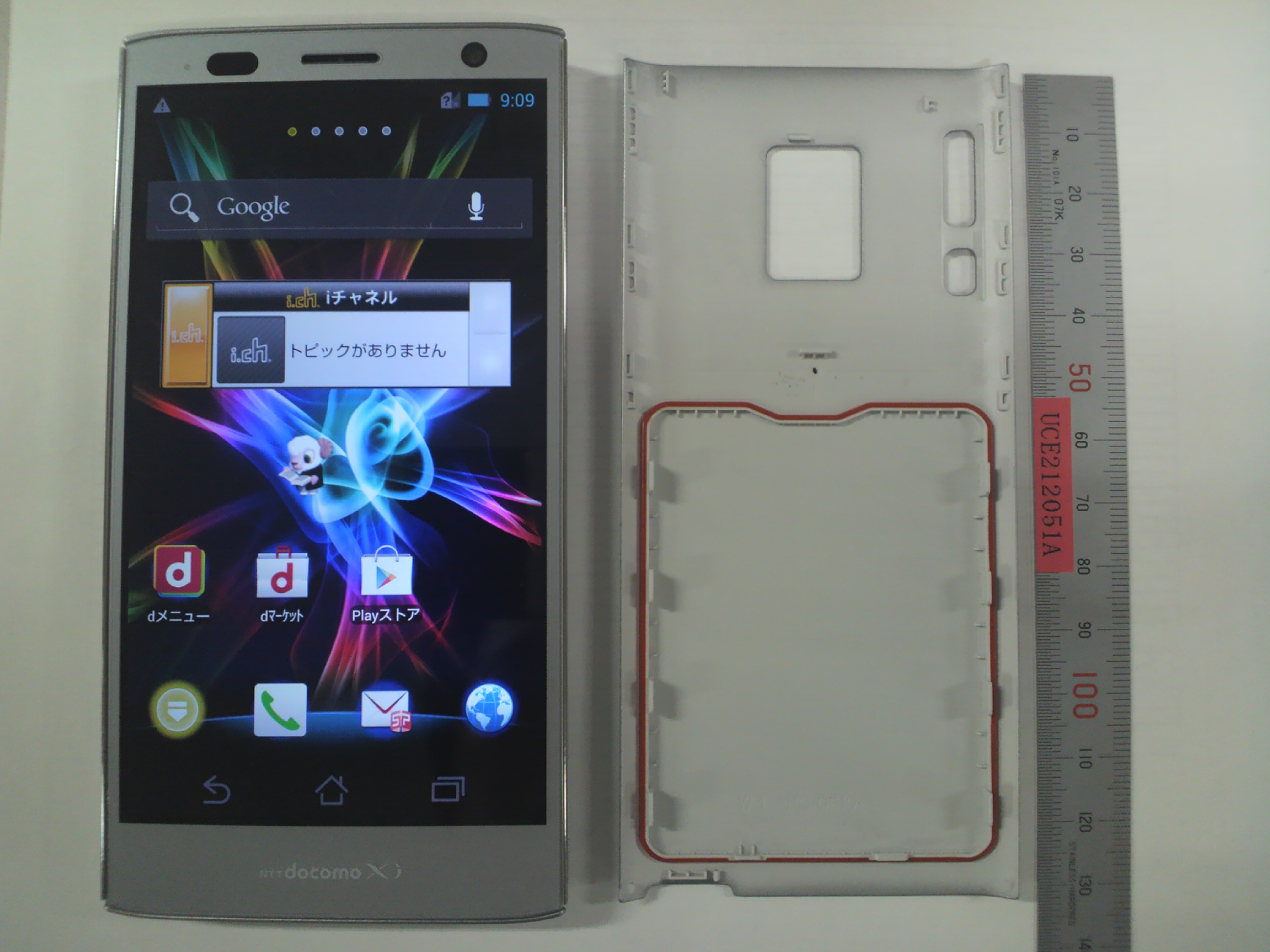

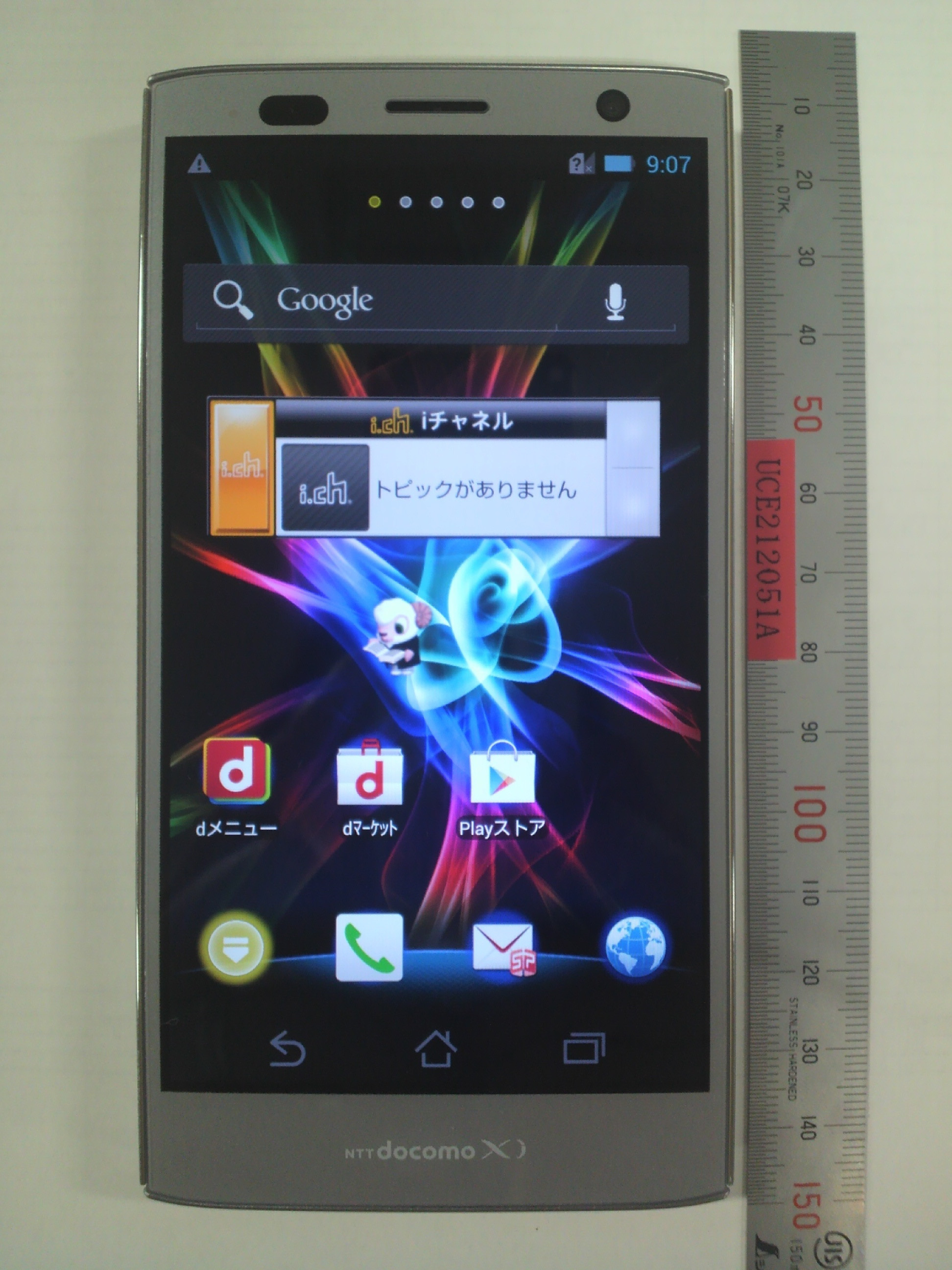

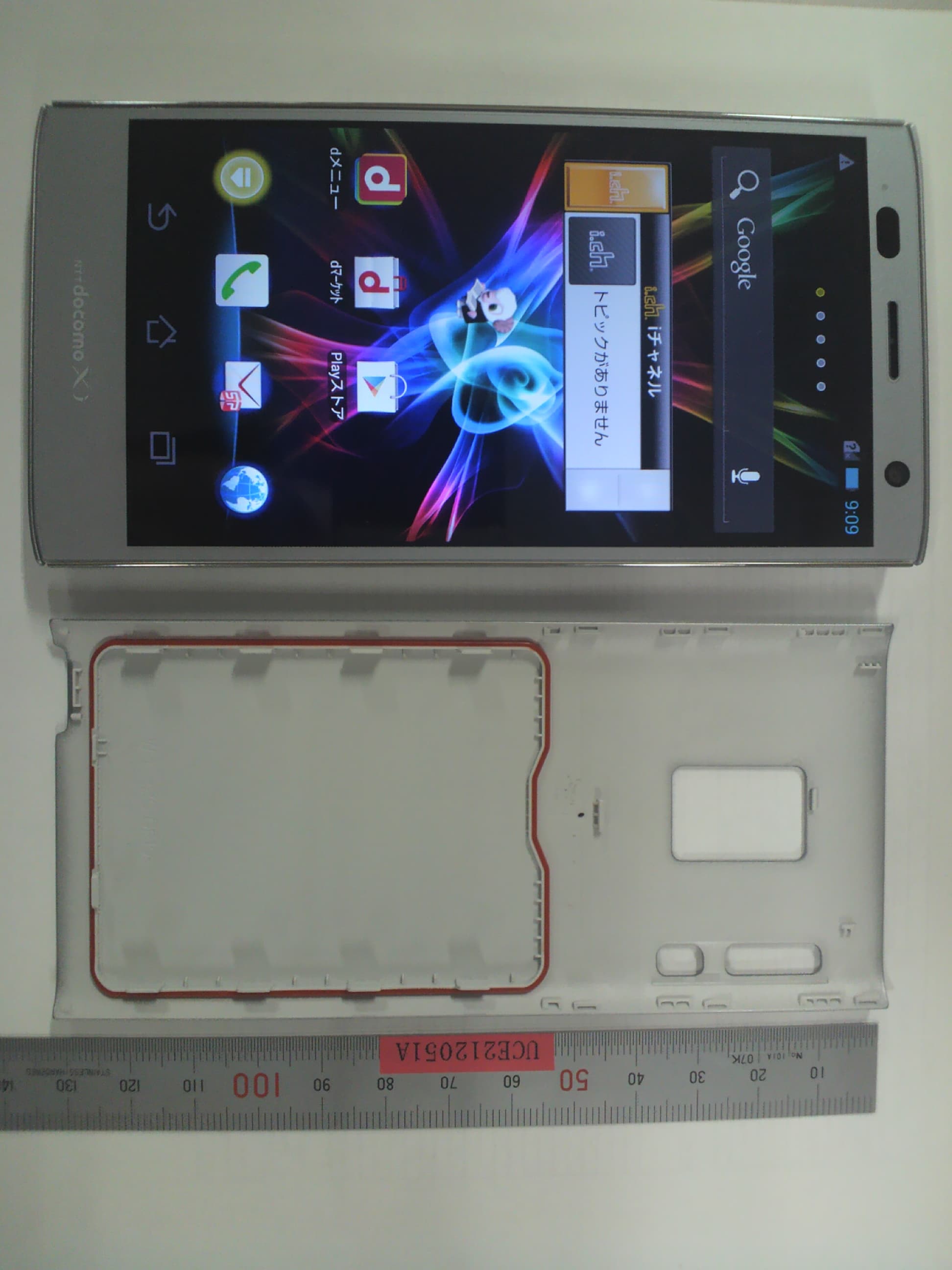

P.1 Panasonic Mobile Communications Confidential and Pr oprietary P-07D FCCID Label and Location ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ FCCID : UCE212051A FCCID : UCE212051A FCCID : UCE212051A FCCID : UCE212051A

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: EB-4058 FCC ID: UCE212051A To: OET Bulletin 65 Supplement C: (2001-01) IEEE 1528: 2003 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Supersedes All Previous Versions This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals: (APPROVED SIGNATORY) Checked By: Richelieu Quoi (APPROVED SIGNATORY) Issue Date: 05 July 2012 Test Dates: 03 June 2012 to 11 June 2012 This report is issued in portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by RFI Global Services Ltd. is under license. Other trademarks and trade names are those of their respective owners. Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 2 of 144 RFI Global Services Ltd. This page has been left intentionally blank. - Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 3 of 144 RFI Global Services Ltd. TABLE OF CONTENTS 1. Customer Information ...................................................................................................... 4 2. Equipment Under Test (EUT) ........................................................................................... 5 3. Test Specification, Methods and Procedures .............................................................. 11 4. Deviations from the Test Specification ......................................................................... 13 5. Operation and Configuration of the EUT during Testing ............................................ 14 6. Summary of Test Results ............................................................................................... 16 7. Measurements, Examinations and Derived Results .................................................... 18 8. Measurement Uncertainty .............................................................................................. 39 Appendix 1. Test Equipment Used .................................................................................... 46 Appendix 2. Measurement Methods .................................................................................. 50 Appendix 3. SAR Distribution Scans ................................................................................ 52 Appendix 4. Photographs ................................................................................................ 108 Appendix 5. System Check .............................................................................................. 138 Appendix 6. Simulated Tissues ....................................................................................... 141 Appendix 7. DASY4 System Details ................................................................................ 142 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 4 of 144 RFI Global Services Ltd. 1. Customer Information Company Name: Panasonic Mobile Comms Dev of Europe Ltd Address: Panasonic House, Willoughby Road, Bracknell, Berkshire, RG12 8FP, United Kingdom Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 5 of 144 RFI Global Services Ltd. 2. Equipment Under Test (EUT) 2.1. Identification of Equipment Under Test (EUT) Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: EB-4058 Serial Number: None Stated IMEI Number: 3518-070500-19143 Hardware Version Number: Rev E Software Version Number: ACPU: fujiko-ics-09-0316 CCPU: HY11-N5119_ALL_00.20.31 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE212051A Country of Manufacture: Japan Date of Receipt: 01 June 2012 This sample was used to perform WWAN and WLAN SAR evaluation measurements only. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Description: Mobile Handset Brand Name: NTT docomo Model Name or Number: EB-4058 Serial Number: None Stated IMEI Number: 3518-070500-19150 Hardware Version Number: Rev E Software Version Number: ACPU: fujiko-ics-09-0316 CCPU: HY11-N5119_ALL_00.20.31 Hardware Revision of GSM Module: Not Applicable Software Revision of GSM Module: Not Applicable FCC ID Number: UCE212051A Country of Manufacture: Japan Date of Receipt: 01 June 2012 This sample was used to perform WWAN and WLAN conducted power measurements only. The sample supports simultaneous transmission with the WWAN and WLAN antenna > 5 cm apart. Wireless Personal Hotspot is also supported and was evaluated as per KDB 941225 D06 "Hot Spot SAR v01" Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 6 of 144 RFI Global Services Ltd. 2.2. Description of EUT The equipment under test was a Dual-mode UMTS/GSM mobile handset operating in the GSM850, PCS1900, UMTS FDD V, Wi-Fi 2450 and Bluetooth bands. The EUT has GPRS class 12, UMTS FDD V HSPA, Wi-Fi802.11b/g/n, Wireless Personal Hotspot Mode, RFID and Bluetooth mode capabilities. 2.3. Modifications Incorporated in the EUT EUT (IMEI: 3518-070500-19143) was used to perform WWAN and WLAN SAR evaluations only. EUT (IMEI: 3518-070500-19150) was used for perform WWAN and WLAN conducted power measurements only. Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 7 of 144 RFI Global Services Ltd. 2.4. Accessories The following accessories were supplied with the EUT d…

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 50 of 144 RFI Global Services Ltd. Appendix 2. Measurement Methods A.2.1. Evaluation Procedure The Specific Absorption Rate (SAR) evaluation was performed in the following manner: a) (i) The evaluation was performed in an applicable area of the phantom depending on the type of device being tested. For devices worn about the ear during normal operation, both the left and right ear positions were evaluated at the centre frequency of the band at maximum power. The side, which produced the greatest SAR, determined which side of the phantom would be used for the entire evaluation. The positioning of the head worn device relative to the phantom was dictated by the test specification identified in section 3.1 of this report. (ii) For body worn devices or devices which can be operated within 20 cm of the body, the flat section of the SAM phantom was used were the size of the device(s) is normal. for bigger devices and base station the 2mm Oval phantom is used for evaluation. The type of device being evaluated dictated the distance of the EUT to the outer surface of the phantom flat section. b) The SAR was determined by a pre-defined procedure within the DASY4 software. The exposed region of the phantom was scanned near the inner surface with a grid spacing of 20mm x 20mm or appropriate resolution. c) A 5x5x7 matrix was performed around the greatest spatial SAR distribution found during the area scan of the applicable exposed region. SAR values were then calculated using a 3-D spline interpolation algorithm and averaged over spatial volumes of 1 and 10 grams. d) If the EUT had any appreciable drift over the course of the evaluation, then the EUT was re- evaluated. Any unusual anomalies over the course of the test also warranted a re-evaluation. Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 51 of 144 RFI Global Services Ltd. A.2.2. Specific Absorption Rate (SAR) Measurements to OET Bulletin 65 Supplement C: (2001-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields SAR measurements were performed in accordance with Appendix D of the standard FCC OET Bulletin 65 Supplement C: 2001, IEEE 1528 and FCC KDB procedures, against appropriate limits for each measurement position in accordance with the standard. In some cases the FCC was contacted using a PBA or KDB process to ensure test is performed correctly. The test was performed in a shielded enclosure with the temperature controlled to remain between +18.0ºC and +25.0ºC. The tissue equivalent material fluid temperature was controlled to give a maximum variation of ± 2.0ºC Prior to any SAR measurements on the EUT, system validation and material dielectric property measurements were conducted. In the absence of a detailed procedure within the specification, system validation and material dielectric property measurements were performed in accordance with Appendix C and Appendix D of FCC OET Bulletin 65 Supplement C: 2001 and FCC KDB publication 450824. Following the successful system validation and material dielectric property measurements, a SAR versus time sweep shall be performed within 10 mm of the phantom inner surface. If the EUT power output is stable after three minutes then the measurement probe will perform a coarse surface level scan at each test position in order to ascertain the location of the maximum local SAR level. Once this area had been established, a 5x5x7 cube of 175 points (5 mm spacing in each axis ≈ 27g) will be centred at the area of concern. Extrapolation and interpolation will then be carried out on the 27g of tissue and the highest averaged SAR over a 10g cube determined. Once the maximum interpolated SAR measurement is complete; the coarse scan is visually assessed to check for secondary peaks within 50% of the maximum SAR level. If there are any further SAR measurements required, extra 5x5x7 cubes shall be centred on each of these extra local SAR maxima. At the end of each position test case a second time sweep shall be performed to check whether the EUT has remained stable throughout the test.

Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 52 of 144 RFI Global Services Ltd. Appendix 3. SAR Distribution Scans This appendix contains SAR distribution scans which are not included in the total number of pages for this report. Scan Reference Number Title SCN/87473JD03/001 Touch Left GSM CH190 SCN/87473JD03/002 Tilt Left GSM CH190 SCN/87473JD03/003 Touch Right GSM CH190 SCN/87473JD03/004 Tilt Right GSM CH190 SCN/87473JD03/005 Touch Left GPRS 3 Tx CH190 SCN/87473JD03/006 Front of EUT Facing Phantom GPRS 3TX CH190 SCN/87473JD03/007 Back of EUT Facing Phantom GPRS 3TX CH190 SCN/87473JD03/008 Left Hand Side of EUT Facing Phantom GPRS 3TX CH190 SCN/87473JD03/009 Right Hand Side of EUT Facing Phantom GPRS 3TX CH190 SCN/87473JD03/010 Bottom of EUT Facing Phantom GPRS 3TX CH190 SCN/87473JD03/011 Back of EUT Facing Phantom GSM CH190 SCN/87473JD03/012 Back of EUT Facing Phantom with PHF GSM CH190 SCN/87473JD03/013 Touch Left PCS CH661 SCN/87473JD03/014 Tilt Left PCS CH661 SCN/87473JD03/015 Touch Right PCS CH661 SCN/87473JD03/016 Tilt Right PCS CH661 SCN/87473JD03/017 Touch Left GPRS 4TX CH661 SCN/87473JD03/018 Front of EUT Facing Phantom GPRS 4TX CH661 SCN/87473JD03/019 Back of EUT Facing Phantom GPRS 4TX CH661 SCN/87473JD03/020 Left Hand Side of EUT Facing Phantom GPRS 4TX CH661 SCN/87473JD03/021 Right Hand Side of EUT Facing Phantom GPRS 4TX CH661 SCN/87473JD03/022 Bottom of EUT Facing Phantom GPRS 4TX CH661 SCN/87473JD03/023 Back of EUT Facing Phantom PCS CH661 SCN/87473JD03/024 Back of EUT Facing Phantom with PHF PCS CH661 SCN/87473JD03/025 Touch Left UMTS FDD V CH4183 SCN/87473JD03/026 Tilt Left UMTS FDD V CH4183 SCN/87473JD03/027 Touch Right UMTS FDD V CH4183 SCN/87473JD03/028 Tilt Right UMTS FDD V CH4183 SCN/87473JD03/029 Front of EUT Facing Phantom UMTS FDD V CH4183 SCN/87473JD03/030 Back of EUT Facing Phantom UMTS FDD V CH4183 SCN/87473JD03/031 Back of EUT Facing Phantom UMTS FDD V CH4132 SCN/87473JD03/032 Back of EUT Facing Phantom UMTS FDD V CH4233 SCN/87473JD03/033 Left Hand Side of EUT Facing Phantom UMTS FDD V CH4183 SCN/87473JD03/034 Right Hand Side of EUT Facing Phantom UMTS FDD V CH4183 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 53 of 144 RFI Global Services Ltd. SAR Distribution Scans (Continued) Scan Reference Number Title SCN/87473JD03/035 Bottom of EUT Facing Phantom UMTS FDD V CH4183 SCN/87473JD03/036 Back of EUT Facing Phantom at 15mm UMTS FDD V CH4183 SCN/87473JD03/037 Back of EUT Facing Phantom at 15mm with PHF UMTS FDD V CH4183 SCN/87473JD03/038 Touch Left WLAN 802.11b CH6 SCN/87473JD03/039 Tilt Left WLAN 802.11b CH6 SCN/87473JD03/040 Touch Right WLAN 802.11b CH6 SCN/87473JD03/041 Tilt Right WLAN 802.11b CH6 SCN/87473JD03/042 Front of EUT Facing Phantom WLAN 802.11b CH6 SCN/87473JD03/043 Back of EUT Facing Phantom WLAN 802.11b CH6 SCN/87473JD03/044 Left Hand Side of EUT Facing Phantom WLAN 802.11b CH6 SCN/87473JD03/045 Right Hand Side of EUT Facing Phantom WLAN 802.11b CH6 SCN/87473JD03/046 Top of EUT Facing Phantom WLAN 802.11b CH6 SCN/87473JD03/047 Back of EUT Facing Phantom with PHF WLAN 802.11b CH6 SCN/87473JD03/048 System Performance Check 900MHz Head 07 06 12 SCN/87473JD03/049 System Performance Check 900MHz Body 07 06 12 SCN/87473JD03/050 System Performance Check 900MHz Body 08 06 12 SCN/87473JD03/051 System Performance Check 1900MHz Head 03 06 12 SCN/87473JD03/052 System Performance Check 1900MHz Body 03 06 12 SCN/87473JD03/053 System Performance Check 2450MHz Head 09 06 12 SCN/87473JD03/054 System Performance Check 2450MHz Body 11 06 12 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 54 of 144 RFI Global Services Ltd. SCN/87473JD03/001: Touch Left GSM CH190 Date: 07/06/2012 DUT: Panasonic Mobile Comms Dev of Europe; Type: D21BR6 (Sample C22); Serial: 351807050019143 0 dB = 0.392mW/g Communication System: GSM 850 MHz; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.905 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3814; ConvF(8.75, 8.75, 8.75); Calibrated: 22/09/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 26/01/2012 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Touch Left - Middle 2/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.397 mW/g Touch Left - Middle 2/Zoom Scan (5x5x7) 2 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.68 V/m; Power Drift = 0.057 dB Peak SAR (extrapolated) = 0.445 W/kg SAR(1 g) = 0.355 mW/g; SAR(10 g) = 0.270 mW/g Maximum value of SAR (measured) = 0.392 mW/g Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 55 of 144 RFI Global Services Ltd. SCN/87473JD03/002: Tilt Left GSM CH190 Date: 07/06/2012 DUT: Panasonic Mobile Comms Dev of Europe; Type: D21BR6 (Sample C22); Serial: 351807050019143 0 dB = 0.273mW/g Communication System: GSM 850 MHz; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium: 900 MHz HSL Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.905 mho/m; ε r = 43.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3814; ConvF(8.75, 8.75, 8.75); Calibrated: 22/09/2011 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn394; Calibrated: 26/01/2012 - Phantom: SAM 12a; Type: SAM 4.0; Serial: TP:1193 - Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Tilt Left - Middle 2/Area Scan (71x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.276 mW/g Tilt Left - Middle 2/Zoom Scan (5x5x7) 2 2 (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.7 V/m; Power Drift …

Text truncated - open the document above for the full version.

Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 138 of 144 RFI Global Services Ltd. Appendix 5. System Check Prior to the assessment, the system was verified in the flat region of the phantom. 900 MHz, 1900 MHz and 2450 MHz dipoles were used. A forward power of 250 mW was applied to the dipole and the system was verified to a tolerance of ±5% for the 900 MHz, 1900 MHz and 2450 MHz dipoles. The applicable verification normalised to 1 Watt. System Check 850/900 Head Date: 07/06/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 900 24.0ºC 23.0ºC ε r 41.50 42.97 3.54 5.00 σ 0.97 0.95 -2.45 5.00 1g SAR 11.00 10.68 -2.91 5.00 10g SAR 7.01 6.92 -1.28 5.00 System Check 850/900 Body Date: 07/06/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0ºC 20.4ºC ε r 55.00 54.24 -1.39 5.00 σ 1.05 1.01 -3.95 5.00 1g SAR 11.10 11.36 2.34 5.00 10g SAR 7.14 7.36 3.08 5.00 Date: 08/06/2012 Validation Dipole and Serial Number: D900V2; SN: 124 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 900 23.0 ºC 22.3 ºC ε r 55.00 53.91 -1.99 5.00 σ 1.05 1.02 -2.81 5.00 1g SAR 11.10 11.04 -0.54 5.00 10g SAR 7.14 7.12 -0.28 5.00 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 139 of 144 RFI Global Services Ltd. System Check 1900 Head System Check 1900 Body Date: 03/06/2012 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 1900 23.0ºC 23.0ºC ε r 40.00 38.88 -2.80 5.00 σ 1.40 1.43 2.25 5.00 1g SAR 40.30 39.64 -1.64 5.00 10g SAR 21.00 20.68 -1.52 5.00 Date: 03/06/2012 Validation Dipole and Serial Number: D1900V2; SN: 540 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 1900 23.0ºC 21.5ºC ε r 53.30 51.97 -2.50 5.00 σ 1.52 1.56 2.35 5.00 1g SAR 40.70 40.40 -0.74 5.00 10g SAR 21.60 21.64 0.19 5.00 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 140 of 144 RFI Global Services Ltd. System Check 2450 Head System Check 2450 Body Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Body 2450 24.0 ºC 24.0 ºC ε r 52.70 50.55 -4.08 5.00 σ 1.95 2.01 2.95 5.00 1g SAR 51.90 52.40 0.96 5.00 10g SAR 24.10 24.08 -0.08 5.00 Date: 09/06/2012 Validation Dipole and Serial Number: D2450V2; SN: 725 Simulant Frequency (MHz) Room Temp Liquid Temp Parameters Target Value Measured Value Deviation (%) Limit (%) Head 2450 23.0 ºC 23.0 ºC ε r 39.20 38.26 -2.41 5.00 σ 1.80 1.83 1.78 5.00 1g SAR 52.90 52.40 -0.95 5.00 10g SAR 24.70 24.08 -2.51 5.00 Date: 11/06/2012 Validation Dipole and Serial Number: D2450V2; SN: 725 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 141 of 144 RFI Global Services Ltd. Appendix 6. Simulated Tissues The body mixture consists of water, Polysorbate 20 and salt. Visual inspection is made to ensure air bubbles are not trapped during the mixing process. The mixture is calibrated to obtain proper dielectric constant (permittivity) and conductivity of the tissue. Ingredient Frequency 835/850/900 MHz Head De-Ionized Water 52.87 Polysorbate 20 (Tween 20) 46.10 Salt 1.03 Ingredient Frequency 835/850/900 MHz Body De-Ionized Water 71.30 Polysorbate 20 (Tween 20) 28.00 Salt 0.70 Ingredient Frequency 1800/1900 MHz Head De-Ionized Water 55.40 Polysorbate 20 (Tween 20) 44.22 Salt 0.38 Ingredient Frequency 1800/1900 MHz Body De-Ionized Water 71.50 Polysorbate 20 (Tween 20) 28.00 Salt 0.50 Ingredient Frequency 2450 MHz Head De-Ionized Water 55.75 Polysorbate 20 (Tween 20) 45.25 Ingredient Frequency 2450 MHz Body De-Ionized Water 71.70 Polysorbate 20 (Tween 20) 28.00 Salt 0.30 Test Report Serial No: RFI-SAR-RP87473JD03A V2.0 Version 2.0 Issue Date: 05 July 2012 Page: 142 of 144 RFI Global Services Ltd. Appendix 7. DASY4 System Details A.7.1. DASY4 SAR Measurement System RFI Global Services Ltd, SAR measurement facility utilises the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY4 system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the SAM phantom containing brain or muscle equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller; teach pendant (Joystick), and remote control. This is used to drive the robot motors. The Staubli robot is connected to the cell controller to allow software manipulation of the robot. The data acquisition electronics (DAE) performs signal amplification, signal multiplexing, AD-conversion, offset measurements, mechanical surface detection, collision detection etc. The DAE is connected to the Electro-optical coupler (EOC). The EOC performs the conversion from the optical into digital electric signal of the DAE and transfers data to the PC plug-in card. The DAE3 utilises a highly sensitive electrometer-grade preamplifier with auto-zeroing, a channel and gain-switching mulitplexer, a fast 16- bit AD-converter and a command decoder and control logic unit. Transmission to the PC-card is accomplished through an optical downlink for data and status information and an optical uplink for commands and clock lines. The mechanical probe-mounting device includes two different sensor systems for frontal and sidewise probe contacts. They are also used for mechanical surface detection and probe collis…

Text truncated - open the document above for the full version.

This Test R Authority O Manager: Checked B Signature: Date of Iss This report it is being v Selecting te This report Services Lt d Report Is Iss Of John New By: ue: is issued in A viewed in PD ext and graph may not be d. The result RFI G To Version sued Under well, Group Q Adobe Acrob DF format w hics, Adding e reproduced ts in this repo TES GLOBA Test of: N FCC o: FCC Part Test R RFI-RPT-R n 2.0 super The Quality bat portable d with the follow or changing d other than ort apply only T REP FRO M AL SER NTT docomo ID: UCE21 2 15.247: 20 Report Seria RP87473JD rsedes all p Sarah Willi 25 June 20 document fo wing security notes and fo in full, exce y to the samp ORT M RVICES o EB-4058 2051A 11 Subpar t al No.: D09A V2.0 previous ve ams 012 ormat (PDF). y options no orm fields. ept with the ple(s) tested S LTD t C ersions It is only a v ot allowed: C prior written . valid copy of Changing the approval of f the report if e document, f RFI Global f , l TEST REPORT SERIAL NO: RFI-RPT-RP87473JD09A V2.0 VERSION 2.0 ISSUE DATE: 25 JUNE 2012 Page 2 of 84 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP87473JD09A V2.0 VERSION 2.0 ISSUE DATE: 25 JUNE 2012 RFI Global Services Ltd Page 3 of 84 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Sum…

Text truncated - open the document above for the full version.
