QUAIL DIGITAL DRIVE-THRU USER MANUAL Thank you for choosing Quail Digital. Your system is now installed, and this booklet helps to explain how to use it, and the steps to take if you experience any operational problems. The system is full duplex, which means the order taker can process customers orders hands-free. The system also has talk-lock and push- to-talk (PTT) modes SYSTEM COMPONENTS Base station settings The base station and headsets operate in the licence free DECT band. DECT is an interference free system using a digital frequency. The lit blue display screen indicates that the base station is active. All System adjustments and functions are carried out through the display or via the PC application if a computer is connected via the Ethernet port. Tools are not required to carry out feature adjustments. On the front panel of the base station you can see the blue User Interface Display. The function buttons below the display activates features, the arrows are used to adjust, move, and select time. The Registration button is pressed to put the base station into registration mode, to accept and register new headsets. - 1 – Q-DT8, Drive Thru DECT Headset (All in one) Q-DTB6, Drive Thru Base Station Q-DTCH, Drive Thru Charger The system comes pre-set with a range of operating functions already activated. As a user you are able to activate/deactivate certain functions manually using the buttons below the digital display. These are as follows: Detection Override: This function overrides the road loop. (Unlikely to be used unless vehicle detection in the base station fails.) When this function is ON, it gives constant inbound audio to the headsets. Night volume: This feature automatically reduces the outbound speaker level at the post at night (by 20%). It can be over ridden. Dual Lane (Split/Cross): Your Base Station requires configuring for dual or tandem ordering before this feature will operate. Please contact your service provider. Split Lane order taking (two teams) When split selected, the headset users are divided into two different teams with one independent order taker in each team. (One order taker for Lane 1 and a second order taker for lane 2.) The headset users can choose which team they interact with by pressing „Volume down + T1‟ or „Volume down + T2‟ to select a team. If you activate this feature those working on Team 2 must press T2 on their headset to take an order on lane 2 and press Page to talk to the rest of team 2. Cross Lane order taking (one team) When cross is selected, all headset users remain in one team. (T1 by default). This feature allows any headset user to attend either order point. Tone arrival on Lane 1 will alert the order taker with one blip. Tone arrival on Lane 2 will alert the order taker with two blips. Hands-free order taking: By following the instructions on the display this activates a mode that allows the order taker to operate hands-free. This function allows you to allocate a headset as the default order taker so when the car arrives and leaves it will automatically open and close the call for that particular order taker. - 2 - Registration Process (Manager‟s password required for this function, password is 4895) The headsets need to be registered to the base station. Any new system or any additional headsets introduced to the restaurants needs to be registered. This is done by putting the base station and the new or repaired headset in registration mode. To register one or more headsets follow this procedure: 1. Make sure all the headsets are within range of the base station and are active with a battery. If a headset is not active, it will be de-registered in this process. 2. Press the Registration button on the Q-DTB. 3. When prompted with “Manager‟s password”, insert 4895. 4. Press ok on the next message once you are sure that all headset you wish to keep in the system are On and within range. 5. On the headset you wish to register, press „Volume Down‟ first, followed by „Page‟ (so both buttons are pressed together), until you hear a voice message saying “headset in registration mode.” You can release the two buttons at this stage. 6. As soon as a headset is registered, you will hear a message in the headset, saying „headset registered‟ followed by an audible tone. At that point it‟s ready to use. 7. On the Q-DTB front panel you can press “Exit” or “Registration” to terminate the registration mode on the DT base or you can leave it to time out after 3 minutes. If a headset won‟t register, follow the trouble-shooter guide at the back of this document. - 3 - Headset Features The headset is an All-in-One (AIO) type lightweight headset, (weighing only 100 grams), and can be worn on either ear. The headset has a moving sensor, which, when it stops sensing movement for three minutes will go into battery-saving sleep mode. Moving the headset reactivates the headset, and you will hear „Initialising‟ followed by a beep indicating the headset is active. (This process takes about 2 seconds.) The headset has the following buttons and functions: Volume: This has a 5-stage range (+ -). When a headset is activated the default is level 3. This is the paging channel that goes to all headset users but not to the speaker post. It operates PTT or Talk-Lock modes. & Is used to talk to the customer at the order point. If there is only one speaker post, the headset defaults to channel 1. When a vehicle arrives, you will hear a blip in a single lane restaurant and a double blip for lane 2 (if a second order point is installed.) The inbound audio will be opened as soon as the order taker presses T1 or T2 respectively. If the call is not attended a reminder blip will be heard every 5 seconds. (If the feature is enabled in the base station) The order taker can operate in Push-to-Talk (PTT) or Talk Lock (Hands-Free) There are 5 messages that are used on the headset. „Headset in Registration mode‟, „Headset registered‟, „Initialising‟, „Battery low‟ and „Out of r…

Text truncated - open the document above for the full version.

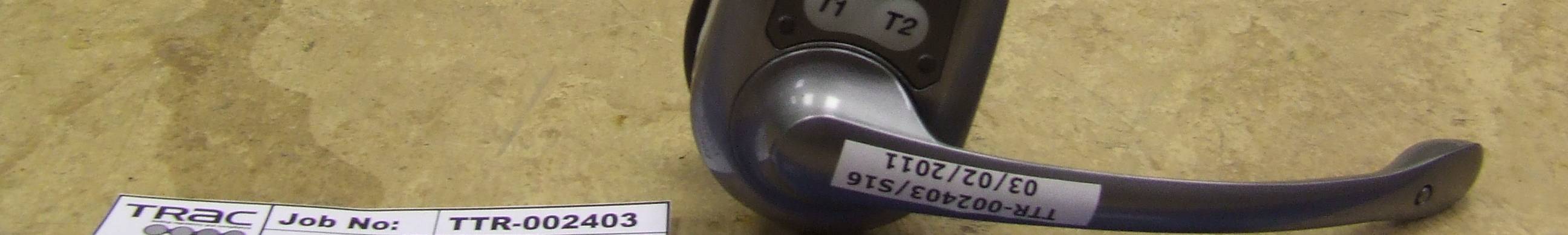

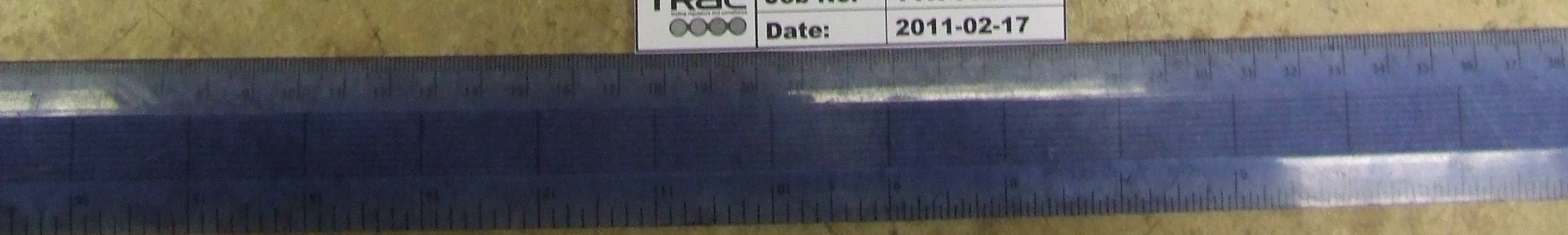

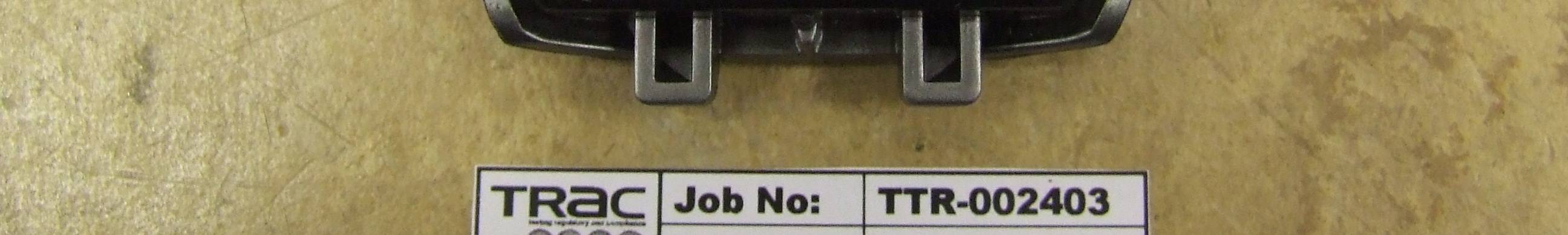

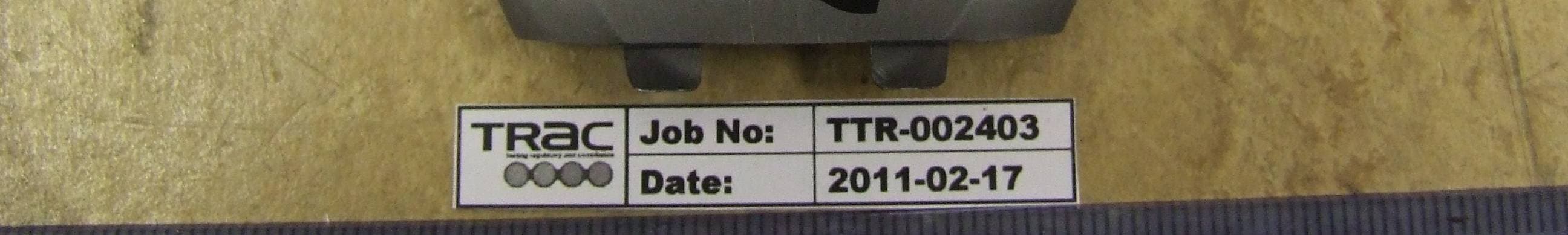

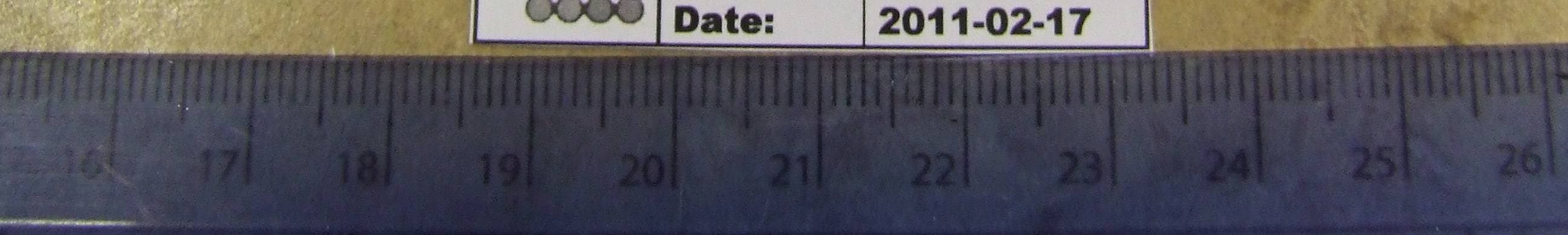

Quail Digital – Headset – External Photos

Quail Ltd Description: Technical Construction File Number: QD-PRO5 TCF Issue: 1 Jose Barrera QD-Pro5 System TCF Company confidential 38 of 40 Quail Ltd The information contained within this document is the copyright of Quail Ltd. No part of this document may be disclosed reproduced or transmitted in any form or by any means without the written permission of Quail Ltd. The term document extends to all forms of media in which information may be embodied. Q-DT8 LABELING Drive Thru Headset

Quail Digital – Headset – Internal Photos

DAT-P-152/98-01 SAR_Report_TRaC_6620_836_FCC_CalData_Q-DT8 Appendix for the Report Dosimetric Assessment of the Portable Device Q Digital Q-DT8 (FCC ID: UDDQDBP) According to the FCC Requirements Calibration Data January 25, 2011 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TRaC Unit E, South Orbital Trading Park, Hedon Road, Hull HU9 1NJ, UK Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH DAT-P-152/98-01 Cal_D1900V2_SN5d051_0909 Page 1 of 8 _ Calibration_Certificate_Dipole_V1.0/01.08.2009/ABo Calibration Certificate Certificate No: Cal_D1900V2_SN5d051_0909 Object: D1900V2 SN: 5d051 Date of Calibration: September 09, 2009 Next Calibration: September 2011 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784162174-1) Dec 10 Power Sensor E9301H US40010212 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041195-1) Dec 10 Powermeter E4417A GB41050441 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1674038198-1) Dec 10 Power Sensor E9301A MY41495584 Dec 08 Agilent Techn. (ISO/IEC 17025, 1-1784041307-1) Dec 10 Network Analyzer E5071C MY46103220 Aug 09 Rohde& Schwarz (14967-DKD-00201- 2009-08) Aug 10 Reference Probe ET3DV6 SN 1669 Feb 09 SPEAG, No ET3- 1669_Feb09 Feb 10 DAE3 SN 335 Feb 09 SPEAG, No DAE3- 335_Feb09 Feb 10 Cal_D1900V2_SN5d051_0909 Page 2 of 8 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 Federal Communications Commission Office of Engineering & Technologies (FCCOET) "Evaluating Compliance wit FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields; Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions", Supplement C (Edition 01-01) to Bulletin 65 Additional Documentation: DASY 4 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08/ABo Cal_D1900V2_SN5d051_0909 Page 3 of 8 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1340 Distance Dipole Center – TSL: 10mm With spacer Zoom Scan res. dx, dy, dz = 5mm Frequency: 1900 MHz ± 1MHz Head TSL Parameters Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 40.0 1.40 Measured Head TSL Parameters 22.0 40.3 ± 6% 1.45 S/m ± 6% SAR result with Head TSL Averaged over 1g SAR measured 250mW input power 9.10 mW/g SAR normalized normalized to 1W 36.40 mW/g SAR for nominal Head TSL parameters normalized to 1W 35.90 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.76 mW/g SAR normalized normalized to 1W 19.04 mW/g SAR for nominal Head TSL parameters normalized to 1W 18.96 mW/g ± 16.5 % (k=2) Cal_D1900V2_SN5d051_0909 Page 4 of 8 Body TSL Parameters Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 53.30 1.52 Measured Body TSL Parameters 22.0 52.90 ± 6% 1.54 S/m ± 6% SAR result with Body TSL Averaged over 1g SAR measured 250mW input power 9.42 mW/g SAR normalized normalized to 1W 37.68 mW/g SAR for nominal Body TSL parameters normalized to 1W 37.28 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250mW input power 4.97 mW/ g SAR normalized normalized to 1W 19.88 mW/g SAR for nominal Body TSL parameters normalized to 1W 19.77 mW/g ± 16.5 % (k=2) General Antenna Parmeters Antenna Parameters with Head TSL Impedance, transformed to feed point 48.2 jΩ - 1.3 jΩ Return Loss -33.0 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 53.9 jΩ - 0.4 jΩ Return Loss -28.3 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: January 15, 1998 Cal_D1900V2_SN5d051_0909 Page 5 of 8 SAR result with Head TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.45 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 10.02.2009 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.02.2009 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 10.4 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.3 V/m; Power Drift = -0.152 dB Peak SAR (extrapolated) = 15.9 W/kg SAR(1 g) = 9.1 mW/g; SAR(10 g) = 4.76 mW/g Maximum value of SAR (measured) = 10.3 mW/g Cal_D1900V2_SN5d051_0909 Page 6 of 8 SAR result with Body TSL Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 090909_b_1669.da4 DUT: Dipole 1900 MHz SN: 5d051; Type: D1900V2; Serial: D1900V2 - SN5d051 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; ε r = 52.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configur…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_TRaC_6620_836_FCC_DECT_1900_Plots_Q-DT8 Page 1 of 5 Appendix for the Report Dosimetric Assessment of the Portable Device Q Digital Q-DT8 (FCC ID: UDDQDBP) According to the FCC Requirements SAR Distribution Plots January 25, 2011 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TRaC Unit E, South Orbital Trading Park, Hedon Road, Hull HU9 1NJ, UK The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH SAR_Report_TRaC_6620_836_FCC_DECT_1900_Plots_Q-DT8 Page 2 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, HEAD MEASUREMENTS ......................................................................... 3 2 SAR Z-AXIS SCANS (VALIDATION) ........................................................................................................... 5 3 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................. 5 SAR_Report_TRaC_6620_836_FCC_DECT_1900_Plots_Q-DT8 Page 3 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots, Head Measurements Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: Q-DT8_yplm_1.da4 DUT: Q Digital; Type: Q-DT8; Serial: Q11060176 Program Name: Dect Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.45 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.09, 5.09, 5.09); Calibrated: 20.01.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 17.09.2010 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Left/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.001 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 0.498 V/m; Power Drift = -0.183 dB Peak SAR (extrapolated) = 0.002 W/kg SAR(1 g) = 0.000367 mW/g; SAR(10 g) = 0.000105 mW/g Fig. 1: SAR distribution for DECT US, channel 2, cheek position, left side of head, (January 24, 2011; Ambient Temperature: 21.1°C; Liquid Temperature: 20.7°C). SAR_Report_TRaC_6620_836_FCC_DECT_1900_Plots_Q-DT8 Page 4 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: Q-DT8_yprm_1.da4 DUT: Q Digital; Type: Q-DT8; Serial: Q11060176 Program Name: Dect Communication System: DECT US; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium parameters used: f = 1924.99 MHz; σ = 1.45 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.09, 5.09, 5.09); Calibrated: 20.01.2010 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 17.09.2010 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Cheek Right/Area Scan (10x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.001 mW/g Fig. 2: SAR distribution for DECT US, channel 2, cheek position, right side of head, (January 24, 2011; Ambient Temperature: 21.1°C; Liquid Temperature: 20.7°C). SAR_Report_TRaC_6620_836_FCC_DECT_1900_Plots_Q-DT8 Page 5 of 5 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 2 SAR z-axis scans (Validation) Fig. 3: SAR versus liquid depth, 1900 MHz, head (January 24, 2011; Ambient Temperature: 21.1° C; Liquid Temperature : 20.7° C). 3 SAR z-axis scans (Measurements) The following picture shows the plot of SAR versus liquid depth for the worst case values. Fig. 4: SAR versus liquid depth, head: DECT US, channel 2, cheek position, left side of head, (January 24, 2011; Ambient Temperature: 21.1° C; Liquid Temperature : 20.7° C).

DAT-P-152/98-01 SAR_Report_TRaC_6620_836_FCC_DECT_Q-DT8 Page 1 of 28 Report Dosimetric Assessment of the Portable Device Q Digital Q-DT8 (FCC ID: UDDQDBP) According to the FCC Requirements January 25, 2011 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer TRaC Unit E, South Orbital Trading Park, Hedon Road, Hull HU19 1NJ UK The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH SAR_Report_TRaC_6620_836_FCC_DECT_Q-DT8 Page 2 of 28 Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH Executive Summary The Q-DT8 is a new cordless DECT headset (Portable Device) from Q Digital operating in the 1920 MHz frequency range (US DECT Standard). The device uses one integrated antenna. The objective of the measurements done by IMST was the dosimetric assessment of one headset Q-DT8. With the internal control software of the sample it was possible to select a fix frequency channel at max output power during the measurement. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Q Digital Q-DT8 cordless DECT headset (FCC ID: UDDQDBP) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. Since the intended use position is head configuration, body worn assessment was not conducted. prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer SAR_Report_TRaC_6620_836_FCC_DECT_Q-DT8 Page 3 of 28 Dasy_Report_FCC_DECT_1900_1.1.doc/22.05.2006/CH Table of Contents 1 SUBJECT OF INVESTIGATION .................................................................................................................... 4 2 THE IEEE STANDARD C95.1-1999 AND THE FCC EXPOSURE CRITERIA ....................................... 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ....................................... 5 2.3 SAR LIMIT .................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR ....................................................................................... 6 4 BODY-WORN CONFIGURATIONS .............................................................................................................. 9 4.1 POC (PTT) POSITION .............................................................................................................................. 10 4.2 PHANTOM REQUIREMENTS ...................................................................................................................... 10 4.3 TEST TO BE PERFORMED ......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM ................................................................................................................. 10 5.1 PHANTOM ................................................................................................................................................. 12 5.2 PROBE ...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE .................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT ................................................................................................................... 14 6 SAR RESULTS ............................................................................................................................................... 15 7 EVALUATION ................................................................................................................................................. 16 8 APPENDIX ....................................................................................................................................................... 17 8.1 ADMINISTRATIVE DATA ............................................................................................................................ 17 8.2 DEVICE UNDER TEST AND TEST CONDITIONS ......................................................................................... 17 8.3 TISSUE RECIPES ...................................................................................................................................... 17 8.4 MATERIAL PARAMETERS ......................................................................................................................... 18 8.5 SIMPLIFIED PERFORMANCE CHECKING ................................................................................................... 18 8.6 ENVIRONMENT ......................................................................................................................................... 21 8.7 TEST EQUIPMENT ...........................................................................................................…

Text truncated - open the document above for the full version.

Total number of pages: 69 TRaC Wireless Test Report:TTR-002403WUS1 Applicant:Quail Ltd Apparatus:Q-DT8 (QD Drive Thru Headset) Specification(s):CFR47 Part 15D Purpose of Test: Certification FCCID: UDDQDT8 Authorised by: : Radio Product Manager Issue Date:7 th November2012 Authorised Copy Number: PDF Radio Test Report: TTR-002403WUS1 2 Contents Section 1:Introduction3 1.1General3 1.2Tests Requested By4 1.3Manufacturer4 1.4Apparatus Assessed4 1.5System Description5 1.6Test Result Summary6 1.7Notes Relating To The Assessment8 1.7Deviations from Test Standards8 Section 2:Measurement Uncertainty9 2.1Measurement Uncertainty Values9 Section 3:Modifications11 3.1Modifications Performed During Assessment11 Appendix A:Formal Emission Test Results12 Appendix A:Formal Emission Test Results12 A1 Cross Reference to Subpart B13 A2Labelling Information13 A3 Antenna Requirements13 A4 Modulation Techniques13 A5 Radio Frequency Radiation Exposure13 A6Transmitter Emission Bandwidth14 A7Peak Transmit Power15 A8Power Spectral Density16 A9Antenna Gain17 A10Automatic Discontinuation of Transmissions18 A11Monitoring Thresholds19 A11Monitoring of Intended Transmit Window & Maximum Reaction Time20 A12Monitoring Bandwidth & Antenna21 A13Power Accuracy22 A14Segment Occupancy23 A15Duration Of Transmission24 A16Connection Acknowledgement25 A17Least Interfered Channel (LIC) Procedure26 A18Selected Channel Confirmation27 A19Duplex Connections28 A20Alternative Monitoring Interval For Co-Located Devices29 A21Fair Access To Spectrum30 A22Emissions Inside and Outside the Sub-Band - Conducted31 A23Frame Repetition Stability33 A24Frequency Stability34 A25Unintentional Radiated Emissions35 Appendix B:Supporting Graphical Data37 Appendix D:Additional Information63 Appendix E:Photographs and Figures64 Radio Test Report: TTR-002403WUS1 3 Section 1:Introduction 1.1General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried outon samples submitted to the Laboratory. Test performed by:TRaC Telecoms & Radio[ ] Unit E South Orbital Trading Park Hedon Road Hull, HU9 1NJ. United Kingdom. Telephone:+44 (0) 1482 801801 Fax:+44 (0) 1482 801806 TRaC Telecoms & Radio[X] Unit 1 Pendle Place Skelmersdale West Lancashire, WN8 9PN United Kingdom Telephone:+44 (0) 1695 556666 Fax:+44 (0) 1695 577077 Email:[email protected] Web site:http://www.tracglobal.com Tests performed by:D. Winstanley Report author:D. Winstanley This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. Radio Test Report: TTR-002403WUS1 4 1.2Tests Requested By This testing in this report was requested by : Quail Ltd 92 lots road SW10 0QD London 1.3Manufacturer Quail Ltd 92 lots road SW10 0QD London 1.4Apparatus Assessed The following apparatus was assessed between 21 st December 2010 – 31 st March 2011: Q-DT8 (QD Drive Thru Headset) Radio Test Report: TTR-002403WUS1 5 1.5System Description The system is made up of two parts, a fixed part and a portable part. The portable part is a cordless headset device. The portable part is capable of operating on a maximum of 60 channels (time spectrum windows). The fixed part is a wall mounted base station transmitter. The system operates in the 1920MHz -1930MHz band. The system use 5 different frequency channels 1.728MHz apart using MC/TDMA/TDD (Multi Carrier / Time Division Multiple Access / Time Division Duplex) using GFSK modulation. The system employs a 10ms frame, divided into 24 equal timeslots, numbered 0-23. The Base station always transmits in the first half of the frame, and the Portable always transmits on the duplex mate in the second half of the frame. The Portable is the initiating device. A physical bearer is composed of a transmit single-slot and a receive single-slot for narrowband communications. The two halves of a given bearer are always exactly half a frame (5ms, 12 single slots) apart. During the testing frequency administration was utilised to allow operation on only certain channels during the tests. The frequency administration was performed using a software interface. A portable partand a fixed part with a temporary antenna connector were supplied to allow conducted measurements where applicable. Radio Test Report: TTR-002403WUS1 6 1.6Test Result Summary Full details of test results are contained within Appendix A. The following table summarises the results of the assessment. The statements relating to compliance with the standards below apply ONLY as qualified in the notes and deviations stated in sections 1.6 to 1.7 of this test report. Full details of test results are contained within Appendix A. The tableoverleaf summarises the results of the assessment. Abbreviations used in the overleaf table: CFR: Code of Federal RegulationsANSI: American National Standards Institution RSS: Radio Standards SpecificationPLCE: Power Line Conducted Emissions Radio Test Report: TTR-002403WUS1 7 TEST/EXAMINATIONPart 15Result Coordination with Fixed Microwave Service15.307 (b) No Note 1 Cross reference to Subpart B15.309 (b)- Labelling Requirements 15.311 15.19 (a)(3) - Measurement Procedures15.313- Antenna Requirement 15.317 15.203 Pass Modulation Techniques15.319 (b)Pass Conducted AC Powerline 15.315 15.207 Pass Emission Bandwidth15.323 (a)Pass Peak Transmit Power15.319 (c)Pass Power Spectral Density15.319 (d)Pass Antenna Gain15.319 (e)Pass Automatic Discontinuation of Transmission15.319 (f)Pass Radio Frequency Radiation Exposure15.319 (i)Pass Monitoring Thresholds 15.323 (c)(2) 15.323 (c)(9) Pass Monitoring of Intended Transmit Window and Maximum Reaction Time 15.323 (c)(1)Pass Monitoring Bandwidth15.323 (c)(7)Pass Access Criteria Functional Test15.323 (c)(6) No Note 2 Duration of Transmission15.323 (c)(3)Pass Connection Acknowledgement15.323 (c)(4)Pass Lower threshold Selected Channel, Power Accuracy, Segment Occupancy 15.323 (c)(5)Pass Monitoring Antenna15.323 (c)(8)Pass Duplex Connections15.323 (c…
