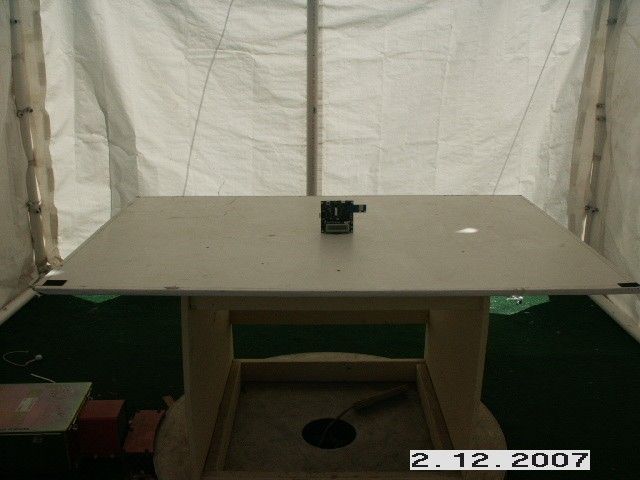

UP2AWP24SDIGITAL TRANSMISSION SYSTEM

AWS24S User Manual 2.4GHz DSSS SPI Radio for External Antenna UMAWS24S Rev 2v0 Revised March 13, 2007 User Manual 2.4GHz DSSS SPI Radio for External Antenna AWS24S Artaflex Inc. UMAWS24S Rev 2v0 215 Konrad Crescent Revised March 13, 2007 Markham, Ontario, Canada L3R8T9 Page 2 of 10 http://www.artaflexmodules.com 905-479-0148 Introduction One of the bottlenecks that many product developers encounter in incorporating any radio communication device is facing the legal aspect of qualifying the products and going to market without encountering legal problems. The Telecommunication Certification Body (TCB) authorization process in the United States offers manufacturers more than one approval body. The TCB authorization process certifies devices in accordance with FCC rules and policies. The performance of the Artaflex AWS24S radio is measured according to the requirements of FCC rules. The major applicable FCC regulations are described in Section 15.247 (a) to (d). This document gives an overview of the legal issues governing the manufacture and sale of the Artaflex AWS24S wireless module intended for unlicensed operation in the United States under FCC Part 15, Industry Canada RSS-210 and European Union ETSI EN 300 328-2 (Article 3.2 of R&TTE) and ETSI EN 301 489-1 & ETSI EN 301 489-7. OEMs may need to obtain standard equipment regulatory agency certification and for end product deployment in countries where Modular Approval is not recognized. The details of standard equipment regulatory compliance are beyond the scope of this document. OEMs needing standard equipment regulatory testing or who need council for determining regional requirement should contact approved certification and test service providers accordingly. Artaflex can provide assistance in obtaining regulatory compliance when required by the OEM. User Manual 2.4GHz DSSS SPI Radio for External Antenna AWS24S Artaflex Inc. UMAWS24S Rev 2v0 215 Konrad Crescent Revised March 13, 2007 Markham, Ontario, Canada L3R8T9 Page 3 of 10 http://www.artaflexmodules.com 905-479-0148 Table of Content Page 1.0 Eligibility Requirements for Regulatory Module Approval..................................... 4 2.0 User Guide Information.................................................................................... 5 3.0 United States Regulatory FCC Modular Approval (MA).......................................... 5 3.1 Antenna Regulation................................................................................. 5 3.2 Emissions Compliance Testing................................................................. 6 3.3 Working with Additional Transmitters....................................................... 6 3.4 Product Labeling Requirements................................................................ 7 4.0 Industry Canada Regulatory Approval ................................................................ 7 4.1 Product Labeling Requirements................................................................ 8 5.0 European Union Regulatory Approval................................................................. 8 5.1 Product Labeling Requirements................................................................ 8 5.2 European Countries Recognizing Modular Approval.................................... 9 User Manual 2.4GHz DSSS SPI Radio for External Antenna AWS24S Artaflex Inc. UMAWS24S Rev 2v0 215 Konrad Crescent Revised March 13, 2007 Markham, Ontario, Canada L3R8T9 Page 4 of 10 http://www.artaflexmodules.com 905-479-0148 1.0 Eligibility Requirements for Regulatory Module Approval The Artaflex 2.4GHz DSSS SPI Radio with Integrated Print Antenna module (AWS24S) is a device that transmits and receives radio signals in accordance with the spectrum regulations for the 2.4GHz unlicensed frequency range. Regional regulatory agency approval may be required to operate AWS24S throughout the world. For purposes of ease of integration, time to market, and product surety, Artaflex submitted the AWS24S to relevant agencies and obtained regulatory approvals for specific countries. The AWS24S was approved under the “Modular Approval (MA) Grant”. This certification represents a significant cost savings to the OEM. The radio certification portion of this grant is transferable to Digital Electronic Device manufacturers given adherence to specific implementation criteria noted herein. Any modification of the AWS24S will void the manufacturer’s warranty. Any alteration or deviation from the documented installation and/or use of the AWS24S will void the MA Grant as it applies to the end-product. In the event the Digital Electronic Device manufacturer alters the herein described and approved installation of the AWS24S, the end-product may require a complete recertification testing by the Digital Electronic Device manufacturer. The MA Grant provides that Digital Electronic Device manufacturers, who incorporate the AWS24S as tested and approved, can be relieved from having to perform the Radio Regulatory certification portion of the respective agency certification. While the OEM for a device into which an authorized module is installed is not required to obtain a new authorization for the module, this does not preclude the possibility that some other form of authorization or testing may be required for the device (e.g., a WLAN into which an authorized module is installed must still be authorized as a PC peripheral, subject to the appropriate equipment authorization). The MA Grant is valid only in countries that recognize the MA Grant certification process. Countries currently accepting the MA Grant include; the USA, Canada, and many European countries as noted in Section 5.2 of this document. Terms and conditions of regulatory approval for these countries are also described herein. However, this “grandfathered” radio certification does not relieve the Digital Electronic Device manufacturers from submitting their device for digital emissions certifications. Electronic devi…

Text truncated - open the document above for the full version.

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 1 of 2 Markham, ON L3R8T9Canada www.artaflex.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 November 8, 2006 Re: Request for Full Modular Approval for Mobile Application / FCC Part15C, Section 15.247 Digital Transceiver, Model AWP24S / FCC ID: UP2AWP24S. To whom it may concern: Modular Approval is being requested for this device. The following statements detail these requirements and the manner in which the device meets them. The module has its own complete RF transceiver with built in antenna and reference oscillator. The module meets all of the technical specifications applicable to the frequency band of operation. 1. RF Shielding The module contains an internal shield (solid ground plane) as shown in the detailed film layer. The shielding is achieved by the ground plane of the module as well as the die and substrate ground to prevent any RF coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. In addition the traces are very short to minimize undesirable radiation. This can be seen on the detailed PCB film layer provided within this documentation. 2. Buffered modulation / data inputs Data to the modulation circuit is buffered on the module via the WirelessUSB integrated circuit. Refer to the information regarding the on-board serdes (SPI) provided with the file “Data Sheet DSAWP24S” that details the theory of operation. 3. Power supply regulation Power supply regulation is provided within the WirelesUSB integrated circuit that regulates the control voltage to the RF and data circuitry. The maximum allowable voltage that can be used in the chip is 2.4Vdc – 3.6Vdc. The variable input voltage is therefore a voltage regulator. 4. Antenna requirements The module has the antenna integrated (“permanently attached”) onto the PCB. This can be seen on the detailed PCB film layer provided within this documentation. 5. The modular transmitter must be tested in a stand-alone configuration Test data contained in this application is for the device tested as a stand alone device. Radiated spurious emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators has been provided. Please refer to the test report for details. ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 2 of 2 Markham, ON L3R8T9Canada www.artaflex.com 6. The modular transmitter must be labeled with its own FCC ID number The module itself is appropriately labeled with its own FCC ID. When the module is installed inside another device or in a casing, the exterior label will make reference to the enclosed module and its FCC ID. Refer to the label location and drawings contained within this application. The UMAWP24S User Manual contains specific references for exterior end product label requirements, including the use of the wording “Contains Transmitter Module FCC ID UP2AWP24S”. 7. Operating requirements The module has no serviceable parts. The Digital Electronic Device manufacturer has control to the module via the serial data for data transmission modes and data rates as well as predefined output power settings. This can be seen in the “Data Sheet DSAWP24S” provided. 8. RF Exposure requirements The module meets the requirements for a portable device as per FCC RF exposure requirements and requires a separation distances of 20cm between the radiating structure and human as reflected in the module’s UMAWP24S User Manual. Sincerely, ___________________________ Sebastian Palazzo Design Program Manager

2.4GHz DSSS SPI Radio with Integrated Print Antenna AWP24S Block Diagram Artaflex Inc. BDAWP24S Rev 1v0 215 Konrad Crescent Revised October 17, 2006 Markham, Ontario, Canada L3R8T9 Page 1 of 1 http://www.artaflexmodules.com (905) 479-0148 12 Pin Header CYRF6936 Simplified Block Diagram Radio Chip Radio Frequency Table • RF Output Range: 2.400 GHz – 2.497 GHz • Crystal: 12MHz

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 FRM-00002 Rev. 1.0 Markham, ON L3R8T9Canada www.artaflex.com November 10, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Confidentiality Request regarding application for certification of FCC ID: UP2AWP24S Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name PCB film layer drawings 4-PCBAWP24S - PCB Layout-Rev1_0.pdf Bill of Material (Parts List) 9-Parts List-BOM_from_SCH0375B2.pdf Schematics 10-Schematic of Print Antenna - sch0375b2.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to Artaflex Inc. and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Thank you for your attention. Please contact Artaflex Inc. if the Commission requires further information. Sincerely, __________________________ Sebastian Palazzo Design Program Manager Artaflex Inc.

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 1 of 2 Markham, ON L3R8T9Canada www.artaflex.com Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 November 8, 2006 Re: Request for Full Modular Approval for Mobile Application / FCC Part15C, Section 15.247 Digital Transceiver, Model AWP24S / FCC ID: UP2AWP24S. To whom it may concern: Modular Approval is being requested for this device. The following statements detail these requirements and the manner in which the device meets them. The module has its own complete RF transceiver with built in antenna and reference oscillator. The module meets all of the technical specifications applicable to the frequency band of operation. 1. RF Shielding The module contains an internal shield (solid ground plane) as shown in the detailed film layer. The shielding is achieved by the ground plane of the module as well as the die and substrate ground to prevent any RF coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. In addition the traces are very short to minimize undesirable radiation. This can be seen on the detailed PCB film layer provided within this documentation. 2. Buffered modulation / data inputs Data to the modulation circuit is buffered on the module via the WirelessUSB integrated circuit. Refer to the information regarding the on-board serdes (SPI) provided with the file “Data Sheet DSAWP24S” that details the theory of operation. 3. Power supply regulation Power supply regulation is provided within the WirelesUSB integrated circuit that regulates the control voltage to the RF and data circuitry. The maximum allowable voltage that can be used in the chip is 2.4Vdc – 3.6Vdc. The variable input voltage is therefore a voltage regulator. 4. Antenna requirements The module has the antenna integrated (“permanently attached”) onto the PCB. This can be seen on the detailed PCB film layer provided within this documentation. 5. The modular transmitter must be tested in a stand-alone configuration Test data contained in this application is for the device tested as a stand alone device. Radiated spurious emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators has been provided. Please refer to the test report for details. ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 2 of 2 Markham, ON L3R8T9Canada www.artaflex.com 6. The modular transmitter must be labeled with its own FCC ID number The module itself is appropriately labeled with its own FCC ID. When the module is installed inside another device or in a casing, the exterior label will make reference to the enclosed module and its FCC ID. Refer to the label location and drawings contained within this application. The UMAWP24S User Manual contains specific references for exterior end product label requirements, including the use of the wording “Contains Transmitter Module FCC ID UP2AWP24S”. 7. Operating requirements The module has no serviceable parts. The Digital Electronic Device manufacturer has control to the module via the serial data for data transmission modes and data rates as well as predefined output power settings. This can be seen in the “Data Sheet DSAWP24S” provided. 8. RF Exposure requirements The module meets the requirements for a portable device as per FCC RF exposure requirements and requires a separation distances of 20cm between the radiating structure and human as reflected in the module’s UMAWP24S User Manual. Sincerely, ___________________________ Sebastian Palazzo Design Program Manager

Engineering Change Order FRM-00050 Rev. 1.0 ARTAFLEX INC. electronic manufacturing & design 215 Konrad Crescent Markham, Ontario L3R 8E6 Canada Phone: (905) 479 0148 Fax: (905) 479 0149 www.artaflex.com Engineering Change Order Product Name: LP Wireless Print Antenna: UNT0375 ECO #: ECO0375-1.doc Release Date: Feb. 22, 2007 Author: B. Zajac Project Leader / Design Engineer Production Program Manager Manufacturing Manager Materials Manager Design Services Manager Affected Assemblies (serial numbers) Disposition of existing assemblies (specify) • Existing inventory - • New production Affected Document(s) List: Old Document Will be replaced by SCH0375B3.dsn SCH0375B4.dsn BOM0375B4.xls BOM0375B5.xls ASM0375B1.doc ASM0375B2.doc PCB0375B3 PCB0375B4 --------------- MAS0375A1.pdf Description of change: 1. Part number for ZHD1 has changed to accommodate T/R with pick-up cap. 2. Added custom RF shield (CST0422A2) to BOM. 3. PCB has been revised (solder mask opened up to allow placement and soldering of RF shield). Reason for Change(s): 1. Shield required by FCC.

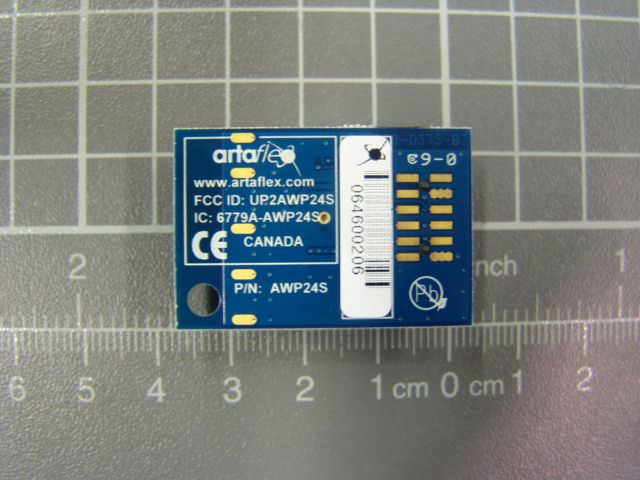

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 FRM-00002 Rev. 1.0 Markham, ON L3R8T9Canada www.artaflex.com AWP24S Module photos

Location of FCC Label 0.750" 0.050" 1.50"

FCC Label for AWP24S

ELECTRONICS MANUFACTURING AND DESIGN Artaflex Inc. TEL: 905.479.0148 215 Konrad Crescent FAX: 905.479.0149 FRM-00002 Rev. 1.0 Markham, ON L3R8T9Canada www.artaflex.com AWP24S Module photos

D 2.4GHz DSSS SPI Radio with Integrated Print Antenna AWP24S ata Sheet Artaflex Inc. DSAWP24S Rev 4v1 215 Konrad Crescent Revised March 1, 2007 Markham, Ontario, Canada L3R8T9 Page 1 of 14 http://www.artaflexmodules.com 905-479-0148 1 Features • The AWP24S is a 2.4-GHz Direct Sequence Spread Spectrum (DSSS) complete radio module which includes the Cypress radio integrated circuit WirelessUSB™ LP CYRF6936, integrated PCB Trace Antenna, and all external components • Operates in the unlicensed worldwide Industrial, Scientific and Medical (ISM) band (2.400 GHz–2.483 GHz) • 21mA operating current (Transmit @ –5 dBm) • Transmit power up to +4 dBm • Receive sensitivity up to –97 dBm • Sleep Current <1 μA • Operating range of up to 50m or more. • DSSS data rates up to 250 kbps, GFSK data rate of 1 Mbps • Auto Transaction Sequencer (ATS) - no micro controller intervention • Framing, Length, CRC16, and Auto ACK • Fast Startup and Fast Channel Changes • Separate 16-byte Transmit and Receive FIFOs • AutoRate™ - dynamic data rate reception • Receive Signal Strength Indication (RSSI) • 4-MHz SPI microcontroller interface • No proprietary software required • Serial Peripheral Interface (SPI) control while in sleep mode • Vertical or horizontal mounting • Operating voltage from 2.4 to 3.6 volts • Operating temperature from 0 to 70°C • Size: 38.1 mm x 25.4 mm (1.5” x 1.0”) • Weight: 27 grams • FCC Modular Approval Grant to meet FCC Part 15, EN 300 328-1, EN 301 489-1, EN 301 489-7 and Industry Canada RSS-210 standards • An FCC Module Approval (MA) Grant provides customers significant cost savings, by allowing customers to adopt the AWP24S FCC ID into their own products 2 Functional Description The Artaflex AWP24S Wireless Radio Module offers a complete radio module solution for integration into existing or new 2.4-GHz products. The AWP24S is tested for functional operation and is FCC/ETSI (EU)/Industry Canada certified. The module is supplied with an integrated PCB trace antenna. The AWP24S is available in a small PCB design and can be mounted horizontally or vertically to the device PCB via a 12- pin header. The pin-out of the header is shown in the Connector Footprint section. 3 Applications • PC Human Interface Devices (HID) • Wireless Keyboards and Mice • VOIP and Wireless Headsets • Wireless Gamepads • Remote Control • White Goods (Smart Appliances) • Window unit air conditioners • Kitchen compactors • Dishwashers • Washers • Dryers • Consumer • Sports and Leisure Equipment • Remote Controls • Audio Subwoofer • Presenter Tools • Locator Alarms • Toys • Building/Home Automation • Automatic Meter Readers (AMR) • On-Site Paging Systems • Garage door opener • Alarm and Security • Lighting Control • Climate Control • Fan Control • Industrial Control • Active RFID and asset tracking systems • Inventory Management • Point-of-sale systems • Factory Automation • Data Acquisition • Transportation • Remote Keyless Entry with acknowledgement (RKE) • Airline Baggage Tracking • Diagnostics 2.4GHz DSSS SPI Radio with Integrated Print Antenna AWP24S Data Sheet Artaflex Inc. DSAWP24S Rev 4v1 215 Konrad Crescent Revised March 1, 2007 Markham, Ontario, Canada L3R8T9 Page 2 of 14 http://www.artaflexmodules.com 905-479-0148 Figure 1 - Module Schematic 3.1 Reference Documentation For information on technical details of the Cypress Semiconductor, CYRF6936 WirelessUSB TM LP, 2.4-GHz DSSS Radio system on chip such as register settings, timing, application interfaces, and clocking, refer to the device data sheet CYRF6936 available on the Cypress Web Site at:- www.cypress.com • The following is the link location known at the time of publication that accompany this data sheet: http://download.cypress.com/publishedcontent/publish/design_resources/datasheets/contents/cyrf6936_8.pdf 2.4GHz DSSS SPI Radio with Integrated Print Antenna AWP24S Data Sheet Artaflex Inc. DSAWP24S Rev 4v1 215 Konrad Crescent Revised March 1, 2007 Markham, Ontario, Canada L3R8T9 Page 3 of 14 http://www.artaflexmodules.com 905-479-0148 4 Functional Overview The AWP24S Module provides a complete SPI to RF antenna wireless MODEM. The module is designed to implement wireless device links operating in the worldwide 2.4-GHz ISM frequency band. It is intended for systems compliant with world-wide regulations covered by Europe ETSI EN 301 489-1, ETSI EN 301 489-7, & ETSI EN 300 328-1, USA FCC Part 15 and Industry Canada RSS-210 standards. The module contains a 2.4-GHz 1-Mbps GFSK radio transceiver, packet data buffering, packet framer, DSSS baseband controller, Received Signal Strength Indication (RSSI), and SPI interface for data transfer and device configuration. The radio supports 98 discrete 1-MHz channels (regulations may limit the use of some of these channels in certain jurisdictions). In DSSS modes the baseband performs DSSS spreading/de-spreading, while in GFSK Mode (1 Mb/s - GFSK) the baseband performs Start of Frame (SOF), End of Frame (EOF) detection and CRC16 generation and checking. The baseband may also be configured to automatically transmit Acknowledge (ACK) handshake packets whenever a valid packet is received. When in receive mode, with packet framing enabled, the device is always ready to receive data transmitted at any of the supported bit rates, except SDR, enabling the implementation of mixed-rate systems in which different devices use different data rates. This also enables the implementation of dynamic data rate systems, which use high data rates at shorter distances and/or in a low- moderate interference environment, and change to lower data rates at longer distances and/or in high interference environments. 4.1 Link Layer Modes The AWP24S module supports the following data packet framing features: SOP – Packets begin with a 2-symbol Start of Packet (SOP) marker. This is required in GFSK and 8DR modes, but is optional in DDR mode and is not supported in SDR mode; if framing is disabled then an SOP event is inferred whenever two successi…

Text truncated - open the document above for the full version.

2.4GHz DSSS SPI Radio with Integrated Print Antenna AWP24S Product Brief Artaflex Inc. PBAWP24S Rev 1v0 215 Konrad Crescent Revised November 2, 2006 Markham, Ontario, Canada L3R8T9 http://www.artaflexmodules.com 905-479-0148 Features • The AWP24S is a 2.4-GHz Direct Sequence Spread Spectrum (DSSS) complete radio module which includes the Cypress radio integrated circuit WirelessUSB™ LP CYRF6936, integrated PCB Trace Antenna, and all external components • Operates in the unlicensed worldwide Industrial, Scientific and Medical (ISM) band (2.400 GHz–2.483 GHz) • 21mA operating current (Transmit @ –5 dBm) • Transmit power up to +4 dBm • Receive sensitivity up to –97 dBm • Sleep Current <1 μA • Operating range of up to 50m or more. • DSSS data rates up to 250 kbps, GFSK data rate of 1 Mbps • Auto Transaction Sequencer (ATS) - no micro controller intervention • Framing, Length, CRC16, and Auto ACK • Fast Startup and Fast Channel Changes • Separate 16-byte Transmit and Receive FIFOs • AutoRate™ - dynamic data rate reception • Receive Signal Strength Indication (RSSI) • 4-MHz SPI microcontroller interface • Serial Peripheral Interface (SPI) control while in sleep mode • Vertical or horizontal mounting • No proprietary software required • Size: 38.1 mm x25.4 mm (1.5” x 1.0” ) • Weight: 27 grams • FCC Modular Approval Grant to meet FCC Part 15, EN 300 328-1, EN 301 489-1, EN 301 489-7 and Industry Canada RSS-210 standards • An FCC Module Approval (MA) Grant provides customers significant cost savings, by allowing customers to adopt the AWP24S FCC ID into their own products Applications • PC Human Interface Devices (HID) • White Goods (Smart Appliances) • Consumer • Building/Home Automation • Industrial Control • Transportation Operating Conditions • V CC ................................................................2.4V to 3.6V • T A (Ambient Temperature under Bias).................. 0°C to +70°C • Ground Voltage....................................................... .....0V • F OSC (Crystal Frequency).............................. 12 MHz ±30 ppm 2.4GHz DSSS SPI Radio with Integrated Print Antenna AWP24S Product Brief Artaflex Inc. PBAWP24S Rev 1v0 215 Konrad Crescent Revised November 2, 2006 Markham, Ontario, Canada L3R8T9 http://www.artaflexmodules.com 905-479-0148 Mechanical Diagram (Dimensions in mm) Ordering Information Part Number Description Temperature AWP24S-12H2-C Integrated Print Antenna with Open 12 Pin Header in Commercial Temperature 0 to 70ºC
