V7T4G09AC1200 Smart Dual-Band WiFi 4G+LTE Router

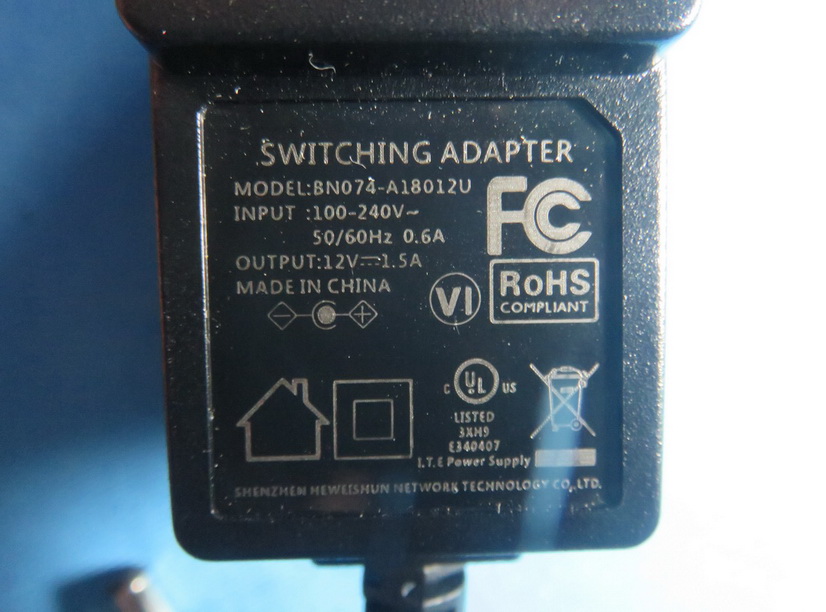

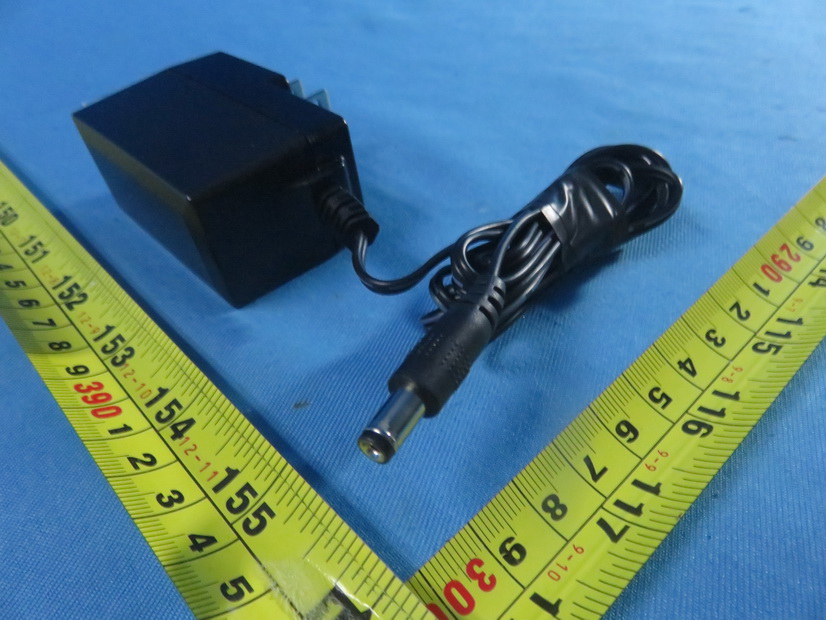

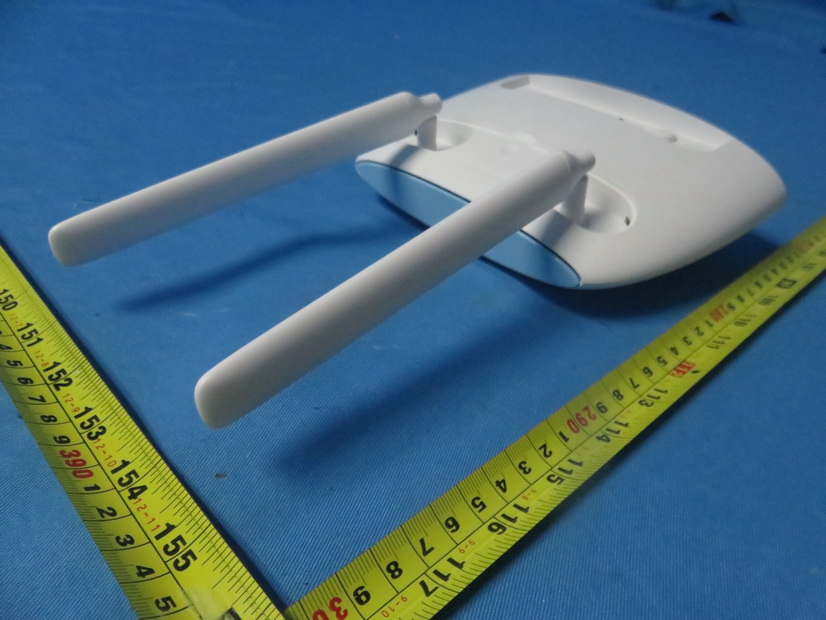

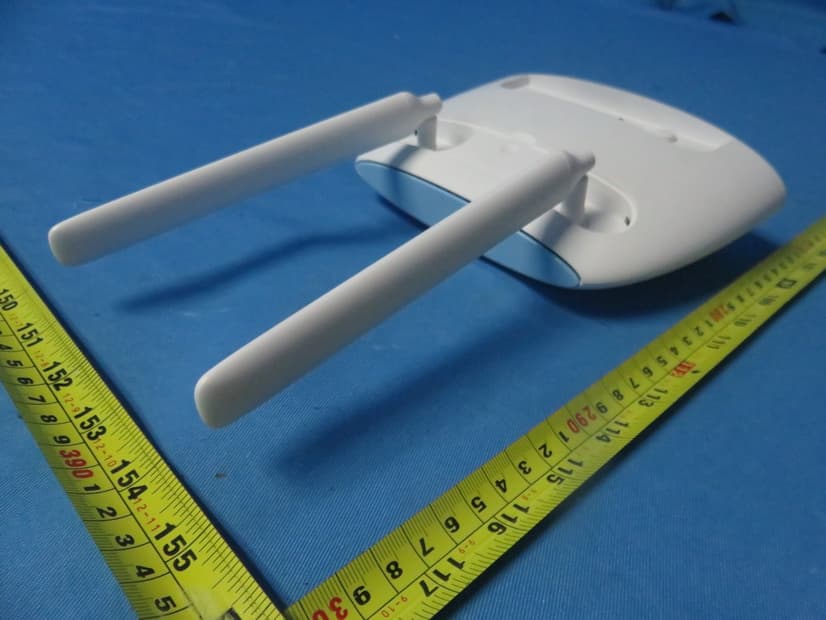

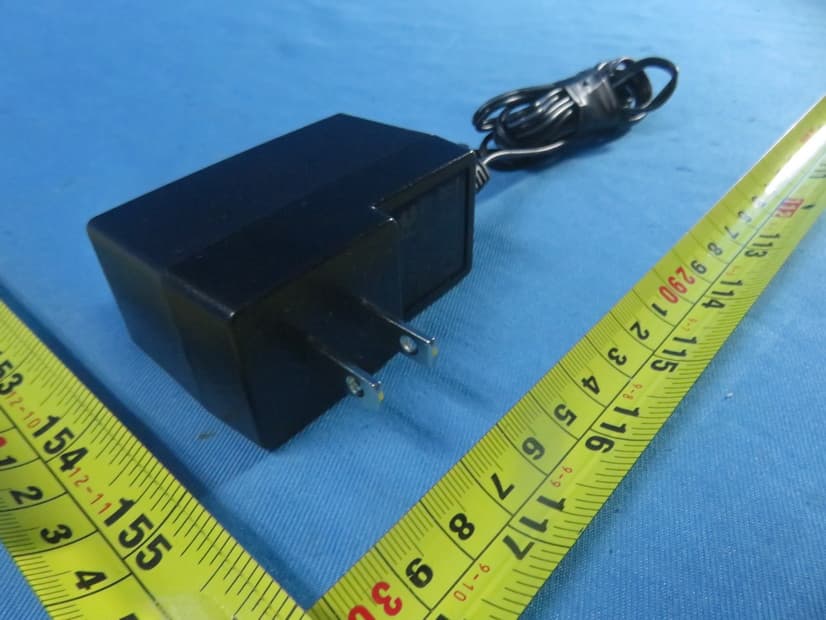

Quick Installation Guide AC1200 Dual-band Wi-Fi 4G + LTE Router 4G09 Package contents 4G + LTE Router x 1 Detachable antenna x 2 Ethernet cable x 1 Power adapter x 1 Quick installation guide x 1 For product or function details, please go to www.tendacn.com to download the user guide. LED indicatorStatusDescription Solid onThe router is powered on properly. Solid on Solid on The router is connected to the internet. Blinking Solid on 3 barsExcellent signal. No device is connected to any LAN port of the router. 2 barsGood signal. 1 bar OffNo 4G/3G signal. Off Off The Wi-Fi network is disabled. OffNo internet access is available. The Wi-Fi network is enabled. OffThe router is powered off or not powered on properly. The router is performing WPS negotiation. Fair signal. At least one device is connected to a LAN port of the router. FAQ Q1: The LED indicator does not light up. What should I do? If you are required to enter a PIN code to unlock the SIM card, contact your ISP for the PIN code. If you are required to enter APN parameters manually, enter these parameters provided by your ISP. If the LED indicator is still off after you finish the Quick Setup Wizard, your SIM card may run out of money. A1: Start a web browser, and access tendawifi.com to customize your network: Q2: I cannot access the web UI of the router by visiting tendawifi.com. What should I do? Ensure that your wireless device is connected to the Wi-Fi network of the router. Disable the cellular network of your wireless device. Clear the cache of your web browser or change another web browser and try again. Check if the computer is connected to the router properly. Check if your computer used to set up the router obtains an IP address of 192.168.0.X (X ranges from 2 to 254). Otherwise, connect your computer to the router again after disconnecting from the router. Clear the cache of your web browser or change another web browser and try again. A2: Try the following solutions. If you log in with a wireless device: II. Customize your network LED indicators Insert a Mini SIM card into the slot on the bottom panel of the router. Attach the antennas to the router. Use the included power adapter to connect the PWR jack of the router to a power source. Press the ON/OFF button down to turn on the router. Wait for a few seconds, the router is successfully connected to the internet, when the following indicators light up. Connect your computer to the WAN/LAN or LAN port of the router using an Ethernet cable, or connect your smart phone to the Wi-Fi network of the router using the Wi-Fi Name labeled on the bottom panel of the router. There is no Wi-Fi password by default. Start a web browser and visit tendawifi.com. Follow the Quick Setup Wizard to customize your Wi-Fi network. tendawif i.com Quick Setup Wizard Tenda Router Start 1 1 1 2 2 2 3 3 4 3 4 If you log in with a wired device: If the problem persists, reset the router and configure it again. I. Configurar su Router II. Personalizar la red Conecte las antenas al rúter. Inserte una tarjeta mini-SIM en la ranura situada en el panel inferior del router. Espere unos segundos. El router está conectado correctamente a Internet cuando se iluminan los siguientes indicadores. Utilice el adaptador de corriente suministrado para conectar el conector PWR del router a una toma de corriente. Pulse el botón ON/OFF para encender el router. Conecte su ordenador al puerto WAN/LAN o LAN del router mediante un cable Ethernet o conecte su teléfono inteligente a la red Wi-Fi del router usando el Wi-Fi Name que se indica en la etiqueta situada en el panel inferior del router. No hay contraseña Wi-Fi predeterminada. Abra un navegador web y vaya a tendawifi.com. Siga las indicaciones de Asistente de configuración rápida para personalizar la red Wi-Fi. Hecho. Nota: Si el indicador no se ilumina, consulte la Q1 en la sección FAQ para encontrar una solución. Español 1 1 2 3 2 3 4 12345A 6789 + + Tarjeta mini-SIMTarjeta nano-SIM + AdaptadorTarjeta micro-SIM + Adaptador ✓✓✓ I. Configurare il router II. Personalizzare la propria rete Collegare le antenne al router. Inserire una scheda Mini SIM nello slot sul pannello inferiore del router. Attendere qualche secondo: il router è collegato correttamente a Internet, quando si accendono i seguenti indicatori. Utilizzare l'alimentatore in dotazione per collegare il jack PWR del router a una fonte di alimentazione. Premere il tasto ON/OFF per accendere il router. Collegare il proprio computer alla porta WAN/LAN o LAN del router uscando un cavo Ethernet o collega il proprio smartphone alla rete Wi-Fi del router utilizzando il nome Wi-Fi Name etichettato sul pannello inferiore del router. Come impostazione predefinita non esiste una password Wi-Fi. Avviare un browser Web e visitare tendawifi.com. Seguire la procedura di Installazione guidata rapida per personaliz- zare la propria rete Wi-Fi. Fatto. Nota: Se l'indicatore non si illumina, fare riferimento a Q1 nelle FAQ per trovare una soluzione. Italiano 1 1 2 3 2 3 4 12345A 6789 + + Scheda Mini SIMScheda Nano SIM + adattatoreScheda Micro SIM + adattatore ✓✓✓ I. Setel router II. Menyesuaikan jaringan Anda Memasang antena ke router. Masukkan kartu SIM Mini ke dalam slot di panel bawah router. Tunggu beberapa detik, router berhasil terhubung ke internet, ketika indikator berikut menyala. Gunakan adaptor daya yang disertakan untuk menghubungkan jek PWR router ke sumber daya. Tekan tombol ON/OFF untuk menyalakan router. Sambungkan komputer Anda ke port WAN/LAN atau LAN dari router menggunakan kabel Ethernet, atau sambungkan ponsel pintar Anda ke jaringan router Wi-Fi menggunakan Wi-Fi Name yang berlabel di panel bawah router. Tidak ada kata sandi Wi-Fi secara default. Mulai browser web, lalu kunjungi tendawifi.com. Ikuti Wizard Penyiapan Cepat untuk menyesuaikan jaringan Wi-Fi Anda. Selesai. Catatan: Jika indikator tidak menyala, baca Q1 di FAQ untuk menemukan solusi. Bahasa Indonesia 1 1 2 3 2 3 4 12345A 6789 + + Kartu SIM M…

Text truncated - open the document above for the full version.

         !!""#$%&   '(  )**)  +" , - !  "  "   ,  .   ,    -/ "  0 + 1"1 !, + +  / , 23  !!"" (4 "+ +)"- !  5   + '  , +   ,  "   ! //,    !" + +!!  "   ' +/ !6"7 ! +8( ) 6"7 9 !!"  /  ):**$; ! $& <=-  ,/!" +  <*> <*> !? ! &3@8<*> ;   : *:*$*<$(*  ,      &    +   + A AAAAAAAAA BCDEFG HIJGKELMNOEPQCORSSTUUVNWTDNCX YZ[\]^_]``abcdebfgbhgi_jkbgg`^lgm^nkg_o^_bhgjdbh^_ apgljqgkbr

          !"##$%&'(&"% !"##&))&"% *+$&,#%( -$(."&/(&"% 0&1&)&"%2 -,, &'(&"% 3"'))&%4 5%'. 6789 :; % <& ) =" !" $#>&2 <0 ?@A7B CDEDE FGFHEI  J KL  L   3$)$ %( (" 34,.) MAN796 % AN79O "P (. QRSSTUUTRVWU XYZ[U \]^ Q_`_X_a bVc d'(&" % M99?e>fe7f "P (. "# "P g%P"#(&"% -'(2 h +$)() '"%P&%(& &(i P" (. P" "h& %4 ,"$'()j !! g 0 <" %# klmGnEo GnEop GnEoq " (.  ,"$'( )(( >"12 h +$)( (.( (. P" "h&%4 &%P"#(&"% > .  '"%P& %(& r *s.&>&() t"%4uv# !"%P&%(& &(i d."(uv# !"%P&%(& &(i d."(uv# !"%P&%(& &(i 0i) *s(% 3."(") g%(% 3."(") 5 "'; 0&4# d'.#(&') v)( d($, 3."(") wU[xWU ybVYbZ 3() t&)( v$% z, :,(&"% 0)'&,(&"%) v. " %4u(# '"%P&%(& &(i s.&>&() '"%(&% "$ ( )'() % ,",&(i &%P"#(&"% (.( '"$  > "P >%P&( (" "$ '"#,(&(")N v. ). "(u(# '"%P&%(& &(i "% (. >)&) "P %)$&%4 (.( >$)&%)) )%)&(&1 &%P"#(&"% #&%) '"%P&%(& $%(& (. '($ #;(&%4 "P "$ %h 1&'N gP i"$ .1 %i +$)(&"%)2 , ) P P (" '"%('( # ( (. )) )."h% > "hN

          ! " #$%&"'%&"(&")*(&!%"+,+-.!+/,()/ *#01234(5&6"/7887' 9")$:!  %;  <<445#  = #*!7>88)41;13?-@,(&9 ( #?-8A?-8A* (B#(  (  *44C <D4?-8A?-8A*444 E4F<445<<# 7/( 4?-8A?-8A*4 <<4/      )#>8>81 8?168 "#$. (4#201GHH1>G0HG8A2 &14#I/ $#

Report No.: 2001C104 Page 2 of 16 LTE & WCDMA Antenna Report No.: 2001C104 Page 3 of 16 Report No.: 2001C104 Page 4 of 16 Report No.: 2001C104 Page 5 of 16

AC1200 Dual-band Wi-Fi 4G + LTE Router Model: 4G09 Power: 12V 1.5A FCC ID: V 7 T4G09 Access URL: http://tendawif i.com Wi-Fi Name: Contains FCC ID: XMR201807EG06A www.tendacn.com Made in China MAC IMEI Serial No. AC1200 Dual-band Wi-Fi 4G + LTE Router Model: 4G09A Power: 12V 1.5A FCC ID: V 7 T4G09 Access URL: http://tendawif i.com Wi-Fi Name: Contains FCC ID: XMR201807EG06A www.tendacn.com Made in China MAC IMEI Serial No. label location

Report No.: 2001C104 Page 6 of 16 2.4G &5G Ant.1 2.4G & 5G Ant.2 Report No.: 2001C104 Page 7 of 16 Report No.: 2001C104 Page 8 of 16 Report No.: 2001C104 Page 9 of 16 Report No.: 2001C104 Page 10 of 16 Report No.: 2001C104 Page 11 of 16 Report No.: 2001C104 Page 12 of 16 Report No.: 2001C104 Page 13 of 16 Report No.: 2001C104 Page 14 of 16 Report No.: 2001C104 Page 15 of 16 Report No.: 2001C104 Page 16 of 16

Report No.: BTL-FCCP-3-2001C104 Page 1 of 7 FCC RF EXPOSURE REPORT FCC ID: V7T4G09 Project No. : 2001C104 Equipment : AC1200 Dual-band Wi-Fi 4G+ LTE Router Brand Name : Tenda Test Model : 4G09 Series Model : 4G09A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Jan. 17, 2020 Date of Test : Jan. 19, 2020 ~ May 11, 2020 Issued Date : May 11, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG20200402159 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2001C104 Page 2 of 7 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 28, 2020 R01 Modified the comments of TCB. May 11, 2020 Report No.: BTL-FCCP-3-2001C104 Page 3 of 7 1. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A PCB N/A 4.27 2 N/A N/A PCB N/A 3.42 Note: This EUT supports CDD, and antenna gains are not equal, then, 1) For Non Beamforming, Directional gain=10log [(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi=6.87. So the output power limit is 30-(6.87-6)=29.13, the power spectral density limit is 8-(6.87-6)=7.13. 2) For Beamforming, Beamforming Gain=3 dB, so Directional gain= 3+4.27=7.27 dBi. Thus, the output power limit is 30-(7.27-6)=28.73. For 5GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A PCB N/A 4.78 2 N/A N/A PCB N/A 5.29 Note: This EUT supports CDD, and antenna gains are not equal, then, 1) For Non Beamforming, Directional gain=10log [(10 G1/20 +10 G2/20 +...10 GN/20 ) 2 /N]dBi=8.05. So the output power limit is 30-(8.05-6)=27.95, the UNII-1 power spectral density limit is 17-(8.05-6)=14.95, the UNII-3 power spectral density limit is 30-(8.05-6)=27.95. 2) For Beamforming, Beamforming Gain=3 dB, so Di rectional gain= 3+5.29=8.29 dBi. Thus, the output power limit is 30-(8.29-6)=27.71. For WCDMA: Brand Model Name Antenna Type Connector Gain (dBi) Note N/A N/A Dipole N/A 5.04 Band II N/A N/A Dipole N/A 4.42 Band IV N/A N/A Dipole N/A 1.66 Band V Report No.: BTL-FCCP-3-2001C104 Page 4 of 7 For LTE: Brand Model Name Antenna Type Connector Gain (dBi) Note N/A N/A Dipole N/A 5.04 Band 2 N/A N/A Dipole N/A 4.42 Band 4 N/A N/A Dipole N/A 1.66 Band 5 N/A N/A Dipole N/A 4.62 Band 7 N/A N/A Dipole N/A 2.38 Band 12 N/A N/A Dipole N/A -1.39 Band 13 N/A N/A Dipole N/A 5.04 Band 25 N/A N/A Dipole N/A 1.66 Band 26 N/A N/A Dipole N/A 4.15 Band 30 N/A N/A Dipole N/A 4.73 Band 66 Report No.: BTL-FCCP-3-2001C104 Page 5 of 7 Table for Antenna Configuration: For 2.4GHz: Non Beamforming: Operating Mode TX Mode 1TX 2TX IEEE 802.11b V (Ant. 2) - IEEE 802.11g V (Ant. 2) - IEEE 802.11n (HT20) - V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) - V (Ant. 1 + Ant. 2) Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) For 5GHz: Non Beamforming: Operating Mode TX Mode 1TX 2TX IEEE 802.11a V (Ant. 2) - IEEE 802.11n (HT20) - V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) - V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) - V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) - V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) - V (Ant. 1 + Ant. 2) Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n (HT20) V (Ant. 1 + Ant. 2) IEEE 802.11n (HT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT20) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT40) V (Ant. 1 + Ant. 2) IEEE 802.11ac (VHT80) V (Ant. 1 + Ant. 2) Report No.: BTL-FCCP-3-2001C104 Page 6 of 7 2. TEST RESULTS For 2.4GHz Non Beamforming: Antenna Gain (dBi) Antenna Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 4.27 2.6730 25.91 389.9420 0.20747 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Average Output Power (dBm) Max. Average Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 7.27 5.3333 19.74 94.1890 0.09999 1 Complies For 5GHz UNII-1 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.05 6.3826 26.65 462.3810 0.58742 1 Complies For 5GHz UNII-3 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.05 6.3826 26.87 486.4072 0.61795 1 Complies For 5GHz UNII-1 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.29 6.7453 26.30 426.5795 0.57273 1 Complies For 5GHz UNII-3 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 8.29 6.7453 26.61 458.1419 0.61511 1 Complies Report No.: BTL-FCCP-3-2001C104 Page 7 of 7 For WCDMA: Band Frequency (MHz) Max. Output Power (dBm) Antenna Gain (dBi) Antenna Gain (linear) R (cm) Out…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2001C104 Page 1 of 166 FCC Radio Test Report FCC ID: V7T4G09 This report concerns: Original Grant Project No. : 2001C104 Equipment : AC1200 Dual-band Wi-Fi 4G+ LTE Router Brand Name : Tenda Test Model : 4G09 Series Model : 4G09A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Jan. 17, 2020 Date of Test : Jan. 19, 2020 ~ May 11, 2020 Issued Date : May 11, 2020 Report Version : R01 Test Sample : Engineering Sample No.: DG20200402159 Standard(s) : FCC Part15, Subpart E(15.407) ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Chay Cai Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2001C104 Page 2 of 166 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/I EC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2001C104 Page 3 of 166 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 8 2 . GENERAL INFORMATION 9 2.1 GENERAL DESCRIPTION OF EUT 9 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 15 2.4 DUTY CYCLE 17 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 19 2.6 SUPPORT UNITS 19 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 20 3.1 LIMIT 20 3.2 TEST PROCEDURE 20 3.3 DEVIATION FROM TEST STANDARD 20 3.4 TEST SETUP 21 3.5 EUT OPERATION CONDITIONS 21 3.6 TEST RESULTS 21 4 . RADIATED EMISSIONS TEST 22 4.1 LIMIT 22 4.2 TEST PROCEDURE 23 4.3 DEVIATION FROM TEST STANDARD 23 4.4 TEST SETUP 24 4.5 EUT OPERATION CONDITIONS 25 4.6 TEST RESULTS - 9 KHZ to 30 MHZ 25 4.7 TEST RESULTS - 30 MHz TO 1000 MHz 25 4.8 TEST RESULTS - ABOVE 1000 MHz 25 5 . BANDWIDTH TEST 26 5.1 LIMIT 26 5.2 TEST PROCEDURE 26 5.3 DEVIATION FROM TEST STANDARD 27 Report No.: BTL-FCCP-2-2001C104 Page 4 of 166 Table of Contents Page 5.4 TEST SETUP 27 5.5 EUT OPERATION CONDITIONS 27 5.6 TEST RESULTS 27 6 . MAXIMUM OUTPUT POWER TEST 28 6.1 LIMIT 28 6.2 TEST PROCEDURE 28 6.3 DEVIATION FROM STANDARD 28 6.4 TEST SETUP 28 6.5 EUT OPERATION CONDITIONS 28 6.6 TEST RESULTS 28 7 . POWER SPECTRAL DENSITY TEST 29 7.1 LIMIT 29 7.2 TEST PROCEDURE 29 7.3 DEVIATION FROM STANDARD 29 7.4 TEST SETUP 29 7.5 EUT OPERATION CONDITIONS 29 7.6 TEST RESULTS 29 8 . FREQUENCY STABILITY MEASUREMENT 30 8.1 LIMIT 30 8.2 TEST PROCEDURE 30 8.3 DEVIATION FROM STANDARD 30 8.4 TEST SETUP 30 8.5 EUT OPERATION CONDITIONS 30 8.6 TEST RESULTS 30 9 . MEASUREMENT INSTRUMENTS LIST 31 10 . EUT TEST PHOTOS 33 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 37 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 42 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1 GHZ 47 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 50 APPENDIX E - BANDWIDTH 125 APPENDIX F - MAXIMUM OUTPUT POWER 133 Report No.: BTL-FCCP-2-2001C104 Page 5 of 166 Table of Contents Page APPENDIX G - POWER SPECTRAL DENSITY 154 APPENDIX H - FREQUENCY STABILITY 164 Report No.: BTL-FCCP-2-2001C104 Page 6 of 166 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 28, 2020 R01 Modified the comments of TCB. May 11, 2020 Report No.: BTL-FCCP-2-2001C104 Page 7 of 166 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart E(15.407) Standard(s) Section Test Item Test Result Judgement Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.407(a) 15.407(e) Spectrum Bandwidth APPENDIX E PASS ------ 15.407(a) Maximum Output Power APPENDIX F PASS ------ 15.407(a) Power Spectral De…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2001C104 Page 131 of 166 Test Mode UNII-3_TX AC (VHT40) Mode_Ant. 2 Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 151 5755 35.30 53.20 500 Complies 159 5795 35.20 66.60 500 Complies CH151 CH159 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2001C104 Page 132 of 166 Test Mode UNII-3_TX AC (VHT80) Mode_Ant. 2 Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Emission Bandwidth (MHz) 6 dB Bandwidth Min. Limit (kHz) Result 155 5775 74.40 76.00 500 Complies CH155 6 dB Bandwidth 99 % Emission Bandwidth Report No.: BTL-FCCP-2-2001C104 Page 133 of 166 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2001C104 Page 134 of 166 Non Beamforming Test Mode UNII-1_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 19.13 0.75 19.88 30.00 1.00 Complies 40 5200 22.62 0.75 23.37 30.00 1.00 Complies 48 5240 23.06 0.75 23.81 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.11 0.79 18.90 30.00 1.00 Complies 40 5200 21.81 0.79 22.60 30.00 1.00 Complies 48 5240 22.36 0.79 23.15 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.71 0.79 19.50 30.00 1.00 Complies 40 5200 22.18 0.79 22.97 30.00 1.00 Complies 48 5240 22.14 0.79 22.93 30.00 1.00 Complies Test Mode UNII-1_TX N (HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 22.22 27.95 0.62 Complies 40 5200 25.80 27.95 0.62 Complies 48 5240 26.05 27.95 0.62 Complies Report No.: BTL-FCCP-2-2001C104 Page 135 of 166 Test Mode UNII-1_TX N (HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 16.19 1.47 17.66 30.00 1.00 Complies 46 5230 19.93 1.47 21.40 30.00 1.00 Complies Test Mode UNII-1_TX N (HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 16.49 1.47 17.96 30.00 1.00 Complies 46 5230 20.08 1.47 21.55 30.00 1.00 Complies Test Mode UNII-1_TX N (HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 20.82 27.95 0.62 Complies 46 5230 24.48 27.95 0.62 Complies Report No.: BTL-FCCP-2-2001C104 Page 136 of 166 Test Mode UNII-3_TX A Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 23.83 0.75 24.58 30.00 1.00 Complies 157 5785 23.78 0.75 24.53 30.00 1.00 Complies 165 5825 23.64 0.75 24.39 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 22.67 0.79 23.46 30.00 1.00 Complies 157 5785 22.24 0.79 23.03 30.00 1.00 Complies 165 5825 22.94 0.79 23.73 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 23.14 0.79 23.93 30.00 1.00 Complies 157 5785 22.57 0.79 23.36 30.00 1.00 Complies 165 5825 22.55 0.79 23.34 30.00 1.00 Complies Test Mode UNII-3_TX N (HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 149 5745 26.71 27.95 0.62 Complies 157 5785 26.21 27.95 0.62 Complies 165 5825 26.55 27.95 0.62 Complies Report No.: BTL-FCCP-2-2001C104 Page 137 of 166 Test Mode UNII-3_TX N (HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 22.96 1.47 24.43 30.00 1.00 Complies 159 5795 22.45 1.47 23.92 30.00 1.00 Complies Test Mode UNII-3_TX N (HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 21.73 1.47 23.20 30.00 1.00 Complies 159 5795 21.07 1.47 22.54 30.00 1.00 Complies Test Mode UNII-3_TX N (HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 151 5755 26.86 27.95 0.62 Complies 159 5795 26.29 27.95 0.62 Complies Report No.: BTL-FCCP-2-2001C104 Page 138 of 166 Test Mode UNII-1_TX AC (VHT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.24 1.41 19.65 30.00 1.00 Complies 40 5200 21.97 1.41 23.38 30.00 1.00 Complies 48 5240 22.31 1.41 23.72 30.00 1.00 Complies Test Mode UNII-1_TX AC (VHT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.83 1.41 20.24 30.00 1.00 Complies 40 5200 22.32 1.41 23.73 30.00 1.00 Complies 48 5240 22.14 1.41 23.55 30.00 1.00 Complies Test Mode UNII-1_TX AC (VHT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 22.96 27.95 0.62 Complies 40 5200 26.57 27.95 0.62 Complies 48 5240 26.65 27.95 0.62 Complies Report No.: BTL-FCCP-2-2001C104 Page 139 of 166 Test Mode UNII-1_TX AC (VHT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 16.21 2.40 18.61 30.00 1.00 Complies 46 5230 20.11 2.40 22.51 30.00 1.00 Complies Test Mode UNII-1_TX AC (VHT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 16.52 2.40 18.92 30.00 1.00 Complies 46 5230 20.24…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2001C104 Page 33 of 166 10. EUT TEST PHOTOS AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2001C104 Page 34 of 166 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2001C104 Page 35 of 166 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2001C104 Page 36 of 166 Radiated Emissions Test Photos Above 1 GHz
