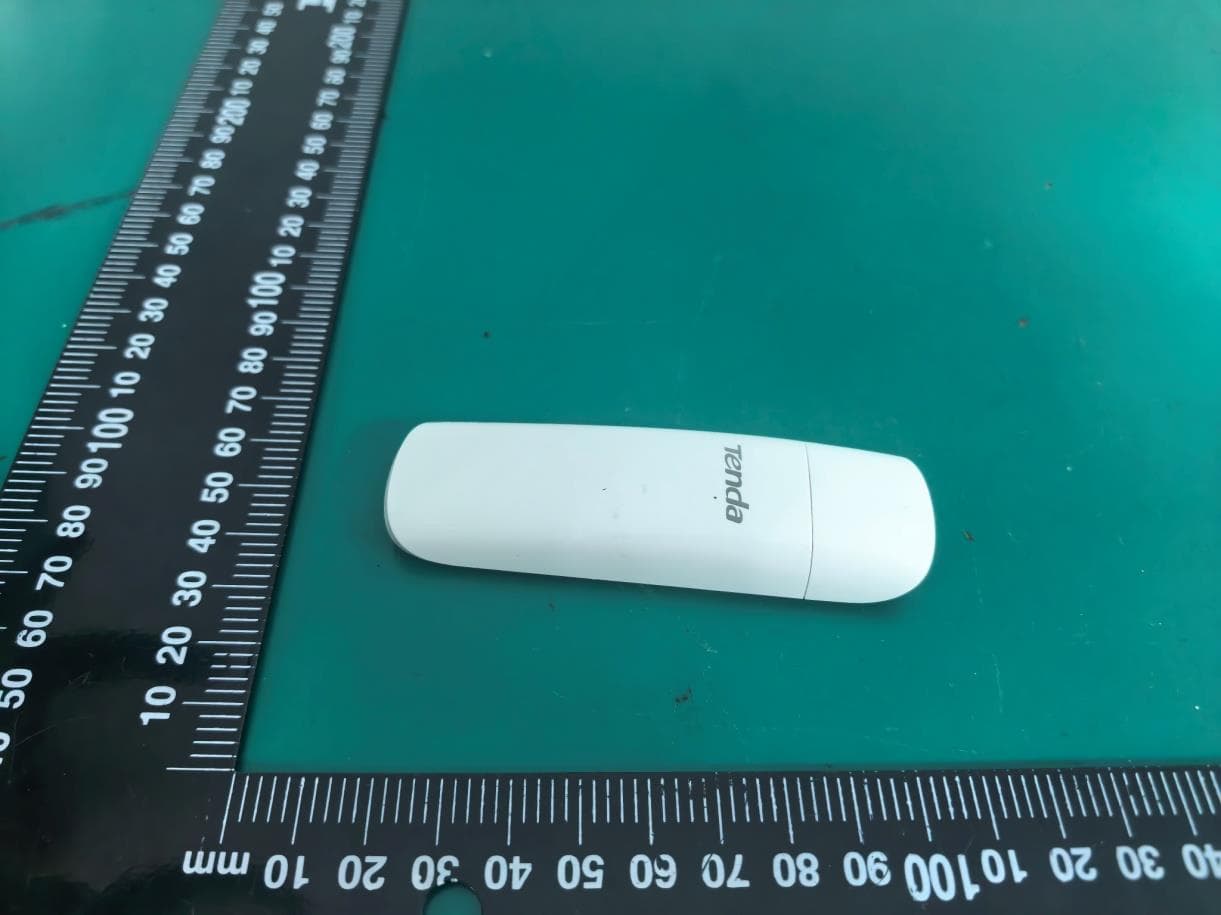

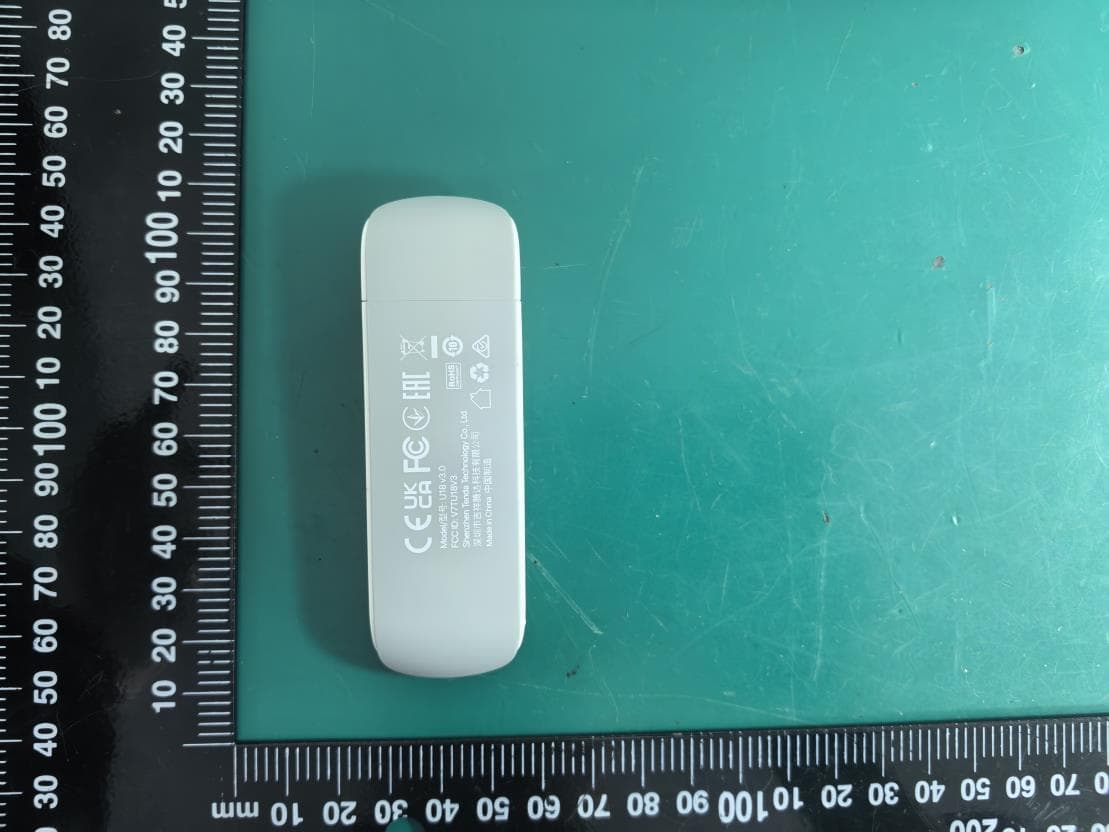

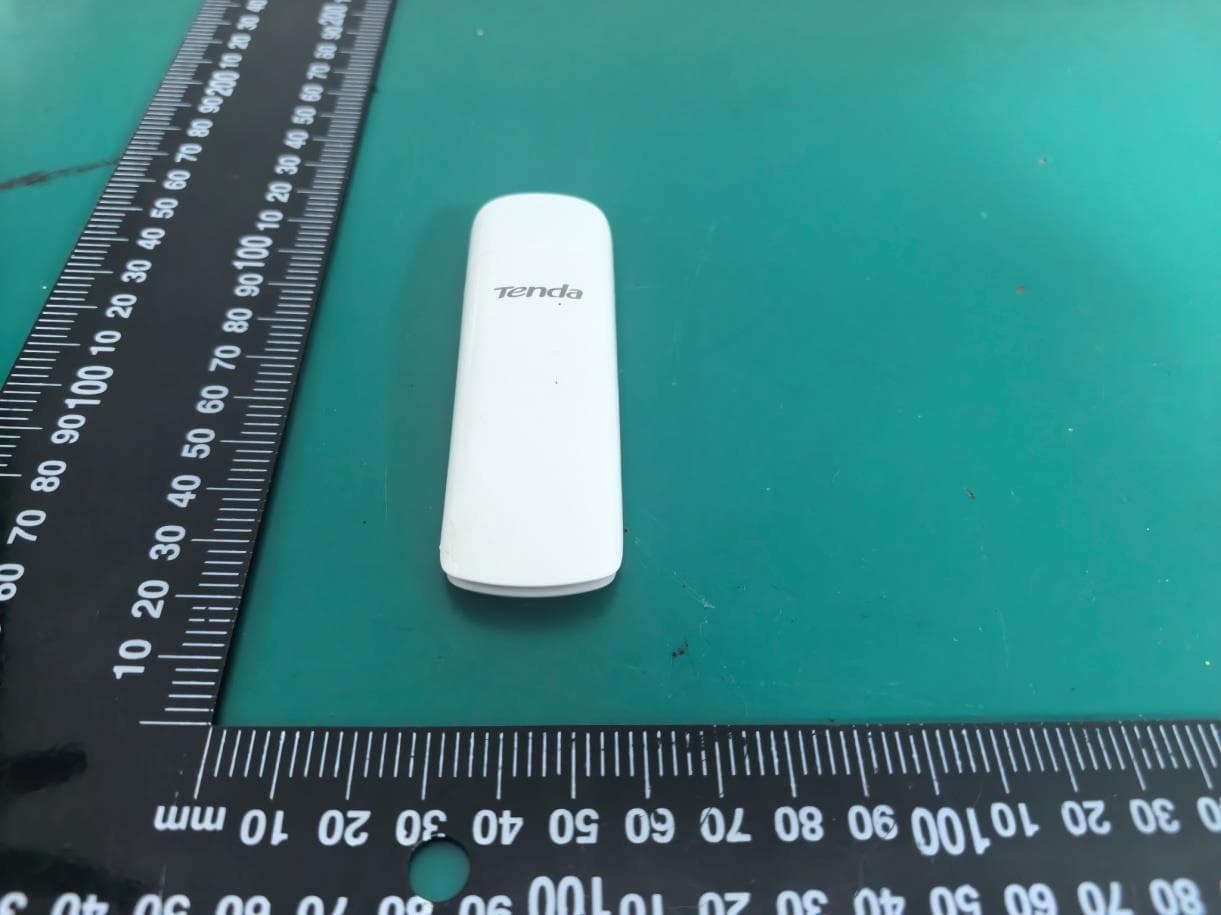

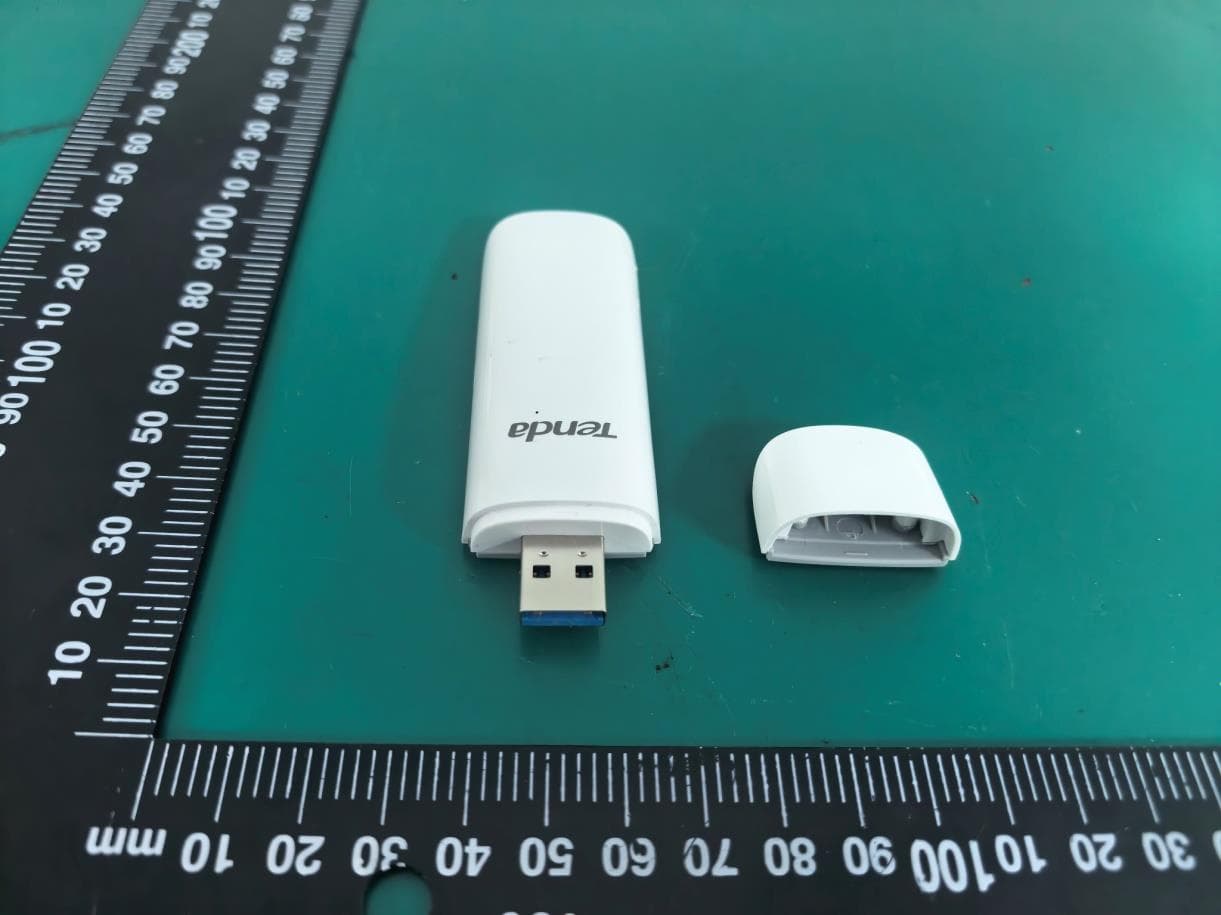

V7TU18V3AX1800 Wi-Fi 6 Dual-Band USB Adapter

WLAN is the default name of the computer's built-in adapter. Tips Tenda_XXXXXX Secured Connect automatically Connect Network & Internet settings Change settings, such as making a connection metered. Wi-FiAirplane mode Tenda_XXXXXX Connected, secure Properties Disconnect Network & Internet settings Change settings, such as making a connection metered. Wi-FiAirplane mode Tenda_XXXXXX Secured Network & Internet settings Change settings, such as making a connection metered. Wi-FiAirplane mode Install the Wireless USB Adapter Windows (Example: Windows 10) 1 . Connect your wireless USB adapter to a USB port on your computer. Connect to a Wi-Fi (Example: Windows 10) − Click the or at the bottom right of your desktop, select the Wi-Fi you want to connect to, and click Connect. If the Wi-Fi is secured, enter its password, click Next, and follow the on-screen instructions. − If your computer has multiple wireless adapters, such as on a laptop, when using this wireless adapter to connect to Wi-Fi, click and then select the WLAN for this adapter, for example WLAN2. Then connect to Wi-Fi. Your wireless adapter is now ready for use. New Folder... Open with... Paste Select All Open in Terminal Properties Linux (Example: Ubuntu) This wireless USB adapter can be installed on Linux. Common distributions include Ubuntu, Deepin, Mint, Debian, KOS, UOS, and others. 1 . Download the Linux driver. Visit www.tendacn.com, find your wireless USB adapter model, then go to Support > Downloads to download the Linux driver, and extract it. 2 . Install the Linux driver via the command line. If prompted during installation, enter the administrator password. ➊ In the driver folder, right-click on an empty area and select Open in Terminal. ➋ Make sure your computer is connected to the internet, then install the required packages using the following commands: * This step prevents installation failures due to missing system components. If your computer is not connected to the internet, skip to step ➌. sudo apt update sudo apt install build-essential sudo apt install linux-headers-$(uname -r) ➌ Install the driver by running: sudo dpkg -i ax1800-wifi-adapter-li nux-driver.deb The installation is complete when Install xx wifi driver successful!!!!!!! appears. 3 . Insert the wireless USB adapter into the computer's USB port. Once recognized, connect to Wi-Fi. Setup.exe 2 . Install the driver. Click the system pop-up message, double-click the driver , and follow the on-screen instructions to install it. Tips − This wireless USB adapter has a built-in driver and supports installation on Windows 10/11. Please follow the instructions below. − To ensure optimal internet performance, uninstall any existing wireless USB adapters (see Q1 in the Windows FAQs) and disable the built-in wireless adapter before installation. WLAN Tenda_XXXXXX Secured Network & Internet settings Change settings, such as making a connection metered. Wi-FiAirplane mode WLAN WLAN 2 If no driver window appears after the wireless network adapter is plugged into the computer's USB port, please refer to the following steps (Example: Windows 10). ➊ Double-click This PC or My Computer on the desktop. ➋ Double-click USB Drive (:) or TENDA (:) (try another USB port if not found), then follow the on-screen instructions to install the wireless adapter. File Computer View This PC This PC Search “This PC“ Quick access OneDrive-Personal This PC Network Folders Devices and drives (4) Windows (C:)Local Disk (D:) TENDA (:) TENDA (:) Local Disk (E:) Wireless USB Adapter U18 v3.0/U18a v3.0 Quick Installation Guide Package Contents Scan the QR code or visit www.tendacn.com for installation videos, technical specifications, Symbols on Products and Materials, and more information. You can see the product model on the device body. Video and More Info • Wireless USB Adapter x 1 • Quick Installation Guide Windows FAQs Q1: Wireless USB adapter shows an exclamation mark or cannot detect Wi-Fi If the wireless USB adapter shows an exclamation mark (as in the example below) or cannot detect Wi-Fi, please uninstall the adapter driver, unplug and reinsert the adapter, and then reinstall the driver. Q2: Wireless USB adapter is plugged in, but Wi-Fi is not detected after rebooting the computer On some older computers, enabling Fast Startup may prevent the computer from fully shutting down. This can cause compatibility issues if the kernel driver is not properly adapted. Please disable Fast Startup. How to disable Fast Startup: Go to the Control Panel, click Hardware and Sound > Power Options > Choose what the power buttons do, then click Change settings that are currently unavailable and disable Turn on fast startup. General FAQ Q1: Wi-Fi frequently disconnects when using a wireless USB adapter on the computer − Use the wireless USB adapter within the Wi-Fi signal coverage area and ensure there are no obstacles blocking the signal. − Plug the wireless USB adapter into a different USB port on the computer and make sure it is securely connected. − Check the Tenda official website for driver updates. If an update is available, download and install it. Linux FAQs Q1: Wireless USB adapter is recognized as a USB drive after being plugged in Locate the adapter recognized as a USB drive in the file manager, right-click it, and select Eject. Q2: Wireless USB adapter is installed successfully but cannot connect to Wi-Fi This may be caused by an issue with the Wi-Fi module of the wireless USB adapter. Try running sudo rfkill unblock wifi to resolve the issue. Q3: Wireless USB adapter does not work properly in a virtual machine This may be because the cfg80211 module is not properly loaded. Try running sudo modprobe cfg80211 to resolve the issue. FAQ Before operating, read and follow these precautions to prevent accidents. − Do not use the device in a place where wireless devices are not allowed. − Operating temperature: 0°C - 40°C (32°F - 104°F). − Keep the device away from water, fire, high electri…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 1 of 37 APPENDIX C CALIBRATION CERTIFICATES China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 2 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 3 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 4 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 5 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 6 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 7 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 8 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 9 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 10 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 11 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 12 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 13 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 14 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 15 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 16 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 17 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 18 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 19 of 37 DIPOLE CALIBRATION CERTIFICATES China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 20 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 21 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 22 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 23 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 24 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 25 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 26 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 27 of 37 China Certification ICT Co., Ltd (Dongguan) Report No.: 2603U01795E-20 Page 28 of 37

China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603U01795E-RF-00B-TSP Page1/ 6 TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603U01795E-RF-00B-TSP Page2/ 6 Radiated Emission 30 MHz-1 GHz View Radiated Emission 9 kHz-30 MHz Parallel View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603U01795E-RF-00B-TSP Page3/ 6 Radiated Emission 9 kHz-30 MHz Perpendicular View Radiated Emission 9 kHz-30 MHz Ground-parallel View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603U01795E-RF-00B-TSP Page4/ 6 Radiated Emission Below 1G View Radiated Emission 1-18GHz View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603U01795E-RF-00B-TSP Page5/ 6 Radiated Emission 18-26.5GHz View Radiated Emission 26.5-40GHz View China Certification ICT Co., Ltd (Dongguan) EXHIBIT No.: 2603U01795E-RF-00B-TSP Page6/ 6 Radiated Emission Above 1GHz View RF Conducted Test Setup Photo *****END *****

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U01795E-RF-00-TSP Page 1 of 1 TEST SETUP PHOTOGRAPHS DFS

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF017 Page 1 of 23 Version 3.0 TEST REPORT Applicant Name: SHENZHEN TENDA TECHNOLOGY CO., LTD. Address: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Report Number: 2601U01795E-RF-00 FCC ID: V7TU18V3 Test Standard (s) FCC PART 15.407 Sample Description Product Type: AX1800 Wi-Fi 6 Dual-Band USB Adapter Model No.: U18 v3.0 Multiple Model(s) No.: N/A Trade Mark: Tenda Date Received: 2026-06-03 Issue Date: 2026-08-10 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Wills Yu Nancy Wang RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601U01795E-RF-00 TR-EM-RF017 Page 2 of 23 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 APPLICABLE STANDARDS ........................................................................................................................................ 9 DFS REQUIREMENT ..................................................................................................................................................... 9 DFS MEASUREMENT SYSTEM .................................................................................................................................... 13 SYSTEM BLOCK DIAGRAM ......................................................................................................................................... 13 CONDUCTED METHOD ............................................................................................................................................... 14 RADIATED METHOD ................................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 15 TEST RESULTS .......................................................................................................................................................... 16 DESCRIPTION OF EUT ................................................................................................................................................ 16 RADAR WAVEFORM CALIBRATION ............................................................................................................................ 16 TEST DATA .........................................................................…

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Measurement of Antenna for U18 v3.0 Project Manufacture：SHENZHEN TENDA TECHNOLOGY CO.,LTD. 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 1. Antenna Appearance: 2. Electrical performance test results at normal temperature SHENZHEN TENDA TECHNOLOGY CO.,LTD. a) Antenna1 No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 2400-2500/5150-5850 2400-2500/5150-5850 OK 2 Gain dBi / 2410 1.35 OK 2450 3.22 OK 2500 3.33 OK 5150 3.34 OK 5500 2.73 OK 5850 3.01 OK 3 Return loss dB / 2412 -18 OK 2450 -30 OK 2483 -17 OK 5150 -23 OK 5500 -29 OK 5850 -14 OK SHENZHEN TENDA TECHNOLOGY CO.,LTD. Directional diagram EUT Remark Frequency E Total. dB(dBi) Efficiency 2400MHz 0.88 57% 2410MHz 1.35 58% 2420MHz 1.93 59% 2430MHz 2.53 62% 2440MHz 2.89 64% 2450MHz 3.22 65% 2460MHz 3.21 65% 2470MHz 3.22 66% 2480MHz 3.43 68% 2490MHz 3.54 67% 2500MHz 3.33 67% 5150MHz 3.34 70% 5200MHz 3.34 78% 5250MHz 3.37 77% 5300MHz 3.27 76% 5350MHz 3.34 75% 5400MHz 3.22 75% 5450MHz 2.85 73% 5500MHz 2.73 73% 5550MHz 3.40 75% 5600MHz 3.01 75% 5650MHz 2.93 76% 5700MHz 3.03 77% 5750MHz 2.84 74% 5800MHz 2.46 71% 5850MHz 3.01 72% 2.4GHz 3D Radiation patterns H PLANE V PLANE SHENZHEN TENDA TECHNOLOGY CO.,LTD. 2.4GHz 2D Radiation patterns（2450MHz） 5GHz 3D Radiation patterns H PLANE V PLANE 5GHz 2D Radiation patterns(5250MHz) b) Antenna2 No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 2400-2500/5150-5850 2400-2500/5150-5850 OK 2 Gain dBi / 2410 1.26 OK 2450 2.47 OK 2490 3.28 OK 5150 3.63 OK 5500 2.90 OK 5850 2.99 OK 3 Return loss dB / 2412 -18 OK 2450 -13 OK 2483 -11 OK 5150 -18 OK 5500 -14 OK 5850 -13 OK SHENZHEN TENDA TECHNOLOGY CO.,LTD. Directional diagram EUT Remark Frequency E Total. dB(dBi) Efficiency 2400MHz 0.76 56% 2410MHz 1.26 57% 2420MHz 1.39 57% 2430MHz 1.59 58% 2440MHz 2.08 60% 2450MHz 2.47 61% 2460MHz 2.31 60% 2470MHz 2.39 60% 2480MHz 3.31 61% 2490MHz 3.28 61% 2500MHz 3.16 62% 5150MHz 3.63 70% 5200MHz 3.21 78% 5250MHz 3.36 79% 5300MHz 3.63 78% 5350MHz 2.90 78% 5400MHz 2.66 78% 5450MHz 2.55 75% 5500MHz 2.90 75% 5550MHz 2.90 75% 5600MHz 2.84 75% 5650MHz 2.86 74% 5700MHz 2.90 74% 5750MHz 2.52 72% 5800MHz 2.99 68% 5850MHz 2.99 70% 2.4GHz 3D Radiation patterns H PLANE V PLANE 2.4GHz 2D Radiation patterns (2450MHz) SHENZHEN TENDA TECHNOLOGY CO.,LTD. 5GHz 3D Radiation patte H PLANE V PLANE 5GHz 2D Radiation patterns (5250MHz)

China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Page1 of 73 Test Information: Sample No.: 3NSR-2 Test Date: 2026/06/23~2026/08/17 Test Site: RF Test Mode: Transmitting Tester: Chloe Zhao Test Result: Pass Environmental Conditions: Temperature: (°C) 23.9-25.2 Relative Humidity: (%) 55-58 ATM Pressure: (kPa) 99.7-99.8 Test Equipment List and Details: Manufacturer Description Model Serial Number Calibration Date Calibration Due Date R&S Spectrum Analyzer FSU26 200445 2025/11/10 2026/11/09 Agilent USB Power Sensor U2001H MY50000432 2026/02/27 2027/02/26 eastsheep Coaxial Attenuator 2W-SMA-JK-18G 21060301 Each time N/A JD Test software JD Auto Test System V1.0 N/A N/A * Statement of Traceability: China Certification ICT Co., Ltd (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Page2 of 73 Emission Bandwidth 26dB Emission Bandwidth 5150-5250MHz Mode Antenna Test Frequency (MHz) Result (MHz) 802.11a Chain 0 5180 21.994 5200 22.204 5240 22.883 802.11ac20 Chain 0 5180 23.424 5200 23.147 5240 23.036 802.11ac40 Chain 0 5190 43.100 5230 42.700 802.11ac80 Chain 0 5210 86.200 802.11ax20_RU_Full Chain 0 5180 22.568 5200 22.883 5240 22.945 802.11ax40_RU_Full Chain 0 5190 42.900 5230 42.900 802.11ax80_RU_Full Chain 0 5210 86.200 5250-5350MHz Mode Antenna Test Frequency (MHz) Result (MHz) 802.11a Chain 0 5260 22.102 5280 21.892 5320 22.094 802.11ac20 Chain 0 5260 23.202 5280 23.084 5320 22.913 802.11ac40 Chain 0 5270 43 5310 43.200 802.11ac80 Chain 0 5290 87.600 802.11ax20_RU_Full Chain 0 5260 22.933 5280 22.927 5320 23.046 802.11ax40_RU_Full Chain 0 5270 42.100 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Page3 of 73 Mode Antenna Test Frequency (MHz) Result (MHz) 802.11ax40_RU_Full Chain 0 5310 42.700 802.11ax80_RU_Full Chain 0 5290 86 5470-5725MHz Mode Antenna Test Frequency (MHz) Result (MHz) 802.11a Chain 0 5500 21.992 5580 21.950 5700 22.206 5720 22.208 802.11ac20 Chain 0 5500 23.081 5580 23.050 5700 23.199 5720 23.136 802.11ac40 Chain 0 5510 43.100 5550 43.400 5670 43 5710 43 802.11ac80 Chain 0 5530 87.400 5610 86.800 5690 87 802.11ax20_RU_Full Chain 0 5500 23.154 5580 23.350 5700 23.516 5720 23.016 802.11ax40_RU_Full Chain 0 5510 43.200 5550 43 5670 42.900 5710 42.600 802.11ax80_RU_Full Chain 0 5530 86.600 5610 86.600 5690 86 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Page4 of 73 6dB Emission Bandwidth 5725-5850MHz Mode Antenna Test Frequency (MHz) Result (MHz) Limit (MHz) Verdict 802.11a Chain 0 5745 15.200 0.5 Pass 5785 15.250 0.5 Pass 5825 15.250 0.5 Pass 802.11ac20 Chain 0 5745 15.250 0.5 Pass 5785 15.250 0.5 Pass 5825 15.250 0.5 Pass 802.11ac40 Chain 0 5755 35.300 0.5 Pass 5795 35.300 0.5 Pass 802.11ac80 Chain 0 5775 75.600 0.5 Pass 802.11ax20_RU_Full Chain 0 5745 17.600 0.5 Pass 5785 17.650 0.5 Pass 5825 17.850 0.5 Pass 802.11ax40_RU_Full Chain 0 5755 36.100 0.5 Pass 5795 35.300 0.5 Pass 802.11ax80_RU_Full Chain 0 5775 74.200 0.5 Pass China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Page5 of 73 5150-5250MHz 802.11a_5180MHz_Chain 0 802.11a_5200MHz_Chain 0 802.11a_5240MHz_Chain 0 802.11ac20_5180MHz_Chain 0 802.11ac20_5200MHz_Chain 0 802.11ac20_5240MHz_Chain 0 Ref 30.5 dBmAtt 30 dB A * Offset 10.5 dB LVL Center5.18 GHzSpan53.125 MHz5.3125 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 20 ms 1 PK MAXH SGL -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 1000 of 1000 1 Marker 1 [T1 ] -18.39 dBm 5.168950000 GHz 2 Marker 2 [T1 ] -18.20 dBm 5.190943750 GHz 1 Delta 1 [T1 ] 0.19 dB 21.993750000 MHz D1 8.048 dBm D2 -17.952 dBm ProjectNo.:2603U01795E-RF Tester:Chloe Zhao Date: 23.JUN.2026 13:31:22 Ref 30.5 dBmAtt 30 dB A * Offset 10.5 dB LVL Center5.2 GHzSpan53.375 MHz5.3375 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 20 ms 1 PK MAXH SGL -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 1000 of 1000 1 Marker 1 [T1 ] -18.29 dBm 5.189004750 GHz 2 Marker 2 [T1 ] -19.85 dBm 5.211208750 GHz 1 Delta 1 [T1 ] -1.56 dB 22.204000000 MHz D1 8.298 dBm D2 -17.702 dBm ProjectNo.:2603U01795E-RF Tester:Chloe Zhao Date: 23.JUN.2026 13:36:59 Ref 30.5 dBmAtt 30 dB A * Offset 10.5 dB LVL Center5.24 GHzSpan54.875 MHz5.4875 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 20 ms 1 PK MAXH SGL -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 1000 of 1000 1 Marker 1 [T1 ] -18.15 dBm 5.228311625 GHz 2 Marker 2 [T1 ] -17.63 dBm 5.251194500 GHz 1 Delta 1 [T1 ] 0.51 dB 22.882875000 MHz D1 8.748 dBm D2 -17.252 dBm ProjectNo.:2603U01795E-RF Tester:Chloe Zhao Date: 23.JUN.2026 13:41:27 Ref 30.5 dBmAtt 30 dB A * Offset 10.5 dB LVL Center5.18 GHzSpan55.375 MHz5.5375 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 20 ms 1 PK MAXH SGL -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 1000 of 1000 1 Marker 1 [T1 ] -20.90 dBm 5.168482000 GHz 2 Marker 2 [T1 ] -21.95 dBm 5.191905625 GHz 1 Delta 1 [T1 ] -1.05 dB 23.423625000 MHz D1 5.389 dBm D2 -20.611 dBm ProjectNo.:2603U01795E-RF Tester:Chloe Zhao Date: 23.JUN.2026 14:59:49 Ref 30.5 dBmAtt 30 dB A * Offset 10.5 dB LVL Center5.2 GHzSpan55.375 MHz5.5375 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 20 ms 1 PK MAXH SGL -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 1000 of 1000 1 Marker 1 [T1 ] -21.04 dBm 5.188537375 GHz 2 Marker 2 [T1 ] -20.81 dBm 5.211684125 GHz 1 Delta 1 [T1 ] 0.23 dB 23.146750000 MHz D1 6.019 dBm D2 -19.981 dBm ProjectNo.:2603U01795E-RF Tester:Chloe Zhao Date: 23.JUN.2026 15:04:29 Ref 30.5 dBmAtt 30 dB A * Offset 10.5 dB LVL Center5.24 GHzSpan55.375 MHz5.5375 MHz/ * * 3DB RBW 300 kHz VBW 1 MHz SWT 20 ms 1 PK MAXH SGL -60 -50 -40 -30 -20 -10 0 10 20 30 SWP 1000 of 1000 1 Marker 1 [T1 ] -19.95 dBm 5.228482000 GHz 2 Marker 2 [T1 ] -19.56 dBm 5.251518000 GHz 1 Delta 1 [T1 ] 0.38 dB 23.036000000 MHz D1 6.569 dBm D2 -19.431 dBm ProjectNo.:2603U01795E-RF Tester:Chloe Zhao Date: 23.JUN.2026 15:08:59 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Page6 of 73 802.11ac40_51…

Text truncated - open the document above for the full version.

China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 219 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 220 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 221 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 222 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 223 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 224 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 225 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 226 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 227 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 228 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 229 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 230 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 231 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 232 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 233 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 234 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 235 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 236 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 237 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 238 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 239 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 240 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 241 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 242 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 243 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 244 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 245 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 246 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 247 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 248 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 249 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 250 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 251 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 252 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 253 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 254 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 255 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 256 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 257 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 258 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 259 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 260 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 261 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 262 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 263 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 264 of 332 China Certification ICT Co., Ltd (Dongguan) Report No.:2603U01795E-RF-00B Report Template: RF-FCC-5G WiFi-A/0 Page 265 of 332 China Certification ICT Co., Ltd (Dongguan) Report…

Text truncated - open the document above for the full version.
