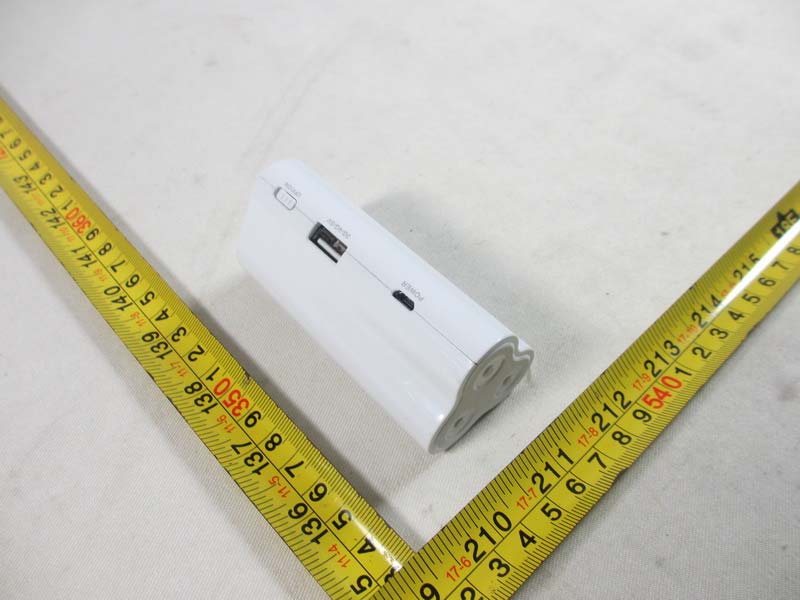

V7T4G300Wireless N300 3G/4G Router

3G/4G Wireless Router User Guide I 3G/4G Wireless Router User Guide I Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the prior written permission of Shenzhen Tenda Technology Co., Ltd. If you would like to know more about our product information, please visit our website at http://www.tendacn.com. Disclaimer Pictures, images and product specifications herein are for references only. To improve internal design, operational function, and/or reliability, Tenda reserves the right to make changes to the products described in this document without obligation to notify any person or organization of such revisions or changes. Tenda does not assume any liability that may occur due to the use or application of the product or circuit layout(s) described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute the warranty of any kind, express or implied. 3G/4G Wireless Router User Guide II Preface Thank you for choosing Tenda ! Please read this user guide before you start! This user guide instructs you to install and configure your device. This user guide applies to 4G300, 4G301 and 4G302. The 4G301 is used as an example throughout this user guide. This user guide uses the following formats to highlight special messages: Icon Description Note This format is used to highlight information of importance or special interest. Ignoring this type of note may result in ineffective configurations, loss of data or damage to device. Tip This format is used to highlight a procedure that will save time or resources. Knowledge Center Description of fields on the device GUI. Technical Support  Website: http://www.tendacn.com  Email: [email protected]  Skype: tendasz  YouTube: Tendasz1999  Hotline: 1-800- 570 -5892 (USA) (061) 1300787922 (Australia) (044)197-780 -6119 (UK) (0852)36120883 (Hong Kong) (064) 800787922 (New Zealand) 3G/4G Wireless Router User Guide III Table of Contents Copyright Statement........................................................................................................................................... I Disclaimer ............................................................................................................................................................. I Preface ................................................................................................................................................................. II This user guide uses the following formats to highlight special messages: ......................................................... II Technical Support ................................................................................................................................................ II Table of Contents ............................................................................................................................................. III I Product Overview ............................................................................................................................................ 1 1 Package Contents.............................................................................................................................................. 1 2 Getting to know your router ............................................................................................................................. 1 2.1 LED ............................................................................................................................................................ 1 2.2 Button & Interface ..................................................................................................................................... 3 2.3 Label .......................................................................................................................................................... 2 II Quick Internet Setup ...................................................................................................................................... 3 1 Getting Prepared ............................................................................................................................................... 3 2. Hardware Install .............................................................................................................................................. 4 2.1 Charging Router ......................................................................................................................................... 4 2.2. Hardware Install ........................................................................................................................................ 4 3 Connect to Router ............................................................................................................................................. 7 3.1 Connect to Device Wirelessly .................................................................................................................... 7 3.2 Connect to Device Using an Ethernet Cable ............................................................................................ 12 4 Smart Mode (Auto-switch between 3GRouter and Wireless Router Mode) ................................................... 12 5 Manual Internet Setup ..................................................................................................................................…

Text truncated - open the document above for the full version.

III Features & Configurations 41 192.168.2.123. Configuration Procedures: ① Enter the last number of the IP address you want to reserve, for example, 123. ② Enter the MAC address of 44:37:E6:4F:37:3B. ③ Click Add. ④ Click Save to save your settings. Tip------------------------------------------------------------------------------------------------------------------- ------------------------ 1. If the IP address you have reserved for your PC is currently used by another client, then you will not be able to obtain a new IP address from the device's DHCP server, instead, you must manually specify a different IP address for your PC to access Internet. 2. For PCs that has already obtained IP addresses, you may need to perform the Repair action to activate the configured static IP addresses. III Features & Configurations 42 3 Wireless Settings This section includes the following: Basic Security Access Control Connection Status  To configure wireless network name, channel and other basic wireless settings, see Wireless - Basic.  To secure your wireless network, see Wireless Security.  To restrict access to your wireless network, see Access Control.  To see who are connecting to your wireless network, see Connection Status. 3.1 Wireless-Basic Here you can configure the basic wireless settings of the router. Tip------------------------------------------------------------------------------------------------------------------- ------------------------- 1. The SSID is Tenda_XXXXXX by default, where XXXXXX is the last six characters in the device's MAC address. You can find it on the label attached on the bottom of the device. 2. If you are not an advanced user, it is advisable to only change the SSID (name of the network) and channel and leave other items unchanged. III Features & Configurations 43 Configuration Procedures: ① SSID: This is the public name of your wireless network. ② Channel: Select a channel or select Auto to let system automatically select one for your wireless network to operate on if you are unsure. The best selection is a channel that is the least used by neighboring networks. ③ Click Save to save your settings. Knowledge Center----------------------------------------------------------------------------------------------- 1. Network Mode (802.11 Mode): Select a correct mode according to your wireless clients.  11b: This network mode delivers wireless speed up to 11Mbps and is only compatible with 11b wireless clients.  11g: This network mode delivers wireless speed up to 54Mbps and is only compatible with 11g wireless clients.  11b/g mixed: This network mode delivers wireless speed up to 54Mbps and is compatible with 11b/g wireless clients.  11b/g/n mixed: This network mode delivers wireless speed up to 300Mbps and is compatible with 11b/g/n wireless clients. 2. BSSID: This is the MAC address of the device's wireless interface. 3. SSID Broadcast: This option allows you to have your network names (SSIDs) publicly broadcast or if you choose to disable it, the SSIDs will be hidden. 4. Channel Bandwidth: Select a proper channel bandwidth to enhance wireless performance. This option is available only in 802.11b/g/n. Wireless speed in the channel bandwidth of 20/40 is 2 times in 20. 5. Extension Channel: This is used to ensure N speeds for 802.11n devices on the network. This option is available only in 11b/g/n mixed mode with channel bandwidth of 20/40. III Features & Configurations 44 3.2 Wireless Security Click Wireless -> Security to enter the Security screen. Here you can define a security key to secure your wireless network against unauthorized accesses. ① Configure security mode, cipher type and security key. ② Click Save to save your settings. Knowledge Center----------------------------------------------------------------------------------------------- 1. WEP: WEP is intended to provide data confidentiality comparable to that of a traditional wired network. 2. Open: Wireless speed can reach up to 54Mbps if WEP - Open is selected. 3. Shared: Wireless speed can reach up to 54Mbps if WEP - Shared is selected. 4. Mixed WEP: Compatible with both Open and Shared. Clients can connect to your wireless network either using Open or Shared 5. Default Key: Select a key to be effective for the current WEP encryption. For example, if you select Key 2, wireless clients must join your wireless network using this Key 2. 6. WPA-PSK：WPA personal, support AES and TKIP cipher types. 7. WPA2-PSK：WPA2 personal, support AES, TKIP and TKIP+AES cipher types. III Features & Configurations 45 8. WPA/WPA2-PSK mixed: If selected, both WPA-PSK and WPA2-PSK secured wireless clients can join your wireless network. 9. AES: If selected, wireless speed can reach up to300Mbps. 10. TKIP: If selected, wireless speed can reach up to 54Mbps. 11.TKIP+AES: If selected, both AES and TKIP secured wireless clients can join your wireless network. 12. Key Renewal Interval: Enter a valid time period for the key to be changed. 3.3 Access Control Specify a list of devices to "Permit" or "Forbid" a connection to your wireless network via the devices’ MAC Addresses. Click Wireless -> Access Control to enter the configuration screen. There are three options available: Disable, Deny and Allow. A. If you want to allow all wireless clients to join your wireless network, select Disable. B. If you want to allow ONLY the specified wireless clients to join your wireless network, select Allow. C. If yo u want to disallow ONLY the specified wireless clients to join your wireless network, select Deny. III Features & Configurations 46 Wireless Access Control Application Example: To only allow your own notebook at the MAC address of C8:3A:35:CC:34:25 to join your wireless network Configuration Procedures: ① Select Allow. ② Enter the MAC address of the wireless device you want to restrict. Here in this example, enter C8:3A:35:CC:34:25. ③ Click Add to add the MAC address to the MAC address list. ④ Click Save to save your settings. Tip…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless N300 3G/4G Router Model Name 4G300; 4G303 Brand Name Tenda Applicant SHENZHEN TENDA TECHNOLOGY CO.,LTD Address 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 Report(s) NEI-FCCE-1-1402C140 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1402C140 Page 2 of 11 Neutron Engineering Inc. Project No.: 1402C140 Page 3 of 11

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: V7T4G300 Project No. : 1402C140 Equipment : Wireless N300 3G/4G Router Model : 4G300; 4G303 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address : 6-8 Floor, Tower E3, No. 1001, Zhon gshanyuan Road, Nanshan District, Shenzhen, China. According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connecto r Gain (dBi) Note 1 N/A NA Printed N/A 3 TX/RX 2 N/A NA Printed N/A 3 TX/RX Neutron Engineering Inc. TEST RESULTS EUT： Wireless N300 3G/4G Router Model Name : 4G300; 4G303 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 9.96 9.9083 0.003935051 Complies 3 1.9953 9.7 9.3325 0.003706381 Complies 3 1.9953 9.69 9.3111 0.003697861 Complies EUT： Wireless N300 3G/4G Router Model Name : 4G300; 4G303 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 9.96 9.9083 0.003935051 Complies 3 1.9953 9.87 9.7051 0.003854341 Complies 3 1.9953 9.97 9.9312 0.003944121 Complies Neutron Engineering Inc. EUT: Wireless N300 3G/4G Router Model Name : 4G300; 4G303 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 9.95 9.8855 0.003926001 Complies 3 1.9953 9.91 9.7949 0.003890011 Complies 3 1.9953 9.98 9.9541 0.003953211 Complies EUT: Wireless N300 3G/4G Router Model Name : 4G300; 4G303 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3 1.9953 9.86 9.6828 0.003845481 Complies 3 1.9953 9.95 9.8855 0.003926001 Complies 3 1.9953 9.99 9.9770 0.003962331 Complies The calculated distance is 20 cm

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 1 of 130 FCC Radio Test Report FCC ID: V7T4G300 This report concerns (check one): Original Grant Class II Change Issued Date : Feb. 24, 2014 Project No. : 1402C140 Equipment : Wireless N300 3G/4G Router Model Name : 4G300; 4G303 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Feb. 25, 2014 Date of Test: Feb. 25, 2014 ~ Mar. 07, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 2 of 130 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 3 of 130 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 60 5.1 APPLIED PROCEDURES 60 5.1.1 TEST PROCEDURE 60 5.1.2 DEVIATION FROM STANDARD 60 5.1.3 TEST SETUP 60 5.1.4 EUT OPERATION CONDITIONS 60 5.1.5 EUT TEST CONDITIONS 60 5.1.6 TEST RESULTS 61 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 4 of 130 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 73 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 TEST PROCEDURE 73 6.1.2 DEVIATION FROM STANDARD 73 6.1.3 TEST SETUP 73 6.1.4 EUT OPERATION CONDITIONS 73 6.1.5 EUT TEST CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 79 7.1 APPLIED PROCEDURES / LIMIT 79 7.1.1 TEST PROCEDURE 79 7.1.2 DEVIATION FROM STANDARD 79 7.1.3 TEST SETUP 79 7.1.4 EUT OPERATION CONDITIONS 79 7.1.5 EUT TEST CONDITIONS 79 7.1.6 TEST RESULTS 80 8 . POWER SPECTRAL DENSITY TEST 110 8.1 APPLIED PROCEDURES / LIMIT 110 8.1.1 TEST PROCEDURE 110 8.1.2 DEVIATION FROM STANDARD 110 8.1.3 TEST SETUP 110 8.1.4 EUT OPERATION CONDITIONS 110 8.1.5 EUT TEST CONDITIONS 110 8.1.6 TEST RESULTS 111 9 . MEASUREMENT INSTRUMENTS LIST 125 10 . EUT TEST PHOTO 127 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 5 of 130 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1402C140 Original Issue. Mar. 10, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 6 of 130 1. CERTIFICATION Equipment : Wireless N300 3G/4G Router Brand Name : Tenda Model Name : 4G300; 4G303 Applicant SHENZHEN TENDA TECHNOLOGY CO.,LTD Date of Test : Feb. 25, 2014 ~ Mar. 07, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1402C140) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 7 of 130 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section FCC Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PASS NOTE: (1…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 127 of 130 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 128 of 130 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 129 of 130 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1402C140 Page 130 of 130 Radiated Measurement Photos Above 1000MHz
