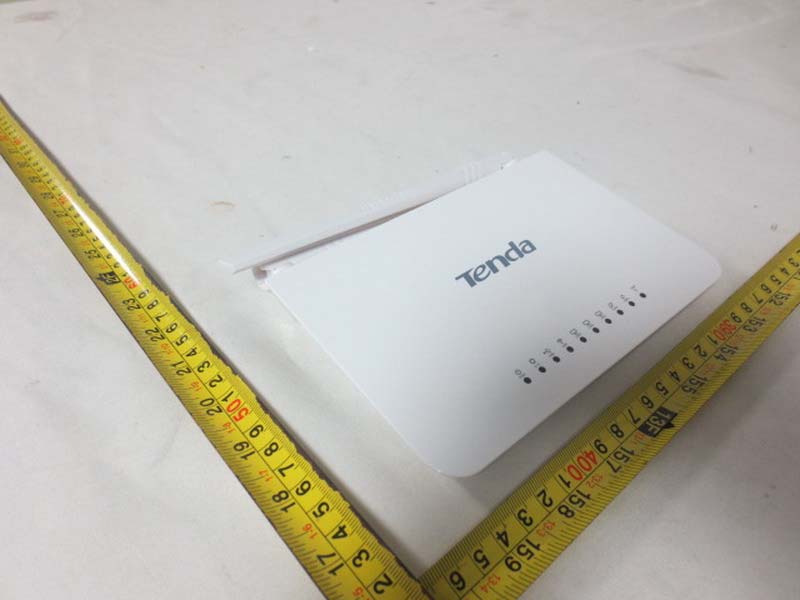

V7T4G6303G/4G Wireless N300 Router

I Cop yright Statement is the reg istered trademark of Shenzhen Tenda Technolog y Co., Ltd. All the products and product names mentioned herein are the trademark s or reg istered trademark s of their respective holders. Copyrig ht of the whole product as integ ration, including its accessories and software, belongs to Shenzhen Tenda Technolog y Co., Ltd. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any lang uag e in any form or by any means without the prior written permission of Shenzhen Tenda Technolog y Co., Ltd. If you wo uld lik e to k now more about our product inf ormation, please visit our website at http://www.tendacn.com. Disclaimer Pictures, images and product specif ications herein are for references only. To improve internal design, operational function, and/or reliability, Tenda reserves the rig ht to make chang es to the products described in this document without oblig ation to notif y a ny person or org anization of such revisio ns or chang es. Tenda does not assume any liability that may occur due to the use or application of the product or circuit layout(s) described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, inf ormation and recommendations in this document do not constitute the warranty of any k ind, express or implied. II About this Manual Thank you for choosing Tenda! Before yo u start, please read this User Guide, which instructs you to install and config ure your device. T his User Guide is applicable to 4G600 and 4G630. Unless otherwise specif ied, the 4G630 is used as an example throug hout this User Guide. Convention This user guide uses the following formats to hig hlig ht special messag es: Icon Description Note This f ormat is used to hig hlig ht information of importance or specia l interest. Ig noring this type of note may result in ineffective config urations, loss of data or damage to device. Tip This f ormat is used to hig hlig ht a procedure that will save time or resources. Know ledge Center Description of fields on the device GUI. Technical Support  Website: http://www.tendacn.com  Email: support02@te nda.com.cn  Sk ype: tendasz  YouTube: Tendasz1999  Hotline: 1-800-570-5892 (USA) (061) 1300787922 (Australia) (064) 800787922 (New Zealand) (0852) 36120883 (Hong Kong) III Contents A b o u t t h i s M a n u a l .......................................................................................................... II C o n v e n t i o n ..................................................................................................................... II Te c h n i c a l S u p p o r t ........................................................................................................... II I P ro d u c t O v e rv i ew .......................................................................................................... 1 1 P a c k a g e C o n t e n t s ......................................................................................................... 1 2 G e t t i n g t o K n o w Yo u r D e v i c e ....................................................................................... 1 2 . 1 W h a t It L o o k s li k e .................................................................................................. 1 2 . 2 L E D ....................................................................................................................... 2 2 . 3 B u t t o n & I n t e r f a c e.................................................................................................. 3 2 . 4 L a b e l ..................................................................................................................... 4 I I Q u i c k S e t u p ................................................................................................................. 5 1 H a r d wa r e I n s t a l l .......................................................................................................... 5 3G/4G R o u t e r M o d e ..................................................................................................... 5 Wi r e l e s s R o u t e r M o d e .................................................................................................. 6 U n i v e r s a l Re p e a t e r M o d e ............................................................................................. 7 2 C o n f i g u r e Yo u r P C ....................................................................................................... 7 3 Web L o g i n ................................................................................................................... 8 4 Q u i c k I n t e r n e t S e t u p & Wi r e l e s s S e c u r i t y S e t u p ............................................................ 9 3 G /4 G R o u t e r M o d e .................................................................................................... 10 Wi r e l e s s R o u t e r M o d e – D H C P .................................................................................... 12 Wi r e l e s s R o u t e r M o d e – P P P o E ................................................................................... 13 U n i v e r s a l R e p e a t e r M o d e ............................................................................................ 15 A u t o-s wi t c h S y s t e m M o d e & P r i o r i t y ........................................................................... 17 I I I F e a t u re s & C o n fi g u r a t i o n s ........................................................................................ 19 1 St a t u s ......................................................................................................................... 19 WAN St a t u s ................................................................................................................ 19 L AN St a t u…

Text truncated - open the document above for the full version.

41 III Features & Configurations | Tenda Know ledge Center 802.11 Mode: Select a correct network mode according to your wireless clients.  11b mode: T his network mode delivers wireless speed up to 11Mbps and is only compatible with 11b wireless clients.  11g mode: T his network mode delivers wireless speed up to 54 Mbps and is only compatible with 11g wireless clients.  11b/g mixed mode: This network mode delivers wireless speed up to 54Mbps and is compatible with 11b/g wireless clients.  11b/g/n mixed mode: This network mode delivers wireless speed up to 300Mbps and is compatible with 11b/g/n wireless clients. BSSID: T his is the MAC address of the device's wireless interface. SSID Broadcast: T his option allows you to have your wireless network name (SSID) publicly broadcast or if you choose to disable it, the SSID will be hidden. Channel Bandw idth: Select a proper channel bandwidth to enhance wireless performance. T his option is available only in 802.11b/g/n mixed mode. Ma ximum wireless speed in the channel bandwidth of 20/40 is 2 times in 20. Extension Channel: T his is used to ensure N speeds for 802.11n devices on the network . T his option is available o nly in 11b/g/n mixed mode with the channel band width of 20/40. 3.2 Security Click Wireless -> Securit y to enter the config uration screen. Here you can define a security key to secure your wireless network ag ainst unauthorized accesses. 42 III Features & Configurations | Tenda Configuration Procedures: ① Conf igure Securit y Mode, Cipher Type and Securit y Key. ② Click Save to save your setting s. Know ledge Center WEP: W EP is intended to provide data confidentiality comparable to that of a traditional wired network. Open: If selected, wireless speed can reach up to 54Mbps. Shared: If selected, wireless speed can reach up to 54 Mbps. Default Key: Select a k ey to be effective for the current W EP encryption. For example, if you select Ke y 2, wireless clie nts must join your wireless network using this Ke y 2. WPA-PSK: W PA personal supports AES and T KIP cipher types. WPA2-PSK: W PA2 personal supports AES, T KIP and T KIP+AES cipher types. Mixed WPA/WPA2-PSK: If selected, both W PA-PSK and W PA2-PSK secured wireless clients can join your wireless network . AES: If selected, wireless speed can reach up to 300Mbps. 43 III Features & Configurations | Tenda TKIP: If selected, wir eless speed can reach up to 54Mbps. TKIP&AES: If selected, both AES and T KIP secured wireless clients can join your wireless networ k. Ke y Renew al Interva l: Enter a valid time period for the k ey to be changed. WPS Wi-Fi Protected Setup makes it easy f or home users who k now little of wireless security to establish a home network , as well as to add new devices to an existing net work without entering long passphrases or conf ig uring complicated setting s. Simply enter a PIN code or press the hardware W PS button and a secure wireless connection is established. Know ledge Center WPS: Select Enable/Disable to enable/disable the W PS encryption. WPS Type: Select PBC (Push-Button Configuration) or PIN. Reset OOB: If click ed, the W PS LED will turn off and the security function will be disabled automatically. The W PS serve r on the router enters idle mode and will not respond to any client’s WPS connection request. 44 III Features & Configurations | Tenda Device PIN: Displays the device’s PIN code. Start PIN: If you enter the client’s PIN code on the router, clic king this button starts the PIN connection. Operation Instructions: PBC: If you press the hardware W PS button on the device for 1 second, the W PS LED will blink for about 2 minutes, indicating that the PBC encryption method is successfully enabled. During this time, an authentication routine can be perf ormed bet ween your device and a W PS/PBC capable wireless client. Simply enable the W PS/PBC on the client wireless device. If it passes the authentication, the wireless client device connects to your devic e and the W PS LED turns off. Repeat the steps above if you want to add more wireless client devices to your devic e. PIN: To use this option, you must k now the PIN code from the wireless client and enter it in the corresponding field on your device while using the same PIN code on the client side f or this connection. Note ① To use the W PS encryption, the wireless client device must also be W PS-capable. ② The WPS becomes unavailable if you select any of the following option: Open, Shared, WPA2-PSK plus TKIP, and Mixed WPA/WPA2-PSK plus TKIP. 3.3 Access Control Specif y a list of devices to "Allo w" or "Deny" a connection to your wireless network via the devices’ MAC Addresses. Click Wireless -> Access Control to enter the config uration screen. Three options are available: Disable, Den y and Allow. A. If you want to allow a ll wireless clients to join your wireless network , select Disable. 45 III Features & Configurations | Tenda B. If you want to allow ONLY the specified wireless clients to join your wireless network , select Allow. C. If you want to disallow ONLY the specif ied wireless clients to join your wireless network, select Den y. Wireless Access Control Application Example: To only allow your own notebook at the MAC address of C8:3A:35:CC:34:25 to join your wireless network: ① Select Allow. ② Enter C8:3 A:35:CC:34:25. ③ Click Add to add the MAC address to the MAC address list. ④ Click Save to save your setting s. Tip If you don't want to config ure the complex wireless security setting s and want to disallow others to join your wireless network , you can configure a wireless access control rule to allo w only your own wireless device. 3.4 Connection Status Click Wireless -> Connection Status. Here you can see a list of wireless 46 III Features & Configurations | Tenda devices (if any) connected to the device. Tip ① The Bandw idth here refers to the channel bandwidth instead of wireless connection rate. ② You can k now wheth er there are unauthorized accesses to y…

Text truncated - open the document above for the full version.

RV-0000000 Project No.: 140 3C127 Page 2 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 140 3C127 Page 3 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 140 3C127 Page 4 of 8 Neutron Engineering Inc.

RV-0000000 Project No.: 140 3C127 Page 5 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 140 3C127 Page 6 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 140 3C127 Page 7 of 8 Neutron Engineering Inc. R V-0000000 Project No.: 140 3C127 Page 8 of 8 Neutron Engineering Inc. Dipole antenna Dipole antenna

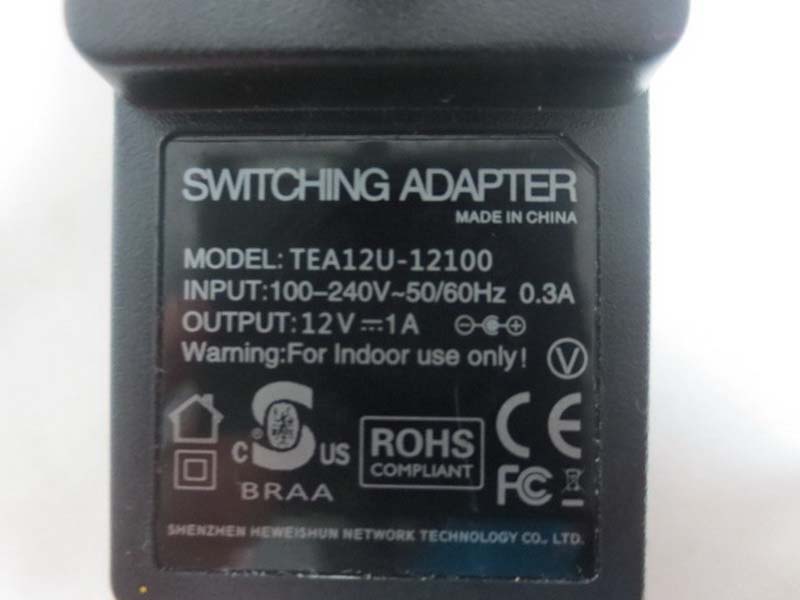

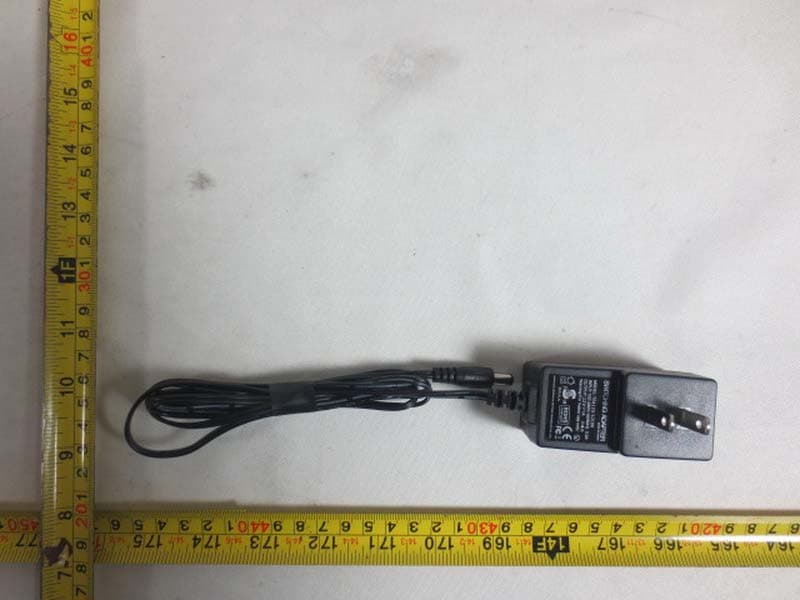

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: V7T4G630 Project No. : 1403C127 Equipment : 3G/4G Wireless N300 Router Model : 4G630 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhon gshanyuan Road, Nanshan District, Shenzhen, China. 518052 According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connecto r Gain (dBi) Note Length 1 Tenda Q5138 Dipole N/A 5 TX/RX 80mm 1 Tenda Q5142 Dipole N/A 5 TX/RX 165mm Neutron Engineering Inc. TEST RESULTS EUT： 3G/4G Wireless N300 Router Model Name : 4G630 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 17.82 60.5341 0.038102231 Complies 5 3.1623 17.74 59.4292 0.037406781 Complies 5 3.1623 17.87 61.2350 0.038543431 Complies EUT： 3G/4G Wireless N300 Router Model Name : 4G630 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 20.22 105.1962 0.066214081 Complies 5 3.1623 20.32 107.6465 0.067756411 Complies 5 3.1623 20.2 104.7129 0.065909861 Complies Neutron Engineering Inc. EUT： 3G/4G Wireless N300 Router Model Name : 4G630 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 21.52 141.9058 0.089320341 Complies 5 3.1623 21.74 149.2794 0.093961591 Complies 5 3.1623 21.71 148.2518 0.093314771 Complies EUT： 3G/4G Wireless N300 Router Model Name : 4G630 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 21.58 143.8799 0.090562911 Complies 5 3.1623 21.51 141.5794 0.089114911 Complies 5 3.1623 21.56 143.2188 0.090146811 Complies The calculated distance is 20 cm

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 1 of 128 FCC Radio Test Report FCC ID: V7T4G630 This report concerns (check one): Original Grant Class II Change Issued Date : Apr. 04, 2014 Project No. : 1403C127 Equipment : 3G/4G Wireless N300 Router Model Name : 4G630 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Mar. 17, 2014 Date of Test: Mar. 17, 2014~ Apr. 03, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 2 of 128 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 3 of 128 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 60 5.1 APPLIED PROCEDURES 60 5.1.1 TEST PROCEDURE 60 5.1.2 DEVIATION FROM STANDARD 60 5.1.3 TEST SETUP 60 5.1.4 EUT OPERATION CONDITIONS 60 5.1.5 EUT TEST CONDITIONS 60 5.1.6 TEST RESULTS 61 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 4 of 128 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 73 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 TEST PROCEDURE 73 6.1.2 DEVIATION FROM STANDARD 73 6.1.3 TEST SETUP 73 6.1.4 EUT OPERATION CONDITIONS 73 6.1.5 EUT TEST CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 7.1 APPLIED PROCEDURES / LIMIT 77 7.1.1 TEST PROCEDURE 77 7.1.2 DEVIATION FROM STANDARD 77 7.1.3 TEST SETUP 77 7.1.4 EUT OPERATION CONDITIONS 77 7.1.5 EUT TEST CONDITIONS 77 7.1.6 TEST RESULTS 78 8 . POWER SPECTRAL DENSITY TEST 108 8.1 APPLIED PROCEDURES / LIMIT 108 8.1.1 TEST PROCEDURE 108 8.1.2 DEVIATION FROM STANDARD 108 8.1.3 TEST SETUP 108 8.1.4 EUT OPERATION CONDITIONS 108 8.1.5 EUT TEST CONDITIONS 108 8.1.6 TEST RESULTS 109 9 . MEASUREMENT INSTRUMENTS LIST 123 10 . EUT TEST PHOTO 125 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 5 of 128 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1403C127 Original Issue. Apr. 04, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 6 of 128 1. CERTIFICATION Equipment : 3G/4G Wireless N300 Router Brand Name : Tenda Model Name : 4G630 Applicant SHENZHEN TENDA TECHNOLOGY CO.,LTD Date of Test : Mar. 17, 2014~ Apr. 03, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1403C127) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 7 of 128 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PASS NOTE: (1)” N/A” denotes…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 125 of 128 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 126 of 128 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 127 of 128 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C127 Page 128 of 128 Radiated Measurement Photos Above 1000MHz
