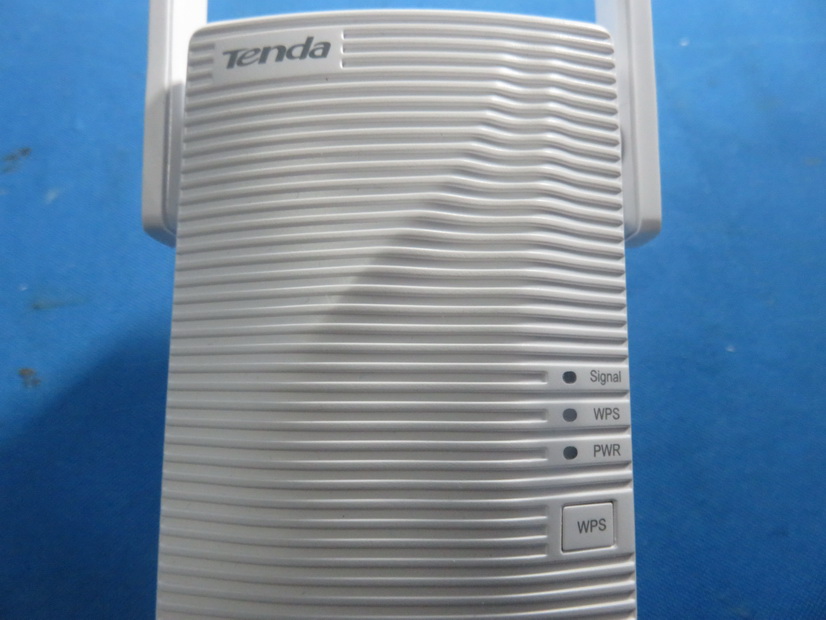

LED Descriptions Buttons and ports PWR LED indicatorStatusDescription Signal Solid onThe repeater is connected to a power source properly. OffThe repeater is not powered on. WPS Solid onA WPS connection has been established. BlinkingA WPS connection is being established. OffThe WPS function is disabled. The repeater does not connect to your WiFi router. Solid blue Solid red Off The repeater has connected to your existing WiFi router, and its position is proper. The repeater is too far away from the router. Relocate the repeater closer to the router. WPS Button/PortDescription When the PWR LED of the repeater is solid on, hold down this button using a needle, and release it when all the LED indicators blink once then turn off. When the PWR LED indicator turns solid on again, it is reset successfully. LAN port. - In repeater mode, it is used to connect to a computer or an IPTV STB. - In AP mode, it is used to connect to your wired router to provide wireless network for wireless devices. Press the button of the router, and enable the WPS function of another device within 2 minutes to establish a WPS connection. RESET Power on the repeater Power on the repeater Plug the repeater into a power outlet near the router in the same room. Wait until the PWR LED indicator turns solid on. Extend your WiFi network Press the WPS button on the router. Within 2 minutes, press the WPS button on the repeater. Enter the password for the selected WiFi network. Modify your repeater’s SSID (optional), and click Extend. 5. Extend your WiFi network Connect your WiFi device to the repeater’s SSID Tenda_EXT. Ensure that the Mobile Data (if any) function of your WiFi device is disabled. For better performance, follow the on-screen tips or the steps below to relocate your repeater. Plug the repeater into an outlet halfway between the router and the WiFi dead zone. The location you choose must be within the range of your existing WiFi network. 1. Relocate the repeater For better performance, plug the repeater into an outlet halfway between the router and the WiFi dead zone. The location you choose must be within the range of your existing WiFi network. 1. Wait until the Signal LED turns solid blue. If not, relocate the repeater closer to the router. 2. Wait until the Signal LED on the repeater turns solid blue or red. If not, try Method 1. 2. Create a login password for security (recommend) and click Next.3. re.tenda.cn After connecting to the repeater’s SSID, you will be directed to the quick setup page. If not, start a web browser, and access re.tenda.cn or 192.168.0.254 in the address bar. 2. 1. Method 1: Extending your WiFi network using web UI Method 2: Extending your WiFi network using WPS Relocate the repeater Connect your WiFi devices to the repeater using the SSIDs set by yourself, or your router’s SSID with the suffix _EXT or _5GEXT if they are not changed, and using the WiFi password which is the same as your router. Connect to the Internet Connect your WiFi devices to the repeater. The repeater’s SSIDs are your WiFi router’s SSID with a suffix _EXT or _5GEXT. The WiFi password of the repeater is the same as your WiFi router. Connect to the Internet FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. This device is restricted to be used in the indoor. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC RSS warning Industry Canada(RSS-Gen Issue 4) The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage; (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. IC Radiation Exposure Statement: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même tem…

Text truncated - open the document above for the full version.

                      !" # $    % #&'()  *+,,-./01.-.1234350678.55.4   9 :   ;  <   = % :> >          ?<@9')@&  A'BC <#  : $ %  ; DE  :   %  ;  A&B  E C    %  ;  FGHIJHKLMNOKP QRSTU VLWXYHZLOKKXK[QW\H PHYXLHLOKWGOK]^XWO _G`aHQaHOL`KUU _O]]XYH]LOKKXK[ Qb\HGHW\HPHYXLHX] LOK cX]WHK`KcMbXW\K` _G`aH]U VPS`LR`PH LO_OaXcXWM VLLH ]]_`XKW LO_OaXcXWM &'&d&e&fD fD fD fD   d )& fD fD fD fD   d g fD fD fD fD   d  fD fD fD fD  ')(d &(fD fD fD fD  'g(d &(fD fD fD fD  &'(d &'(fD fD fD fD   AB ;  %  ;fD  ?>;h  : :   <   AB#' i&(&   fD  "% :<    >       :  %  ;    :      %   i?     %      : "%;   %           >       :     >       > i       %    : "i   A B     >: >         >>  A           B  >> % A :            dC>   B    :   >    >    >:      >:        : >: E :             %  > %;     i ;  ; A?>;   h    :     : >::  B

                   !!"" #$%&'()**)+",-!"" ,   ,         - ."/+ 0"-"  + ., 1 2 !!"" (3"++) " -!4+' , +  ,      " !.., '+.!5"6!"++! ! "!+7()"   8! !". )6 )9**1!&-. 96 7:*1!&-. ,.!"+ )6 )%96 ): !; ! & 2 <7 )%<9   =    9* 9)$*>$)(  ,        & +  +

            !" "#$%&%!$' !""%''%!$ (#)!%*%!$$+,#%!$%,%'%!$   !$-%$% %./0#'1%$122%&%!$-!&%-%&%!$!- 3456(74  89:;9<=>>?@ AB>C?=;DEFGH<=IDEFGJ?K>LAM?NNC;;C?=O;P9QA;RSALA:ATU:AV9'&!$-%$% "$!-%$-!"%!$&&!"2$.%$1)%'22%&%!$'!#%$W!X  Y!&Z%1" [&)"%&' \2%!$'&%2%!$ ][&)"%&' ^]Y!&Z%1" _]\2%$'&%2%!$    6)W!," %'&!$%$'&'$2!2%.%$-!"%!$$!&#'!"%.'! )2#W%&]6)2#W%&%'&!'#!-)'"%'".W)"-#!)22%&$$2!,% #$`#'%-%W $-%'!%'&!"2%!']  6)22%&$#$'$')2#'#$![&%!$]^5!-)/#'a%'&!'#!-)%' 22%&%!$$&&!"2$.%$1!&#"$%!$X%$!W"W-!)!-)b$ -!)%'22%&%!$]  3%'!##$'$%$1)"'#"$'2!'a 3W-!"$ &!'2!$$&#%$1)&%-%&%!$,%X2!&''&$$!W1$'&!$-%$% !&#"$'$)%'%$-!"%!$X%W,%W-!2#W%&,%X!$&)1$!-0#%2"$ #)!%*%!$%'%''#]  [%1$#  [)$c#

          ! " #$%&"'%&"(&")*(&!%"+,+-.!+/,()/ *#01234(5&6"/7887' 9")$:!  %;  <<445#  = #7>*!7?88)4@39 ?>*!AB8)4@39 ( #7>*72?>*7B (C#(  (  *44D <E4*72*7B444 F4G<445<<# +4 4<</  )#?8?7/ 8H/76 "#$. (4#201ABB1?A0BA8I2 &14#J/ $#

Project No.: 2102C285 Page 2 of 11 2.4G Ant.1 5G Ant.1 2.4G Ant.2 5G Ant.2 Project No.: 2102C285 Page 3 of 11 Project No.: 2102C285 Page 4 of 11

MAC: SSID: S/N: AC750 Dual Band WiFi Repeater Default Access: re.tenda.cn Power: AC100-240V 0.3A 50/60Hz Model: A15 Made in China wtendacn.comww. FCC ID: V7TA18V2 IC: 9034A-A18V2 Label location

FCC ID: V7TA18V2 IC: 9034A-A18V2 Label location

Project No.: 2102C285 Page 5 of 11 Project No.: 2102C285 Page 6 of 11 Project No.: 2102C285 Page 7 of 11 Project No.: 2102C285 Page 8 of 11 Project No.: 2102C285 Page 9 of 11 Project No.: 2102C285 Page 10 of 11 Project No.: 2102C285 Page 11 of 11

Report No.: BTL-FCCP-3-2102C285 Page 1 of 5 FCC RF EXPOSURE REPORT FCC ID: V7TA18V2 Project No. : 2102C285 Equipment : 1) AC1200 Dual Band WiFi Repeater 2) AC750 Dual Band WiFi Repeater Brand Name : Tenda Test Model : A18 Series Model : A15 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Feb. 24, 2021 Date of Test : Feb. 24, 2021 ~ Apr. 06, 2021 Issued Date : Apr. 13, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210224147 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-3-2102C285 Page 2 of 5 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Apr. 13, 2021 Report No.: BTL-FCCP-3-2102C285 Page 3 of 5 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: For 2.4GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 3.5 2 N/A N/A Internal N/A 3.5 Note: 1) This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain=G ANT +10log(N)dBi, that is Directional gain=3.5+10log(2)dBi=6.51. So, the output power limit is 30-(6.51-6)=29.49, the power spectral density limit is 8-(6.51-6)= 7.49. 2) Beamforming Gain: 3 dB. Directional gain=3.5+3=6.5 dB. So, the output power limit is 30-(6.5-6)=29.5. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming Operating Mode TX Mode 1TX 2TX IEEE 802.11b V (Ant. 1) - IEEE 802.11g V (Ant. 1) - IEEE 802.11n(HT20) - V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) - V (Ant. 1+Ant. 2) For Beamforming Operating Mode TX Mode 2TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-3-2102C285 Page 4 of 5 For 5GHz: Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 N/A N/A Internal N/A 3 2 N/A N/A Internal N/A 3 Note: 1) This EUT supports MIMO 2X2, any transmit signals are correlated with each other, so Directional gain=G ANT +10log(N)dBi, that is Directional gain=3+10log(2)dBi=6.01. So, the UNII-1, UNII-3 output power limit is 30-(6.01-6)=29.99. The UNII-1 power spectral density limit is 17-(6.01-6)=16.99, the UNII-3 power spectral density limit is 30-(6.01-6)=29.99. 2) Beamforming Gain: 3 dB. Directional gain=3+3=6 dB. 3) The antenna gain and beamforming gain are provided by the manufacturer. Table for Antenna Configuration: For Non Beamforming: Operating Mode TX Mode 1TX 2TX IEEE 802.11a V (Ant. 1) - IEEE 802.11n(HT20) - V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) - V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT20) - V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT40) - V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT80) - V (Ant. 1+Ant. 2) For Beamforming: Operating Mode TX Mode 2TX IEEE 802.11n(HT20) V (Ant. 1+Ant. 2) IEEE 802.11n(HT40) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT20) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT40) V (Ant. 1+Ant. 2) IEEE 802.11ac(VHT80) V (Ant. 1+Ant. 2) Report No.: BTL-FCCP-3-2102C285 Page 5 of 5 3. TEST RESULTS For 2.4GHz Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.51 3.9719 29.36 862.9785 0.76904 1 Complies For 2.4GHz Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.50 4.4668 29.27 845.2788 0.75154 1 Complies For 5GHz UNII-1 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.01 3.9902 21.92 155.5966 0.12358 1 Complies For 5GHz UNII-1 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.00 3.9811 21.66 146.5548 0.11613 1 Complies For 5GHz UNII-3 Non Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.01 7.2444 23.40 218.7762 0.17376 1 Complies For 5GHz UNII-3 Beamforming: Directional Gain (dBi) Directional Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 6.00 3.9811 23.01 199.9862 0.15847 1 Complies For the max simultaneous transmission MPE: Power Density (S) (mW/cm 2 ) Power Density (S) (mW/cm 2 ) Total Limit of Power Density (S) (mW/cm 2 ) Test Result 2.4GHz 5GHz 0.76904 0.17376 0.94280 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-2-2102C285 Page 1 of 209 FCC Radio Test Report FCC ID: V7TA18V2 This report concerns: Original Grant Project No. : 2102C285 Equipment : 1) AC1200 Dual Band WiFi Repeater 2) AC750 Dual Band WiFi Repeater Brand Name : Tenda Test Model : A18 Series Model : A15 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Feb. 24, 2021 Date of Test : Feb. 24, 2021 ~ Apr. 06, 2021 Issued Date : Apr. 13, 2021 Report Version : R00 Test Sample : Engineering Sample No.: DG20210224147 for conducted, DG20210224148 for radiated. Standard(s) : FCC CFR Title 47, Part 15, Subpart E ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v02r01 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Sheldon Ou Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Te l : +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2102C285 Page 2 of 209 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2102C285 Page 3 of 209 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 PARAMETERS OF TEST SOFTWARE 14 2.4 DUTY CYCLE 16 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 18 2.6 SUPPORT UNITS 18 3 . AC POWER LINE CONDUCTED EMISSIONS 19 3.1 LIMIT 19 3.2 TEST PROCEDURE 19 3.3 D E V I AT I O N FROM TEST STANDARD 19 3.4 TEST SETUP 20 3.5 EUT OPERATION CONDITIONS 20 3.6 TEST RESULTS 20 4 . RADIATED EMISSIONS 21 4.1 LIMIT 21 4.2 TEST PROCEDURE 21 4.3 DEVIATION FROM TEST STANDARD 22 4.4 TEST SETUP 22 4.5 EUT OPERATION CONDITIONS 24 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 24 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 24 4.8 TEST RESULTS - ABOVE 1000 MHZ 24 5 . BANDWIDTH 25 5.1 LIMIT 25 5.2 TEST PROCEDURE 25 5.3 DEVIATION FROM STANDARD 25 5.4 TEST SETUP 25 Report No.: BTL-FCCP-2-2102C285 Page 4 of 209 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 25 5.6 TEST RESULTS 25 6 . MAXIMUM OUTPUT POWER 26 6.1 LIMIT 26 6.2 TEST PROCEDURE 26 6.3 DEVIATION FROM STANDARD 26 6.4 TEST SETUP 26 6.5 EUT OPERATION CONDITIONS 26 6.6 TEST RESULTS 26 7 . POWER SPECTRAL DENSITY 27 7.1 LIMIT 27 7.2 TEST PROCEDURE 27 7.3 DEVIATION FROM STANDARD 27 7.4 TEST SETUP 28 7.5 EUT OPERATION CONDITIONS 28 7.6 TEST RESULTS 28 8 . FREQUENCY STABILITY 29 8.1 LIMIT 29 8.2 TEST PROCEDURE 29 8.3 DEVIATION FROM STANDARD 29 8.4 TEST SETUP 29 8.5 EUT OPERATION CONDITIONS 29 8.6 TEST RESULTS 29 9 . MEASUREMENT INSTRUMENTS LIST 30 10 . EUT TEST PHOTOS 32 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 36 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 39 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 44 APPENDIX D - RADIATED EMISSION - ABOVE 1000 MHZ 47 APPENDIX E - BANDWIDTH 160 APPENDIX F - MAXIMUM OUTPUT POWER 173 APPENDIX G - POWER SPECTRAL DENSITY 194 Report No.: BTL-FCCP-2-2102C285 Page 5 of 209 Table of Contents Page APPENDIX H - FREQUENCY STABILITY 207 Report No.: BTL-FCCP-2-2102C285 Page 6 of 209 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Apr. 13, 2021 Report No.: BTL-FCCP-2-2102C285 Page 7 of 209 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC CFR Title 47, Part 15, Subpart E Standard(s) Section Test Item Test Result Judgment Remark 15.207 15.407(b) AC Power Line Conducted Emissions APPENDIX A PA SS ------ 15.407(b) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PA SS ------ 15.407(a) 15.407(e) Bandwidth APPENDIX E PA SS ------ 15.407(a) Maximum Output Power APPENDIX F PA SS ------ 15.407(a) Power Spectra…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2102C285 Page 158 of 209 Test Mode UNII-3_TX AC(VHT80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2102C285 Page 159 of 209 Test Mode UNII-3_TX AC(VHT80) Mode 5775 MHz Polarization Horizontal REMARKS: (1) Measurement Value = Reading Level + Correct Factor. (2) Margin Level = Measurement Value - Limit Value. Report No.: BTL-FCCP-2-2102C285 Page 160 of 209 APPENDIX E - BANDWIDTH Report No.: BTL-FCCP-2-2102C285 Page 161 of 209 Test Mode UNII-1_TX A Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 36 5180 19.09 16.50 40 5200 19.10 16.50 48 5240 19.49 16.50 CH36 CH40 CH48 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 162 of 209 Test Mode UNII-1_TX N(HT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 36 5180 19.55 17.70 40 5200 19.41 17.70 48 5240 19.49 17.70 CH36 CH40 CH48 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 163 of 209 Test Mode UNII-1_TX N(HT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 38 5190 41.19 36.60 46 5230 41.19 36.60 CH38 CH46 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 164 of 209 Test Mode UNII-1_TX AC(VHT20) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 36 5180 20.09 17.80 40 5200 19.89 17.70 48 5240 19.79 17.70 CH36 CH40 CH48 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 165 of 209 Test Mode UNII-1_TX AC(VHT40) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 38 5190 41.40 36.60 46 5230 42.40 36.60 CH38 CH46 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 166 of 209 Test Mode UNII-1_TX AC(VHT80) Mode Channel Frequency (MHz) 26 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 42 5210 137.99 76.00 CH42 26 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 167 of 209 Test Mode UNII-3_TX A Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 16.60 26.40 0.5 Complies 157 5785 16.60 27.00 0.5 Complies 165 5825 16.60 25.40 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 168 of 209 Test Mode UNII-3_TX N(HT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 17.80 18.90 0.5 Complies 157 5785 17.80 24.10 0.5 Complies 165 5825 17.80 25.30 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 169 of 209 Test Mode UNII-3_TX N(HT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 36.50 56.60 0.5 Complies 159 5795 36.50 56.20 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 170 of 209 Test Mode UNII-3_TX AC(VHT20) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 149 5745 17.80 27.10 0.5 Complies 157 5785 17.80 26.80 0.5 Complies 165 5825 17.80 25.60 0.5 Complies CH149 CH157 CH165 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 171 of 209 Test Mode UNII-3_TX AC(VHT40) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 151 5755 36.50 38.80 0.5 Complies 159 5795 36.60 53.20 0.5 Complies CH151 CH159 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 172 of 209 Test Mode UNII-3_TX AC(VHT80) Mode Channel Frequency (MHz) 6 dB Bandwidth (MHz) 99 % Occupied Bandwidth (MHz) 6 dB Bandwidth Min. Limit (MHz) Result 155 5775 74.79 126.80 0.5 Complies CH155 6 dB Bandwidth 99 % Occupied Bandwidth Report No.: BTL-FCCP-2-2102C285 Page 173 of 209 APPENDIX F - MAXIMUM OUTPUT POWER Report No.: BTL-FCCP-2-2102C285 Page 174 of 209 Non Beamforming Test Mode UNII-1_TX A Mode Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.88 0.79 19.67 30.00 1.0000 Complies 40 5200 18.45 0.79 19.64 30.00 1.0000 Complies 48 5240 18.22 0.79 19.01 30.00 1.0000 Complies Test Mode UNII-1_TX N(HT20) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 17.27 0.94 18.21 30.00 1.0000 Complies 40 5200 16.43 0.94 17.37 30.00 1.0000 Complies 48 5240 16.47 0.94 17.41 30.00 1.0000 Complies Test Mode UNII-1_TX N(HT20) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 18.33 0.94 19.27 30.00 1.0000 Complies 40 5200 16.49 0.94 17.43 30.00 1.0000 Complies 48 5240 16.59 0.94 17.53 30.00 1.0000 Complies Test Mode UNII-1_TX N(HT20) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit (W) Result 36 5180 21.78 29.99 0.9977 Complies 40 5200 20.41 29.99 0.9977 Complies 48 5240 20.48 29.99 0.9977 Complies Report No.: BTL-FCCP-2-2102C285 Page 175 of 209 Test Mode UNII-1_TX N(HT40) Mode_Ant. 1 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 15.23 1.70 16.93 30.00 1.0000 Complies 46 5230 16.58 1.70 18.28 30.00 1.0000 Complies Test Mode UNII-1_TX N(HT40) Mode_Ant. 2 Channel Frequency (MHz) Output Power (dBm) Duty Factor Output Power + Duty Factor (dBm) Max. Limit (dBm) Max. Limit (W) Result 38 5190 16.31 1.70 18.01 30.00 1.0000 Complies 46 5230 17.77 1.70 19.47 30.00 1.0000 Complies Test Mode UNII-1_TX N(HT40) Mode_Total Channel Frequency (MHz) Output Power (dBm) Max. Limit (dBm) Max. Limit…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2102C285 Page 32 of 209 10. EUT TEST PHOTOS AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-2-2102C285 Page 33 of 209 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-2-2102C285 Page 34 of 209 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-2-2102C285 Page 35 of 209 Radiated Emissions Test Photos Above 1 GHz
