V7TA301Wireless N300 Universal Range Extender

Wireless N300 Universal Range Extender I Wireless N300 Universal Range Extender II Copyright Statement i s the regi stered tradem ark of Shenzhen Tenda Technol ogy Co., Ltd. Al l the products and product nam es m enti oned herein are the trademark s or registered trademark s of thei r respecti ve hol ders. C opyright of the whol e product as i ntegration, i ncl uding i ts accessori es and software, bel ongs to Shenzhen Tenda Technology Co., Ltd. N o part of this publ ication can be reproduced, tr ansmi tted, transcri bed, stored in a retrieval system , or transl ated i nto any language in any form or by any m eans wi thout the pri or wri tten permi ssi on of Shenzhen Tenda Technol ogy C o., Ltd. If you would like to know m ore about our product inf ormati on, please vi si t our websi te at http://www.tendacn.com. Disclaimer of Warranties Pictures, images and product specifi cati ons herein are f or references onl y. To improve i nternal design, operati onal f unction, and/or reli abil i ty, Tenda reserves the right to mak e changes to the products described i n this docum ent wi thout obl igati on to notify any person or organi zation of such revisions or changes. Tenda does not assume any l iabil i ty that may occur due to the use or applicati on of , the product or ci rcui t l ayout(s) descri bed herei n. Every eff ort has been made i n the preparati on of this docum ent to ensure accuracy of the contents, but all statem ents, i nform ation and recommendati ons i n this document do not consti tute the warranty of any ki nd, express or im pli ed. Wireless N300 Universal Range Extender III Preface Thank you for purchasing Tenda wi reless range extender. This guide appli es to A300/A301. As they share many simi lari ti es i n many aspects, here we take A300 for exampl e. Bef ore confi guring i t, please read thi s user gui de caref ull y. Conventions Note: Inform ati on yo u need to pay attention to. Ti p: Addi tional i nf ormati on to hel p you save time or resources. Technical Support Website: http://www.te ndacn.com Techni cal Support: [email protected] .cn Telephone: (86 755) 2765 7180 Email : sal [email protected] .cn Sk ype: tendasz YouTube: Tendasz1999 Wireless N300 Universal Range Extender IV Contents C h ap t er 1 Pro d u ct O v erv iew ........................................................................ 1 1.1 Pac k age C onte nts ................................................................................. 1 1.2 G ettin g to Kno w Yo ur W ir eles s R ange Ex t ender ..................................... 1 LED ........................................................................................................ 2 Por t & Button .......................................................................................... 2 Label ...................................................................................................... 2 1.3 Pos it ion Your W ir eless R ang e Ex ten der ................................................. 2 C h ap t er 2 In t ern et C o n n ect ion Set u p .......................................................... 4 2.1 H ar d war e I ns tall ati on ............................................................................ 4 2.2 C onf igur e the R ange E x tender ........................................................... 4 Method One: Setup by Web-bas ed Mana gem e nt Pag e .............................. 4 Method Two: Setup by Button .................................................................. 7 2.3 Internet C onn ec tio n Setu p ..................................................................... 8 C onf igur e IP ............................................................................................ 8 W eb Logi n ............................................................................................... 8 2.4 Ver if y In ter net C o n nec tion .................................................................. 10 2.5 J oin Your W ir eles s C onnec tio n ............................................................ 11 W in7 O S ............................................................................................... 11 W indo ws X P O S .................................................................................... 13 C h ap t er 3 Ad v an ced S et t in g s .................................................................... 15 3.1 W izar d ................................................................................................ 15 3.2 S ys t em Status .................................................................................... 15 3.3 W ir eles s ............................................................................................. 16 3.3.1 W ir eles s Bas ic S ettings................................................................. 16 3.3.2 W ir eles s Sec ur it y .......................................................................... 17 3.3.3 Ac c es s C ontr ol ............................................................................. 18 3.3.4 W ir eles s C onnec tion S tatus ........................................................... 20 3.4 T ools .................................................................................................. 20 3.4.1 T im e Settin gs ............................................................................... 20 3.4.2 U p gr ade ....................................................................................... 21 3.4.3 B ack up/R es tor e ............................................................................ 22 3.4.4 R es tor e to F ac tor y D ef ault ............................................................ 22 3.4.5 C h ange Pas s w or d ......................................................................... 23 3.4.6 S ys lo g .......................................................................................... 24 3.4.7 R e boot ......................................................................................... 24 C h ap t er 4…

Text truncated - open the document above for the full version.

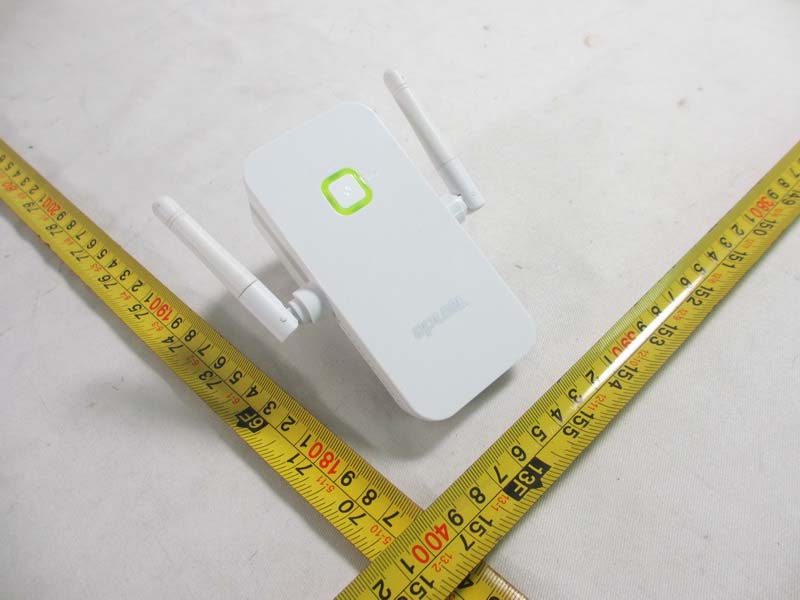

RV-0000000 Project No.: 1404C109 Page 1 of 8 Neutron Engineering Inc. ATTACHMENT PHOTOGRAPHS OF EUT RV-0000000 Project No.: 1404C109 Page 2 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 1404C109 Page 3 of 8 Neutron Engineering Inc.

RV-0000000 Project No.: 1404C109 Page 4 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 1404C109 Page 5 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 1404C109 Page 6 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 1404C109 Page 7 of 8 Neutron Engineering Inc. RV-0000000 Project No.: 1404C109 Page 8 of 8 Neutron Engineering Inc.

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: V7TA301 Project No. : 1404C109 Equipment : Wireless N300 Universal Range Extender Model : A301 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhon gshanyuan Road, Nanshan District, Shenzhen, China. 518052 According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connecto r Gain (dBi) Note 1 Tenda NA Dipole N/A 2.25 TX/RX 1 Tenda NA Dipole N/A 2.25 TX/RX Neutron Engineering Inc. TEST RESULTS EUT： Wireless N300 Universal Range Extender Model Name : A301 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.25 1.6788 21.3 134.8963 0.045076521 Complies 2.25 1.6788 20.8 120.2264 0.040174491 Complies 2.25 1.6788 20.6 114.8154 0.038366341 Complies EUT： Wireless N300 Universal Range Extender Model Name : A301 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.25 1.6788 21.2 131.8257 0.044050451 Complies 2.25 1.6788 22.2 165.9587 0.055456231 Complies 2.25 1.6788 21.3 134.8963 0.045076521 Complies Neutron Engineering Inc. EUT： Wireless N300 Universal Range Extender Model Name : A301 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.25 1.6788 24.46 279.2544 0.093314771 Complies 2.25 1.6788 25.36 343.5579 0.114802241 Complies 2.25 1.6788 24.36 272.8978 0.091190661 Complies EUT： Wireless N300 Universal Range Extender Model Name : A301 Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.25 1.6788 22.81 190.9853 2.25 1 Complies 2.25 1.6788 22.76 188.7991 2.25 1 Complies 2.25 1.6788 22.66 184.5015 2.25 1 Complies The calculated distance is 20 cm

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 1 of 154 FCC Radio Test Report FCC ID: V7TA301 This report concerns (check one): Original Grant Class II Change Project No. : 1404C109 Equipment : Wireless N300 Universal Range Extender Model Name : A301 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No.1001,Zhongshanyuan Road, Nanshan District,Shenzhen,China.518052 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Apr. 15, 2014 Date of Test: Apr. 15, 2014 ~ May. 14, 2014 Issued Date: May. 15, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) Neutron Engineering Inc. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 2 of 154 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 3 of 154 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TEST PROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 20 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . BANDWIDTH TEST 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 4 of 154 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 24 8.1.3 TEST SETUP 24 8.1.4 EUT OPERATION CONDITIONS 24 8.1.5 EUT TEST CONDITIONS 24 8.1.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 ATTACHMENT A - CONDUCTED EMISSION 31 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 34 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 36 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 43 ATTACHMENT E - BANDWIDTH 92 ATTACHMENT F - MAXIMUM OUTPUT POWER 105 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 109 ATTACHMENT H - POWER SPECTRAL DENSITY 140 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 5 of 154 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1404C109 Original Issue. May. 15, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 6 of 154 1. CERTIFICATION Equipment : Wireless N300 Universal Range Extender Brand Name : Tenda Model Name : A301 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen,China.518052 Date of Test : Apr. 15, 2014 ~ May. 14, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1404C109) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering I…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 81 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Vertical Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 82 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Fundamental frequency, no limit Fundamental frequenc y, no limit Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 83 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2422MHz Horizontal Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 84 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Fundamental frequency, no limit Fundamental frequenc y, no limit Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 85 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Vertical Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 86 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Fundamental frequency, no limit Fundamental frequency, no limit Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 87 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2437MHz Horizontal Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 88 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Fundamental frequency, no limit Fundamental frequency, no limit Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 89 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Vertical Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 90 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Fundamental frequency, no limit Fundamental frequenc y, no limit Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 91 of 154 Orthogonal Axis : X Test Mode : TX N-40M MODE 2452MHz Horizontal Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 92 of 154 ATTACHMENT E - BANDWIDTH Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 93 of 154 Test Mode : TX B Mode_CH01/06/11 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 94 of 154 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 95 of 154 Test Mode: TX G Mode_CH01/06/11 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 96 of 154 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 97 of 154 Test Mode : TX N-20MHz Mode_CH01/06/11_ANT 1 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 98 of 154 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 99 of 154 Test Mode : TX N-20MHz Mode_CH01/06/11_ANT 2 TX CH 01 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 100 of 154 TX CH 06 TX CH 11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 101 of 154 Test Mode : TX N-40MHz Mode_CH03/06/09_ANT 1 TX CH 03 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 102 of 154 TX CH 06 TX CH 09 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 103 of 154 Test Mode : TX N-40MHz Mode_CH03/06/09_ANT 2 TX CH 03 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 104 of 154 TX CH 06 TX CH 09 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 105 of 154 ATTACHMENT F - MAXIMUM OUTPUT POWER Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 106 of 154 Test Mode : TX B Mode Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 21.30 30 1 CH06 2437 20.80 30 1 CH11 2462 20.60 30 1 Test Mode : TX G Mode Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 21.20 30 1 CH06 2437 22.20 30 1 CH11 2462 21.30 30 1 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 107 of 154 Test Mode : TX N-20M Mode_ANT 1 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 21.40 30 1 CH06 2437 22.40 30 1 CH11 2462 21.30 30 1 Test Mode : TX N-20M Mode_ANT 2 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 21.50 30 1 CH06 2437 22.30 30 1 CH11 2462 21.40 30 1 Test Mode : TX N-20M Mode_Total Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH01 2412 24.46 30 1 CH06 2437 25.36 30 1 CH11 2462 24.36 30 1 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 108 of 154 Test Mode : TX N-40M Mode_ANT 1 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH03 2422 19.80 30 1 CH06 2437 19.70 30 1 CH09 2452 19.60 30 1 Test Mode : TX N-40M Mode_ANT 2 Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH03 2422 19.80 30 1 CH06 2437 19.80 30 1 CH09 2452 19.70 30 1 Test Mode : TX N-40M Mode_Total Test Channel Frequency (MHz) Output Power (dBm) Limit (dBm) Limit (Watt) CH03 2422 22.81 30 1 CH06 2437 22.76 30 1 CH09 2452 22.66 30 1 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 109 of 154 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 110 of 154 Test Mode : TX B Mode Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 111 of 154 TX B mode CH01 TX B mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 112 of 154 TX B mode CH01 (30MHz to 1000MHz) TX B mode CH01 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 113 of 154 TX B mode CH06 (30MHz to 1000MHz) TX B mode CH06 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 114 of 154 TX B mode CH11 (30MHz to 1000MHz) TX B mode CH11 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 115 of 154 Test Mode : TX G Mode Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 116 of 154 TX G mode CH01 TX G mode CH11 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 117 of 154 TX G mode CH01 (30MHz to 1000MHz) TX G mode CH01 (1000MHz to 10 th Harmonic) Neutron Engineering Inc. Report No.…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 27 of 154 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 28 of 154 Radiated Measurement Photos 9KHz to 30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 29 of 154 Radiated Measurement Photos 30MHz to 1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1404C109 Page 30 of 154 Radiated Measurement Photos Above 1000MHz
