V7TA302Wireless N300 Universal Range Extender

Wireless Range Extender I Wireless Range Extender II Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the prior written permission of Shenzhen Tenda Technology Co., Ltd. If you would like to know more about our product information, please visit our website at http://www.tendacn.com. Wireless Range Extender III Disclaimer of Warranties Pictures, images and product specifications herein are for references only. To improve internal design, operational function, and/or reliability, Tenda reserves the right to make changes to the products described in this document without obligation to notify any person or organization of such revisions or changes. Tenda does not assume any liability that may occur due to the use or application of, the product or circuit layout(s) described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute the warranty of any kind, express or implied. Wireless Range Extender IV Preface Thank you for purchasing Tenda wireless range extender. Before configuring i t, please read this user guide carefully. Conventions Note: Information you need to pay attention to. Tip: Additional information to help you save time or resources. Technical Support Website: http://www.tendacn.com Email: [email protected] Skype: tendasz YouTube: Tendasz1999 Hotline: 1-800-570-5892 (USA) (061) 1300787922 (Australia) (044)197-780-6119 (UK) (0852)36120883 (HongKong) (064) 800787922 (New Zealand) Wireless Range Extender V Contents Chapter 1 Product Overview ............................................................................. 1 1 Package Contents ........................................................................................... 1 2 Getting to Know Your Wireless Range Extender ................................................ 1 LED ................................................................................................................ 1 Interfaces and Buttons ................................................................................... 2 Label ............................................................................................................. 3 3 Position Your Wireless Range Extender ............................................................ 3 Chapter 2 Internet Connection Setup ................................................................. 4 1 Preparation .................................................................................................... 4 2 Hardware Installation ..................................................................................... 4 3 Setup by Button .............................................................................................. 5 4 Internet Connection Setup .............................................................................. 6 Configure IP ................................................................................................... 6 Configure the wireless range extender Login ................................................... 6 5 Verify Internet Connection ............................................................................ 11 6 Join Your Wireless Connection ...................................................................... 14 Win7 OS ....................................................................................................... 14 Windows XP OS ............................................................................................ 16 Chapter 3 Advanced Settings ........................................................................... 18 1 Wizard ......................................................................................................... 18 2 System Status ............................................................................................... 18 3 Wireless ....................................................................................................... 18 3.1 Wireless Basic Settings ........................................................................... 18 3.2 Wireless Security .................................................................................... 20 3.3 Access Control ........................................................................................ 21 3.4 Wireless Connection Status ..................................................................... 22 4 Tools ............................................................................................................ 23 4.1 Time Settings ......................................................................................... 23 4.2 Upgrade ................................................................................................. 23 4.3 Backup/Restore ...................................................................................... 24 4.4 Restore to Factory Default ...................................................................... 25 4.5 Change Password .................................................................................... 26 4.6 Syslog .................................................................................................... 26 4.7 Reboot ................................................................................................... 27 Chapter 4 Appendix ........................................................................................ 28 Appendix 1 Configure IP ...............................................…

Text truncated - open the document above for the full version.

CERTIFICATE OF COMPLIANCE Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless N300 Universal Range Extender Model Name A302 Brand Name Tenda Applicant SHENZHEN TENDA TECHNOLOGY CO., LTD. Address Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao’an District, Shenzhen, P.R.China 518108 Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 Report(s) NEI-FCCE-1-1311C228 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

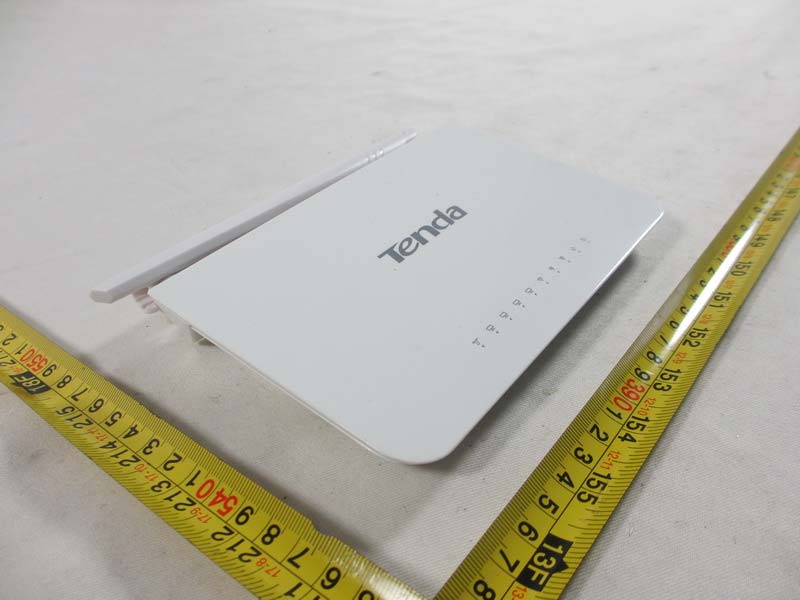

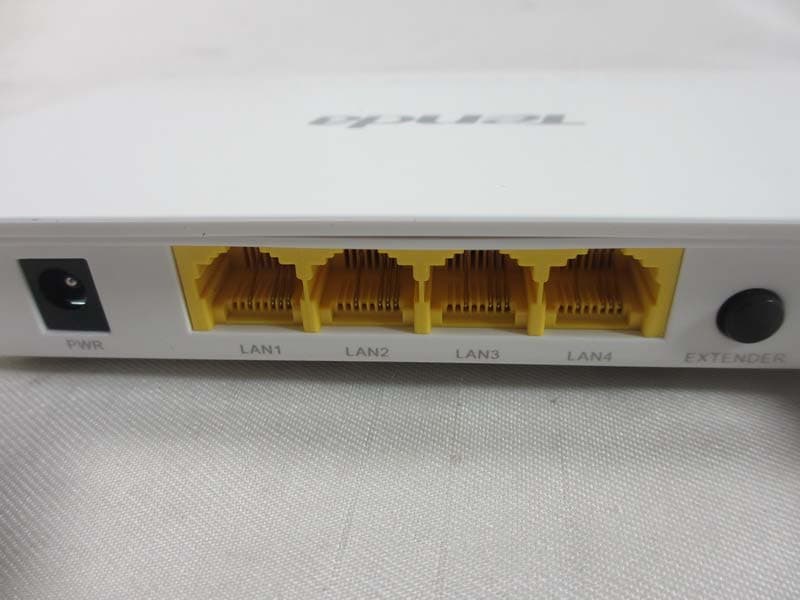

Neutron Engineering Inc. Project No.: 1311C228 Page 2 of 7 Neutron Engineering Inc. Project No.: 1311C228 Page 3 of 7 Neutron Engineering Inc. Project No.: 1311C228 Page 4 of 7

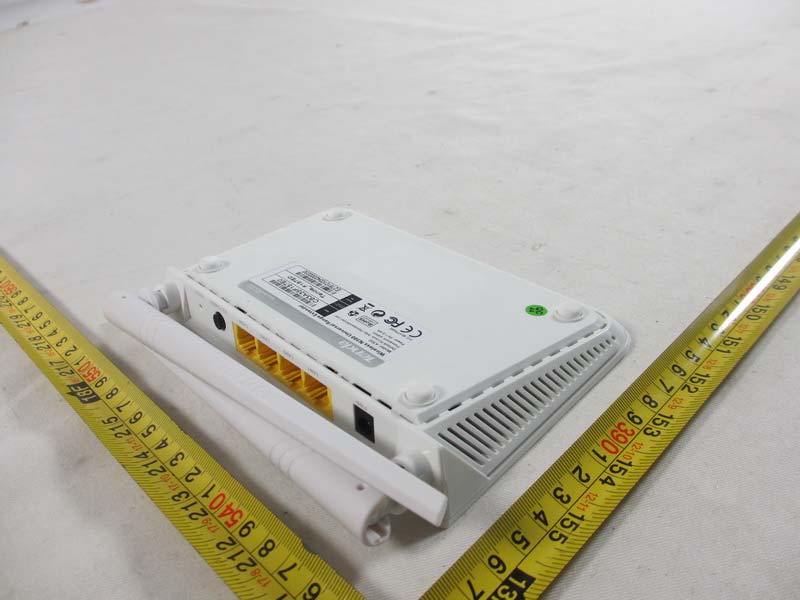

label location

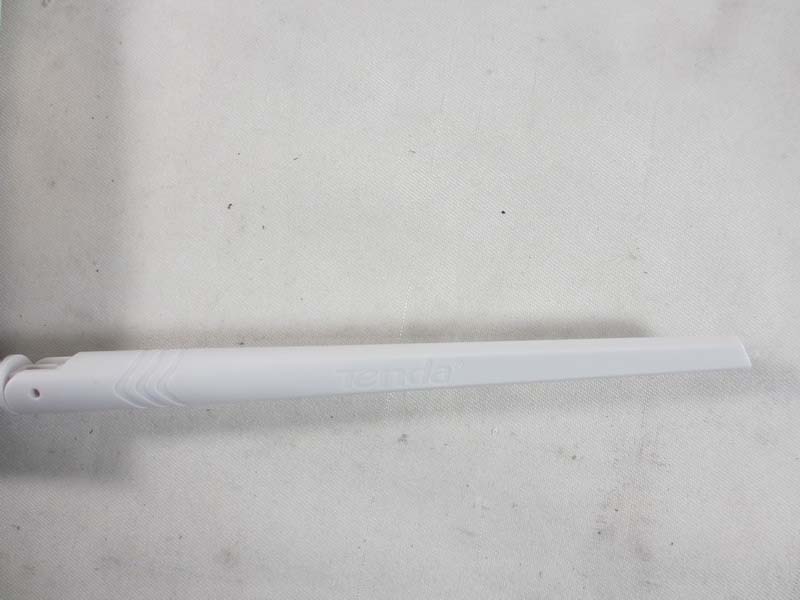

Neutron Engineering Inc. Project No.: 1311C228 Page 5 of 7 Dipole antenna Neutron Engineering Inc. Project No.: 1311C228 Page 6 of 7 Main board Main board Neutron Engineering Inc. Project No.: 1311C228 Page 7 of 7 RF module IC RF module crystal

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: V7TA302 Project No. : 1311C228 Equipment : Wireless N300 Universal Range Extender Model : A302 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address : Tenda Industrial Park, No.34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R. China 518108 According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 Tenda Q5142 Dipole N/A 5.06 2 Tenda Q5138 Dipole N/A 5.06 The EUT incorporates a MIMO function. Physically, the EUT provides two completed two transmitters and two receivers (2T2R). Neutron Engineering Inc. TEST RESULTS EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 19.13 81.8465 0.052233651 Complies 5.06 3.2063 18.92 77.9830 0.049768021 Complies 5.06 3.2063 19.01 79.6159 0.050810141 Complies EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 23.79 239.3316 0.152739151 Complies 5.06 3.2063 24.02 252.3481 0.161046161 Complies 5.06 3.2063 22.72 187.0682 0.119385171 Complies Neutron Engineering Inc. EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11 ANT1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 23.05 201.8366 0.128810231 Complies 5.06 3.2063 23.02 200.4472 0.127923511 Complies 5.06 3.2063 23.07 202.7683 0.129404801 Complies EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11 ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 22.8 190.5461 0.121604701 Complies 5.06 3.2063 23.01 199.9862 0.127629291 Complies 5.06 3.2063 21.43 138.9953 0.088705461 Complies EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE /CH01, CH06, CH11 ANT+ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 25.94 392.6449 0.250582291 Complies 5.06 3.2063 26.03 400.8667 0.255829351 Complies 5.06 3.2063 25.34 341.9794 0.218248051 Complies Neutron Engineering Inc. EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT1 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 21.17 130.9182 0.083550751 Complies 5.06 3.2063 22.85 192.7525 0.123012821 Complies 5.06 3.2063 20.67 116.6810 0.074464691 Complies EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 22.3 169.8244 0.108380311 Complies 5.06 3.2063 23.41 219.2805 0.139942741 Complies 5.06 3.2063 21.01 126.1828 0.080528641 Complies EUT: Wireless N300 Universal Range Extender Model Name : A302 Temperature: 24 °C Relative Humidity: 60 % Pressure: 1016 hPa Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE /CH03, CH06, CH09 ANT1+ANT2 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.06 3.2063 24.78 300.6076 0.191844955.06 Complies 5.06 3.2063 26.15 412.0975 0.262996745.06 Complies 5.06 3.2063 23.85 242.6610 0.154863965.06 Complies The calculated distance is 20 cm

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 1 of 146 FCC Radio Test Report FCC ID: V7TA302 This report concerns (check one): Original Grant Class II Change Issued Date : Jan. 02, 2014 Project No. : 1311C228 Equipment : Wireless N300 Universal Range Extender Model Name : A302 Applicant : SHENZHEN TENDA TECHNOLOGY CO., LTD. Address : Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao’an District, Shenzhen, P.R.China 518108 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Nov. 27, 2013 Date of Test: Nov. 27, 2013~ Dec. 31, 2013 Testing Engineer : ( David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 2 of 146 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 3 of 146 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 21 4.2.4 DEVIATION FROM TEST STANDARD 21 4.2.5 TEST SETUP 22 4.2.6 EUT OPERATING CONDITIONS 23 4.2.7 TEST RESULTS (BELOW 30MHZ) 24 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 4 of 146 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 93 6.1 APPLIED PROCEDURES / LIMIT 93 6.1.1 MEASUREMENT INSTRUMENTS LIST 93 6.1.2 TEST PROCEDURE 93 6.1.3 DEVIATION FROM STANDARD 93 6.1.4 TEST SETUP 93 6.1.5 EUT OPERATION CONDITIONS 93 6.1.6 TEST RESULTS 94 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 97 7.1 APPLIED PROCEDURES / LIMIT 97 7.1.1 MEASUREMENT INSTRUMENTS LIST 97 7.1.2 TEST PROCEDURE 97 7.1.3 DEVIATION FROM STANDARD 97 7.1.4 TEST SETUP 97 7.1.5 EUT OPERATION CONDITIONS 97 7.1.6 TEST RESULTS 98 8 . POWER SPECTRAL DENSITY TEST 128 8.1 APPLIED PROCEDURES / LIMIT 128 8.1.1 MEASUREMENT INSTRUMENTS LIST 128 8.1.2 TEST PROCEDURE 128 8.1.3 DEVIATION FROM STANDARD 128 8.1.4 TEST SETUP 128 8.1.5 EUT OPERATION CONDITIONS 128 8.1.6 TEST RESULTS 129 9 . EUT TEST PHOTO 143 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 5 of 146 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1311C228 Original Issue. Jan. 02, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 6 of 146 1. CERTIFICATION Equipment : Wireless N300 Universal Range Extender Brand Name : Tenda Model Name : A302 Applicant : SHENZHEN TENDA TECHNOLOGY CO., LTD. Manufacture : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address : Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao’an District, Shenzhen, P.R.China 518108 Date of Test : Nov. 27, 2013~ Dec. 31, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15(2012), Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1311C228) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 7 of 146 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spu…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 143 of 146 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 144 of 146 Radiated Measurement Photos 9KHz~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 145 of 146 Radiated Measurement Photos 300MHz~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1311C228 Page 146 of 146 Radiated Measurement Photos Above 1000MHz
