V7TA5SWireless N Travel Router

Wireless N travel Router A5s User Guide Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. Without prior expressed written permission from Shenzhen Tenda Tec hnology Co., Ltd, any individual or party is not allowed to copy, plagiarize, reproduce, or translate it into other languages. All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; Tenda reserves the right to revise this publication and to make chang es in the content hereof without obligation to notify any person or organization of such revisions or changes. If you would like to know more about our product information, please visit our website at www.tendacn.com. Wireless N travel Router Table of Contents Copyright Statement ........................ 1 Table of Contents ............................................................................... 2 Chapter 1 Product Overview .......................................... 1 1.1 Features ....................................................................................... 1 1.2 Package Content .......................................................................... 2 1.3 Panel Overview ............................................................................ 2 Chapter 2 Hardware Install ............................................. 5 2.1 Hardware Install ........................................................................... 5 2.1.1 Connect device to a power source ....................................... 6 2.1.2 Network Connection ............................................................ 6 Chapter 3 Mode Overview .............................................. 9 3.1 Hotel Mode (Dynamic IP) ............................................................. 9 3.2 Residence Mode (PPPoE) ........................................................... 10 3.3 WISP Mode ................................................................................ 10 Wireless N travel Router Chapter 4 Web Utility Login .......................................... 12 4.1 Connect to Device Wirelessly ..................................................... 12 4.2 Login to Web Utility ................................................................... 15 Chapter 5 Mode Toggle & Popup Windows ................. 16 5.1 Mode Auto‐switch ..................................................................... 16 5.2 Smart Popup Windows .............................................................. 17 Chapter 6 Mode Setup .................................................. 19 6.1 Hotel Mode (Dynamic IP) Setup ................................................. 19 6.2 Residence Mode (PPPoE) Setup ................................................. 20 6.3 WISP Mode Setup ...................................................................... 24 Chapter 7 Network Setup ............................................. 30 7.1 LAN Setup ................................................................................... 30 7.2 WAN Settings ............................................................................. 30 7.3 WAN Speed ................................................................................ 32 7.4 WAN MAC Clone ........................................................................ 33 7.5 DNS Server ................................................................................. 34 Wireless N travel Router Chapter 8 Wireless Settings .......................................... 35 8.1 Wireless‐Basic ............................................................................ 35 8.2 Wireless‐Security ....................................................................... 37 8.3 Wireless Access Control ............................................................. 40 8.4 Connection Status ...................................................................... 41 Chapter9 DHCP ............................................................. 43 9.1 DHCP Settings ............................................................................ 43 9.2 DHCP Client List &Reservation ................................................... 44 Chapter 10 Virtual Server ............................................. 46 10.1 Port Forwarding ....................................................................... 46 10.2 DMZ Host ................................................................................. 47 10.3 UPNP ........................................................................................ 48 Chapter 11 Security ...................................................... 49 11.1 Client Filter ............................................................................... 50 11.2 MAC Filter ................................................................................ 52 11.3 URL Filter .................................................................................. 55 Wireless N travel Router 11.4 Remote Web‐based Management ........................................... 58 Chapter 12 Routing Settings ......................................... 60 12.1 Routing Table ........................................................................... 60 Chapter 13 Bandwidth Control ..................................... 61 13.1 Bandwidth Control ................................................................... 61 Chapter 14 Tools ........................................................... 62 14.1 Time & Date ............................................................................. 62 14.2 DDNS ........................................................................................ 64 14.3 Back/Restore ...................................................................…

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.LTD Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 Date: 2013/1/7 GENERAL DECLARATION We, SHENZHEN TENDA TECHNOLOGY CO.LTD. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: V7TA5S If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Signature: Compliance Manager Name: liaobin SHENZHEN TENDA TECHNOLOGY CO.LTD Tel.: +86-755-27657068 Fax.: +86-755-27657178 E-mail: [email protected]

SHENZHEN TENDA TECHNOLOGY CO.LTD Date: 2013-01-25 FCC ID: V7TA5S To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------ Name: liaobin SHENZHEN TENDA TECHNOLOGY CO.LTD Tel.: +86-755-27657068 Fax.: +86-755-27657178 E-mail: [email protected]

SHENZHEN TENDA TECHNOLOGY CO.LTD Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 Date: 2013-01-17 FCC ID: V7TA5S To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to DA 04-1705 of the commission’s public notice, we request short-term confidential treatment for the following information until 2013/06/01 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ___________________________________ Name: liaobin SHENZHEN TENDA TECHNOLOGY CO.LTD Tel.: +86-755-27657068 Fax.: +86-755-27657178 E-mail: [email protected]

SHENZHEN TENDA TECHNOLOGY CO.LTD Date: 2013-01-23 AUTHORIZATION LETTER FCC ID：V7TA5S To whom it may concern: We, the undersigned SHENZHEN TENDA TECHNOLOGY CO.LTD hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------ Name: liaobin SHENZHEN TENDA TECHNOLOGY CO.LTD Tel.: +86-755-27657068 Fax.: +86-755-27657178 E-mail: [email protected]

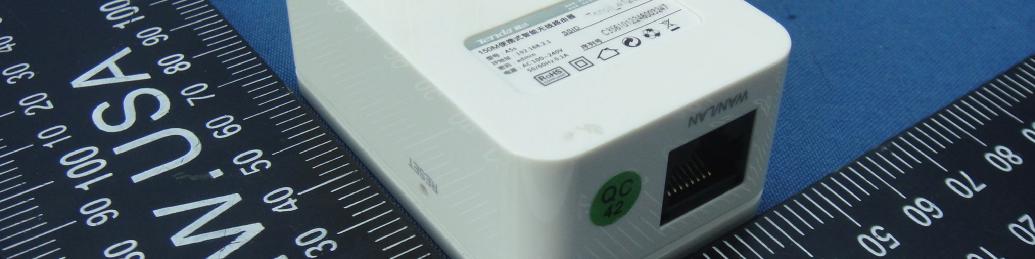

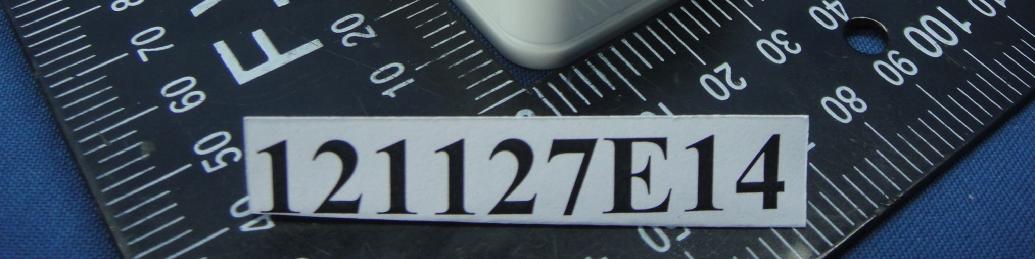

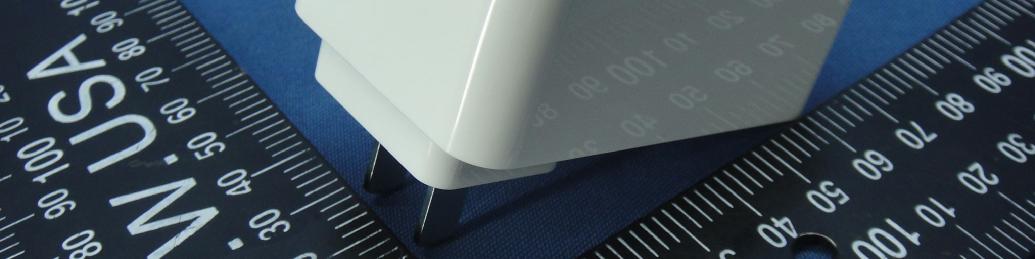

Report No.: 121127E14 Page 1 CONSTRUCTION PHOTOS OF EUT

  FCC ID:V7TA5S LABEL Label Location

Report No.: 121127E14 Page 2 Report No.: 121127E14 Page 3 Report No.: 121127E14 Page 4

待測物中文名稱：150M便攜式智能無線路由器 待測物英文名稱：Wireless N Travel Router 待測商品型號：A5s 待測商品商標：Tenda Model Name： A5s FCC ID: V7TA5S Items Contents 1. Modulation type DSSS and OFDM 2. Procedure to modulation off Controlled by RT5350 3. Number of channels 11 channels 4. Carrier frequency of each channel 2.412 -2.462GHz 5. Bandwidth of each channel 20MHz or 40Mhz 6. L.O. frequency of receiver 3.216 MHZ 7. Transmitter or Transceiver * Transceiver 8. Power Rating (DC/AC, Volt rating) Adapter：following oplink DVE adapter 9. Maximum output power to Antenna, power control value (Ex. CR31=FA) B:14.0dbmG:19.1dbm N:19.2dbm 10. Duty Cycle 50% 11. Basic function of product 12. I/O Port or data cable if any RJ45*1 13.Antenna Type, Gain and Connector Type Chip antenna，2.5dbi， 14. Operation temperature range 0°C ~ 40°C 15.Humidity 10%~ 90% RH 16. Data Rate: B：11 Mbps/5.5 Mbps/2 Mbps/1 Mbps G：54 Mbps /48 Mbps /36 Mbps /24 Mbps/18 Mbps/12 Mbps/9 Mbps/6 Mbps N：up to 150Mbps 1Tx /1Rx, Tx/Rx 11b 1Tx, 1Rx 11g 1 Tx, 1Rx 11n 20 MCS 0-7 1 Tx, 1Rx 11n 40 MCS 0-7 1 Tx, 1Rx 11n 20 MCS 8-15 1 Tx, 1Rx 11n 40 MCS 8-15 1 Tx, 1Rx

Report No.: SA121127E14 1 of 5 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA121127E14 MODEL NO.: A5s FCC ID: V7TA5S RECEIVED: Nov. 27, 2012 TESTED: Dec. 17, 2012 ISSUED: Jan. 15, 2013 APPLICANT: SHENZHEN TENDA TECHNOLOGY CO.LTD ADDRESS: Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA121127E14 2 of 5 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 5 Report No.: SA121127E14 3 of 5 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121127E14 Original release Jan. 15, 2013 Report No.: SA121127E14 4 of 5 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Wireless N Travel Router BRAND NAME: Tenda MODEL NO.: A5s TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: SHENZHEN TENDA TECHNOLOGY CO.LTD TESTED DATE: Dec. 17, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: A5s) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jan. 15, 2013 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Jan. 15, 2013 ( May Chen, Deputy Manager ) Report No.: SA121127E14 5 of 5 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 83.176 2.5 20 0.02943 1 --- END ---

Report No.: RF121127E14 1 of 53 Report Format Version 5.1.0 FCC TEST REPORT REPORT NO.: RF121127E14 MODEL NO.: A5s FCC ID: V7TA5S RECEIVED: Nov. 27, 2012 TESTED: Dec. 11 to 18, 2012 ISSUED: Jan. 15, 2013 APPLICANT: SHENZHEN TENDA TECHNOLOGY CO.,LTD. ADDRESS: Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao’an District, Shenzhen, P.R.China 518108 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121127E14 2 of 53 Report Format Version 5.1.0 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION ...........................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................6 2.1 MEASUREMENT UNCERTAINTY ................................................................7 3. GENERAL INFORMATION ...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT ..............................................................8 3.2 DESCRIPTION OF TEST MODES ................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................13 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST .........................................15 4. TEST TYPES AND RESULTS .....................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT ..............................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................17 4.1.2 TEST INSTRUMENTS ................................................................................17 4.1.3 TEST PROCEDURES .................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD .......................................................18 4.1.5 TEST SETUP ..............................................................................................19 4.1.6 EUT OPERATING CONDITIONS ................................................................19 4.1.7 TEST RESULTS ..........................................................................................20 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................22 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...22 4.2.2 TEST INSTRUMENTS ................................................................................23 4.2.3 TEST PROCEDURES .................................................................................24 4.2.4 DEVIATION FROM TEST STANDARD .......................................................24 4.2.5 TEST SETUP ..............................................................................................25 4.2.6 EUT OPERATING CONDITIONS ................................................................25 4.2.7 TEST RESULTS ..........................................................................................26 4.3 6dB BANDWIDTH MEASUREMENT ..........................................................39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................39 4.3.2 TEST INSTRUMENTS ................................................................................39 4.3.3 TEST PROCEDURE ...................................................................................39 4.3.4 DEVIATION FROM TEST STANDARD .......................................................39 4.3.5 TEST SETUP ..............................................................................................39 4.3.6 EUT OPERATING CONDITIONS ................................................................39 4.3.7 TEST RESULTS ..........................................................................................40 4.4 CONDUCTED OUTPUT POWER MEASUREMENT ..................................41 Report No.: RF121127E14 3 of 53 Report Format Version 5.1.0 4.4.1 LIMITS OF CONDUCTED OUTPUT POWER MEASUREMENT ................41 4.4.2 INSTRUME…

Text truncated - open the document above for the full version.

Report No.: 120810E25C 1 of 2 Reference No.: 121009E05 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120810E25C 2 of 2 Reference No.: 121009E05 RADIATED EMISSION TEST
