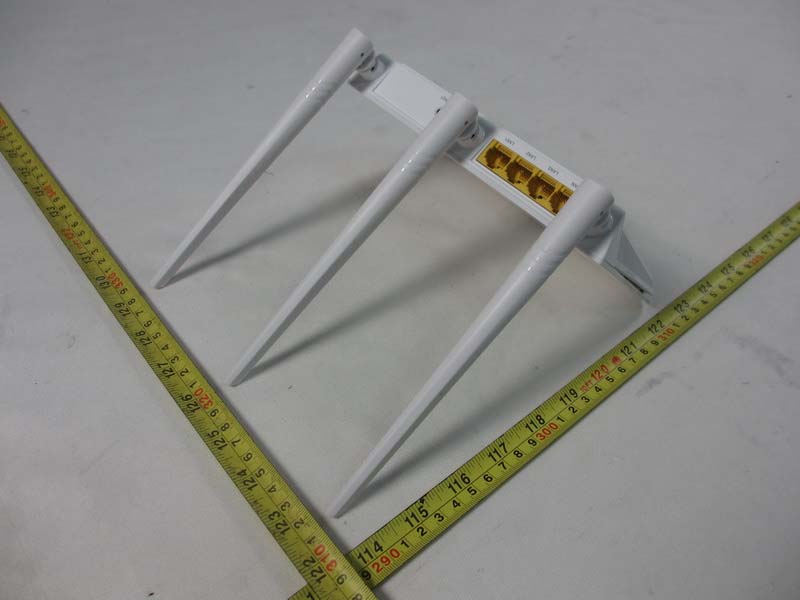

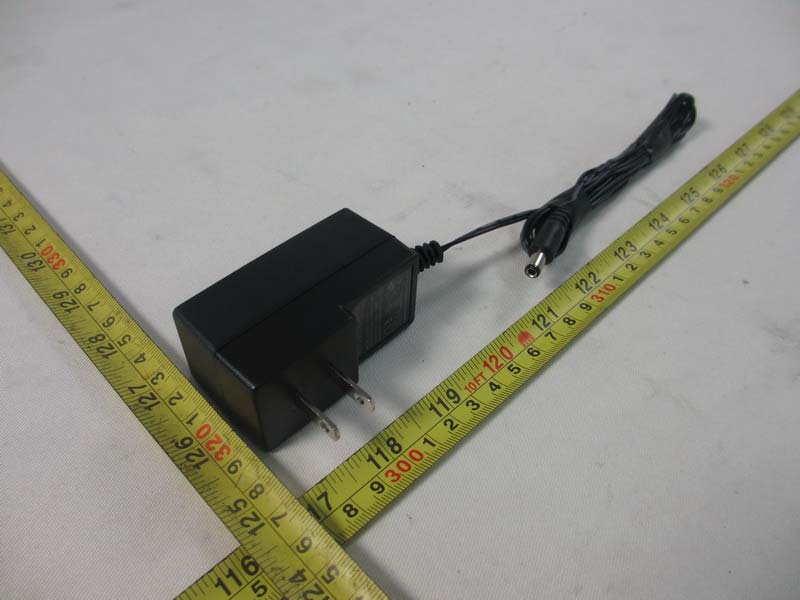

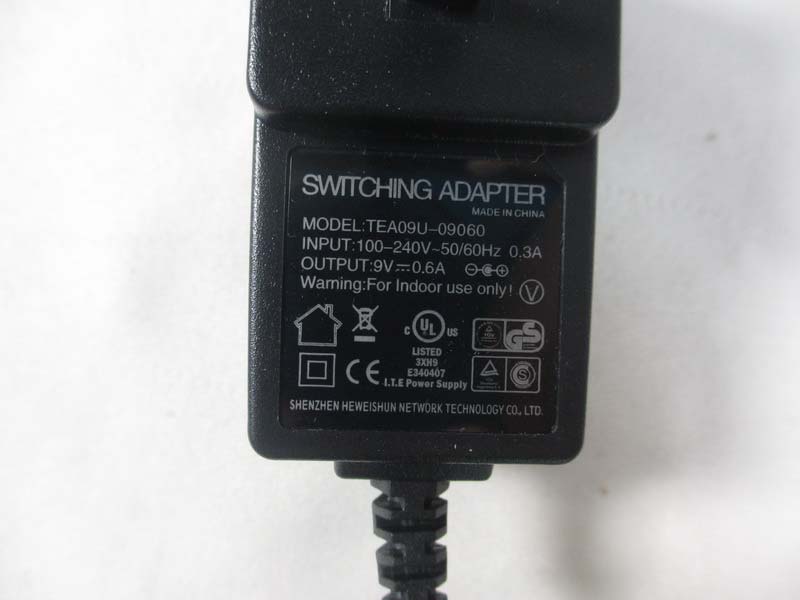

V7TF303Wireless N300 Easy Setup Router

Wireless N300 Easy Setup Router Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. Without prior expressed written permission from Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize, reproduce, or translate it into other languages. All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. If you would like to know more about our product information, please visit our website at http://www.tendacn.com . Wireless N300 Easy Setup Router Table of Contents TABLE OF CONTENTS........................................................................3 CHAPTER 1 PRODUCT OVERVIEW............................................................1 1.1 PACKAGE CONTENTS............................................................................................................1 1.2 GETTING TO KNOW YOUR ROUTER.......................................................................................1 CHAPTER 2 INSTALLATION AND QUICK SETUP GUIDE..............................5 2.1 PREPARATION.....................................................................................................................5 2.2 PHYSICAL INSTALLATION......................................................................................................5 2.3 INTERNET CONNECTION SETUP...........................................................................................7 2.3.1 Use Standard TCP/IP Properties for DHCP............................................................7 2.3.2 Log in to Web Manager..............................................................................................7 2.3.3 Quick Internet Connection Setup............................................................................8 2.3.4 Verify Internet Connection Settings........................................................................9 2.3.5 Wireless Settings......................................................................................................11 2.3.6 Connect to Device Wirelessly..............................................................................12 CHAPTER 3 ADVANCED SETTINGS.........................................................19 3.1 STATUS...........................................................................................................................19 3.2 INTERNET CONNECTION SETUP.......................................................................................20 3.2.1 PPPoE...........................................................................................................................20 3.2.2 Static IP.....................................................................................................................21 3.2.3 DHCP...........................................................................................................................22 3.2.4 PPTP...........................................................................................................................23 3.2.5 L2TP...........................................................................................................................24 3.3 MAC CLONE......................................................................................................................25 3.4 WAN SPEED.....................................................................................................................26 3.5 WAN MEDIUM TYPE.........................................................................................................26 3.6 LAN SETTINGS..................................................................................................................29 3.7 DNS SETTINGS...............................................................................................................29 3.8 DHCP...............................................................................................................................30 3.9 DHCP CLIENT LIST.........................................................................................................31 CHAPTER 4 WIRELESS SETTINGS............................................................33 4.1 WIRELESS BASIC SETTINGS..............................................................................................33 4.1.1 Wireless AP Mode......................................................................................................33 4.1.2 WDS Bridge Mode...................................................................................................35 4.2 WIRELESS SECURITY.........................................................................................................43 4.3 WIRELESS ACCESS CONTROL..........................................................................................46 4.4 WIRELESS CLIENT............................................................................................................47 CHAPTER 5 BANDWIDTH CONTROL.........................................................49 5.1 BANDWIDTH CONTROL......................................................................................................49 5.2 TRAFFIC STATISTICS.........................................................................................................50 CHAPTER 6 SPECIAL APPLICATIONS......................................................52 6.1 PORT RANGE FORWARDING.............................................................................................52 Wireless N300 Easy …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address: Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District City:SHENZHEN Country: China Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification, completing and signingof the RF-731 form of the following product(s): Product description: Wireless N300 Easy Setup Router Type designation: F303 Trademark:Tenda on our behalf. Date:2013-9-26 City:SHENZHEN Name:Shen Yue Function:Engineer Signature:}}}}}}}}}}. Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosureDate: 10-Aug-09 RF_501, Issue 5Page 1 of 1 Company Name:SHENZHEN TENDA TECHNOLOGY CO., LTD. Address :Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District City:SHENZHEN Country:China To: Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID: V7TF303 Reference number:###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of MaterialBlock Diagrams Operational DescriptionSchematic DiagramsTune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal PhotosUser’s ManualTest Set-up PhotosExternal Photos Justification: Planned Release Date STC:(notes 2, 3, 4, 5) Date:2013-9-26Name and signature of applicant:Shen Yue Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

CERTIFICATE OF COMPLIANCE Ref No.: NEI-FCCE-1-1309C003A Date of Issue: Sep. 23, 2013 Authorized under Declaration of Conformity according to 47 CFR, Part 2 and Part 15 of the FCC Rules. The product listed in follows was (were) tested in the Neutron EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment Wireless N300 Easy Setup Router Model Name F303 Brand Name Tenda Applicant SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 Standard(s) FCC Part 15, Subpart B: 2012 ANSI C63.4 -2009 The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCE-1-1309C003A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory Neutron Engineering Inc. B1, No.37, Lane 365, Yang Guang St., NeiHu District 114., Taipei, Taiwan TEL：+886-2-2657-3299 FAX：+886-2-2657-3331

Neutron Engineering Inc. Project No.: 1309C003A Page 2 of 7 Neutron Engineering Inc. Project No.: 1309C003A Page 3 of 7 Neutron Engineering Inc. Project No.: 1309C003A Page 4 of 7

Neutron Engineering Inc. Project No.: 1309C003A Page 5 of 7 Neutron Engineering Inc. Project No.: 1309C003A Page 6 of 7 Neutron Engineering Inc. Project No.: 1309C003A Page 7 of 7

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: V7TF303 Project No. : 1309C003A Equipment : Wireless N300 Easy Setup Router Model : F303 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address : Tenda Industrial Park, No.34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R. China 518108 According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand S/N Antenna Type Connector Gain (dBi) 0 Tenda 321A0000001 Dipole N/A 5.24 1 Tenda 321A0000001 Dipole N/A 5.24 2 Tenda 321A0000001 Dipole N/A 5.24 Neutron Engineering Inc. TEST RESULTS EUT： Wireless N300 Easy Setup Router Model Name ： F303 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.24 3.3420 18.23 66.5273 0.044253781 Complies 5.24 3.3420 18.02 63.3870 0.042164831 Complies 5.24 3.3420 18.53 71.2853 0.047418781 Complies EUT： Wireless N300 Easy Setup Router Model Name ： F303 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.24 3.3420 20.93 123.8797 0.082404391 Complies 5.24 3.3420 20.98 125.3141 0.083358591 Complies 5.24 3.3420 21.01 126.1828 0.083936411 Complies Neutron Engineering Inc. EUT： Wireless N300 Easy Setup Router Model Name ： F303 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-20M MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.24 3.3420 24.05 254.0973 0.169024781 Complies 5.24 3.3420 24.02 252.3481 0.167861221 Complies 5.24 3.3420 24.00 251.1886 0.167089971 Complies EUT： Wireless N300 Easy Setup Router Model Name ： F303 Temperature： 24 °C Relative Humidity： 60 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： TX N-40M MODE /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5.24 3.3420 23.50 223.8721 0.148919091 Complies 5.24 3.3420 23.55 226.4644 0.150643491 Complies 5.24 3.3420 23.34 215.7744 0.143532541 Complies Note: the calculation distance is 20 cm.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 1 of 144 FCC Radio Test Report FCC ID: V7TF303 This report concerns (check one): Original Grant Class II Change Issued Date : Sep. 23, 2013 Project No. : 1309C003A Equipment : Wireless N300 Easy Setup Router Model Name : F303 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address : Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Aug. 31, 2013 Date of Test: Aug. 31, 2013~ Sep. 20, 2013 Testing Engineer : ( David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 2 of 144 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 3 of 144 Table of Contents Page REPORT ISSUED HISTORY 5 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 MEASUREMENT INSTRUMENTS LIST AND SETTING 15 4.1.3 TEST PROCEDURE 16 4.1.4 DEVIATION FROM TEST STANDARD 16 4.1.5 TEST SETUP 16 4.1.6 EUT OPERATING CONDITIONS 16 4.1.7 TEST RESULTS 17 4.2 RADIATED EMISSION MEASUREMENT 20 4.2.1 RADIATED EMISSION LIMITS 20 4.2.2 MEASUREMENT INSTRUMENTS LIST ANS SETTING 21 4.2.3 TEST PROCEDURE 22 4.2.4 DEVIATION FROM TEST STANDARD 22 4.2.5 TEST SETUP 23 4.2.6 EUT OPERATING CONDITIONS 24 4.2.7 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 25 4.2.8 TEST RESULTS (ABOVE 1000 MHZ) 32 5 . BANDWIDTH TEST 80 5.1 APPLIED PROCEDURES / LIMIT 80 5.1.1 MEASUREMENT INSTRUMENTS LIST 80 5.1.2 TEST PROCEDURE 80 5.1.3 DEVIATION FROM STANDARD 80 5.1.4 TEST SETUP 80 5.1.5 EUT OPERATION CONDITIONS 80 5.1.6 TEST RESULTS 81 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 4 of 144 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 93 6.1 APPLIED PROCEDURES / LIMIT 93 6.1.1 MEASUREMENT INSTRUMENTS LIST 93 6.1.2 TEST PROCEDURE 93 6.1.3 DEVIATION FROM STANDARD 93 6.1.4 TEST SETUP 93 6.1.5 EUT OPERATION CONDITIONS 93 6.1.6 TEST RESULTS 94 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 97 7.1 APPLIED PROCEDURES / LIMIT 97 7.1.1 MEASUREMENT INSTRUMENTS LIST 97 7.1.2 TEST PROCEDURE 97 7.1.3 DEVIATION FROM STANDARD 97 7.1.4 TEST SETUP 97 7.1.5 EUT OPERATION CONDITIONS 97 7.1.6 TEST RESULTS 98 8 . POWER SPECTRAL DENSITY TEST 128 8.1 APPLIED PROCEDURES / LIMIT 128 8.1.1 MEASUREMENT INSTRUMENTS LIST 128 8.1.2 TEST PROCEDURE 128 8.1.3 DEVIATION FROM STANDARD 128 8.1.4 TEST SETUP 128 8.1.5 EUT OPERATION CONDITIONS 128 8.1.6 TEST RESULTS 129 9 . EUT TEST PHOTO 143 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 5 of 144 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1309C003A Original Issue. Sep. 23, 2013 - - - Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 6 of 144 1. CERTIFICATION Equipment : Wireless N300 Easy Setup Router Brand Name : Tenda Model Name : F303 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address : Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China 518108 Date of Test : Aug. 31, 2013~ Sep. 20, 2013 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15(2012), Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1309C003A) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 7 of 144 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emiss…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 143 of 144 9. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1309C003A Page 144 of 144 Radiated Measurement Photos
