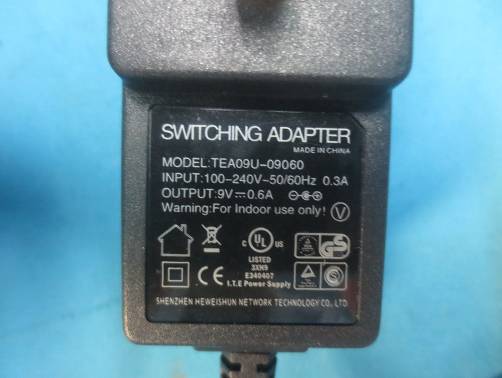

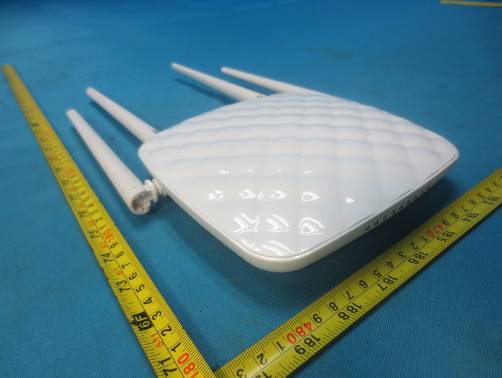

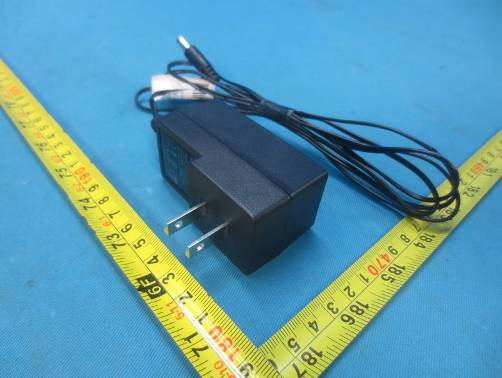

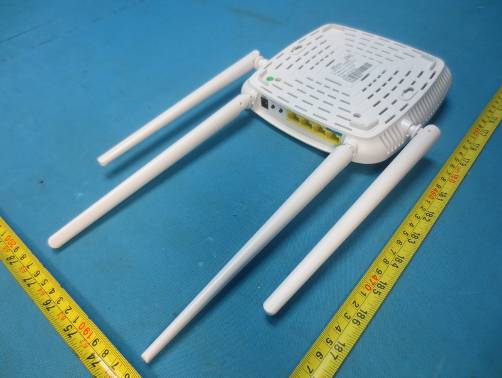

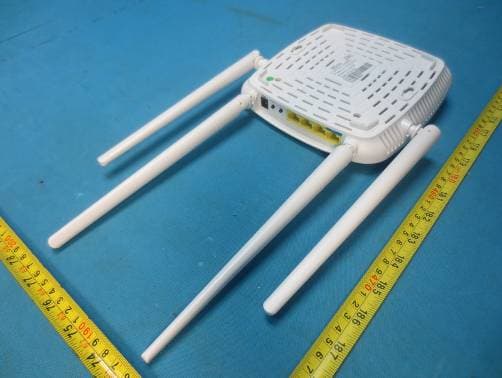

V7TFH456300Mbps Ultimate Coverage Wi-Fi Router

CERTIFICATE OF COMPLIANCE This is to certify that the product listed in follows was (were) tested in the BTL EMC Laboratory to comply with the criteria limits Class B of conducted and radiated emissions of the Technical Standards FCC Part 15, Subpart B, established by the FCC, USA. Equipment 300Mbps Ultimate Coverage Wi-Fi Route r Model Name FH456 Brand Name Tenda Applicant SHENZHEN TENDA TECHNOLOGY CO.,LTD Address 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Standard(s) FCC Part 15, Subpart B: 2014 ANSI C63.4-2009 Report(s) BTL-FCCE-1-1506C024 The test data, data evaluation, and equipment configuration contained in our test report(s) above was(were) obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). The test data contained in the referenced test report relate only to the EUT sample and item(s) tested. Andy Chiu Authorized Signatory BTL INC. B1, No. 37, Lane 365, Yang-Guang St., Nei-Hu District, Taipei City 114, Taiwan. TEL:+886-2-2657-3299 FAX:+886-2-2657-3331

RV-0000000 Project No.: 1506C024 Page 2 of 9 RV-0000000 Project No.: 1506C024 Page 3 of 9 RV-0000000 Project No.: 1506C024 Page 8 of 9 RV-0000000 Project No.: 1506C024 Page 9 of 9

RV-0000000 Project No.: 1506C024 Page 4 of 9 RV-0000000 Project No.: 1506C024 Page 5 of 9 RV-0000000 Project No.: 1506C024 Page 6 of 9 RV-0000000 Project No.: 1506C024 Page 7 of 9

FCC RF EXPOSURE REPORT FCC ID: V7TFH456 Project No. : 1506C024 Equipment : 300Mbps Ultimate Coverage Wi-Fi Router Model : FH456 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Note: Only antenna CON0 and CON1/CON2 are used, antenna CON0T and CON1T do not work. TEST RESULTS EUT： 300Mbps Ultimate Coverage Wi-Fi Router Model Name : FH456 Temperature： 25 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 18.62 72.7780 0.045808951 Complies 5 3.1623 18.38 68.8652 0.043346131 Complies 5 3.1623 18.67 73.6207 0.046339401 Complies EUT： 300Mbps Ultimate Coverage Wi-Fi Router Model Name : FH456 Temperature： 25 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 18.98 79.0679 0.049768021 Complies 5 3.1623 18.38 68.8652 0.043346131 Complies 5 3.1623 18.71 74.3019 0.046768171 Complies EUT： 300Mbps Ultimate Coverage Wi-Fi Router Model Name : FH456 Temperature: 25 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 22.69 185.7804 0.116936571 Complies 5 3.1623 22.07 161.0646 0.101379551 Complies 5 3.1623 22.36 172.1869 0.108380311 Complies EUT： 300Mbps Ultimate Coverage Wi-Fi Router Model Name : FH456 Temperature: 25 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 5 3.1623 22.58 181.1340 0.114011951 Complies 5 3.1623 22.41 174.1807 0.109635291 Complies 5 3.1623 22.33 171.0015 0.107634221 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FCCP-1-1506C024 Page 1 of 143 FCC Radio Test Report FCC ID: V7TFH456 This report concerns (check one): Original Grant Class II Change Project No. : 1506C024 Equipment : 300Mbps Ultimate Coverage Wi-Fi Router Model Name : FH456 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Jun. 02, 2015 Date of Test : Jun. 02, 2015 ~ Jun. 11, 2015 Issued Date : Jun. 12, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1506C024 Page 2 of 143 Declaration BTL represents to the client that testing i s done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unl ess the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1506C024 Page 3 of 143 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 19 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 19 5 . BANDWIDTH TEST 20 5.1 APPLIED PROCEDURES 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 Report No.: BTL-FCCP-1-1506C024 Page 4 of 143 Table of Contents Page 6 . MAXIMUM PEAK CONDUCTED OUTPUT POWER TEST 21 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 21 6.1.3 TEST SETUP 21 6.1.4 EUT OPERATION CONDITIONS 21 6.1.5 EUT TEST CONDITIONS 21 6.1.6 TEST RESULTS 21 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 22 7.1 APPLIED PROCEDURES / LIMIT 22 7.1.1 TEST PROCEDURE 22 7.1.2 DEVIATION FROM STANDARD 22 7.1.3 TEST SETUP 22 7.1.4 EUT OPERATION CONDITIONS 22 7.1.5 EUT TEST CONDITIONS 22 7.1.6 TEST RESULTS 22 8 . POWER SPECTRAL DENSITY TEST 23 8.1 APPLIED PROCEDURES / LIMIT 23 8.1.1 TEST PROCEDURE 23 8.1.2 DEVIATION FROM STANDARD 23 8.1.3 TEST SETUP 23 8.1.4 EUT OPERATION CONDITIONS 23 8.1.5 EUT TEST CONDITIONS 23 8.1.6 TEST RESULTS 23 9 . MEASUREMENT INSTRUMENTS LIST 24 10 . EUT TEST PHOTO 26 ATTACHMENT A - CONDUCTED EMISSION 30 ATTACHMENT B - RADIATED EMISSION (9KHZ TO 30MHZ) 33 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 35 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 42 ATTACHMENT E - BANDWIDTH 91 ATTACHMENT F – MAXIMUM PEAK CONDUCTED OUTPUT POWER 100 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 104 ATTACHMENT H - POWER SPECTRAL DENSITY 129 Report No.: BTL-FCCP-1-1506C024 Page 5 of 143 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1506C024 Original Issue. Jun. 12, 2015 Report No.: BTL-FCCP-1-1506C024 Page 6 of 143 1. CERTIFICATION Equipment : 300Mbps Ultimate Coverage Wi-Fi Router Brand Name : Tenda Model Name : FH456 Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Manufacturer : Shenzhen Tenda Technology Co.,Ltd,.Dongguan Branch Address : No. 79 Yuanyi street, Dalang Town, Dongguan City, Guangdong Province, China Date of Test : Jun. 02, 2015 ~ Jun. 11, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C: 2014 (15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. BTL-FCCP-1-1506C024) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Report No.: BTL-FCCP-1-1506C024 Page 7 of 143 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1506C024 Page 26 of 143 10. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1506C024 Page 27 of 143 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1506C024 Page 28 of 143 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1506C024 Page 29 of 143 Radiated Measurement Photos Above 1000MHz
