V7THG15AX1500 Wi-Fi6 VoIP XPON ONT

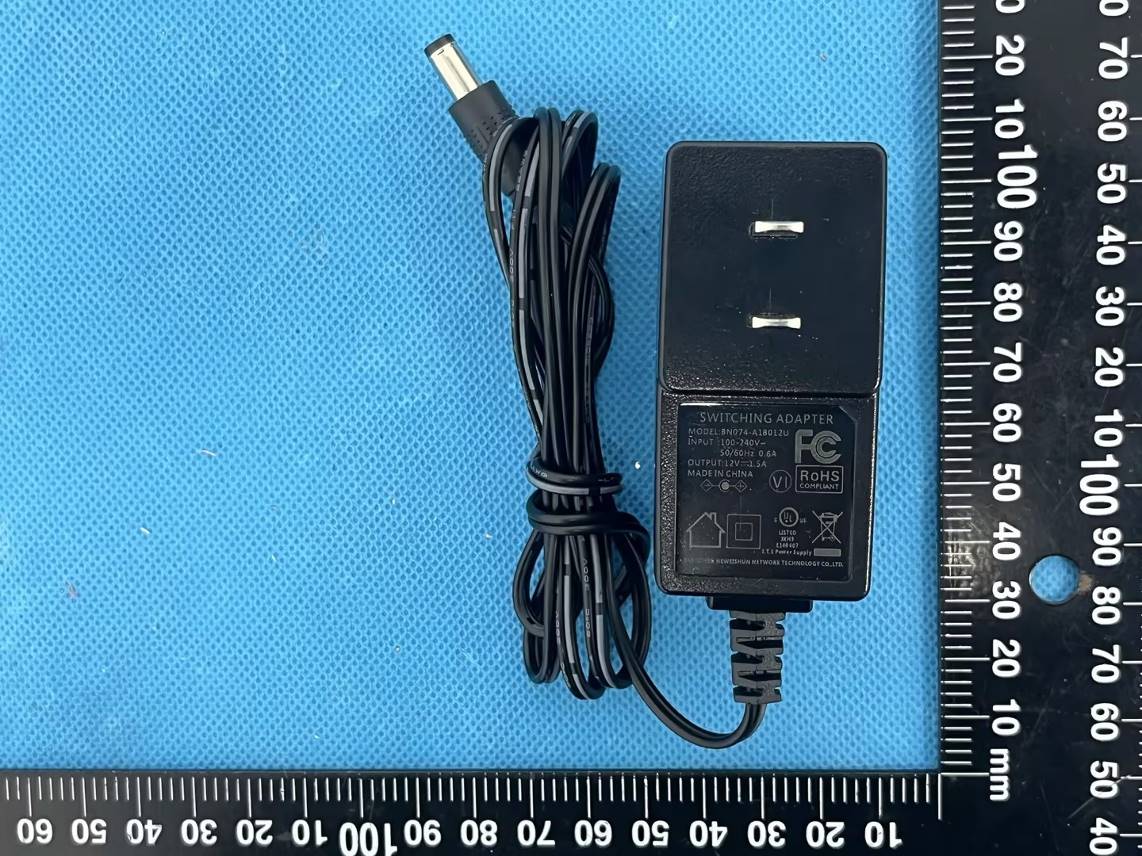

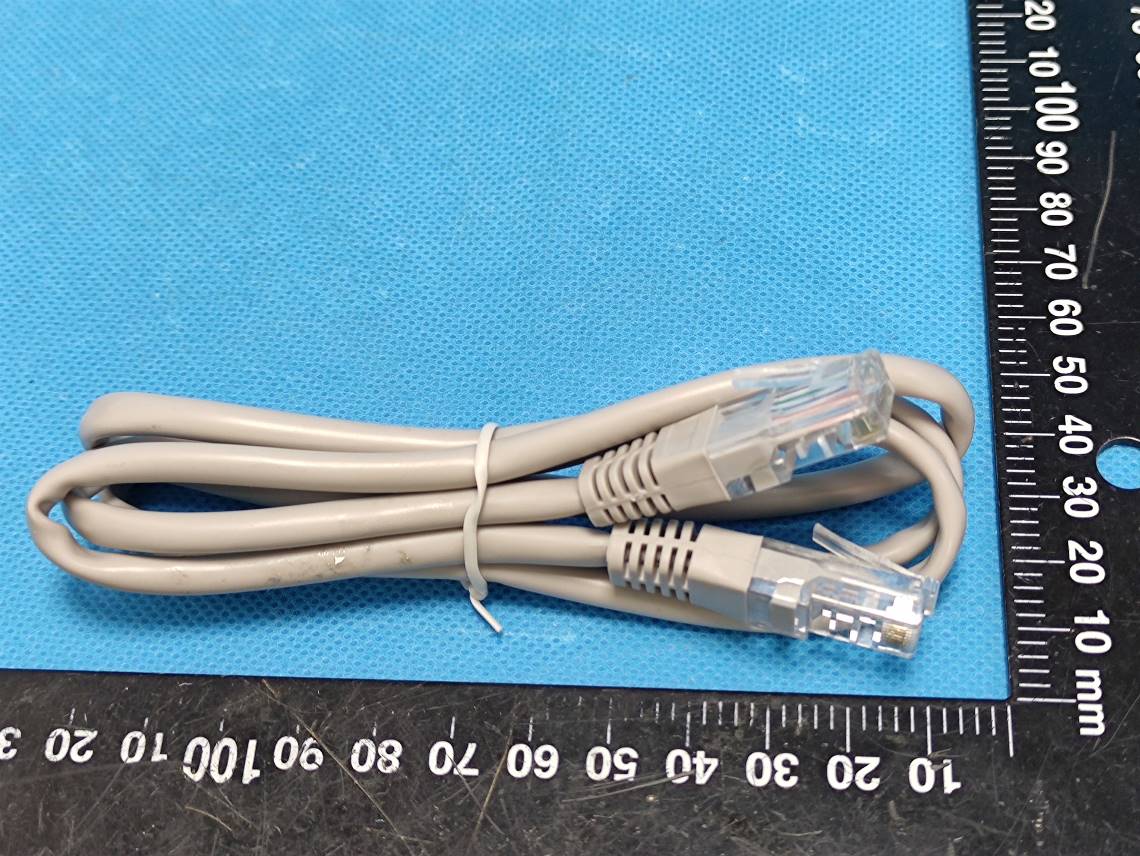

Quick Installation Guide AX1500 Wi-Fi6 VoIP XPON ONT HG15 Package contents  XPON ONT x 1  Power adapter x 1  Ethernet cable x 1  User manual x 1 Please read this user guide before you start with the quick setup upon the first use. This guide instructs how to install and connect the device. For more information such as the description of symbols displayed on relevant materials, please visit www.tendacn.com. Get to know the ONT LED indicators LED indicator Color Status Description PWR Green Solid on The ONT is powered on properly. Off The ONT is powered off or not powered on properly. PON Green Solid on The ONT is registered successfully. Blinking The registration is not completed (unregistered or registering). Off The received optical power is lower than the optical receiver sensitivity, or no fiber cord is connected. LOS Red Blinking The received optical power is lower than the optical receiver sensitivity, or no fiber cord is connected. Off The received optical power is within the optical receiver sensitivity. LAN Green Solid on The LAN port is connected properly, but no data is being transmitted over the corresponding port. Blinking The LAN port is connected properly, and data is being transmitted over the corresponding port. Off No Ethernet device is connected or the Ethernet device is not connected to the LAN port properly. WLAN Green Solid on The Wi-Fi network is enabled. Blinking The WPS negotiation is ongoing. Off The Wi-Fi network is disabled. TEL Green Solid on The ONT is registered with IMS, but no data is being transmitted. Blinking The ONT is registered with IMS, and data is being transmitted. Off The ONT is not registered with IMS. Ports & Buttons Port/Button Description PON Optical fiber port. You can find it on the bottom of the ONT, which is used to connect to a fiber cord. PWR Power jack. Used to connect the ONT to a power source using the included power adapter. TEL Telephone port. Used to connect to a telephone for voice service using a telephone cable, which needs to be prepared by yourself. LAN1/2 Gigabit LAN ports. Used to connect to such devices as routers, switches, computers or IPTV set-top boxes. WPS/RST WPS/Reset button.  WPS: Wi-Fi-enabled devices can connect to the Wi-Fi networks of the ONT without entering the password through WPS negotiation. Press the button for about 1 second to start the WPS negotiation process of the ONT. The WLAN LED indicator blinks quickly. Within 2 minutes, enable the WPS function to establish a WPS connection on a WPS-supported device.  Reset: Restore the ONT to the configurations preset by the ISP or restore the ONT to factory settings.  To restore the ONT to the configurations preset by the ISP: After the ONT completes startup, press the button for 10 to 60 seconds and release it. All LED indicators will light off in a few seconds. When the PWR LED indicator lights solid on again, the ONT is restored to the configurations preset by the ISP.  To restore the ONT to factory settings: After the ONT completes startup, press the button for more than 1 minute and release it. All LED indicators will light off in a few seconds. When the PWR LED indicator lights solid on again, the ONT is restored to the factory settings. This ONT supports wall mounting (two mounting holes on the bottom). The recommended parts are as follows: - Expansion bolt: PA6*26.4mm; inner diameter: φ2.4 - Screw: Quantity: 2; Diameter: 2.5-4.0mm; head diameter: 5.0-6.5mm. 1. Connect and register the ONT Caution, laser DO NOT look directly at the PON port when the device is powered on, as well as the terminal of the indoor fiber cord, to prevent any harm to your eyes. Connect the ONT as shown in the figure. Wait until the PON LED indicator lights solid on, then the ONT is registered successfully. If ISP provides any parameters for registration, you can use them to manually register the ONT with the quick registration function. The quick registration function is available only when the ONT is registered for the first time. Method: ❶ Connect to the ONT.  Wired device: Connect a LAN port of the ONT to a wired device, such as a computer, using an Ethernet cable.  Wireless device: Connect your wireless device, such as a smartphone, to the Wi-Fi network of the ONT using the SSID (Wi-Fi name) and Key (Wi-Fi password) on the bottom label. ❷ Enter 192.168.1.1 in a web browser and log in to the web UI of the ONT with user permissions or administrator permissions.  User Permissions: Able to view and modify partial configurations of the ONT. The default login user name is admin. You can get the password from the bottom label on the ONT.  Administrator Permissions: Able to view and modify all configurations of the ONT. The default login user name and password are both root for the installation and maintenance personnel only. ❸ In GPON Settings (or EPON Settings) module, register with the parameters provided by your ISP and click Apply Changes. Power adapter Fiber cord Internet Rear panel Bottom panel 2. Configure the internet access ­ PPPoE is used for illustration here. Change the parameters as required by your ISP. ­ Choose a desired mode to configure your internet access: Router mode: Configure the internet on the ONT. Bridge mode: Dial-up on a router or terminal. Router mode Step 1: Log in to the web UI You can log in to the web UI of the ONT with user permissions or administrator permissions. Administrator permissions are for the installation and maintenance personnel only.  User Permissions: Able to view and modify partial configurations of the ONT. The default login user name is admin. You can get the password from the bottom label on the ONT.  Administrator Permissions: Able to view and modify all configurations of the ONT. Some configurations changed by the installation and maintenance personnel will affect the normal operation of the ONT. Therefore, use the administrator permissions with caution. The default login user name and password are both root. ❶ Conn…

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Add: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Tel: 86-755-27657098 Fax: 866-755-27657178 E- mail: [email protected] D ate: 2023-04-18 T o: FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Declaration Subject: FCC ID:V7THG15 declaration of frequency bands restriction Dear Sir or Madam: We, SHENZHEN TENDA TECHNOLOGY CO.,LTD., hereby declare that our product AX1500 Wi-Fi6 VoIP XPON ONT, Model Number: HG15 have the ability to work in 2.4G and 5G 4 frequency bands: 5150 MHz~5250 MHz,5250 MHz~5350MHz,5470 MHz~5725 MHz, 5725 MHz~5850 MHz. For the purpose of marketing, the frequency of the product sold in U.S. are programmed and locked to work only in 5150 MHz~5250 MHz ,5725 MHz~5850 MHz, The other frequency bands 5250 MHz~5350MHz, 5470 MHz~5725 MHz are disabled by firmware in factory. The end user or any other parties cannot have the capability to activate the other frequency bands. We applied for testing only frequency bands: 2412~2462 MHz,5150 MHz~5250 MHz,5725 MHz~5850 MHz MHz for the United States this time . And for the chipset RTL8832BR,which supports IEEE 802.11a/b/g/n/ac/ax mode, but for this product, only 5G wifi support 802.11ax mode（ 5G 802.11ax mode not support OFDMA) ,2.4G wifi not support, which was disabled by software. P lease contact me if you have any question. S ignature: Printed Name: Shen Yue Title: Engineer

       !"# $%# &## "#  '"(')( *  ' # ++, -+ +,-+-.#/-++,-+-- 0#')(1( #)    &2-3,.454+54'54''5 (("(#('  ((    677897:7;<=>8778?  #(,,2  &  @@AB B  @@ BB  %('*#(' # C#%#(' 'C'"'  -2+ #D# @'"&# %0E'#@,2  &F ((" (#(' (#(0 (" &2-3,.454+54'54''5'' !   BG - +  HIJKLIJ KMJKNOMJPIKQRQSTPQUVRMNU4W(#XX')# (Y5)('F'"(#((Z%'X0 (F ')#%( '*#(' '""%!(;9=<7 W)CYZ%'X0 (X'E'(F0)'C' !#  Z%'X0 (#%('*#(' X%"%# ((")(' ,.F( %"  4W(#XX')# (Y5)('F'"(#(#"F(#(F (F'' ! F(#XX')#(' (#XX')# ('" (' ('F' ( C '"(#"#  ('($ X%)' ! W)CYZ%'X0 (  ' )$      '! #(%   (#)([ "  % '( !'  0X# $#0\ ""     \   !"# $%# &## "# '"(')( *  ' #++,  HIJKLIJ KMJKNOMJPIKQRQSTPQUVRMNU

       !"   #$%&'(&(  )#)*+,,-./.+-+,, ..+- 012345$42$ )6$70$42#464842 '9+$:7$ ,47782$  270;<4$=,# &>  ?%8$42$;8@$3  474 .#%   C)-DC)-/)-#/)C-+*+EF+ =*/#  G1HH74I$JI34?481$=$82?1 $2?1?4742?1$HH74I$42=/ $/I1272K=.I   $ 48203 84$    $ ?238364I2?H32I88?231$<263?3I .# C)-DC)-/)-# /)C-+*+EF+ =*/# G1HH74I$J$IIH82;$4$4$$?2327881$ 2K$3$?313$1$83;4$ $77;$3:4$ 4;H23$42231I2I708422? $K2; ;48842(37$ H32I 44627641L04H;   / $/I1272K=.I   $$IIH8=$82?1 $2?1?4742?1$HH74I$42= 12<74 $422?1 84$   $?238364I2?H32I88?231$<263?3I  .#   #84$    .?23;$42% 2;H$K-$;%  / $/I1272K=.I  388% M99E$76 4K2?. 083K= M 4 $8 -%  &&'' &&M /7 % >>(&>  );$47%  ;4K4 10N $08 I2; 4 <K H34 $;%  ,4K4C0 4$03%  C)-D C)-/)-#/)C-+*+EF+ =*/#   %>(M7223=/2O3)'=-2  && =D1281$K0$2$ =-$81$#4834I=151= 14$ 9 M&9 /7%M>(99(>9& M$P%M>>(99(>9 M )(;$47%I3N $ I 4 <K H34 $;%  1F0 4$03%  G - +

              ! "   #$%&#'$()'$ ' '$&#'$ *&+*,+ #!$-#!$ #*$' . ./ ! ../.0 '1 ../. 2'* ,!+3+!$',$ 455 6789:;<=>8<:? '+! //"@    AABCC AA C C )+#*-'+*$ '$ D')'+*$ *D*&*$ @". 'E'$ A*& ' )2F*' A /@ )FG!,+  %!$+ )+#*-'+*$  #2 *+ 2'( ,$,!$ H!          !!F( ')+#*-!& #*$' !+*I*,'+*$ C  + J$%%)'$K + ',+ $ *+& F!#'I *$ ' 2'++!& !'+*$% + 'LL*,'+*$ I M)*L2!$+ ')+#*-'+*$ *$,)*$% +#! &*%$*$% I ' ,)2!$+& !'+*$% + +#!&! 2'++!&  ',+& ,'*! )+ F( #*$' !+*I*,'+*$ C  + J$%%)'$K $ ) F!#'I & #' #'D! +#! &'2! !II!,+ '& )  $ ',+*$ H! +#! )$!&*%$! #!!F( ,!+*I( +#'+ ! '! $+ &)FG!,+ + ' !$*' I I!!' F!$!I*+& +#'+ *$,)!&  F!$!I*+& L)&)'$+ + !,+*$ ." I +#! $+*)% F)&! ,+ I 0 / B   / #*& ') +#*-'+*$ *& D'* )$+* I)+#! *++!$ $+*,! I2 +#! 'LL*,'$+ *$,!! ( )& *!$+N& &*%$'+)! O*$+! '2! #!$ )! *+! $%*$!!

        !! "#$%"&#'(&#& &#%"&#)%*)+* "#,"#")#&-!-. --. -!/&0--.- 1&)+*2*#&+# 344456789:6;8<=>?;@5A8B<;856 &*.!. !C     DDE FF DD F F (*"),&*)#&# G&(&*)#)G)%)# C -&H&#D)%& (1I)&D.!C (IJ+*#K )#*)&)*'L(%*$&)#$&MM)+&*)#K+*)K)+&*)#KFN - F#&++&#+ )*" +*)#%!C-&#!C-/K*"11)%%)#O%(%P      Q"I'L(%*%#$*1+#K)#*)&*&*1#*K)#K1&*)# &++1M&#')#$ *")%&MM)+&*)#&%(*)#I RS+H )&$&1 R +"1&*)+% RM&*)#%+)M*)# R T EF F E FF NF "&IG1& *)&%+#*&)#MM)*&'&#+#K)#*)&)#K1&*)##*+(%*1&)'&%**" M(I)+"M( I)+)%+%(K*"%1&*)&%MG)%(#J(%*)K)I#K)*%*)*%+1M*)*%)#*" 1&H* )#+' )$#&*( U)#*#&1 "#( )* #$)#

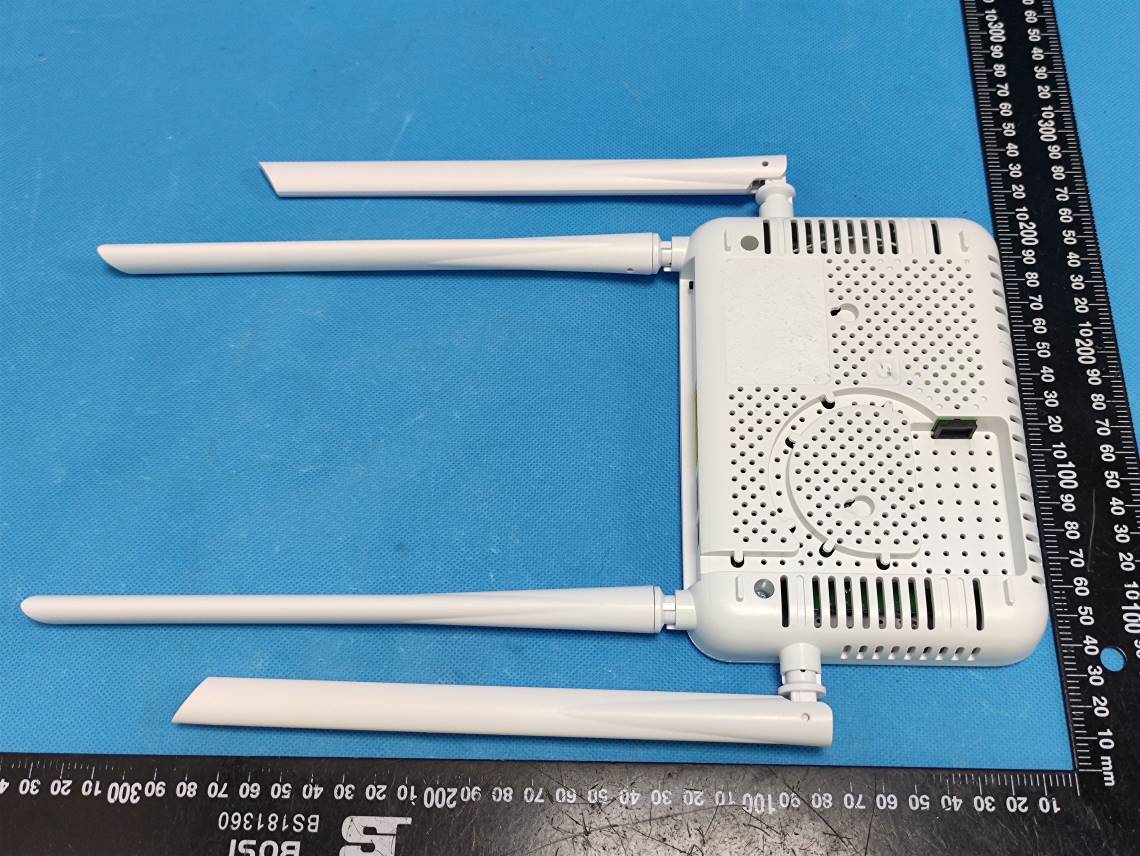

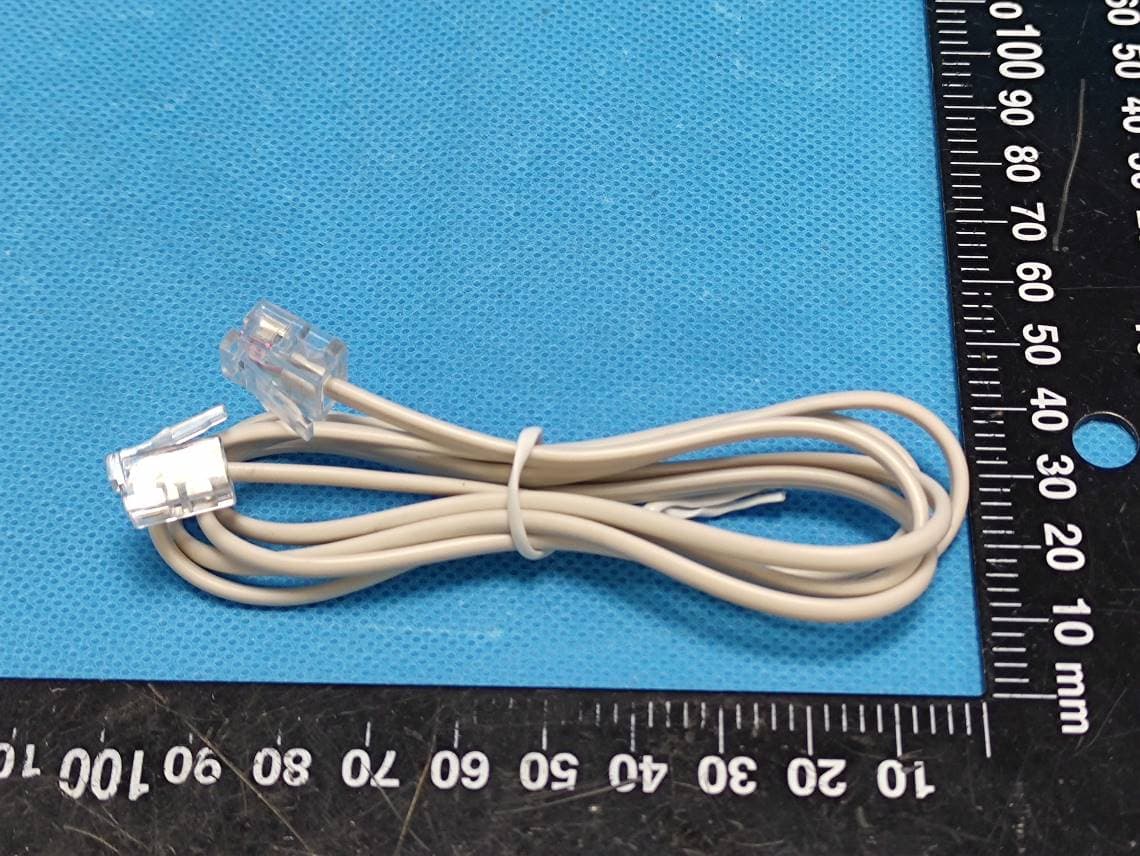

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS 5G Chain 1 5G Chain 0 2.4G Chain 0 2.4G Chain 1 Antenna 2.4G Antenna 0 5G Antenna 1 2.4G Antenna 1 5G Antenna 0

China Certification ICT Co., Ltd (Dongguan) Report No.: CR230311771-00A Page 71 of 72 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to §1.1307(b)(3)(i) (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: China Certification ICT Co., Ltd (Dongguan) Report No.: CR230311771-00A Page 72 of 72 5.2 Measurement Result Operation Modes Frequency (MHz) Distance (mm) P th Maximum Conducted Power including Tune-up Tolerance (dBm) Antenna Gain (dBi) ERP (P) (dBm) ERP (P) (mW) Exemption (mW)(dBm) WLAN 2.4G 2412-2462 200 3060 34.86 23 7.84 28.69 739.61 Compliant WLAN 5G 5150-5250 200 3060 34.86 25 8.93 31.78 1506.61 Compliant 5725-5850 200 3060 34.86 24 8.34 30.19 1044.72 Compliant Note: Antenna gain includes bearmforming gain for WLAN 2.4G and 5150-5250MHz/5725-5850MHz. The Maximum Conducted Power including Tune-up Tolerance was declared by manufacturer. WLAN 2.4G and 5G can transmit simultaneously. = P -2.4G /P th-2.4G +P -5G /P th-5G =739.61/3060+1506.61/3060 =0.73<1 Result: The device compliant the Exemption at 20cm distances. ===== END OF REPORT =====

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Measurement of Antenna for HG15 Project Manufacture：SHENZHEN TENDA TECHNOLOGY CO., LTD. 1. Antenna Appearance: 2. Electrical performance test results at normal temperature SHENZHEN TENDA TECHNOLOGY CO.,LTD. a)2.4G Antenna No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 2400-2483 2400-2483 OK 2 Gain dBi 5 2400 4.49 OK 2450 4.47 OK 2483 4.84 OK 3 Isolation dB ≤-15 2400 -26 OK 2450 -25 OK 2483 -24 OK 4 Return loss dB ≤-10 2400 -21 OK 2450 -19 OK 2483 -14 OK B)5G Antenna No Test Item Unit Demand Performance Test Result Judgement 1 Frequency Range MHz 5150-5850 5150-5850 OK 2 Gain dBi 5 5150 5.93 OK 5500 5.49 OK 5850 5.34 OK 3 Isolation dB ≤-15 5150 -25 OK 5500 -27 OK 5850 -28 OK 4 Return loss dB ≤-10 5150 -14 OK 5500 -25 OK 5850 -22 OK SHENZHEN TENDA TECHNOLOGY CO.,LTD. Directional diagram for 2.4GHz EUT Remark Frequency E Total. dB(dB) Efficiency( ) 2400MHz 4.49 70% 2410MHz 4.56 73% 2420MHz 4.75 78% 2430MHz 4.83 82% 2440MHz 4.70 84% 2450MHz 4.47 85% 2460MHz 4.58 87% 2470MHz 4.84 92% XOY PLANE XOZ PLANE 3D Radiation patterns at 2450 MHz H PLANE V PLANE 2D Radiation patterns Directional diagram for 5GHz SHENZHEN TENDA TECHNOLOGY CO.,LTD. Frequency E Total. dB(dBi) Efficiency( ) 5000MHz 5.43 68% 5050MHz 5.68 73% 5100MHz 5.75 76% 5150MHz 5.93 77% 5200MHz 5.90 79% 5250MHz 5.86 79% 5700MHz 5.12 76% 5750MHz 5.24 77% 5800MHz 4.99 74% 5850MHz 5.34 77% XOY_PLANE XOZ PLANE 3D Radiation patterns at5150 MHz 2D Radiation patterns 2.4G Return loss test SHENZHEN TENDA TECHNOLOGY CO.,LTD. 2.4G Isolation 5G Return loss test SHENZHEN TENDA TECHNOLOGY CO.,LTD. 5G Isolation

TEST REPORT Applicant: SHENZHEN TENDA TECHNOLOGY CO.,LTD. Address: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 FCC ID: V7THG15 Product Name: AX1500 Wi-Fi6 VoIP XPON ONT Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: CR230311771-00A Date Of Issue: 2023/4/13 Reviewed By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: CR230311771-00A Page 2 of 72 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. The lab has been recognized by Innovation, Science and Economic Development Canada to test to Canadian radio equipment requirements, the CAB identifier: CN0123. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: CR230311771-00A Page 3 of 72 CONTENTS T EST FACILITY .......................................................................................................................................... 2 DECLARATIONS .......................................................................................................................................... 2 DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 8 1.2.4 Block Diagram of Test Setup ......................................................................................................................... 9 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 10 2. SUMMARY OF TEST RESULTS .......................................................................................... 11 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 12 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 12 3.1.1 Applicable Standard ..................................................................................................................................... 12 3.1.2 EUT Setup.................................................................................................................................................... 13 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 13 3.1.4 Test Procedure ............................................................................................................................................. 14 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 14 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 15 3.2.1 Applicable Standard ..................................................................................................................................... 15 3.2.2 EUT Setup.................................................................................................................................................... 15 3.2.3 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 16 3.2.4 Test Procedure ............................................................................................................................................. 16 3.2.5 Corrected Amplitude & Margin Calculation ................................................................................................ 16 3.3 MINIMUM 6 DB BANDWIDTH: ..............................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions Front View Conducted Emissions Side View Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
