V7TPW3AV1000 2-Port Gigabit Wi-Fi Powerline Extender

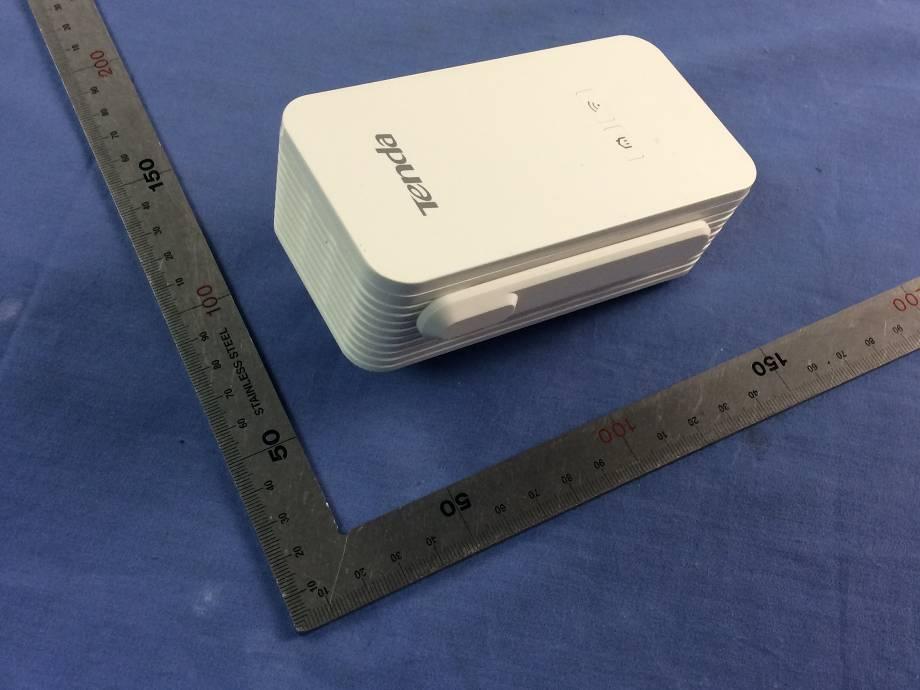

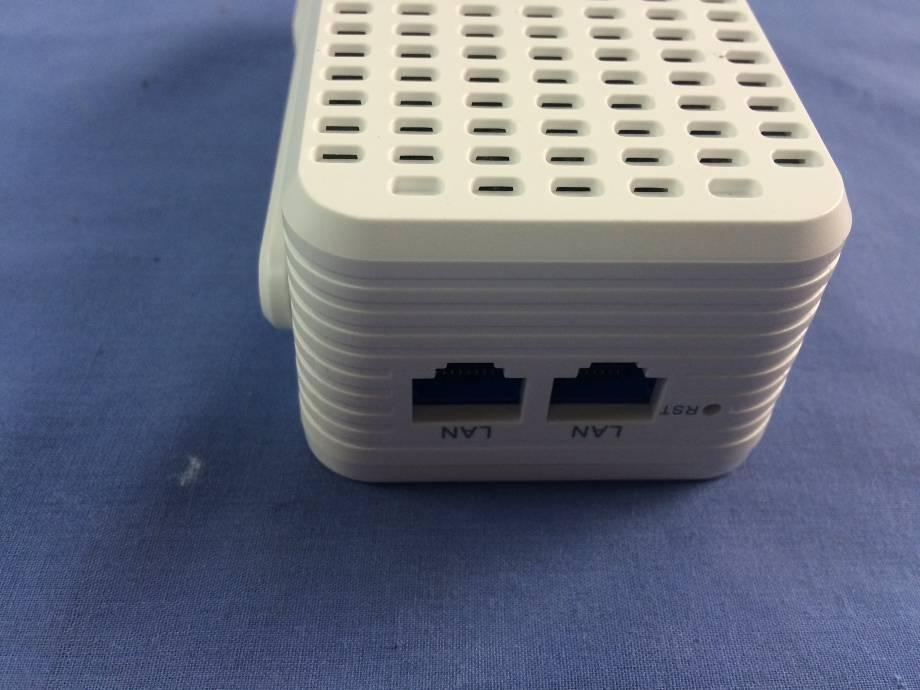

Report No.: C151123Z20 Page 1 / 2 External Photos of EUT Report No.: C151123Z20 Page 2 / 2

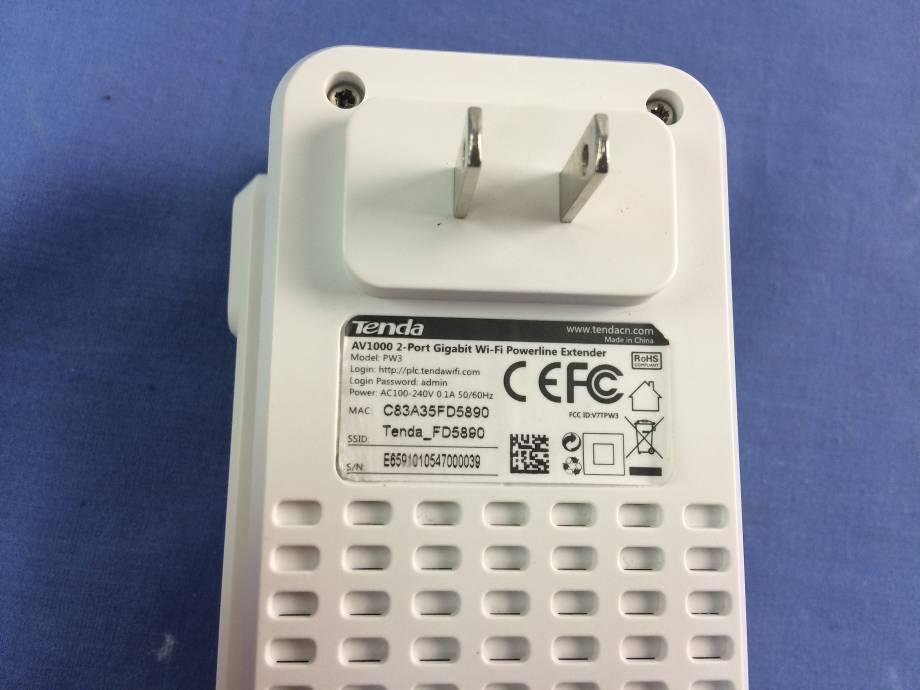

Label Location

Report No.: C151123Z20 Page 1 / 8 Internal Photos of EUT Report No.: C151123Z20 Page 2 / 8 Report No.: C151123Z20 Page 3 / 8 Report No.: C151123Z20 Page 4 / 8 RF Module Report No.: C151123Z20 Page 5 / 8 Report No.: C151123Z20 Page 6 / 8 Antenna 1 Antenna 2 Report No.: C151123Z20 Page 7 / 8 Report No.: C151123Z20 Page 8 / 8

Compliance Certification Services (Shenzhen) Inc. Report No: C151123Z20-RP1_MPE FCC ID: V7TPW3 Date of Issue: January 8, 2016 MPE Report Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device Refer Standard: KDB 447498 D01 General RF Exposure Guidance v05r02 FCC Part 2 §2.1091 1. Evaluation method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 2. Limits for General Population/Uncontrolled Exposure 3. Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 Compliance Certification Services (Shenzhen) Inc. Report No: C151123Z20-RP1_MPE FCC ID: V7TPW3 Date of Issue: January 8, 2016 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the maximum gain of the used antenna is 2dBi, the RF power density can be obtained. 4. Estimation Result 4.1 Conducted Power Results Antenna Mode Frequency(MHz) AVG Conducted Output Power (dBm) Antenna 0 IEEE 802.11b 2412 13.95 2437 14.41 2462 14.64 Antenna 1 2412 13.43 2437 13.52 2462 13.75 Antenna 0 IEEE 802.11g 2412 12.62 2437 16.78 2462 12.75 Antenna 1 2412 14.23 2437 16.16 2462 11.74 Antenna 0 IEEE 802.11n HT20 2412 11.45 2437 12.78 2462 10.48 Antenna 1 2412 10.35 2437 12.74 2462 8.75 Antenna 0 IEEE 802.11n HT40 2422 9.16 2437 12.46 2452 9.54 Antenna 1 2422 11.88 2437 15.15 2452 12.30 Compliance Certification Services (Shenzhen) Inc. Report No: C151123Z20-RP1_MPE FCC ID: V7TPW3 Date of Issue: January 8, 2016 4.2 Manufacturing tolerance IEEE 802.11 b ( Average) Frequency (MHz) Antenna 0 Antenna 1 2412 2437 2462 2412 2437 2462 Target (dBm) 13.0 14.0 14.0 13.0 13.0 13.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11 g ( Average) Frequency (MHz) Antenna 0 Antenna 1 2412 2437 2462 2412 2437 2462 Target (dBm) 12.0 16.0 12.0 14.0 16.0 11.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11 n HT20 ( Average) Frequency (MHz) Antenna 0 Antenna 1 2412 2437 2462 2412 2437 2462 Target (dBm) 11.0 12.0 10.0 10.0 12.0 8.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 IEEE 802.11 n HT40 ( Average) Frequency (MHz) Antenna 0 Antenna 1 2422 2437 2452 2422 2437 2452 Target (dBm) 9.0 12.0 9.0 11.0 15.0 12.0 Tolerance ±(dB) 1.0 1.0 1.0 1.0 1.0 1.0 4.3 Measurement Results Antenna 0 Mode Frequency (MHz) Output power (Including tune-up tolerance) (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) IEEE 802.11b 2412 14.0 25.1189 3 1.9953 0.0100 2442 15.0 31.6228 3 1.9953 0.0126 2462 15.0 31.6228 3 1.9953 0.0126 IEEE 802.11g 2412 13.0 19.9526 3 1.9953 0.0079 2442 17.0 50.1187 3 1.9953 0.0199 2462 13.0 19.9526 3 1.9953 0.0079 IEEE 802.11n HT20 2412 12.0 15.8489 3 1.9953 0.0063 2442 13.0 19.9526 3 1.9953 0.0079 2462 11.0 12.5893 3 1.9953 0.0050 IEEE 802.11n HT40 2422 10.0 10.0000 3 1.9953 0.0040 2442 13.0 19.9526 3 1.9953 0.0079 2452 10.0 10.0000 3 1.9953 0.0040 Compliance Certification Services (Shenzhen) Inc. Report No: C151123Z20-RP1_MPE FCC ID: V7TPW3 Date of Issue: January 8, 2016 Antenna 1 Mode Frequency (MHz) Output power (Including tune-up tolerance) (dBm) Output power (mW) Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) IEEE 802.11b 2412 14.0 25.1189 3 1.9953 0.0100 2442 14.0 25.1189 3 1.9953 0.0100 2462 14.0 25.1189 3 1.9953 0.0100 IEEE 802.11g 2412 15.0 31.6228 3 1.9953 0.0126 2442 17.0 50.1187 3 1.9953 0.0199 2462 12.0 15.8489 3 1.9953 0.0063 IEEE 802.11n HT20 2412 11.0 12.5893 3 1.9953 0.0050 2442 13.0 19.9526 3 1.9953 0.0079 2462 9.0 7.9433 3 1.9953 0.0032 IEEE 802.11n HT40 2422 12.0 15.8489 3 1.9953 0.0063 2442 16.0 39.8107 3 1.9953 0.0158 2452 13.0 19.9526 3 1.9953 0.0079 According to KDB447498 for Transmitters used in mobile exposure conditions for simultaneous transmission operations; ∑ of MPE ratios ≤ 1.0 Mode Frequency (MHz) ∑ MPE ratios (mW/cm 2 ) Limit Results Antenna 1 and Antenna 2 IEEE 802.11b 2412 N/A 1.000 Pass 2442 N/A 1.000 Pass 2462 N/A 1.000 Pass IEEE 802.11g 2412 N/A 1.000 Pass 2442 N/A 1.000 Pass 2462 N/A 1.000 Pass IEEE 802.11n HT20 2412 0.0113 1.000 Pass 2442 0.0158 1.000 Pass 2462 0.0082 1.000 Pass IEEE 802.11n HT40 2422 0.0103 1.000 Pass 2442 0.0237 1.000 Pass 2452 0.0119 1.000 Pass Note: The estimation distance is 20cm Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.…

Text truncated - open the document above for the full version.

Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 65 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 7.3. 6dB BANDWIDTH MEASUREMENT 7.3.1. LIMITS According to §15.247(a)(2), systems using digital modulation techniques may operate in the 902 - 928 MHz, 2400 - 2483.5 MHz. The minimum 6 dB bandwidth shall be at least 500 kHz. 7.3.2. TEST INSTRUMENTS Name of Equipment Manufacturer Model Serial Number Last Calibration Calibration Due Spectrum Analyzer Agilent E4446A US44300399 02/28/2015 02/27/2016 7.3.3. TEST PROCEDURES (please refer to measurement standard) 8.1 Option 1: a) Set RBW = 100 kHz. b) Set the video bandwidth (VBW) ≥ 3 x RBW. c) Detector = Peak. d) Trace mode = max hold. e) Sweep = auto couple. f) Allow the trace to stabilize. g) Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 7.3.4. TEST SETUP EUT Spectrum Analyzer Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 66 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 7.3.5. TEST RESULTS No non-compliance noted Test Data Test mode: IEEE 802.11b (Antenna 0) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2412 8126 >500 PASS Mid 2437 8127 PASS High 2462 8131 PASS Test mode: IEEE 802.11b (Antenna 1) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2412 8144 >500 PASS Mid 2437 8087 PASS High 2462 8120 PASS Test mode: IEEE 802.11g (Antenna 0) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2412 15157 >500 PASS Mid 2437 14844 PASS High 2462 15103 PASS Test mode: IEEE 802.11g (Antenna 1) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2412 15105 >500 PASS Mid 2437 15069 PASS High 2462 15177 PASS Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 67 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Test mode: IEEE 802.11n HT20 MHz (Antenna 0) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2412 15113 >500 PASS Mid 2437 15070 PASS High 2462 15041 PASS Test mode: IEEE 802.11n HT20 MHz (Antenna 1) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2412 15706 >500 PASS Mid 2437 16077 PASS High 2462 15137 PASS Test mode: IEEE 802.11n HT40 MHz (Antenna 0) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2422 35164 >500 PASS Mid 2437 35145 PASS High 2452 35183 PASS Test mode: IEEE 802.11n HT40 MHz (Antenna 1) Channel Frequency (MHz) Bandwidth (kHz) Limit (kHz) Test Result Low 2422 35705 >500 PASS Mid 2437 35706 PASS High 2452 35190 PASS Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 68 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Test Plot IEEE 802.11b mode (Antenna 0) 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 69 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11b mode (Antenna 1) 6dB Bandwidth (CH Low) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 70 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 71 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11g mode (Antenna 0) 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 72 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11g mode (Antenna 1) 6dB Bandwidth (CH Low) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 73 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 74 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT20 MHz mode (Antenna 0) 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 75 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11n HT20 MHz mode (Antenna 1) 6dB Bandwidth (CH Low) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 76 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 77 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz mode (Antenna 0) 6dB Bandwidth (CH Low) 6dB Bandwidth (CH Mid) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 78 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH High) IEEE 802.11n HT40 MHz mode (Antenna 1) 6dB Bandwidth (CH Low) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 79 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 6dB Bandwidth (CH Mid) 6dB Bandwidth (CH High) Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 80 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services.…

Text truncated - open the document above for the full version.

Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 96 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11g mode (Antenna 0) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 97 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 98 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 99 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 100 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11g mode (Antenna 1) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 101 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 102 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 103 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 104 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT20 MHz mode (Combine with Antenna 0 and Antenna 1) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 105 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 106 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 107 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 108 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz mode (Combine with Antenna 0 and Antenna 1) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 109 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 110 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 111 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal SSS Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 112 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 7.7. PEAK POWER SPECTRAL DENSITY MEASUREMENT 7.7.1. LIMITS According to §15.247(e), for digitally modulated systems, the power spectral density conducted from the intentional radiator to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. According to §15.247(f), the digital modulation operation of the hybrid system, with the frequency hopping turned off, shall comply with the power density requirements of paragraph (d) of this section. 7.7.2. TEST INSTRUMENTS Name of Equipment Manufacturer Model Serial Number Last Calibration Calibration Due Spectrum Analyzer Agilent E4446A US44300399 02/28/2015 02/27/2016 7.7.3. TEST PROCEDURES (please refer to measurement standard) §15.247(e)specifies a conducted power spectral density (PSD) limit of 8 dBm in any 3 kHz band segment within the fundamental EBW during any time interval of continuous transmission. The same method as used to determine the conducted output power shall be used to determine the power spectral density (i.e.,if peak-detected fundamental power was measured then use the peak PSD procedure and if average fundamental power was measured then use the average PSD procedure). 10.2 Method PKPSD (peak PSD) 1. Set analyzer center frequency to DTS channel center frequency. 2. Set the span to 1…

Text truncated - open the document above for the full version.

Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 1 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C for AV1000 2-Port Gigabit Wi-Fi Powerline Extender Model: PW3 Brand: Tenda Test Report Number: C151123Z20-RP1 Issued Date: January 8, 2016 Issued for SHENZHEN TENDA TECHNOLOGY CO., LTD 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Issued by: Compliance Certification Services (Shenzhen) Inc. No.10-1 Mingkeda Logistics park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 E-Mail: [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 2 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 8, 2016 Initial Issue ALL Nancy Fu Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 3 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION ................................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................... 4 3 EUT DESCRIPTION ....................................................................................................... 6 4 TEST METHODOLOGY ................................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST ....................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS .......................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY ....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS ......................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT ........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 15 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 65 7.4. ANTENNA GAIN ................................................................................................................ 80 7.5. PEAK OUTPUT POWER ................................................................................................... 82 7.6. BAND EDGES MEASUREMENT ....................................................................................... 86 7.7. PEAK POWER SPECTRAL DENSITY MEASUREMENT ................................................ 112 Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 4 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST CERTIFICATION Product AV1000 2-Port Gigabit Wi-Fi Powerline Extender Model PW3 Brand Tenda Tested November 23, 2015~ January 8, 2016 Applicant SHENZHEN TENDA TECHNOLOGY CO., LTD 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer SHENZHEN TENDA TECHNOLOGY CO., LTD 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a)  Spurious Emissions  Conducted Measurement  Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Services (Shenzhen) Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Services (Shenzhen) Inc. Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 5 / 126 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type Result Remark 15.247(a)(2) 6dB Bandwidth Measurement Pass Meet the requirement …

Text truncated - open the document above for the full version.

Report No.: C151123Z20-RP1 FCC ID: V7TPW3 Page 1/2 . PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: C150803Z04-RP1 FCC ID: V7TPW3 Page 2/2 RADIATED EMISSION TEST Below 1GHz Above 1GHz
