V7TSP15Smart Wi-Fi Power Strip

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021/2/6> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name V7TSP15 SP15 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Shen Yue/Engineer Company: SHENZHEN TENDA TECHNOLOGY CO., LTD Address: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Phone: 86-755-27657098 Fax: 866-755-27657178 E-Mail: [email protected]

SHENZHEN TENDA TECHNOLOGY CO., LTD 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date: 2021/2/6 FCC ID: V7TSP15 Model Number: SP15 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, SHENZHEN TENDA TECHNOLOGY CO., LTD, declare that this EUT (FCC ID: V7TSP15) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Name/Title： Shen Yue/Engineer Company: SHENZHEN TENDA TECHNOLOGY CO., LTD Address: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Phone: 86-755-27657098 Fax: 866-755-27657178 E-Mail: [email protected]

SHENZHEN TENDA TECHNOLOGY CO., LTD 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/2/6 To whom it may concern: We, SHENZHEN TENDA TECHNOLOGY CO., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: V7TSP15 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Shen Yue/Engineer Company: SHENZHEN TENDA TECHNOLOGY CO., LTD Address: 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Phone: 86-755-27657098 Fax: 866-755-27657178 E-Mail: [email protected]

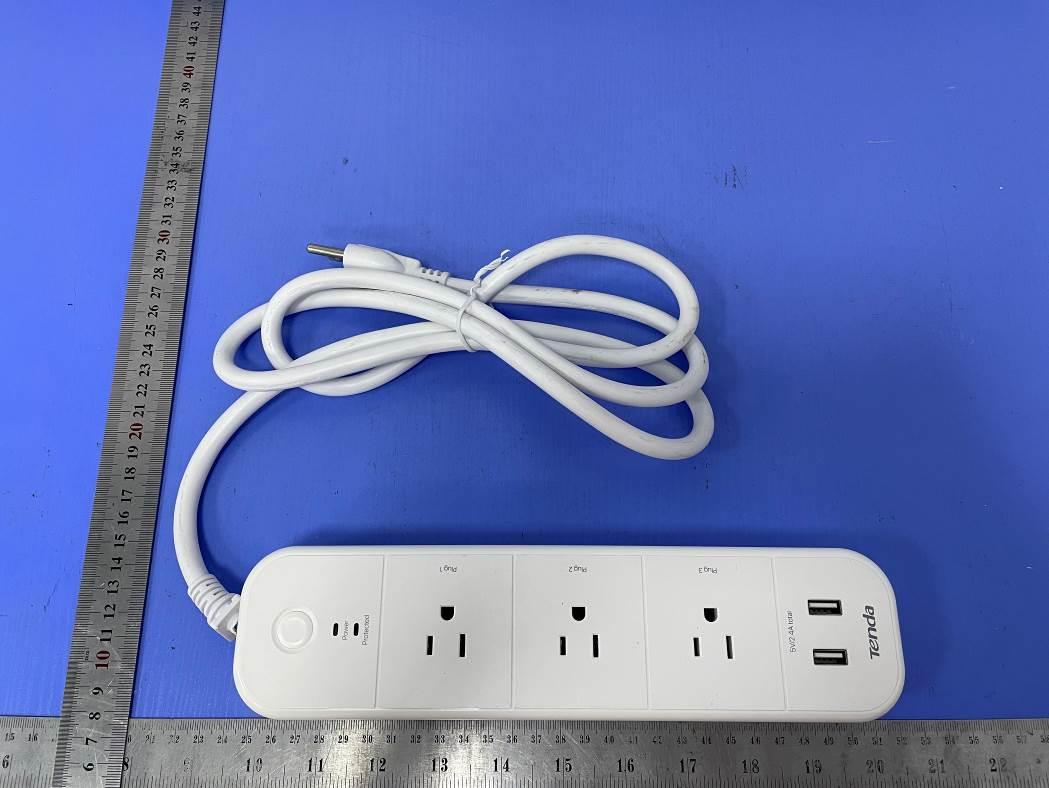

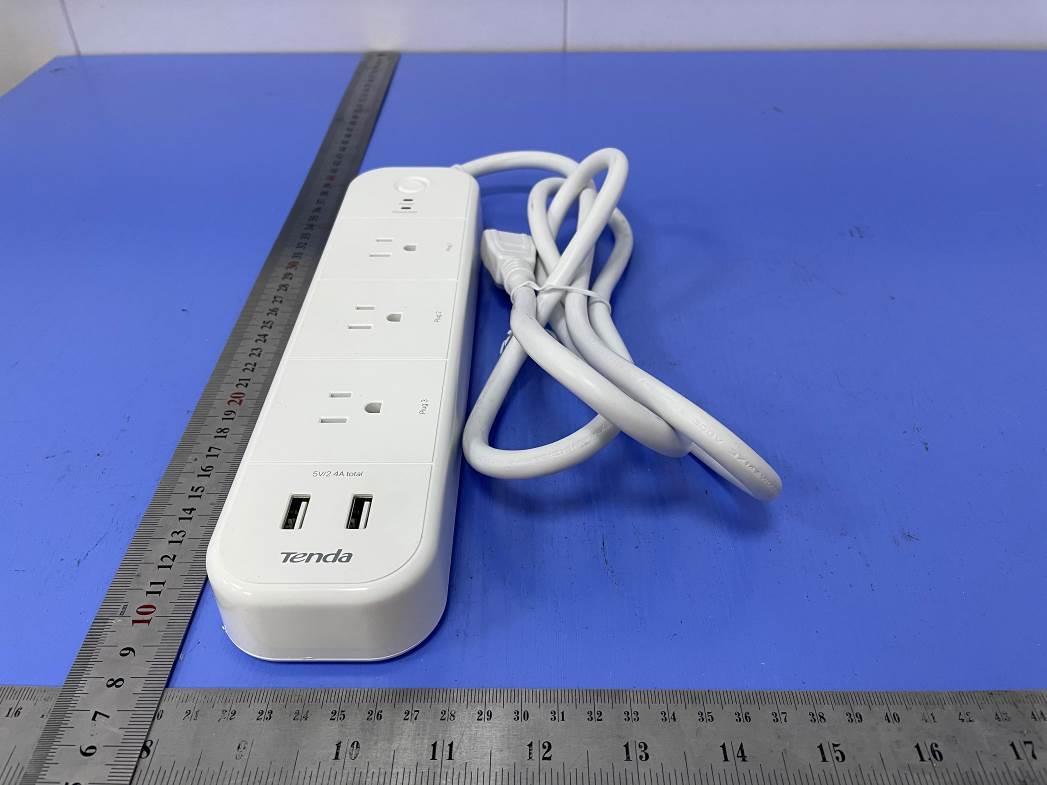

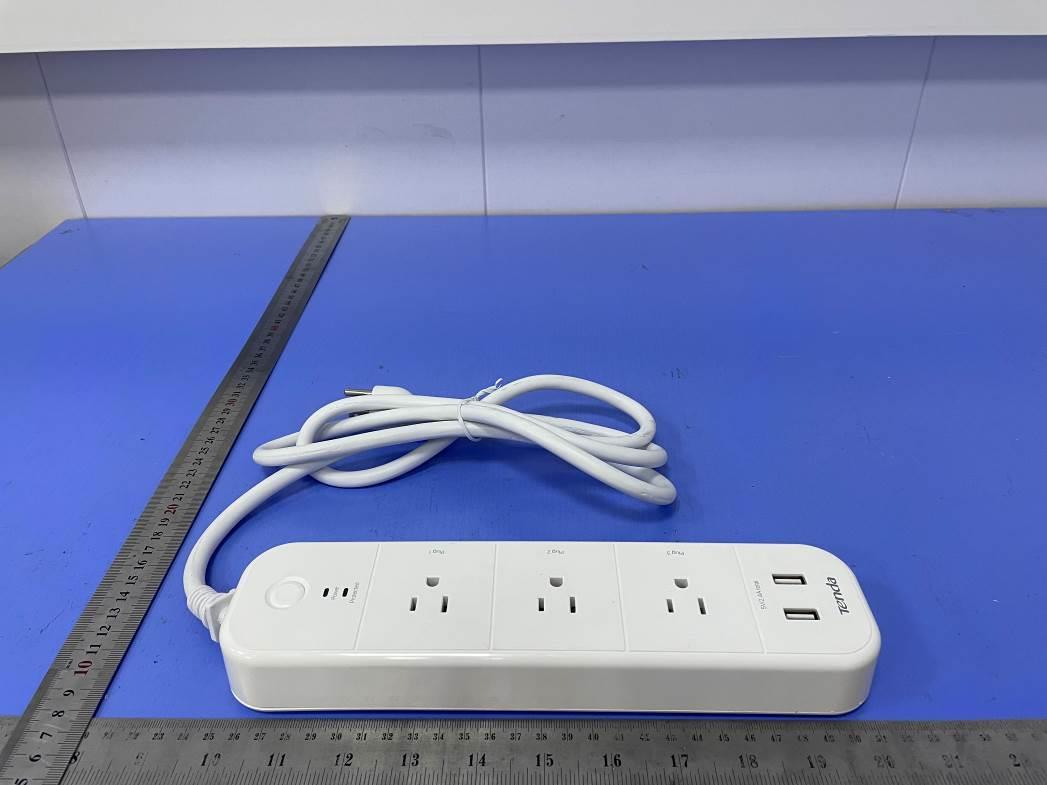

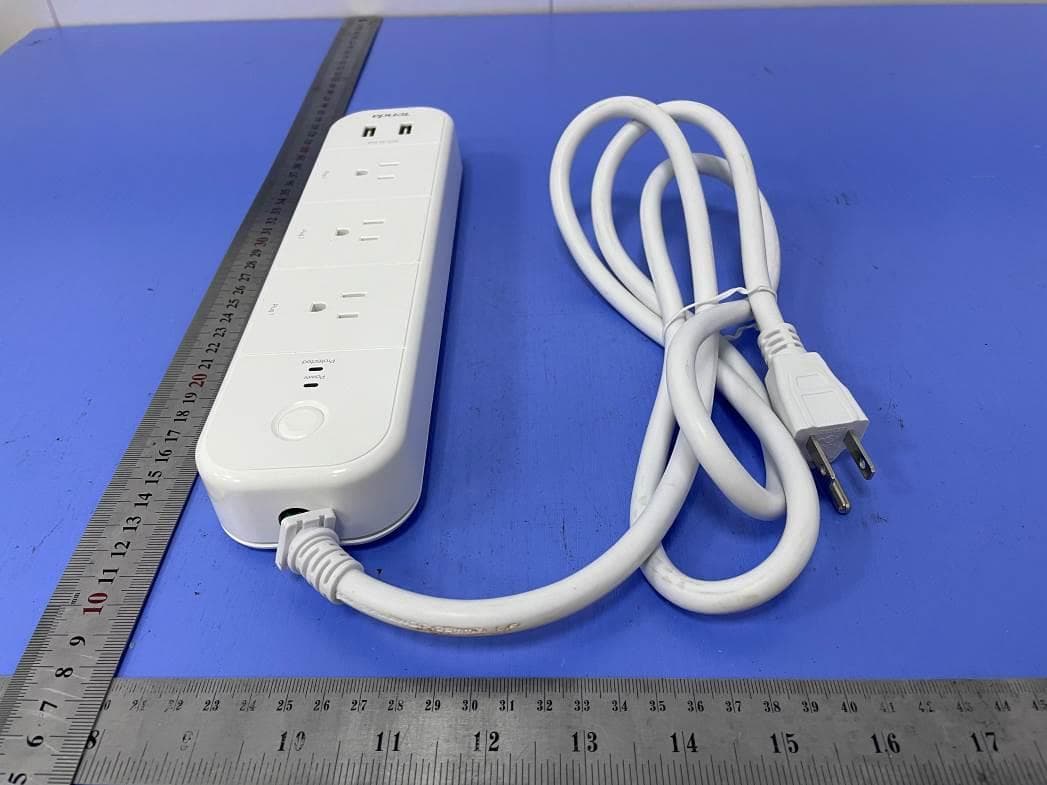

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 1.4.0cm*W: 3.5cm Label Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Fig.7 WIFI Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID V7TSP15 Product name Smart Wi-Fi Power Strip Model number SP15 Power supply 120V~, 60Hz, Max Total Loading 15A Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type PCB Antenna Antenna Gain 0dBi(Max.) Hardware version / Software version / FCC Operation frequency 2412 – 2462 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna PCB Antenna 2412MHz-2462MHz 0dBi WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1 2412 18.2 6 2437 18.22 11 2462 18.2 11G 1 2412 19.3 6 2437 19.32 11 2462 19.4 11N20SISO 1 2412 19.51 6 2437 19.57 11 2462 19.59 11N40SISO 3 2422 19.91 6 2437 19.96 9 2452 19.96 7. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 18.0 18.0 18.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 19.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 19.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 11N40SISO (Peak) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 19.0 19.0 19.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. [Antenna ] Band/Mode RF outpu…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 1 of 46 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Smart Wi-Fi Power Strip Trade Mark: Tenda Test Model: SP15 Environmental Conditions Temperature: 22.6 C Relative Humidity: 53.3% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] 1/T Minimum VBW(KHz) Verdict 11B 2437 Ant1 100 0.01 PASS 11G 2437 Ant1 93.76 0.49 PASS 11N20SISO 2437 Ant1 93.45 0.52 PASS 11N40SISO 2437 Ant1 87.26 1.07 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 2 of 46 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 3 of 46 Duty Cycle_11N20SISO_2437_Ant1 Duty Cycle_11N40SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 4 of 46 A.2 Maximum Conducted Output Power Mode Channel Meas.Level [dBm] Limit [dBm] Verdict 11B LCH 18.2 30 PASS MCH 18.22 30 PASS HCH 18.2 30 PASS 11G LCH 19.3 30 PASS MCH 19.32 30 PASS HCH 19.4 30 PASS 11N20SISO LCH 19.51 30 PASS MCH 19.57 30 PASS HCH 19.59 30 PASS 11N40SISO LCH 19.91 30 PASS MCH 19.96 30 PASS HCH 19.96 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 5 of 46 A.3 Maximum Power Spectral Density Mode Channel Meas.Level [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH -10.385 8 PASS MCH -10.866 8 PASS HCH -10.465 8 PASS 11G LCH -16.382 8 PASS MCH -15.419 8 PASS HCH -16.273 8 PASS 11N20SISO LCH -16.081 8 PASS MCH -15.830 8 PASS HCH -15.313 8 PASS 11N40SISO LCH -18.444 8 PASS MCH -17.981 8 PASS HCH -17.942 8 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 6 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 7 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 8 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 9 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 10 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 11 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 12 of 46 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 10.09 ≥0.5 PASS MCH 10.08 ≥0.5 PASS HCH 10.08 ≥0.5 PASS 11G LCH 16.36 ≥0.5 PASS MCH 16.35 ≥0.5 PASS HCH 16.36 ≥0.5 PASS 11N20SISO LCH 17.14 ≥0.5 PASS MCH 17.16 ≥0.5 PASS HCH 17.32 ≥0.5 PASS 11N40SISO LCH 35.21 ≥0.5 PASS MCH 35.17 ≥0.5 PASS HCH 35.18 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 13 of 46 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 14 of 46 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 15 of 46 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 16 of 46 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 17 of 46 11N40SISO/LCH 11N40SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 18 of 46 11N40SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 19 of 46 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 5.828 -38.293 -14.172 PASS MCH 6.013 -38.150 -13.987 PASS HCH 5.977 -37.982 -14.023 PASS 11G LCH 0.248 -37.438 -19.752 PASS MCH 0.034 -38.881 -19.966 PASS HCH 0.302 -38.012 -19.698 PASS 11N20 SISO LCH 0.409 -38.588 -19.591 PASS MCH 0.342 -37.394 -19.658 PASS HCH 0.439 -38.195 -19.561 PASS 11N40 SISO LCH -2.158 -37.648 -22.158 PASS MCH -2.289 -37.799 -22.289 PASS HCH -2.126 -38.049 -22.126 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 20 of 46 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 21 of 46 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 22 of 46 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 23 of 46 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 24 of 46 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 25 of 46 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 26 of 46 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 27 of 46 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 28 of 46 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA Page 29 of 46 11N40SISO_LCH_Graphs Pref/11N40 SISO/LCH Puw/11N40 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 39 FCC TEST REPORT For SHENZHEN TENDA TECHNOLOGY CO., LTD Smart Wi-Fi Power Strip Test Model: SP15 Prepared for : SHENZHEN TENDA TECHNOLOGY CO., LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : January 11, 2021 Number of tested samples : 2 Sample number : 210106057A-1, 210106057A-2 Serial number : Prototype Date of Test : January 11, 2021~ January 27, 2021 Date of Report : January 30, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 39 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS210106057AEA Date of Issue .................................. : January 30, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : SHENZHEN TENDA TECHNOLOGY CO., LTD Address .......................................... : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Smart Wi-Fi Power Strip Trade Mark ..................................... : Tenda Test Model ...................................... : SP15 Ratings ........................................... : 120V~, 60Hz, Max Total Loading 15A Result ............................................ : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 39 FCC -- TEST REPORT EUT......................................... : Smart Wi-Fi Power Strip Test Model............................... : SP15 Applicant............................... : SHENZHEN TENDA TECHNOLOGY CO., LTD Address.................................. : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHENZHEN TENDA TECHNOLOGY CO., LTD Address................................... : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210106057AEA January 30, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 39 Revision History Revision Issue Date Revisions Revised By 000 January 30, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 Report No.: LCS210106057AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 39 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 7 1.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 _______________________________________________________________________________________________ TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: V7TSP15 _______________________________________________________________________________________________ Power Line Conducted Emission
