V7TSS6V1Smart Wi-Fi Light Switch 3-Way

Dark blue: Switched off. Solid orange: Disconnected from a 2.4 GHz Wi-Fi network. Solid blue: Connected to a 2.4 GHz Wi-Fi network and switched on. Blinking blue: Connecting to a 2.4 GHz Wi-Fi network. On/Off: Press the button once. Reset: Hold down the button for about 5 seconds to 8 seconds and release it when the LED indicator blinks orange. The Smart Wi-Fi Switch is reset successfully. Follow this guide to configure it again. Blinking orange: Initializing and starting. LED indicator Button Step 3: Install the Smart Wi-Fi Switch ①Match the wires of the Smart Wi-Fi Switch with those in the wall box according the wire labels, and secure them using the wire nuts. In the wall box with Load wire Secure the Neutral wire, Ground wire, Line wire, Load wires and Traveler wire from Smart Wi-Fi Switch and the wall box correspondingly. ④. Install the wall plate. ②Gently fold all wires back into the wall box and line up the Smart Wi-Fi Switch with the mounting holes. Secure it with included screws. ③. Turn main power ON at the circuit breaker. Verify that the light can be turned on or off by pressing the Smart Wi-Fi Switch. Technical Support Shenzhen Tenda Technology Co., Ltd. 6-8 Floor, Tower E3, NO.1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 USA hotline: 1-800-570-5892 Toll Free: 7 x 24 hours Canada hotline: 1-888-998-8966 Toll Free: Mon - Fri 9 am - 6 pm PST Hong Kong hotline: 00852-81931998 Global hotline: +86 755-2765 7180 (China Time Zone) Website: www.tendacn.com E-mail: [email protected] Configure the device 1. Download the Tenda Beli App onto your mobile Wi-Fi-enabled device, such as a smart phone, by searching for Tenda Beli in the App Store or Google Play or by scanning the QR code. 2. Follow the instructions in the App to add your Smart Wi-Fi Switch. GET IT ON Download on the or Tenda Beli QR code Tips: • The Smart Wi-Fi Switch only supports 2.4 GHz Wi-Fi network. • The default SSID (Wi-Fi name) of the Smart Wi-Fi Switch is Tenda_Smart Switch_XXXX. XXXX indicates the last four characters of its MAC address which can be found on the device. Tips: If the light is not on, try the following solutions. • Confirm that the power is on. • Check that the wire match is correct. • If the problem persists, please consult an electrician. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment should be installed and operated with minimum distance 20cm between the device and your body. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operating frequency: 2412-2462MHz NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable. RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment. Operating Temperature: 0°C40°C32°F104°F Operating Humidity: (1090)RH, non-condensing FAQ Q2: What devices can I control with the Smart Wi-Fi Switch? A2: You can control bedside lamp, LED lamp, ceiling lamp, and any other lamps in your home whose rated power does not exceed the maximum power (450W) of the Smart Wi-Fi Switch. Q1: What should I do when I failed to control the Smart Wi-Fi Switch After adding it on the Tenda Beli App? If the LED indicator of the Smart Wi-Fi Light Switch lights solid blue: - Check whether the router is connected to the internet successfully. If the LED indicator of the Smart Wi-Fi Light Switch lights solid orange: - Check whether the Wi-Fi network of your wireless router is enabled. If not, enable it. - Check whether the Wi-Fi name or password of your wireless router is changed. If so, reset the Smart Wi-Fi Switch, and re-configure it using the Tenda Beli App. Reset method: Hold down the button for about 5 seconds to 8 seconds and release it when the LED indicator blinks orange. A1: Try the following solutions: Q4: If Line and Load are both black, how should I distinguish them? - The Load wire i…

Text truncated - open the document above for the full version.

         !!""#$%&   '(  )**)  +" , - !  "  "   ,  .   ,    -/ "  0 + 1"- "  +  / , 23  !!"" (4 "+ +)"- !  5   + '  , +   ,  "   ! //,    !" + +!!  "   ' +/ !6"7 ! +8( ) 6"7 9 !!"  /  $&  +'  ,/!" +  # !: ! &3;8#;) <   = *=*$)*$==  ,      &    +   + > >>>>>>>>> ?@ABCD EFGDHBIJKLBMN@LOPPQRRSKTQAK@U VWXYZ[\Z]]^_`ab_cd_edf\gh_dd][idj[khd\l[\_edga_e[\ ^mdigndh_o

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2020-10-22> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name V7TSS6V1 SS6 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below.

        !"# $%# &#'# "#  (")(*) +  ( #  ,-. /01212342311  566 7,089:;;<84  => ?/@ABCD/E0;;<   FGH  IJKJLMNOGPP QRSTMUSGRVOGPPSVVSGR WQUXGLSYMUSGRMRKZ[MNQMUSGR\S[SVSGR ]^_`aMbNMRKcSNNVdGMK OGNQPeSMfc\  FGg XGPhUcMiOGRTJLRf  gJ fjkZlmkZlFZl\WFZOklanaopOaqfnF\qKJTNMLJUXMUUXSVZrFsIOOh\H 89:;;<84tuvwxyz{|}~wu€v‚vuwƒ„y{…vyvy†vy‡ˆ‰Š‹}y}u}ƒŒw„wy…wxŽhR MKKSUSGRqFXJLJ‘QJRTiVJNJTUSGRJMUQLJSVKSVMeNJKeiSLP’MLJGLKJ[STJVPMLbJKUG UXJ rj“OMRMKMqIGL\Fj”MLUGUXSVKJ[STJfGRNiTXMRRJNV•‡••’SNNeJQVJKSRlGLUX WPJLSTMfOGQRULiTGKJVJNJTUSGRSVKSVMeNJKq  jXG QNKiGQXM[JMRi‘QJVUSGRVGLTGPPJRUVLJ–MLKSR–UXSVPMUUJLf”NJMVJXM[JPieJVU MUUJ RUSGRq  jSRT JLJNif   sjS– RJK—  lMP J“FSUNJH˜™š›œšžŸ› ¡›šš¢ OGP”MRiHjkZlmkZlFZl\WFZOklanaopOaqfnF\q WKKLJVVH£‡¤INGGLfFG’JLZ_flGq•¥¥•fmXGR–VXMRiQMRdGMKflMRVXMR\SVULSTUf jXJRYXJRfOXSRMf`•¤¥`¦ FJNH¤£‡]``‡¦]£`]¥§¤ IM ̈H¤££‡]``‡¦]£`]•]¤ Z‡cMSNHTJLU©UJRKMqTR

< SHENZHEN TENDA TECHNOLOGY CO., LTD. > <6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District Shenzhen China > Date:2020-11-03 FCC ID:V7TSS6V1 Model Number: SS6 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We SHENZHEN TENDA TECHNOLOGY CO., LTD. declare the following: The model SS6 with the equipment class DTS according to the FCC rule part 15.247 has the same design as model SS3; The difference is that the model SS6 has an additional switch control assembled for the US marked. Model SS6 and model SS3 2.4GHz WLAN modular PCB board, Schematic, Hardware version, Software version (including RF power setting), structure and internal photos are same. Both Models use the same 2.4GHz WLAN frequency band. (2412‐2462 MHz). SS6 (Test Report number: BTL‐FCCP‐1‐2009C065) sport check RF output power (lower than SS3) and radiated emission based on SS3 test report (Test Report number: BTL‐FCCP‐1‐2008C191). For this reason, model SS6 (with FCC ID: V7TSS6V1) will reuse some test data as following of model SS3 (with FCC ID: V7TSS3V1) for both FCC certification; Test Item Re‐use test data from original test report number AC main conducted emission BTL‐FCCP‐1‐2008C191 6dB bandwidth BTL‐FCCP‐1‐2008C191 Power spectral density BTL‐FCCP‐1‐2008C191 Conducted spurious emission BTL‐FCCP‐1‐2008C191 Radiated emission BTL‐FCCP‐1‐2008C191 We declare, that SHENZHEN TENDA TECHNOLOGY CO., LTD. takes full responsibility that the test data of the old FCC ID (FCC ID V7TSS3V1) represents compliance for the new FCC ID (FCC ID: V7TSS6V1). < SHENZHEN TENDA TECHNOLOGY CO., LTD. > <6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District Shenzhen China >

Project No.: 2009C065 Page 2 of 6

N L L1 Tra Smart Wi-Fi Light Switch 3-Way UL 60730-1:2016 Ed.5 E60730-1:2015 Ed.5 Indoor Dry Location Use Only Made in China Model: SS6 Input: 100-120V~, 60Hz Max Current: 15A FCC ID: V7TSS6V1 MAC: XXXXXXXXXXXX S/N: XXXXXXXXXXXXX label location

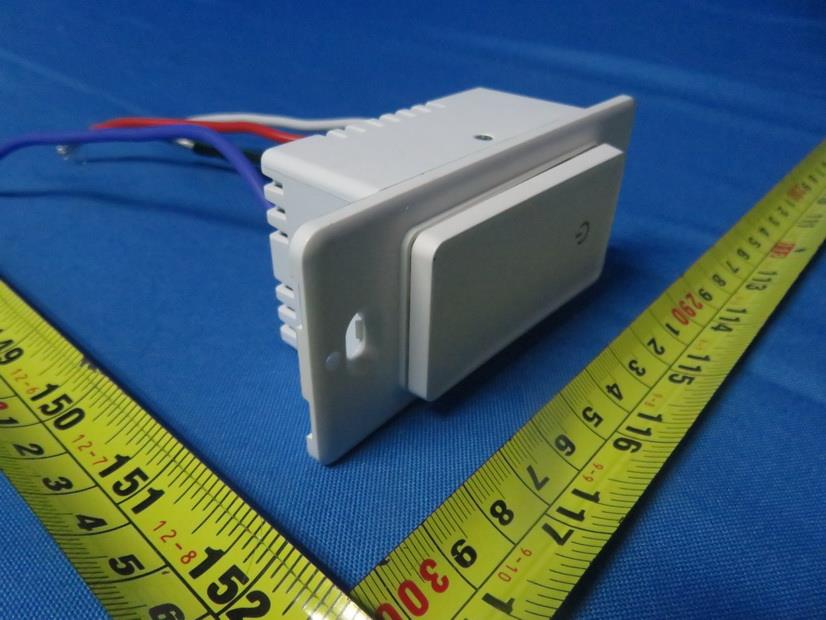

Project No.: 2009C065 Page 3 of 6 Project No.: 2009C065 Page 4 of 6 Project No.: 2009C065 Page 5 of 6 Project No.: 2009C065 Page 6 of 6 Ant.

Report No.: BTL-FCCP-2-2009C065 Page 1 of 3 FCC RF EXPOSURE REPORT FCC ID: V7TSS6V1 Project No. : 2009C065 Equipment : Smart Wi-Fi Light Switch 3-Way Brand Name : Tenda Test Model : SS6 Series Model : N/A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Sep. 08, 2020 Date of Test : Sep. 08, 2020 ~ Oct. 14, 2020 Issued Date : Oct. 30, 2020 Report Version : R02 Test Sample : Engineering Sample No.: DG202009098 Standard(s) : FCC Guidelines for Human Exposure IEEE C95.1 & FCC Part 2.1091 FCC Title 47 Part 2.1091, OET Bulletin 65 Supplement C The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Prepared by : Peggy Zhu Approved by : Ethan Ma Report No.: BTL-FCCP-2-2009C065 Page 2 of 3 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue Oct. 21, 2020 R01 Modify the comments. Oct. 27, 2020 R02 Modify the comments. Oct. 30, 2020 Report No.: BTL-FCCP-2-2009C065 Page 3 of 3 1. TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3,Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 2. MPE CALCULATION METHOD Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna: Ant. Brand Model Name Antenna Type Connector Gain(dBi) 1 N/A N/A Internal N/A 0 3. TEST RESULTS Antenna Gain (dBi) Antenna Gain (numeric) Max. Output Power (dBm) Max. Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Test Result 0 1 21.57 143.5489 0.02857 1 Complies Note: The calculated distance is 20 cm. End of Test Report

Report No.: BTL-FCCP-1-2008C191 Page 1 of 91 FCC Radio Test Report FCC ID: V7TSS3V1 This report concerns: Original Grant Project No. : 2008C191 Equipment : Smart Wi-Fi Light Switch Brand Name : Tenda Test Model : SS3 Series Model : N/A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Aug. 31, 2020 Date of Test : Aug. 31, 2020~Oct. 14, 2020 Issued Date : Oct. 21, 2020 Report Version : R00 Test Sample : Engineering Sample No.: DG2020083116 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2008C191 Page 2 of 91 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2008C191 Page 3 of 91 Table of Contents Page REPORT ISSUED HISTORY 6 1 . SUMMARY OF TEST RESULTS 7 1.1 TEST FACILITY 8 1.2 MEASUREMENT UNCERTAINTY 8 1.3 TEST ENVIRONMENT CONDITIONS 9 2 . GENERAL INFORMATION 10 2.1 GENERAL DESCRIPTION OF EUT 10 2.2 DESCRIPTION OF TEST MODES 11 2.3 PARAMETERS OF TEST SOFTWARE 12 2.4 DUTY CYCLE 13 2.5 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 2.6 SUPPORT UNITS 14 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 EUT OPERATION CONDITIONS 16 3.6 TEST RESULTS 16 4 . RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 19 4.5 EUT OPERATION CONDITIONS 20 4.6 TEST RESULTS - 9 KHZ TO 30 MHZ 20 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 20 4.8 TEST RESULTS - ABOVE 1000 MHZ 20 5 . BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 Report No.: BTL-FCCP-1-2008C191 Page 4 of 91 Table of Contents Page 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 . MAXIMUM OUTPUT POWER TEST 22 6.1 LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 . CONDUCTED SPURIOUS EMISSIONS 23 7.1 LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 EUT OPERATION CONDITIONS 23 7.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 LIMIT 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 . MEASUREMENT INSTRUMENTS LIST 25 10 . EUT TEST PHOTO 27 APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 31 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 34 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 39 APPENDIX D - RADIATED EMISSION- ABOVE 1000 MHZ 42 APPENDIX E - BANDWIDTH 79 APPENDIX F - MAXIMUM OUTPUT POWER 83 APPENDIX G - CONDUCTED SPURIOUS EMISSIONS 85 Report No.: BTL-FCCP-1-2008C191 Page 5 of 91 Table of Contents Page APPENDIX H - POWER SPECTRAL DENSITY 89 Report No.: BTL-FCCP-1-2008C191 Page 6 of 91 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Oct. 21, 2020 Report No.: BTL-FCCP-1-2008C191 Page 7 of 91 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D PASS ------ 15.247(a)(2) Bandwidth APPENDIX E PASS ------ 15.247(b)(3) Maximum Output Power APPENDIX F PASS ------ 15.247(d) Conducted Spurious Emissions APPENDIX G PASS ------ 15.247(e) Power Spectral Density APPENDIX H PASS ------ 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2009C065 Page 1 of 28 FCC Radio Test Report FCC ID:V7TSS6V1 The output power tested by sample of FCC ID: V7TSS6V1,model name: SS6, meanwhile, the radiated emissions of 30 MHz to 1 GHz and above 1GHz have been re-evaluated the worst case and recorded in this report, others test data were reissue from the FCC ID: V7TSS3V1,model name: SS3. The radiated emissions of 30 MHz to 1 GHz please see the Appendix 1, the radiated emissions of above 1GHz please see the Appendix 2, the output power test data please see Appendix 3. Model difference:SS6 has one more switch control than SS3. This report concerns: Original Grant Project No. : 2009C065 Equipment : Smart Wi-Fi Light Switch 3-Way Brand Name : Tenda Test Model : SS6 Series Model : N/A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Manufacturer : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Date of Receipt : Sep. 08, 2020 Date of Test : Sep. 08, 2020 ~ Oct. 14, 2020 Issued Date : Nov. 03, 2020 Report Version : R03 Test Sample : Engineering Sample No.: DG202009098 Standard(s) : FCC Part15, Subpart C (15.247) ANSI C63.10-2013 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Peggy Zhu Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2009C065 Page 2 of 28 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2009C065 Page 3 of 28 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 9 2.3 PARAMETERS OF TEST SOFTWARE 10 2.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 SUPPORT UNITS 10 3 . RADIATED EMISSIONS TEST 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 12 3.3 DEVIATION FROM TEST STANDARD 12 3.4 TEST SETUP 13 3.5 EUT OPERATION CONDITIONS 14 3.6 TEST RESULTS - 9 KHZ TO 30 MHZ 14 3.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 14 3.8 TEST RESULTS - ABOVE 1000 MHZ 14 4 . MAXIMUM OUTPUT POWER TEST 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 15 4.3 DEVIATION FROM STANDARD 15 4.4 TEST SETUP 15 4.5 EUT OPERATION CONDITIONS 15 4.6 TEST RESULTS 15 5 . MEASUREMENT INSTRUMENTS LIST 16 6 . EUT TEST PHOTO 17 APPENDIX 1 - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 19 APPENDIX 2 - RADIATED EMISSION- ABOVE 1000 MHZ 22 Report No.: BTL-FCCP-1-2009C065 Page 4 of 28 Table of Contents Page APPENDIX 3 - MAXIMUM OUTPUT POWER 27 Report No.: BTL-FCCP-1-2009C065 Page 5 of 28 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Oct. 21, 2020 R01 Modify the comments. Oct. 27, 2020 R02 Modify the comments. Oct. 30, 2020 R03 Modify the comments. Nov. 03, 2020 Report No.: BTL-FCCP-1-2009C065 Page 6 of 28 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.247) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions ------ PASS Note(3) 15.247(d) 15.205(a) 15.209(a) Radiated Emissions APPENDIX 1 APPENDIX 2 PASS Note(3) 15.247(a)(2) Bandwidth ------ PASS Note(3) 15.247(b)(3) Maximum Output Power APPENDIX 3 PASS ------ 15.247(d) Conducted Spurious Emissions ------ PASS Note(3) 15.247(e) Power Spectral Density ------ PASS Note(3) 15.203 Antenna Requirement ------ PASS Note(2) Note: (1) “N/A” denotes test is not applicable in this test report. (2) The device what use a permanently attached antenna were considered sufficient to comply with the provisions of 15.203. (3) Reissue from the FCC ID: V7TSS3V1.Report No.: BTL-FCCP-1-2008C191 Report No.: BTL-FCCP-1-2009C065 Page 7 of 28 1.1 TEST FACILITY The test facilities used to collect the test data in this…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-2009C065 Page 27 of 91 10. EUT TEST PHOTO AC Power Line Conducted Emissions Test Photos Report No.: BTL-FCCP-1-2009C065 Page 28 of 91 Radiated Emissions Test Photos 9 kHz to 30 MHz Report No.: BTL-FCCP-1-2009C065 Page 29 of 91 Radiated Emissions Test Photos 30 MHz to 1 GHz Report No.: BTL-FCCP-1-2009C065 Page 30 of 91 Radiated Emissions Test Photos Above 1 GHz
