V7TW1800RWireless AC1750 Dual-band Gigabit Router

port

SHENZHEN TENDA TECHNOLOGY CO.,LTD. Add: Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China Tel: +86-755-27657068 Fax: +86-755-27657178 FCC Authorization Date: 2013-2-28 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , SHENZHEN TENDA TECHNOLOGY CO.,LTD., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Liao, Bin Title: Manager

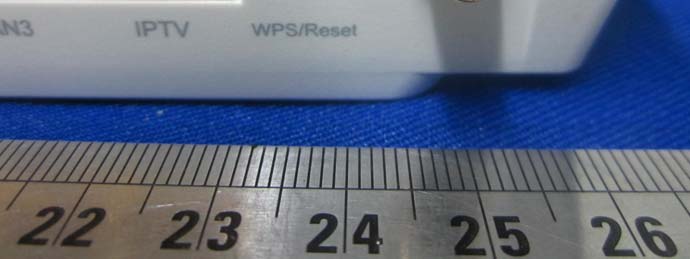

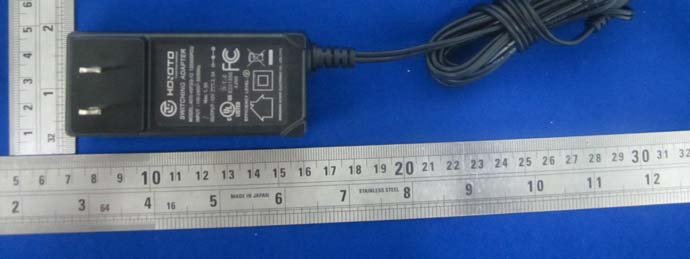

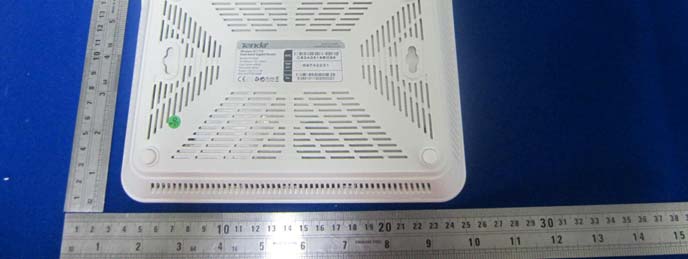

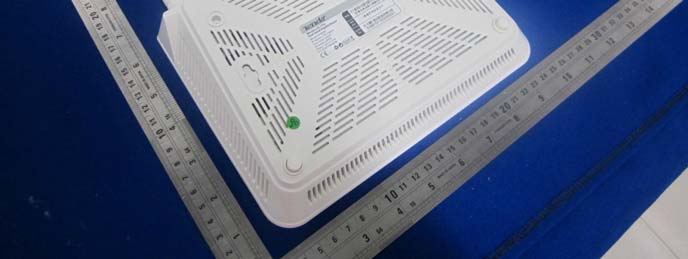

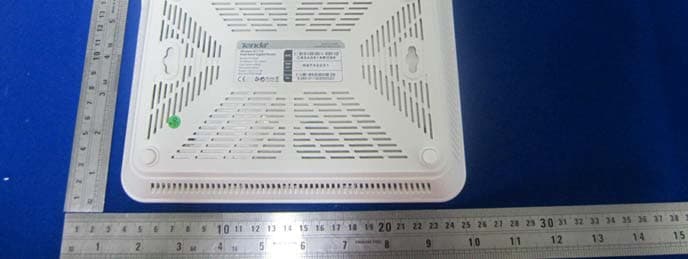

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –All View EUT – Top View EUT – Bottom View EUT –Left Side View EUT – Right Side View EUT – Right Side View EUT – Port View EUT – Antenna View EUT – Antenna View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT –Uncover View EUT –Uncover View EUT –Uncover View EUT –Uncover View EUT –Uncover View EUT –Uncover View EUT –Main Board Top View EUT –Uncover View EUT –Main Board Bottom View EUT –Main Board Top Without Cover View EUT –RF Part View EUT –MCU View

SHENZHENTENDA TECHNOLOGYCO.LTD FCC ID:V7TW1800R Operational Description This device is a Wireless AC1750 Dual-band Gigabit Router ,Model:W1800R, Which operates in 2.412-2462Ghz Band，5180-5240Mhz Band， 5745-5825Mhz Band; The maximum data rate could be up to 1300Mbps which OFDM technique. If the signal to noise radio is too poor which could not sup port1300Mbps,the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by Adapter ADS-40FSG-12：DC12V2.5A The device adapts DSSS and OFDM modulation.And the antenna was 5dbi Diople antenna.And provided diversity function to improve the receiving functions.It allows your computer to connection to a wireless network and to share resources,

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130130005 -00C FCC Part 15.247 Page 9 of 87 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4SR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi)(numeric)(dBm)(mW) 802.11b 2462 5 3.16 21.84152.76 20.00 0.09615 1.0 802.11g 2412 5 3.16 17.5356.62 20.00 0.03564 1.0 802.11n ht20 2462 5 3.16 17.0750.93 20.00 0.03206 1.0 802.11n h t40 2462 5 3.16 17.3053.70 20.00 0.03380 1.0 Result: The device meet FCC MPE at 20 cm distance

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130130005-00D FCC Part 15.247 Page 9 of 143 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4SR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi)(numeric)(dBm)(mW) 802.11a 5745 5 3.16 12.6718.49 20.00 0.01164 1.0 802.11n ht20 5745 5 3.16 12.0215.92 20.00 0.01002 1.0 802.11n h t40 5795 5 3.16 11.9115.52 20.00 0.00977 1.0 802.11ac vht20 5745 5 3.16 13.0920.37 20.00 0.01282 1.0 802.11ac vht40 5755 5 3.16 11.8 15.14 20.00 0.00953 1.0 802.11 ac80 5775 5 3.16 12.1616.44 20.00 0.01035 1.0 Result: The device meet FCC MPE at 20 cm distance

55 44 33 22 11 D D C C B B A A W1800R && W80EN/A WIRELESS ROUTERProduct Name:Common Product: TENDA TENDA TitleSize Document Number Rev Date: Sheet of Cover Page 0.1 W1800R & W80E A3 124 Thursday, January 03, 2013 TitleSize Document Number Rev Date: Sheet of Cover Page 0.1 W1800R & W80E A3 124 Thursday, January 03, 2013 TitleSize Document Number Rev Date: Sheet of Cover Page 0.1 W1800R & W80E A3 124 Thursday, January 03, 2013 55 44 33 22 11 D D C C B B A A 1.2V For 4706 1.2V For BCM4331 1.2V For BCM4360 MAX CURRENT 1A FOR USB 2.0 *2 Max Current 3A 2.5V For 4706 & 53125 VIN 12V ,ANDCURRENT ABOUT 2.5A W80E/W1800R TENDA 3.3V For 4706,4331,4360 (2604) 2.4GPA >61.3uF VDD1_2 VDD12 VDD1_2_RF_2.4G VDD3_3 VDD1_2_RF_5G VDD5_2.4G VDD5_USB VDD12 VDD3_3 VDD12 VDD5_5G VDD12 VDD3_3 VDD5 VDD12 VDD12 VDD1_8 VDD12 VDD3_3 VDD2_5 VDD5_5G TitleSize Document Number Rev Date: Sheet of 12 to 3.3/2.5/1.8 0.1 A2 524 Tuesday, February 19, 2013 W1800R & W80E TitleSize Document Number Rev Date: Sheet of 12 to 3.3/2.5/1.8 0.1 A2 524 Tuesday, February 19, 2013 W1800R & W80E TitleSize Document Number Rev Date: Sheet of 12 to 3.3/2.5/1.8 0.1 A2 524 Tuesday, February 19, 2013 W1800R & W80E C179 CAP C179 CAP C135 CAP C135 CAP C194 CAP NP_1 C194 CAP NP_1 12 R38 R_2 R38 R_2 1 2 M1 TEST POINT_0 M1 TEST POINT_0 1 1 R41 R_2 R41 R_2 12 C136 CAP C136 CAP H1 TEST POINT_0 H1 TEST POINT_0 1 1 C176 CAP C176 CAP R42 R_3 R42 R_3 12 C193 CAP NP_1 C193 CAP NP_1 12 R46 R_0 R46 R_0C178CAPC178CAP + C115 C_0 + C115 C_0 12 H8 TEST POINT_0 H8 TEST POINT_0 1 1 C198 CAP C198 CAP C181 CAP NP_2 C181 CAP NP_2 1 2 R50 R_1 R50 R_1 12 C158 CAP NP_8 C158 CAP NP_8 1 2 C191 CAP NP_1 C191 CAP NP_1 12 C151 CAP C151 CAP TP26 TEST POINT_1 TP26 TEST POINT_1 1 1 2 2 3 3 4 4 6 6 7 7 8 8 9 9 5 5 C196 CAP C196 CAP TP28 TEST POINT_1 TP28 TEST POINT_1 1 1 2 2 3 3 4 4 6 6 7 7 8 8 9 9 5 5 C150 CAP C150 CAP R31 RES R31 RES R35 RES R35 RES H4 TEST POINT_0 H4 TEST POINT_0 1 1 C130CAPC130CAP C197 CAP C197 CAP R48 R_1 R48 R_1 1 2 C118 CAP_3 C118 CAP_3 12 C159 CAP C159 CAP C195 CAP C195 CAP C155 CAP C155 CAP R44 R_3 R44 R_3 12 L10 INDUCTOR IRON/SM_0 L10 INDUCTOR IRON/SM_0 + C166 CAP- + C166 CAP- C174 CAP C174 CAP M4 TEST POINT_0 M4 TEST POINT_0 1 1 + C189 CAP- + C189 CAP- C175 CAP C175 CAP C192 CAP/0402_0 C192 CAP/0402_0 12 C128 CAP C128 CAP C1 CAP C1 CAP C190 CAP C190 CAP H6 TEST POINT_0 H6 TEST POINT_0 1 1 C141 CAP/0402_0 C141 CAP/0402_0 12 R47 R_1 R47 R_1 12 C138 CAP/0402_0 C138 CAP/0402_0 12 L5 INDUCTOR IRON/SM_0 L5 INDUCTOR IRON/SM_0 C172 CAP C172 CAP H2 TEST POINT_0 H2 TEST POINT_0 1 1 C173 CAP C173 CAP C139 CAP NP_2 C139 CAP NP_2 12 U10 DCDC-RT8237-S08_0 U10 DCDC-RT8237-S08_0 SW/VOUT 3 BS 1 VIN 2 GND 4 FB/NC 5 COMP/NC 6 EN 7 SS/NC 8 PGND/NC 9 C188 CAP C188 CAP R36 RES R36 RES R39 RES R39 RES + C8 CAP- + C8 CAP- U12MIC5209-3_0.3BSU12MIC5209-3_0.3BS SW 3 VIN 1 SW 2 BS 4 EN 5 FB 6 VCC 7 GND 8 EG 9 M5 TEST POINT_0 M5 TEST POINT_0 1 1 C180CAP NP_1C180CAP NP_1 1 2 R29R_2R29R_2 12 C4 CAP C4 CAP U13 DCDC-RT8237-S08_0 U13 DCDC-RT8237-S08_0 SW/VOUT 3 BS 1 VIN 2 GND 4 FB/NC 5 COMP/NC 6 EN 7 SS/NC 8 PGND/NC 9 C157 CAP NP_2 C157 CAP NP_2 12 C147 CAP C147 CAP R30 RES R30 RES C123CAPC123CAP C121 CAP C121 CAP C137 CAP C137 CAP L8 INDUCTOR IRON/SM_0 L8 INDUCTOR IRON/SM_0 U11 DCDC-RT8237-S08_0 U11 DCDC-RT8237-S08_0 SW/VOUT 3 BS 1 VIN 2 GND 4 FB/NC 5 COMP/NC 6 EN 7 SS/NC 8 PGND/NC 9 + C170 CAP- + C170 CAP- TP25 TEST POINT_1 TP25 TEST POINT_1 1 1 2 2 3 3 4 4 6 6 7 7 8 8 9 9 5 5 JP3PIN J2 JP3PIN J2 3 1 2 C124 CAP C124 CAP C117 CAP/0402_0 C117 CAP/0402_0 12 C154 CAP_8 C154 CAP_8 + C3 CAP- + C3 CAP- C134 CAP_9 C134 CAP_9 C171 CAP C171 CAP R45 RES R45 RES H3 TEST POINT_0 H3 TEST POINT_0 1 1 TP24 TEST POINT_1 TP24 TEST POINT_1 1 1 2 2 3 3 4 4 6 6 7 7 8 8 9 9 5 5 C169 CAP NP_10 C169 CAP NP_10 12 C10 CAP C10 CAP H7 TEST POINT_0 H7 TEST POINT_0 1 1 TP23 TEST POINT_1 TP23 TEST POINT_1 1 1 2 2 3 3 4 4 6 6 7 7 8 8 9 9 5 5 AME8805 U14 LDO-AME8805 AME8805 U14 LDO-AME8805 VIN 1 VOUT 3 GND1 2 GND2 4 C142 CAP NP_2 C142 CAP NP_2 12 C182 CAP C182 CAP + C12 CAP- + C12 CAP- L4 FB L4 FB R49 R_0 R49 R_0 H9 TEST POINT_0 H9 TEST POINT_0 1 1 C152 CAP C152 CAP R37 RES R37 RES + C116 C_0 + C116 C_0 12 R32 RES R32 RES L6 FB L6 FB TP27 TEST POINT_1 TP27 TEST POINT_1 1 1 2 2 3 3 4 4 6 6 7 7 8 8 9 9 5 5 L11FBL11FB C146 CAP C146 CAP D2 D D2 D C145 CAP C145 CAP C114 CAP/0402_0 C114 CAP/0402_0 12 C183 CAP C183 CAP L13FBL13FB L12 INDUCTOR IRON/SM_0 L12 INDUCTOR IRON/SM_0 D1 D D1 D H10J-CON2H10J-CON2 12 M6 TEST POINT_0 M6 TEST POINT_0 1 1 C2 CAP C2 CAP C165 CAP C165 CAP C122 CAP C122 CAP R33 RES R33 RES L9 INDUCTOR IRON/SM_0 L9 INDUCTOR IRON/SM_0 C167 CAP C167 CAP C161 CAP C161 CAP C199 CAP C199 CAP C185 CAP NP_1 C185 CAP NP_1 12 C11 CAP C11 CAP C184 CAP C184 CAP C133 CAP C133 CAP M3 TEST POINT_0 M3 TEST POINT_0 1 1 C163 CAP C163 CAP R28 R_2 R28 R_2 12 L7 FB L7 FB C162 CAP C162 CAP C9 CAP C9 CAP U15 MIC5209-3_0.3BS U15 MIC5209-3_0.3BS SW 3 VIN 1 SW 2 BS 4 EN 5 FB 6 VCC 7 GND 8 EG 9 C156CAPC156CAP C127 CAP C127 CAP R43 RES R43 RES C153 CAP C153 CAP C164 CAP C164 CAP C6 CAP C6 CAP R34 RES R34 RES C131 CAP C131 CAP C5 CAP C5 CAP L1 FB L1 FB + C7 CAP- + C7 CAP- R40 R_2 R40 R_2 12 C129 CAP C129 CAP C144 CAP C144 CAP C160 CAP C160 CAP M2 TEST POINT_0 M2 TEST POINT_0 1 1 H5 TEST POINT_0 H5 TEST POINT_0 1 1 input capacitance Can change for tantalum capacitor Polarity capacitance Polarity capacitance Polarity capacitance Polarity capacitance Polarity capacitance Polarity capacitance Polarity capacitance 55 44 33 22 11 D D C C B B A A Pin C3 Place these caps under the DDR2. Place these caps under the DDR2. Pin M3 Pin V6 Pin A1 Pin G1 Pin G3 Pin H8 Pin J3 Pin M8 Pin P3 Pin R10 Pin V1 Pin V10 Pin W8 Pin Y4 TENDA Place under the DDR2 Place under the DDR2 Place the VREF dividerclose to the 4706 ZCOMP DDR2_ADDR_0DDR2_ADDR_1DDR2_ADDR_2DDR2_ADDR_3DDR2_ADDR_4DDR2_ADDR_5DDR2_ADDR_6DDR2_ADDR_7DDR2_ADDR_8DDR2_ADDR_9DDR2_ADDR_10DDR2_ADDR_11DDR2_ADDR_12DDR2_ADDR_13DDR2_ADDR_14 DDR2_DATA_0DDR2_DATA_1DDR2_DATA_2DDR2_DATA_3DDR2_DATA_4DDR2_DATA_5D…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). FCC PART 15.247 TEST REPORT For SHENZHEN TENDA TECHNOLOGY CO.,LTD. Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China Report Type: Original Report Product Type: Wireless AC1750 Dual-band Gigabit Router Test En gineer: Leon Chen Re port Number: R2DG130130005-00C Re port Date: 2013-03-13 Reviewed By: Ivan Cao RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: V7TW1800R Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130130005 -00C FCC Part 15.247 Page 2 of 87 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL CABLE ........................................................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT UNCERTAINTY .................................................................................................................................. 16 EUT SETUP .........…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). FCC PART 15.247 TEST REPORT For SHENZHEN TENDA TECHNOLOGY CO.,LTD. Tenda Industrial Park, No. 34-1, Shilong Rd., Shiyan Town, Bao'an District, Shenzhen, P.R.China Report Type: Original Report Product Type: Wireless AC1750 Dual-band Gigabit Router Test En gineer: Leon Chen Re port Number: R2DG130130005-00D Re port Date: 2013-03-13 Reviewed By: Ivan Cao RF Leader Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: V7TW1800R Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R2DG130130005-00D FCC Part 15.247 Page 2 of 143 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL CABLE ........................................................................................................................................................ 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) .............................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 12 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST RESULTS SUMMARY .......................................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 MEASUREMENT UNCERTAINTY .................................................................................................................................. 16 EMI TEST RECEIVER &…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emission - Front View Conducted Emission - Side View Radiated Emission – Front View(Below 1G) Radiated Emission – Rear View(Below 1G) Radiated Emission – Front View(Above 1G) Radiated Emission – Rear View(Above 1G)
