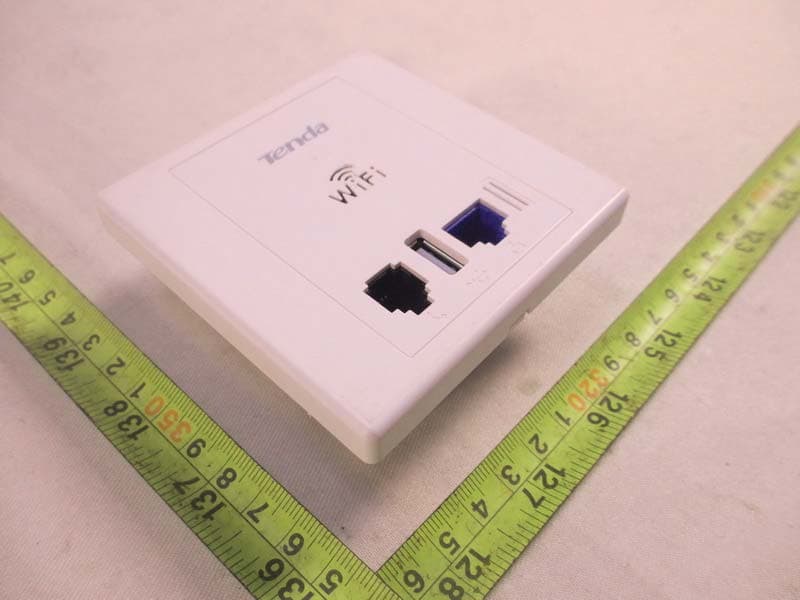

V7TW312AWireless N300 Wall Plate Access Point

Neutron Engineering Inc. Project No.: 1403C031 Page 2 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 3 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 4 of 11

Neutron Engineering Inc. Project No.: 1403C031 Page 5 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 6 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 7 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 8 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 9 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 10 of 11 Neutron Engineering Inc. Project No.: 1403C031 Page 11 of 11

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: V7TW312A Project No. : 1403C031 Equipment : Wireless N300 Wall Plate Access Point Model : W312A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhon gshanyuan Road, Nanshan District, Shenzhen, China. 518052 According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connecto r Gain (dBi) Note Length 1 Tenda Q5106 Internal N/A 3.81 TX/RX 90mm 1 Tenda Q5101 Internal N/A 3.81 TX/RX 70mm Neutron Engineering Inc. TEST RESULTS EUT： Wireless N300 Wall Plate Access Point Model Name : W312A Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX B MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.81 2.4044 20.26 106.1696 0.050810141 Complies 3.81 2.4044 20.23 105.4387 0.050460361 Complies 3.81 2.4044 20.17 103.9920 0.049768021 Complies EUT： Wireless N300 Wall Plate Access Point Model Name : W312A Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX G MODE /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.81 2.4044 20.11 102.5652 0.049085181 Complies 3.81 2.4044 20.17 103.9920 0.049768021 Complies 3.81 2.4044 20.32 107.6465 0.051516981 Complies Neutron Engineering Inc. EUT： Wireless N300 Wall Plate Access Point Model Name : W312A Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-20M MODE_ Total /CH01, CH06, CH11 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.81 2.4044 23.18 207.9697 0.099529171 Complies 3.81 2.4044 23.25 211.3489 0.101146391 Complies 3.81 2.4044 23.30 213.7962 0.102317611 Complies EUT： Wireless N300 Wall Plate Access Point Model Name : W312A Temperature: 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode : TX N-40M MODE_Total /CH03, CH06, CH09 Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 3.81 2.4044 21.23 132.7394 0.063525831 Complies 3.81 2.4044 21.53 142.2329 0.068069161 Complies 3.81 2.4044 21.59 144.2115 0.069016091 Complies The calculated distance is 20 cm

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 1 of 128 FCC Radio Test Report FCC ID: V7TW312A This report concerns (check one): Original Grant Class II Change Issued Date : Apr. 02, 2014 Project No. : 1403C031 Equipment : Wireless N300 Wall Plate Access Point Model Name : W312A Applicant : SHENZHEN TENDA TECHNOLOGY CO.,LTD Address : 6-8 Floor, Tower E3, No. 1001, Zhongshanyuan Road, Nanshan District, Shenzhen, China. 518052 Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Mar. 06, 2014 Date of Test: Mar. 06, 2014 ~ Mar. 31, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 2 of 128 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 3 of 128 Table of Contents Page 1 . CERTIFICATION 6 2 . SUMMARY OF TEST RESULTS 7 2.1 TEST FACILITY 8 2.2 MEASUREMENT UNCERTAINTY 8 3 . GENERAL INFORMATION 9 3.1 GENERAL DESCRIPTION OF EUT 9 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (9K~ 30MHZ) 23 4.2.8 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . BANDWIDTH TEST 60 5.1 APPLIED PROCEDURES 60 5.1.1 TEST PROCEDURE 60 5.1.2 DEVIATION FROM STANDARD 60 5.1.3 TEST SETUP 60 5.1.4 EUT OPERATION CONDITIONS 60 5.1.5 EUT TEST CONDITIONS 60 5.1.6 TEST RESULTS 61 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 4 of 128 Table of Contents Page 6 . MAXIMUM OUTPUT POWER TEST 73 6.1 APPLIED PROCEDURES / LIMIT 73 6.1.1 TEST PROCEDURE 73 6.1.2 DEVIATION FROM STANDARD 73 6.1.3 TEST SETUP 73 6.1.4 EUT OPERATION CONDITIONS 73 6.1.5 EUT TEST CONDITIONS 73 6.1.6 TEST RESULTS 74 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 7.1 APPLIED PROCEDURES / LIMIT 77 7.1.1 TEST PROCEDURE 77 7.1.2 DEVIATION FROM STANDARD 77 7.1.3 TEST SETUP 77 7.1.4 EUT OPERATION CONDITIONS 77 7.1.5 EUT TEST CONDITIONS 77 7.1.6 TEST RESULTS 78 8 . POWER SPECTRAL DENSITY TEST 108 8.1 APPLIED PROCEDURES / LIMIT 108 8.1.1 TEST PROCEDURE 108 8.1.2 DEVIATION FROM STANDARD 108 8.1.3 TEST SETUP 108 8.1.4 EUT OPERATION CONDITIONS 108 8.1.5 EUT TEST CONDITIONS 108 8.1.6 TEST RESULTS 109 9 . MEASUREMENT INSTRUMENTS LIST 123 10 . EUT TEST PHOTO 125 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 5 of 128 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FCCP-1-1403C031 Original Issue. Apr. 02, 2014 Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 6 of 128 1. CERTIFICATION Equipment : Wireless N300 Wall Plate Access Point Brand Name : Tenda Model Name : W312A Applicant SHENZHEN TENDA TECHNOLOGY CO.,LTD Date of Test : Mar. 06, 2014 ~ Mar. 31, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C(15.247) / ANSI C63.4-2009 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test report (Ref No. NEI-FCCP-1-1403C031) were obtained utilizing the test procedures, test instruments, test sites that has been accredited by the Authority of TAF according to the ISO-17025 quality assessment standard and technical standard(s). Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 7 of 128 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): Applied Standard(s): FCC Part15 (15.247) , Subpart C Standard(s) Section Test Item Judgment Remark FCC 15.207 Conducted Emission PASS 15.247(d) Antenna conducted Spurious Emission PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(b)(3) Peak Output Power PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS 15.209/15.205 Transmitter Radiated Emissions PASS…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 125 of 128 10. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 126 of 128 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 127 of 128 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FCCP-1-1403C031 Page 128 of 128 Radiated Measurement Photos Above 1000MHz
