V7TW322UWIRELESS-N USB ADAPTER

11N Wireless USB Adapter User Guide -- 1 -- 11N Wireless USB Adapter User Guide -- 1 -- Copyright Statement is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. Without the permission of Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages. All the photos and product specifications mentioned in this guide are for references only. As the upgrade of software and hardware, there will be changes. And if there are changes, Tenda is not responsible for informing in advance. If you want to know more about our product information, please visit our website at www.tenda.cn . 11N Wireless USB Adapter User Guide -- 2 -- Table of Content Chapter 1 Introduction ........................................3 1.1 Product Feature .......................................4 1.2 Product Deployment .................................5 1.3 Indicator Description ................................6 1.4 Package Contents.....................................6 Chapter 2 Installation Guide.................................7 Chapter 3 Client Utility Interface......................... 12 3.1 Station Mode ......................................... 13 3.1.1 Station Mode Topology ...................... 13 3.1.2 Status ............................................ 14 3.1.3 Site Survey ..................................... 15 3.1.4 Profile Management .......................... 16 3.1.5 Statistics......................................... 18 3.1.6 WPS Setting .................................... 18 3.2 AP Mode ............................................... 20 3.2.1 AP Mode Topology ............................ 20 3.2.2 Basic Setting ................................... 21 3.2.3 Security Setting ............................... 22 3.2.4 Access Control ................................. 23 3.2.5 About ............................................. 25 Appendix One: Acronyms and Terms ................... 26 Appendix Two: Product Specification.................... 29 Appendix Three: How to connect with PSP............ 30 11N Wireless USB Adapter User Guide -3- Chapter 1 Introduction W322U utilizes the latest wireless networking technology, IEEE802.11n (Draft 2.0), and can be greatly compatible backwards with 802.11b/g standards, Provides 300Mbps receiving rate and 300Mbps sending rate, which multiples wireless transmission range and reduces “dead spots” in the wireless coverage area. Soft AP supported by W322U can help you establish wireless LAN networking fastly. Besides, WPS (Wi-Fi Protected Setup) encryption methods can free you from remembering the long passwords. Moreover, complete WMM support makes your voice and video more smooth. Especially supporting PSP, NDS and WII connections with Xlink Kai will be your best choice to enjoy on-line gaming. All in all, W322U is a cost-effective Wireless-N USB Adapter with high-performance and further wireless coverage. 11N Wireless USB Adapter User Guide -4- 1.1 Product Feature • Complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g and IEEE 802.11b standards • Provides USB2.0 port • Provides 300Mbps receiving rate and 300Mbps sending rate • Supports 20MHz/40MHz frequency width • Auto-detects and changes the network transmission rate • Provides two work modes: Infrastructure and Ad-Hoc • Supports Soft AP to establish your wireless LAN networking • supports PSP, WII and NDS connecting with Internet and Xlink Kai to enjoy on-line gaming • Supports 64/128-bit WEP, WPA, WPA2 encryption methods and 802.1x security authentication standard • Supports WPS (Wi-Fi Protected Setup) encryption method to free you from remembering long passwords 11N Wireless USB Adapter User Guide -5- • Supports WMM to make your voice and video more smooth • Easy-to-install, plug and play 1.2 Product Deployment W322U Wireless USB Adapter offers fast, reliable and cost- effective solution for wireless access. Deployment as follows; • For staff who requires higher mobility in the office, they want to have access to traditional wired or wireless network in any place of the company; • Enterprise or individual who requires often changes in lay out of network cables; • Companies or places which are not suitable for LAN cable laying out because of budget or objective building, including places of great interests, rent places or places for short-term 11N Wireless USB Adapter User Guide -6- usage; • Company or individual who avoids using expensive cables, renting cables or renting rights for access. 1.3 Indicator Description In the front panel of W3111U, there is a LED indicator blinking when data communication is going on. 1.4 Package Contents Unpack the packets, and please find the following items: ¾ One W322U 11N Wireless USB Adapter ¾ One CD-ROM ¾ One Quick Installation Guide 11N Wireless USB Adapter User Guide -7- Chapter 2 Installation Guide This chapter is to assist you how to use the included CD-ROM which comprises the Setup Wizard and the Client Utility Interface. The following steps on Setup Wizard are taken the Windows XP as example. 1. Please insert the Wireless USB Adapter into the USB port of your computer. 2. “Found New Hardware” system dialogue appears, and selects “Cancel” to use the included Setup Wizard for fast installation; of course, you also can select “Next” to install by manual. 11N Wireless USB Adapter User Guide -8- 3. Inert the included CD-ROM into the CD-ROM drive of your computer, and the Welcome screen appears. (If not appear, double click the “Setup.exe” icon.) 11N Wireless USB Adapter User Guide -9- 4. Click “Enter”. 5. Click “Next” to start installing. 11N Wireless USB Adapter User Guide -10- 6. Click “Change...” to select the directory path, or click “Nex…

Text truncated - open the document above for the full version.

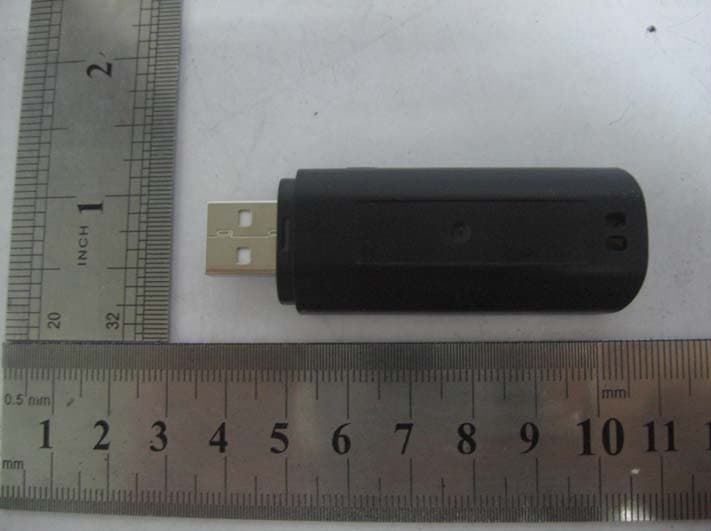

SHENZHEN TENDA TECHNOLOGY CO., LTD. Model: W322U REPORT NO.: STR09088029I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SHENZHEN TENDA TECHNOLOGY CO., LTD. Model: W322U REPORT NO.: STR09088029I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: V7TW322U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SHENZHEN TENDA TECHNOLOGY CO., LTD. Model: W322U REPORT NO.: STR09088029E-3 PAGE 1 OF 13 FCC PART 15.109 FCC Part 15.109 Measurement and Test Report For SHENZHEN TENDA TECHNOLOGY CO., LTD. 3F, MOSO INDUSTRIAL BUILDING, NO. 1031, LIMING ROAD XILI TOWN, NANSHAN DISTRICT, SHENZHEN, CHINA FCC ID: V7TW322U Report Concerns: Original Report Equipment Type: Wireless-N USB Adapter Model: W322U Report No.: STR09088029E-3 Test/Witness Engineer: Test Date: 2009-08-07 to 2009-08-13 Issue Date: 2009-08-19 Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SHENZHEN TENDA TECHNOLOGY CO., LTD. Model: W322U REPORT NO.: STR09088029E-3 PAGE 2 OF 13 FCC PART 15.109 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A) CONDUCTED EMISSIONS ................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RECEIVER SETUP.........................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 SHENZHEN TENDA TECHNOLOGY CO., LTD. Model: W322U REPORT NO.: STR09088029E-3 PAGE 3 OF 13 FCC PART 15.109 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: SHENZHEN TENDA TECHNOLOGY CO., LTD. Address of applicant: 3F, MOSO INDUSTRIAL BUILDING, NO. 1031, LIMING ROAD XILI TOWN, NANSHAN DISTRICT, SHENZHEN, CHINA Manufacturer: SHENZHEN TENDA TECHNOLOGY CO., LTD. Address of manufacturer: 3F, MOSO INDUSTRIAL BUILDING, NO. 1031, LIMING ROAD XILI TOWN, NANSHAN DISTRICT, SHENZHEN, CHINA General Description of E.U.T Items Description EUT Description: Wireless-N USB Adapter Trade Name: Tenda Model No.: W322U Rated Voltage: USB 5V Rated Current: / Size: 6.4x1.9x0.1 cm The test data is gathered from a production sample, provided by the manufacturer. 1.2 Test Standards The following report is prepared on behalf of the SHENZHEN TENDA TECHNOLOGY CO., LTD. in accordance with Part 2, Subpart J, and Part 15, Subparts A …

Text truncated - open the document above for the full version.

SHENZHEN TENDA TECHNOLOGY CO., LTD. Model: W322U REPORT NO.: STR09088029E-3 FCC PART 15.109 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission View Radiation Emission View
