VIYARC0517Bluetooth module

Product: Bluetooth module Model: ARC0517 For OEM integration only – device cannot be sold to general public. Therefore we will not supply the User’s manual, the installation manual is the official for OEM. FCC ID: VIYARC0517 IC: 7305A-ARC0517 We will ask OEM to include the following Notices required by FCC/IC on the product and in the User’s manual. ■Requirement of Labeling Please describe the following item on the host device of this module: or or *If the device is too small to show the statement above, it can be placed on the user’s manual or on a container. Contains Transmitter Module FCC ID: VIYARC0517 Contains FCC ID: VIYARC0517 Contains Transmitter Module IC ID: 7305A-ARC0517 Contains IC ID: 7305A-ARC0517 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ■Requirement of User’s Manual Statement “This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.” FCC/INDUSTRY CANADA NOTICE This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). FCC CAUTION Changes or modifications not expressly approved by Hosiden responsible for compliance could void the user’s authority to operate the equipment. Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

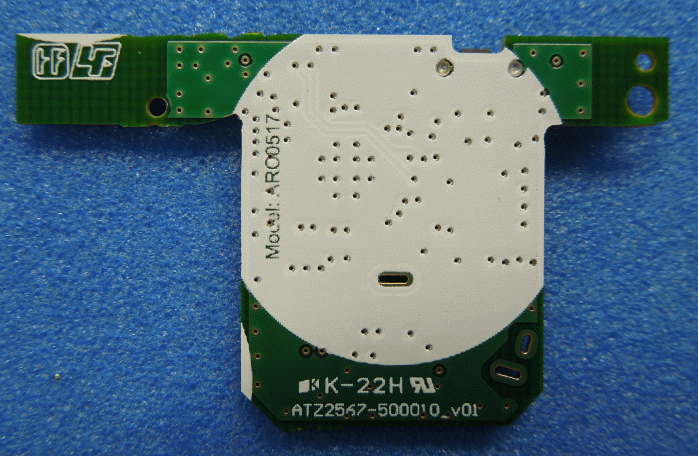

Photographs of ARC0517 <Top side of PCB> <Back side of PCB> <PWB position in the product> PWB is located here.

Label information Location of label Following ID will be displayed inside of red square area (backside of PWB) with silk printing. Detail of label Model: ARC0517 FCC ID: VIYARC0517 IC ID: 7305A-ARC0517

Photographs of ARC0517 <Top side of PCB> <Back side of PCB> <PWB position in the product> PWB is located here.

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8116 / F:: +81.596.24.8124 / W:: ul.com/jp November 14, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: VIYARC0517 To whom it may concern, We, UL Japan, Inc, hereby declare that Bluetooth module, model: ARC0517 (FCC ID: VIYARC0517) of Hosiden Corporation is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 33BE0216-HO-01-A-R1 Page : 2 of 28 Issued date : November 14, 2012 Revised date : November 21, 2012 FCC ID : VIYARC0517 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Radiated Spurious Emission .............................................................................................. 9 SECTION 6: Antenna Terminal Conducted Tests ................................................................................ 10 APPENDIX 1: Data of EMI test .............................................................................................................. 11 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 11 Number of Hopping Frequency ........................................................................................................ 13 Dwell time ......................................................................................................................................... 15 Maximum Peak Output Power .......................................................................................................... 17 Radiated Spurious Emission ............................................................................................................. 18 Conducted Spurious Emission .......................................................................................................... 22 Conducted Emission Band Edge compliance ................................................................................... 23 99%Occupied Bandwidth ................................................................................................................. 24 APPENDIX 2: Test instruments ............................................................................................................. 26 APPENDIX 3: Photographs of test setup ............................................................................................... 27 Radiated Spurious Emission ............................................................................................................. 27 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 28 Test report No. : 33BE0216-HO-01-A-R1 Page : 3 of 28 Issued date : November 14, 2012 Revised date : November 21, 2012 FCC ID : VIYARC0517 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Hosiden Corporation Address : 1-4-33, Kitakyuhoji, Yao, Osaka, 5810071, Japan Telephone Number : +81-72-924-1195 Facsimile Number : +81-72-993-0724 Contact Person : Keiji Mine SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Bluetooth module Model No. : ARC0517 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 2.0 to DC 3.3V Receipt Date of Sample : October 26, 2012 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 24MHz Radio Specification [Bluetooth (Ver. 3.0 without EDR function)] Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS, GFSK Power Supply (radio part input) : DC 1.2V Antenna type : λ/4 Meander antenna (printed on the PWB) Antenna Gain : -3.0dBi Test report No. : 33BE0216-HO-01-A-R1 Page : 4 of 28 Issued date : November 14, 2012 Revised date : November 21, 2012 FCC ID : VIYARC0517 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The EUT complies with FCC Part 15 Subpart B: 2012, final revised on August 13, 2012. 3.2 Procedures and results Item Test Procedure Specification Worst Margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC: Section 15.207 N/A *1) N/A - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 Carrier Frequency Separation FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) See data. Complied Conducted IC: - IC: RSS-210 A8.1 (b) 20dB Bandwidth FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1) Complied Conducted IC: - IC: RSS-210 A8.1 (a) Number of Hopping Frequency FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1)(iii) Complied Conducted IC: - IC: RSS-210 A8.1 (d) Dwell time FCC: FCC Public Notice DA 00-705 FCC: Section15.247(a)(1)(iii) Complied Conducted IC: - IC: RSS-210 A8.1 (d) Maximum Peak Output Power FCC: FCC Public Notice DA 00-705 FCC: Section15.247(b)(1) Complied Conducted IC: RSS-Gen 4.8 IC: RSS-210 A8.4 (2) Spurious Emission & Band Edge Compliance FCC: FCC Public Notice DA 00-705 FCC: Section15.247(d) 5.3dB 7206.000MHz, Vertical, AV Complied Conducted/ Radiated…

Text truncated - open the document above for the full version.

Test report No. : 33BE0216-HO-01-A-R1 Page : 27 of 28 Issued date : November 14, 2012 Revised date : November 21, 2012 FCC ID : VIYARC0517 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 33BE0216-HO-01-A-R1 Page : 28 of 28 Issued date : November 14, 2012 Revised date : November 21, 2012 FCC ID : VIYARC0517 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
