VPY-LBUNWireless LAN Module

THE FOLLOWING APPLIES IN THE U.S.A. AND CANADA This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may causeundesired operation of this device. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This product is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC and IC require this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this product. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of IC radio frequency Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body(excluding extermities: hands, wrists, feet and ankles). THE FOLLOWING APPLIES ONLY IN CANADA This Class B digital apparatus complies with Canadian ICES-003. The follwingcontents are indicated in a product manual. Le contenu du follwing est indique dans un manuel du produit. FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC caution: Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

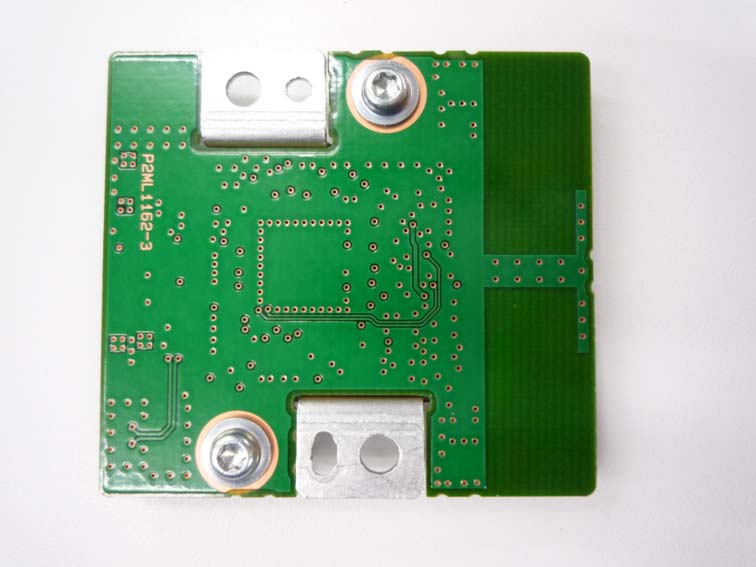

Photo [Model: LBWA1ZZUN1] Photo [Model: LBWA1ZZUN1]

Font size (Label) Model : LBWA1ZZUN1 C5ZZZ0000059 ABCDEF012345 013 AAA Font Size : 1.0 x 1.0mm Font Size : 6.5 x 6.5mm QR Code (2D barcode) Model : LBWA1ZZUN1 C5ZZZ0000059 : Customer specification No. ABCDEF012345 : MAC address 142 ABA : muRata control No. Dimension (Label) Font size (printing on PWB)

Photo [Model: LBWA1ZZUN1] Photo [Model: LBWA1ZZUN1]

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Murata Manufacturing Co., Ltd. T ype of Equipment : Wireless LAN Module (11b/g, 11n-20(2.4GHz/5745-5825MHz), 11n-40(2.4GHz/5755-5795MHz), 11a(5745-5825MHz)) Model No. : LBWA1ZZUN1 FCC ID: VPY-LBUN Murata Manufacturing Co., Ltd. declares that Model : LBWA1ZZUN1 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “LBWA1ZZUN1“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: 2.4GHzAntenna 024.69 dBm + (-0.6) dBi = 24.09 dBm EIRP Antenna 124.86 dBm + 0.8 dBi = 25.66 dBm EIRP 5745-5825MHzAntenna 021.44 dBm + 3.7 dBi = 25.14 dBm EIRP Antenna 120.40 dBm + 2.9 dBi = 23.30 dBm EIRP S = (P * G) / (4* π * r 2 ) Where P = 306.20 mW (Maximum peak output power) G = 1.20 Numerical Antenna gain; equal to0.80 dBi r =20.0 cm For: LBWA1ZZUN1S =0.07324 mW/cm 2 No. : 31HE0183-HO-01 RF Exposure / MPE Calculation

Test report No. : 31HE0183-HO-01-A Page : 2 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 11 SECTION 6: Radiated Spurious Emission ............................................................................................ 12 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Photographs of test setup ............................................................................................... 14 Conducted Emission ......................................................................................................................... 14 Radiated Spurious Emission ............................................................................................................. 15 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 16 APPENDIX 2: Data of EMI test .............................................................................................................. 17 Conducted Emission ......................................................................................................................... 17 6dB Bandwidth ................................................................................................................................. 19 Maximum Peak Output Power .......................................................................................................... 24 Radiated Spurious Emission ............................................................................................................. 31 The tested burst timing ...................................................................................................................... 51 Conducted Spurious Emission .......................................................................................................... 55 Conducted Emission Band Edge compliance ................................................................................... 95 Power Density ................................................................................................................................... 98 99%Occupied Bandwidth ............................................................................................................... 104 APPENDIX 3: Test instruments ........................................................................................................... 108 Test report No. : 31HE0183-HO-01-A Page : 3 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Co., Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6315 Facsimile Number : +81-75-955-7097 Contact Person : Mitsuhiro Hoshii SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN Module Model No. : LBWA1ZZUN1 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC5.0V Receipt Date of Sample : April 3, 2011 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab Test report No. : 31HE0183-HO-01-A Page : 4 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 2.2 Product Description General Specification Clock frequency in the system : CRYSTAL: 20MHz Specification of WLAN (IEEE802.11a/b/g) Type of radio Wireless LAN (IEEE802.11a) Wireless LAN (IEEE802.11b/g) Equipment Type Transceiver Frequency of Operation 5180MHz - 5320MHz 5500MHz - 5700MHz 5745MHz - 5825MHz 2412MHz - 2462MHz Bandwidth & Channel spacing Bandwidth : 18MHz Ch spacing : 20MHz Bandwidth : 20MHz Ch spacing : 5MHz Type of Modulation OFDM 11b: DSSS 11g: OFDM Antenna Type Pattern antenna(1/4 lambda monople antenna) [ Antenna 0, Antenna 1] Antenna Gain 5150-5350MHz : Antenna 0: 2.3dBi Antenna 1: 2.8dBi Antenna 0 : -0.6dBi Antenna 1: 0.8dBi 5470-5725MHz : Antenna 0: 3.5dBi Antenna 1: 2.7dBi 5725-5850MHz : Antenna 0: 3.7dBi Antenna 1: 2.9dBi Power Supply DC 5.0V Operating temperature range 0 to +55 deg. C. Specification of WLAN (IEEE802.11n) Type of radio Wireless LAN (IEEE802.11n) 2.4G Band MISO (20M Band) 2.4G Band MISO (40M Band) 5G Band MISO (20M Band) 5G Band MISO (40M Band) Equipment Type Transceiver Frequency of Operation 2412MHz - 2462MHz2422MHz - 2452MHz5180MHz - 5320MHz 5500MHz - 5700MHz 5745MHz - 5825MHz 5190MHz - 5310MHz 5510MHz - 5670MHz 5755MHz - 5795MHz Bandwidth & Channel spacing Bandwidth : 20MHz Ch spacing : 5MHz Bandwidth : 40MHz Ch spacing : 5MHz Bandwidth : 18MHz Ch spacing : 20MHz Bandwidth : 40MHz Ch spacing : 40MHz Type of Modulation OFDM Antenna Type Pattern antenna(1/4 lambda monople antenna) [Antenna 0, Antenna 1] Antenna Gain Antenna 0 : -0.6dBi Antenna 1: 0.8dBi 5150-5350MHz : Antenna 0…

Text truncated - open the document above for the full version.

Test report No. : 31HE0183-HO-01-A Page : 17 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2011/05/20 Company : Panasonic Corporation Report No. : 31HE0183-HO-01 Kind of EUT : WLAN Module Power : AC 120V / 60Hz Model No. : LBWA1ZZUN1 Temp./Humi. : 23deg. C / 46% RH Serial No. : 15 Engineer : Takayuki Shimada Mode / Remarks : Tx 11g 6Mbps 2462MHz, Antenna 1 LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500029.97.513.143.020.666.056.023.035.4N 0.2091034.725.413.348.038.763.253.215.214.5N 0.2788427.016.713.340.330.060.950.920.620.9N 0.3483828.524.413.341.837.759.049.017.211.3N 0.4180922.420.513.335.733.857.547.521.813.7N 6.2013724.114.113.837.927.960.050.022.122.1N 0.1500030.27.913.143.321.066.056.022.735.0L 0.2089735.024.613.348.337.963.253.214.915.3L 0.2787226.915.713.340.229.060.950.920.721.9L 0.3483527.722.513.341.035.859.049.018.013.2L 0.4180322.520.213.335.833.557.547.521.714.0L 6.2012524.214.213.838.028.060.050.022.022.0L Test report No. : 31HE0183-HO-01-A Page : 18 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2011/05/20 Company : Panasonic Corporation Report No. : 31HE0183-HO-01 Kind of EUT : WLAN Module Power : AC 120V / 60Hz Model No. : LBWA1ZZUN1 Temp./Humi. : 23deg. C / 46% RH Serial No. : 15 Engineer : Takayuki Shimada Mode / Remarks : Tx 11a 6Mbps 5785MHz, Antenna 0 LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500028.76.913.141.820.066.056.024.236.0N 0.2091034.925.313.348.238.663.253.215.014.6N 0.2789227.419.513.340.732.860.850.820.118.0N 0.3486328.725.913.342.039.259.049.017.09.8N 0.4183121.417.013.334.730.357.547.522.817.2N 6.0650421.712.113.835.525.960.050.024.524.1N 0.1500029.27.113.142.320.266.056.023.735.8L 0.2092235.224.913.348.538.263.253.214.715.0L 0.2789026.618.513.339.931.860.850.820.919.0L 0.3485128.425.213.341.738.559.049.017.310.5L 0.4182722.418.013.335.731.357.547.521.816.2L 6.0650422.012.413.835.826.260.050.024.223.8L Test report No. : 31HE0183-HO-01-A Page : 19 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth Test place Head Office EMC Lab. No.11 Measurement Room Report No. 31HE0183-HO-01 Date 04/27/2011 05/19/2011 Temperature/ Humidity 26deg. C / 48% RH 22deg. C / 58% RH Engineer Takayuki Shimada Yutaka Yoshida Mode Tx 11b Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 8.076 >500 2437 8.091 >500 2462 8.082 >500 11g Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 15.197 >500 2437 14.732 >500 2462 15.067 >500 11n-20 (2.4GHz) Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 14.994 >500 2437 15.100 >500 2462 15.060 >500 11n-40 (2.4GHz) Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2422 35.736 >500 2437 35.751 >500 2452 35.744 >500 11a Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 5745 14.813 >500 5785 15.697 >500 5825 15.649 >500 11n-20 (5GHz) Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 5745 17.460 >500 5785 15.456 >500 5825 15.105 >500 11n-40 (5GHz) Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 5755 35.146 >500 5795 36.094 >500 Test report No. : 31HE0183-HO-01-A Page : 20 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11b 11g 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Test report No. : 31HE0183-HO-01-A Page : 21 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11n-20 (2.4GHz) 11n-40 (2.4GHz) 2412MHz 2422MHz 2437MHz 2437MHz 2462MHz 2452MHz Test report No. : 31HE0183-HO-01-A Page : 22 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11a 11n-20 (5GHz) 5745MHz 5745MHz 5785MHz 5785MHz 5825MHz 5825MHz Test report No. : 31HE0183-HO-01-A Page : 23 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11n-40 (5GHz) 5755MHz 5795MHz Test report No. : 31HE0183-HO-01-A Page : 24 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Hea…

Text truncated - open the document above for the full version.

Test report No. : 31HE0183-HO-01-A Page : 14 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 31HE0183-HO-01-A Page : 15 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 31HE0183-HO-01-A Page : 16 of 109 Issued date : June 16, 2011 FCC ID : VPY-LBUN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis
