VPYLB2TGWireless Vibration Sensor Unit

Document No.: I1-2025-058 CONFIDENTIAL 1 / 29 User Manual Version 1.1 Product LBAC0ZZ2TG (Wireless Vibration Sensor Unit) Region / Certification US / FCC Variation model LBAC0ZZ2TH-EK229 LBAC0ZZ2TF LBAC0ZZ2TJ Document No.: I1-2025-058 CONFIDENTIAL 2 / 29 REVISION HISTORY Version Date Description 1.0 Mar.2025 Initial release 1.1 Apr. 2025 Correction of errors regarding IC numbers Document No.: I1-2025-058 CONFIDENTIAL 3 / 29 GLOSSARY BLE Bluetooth Low Energy, a wireless standard designed and maintained by Bluetooth Special Interest Group (SIG) Sub GHz Wireless telecommunication using frequencies below 1GHz Gateway A dedicated device/product that can receive or transmit data to sensor node(s) G g-force per unit mass, 1G = conventional value of gravitational acceleration on Earth, i.e. 9.8m/s2 BPF Band pass filter Kurtosis In statistical analysis, Kurtosis is a measure of whether the data is heavy-tailed or light- tailed relative to a normal distribution PBT Polybutylene Terephthalate, a thermoplastic engineering polymer Document No.: I1-2025-058 CONFIDENTIAL 4 / 29 CONTENTS 1 Introduction ............................................................................................................................... 6 2 Specifications ........................................................................................................................... 7 2.1 Devices .......................................................................................................................................... 7 2.2 Physical size & dimensions ......................................................................................................... 8 2.3 Label ............................................................................................................................................ 12 2.4 Block Diagram ............................................................................................................................ 16 3 Antenna information ............................................................................................................... 17 3.1 Antenna diversity ....................................................................................................................... 17 4 Manufacturing information ..................................................................................................... 18 4.1 Manufacturer .............................................................................................................................. 18 4.2 Factory ......................................................................................................................................... 18 5 Applicable standards and certification .................................................................................. 19 6 Other information ................................................................................................................... 25 6.1 Storage ........................................................................................................................................ 25 6.2 Usage caution ............................................................................................................................. 26 Document No.: I1-2025-058 CONFIDENTIAL 5 / 29 6.3 Usage limitations ........................................................................................................................ 27 7 Product warranty .................................................................................................................... 28 7.1 Warranty period and its scope .................................................................................................. 28 7.2 Warranty exception .................................................................................................................... 29 Document No.: I1-2025-058 CONFIDENTIAL 6 / 29 1 Introduction • LBAC0ZZ2TG is a wireless sensor unit that measures vibrations and sends data over Sub-1GHz radio. • LBAC0ZZ2TH-EK229 is the explosion-proof version of LBAC0ZZ2TG. The circuit used is the same as LBAC0ZZ2TG. • LBAC0ZZ2TF is a product with sensor circuit parameters tuned for a different measurement target than LBAC0ZZ2TG. The installation method has been changed from screws to magnets. The other wireless circuits and power circuits are the same as LBAC0ZZ2TG. • LBAC0ZZ2TJ is the explosion-proof version of LBAC0ZZ2TF. The circuit used is the same as LBAC0ZZ2TF. • It can be used in combination with a gateway (LBAC0ZZ1SU), sold separately, to collect vibration data. • It is equipped with a sensor to detect acceleration and a sensor to detect the installation surface temperature. • It calculates acceleration data and converts it to velocity data. • This product has the function to send and receive data via OTA (Over-The-Air) using Bluetooth Low Energy. • Operates on a dedicated Li battery that can be replaced. Replacement batteries (LBXXZZ1LZ-006) are sold separately. • This product is used in general environments such as factories and buildings. This product is not intended to be used in environments that require high reliability such as aircraft, automobiles, and power plants. Document No.: I1-2025-058 CONFIDENTIAL 7 / 29 2 Specifications 2.1 Devices Name LBAC0ZZ2TG LBAC0ZZ2TH- EK229 LBAC0ZZ2TF LBAC0ZZ2TJ Wireless communications Proprietary low-power-wide-area telecommunication Bluetooth® Low Energy Class 3 Acceleration Sensor Detection frequency 10Hz...17kHz 10Hz...17kHz 10Hz...10kHz 10Hz...10kHz Rating ±30G ±30G ±30G ±30G Temperature sensor Rating -20°C...+85°C Resolution 0.1°C @ 25°C Accuracy ±1°C Power supply Source Li-metal battery ER-1/2AA, BR-1/2AA Voltage 2.1Vdc (min.) 3.3Vdc (typ.) 3.6Vdc (max.) Operating environment Temperature -20°C...+60°C (installation surface +85°C max.) Humidity 0%RH...90%RH (non-condensing) Explosion proof N/A Ex ic IIC T4 Gc Ta = -10°C...+60°C N/A Ex ic IIC T4 Gc Ta = -10°C...+60°C Package Body material PBT UL94 …

Text truncated - open the document above for the full version.

Date: April 22, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: VPYLB2TG Grantee FRN: 0017033432 Murata Manufacturing Co., Ltd. (“the applicant”) as required by section §2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: Mark Tucker Company Name: Murata Electronics North America, Inc. FRN: 0024753089 Company Address: 3330 Cumberland Blvd., SE, Suite 700, Atlanta, GA 30339, USA Email: [email protected] Sincerely yours, Signature: Eigo Shimakura Murata Manufacturing Co., Ltd. Docusign Envelope ID: 2B08DEAE-02B1-4F0A-9B20-24B7790C1448

Date: April 24, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation FCC ID: VPYLB2TG Grantee FRN: 0017033432 To whom it may concern: FCC US Agent Contact Person: Mark Tucker Company Name: Murata Electronics North America, Inc. FRN: 0024753089 Company Address: 3330 Cumberland Blvd., SE, Suite 700, Atlanta, GA 30339, USA Email: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Murata Manufacturing Co., Ltd. (“the applicant”) for the above referenced FCC ID. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section §2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely yours, Signature: Mark Tucker Murata Electronics North America, Inc. Docusign Envelope ID: 518C4990-A08D-42F3-8A91-3FEF8DADD651

Date: April 22, 2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: VPYLB2TG Murata Manufacturing Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Murata Manufacturing Co., Ltd. (“the applicant”) certifies that, the device does not have cybersecurity and / or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, identified on the Covered List installed on the device, nor will it be installed by the applicant anytime after certification. Murata Manufacturing Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Eigo Shimakura Murata Manufacturing Co., Ltd. Docusign Envelope ID: 2B08DEAE-02B1-4F0A-9B20-24B7790C1448

Special Power of Attorney To whom it may concern: I, Kenji Hayashikoshi of Murata Manufacturing Co., Ltd. hereby appoint Eigo Shimakura of Murata Manufacturing Co., Ltd. to represent me to act on my behalf to do any and all of the following: Sign the following documents on my behalf and apply to FCC for the products - Letter of agency and anti-drug - Confidentiality cover letters - Any other application document that requires a signature by grantee. The rights, powers and authority in fact to exercise any and all of the rights and powers herein granted shall commence and be in full force and effective for one year from Sep 13, 2024 unless specifically extended or terminated by either party. Date: Sep 13, 2024 Place: Japan Kenji Hayashikoshi Murata Manufacturing Co., Ltd.

Request for Short-Term Confidentiality Date: April 22, 2025 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID: VPYLB2TG Applicant: Murata Manufacturing Co., Ltd. To whom it may concern: Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization based on the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ____________________________________ Eigo Shimakura Murata Manufacturing Co., Ltd. Docusign Envelope ID: 2B08DEAE-02B1-4F0A-9B20-24B7790C1448

Request for Confidentiality Date: April 22, 2025 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID: VPYLB2TG Applicant: Murata Manufacturing Co., Ltd. To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Operational Description Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Eigo Shimakura Murata Manufacturing Co., Ltd. Docusign Envelope ID: 2B08DEAE-02B1-4F0A-9B20-24B7790C1448

Letter of Authorization Date: April 22, 2025 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 FCC ID: VPYLB2TG Applicant: Murata Manufacturing Co., Ltd. To whom it may concern: We, the undersigned, hereby authorize Shinya Watanabe of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely, Eigo Shimakura Murata Manufacturing Co., Ltd. Docusign Envelope ID: 2B08DEAE-02B1-4F0A-9B20-24B7790C1448

Document No.: I1-2025-057 CONFIDENTIAL 6 / 28 2 Appearance and Part Names 2.1 External 2.1.1 LBAC0ZZ2TG Document No.: I1-2025-057 CONFIDENTIAL 7 / 28 2.1.2 LBAC0ZZ2TH-EK229 Document No.: I1-2025-057 CONFIDENTIAL 8 / 28 2.1.3 LBAC0ZZ2TF Document No.: I1-2025-057 CONFIDENTIAL 9 / 28 2.1.4 LBAC0ZZ2TJ

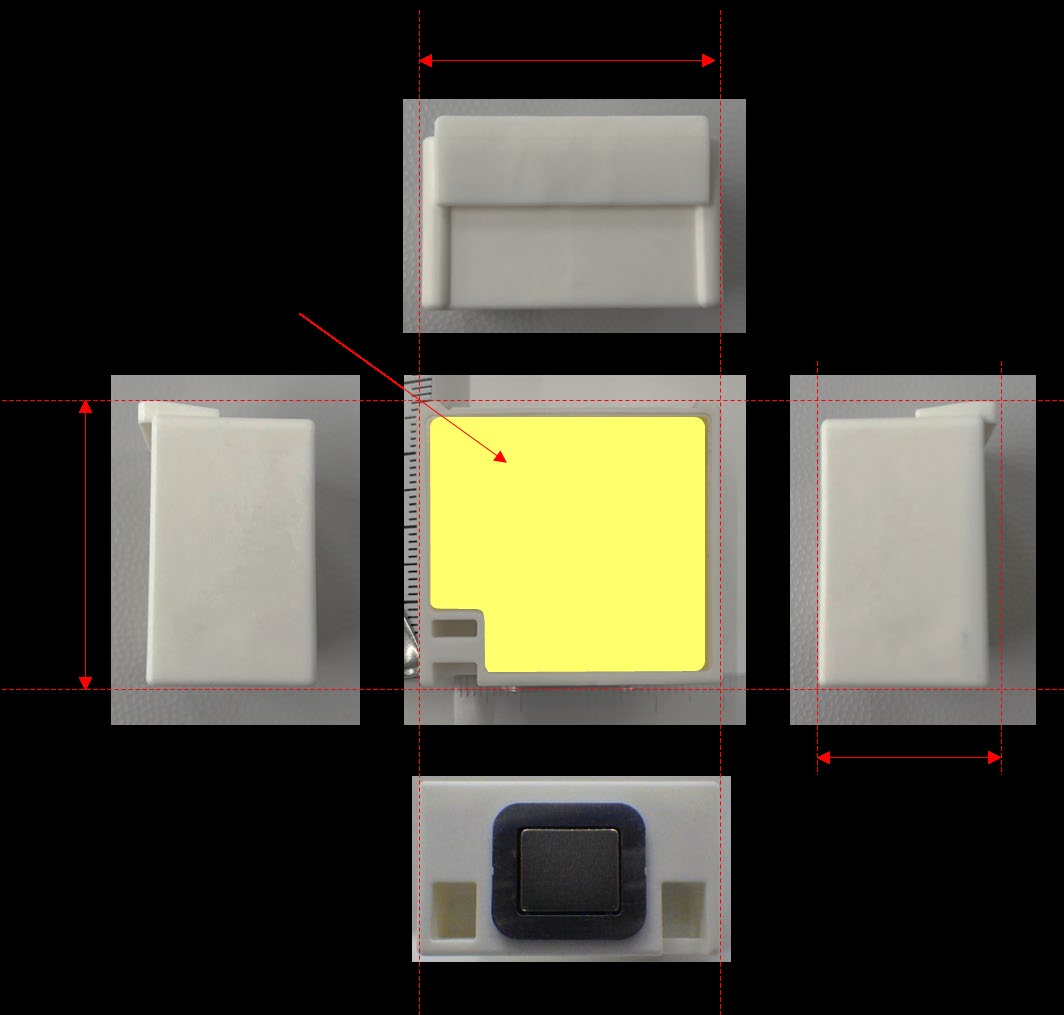

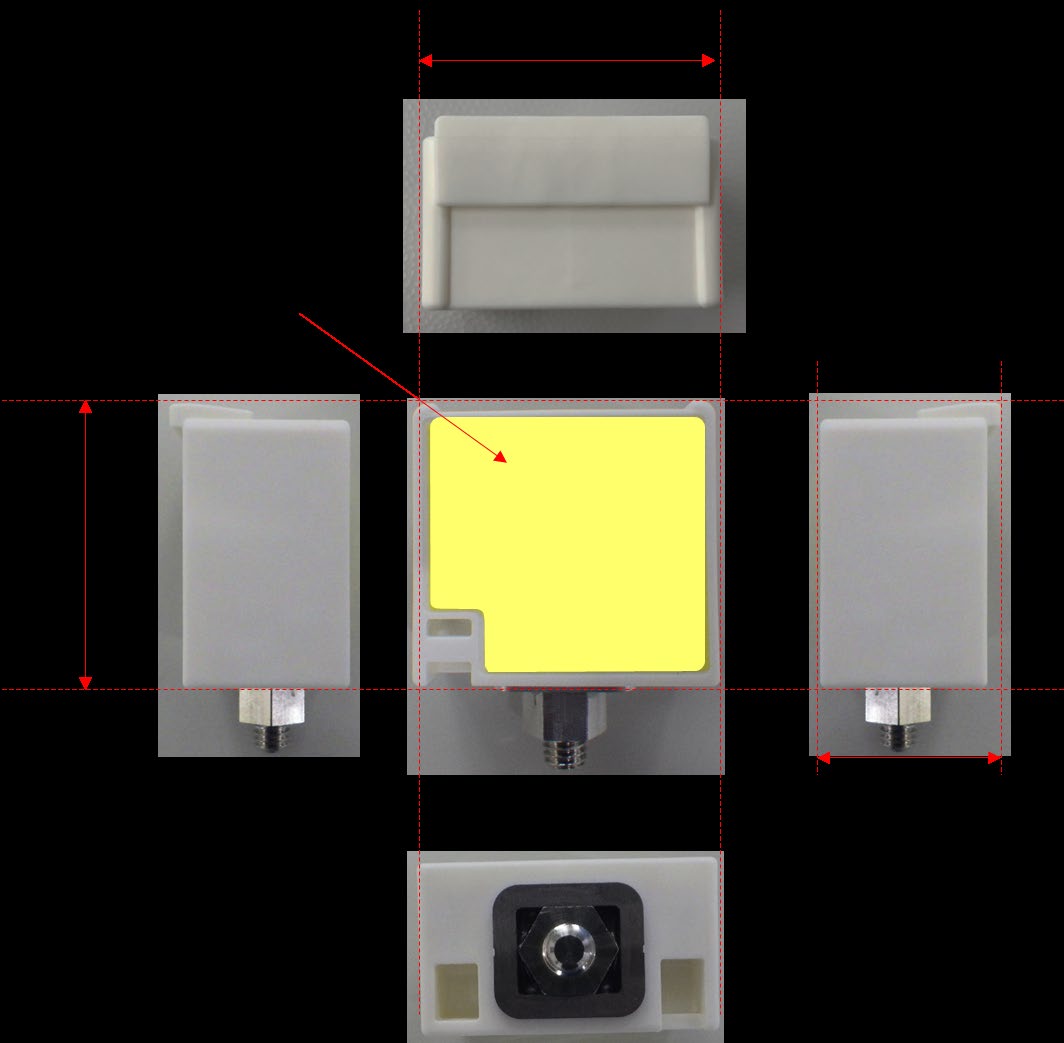

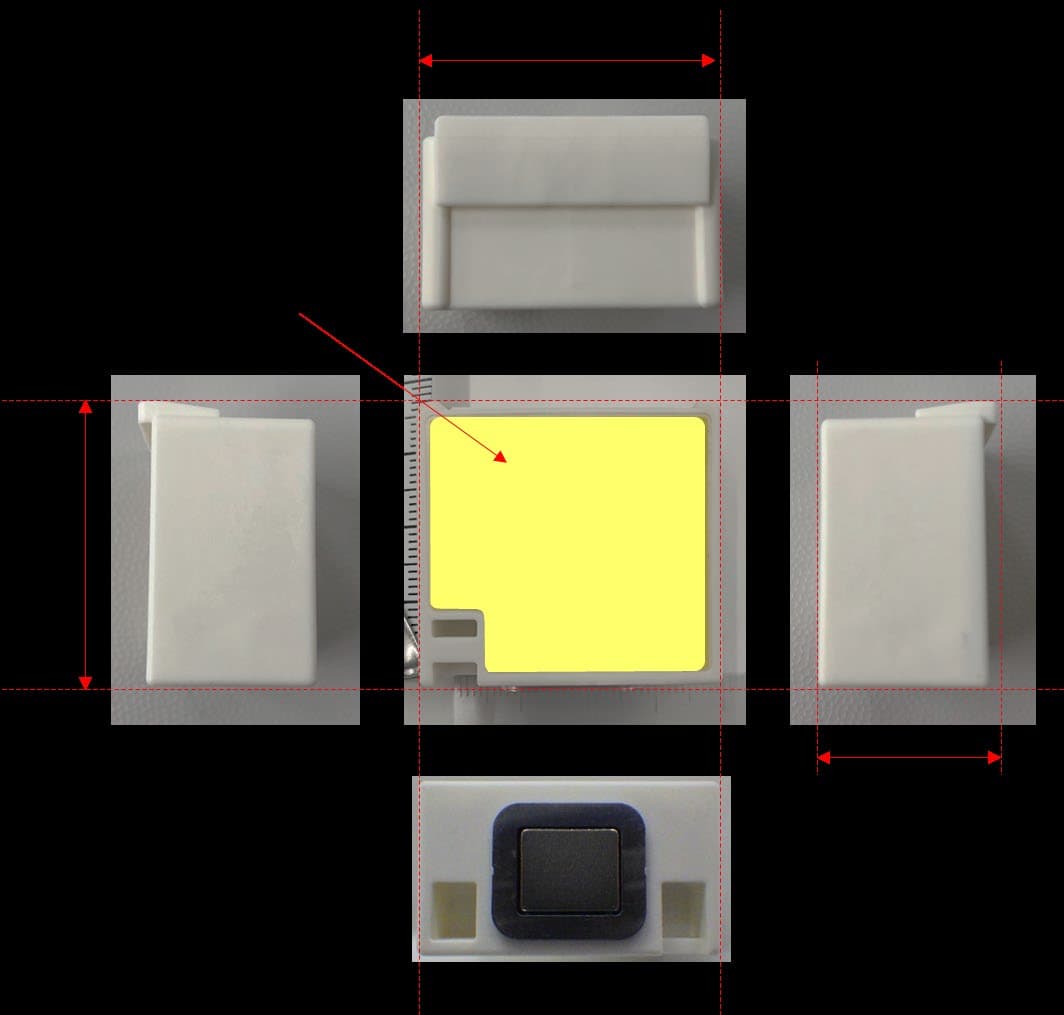

Document No.: I1-2025-057 CONFIDENTIAL 1 / 4 1.1 Label 1.1.1 LBAC0ZZ2TG No Item Detail ① Product Name (PMN and HVIN for ISED) LBAC0ZZ2TG ② Product Code 001<***> (*** varies depending on the production period) ③ Serial No. AAAABBBBCCCC (hex) ④ 2D barcode Serial No. ⑤-1 FCC ID for the product VPYLB2TG ⑤-2 FCC ID for the BLE module YCP-STM32WB5M001 ⑥-1 IC Number for the product 772C-LB2TG ⑥-2 IC Number for the BLE module 8976A-STM32WB5M01 ⑦ TELEC Mark & code 001-P0XXXX ⑧ Brand Logo muRata *The labels are protected with a water- and weather-resistant film so that they do not peel off easily or the writing does not fade. Document No.: I1-2025-057 CONFIDENTIAL 2 / 4 1.1.2 LBAC0ZZ2TH-EK229 No Item Detail ① Product Name (PMN and HVIN for ISED) LBAC0ZZ2TH-EK229 ② Product Code 001<***> (*** varies depending on the production period) ③ Serial No. AAAABBBBCCCC (hex) ④ 2D barcode Serial No. ⑤-1 FCC ID for the product VPYLB2TG ⑤-2 FCC ID for the BLE module YCP-STM32WB5M001 ⑥-1 IC Number for the product 772C-LB2TG ⑥-2 IC Number for the BLE module 8976A-STM32WB5M01 ⑦ TELEC Mark & code 001-P0XXXX ⑧ Explosion-proof conditions Ex ic IIC T4 Gc Ta =-10°C~+60°C ⑨ Explosion-proof approval mark The content will change each time the explosion- proof certification is renewed. *The labels are protected with a water- and weather-resistant film so that they do not peel off easily or the writing does not fade. Document No.: I1-2025-057 CONFIDENTIAL 3 / 4 1.1.3 LBAC0ZZ2TF No Item Detail ① Product Name (PMN and HVIN for ISED) LBAC0ZZ2TF ② Product Code 001<***> (*** varies depending on the production period) ③ Serial No. AAAABBBBCCCC (hex) ④ 2D barcode Serial No. ⑤-1 FCC ID for the product VPYLB2TG ⑤-2 FCC ID for the BLE module YCP-STM32WB5M001 ⑥-1 IC Number for the product 772C-LB2TG ⑥-2 IC Number for the BLE module 8976A-STM32WB5M01 ⑦ TELEC Mark & code 001-P02171 ⑧ Brand Logo muRata *The labels are protected with a water- and weather-resistant film so that they do not peel off easily or the writing does not fade. Document No.: I1-2025-057 CONFIDENTIAL 4 / 4 1.1.4 LBAC0ZZ2TJ No Item Detail ① Product Name ES3M VSN2 ② Product Code (PMN and HVIN for ISED) LBAC0ZZ2TJ ③ Serial No. AAAABBBBCCCC (hex) ④ 2D barcode Serial No. ⑤-1 FCC ID for the product VPYLB2TG ⑤-2 FCC ID for the BLE module YCP-STM32WB5M001 ⑥-1 IC Number for the product 772C-LB2TG ⑥-2 IC Number for the BLE module 8976A-STM32WB5M01 ⑦ TELEC Mark & code 001-P02171 ⑧ Explosion-proof conditions Ex ic IIC T4 Gc Ta =-10°C~+60°C ⑨ Explosion-proof approval mark The content will change each time the explosion- proof certification is renewed. *The labels are protected with a water- and weather-resistant film so that they do not peel off easily or the writing does not fade.

Document No.: I1-2025-057 CONFIDENTIAL 10 / 28 2.2 Internal 2.2.1 LBAC0ZZ2TG Document No.: I1-2025-057 CONFIDENTIAL 11 / 28 2.2.2 LBAC0ZZ2TH-EK229 Document No.: I1-2025-057 CONFIDENTIAL 12 / 28 2.2.3 LBAC0ZZ2TF Document No.: I1-2025-057 CONFIDENTIAL 13 / 28 2.2.4 LBAC0ZZ2TJ Document No.: I1-2025-057 CONFIDENTIAL 14 / 28 2.3 RF module 2.3.1 LBAC0ZZ2TG Document No.: I1-2025-057 CONFIDENTIAL 15 / 28 2.3.2 LBAC0ZZ2TH-EK229 Document No.: I1-2025-057 CONFIDENTIAL 16 / 28 2.3.3 LBAC0ZZ2TF Document No.: I1-2025-057 CONFIDENTIAL 17 / 28 2.3.4 LBAC0ZZ2TJ

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com March 12, 2025 FCC ID: VPYLB2TG To whom it may concern, We, UL Japan, Inc, hereby declare that Vibration Sensor, model: LBAC0ZZ2TG (FCC ID: VPYLB2TG) of Murata Manufacturing Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 0.9244 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power (Time average) was 10 mW So for this device: 10 mW[maximum average output power]/5 mm[minimum separation distance]*√0.9244 = 1.9 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takumi Shimada Engineer

Test Report No. 15457600H-C-R1 Page 1 of 29 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No. 15457600H-C-R1 Customer Murata Manufacturing Co., Ltd. Description of EUT Wireless Vibration Sensor Unit Model Number of EUT LBAC0ZZ2TG FCC ID VPYLB2TG Test Regulation FCC Part 15 Subpart C Test Result Complied Issue Date May 19, 2025 Remarks - Representative Test Engineer Approved By Yuichiro Yamazaki Engineer Takumi Shimada Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 24.0 Test Report No. 15457600H-C-R1 Page 2 of 29 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 15457600H-C This report is a revised version of 15457600H-C. 15457600H-C is replaced with this report. Revision Test Report No. Date Page Revised Contents - (Original) 15457600H-C March 12, 2025 - 1 15457600H-C-R1 May 19, 2025 Cover page, Section 2.1 Identification of EUT, Section 4.2 Configuration and Peripherals -Modified Description of EUT Vibration Sensor→Wireless Vibration Sensor Unit Section 2.2 Product Description -Modified explanatory note *1). *1) This Bluetooth (Low Energy) module already certified as FCC ID: YCP-32WB5MMGH02. → *1) This Bluetooth (Low Energy) module already certified as FCC ID: YCP-STM32WB5M001. APPENDIX 1: Test Data Radiated Spurious Emission -Add 20dBc data sheet for Mode: Tx 920.4 MHz.  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement b y the A2LA accreditation body.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc. Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided b y the customer for this report is identified in SECTION 1.  The laboratory is not responsible for information provided by the customer which can impact the validit y of the results.  For test report (s) referred in this report, the latest version (including any revisions) is always referred. Test Report No. 15457600H-C-R1 Page 3 of 29 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation IEC International Electrotechnical Commission AC Alternating Current IEEE Institute of Electrical and Electronics Engineers AFH Adaptive Frequency Hopping IF Intermediate Frequency AM Amplitude Modulation ILAC International Laboratory Accreditation Conference Amp, AMP Amplifier ISED Innovation, Science and Economic Development Canada ANSI American National Standards Institute ISO International Organization for Standardization Ant, ANT Antenna JAB Japan Accreditation Board AP Access Point LAN Local Area Network ASK Amplitude Shift Keying LIMS Laboratory Information Management System Atten., ATT Attenuator MCS Modulation and Coding Scheme AV Average MRA Mutual Recognition Arrangement BPSK Binary Phase-Shift Keying N/A Not Applicable BR Bluetooth Basic Rate NIST National Institute of Standards and Technology BT Bluetooth NS No signal detect. BT LE Bluetooth Low Energy NSA Normalized Site Attenuation BW BandWidth NVLAP National Voluntary Laboratory Accreditation Program Cal Int Calibration Interval OBW Occupied Band Width CCK Complementary Code Keying OFDM Orthogonal Frequency Division Multiplexing Ch., CH Channel OFDMA Orthogonal Frequency Division Multiple Access CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PP Preamble Puncturing DSSS Direct Sequence Spread Spectrum PRBS Pseudo-Random Bit Sequence EDR Enhanced Data Rate PSD Power Spectral Density EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QAM Quadrature Amplitude Modulation EMC ElectroMagnetic Compatibility QP Quasi-Peak EMI ElectroMagnetic Interference QPSK Quadri-Phase Shift Keying EN European Norm RBW Resolution Band Width ERP, e.r.p. Effective Radiated Power RDS Radio Data System EU European Union RE Radio Equipment EUT Equipment Under Test RF Radio Frequency Fac. Factor RMS Root Mean Square FCC Federal Communications Commission RSS Radio Standards Specifications FHSS Frequency Hopping Spread Spectrum Rx Receiving FM Frequency Modulation SA, S/A Spectrum Analyzer Freq. Frequency SG Signal Generator FSK Frequency Shift Keying SVSWR Site-Voltage Standing Wave Ratio GFSK Gaussian Frequency-Shift Keying TR Test Receiver GNSS Global Navigation Satellite System Tx Transmitting GPS Global Positioning System VBW Video BandWidth Hori. Horizontal Vert. Vertical ICES Interference-Causing Equipment Standard WLAN Wireless LAN Test Report No. 15457600H-C-R1 Page 4 of 29 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information .…

Text truncated - open the document above for the full version.

1 murata.comCopyright © Murata Manufacturing Co., Ltd. All rights reserved.09 April 2025 1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. Type2TF_Antenna FCC/ISED Radio Act Application Antenna Information 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. Type2TF_Antenna Antenna Application information Target model part number:LBAC0ZZ2TF Variant model part number:LBAC0ZZ2TG LBAC0ZZ2TH-EK229 LBAC0ZZ2TJ Application Antenna Name: Type2TF_Antenna Application Antenna Type : Monopole antenna( Wire Antenna ) Application Antenna Gain : -10.3dBi @ 860MHz band -8.9dBi @ 920MHz band 3 murata.com Copyright © Murata Manufacturing Co., Ltd. All rights reserved.09 April 2025 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. Type2TF_Antenna Antenna Under Test Report 4 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 1. Test method for antenna gain measurement 2. Test Equipment (Details of SG32) 3. DUT placement status 4. DUT Appearance 5. Measurement direction 6. Measurement result Index 5 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 1. Test method for antenna gain measurement •Test method for antenna gain measurement: Standard antenna method (comparative method) * Comparing a measured antenna to a standard antenna with a known gain factor •Equipment used for antenna gain measurement (model name, serial number, calibration date, etc.); - Measurement system Microwave Vision Group (former SATIMO) SG32 (details next page) - Equipment PAC (MW 000021H-0068) E4428C (MY45280451, MY45280466) - Calibration date September 12, 2018 - Antenna gain measurement date / Measurement person March 28, 2022 / Harumi Matsuoka 6 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 2. Test Equipment (Details of SG32) Peak gain variation is secured within ±0.75 dB by system calibration. Anechoic chamber sizeApproximately 3.5m x 3.5m x 3m (H) Frequency band 800~6000MHz (18~40GHz compatible with Option) Measurement time Elevation 1 cutReal time Global surface measurement < Approx. 20 seconds (when measuring 10 frequencies) Measurement uncertainty Peak gain < +/-0.75dB (1.0~6.0GHz) < +/-1.0dB (0.8~1.0GHz) Low gain< +/-2dB (@-20dB from peak) Dynamic range70dB Cross Polar Isolation> 45dB DUT size 0.8 GHz1.8 GHz2.5 GHz6 GHz 75 cm75 cm65 cm30 cm 7 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 3. DUT placement status 8 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 4. DUT Appearance 31 18 <PCB> UNIT : mm 9 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 5. Measurement direction 0 90 180 270 Y(90degree) X(0degree) Y(90degree) Z(0degree) X(90degree) Z(0degree) 0 90 180 270 XY plane YZ plane ZX plane 0 90 180 270 2D Directionalindication Horizontal Vertical XY plane YZ plane ZX plane ViewViewView <Condition 1> 10 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 5. Measurement direction 0 90 180 270 Y(90degree) X(0degree) Y(90degree) Z(0degree) X(90degree) Z(0degree) 0 90 180 270 XY plane YZ plane ZX plane 0 90 180 270 2D Directionalindication Horizontal Vertical XY plane YZ plane ZX plane ViewViewView <Condition 2> 11 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. Chain1 : Monopole Antenna Part number: Type2TF_Antenna 6. Measurement result @866.5MHz @916MHz <Efficiency> <Directivity> *Red color shows peak gain HOR.VER.HOR.VER.HOR.VER. MAX -12.7-18.4 MAX -15.9-11.7 MAX -11.7-16.3 AVE -16.0-21.6 AVE -18.3-13.3 AVE -15.6-17.7 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical XY planeXY planeXY plane XY planeZX planeYZ plane [dBi][dBi][dBi] [dBi][dB] Total hor.ver.hor.ver.hor.ver.Efficiency MAX.-12.9-18.6-15.9-12.1-12.1-16.2 AVE.-16.4-21.7-18.5-13.7-16.0-17.9-13.8 MAX.-12.7-18.4-15.9-11.7-11.7-16.3 AVE.-16.0-21.6-18.3-13.3-15.6-17.7-13.5 MAX.-12.5-18.2-15.6-11.6-11.5-16.1 AVE.-15.9-21.2-18.1-13.1-15.5-17.2-13.2 928MHz LINEAR XY-planeYZ-planeZX-plane POLAMIZATION 902MHz 916MHz HOR.VER.HOR.VER.HOR.VER. MAX -14.8-20.5 MAX -18.5-14.0 MAX -13.9-18.8 AVE -18.3-23.5 AVE -20.9-15.6 AVE -17.8-20.0 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical XY planeXY planeXY plane XY planeZX planeYZ plane [dBi][dBi][dBi] [dBi][dB] Total hor.ver.hor.ver.hor.ver.Efficiency MAX.-15.1-21.0-18.9-14.3-14.3-19.2 AVE.-18.6-24.0-21.4-15.9-18.2-20.4-16.1 MAX.-14.8-20.5-18.5-14.0-13.9-18.8 AVE.-18.3-23.5-20.9-15.6-17.8-20.0-15.7 MAX.-14.5-20.3-18.2-13.7-13.7-18.5 AVE.-18.1-23.2-20.6-15.4-17.6-19.8-15.5 LINEAR XY-planeYZ-planeZX-plane 865MHz POLAMIZATION 866.5MHz 868MHz 12 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 6. Measurement result HOR.VER.HOR.VER.HOR.VER. MAX -10.5-17.9 MAX -19.8-8.9 MAX -8.9-17.3 AVE -13.1-22.3 AVE -23.6-10.1 AVE -12.7-21.3 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 horizontal vertical XY planeXY planeXY plane XY planeZX planeYZ plane [dBi][dBi][dBi] [dBi][dB] Total hor.ver.hor.ver.hor.ver.Efficiency MAX.-10.6-18.0-19.7-9.1-9.1-17.7 AVE.-13.3-22.4-23.8-10.3-12.8-21.4-11.6 MAX.-10.5-17.9-19.8-8.9-8.9-17.3 AVE.-13.1-22.3-23.6-10.1-12.7-21.3-11.4 MAX.-10.3-17.9-19.3-8.9-8.9-16.5 AVE.-12.9-21.9-23.1-9.9-12.5-20.7-11.2 928MHz LINEAR XY-planeYZ-planeZX-plane POLAMIZATION 902MHz 916MHz HOR.VER.HOR.VER.HOR.VE…
