Sychip Wireless-Uart User Guide Sychip Wireless-Uart OEM User Guide Author: Lei Liu Version: 1.2 Release Date: October 20, 2012 Sychip Wireless-Uart User Guide CHANGE HISTORY Version Date Remarks Name 1.0 09/25/2012 Release V1.0; Lei Liu 1.1 10/10/2012 Fixed some bugs Jin Li 1.2 10/20/2012 Optimized the document framework Jin Li Sychip Wireless-Uart User Guide www.sychip.com.cn Page 3 of 12 2010-04 1. Brief introduction 1.1 About this document This document describes how to use the SyChip Wireless-Uart EVK. It contains hardware installation, tcp/udp connect, AT configuration commands. Features: Support IEEE802.11b/g/n Wireless Standards. Support the wifi work at AP/STA mode. Support WEP, WPA, WPA2 Security. Support configurate uart interface easily. Support TCP/IP/UDP network protocol stack. Support send AT commands through uart to control the module. Single +3.3v power supply. 1.2 Sychip ES3 EVK Hardware Introduction JTAG Expand pins Uart1 Uart2 Configuration Button Reset Button Figure 1 Sychip Wireless-Uart EVK +5v GND Vcc Jump Figure 1 is Sychip Wireless-Uart EVK, it is composed of mcu, wifi, power, Uart1, Uart2, JTAG Sychip Wireless-Uart User Guide www.sychip.com.cn Page 4 of 12 2010-04 interfaces etc. (1)Power supply: Vcc Jump(red circle marked) provides two different modes of power supply. If jump to the right pin, the module power on through the uart. If jump to the left pin, the module power on through the +5v and GND pin. Note：Under normal circumstances using the uart power supply. (2)Uart: Uart pins function, uart1 is same to the uart2, according to the figure 1 position: none Rts Rx GND none Cts Tx Vdd_usb (3)Button: The EVK has 2 buttons: configuration button and reset button. • Reset button: Press the reset button, the module will reset the device. • Configuration button: Press the Configuration button for two or three seconds, press the reset button at the same time, the module into configuration function, customers can configurate all parameters through AT commands. (4)Jtag: The jtag’s function is download the code and debug. (5)Expand pins: The expand pins is reserved for expansion functions. Sychip Wireless-Uart User Guide www.sychip.com.cn Page 5 of 12 2. Wireless-Uart EVK Operation 2.1 Hardware installation 1. Connect EVK and PC through USB cable. UART-USB converter boart USB cable to PC PC Figure 2. Wireless-Uart EVK Demo Under Wireless-Uart EVK normal mode, uart1 connected as shown in figure 2. Power supply through uart1. 2. Install USB-UART converter driver (FTDI D2xx driver). Customer can download from below website. http://www.ftdichip.com/Drivers/D2XX.htm 3. Please open device manager. Customer can see USB Serial Port if driver install is succeeded. Sychip Wireless-Uart User Guide www.sychip.com.cn Page 6 of 12 Figure 3. usb serial port 4. Then open serial terminal on the pc side, set the relevant parameters as shown in the following figure. Baudrate = 115200, Data_bits = 8, Stop Bits = 1, pariyt = none, Flow Control = none. These values are factory setting. Note: Under the configuration mode, the uart parameters are same to the factory setting [1] . Figure 4. uart configuration Sychip Wireless-Uart User Guide www.sychip.com.cn Page 7 of 12 2.2 Work Mode 2.2.1 TCP Server mode Once EVK power on, the module start at factory setting mode [1] . 1. Configuration the device’s TCP/IP properties. Obtain an ip address automatically, show as figure 5. Figure 5. configuration the tcp/ip properties 2. Scan and join the module ap on the device. Show as figure 6. Sychip Wireless-Uart User Guide www.sychip.com.cn Page 8 of 12 Figure 6. scan and join the module ap 3. Open tcp client on device side. Set the server ip_addr=192.168.1.1, port=3000. Protocal=TCP. As show in the following figure: Connect button Server ip Figure 7. tcp client configuration 4. Click the connect button, achieved the transparent transmission. Sychip Wireless-Uart User Guide www.sychip.com.cn Page 9 of 12 TCP Send data TCP Receive data Figure 8. tcp client transmission data on device Uart Receive data Uart Send data Figure 9. uart transmission data on PC This is the end of factory setting work mode. 2.2.2 TCP Client mode 2.2.3 UDP Server/Client mode Sychip Wireless-Uart User Guide www.sychip.com.cn Page 10 of 12 2.4 Webpage Demo 2.1 SystemInfo 2.3 AT configuration commands If customers press the configuration button when reset the device, the module into the configuration mode. AT commands can use the uppercase or lowercase letters, but the parameters must be set as special value, case-sensitive. AT commands application: • help /?: Input “help” or ”?” <CR>. This command can show all the commands and use information. • Tcp-client transmission configure. Tcp-client work mode’s topology structure: Sychip Wireless-Uart User Guide www.sychip.com.cn Page 11 of 12 (1) Uart parameters configuration If need to change the uart parameters: Example: BaudRate=9600, DataBits=8, StopBits=1, Parity=none, FlowCtrl=none. (2) Wifi parameters configuration If need to change the wifi mode as client: Example connect h3c ssid: sta/ap=sta, ssid=h3c, channel=1, security=open (3) Network parameters configuration If need to change the network parameters: Example enable the dhcpc, not use the static ip: dhcpd=0, dhcpc=1, ip_addr=0.0.0.0, net_mask=0.0.0.0, gw_addr=0.0.0.0. (4) Work module configuration If need to change the work parameters: Example change the work_mode as client: tcp/udp=tcp, client/server=client, ip_addr=10.3.1.80, port=3000. After the configuration, Open serial terminal on the pc side. Sychip Wireless-Uart User Guide www.sychip.com.cn Page 12 of 12 Then press the reset button, or input at+reboot command, the module into the tcp-client transmission work mode. All AT commands parameters’s value and function please reference document [1] . 3. Reference documents • [1] Sychip wireless-uart interface.doc. Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant t…

Text truncated - open the document above for the full version.

Part Number: CMWC1ZZAAF FCC ID: VPYAAF Request for Modular Approval 28.08.2013 In accordance with FCC Part 15, we, Murata Manufacturing Co.,Ltd hereby request a modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the Limited Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation / data inputs. 2) The module does regulate its own power supply. 3) The module can be tested as a stand-alone device. 4) The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 5) The module does have instruction for proper use. 6) The module does meet the FCC RF regulations. Limited Modular Transmitter Approval, is requested, instead of Modular Transmitter Approval, because the following condition is not met: 1) The module does not have its own RF shielding. Signature:

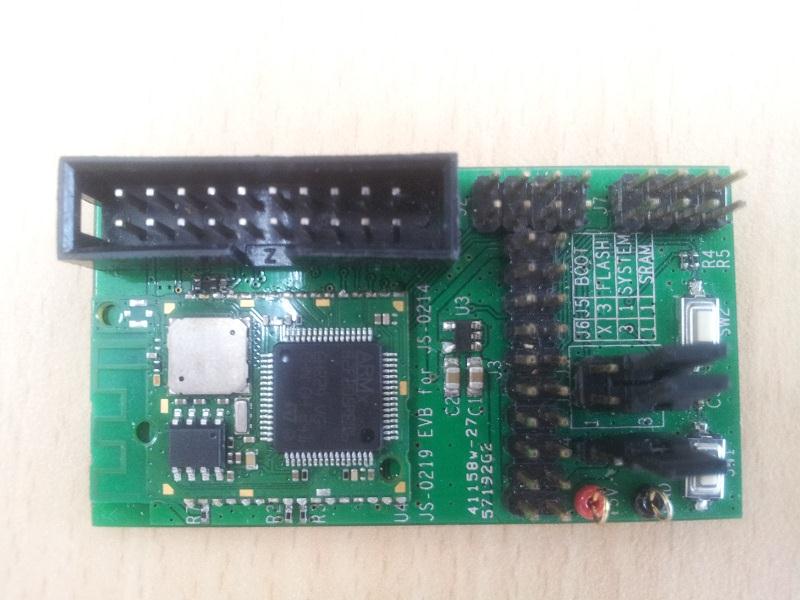

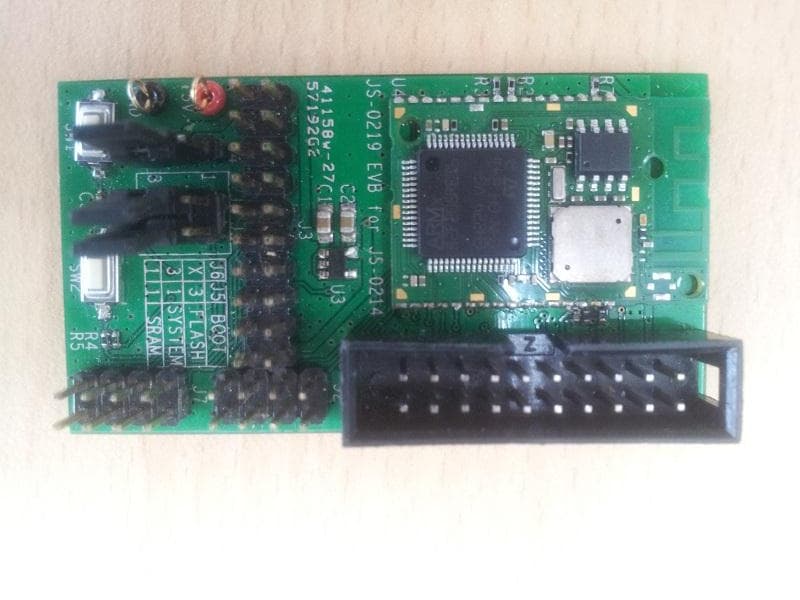

Prüfbericht - Nr.: 15063930 001 Test Report No.: 1. Photographs of EUT Photograph 1: Module with PCB kit Prüfbericht - Nr.: 15063930 001 Test Report No.: Photograph 2:

Label Location and Artwork – FCC ID: VPYAAF

Prüfbericht - Nr.: 15063930 001 Test Report No.: 1. Photographs of EUT Photograph 1: Photograph 2:

Produkte Products RF Exposure Statement: Page 1 of 1 Client: Murata Manufacturing Co.,Ltd 10-1, Higashikotari 1-chome Nagaokakyo-shi ,Kyoto ,Japan Test item: WIFI Module Identification: Mode name ：CMWC1ZZAAF FCC ID: VPYAAF FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 6 IC Requirement According to RSS-102 (Issue 4), clause 2.5.2, no routine RF exposure evaluation is required if the transmitter power (e.i.r.p.) is below the following threshold: Frequency Range SAR Limitation [W] Above 1.5GHz 5 Measurement Result The maximum measured transmitter power is the following: Conducted Output Power P out [mW] Maximum Antenna Gain [dBi] P out EIRP [mW] Power Density at 20cm [mW/cm 2 ] 150 3.3 322 0.063 Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = (P S = power density in mW/cm 2 P out = antenna conducted output power in mW G = antenna gain in linear scale (here: 3.3dBi=10log(G)) D = distance between observation point and radiating structure in cm (here: 20cm) out · G) / (4π · D 2 ), where Conclusion The device complies with the FCC and IC RF exposure requirements since the maximum transmitter power density is below the FCC limit and the e.i.r.p. power is below the IC RF exposure evaluation exemption threshold. Refer to test report 15063930 001 for more details. TÜV Rheinland (Shanghai) Co., Ltd. 10-15/F, Huatsing Building, No.88, Lane 777, Guangzhong Road West, Shanghai 200072, P.R. China

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 15063930 001 Auftrags-Nr.: Order No.: 154031369 Seite 1 von 65 Page 1 of 65 Kunden-Referenz-Nr.: Client Reference No.: 488459 Auftragsdatum: Order date: 2013.7.24 Auftraggeber: Client: Murata Manufacturing Co.,Ltd 10-1, Higashikotari 1-chome Nagaokakyo-shi ,Kyoto ,Japan Prüfgegenstand: Test item: wifi module Bezeichnung / Typ-Nr.: Identification / Type No.: Model Name : CMWC1ZZAAF FCC ID : VPYAAF Auftrags-Inhalt: Order content: Complete test Prüfgrundlage: Test specification: FCC CFR47 Part 15, Subpart C, §15.247 ANSI C63.10-2009 KDB 558074 D01 DTS Meas Guidance v03 Wareneingangsdatum: Date of receipt: 09.08.2013 Prüfmuster-Nr.: Test sample No.: N.A Prüfzeitraum: Testing period: 09.08.2013 – 27.08.2013 Ort der Prüfung: Place of testing: QuieTek Technology(Suzhou)Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 28.08.2013 ShiLi / PE kontrolliert von / reviewed by: 28.08.2013 Jesse huang / PM Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No.: 15063930 001 Seite 2 von 65 Page 2 of 65 TEST SUMMARY 3.2.1 VOLTAGE REQUIREMENTS, FCC 15.31(E) RESULT: PASS 3.2.2 ANTENNA REQUIREMENTS, FCC 15.203, FCC 15.204 AND RSS-GEN 7.1.4 RESULT: PASS 5.1.1 CONDUCTED OUTPUT POWER, FCC 15.247(B)(3) AND RSS-210 A8.4(4) RESULT: PASS 5.1.2 6DB BANDWIDTH, FCC 15.247(A)(2) AND RSS-210 A8.2(A) 5.1.3 CONDUCTED SPURIOUS EMISSION, FCC 15.247(C) AND RSS-210 A8.5 RESULT: PASS 5.1.4 POWER SPECTRAL DENSITY (PSD), FCC 15.247(E) AND RSS-210 A8.2 RESULT: PASS 5.1.5 BAND EDGE COMPLIANCE OF RF CONDUCTED EMISSION, FCC 15.247(C) AND RSS-210 A8.5 RESULT: PASS 6.1.1 BAND EDGE RADIATED EMISSION, FCC 15.205, FCC 15.209, FCC 15.247(C), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: PAss 6.1.2 RADIATED SPURIOUS EMISSION OF TRANSMITTER, FCC 15.205, FCC 15.209, FCC 15.247(C), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: PASS Produkte Products Prüfbericht - Nr.: Test Report No.: 15063930 001 Seite 3 von 65 Page 3 of 65 CONTENTS 1. GENERAL REMARKS ................................................................................................ 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................. 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 MEASUREMENT UNCERTAINTY ................................................................................. 6 3. GENERAL PRODUCT INFORMATION ........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .................................................................. 7 3.2 SYSTEM DETAILS .................................................................................................... 7 3.2.1 Voltage Requirements, FCC 15.31(e) .......................................................................................... 7 3.2.2 Antenna Requirements, FCC 15.203, FCC 15.204 and RSS-Gen 7.1.4 ..................................... 7 3.3 INDEPENDENT OPERATION MODES ........................................................................... 8 3.4 NOISE SUPPRESSING PARTS .................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ..................................................................... 9 4.1 TEST METHODOLOGY .............................................................................................. 9 4.2 PHYSICAL CONFIGURATION FOR TESTING ................................................................. 9 4.3 TEST OPERATION AND TEST SOFTWARE ................................................................... 9 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.................................................. 9 4.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 10 5. TEST RESULTS OF CONDUCTED MEASUREMENTS AT ANTENNA PORT ..................... 11 5.1 TRANSMITTER PARAMETERS .................................................................................. 11 5.1.1 Conducted Output Power, FCC 15.247(b)(3) and RSS-210 A8.4(4) ......................................... 11 5.1.2 6dB Bandwidth, FCC 15.247(a)(2) and RSS-210 A8.2(a) ......................................................... 20 5.1.3 Conducted Spurious Emission, FCC 15.247(c) and RSS-210 A8.5 …

Text truncated - open the document above for the full version.

15063930 001 APPENDIX1 1 Profile: 2013.08.22 Page No.: 1 Engineer: PIG Site: AC5 Time: 2013/08/22 - 13:38 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2412 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 51.663 15.164 -22.337 74.000 36.499 PK 2 * 2411.416 90.424 53.822 N/A N/A 36.601 PK 15063930 001 APPENDIX1 2 Profile: 2013.08.22 Page No.: 2 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:00 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2412 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 38.666 2.167 -15.334 54.000 36.499 AV 2 * 2411.897 78.957 42.353 N/A N/A 36.604 AV 15063930 001 APPENDIX1 3 Profile: 2013.08.22 Page No.: 3 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:00 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Horizontal EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2412 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 52.282 15.123 -21.718 74.000 37.159 PK 2 * 2411.808 93.314 55.963 N/A N/A 37.351 PK 15063930 001 APPENDIX1 4 Profile: 2013.08.22 Page No.: 4 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:04 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Horizontal EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2412 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 39.452 2.293 -14.548 54.000 37.159 AV 2 * 2412.144 81.670 44.316 N/A N/A 37.354 AV 15063930 001 APPENDIX1 5 Profile: 2013.08.22 Page No.: 5 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:05 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2462 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 2461.744 87.995 51.163 N/A N/A 36.832 PK 2 2483.500 51.955 15.019 -22.045 74.000 36.935 PK 15063930 001 APPENDIX1 6 Profile: 2013.08.22 Page No.: 6 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:20 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2462 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 2462.200 76.863 40.029 N/A N/A 36.834 AV 2 2483.500 39.145 2.209 -14.855 54.000 36.935 AV 15063930 001 APPENDIX1 7 Profile: 2013.08.22 Page No.: 7 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:21 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Horizontal EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2462 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 2461.672 91.063 53.285 N/A N/A 37.779 PK 2 2483.500 53.082 15.112 -20.918 74.000 37.969 PK 15063930 001 APPENDIX1 8 Profile: 2013.08.22 Page No.: 8 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:23 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Horizontal EUT: AAF Power: AC 120V/60Hz Note: Mode1：transmit at channel 2462 MHz by b No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 * 2461.672 79.500 41.722 N/A N/A 37.779 AV 2 2483.500 40.182 2.212 -13.818 54.000 37.969 AV 15063930 001 APPENDIX1 9 Profile: 2013.08.22 Page No.: 9 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:24 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode2：transmit at channel 2412 MHz by g No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 51.802 15.303 -22.198 74.000 36.499 PK 2 * 2410.968 83.200 46.600 N/A N/A 36.600 PK 15063930 001 APPENDIX1 10 Profile: 2013.08.22 Page No.: 10 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:46 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode2：transmit at channel 2412 MHz by g No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 38.678 2.179 -15.322 54.000 36.499 AV 2 * 2410.800 59.796 23.197 N/A N/A 36.599 AV 15063930 001 APPENDIX1 11 Profile: 2013.08.22 Page No.: 11 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:46 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Horizontal EUT: AAF Power: AC 120V/60Hz Note: Mode2：transmit at channel 2412 MHz by g No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 52.326 15.167 -21.674 74.000 37.159 PK 2 * 2409.736 85.699 48.366 N/A N/A 37.333 PK 15063930 001 APPENDIX1 12 Profile: 2013.08.22 Page No.: 12 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:49 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Horizontal EUT: AAF Power: AC 120V/60Hz Note: Mode2：transmit at channel 2462 MHz by g No Fla g Ma rk Frequency (MHz) Measure Level (dBuV/m) Reading Level (dBuV) Over Limit (dB) Limit (dBuV/m) Factor Type 1 2390.000 39.474 2.315 -14.526 54.000 37.159 AV 2 * 2410.632 63.071 25.730 N/A N/A 37.341 AV 15063930 001 APPENDIX1 13 Profile: 2013.08.22 Page No.: 13 Engineer: PIG Site: AC5 Time: 2013/08/22 - 14:51 Limit: FCC_Part15.209_RE(3m) Margin: 0 Probe: Horn_3117_988 Polarity: Vertical EUT: AAF Power: AC 120V/60Hz Note: Mode2：transmit at channel 2462 MHz by g No Fla g Ma rk Frequency (MHz) Measure Level (dBuV…

Text truncated - open the document above for the full version.

Prüfbericht - Nr.: 15063930 001 Test Report No.: 1. Photographs of the Test Setup Photograph 1: Set-up for Radiated Emission, 30MHz-1000MHz Prüfbericht - Nr.: 15063930 001 Test Report No.: Photograph 2: Set-up for Radiated Emission, above 1GHz Photograph 3: Set-up for RF Power
