VPYLB1ADCommunication Module

2015/01/16 Type1AD Installation Manual FCC ID of this product is as follows. FCC ID:VPYLB1AD For OEM integration only – device cannot be sold to general public. Therefore we will ask OEM to include the following statements required by FCC on the product and in the Installation manual Notice. Contents 1.Land Pattern & Soldering condition 2.Supply Voltage 3.Power Level 4.Antenna 5.Notice 1 2015/01/16 5. Notice Please describe the following warning on the final product which contains this module. Contains Transmitter Module FCC ID:VPYLB1AD Contains FCC ID:VPYLB1AD or 6 ※When a product is small, as for these words mentioned above, the posting to a manual is possible. 2015/01/16 Please describe the following warning to the manual. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 7 This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps When installing it in a mobile equipment. Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm. When installing it in a portable equipment. It is necessary to take a SAR test with your set mounting this module. Class II permissive change application is necessary using the SAR report. Please contact Murata.

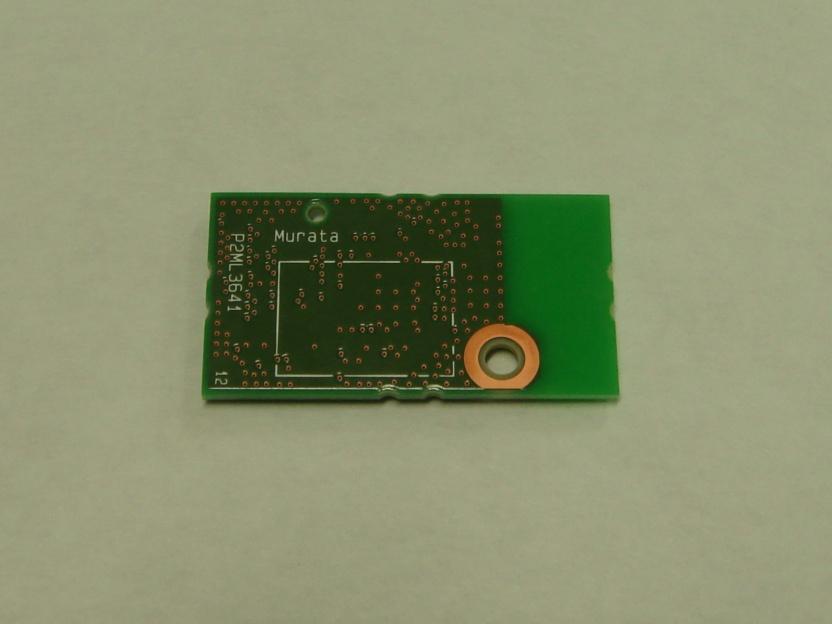

Type1AD External photos Module(Top) 1/5 9.4mm Height 1.2mmMAX Weight 0.2g 2015/01/13 Module(Back) 2/5 Type1AD External photos 2015/01/13 3/5 Module(Top--- Bird’s-eyes view) Type1AD External photos 2015/01/13 4/5 Module(Back --- Bird’s-eyes view) Type1AD External photos 2015/01/13 Photos of antenna installation of Type1AD <Front side> <Back side> 2015/01/13

M C Model: Type1AD SS1234567 Label Design 9.4 mm 8.9mm Type 1AD ： Product Name SS1234567 ： The information of Lot trace ： Name of manufacture(muRata Logo mark) ● ： Direction display M C 1.0mm 1.0mm 1.0mm 0.7mm 1.2mm 0.8mm 1 2014/12/26 FCC ID:VPYLB1AD Since there is no space which indicates FCC ID, FCC ID is indicated in a manual. M C mark is murata Logo mark. Please accept a logo mark as a manufacturer name

Module(Top) 5/5 Type1AD Iternal photos 2015/01/13

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Applicant: Murata Manufacturing Company, Ltd. Type of Equipment : Communication Module Model No. : Type1AD FCC ID: VPYLB1AD Murata Manufacturing Company, Ltd. declares that Model : Type1AD complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “Type1AD“ as calculate d from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 52.24 mW (Maximum average output power) G = 0.66 Numerical Antenna gain; equal to-1.80 dBi r =20.0 cm For: Type1ADS =0.00687 mW/cm 2 No. : 10602907H RF Exposure / MPE Calculation Even taking into account the tolerance, this device can be satisfied with the limits.

Test report No. : 10602907H-A Page : 2 of 43 Issued date : January 6, 2015 FCC ID : VPYLB1AD UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10602907H-A Revision Test report No. Date Page revised Contents - (Original) 10602907H-A January 6, 2015 - - Test report No. : 10602907H-A Page : 3 of 43 Issued date : January 6, 2015 FCC ID : VPYLB1AD UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 11 SECTION 6: Radiated Spurious Emission ............................................................................................ 12 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 14 APPENDIX 1: Data of EMI test .............................................................................................................. 15 Conducted Emission ......................................................................................................................... 15 6dB Bandwidth ................................................................................................................................. 16 Maximum Peak Output Power .......................................................................................................... 19 Average Output Power ...................................................................................................................... 22 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 33 Power Density ................................................................................................................................... 34 99%Occupied Bandwidth ................................................................................................................. 38 APPENDIX 2: Test instruments ............................................................................................................. 40 APPENDIX 3: Photographs of test setup ............................................................................................... 41 Conducted Emission ......................................................................................................................... 41 Radiated Spurious Emission ............................................................................................................. 42 Worst Case Position (Horizontal: Z-axis/ Vertical:Z-axis) ............................................................... 43 Test report No. : 10602907H-A Page : 4 of 43 Issued date : January 6, 2015 FCC ID : VPYLB1AD UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Company, Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6604 Facsimile Number : +81-75-955-6634 Contact Person : Karun Malhotra SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : Type1AD Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3V Receipt Date of Sample : December 6, 2014 Country of Mass-production : Japan, China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 37.4MHz Specification of WLAN (IEEE802.11b/g/n) Type of radio Wireless LAN (IEEE802.11b/g) Wireless LAN (IEEE802.11n) 2.4G Band SISO (20M Band) Equipment Type Transceiver Frequency of Operation 2412MHz - 2462MHz Bandwidth & Channel spacing Bandwidth : 20MHz Ch spacing : 5MHz Type of Modulation 11b: DSSS 11g: OFDM OFDM Antenna Type / Antenna Gain Monopole Antenna: -1.8dBi Power Supply (inner) DC 3.3V Operating temperature range -20 to +70 deg. C Test report No. : 10602907H-A Page : 5 of 43 Issued date : January 6, 2015 FCC ID : VPYLB1AD UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2014, final revised on December 23, 2014 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on December 23, 2014 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 9.4dB, 7.11820MHz, N AV 5.7dB, 7.11820MHz, N Complied - IC: RSS-Gen 8.8 IC: RSS-Gen 8.8 6dB Bandwidth FCC: "Guidance for Perfo…
