  1. Home/
  2. Murata Manufacturing Co., Ltd./
  3. VPYLB1CK

VPYLB1CKCommunication Module

Murata Manufacturing Co., Ltd.
Communication Module - FCC ID VPYLB1CK - Murata Manufacturing Co., Ltd.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Jul 29, 2015
Application Purpose
Original Equipment
Date of Application
Jul 29, 2015
Equipment Note
Communication Module
Frequency Range
5745.00000000 - 5825.00000000
Company
Murata Manufacturing Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

8 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 27 July 2015 6. Notice Contains Transmitter Module FCC ID:VPYLB1CK Contains FCC ID: VPYLB1CK or Please describe the following warning on the final product which contains this module. ※When the product is small, as for these words mentioned above, the posting to a manual is possible. This device complies with Part 15 of FCC Rules and Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ●Please describe the following warning to the manual. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. For OEM integration only – device cannot be sold to general public. Therefore we will ask OEM to include the following statements required by FCC on the product and in the Installation manual Notice. 11 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 15 July 2015 6. Notice Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm. ●When installing it in a portable equipment. It is necessary to take a SAR test with your set mounting this module. Class II permissive change application is necessary using the SAR report. Please contact Murata. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain. ●When installing it in a mobile equipment. Please describe the following warning to the manual.

External Photos

1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 28 July 2015 Module(Top --- Shielded) Please refer to the label figure for the contents of the label notation. LBEE5ZZ1CK External Photos Height 7.3mm MAX Weight 2.3g Confidential 33.0mm 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 28 July 2015 Module(Back) LBEE5ZZ1CK External Photos Confidential 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 28 July 2015 Module(Top --- Unshielded) LBEE5ZZ1CK Internal Photo Confidential 4 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 28 July 2015 Confidential LBEE5ZZ1CK 6D Photos

ID Label/Location Info

â– Wi-Fi Label Layout Module PWBA Size:18x33mm Back Label Location: Back of the board VPYLB1CK 772C-LB1CK Front â–  Wi-Fi Label Layout 10.5 11

Internal Photos

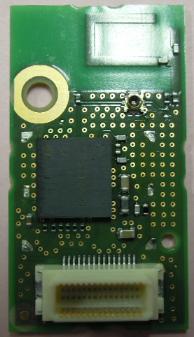

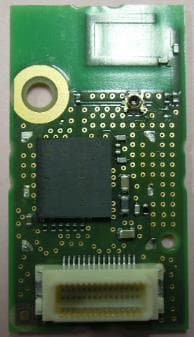

3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 10 July 2015 Module(Top --- Unshielded) LBEE5ZZ1CK Internal Photo Confidential The antenna connector is used for pre-shipping inspection only.

RF Exposure Info

UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Applicant: M urata M anufacturing Company, Ltd. Type of Equipme nt: Communication M odule (5GHz Band) M o de l N o . : LB EE5 ZZ1 CK FCC ID: VPYLB1CK Murata Manufacturing Company, Ltd. declares that Model : LBEE5ZZ1CK complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). R F Expos ure Calculations : The fo llo wing info rma tio n p ro vid e s the minimum se p a ra tio n d ista nc e fo r the highe st ga in antenna provided with the “LBEE5ZZ1CK“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency ra d ia tio n e xp o s ure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled e xp o sure limit. The F riis fo rmula use d wa s: S = (P * G) / (4* π * r 2 ) Whe re P =16.18 mW (M aximum Conducte d Output Powe r) G =1.17 Numerical Antenna gain; equal to0.70 dBi r =20.0 cm For: LBEE5ZZ1CKS = 0.00378mW/c m 2 No. : 10662332H RF Exposure / MPE Calculation Eve n ta k ing into a c c o unt the to le ra nc e , this d e vic e c a n b e sa tisfie d with the limits .

Test Report

Test report No. : 10662332H-E-R1 Page : 2 of 23 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10662332H-E Revision Test report No. Date Page revised Contents - (Original) 10662332H-E July 13, 2015 - - 1 10662332H-E-R1 July 28, 2015 P.6 Correction of FCC Part 15.203/212 Antenna requirement sentence Test report No. : 10662332H-E-R1 Page : 3 of 23 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ........................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ............................................................................................. 4 SECTION 3: Scope of Report...................................................................................................................... 6 SECTION 4: Test specification, procedures & results .............................................................................. 6 SECTION 5: Operation of E.U.T. during testing .................................................................................... 11 SECTION 6: Channel Move Time, Channel Closing Transmission Time ............................................ 18 SECTION 7: Non-Occupancy Period ....................................................................................................... 20 APPENDIX 1: Test instruments ................................................................................................................ 22 APPENDIX 2: Photographs of test setup ................................................................................................. 23 Test report No. : 10662332H-E-R1 Page : 4 of 23 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Company, Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6736 Facsimile Number : +81-75-955-6634 Contact Person : Motoo Hayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : LBEE5ZZ1CK Serial No. : Refer to Section 4, Clause 4.2 Rating : VBAT: Typ. 3.6V, Min. 3.2V, Max. 4.4V VIO: Typ. 1.8V, Min. 1.71V, Max. 1.89V (This doesn't influence the RF Characteristic.) Receipt Date of Sample : December 26, 2014 Country of Mass-production : China, Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 37.4MHz Operating temperature : -20deg. C to +80deg. C Test report No. : 10662332H-E-R1 Page : 5 of 23 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radio Specification Radio Type : Transceiver Power Supply (inner) : DC 1.35 V / DC 3.3 V Specification of Wireless LAN (IEEE802.11b/g/a/n-20/n-40/ac-20/ac-40/ac-80) Type of radio IEEE802.11b IEEE802.11g/n IEEE802.11a/n/ac (20 M band) IEEE802.11n/ac (40 M band) IEEE802.11ac (80 M band) Frequency of operation 2412-2462MHz 2412-2462MHz 5180-5240MHz 5260-5320MHz *1) 5500-5700MHz *1) 5745-5825MHz 5190-5230MHz 5270-5310MHz *1) 5510-5670MHz *1) 5755-5795MHz 5210MHz 5290MHz *1) 5530-5610MHz *1) 5775MHz Type of modulation DSSS (CCK, DQPSK, DBPSK) OFDM-CCK (64QAM, 16QAM, QPSK, BPSK) OFDM (64QAM, 16QAM, QPSK, BPSK, 256QAM(IEEE802.11ac only)) Channel spacing 5MHz 20MHz 40MHz 80MHz Antenna type Pattern Antenna Antenna Gain 2.4GHz: 0.0dBi 5GHz: 0.7dBi *1) 5GHz Band (5260-5320MHz, 5500-5700MHz, 5270-5310MHz, 5510-5670MHz, 5290MHz and 5530-5610MHz) is applied for this test report. Test report No. : 10662332H-E-R1 Page : 6 of 23 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Scope of Report This report only covers DFS requirement, as specified by the following referenced procedures. SECTION 4: Test specification, procedures & results 4.1 Test Specification Test Specification : FCC Part 15 Subpart E: 2015, final revised on June 12, 2015 and effective July 13, 2015 * The revision on June 12, 2015 does not affect the test specification applied to the EUT. Title : FCC 47CFR Part15 Radio Frequency Device Subpart E Unlicensed National Information Infrastructure Devices Section 15.407 General technical requirements Test Specification : KDB905462 D02 UNII DFS Compliance Procedures New Rules v01r02 Title : COMPLIANCE MEASUREMENT PROCEDURES FOR UNLICENSED- NATIONAL INFORMATION INFRASTRUCTURE DEVICES OPERATING IN THE 5250-5350MHz AND 5470-5725MHz BANDS INCORPORATING DYNAMIC FREQUENCY SELECTION Test Specification : KDB905462 D03 Client Without DFS New Rules v01r01 Title : U-NII CLIENT DEVICES WITHOUT RADAR DETECTION CAPABILITY Test Specification : KDB905462 D04 Operational Modes for DFS Testing New Rules v01 Title : OPERATIONAL MODES SUGGESTED FOR DFS TESTING FCC Part 15.31 (e) The RF Module has own regulator. The RF Module is constantly provided voltage (DC 1.35 V / DC 3.3 V) through own regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203/212 Antenna requirement The antenna is n…

Text truncated - open the document above for the full version.

Test Report

Test report No. : 10662332H-C-R1 Page : 2 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10662332H-C Revision Test report No. Date Page revised Contents - (Original) 10662332H-C July 13, 2015 - - 1 10662332H-C-R1 July 28, 2015 P.6 Correction of FCC Part 15.203/212 Antenna requirement sentence Test report No. : 10662332H-C-R1 Page : 3 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................................... 6 SECTION 4: Operation of E.U.T. during testing .................................................................................. 9 SECTION 5: Conducted Emission .........................................................................................................13 SECTION 6: Radiated Spurious Emission and Band Edge Compliance ...........................................14 SECTION 7: Antenna Terminal Conducted Tests ...............................................................................16 APPENDIX 1: Data of EMI test ..............................................................................................................17 Conducted Emission ........................................................................................................................17 26dB Emission Bandwidth and 99% Occupied Bandwidth .............................................................18 6dB Bandwidth ................................................................................................................................37 Maximum Conducted Output Power ...............................................................................................42 Maximum Power Spectral Density ..................................................................................................46 Radiated Spurious Emission ............................................................................................................59 Band Edge confirmation ................................................................................................................102 Conducted Spurious Emission ....................................................................................................... 114 APPENDIX 2: Test instruments ...........................................................................................................115 APPENDIX 3: Photographs of test setup ............................................................................................117 Conducted Emission ...................................................................................................................... 117 Radiated Spurious Emission .......................................................................................................... 118 Worst Case Position ....................................................................................................................... 119 Test report No. : 10662332H-C-R1 Page : 4 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Company, Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6736 Facsimile Number : +81-75-955-6634 Contact Person : Motoo Hayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : LBEE5ZZ1CK Serial No. : Refer to Section 4, Clause 4.2 Rating : VBAT: Typ. 3.6V, Min. 3.2V, Max. 4.4V VIO: Typ. 1.8V, Min. 1.71V, Max. 1.89V (This doesn't influence the RF Characteristic.) Receipt Date of Sample : December 26, 2014 Country of Mass-production : China, Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 37.4MHz Operating temperature : -20deg. C to +80deg. C Test report No. : 10662332H-C-R1 Page : 5 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radio Specification Radio Type : Transceiver Power Supply (inner) : DC 1.35 V / DC 3.3 V Specification of Wireless LAN (IEEE802.11b/g/a/n-20/n-40/ac-20/ac-40/ac-80) Type of radio IEEE802.11b IEEE802.11g/n IEEE802.11a/n/ac (20 M band) IEEE802.11n/ac (40 M band) IEEE802.11ac (80 M band) Frequency of operation 2412-2462MHz 2412-2462MHz 5180-5240MHz *1) 5260-5320MHz *1) 5500-5700MHz *1) 5745-5825MHz *1) 5190-5230MHz *1) 5270-5310MHz *1) 5510-5670MHz *1) 5755-5795MHz *1) 5210MHz *1) 5290MHz *1) 5530-5610MHz *1) 5775MHz *1) Type of modulation DSSS (CCK, DQPSK, DBPSK) OFDM-CCK (64QAM, 16QAM, QPSK, BPSK) OFDM (64QAM, 16QAM, QPSK, BPSK, 256QAM(IEEE802.11ac only)) Channel spacing 5MHz 20MHz 40MHz 80MHz Antenna type Pattern Antenna Antenna Gain 2.4GHz: 0.0dBi 5GHz: 0.7dBi *1) 5GHz Band is applied to this test report. Test report No. : 10662332H-C-R1 Page : 6 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 …

Text truncated - open the document above for the full version.

Test Report

Test report No. : 10662332H-C-R1 Page : 35 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 99% Occupied Bandwidth 11ac-80 5210MHz 5290MHz 5530MHz 5610MHz 5775MHz Test report No. : 10662332H-C-R1 Page : 36 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 26dB Emission Bandwidth 11ac-80 5290MHz 5530MHz 5610MHz Test report No. : 10662332H-C-R1 Page : 37 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 6dB Bandwidth Test place Ise EMC Lab. No.11 Measurement Room Report No. 10662332H Date 01/22/2015 Temperature/ Humidity 25deg. C / 31% RH Engineer Shinichi Miyazono Mode Tx 11a Frequency 20dB Bandwidth Limit [MHz] [MHz] [kHz] 5745 16.411 > 500 5785 16.393 > 500 5825 16.368 > 500 11n-20 Frequency 20dB Bandwidth Limit [MHz] [MHz] [kHz] 5745 17.598 > 500 5785 17.598 > 500 5825 17.635 > 500 11ac-20 Frequency 20dB Bandwidth Limit [MHz] [MHz] [kHz] 5745 17.754 > 500 5785 17.715 > 500 5825 17.741 > 500 11n-40 Frequency 20dB Bandwidth Limit [MHz] [MHz] [kHz] 5755 36.442 > 500 5795 36.469 > 500 11ac-40 Frequency 20dB Bandwidth Limit [MHz] [MHz] [kHz] 5755 36.546 > 500 5795 36.498 > 500 11ac-80 Frequency 20dB Bandwidth Limit [MHz] [MHz] [kHz] 5775 75.570 > 500 Test report No. : 10662332H-C-R1 Page : 38 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 6dB Bandwidth 11a 5745MHz 5785MHz 5825MHz Test report No. : 10662332H-C-R1 Page : 39 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 6dB Bandwidth 11n-20 5745MHz 5785MHz 5825MHz Test report No. : 10662332H-C-R1 Page : 40 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 6dB Bandwidth 11ac-20 5745MHz 5785MHz 5825MHz Test report No. : 10662332H-C-R1 Page : 41 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 6dB Bandwidth 11n-40 5755MHz 5795MHz 11ac-40 5755MHz 5795MHz 11ac-80 5775MHz Test report No. : 10662332H-C-R1 Page : 42 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Maximum Conducted Output Power Test place Ise EMC Lab. No.3 Semi Anechoic Chamber Report No. 10662332H Date 01/24/2015 Temperature/ Humidity 23deg. C / 40% RH Engineer Kazuya Yoshioka Mode 11a/n-20/ac-20 Tx 11a Freq.P/MCableAtten. Antenna ResultResul tLimitLimitMargin Margin ReadingLossLossGain(Cond.) (e.i.r.p.) (Cond.) (e.i.r.p.) (Cond.) (e.i.r.p.) [MHz][dBm][dB][dB][dBi][dBm][dBm][dBm][dBm][dB][dB] 5180.0-0.201.8010.030.7011.6312.3323.9729.9712.3417.64 5220.0-0.621.8010.030.7011.2111.9123.9729.9712.7618.06 5240.0-0.571.8010.030.7011.2611.9623.9729.9712.7118.01 5260.00.061.8010.030.7011.8912.5923.9729.9712.0817.38 5300.0-0.061.8010.030.7011.7712.4723.9729.9712.2017.50 5320.0-0.041.8010.030.7011.7912.4923.9729.9712.1817.48 5500.00.191.4010.030.7011.6212.3223.9729.9712.3517.65 5580.0-0.081.4010.030.7011.3512.0523.9729.9712.6217.92 5700.0-0.471.4010.040.7010.9711.6723.9729.9713.0018.30 5745.0-0.521.4010.040.7010.9211.6230.0036.0019.0824.38 5785.0-0.581.4010.040.7010.8611.5630.0036.0019.1424.44 5825.0-0.451.4010.040.7010.9911.6930.0036.0019.0124.31 11n-20 Freq.P/MCableAtten. Antenna ResultResul tLimitLimitMargin Margin ReadingLossLossGain(Cond.) (e.i.r.p.) (Cond.) (e.i.r.p.) (Cond.) (e.i.r.p.) [MHz][dBm][dB][dB][dBi][dBm][dBm][dBm][dBm][dB][dB] 5180.0-0.201.8010.030.7011.6312.3323.9729.9712.3417.64 5220.0-0.571.8010.030.7011.2611.9623.9729.9712.7118.01 5240.0-0.631.8010.030.7011.2011.9023.9729.9712.7718.07 5260.00.261.8010.030.7012.0912.7923.9729.9711.8817.18 5300.0-0.091.8010.030.7011.7412.4423.9729.9712.2317.53 5320.0-0.111.8010.030.7011.7212.4223.9729.9712.2517.55 5500.00.161.4010.030.7011.5912.2923.9729.9712.3817.68 5580.00.101.4010.030.7011.5312.2323.9729.9712.4417.74 5700.0-0.391.4010.040.7011.0511.7523.9729.9712.9218.22 5745.0-0.431.4010.040.7011.0111.7130.0036.0018.9924.29 5785.0-0.471.4010.040.7010.9711.6730.0036.0019.0324.33 5825.0-0.241.4010.040.7011.2011.9030.0036.0018.8024.10 11ac-20 Freq.P/MCableAtten. Antenna ResultResul tLimitLimitMargin Margin ReadingLossLossGain(Cond.) (e.i.r.p.) (Cond.) (e.i.r.p.) (Cond.) (e.i.r.p.) [MHz][dBm][dB][dB][dBi][dBm][dBm][dBm][dBm][dB][dB] 5180.0-0.111.8010.030.7011.7212.4223.9729.9712.2517.55 5220.0-0.571.8010.030.7011.2611.9623.9729.9712.7118.01 5240.0-0.741.8010.030.7011.0911.7923.9729.9712.8818.18 5260.00.151.8010.030.7011.9812.6823.9729.9711.9917.29 5300.00.031.8010.030.7011.8612.5623.9729.9712.1117.41 5320.0-0.241.8010.030.7011.5912.2923.9729.9712.3817.68 5500.00.061.4010.030.7011.4912.1923.9729.9712.4817.78 5580.0-0.261.4010.030.7011.1711.8723.9729.9712.8018.10 5700.0-0.441.4010.040.7011.0011.7023.9729.9712.9718.27 5745.0-0.541.4010.040.7010.9011.6030.0036.0019.1024.40 5785.0-0.571.4010.040.7010.8711.5730.0036.0019.1324.43 5825.0-0.381.4010.040.7011.0611.7630.0036.0018.9424.24 Result(Cond.) = Reading + Cable Loss …

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 10662332H-E-R1 Page : 23 of 23 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 2: Photographs of test setup Photo 1 Photo 2 End of Report

Test Setup Photos

Test report No. : 10662332H-C-R1 Page : 117 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10662332H-C-R1 Page : 118 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10662332H-C-R1 Page : 119 of 119 Issued date : July 13, 2015 Revised date : July 28, 2015 FCC ID : VPYLB1CK UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical: Y-axis) X-axis Y-axis Z-axis End of Report

Contact Information

Applicant

KENJI HAYASHIKOSHI(SENIOR MANAGER)
[email protected]81-75-955-6173Fax: 81-75-955-7097

Technical Contact

UL Japan, Inc.Takayuki Shimada
[email protected]81-596-24-8999

4383-326 Asama-cho, Ise-shi · Mie-ken · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
315E5.75 GHz - 5.83 GHz13.20 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Output power listed is Conducted. For professional installation only. Device shall not be sold to general public. This device has a 20 MHz, 40 MHz and 80 MHz bandwidth mode for 5 GHz bands. Separate evaluation must be required for any portable configuration. When used in mobile applications, the antennas shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the final host device. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter. This device complies with the Dynamic Frequency Selection (DFS) requirements of Report and KDB 905462 D03 as a Client only without Radar Detection.
