VPYLB1DMCommunication Module

LBEE6ZZ1DM Installation Manual Murata Mfg Co., “FCC ID and IC Number” of these products are followings. FCC ID : VPYLB1DM IC Number : 772C-LB1DM Model : LBEE6ZZ1DM For OEM integration only – device cannot be sold to general public. Therefore we will ask OEM to include the following statements required by FCC on the product and in the Installation manual Notice. Contents 1.Dimension 2.Land Pattern(Recommended) 3. Operating Voltage 4. Terminal Configuration 5.Antenna 6.Notice 1. Dimension Murata Mfg Co., 2. Land Pattern(Recommended) Murata Mfg Co., 3. Operating Voltage Murata Mfg Co., 4. Terminal Configuration Murata Mfg Co., 4. Terminal Configuration Murata Mfg Co., 4. Terminal Configuration Murata Mfg Co., Contains Transmitter Module FCC ID: VPYLB1DM Contains FCC ID: VPYLB1DM or Please describe the following warning on the final product which contains this module. ※When the product is small, as for these words mentioned above, the posting to a manual is possible. ●Please describe the following warning to the manual. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm. ●When installing it in a mobile equipment. Please describe the following warning to the manual. ●When installing it in a portable equipment. It is necessary to take a SAR test with your set mounting this module. Class II permissive change application is necessary using the SAR report. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le radiateur et le corps humain.

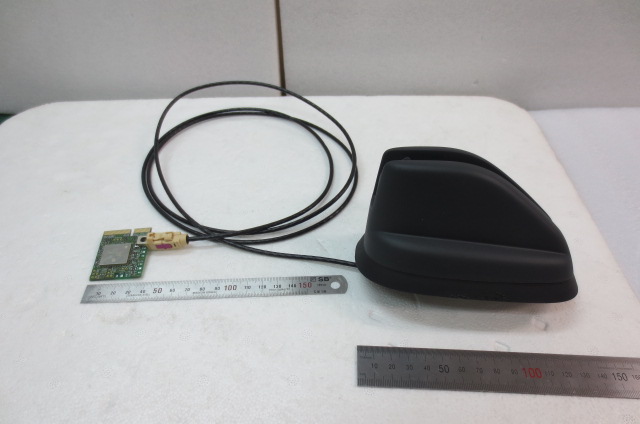

FCC ID: VPYLB1DM/ IC: 772C-LB1DM EXTERNAL PHOTOGRAPHS HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 4 FCC ID: VPYLB1DM/ IC: 772C-LB1DM ■ EXTERNAL PHOTO HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 4 FCC ID: VPYLB1DM/ IC: 772C-LB1DM ■ EXTERNAL PHOTO HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 4 FCC ID: VPYLB1DM/ IC: 772C-LB1DM ■ EXTERNAL PHOTO(Antenna) HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 4

Marking (1) M D123 1DMxxx 123456789 ABCDE (2) (3) (4) ( 5 ) mark is Murata Logo Mark. Please accept a logo mark as 123456789 ABCDE ( 5 ) FCC ID:VPYLB1DM (7) IC:772C-LB1DM (8) Model:LBEE6ZZ1DM (6) Please accept a logo mark as a manufacturer name. (9) : 2D Barcode: 2D Barcode : Name of Manufacture (Murata Logo Mark) 123456789ABCDE : Lot Trace Information1DMxxx : Product Name 1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 16 March 2015 CONFIDENTIAL : Direction display

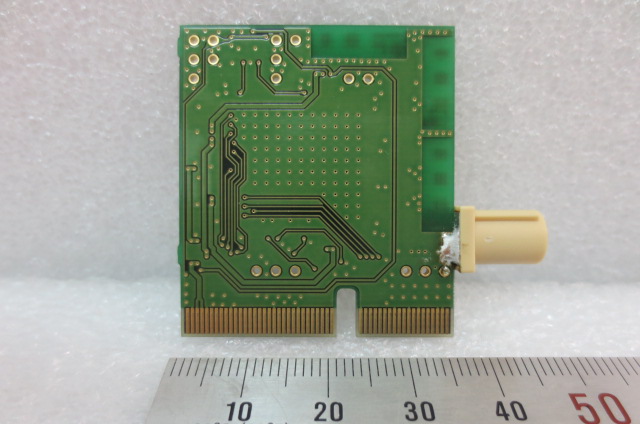

FCC ID: VPYLB1DM/ IC: 772C-LB1DM INTERNAL PHOTOGRAPHS HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 3 FCC ID: VPYLB1DM/ IC: 772C-LB1DM ■ INTERNAL PHOTO HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 3 FCC ID: VPYLB1DM/ IC: 772C-LB1DM ■ INTERNAL PHOTO HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 3

FCC ID: VPYLB1DM / IC:772C-LB1DM RF Exposure Statement 1. LIMITS 1-1 Limits for FCC According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34....................................... 1.34 - 30....................................... 30 - 300....................................... 300 - 1500.................................... 1500 - 100.000................................. 614 824/f 27.5 ............... ............... 1.63 2.19/f 0.073 ............... ............... *(100) *(180/ f² ) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 1-2 Limits for IC The limit for Maximum Permissible Exposure (MPE), specified in IC RSS-102, is listed in Table 4 According to IC RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in RSS-102 Table 4: RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (W/m²) Averaging time (minutes) 0.003-10 83 90 - Instantaneous * 0.1-10 - 0.73/ ƒ - 6 ** 1.1-10 87/ ƒ 0.5 - - 6 ** 10-20 27.46 0.0728 -2 6 20-48 58.07/ ƒ 0.25 0.1540/ ƒ 0.25 8.944/ ƒ 0.5 6 48-300 22.06 0.05852 1.291 6 300-6000 3.142 ƒ 0.3417 0.008335 ƒ 0.3417 0.02619 ƒ 0.6834 6 6000-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note: ƒ is frequency in MHz. * Based on nerve stimulation (NS). ** Based on specific absorption rate (SAR). HCT CO., LTD 1 of 4 FCC ID: VPYLB1DM / IC:772C-LB1DM 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 2 of 4 FCC ID: VPYLB1DM / IC:772C-LB1DM 3. RESULTS (BT BAND) 3- 1. BT BAND Max Peak output Power at antenna input terminal (dBm) 8.99 Max Peak output Power at antenna input terminal (mW) 7.925 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 2402.0000 Antenna Gain(typical) ( dBi) 1.4000 Antenna Gain(numeric) 1.38038 Power density at prediction frequency (mW/cm²) 0.002176 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.53508 4.RESULTS (DTS BAND) 4- 1. DTS (802.11b BAND) Max Peak output Power at antenna input terminal (dBm) 23.43 Max Peak output Power at antenna input terminal (mW) 220.293 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 2437.000 Antenna Gain(typical) ( dBi) -0.10 Antenna Gain(numeric) 0.97724 Power density at prediction frequency (mW/cm²) 0.042828 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.540397 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 3 of 4 FCC ID: VPYLB1DM / IC:772C-LB1DM 4- 2. DTS (802.11g BAND) Max Peak output Power at antenna input terminal (dBm) 22.22 Max Peak output Power at antenna input terminal (mW) 166.725 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 2412.0000 Antenna Gain(typical) ( dBi) -0.10000 Antenna Gain(numeric) 0.97724 Power density at prediction frequency (mW/cm²) 0.032414 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.536602 4- 3. DTS (802.11n_20MHz BAND) Max Peak output Power at antenna input terminal (dBm) 22.01 Max Peak output Power at antenna input terminal (mW) 158.855 Prediction distance (cm) 20.0000 Prediction frequency (MHz) 2412.000 Antenna Gain(typical) ( dBi) -0.10000 Antenna Gain(numeric) 0.97724 Power density at prediction frequency (mW/cm²) 0.030884 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 0.536602 Note : we applied IC limit instead of FCC limit because IC limit is worst case. HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea TEL : + 82 31 645 6467 FAX : + 82 31 645 6401 www.hct.co.kr 4 of 4

Report No.: HCT-R-1504-F001 Model: LBEE6ZZ1DM Page ２ of 61 Version TEST REPORT NO. DATE DESCRIPTION HCT-R-1504-F001 April 01, 2015 - First Approval Report F-01P-02-014 (Rev.00) FCC ID: VPYLB1DM/ IC: 772C-LB1DM HCT Co.Ltd. Report No.: HCT-R-1504-F001 Model: LBEE6ZZ1DM Page ３ of 61 Table of Contents 1. GENERAL INFORMATION .......................................................................................................................... ４ 2. EUT DESCRIPTION ..................................................................................................................................... ４ 3. TEST METHODOLOGY ............................................................................................................................... ５ 3.1 EUT CONFIGURATION ...................................................................................................................... ５ 3.2 EUT EXERCISE .................................................................................................................................. ５ 3.3 GENERAL TEST PROCEDURES ...................................................................................................... ５ 3.4 DESCRIPTION OF TEST MODES ..................................................................................................... ５ 4. INSTRUMENT CALIBRATION ..................................................................................................................... ６ 5. FACILITIES AND ACCREDITATIONS ......................................................................................................... ６ 5.1 FACILITIES ......................................................................................................................................... ６ 5.2 EQUIPMENT ....................................................................................................................................... ６ 6. ANTENNA REQUIREMENTS ...................................................................................................................... ７ 7. SUMMARY TEST OF RESULTS ................................................................................................................. ８ 7.1 FCC Part ............................................................................................................................................. ８ 7.2 IC Part ................................................................................................................................................. ９ 8. TEST RESULT ......................................................................................................................................... １０ 8.1 DUTY CYCLE (802.11b/g/n) .......................................................................................................... １０ 8.2 6dB BANDWIDTH (802.11b/g/n) ................................................................................................... １２ 8.3 99% BANDWIDTH (802.11b/g/n) ................................................................................................... １６ 8.4 OUTPUT POWER(802.11b/g/n) ..................................................................................................... ２０ 8.5 POWER SPECTRAL DENSITY (802.11b/g/n) ............................................................................... ２７ 8.6 OUT OF BAND EMISSIONS AT THE BAND EDGE/ CONDUCTED SPURIOUS EMISSIONS ... ３１ 8.7 RADIATED MEASUREMENT ......................................................................................................... ４４ 8.7.1 RADIATED SPURIOUS EMISSIONS. .................................................................................. ４４ 8.7.2 RECEIVER SPURIOUS EMISSIONS ................................................................................... ５６ 8.7.3 RADIATED RESTRICTED BAND EDGES .......................................................................... ５７ 8.8 POWERLINE CONDUCTED EMISSIONS ..................................................................................... ５９ 9. LIST OF TEST EQUIPMENT ................................................................................................................... ６０ 9.1 LIST OF TEST EQUIPMENT(Conducted Test) ............................................................................ ６０ 9.2 LIST OF TEST EQUIPMENT(Radiated Test) ................................................................................ ６１ F-01P-02-014 (Rev.00) FCC ID: VPYLB1DM/ IC: 772C-LB1DM HCT Co.Ltd. Report No.: HCT-R-1504-F001 Model: LBEE6ZZ1DM Page ４ of 61 1. GENERAL INFORMATION Applicant: Murata Manufacturing Co.,Ltd.. Address: 10-1, Higashikotari 1-chome Nagaokakyo-si Kyoto, 617-8555 Japan FCC ID: VPYLB1DM IC: 772C-LB1DM EUT Type: Communication module FCC/ IC Model name(s): LBEE6ZZ1DM Date(s) of Tests: March 02, 2015 ~ March 31, 2015 Place of Tests: HCT Co., Ltd. 74,Seoicheon-ro 578beon-gil,Majang-myeon, Icheon-si, Gyeonggi-do, Korea. (IC Recognition No. : 5944A-3) 2. EUT DESCRIPTION EUT Type Communication module FCC/ IC Model Name LBEE6ZZ1DM Power Supply DC 5.0 V Frequency Range TX : 2412 MHz~2462 MHz RX : 2412 MHz~2462 MHz Max. RF Output Power Peak Wi-Fi 802.11b(23.43 dBm) / Wi-Fi 802.11g (22.22dBm) / Wi-Fi 802.11n (22.01 dBm) Average Wi-Fi 802.11b(17.57 dBm) / Wi-Fi 802.11g (13.80 dBm) / Wi-Fi 802.11n (13.66 dBm) Modulation Type DSSS/CCK(802.11b), OFDM(802.11g, 802.11n) Antenna Specification Manufacturer: Murata innovator in electronics Antenna type: External Antenna Peak Gain : -0.1dBi F-01P-02-014 (Rev.00) FCC ID: VPYLB1DM/ IC: 772C-LB1DM HCT Co.Ltd. Report No.: HCT-R-1504-F001 Model: LBEE6ZZ1DM Page ５ of 61 3. TEST METHODOLOGY FCC KDB 558074 D01 DTS Meas Guidance v03r02 dated June 05, 2014 entitled “Guidance for Performing Compliance Measurements on Digital Transmission Systems(DTS) Operating Under §15.247” and the measurement procedure described in the American National Standard for Testing Unlicensed Wireless Devices(ANSI C63.4-2003) were used in the measurement. 3.1 EU…
