1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 November 2020 LBEE5QD1ZMUser Manual for FCC Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). FCC ID:VPYLB1ZM 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 November 2020 LBEE5QD1ZMUser Manual for FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device maynot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This devicecomplies with below part 15 of FCC Rules. Part 15 Subpart C Part 15 Subpart E The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. This module designed for mounting inside of the end product by us professionally. Therefore, it complies with the antenna and transmission system requirements of §15.203. Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 November 2020 LBEE5QD1ZMUser Manual for FCC No.Maker Supported Antenna P/NFormfactorType Gain [dBi] SizeDetail 2.4GHz5GHz 1Molex146153u.FL/flexibleDipole3.24.2535 x 9 x 0.1 mm Flexible// horizontal 2Molex146187u.FL/flexibleDipole3.44.7540.95 x 9 x 0.7 mm Rigid // horizontal 3Murata LBEE5QD1ZM-Antenna Trace(Pattern)monopole3.64.6 Supported Antenna 4 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 November 2020 LBEE5QD1ZM User Manual for FCC This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Compliance with FCC requirement 15.407(c) Data transmission is always initiated by software, which is the passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. In other words, this device automatically discontinue transmission in case of either absence of information to transmit or operational failure. Frequency Tolerance: ±20 ppm ●The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device maynot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. or Contains Transmitter Module FCC ID:VPYLB1ZMContains FCC ID: VPYLB1ZM 5 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 November 2020 LBEE5QD1ZM User Manual for FCC This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. ●When installing it in a mobile equipment. Please describe the following warning to the manual. 6 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 November 2020 LBEE5QD1ZM User Manual for FCC Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm. ●When installing it in a portable equipment. Please describe the following warning to the manual. It is necessary to take a SAR test with your set mounting this module (except to use only Bluetooth (BDR/EDR/LE)). Class II permissive change application is necessary using the SAR report. Please contact Murata. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. Type1VY has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines.

RF_160, Issue 04 Declaration of Authorization We Name: Murata Manufacturing Co., Ltd. Address: 10-1, Higashikotari 1-chome, Nagaokakyo-shi Kyoto 617-8555 Japan City: Kyoto Country: Japan Declare that: Name Representative of agent: Kevin Tsai (1) Agent Company name: Compliance Certification Services Inc. Address: No. 11. Wugong 6th Road City: New Taipei City Country Taiwan is authorized to apply for Certification of the following product(s): Product description: Communication Module Type designation: LBEE5QD1ZM Trademark: muRata Validity/ expiry date: 2021/1/29 on our behalf. Date: .. City: Kyoto Name: Kenji Hayashikoshi (2) Function: Senior Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Plantronics, Inc. Address: 345 Encinal Street, Santa Cruz, CA 95060 USA City: Santa Cruz Country: USA To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: VPYLB1ZM Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short- Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. Planned Release Date STC: 180 days (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: 30 November 2020 Name and signature of applicant: Kenji Hayashikoshi Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF_734_02 04 April 16 Modular Approval Request FCC (KDB 996369 D01 & Part 15.212) FCC ID: VPYLB1ZM Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes. 3. The modular transmitter must have its own power supply regulation. Yes. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number in accordance with 15.212 (a)(1)(vi)(A) / (B). No. Since this module is small in size, there is no space to write the ID. We will list the ID in the manual. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes. RF_734_02 04 April 16 Items to be covered by Split modular transmitters. Answer from applicant 1. The modular transmitter must comply with all requirements of a single modular transmitter except for items (1) & (5) of the above single modular approval requirements. 2. Only the radio front end must be shielded. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The interface between the split sections of the modular system must be digital with a minimum signalling amplitude of 150 mV peak-to-peak. 3. Control information and other data may be exchanged between the transmitter control elements and radio front end. 4. The sections of a split modular transmitter must be tested installed in a host device(s) similar to that which is representative of the platform(s) intended for use. 5. Manufacturers must ensure that only transmitter control elements and radio front end components that have been approved together are capable of operating together. The transmitter module must not operate unless it has verified that the installed transmitter control elements and radio front end have been authorized together. Manufacturers may use means including, but not limited to, coding in hardware and electronic signatures in software to meet these requirements, and must describe the methods in their application for equipment authorization. Note: A limited modular approval (LMA) may be granted for single or split modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): Kenji Hayashikoshi Date: 24 November 2020 Signature: ___________________________

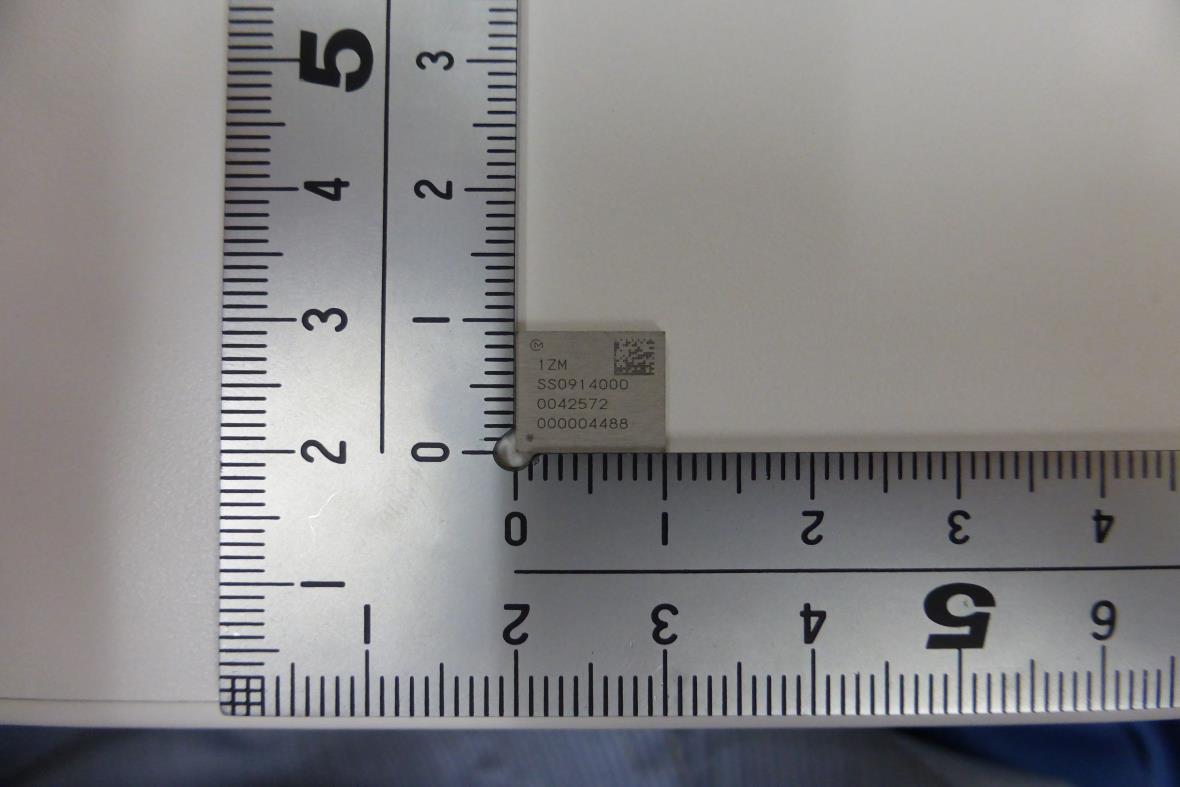

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 1 / 4 Report No.: T201215W01 Ref. No.: T200915W04 Rev.: 01 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Module

1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 October 2020 ：Name of manufacture(Murata Logo mark) LBEE5QD1ZM：Model Name abbreviation SSXXXXXXX：Inspection Number BBBBBBBBB：SerialNumber ：Pin 1 Marking ：2DCode LBEE5QD1ZMLabel Design and Location 0.8mm 9.3mm 10.2mm There is no space todescribetheFCCID/ ISEDICNumber. Thereforeit is describedonthemanual andpackage. 0.6mm 0.8mm 0.8mm 2.8mm 2.8mm LBEE５QD１ZM S S 1 2 3 4 5 6 7 BBBBBBBBB 1.2mm

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 4 Report No.: T201215W01 Ref. No.: T200915W04 Rev.: 01 INTERNAL PHOTOGRAPHS OF EUT RF IC & Crystal Monopole (PCB) Antenna (Murata / LBEE5QD1ZM-Antenna) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 4 Report No.: T201215W01 Ref. No.: T200915W04 Rev.: 01 Dipole Antenna (Molex / 146187) This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 4 Report No.: T201215W01 Ref. No.: T200915W04 Rev.: 01 Dipole Antenna (Molex / 146153)

FCC ID: VPYLB1ZM Page 1 / 10 Report No.: T201215W01-MF Ref. No.: T200915W04-MF Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Communication Module Model: LBEE5QD1ZM Trade Name: muRata Issued to Murata Manufacturing Co., Ltd. 1-10-1, Higashikotari, Nagaokakyo-shi, Kyoto 617-8555 Japan Issued by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. (R.O.C.) Issue Date: January 7, 2021 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 10 Report No.: T201215W01-MF Ref. No.: T200915W04-MF Rev.: 01 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 11, 2020 Initial Issue ALL Mita Wu 01 January 7, 2021 See the following Note Rev.(01) ALL Allison Chen Note: Rev.(01) 1. This test report is an addendum to the original test report T200915W04-MF, the EUTs represent the original and this test report are assessed as identical in hardware and software, measurement results in the original report are fully leveraged in this test report without further verification test. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 10 Report No.: T201215W01-MF Ref. No.: T200915W04-MF Rev.: 01 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ......................................................................... 4 2. LIMIT ..................................................................................................................... 5 3. EUT SPECIFICATION .......................................................................................... 6 4. TEST RESULTS ................................................................................................... 8 5. MAXIMUM PERMISSIBLE EXPOSURE............................................................... 9 6. SIMULTANEOUS TRANSMISSION SAR ANALYSIS ........................................ 10 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 10 Report No.: T201215W01-MF Ref. No.: T200915W04-MF Rev.: 01 1. TEST RESULT CERTIFICATION We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10: 2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. APPLICABLE STANDARDS STANDARD TEST RESULT KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 No non-compliance noted Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Approved by: Kevin Tsai Deputy Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 10 Report No.: T201215W01-MF Ref. No.: T200915W04-MF Rev.: 01 2. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 6 / 10 Report No.: T201215W01-MF Ref. No.: T200915W04-MF Rev.: 01 3. EUT SPECIFICATION EUT Communication Module Model LBEE5QD1ZM Model Discrepancy N/A Received Date September 15, 2020 Frequency band (Operating) Bluetooth: 2402MHz-2480MHz 802.11b/g/n HT20 / ac20: 2412MHz ~ 2462 MHz 802.11n HT40 / ac40: 2422MHz ~ 2452MHz 802.…

Text truncated - open the document above for the full version.

FCC ID: VPYLB1ZM IC: 772C-LB1ZM Page: 1 / 358 Report No.: T201215W01-RP4 Ref. No.: T200915W04-RP4 Rev.: 01 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw www.ccsrf.com Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART E INDUSTRY CANADA RSS-247 Test Standard FCC Part 15.407+ RSS-247 issue 2 and RSS-GEN issue 5 Product name Communication Module Brand Name muRata Model No. LBEE5QD1ZM Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.(Wugu Laboratory) Approved by: Tested by: Kevin Tsai Dally Hong Deputy Manager Engineer Page: 2 / 358 Report No.: T201215W01-RP4 Ref. No.: T200915W04-RP4 Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 11, 2020 Initial Issue ALL Mita Wu 01 January 7, 2021 See the following Note Rev.(01) ALL Allison Chen Note: Rev.(01) 1. This test report is an addendum to the original test report T200915W04-RP4, the EUTs represent the original and this test report are assessed as identical in hardware and software, measurement results in the original report are fully leveraged in this test report without further verification test. Page: 3 / 358 Report No.: T201215W01-RP4 Ref. No.: T200915W04-RP4 Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Table of contents 1. GENERAL INFORMATION .................................................................................................. 4 1.1 EUT INFORMATION ............................................................................................................ 4 1.2 EUT CHANNEL INFORMATION .......................................................................................... 5 1.3 ANTENNA INFORMATION .................................................................................................. 6 1.4 MEASUREMENT UNCERTAINTY ....................................................................................... 6 1.5 FACILITIES AND TEST LOCATION .................................................................................... 7 1.6 INSTRUMENT CALIBRATION ............................................................................................. 7 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ........................................................... 8 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ....................................................... 8 2. TEST SUMMARY ................................................................................................................. 9 3. DESCRIPTION OF TEST MODES ..................................................................................... 10 3.1 THE EUT CHANNEL NUMBER OF OPERATING CONDITION ......................................... 10 3.2 THE WORST MODE OF MEASUREMENT ........................................................................ 11 3.3 EUT DUTY CYCLE ............................................................................................................ 12 4. TEST RESULT ................................................................................................................... 14 4.1 AC POWER LINE CONDUCTED EMISSION ..................................................................... 14 4.2 26DB BANDWIDTH, 6DB BANDWIDTH AND OCCUPIED BANDWIDTH(99%) ............... 15 4.3 OUTPUT POWER MEASUREMENT .................................................................................. 43 4.4 POWER SPECTRAL DENSITY ......................................................................................... 52 4.5 RADIATION BANDEDGE AND SPURIOUS EMISSION .................................................... 73 4.6 FREQUENCY STABILITY ................................................................................................ 354 APPENDIX-A TEST PHOTO ............................................................................…

Text truncated - open the document above for the full version.

Page: 73 / 358 Report No.: T201215W01-RP4 Ref. No.: T200915W04-RP4 Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 4.5 RADIATION BANDEDGE AND SPURIOUS EMISSION 4.5.1 Test Limit According to §15.407, §15.209 and §15.205, According to RSS-247 section 6.2.1.2 and section 6.2.4.2 Below 30 MHz Frequency Field Strength (microvolts/m) Magnetic H-Field (microamperes/m) Measurement Distance (metres) 9-490 kHz 2,400/F (F in kHz) 2,400/F (F in kHz) 300 490-1,705 kHz 24,000/F (F in kHz) 24,000/F (F in kHz) 30 1.705-30 MHz 30 N/A 30 Above 30 MHz Frequency (MHz) Field Strength microvolts/m at 3 metres (watts, e.i.r.p.) Transmitters Receivers 30-88 100 (3 nW) 100 (3 nW) 88-216 150 (6.8 nW) 150 (6.8 nW) 216-960 200 (12 nW) 200 (12 nW) Above 960 500 (75 nW) 500 (75 nW) RSS-Gen Table 3 and Table 5 – General Field Strength Limits for Transmitters and Receivers at Frequencies Above 30 MHz (Note) Frequency (MHz) Field Strength microvolts/m at 3 metres (watts, e.i.r.p.) Transmitters Receivers 30-88 100 (3 nW) 100 (3 nW) 88-216 150 (6.8 nW) 150 (6.8 nW) 216-960 200 (12 nW) 200 (12 nW) Above 960 500 (75 nW) 500 (75 nW) Note: Measurements for compliance with the limits in table 3 may be performed at distances other than 3 metres, in accordance with Section 6.6. Page: 74 / 358 Report No.: T201215W01-RP4 Ref. No.: T200915W04-RP4 Rev.: 01 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 RSS-Gen Table 6: General Field Strength Limits for Transmitters at Frequencies Below 30 MHz (Transmit) Frequency Magnetic field strength (H-Field) (μA/m) Measurement Distance (m) 9-490 kHz Note 6.37/F (F in kHz) 300 490-1,705 kHz 63.7/F (F in kHz) 30 1.705-30 MHz 0.08 30 Note: The emission limits for the ranges 9-90 kHz and 110-490 kHz are based on measurements employing a linear average detector.. UNII-1 : For transmitters operating in the band 5150-5250 MHz, all emissions outside the band 5150-5350 MHz shall not exceed -27 dBm/MHz e.i.r.p. However, any unwanted emissions that fall into the band 5250-5350 MHz must be 26 dBc, when measured using a resolution bandwidth between 1 and 5% of the occupied bandwidth, above 5.25 GHz. Otherwise, the transmission is considered as intentional and the devices shall implement dynamic frequency selection (DFS) and transmitter power control (TPC) as per the requirements for the band 5250-5350 MHz UNII-2a and 2c : For devices with operating frequencies in the band 5250-5350 MHz but having a channel bandwidth that overlaps the band 5150-5250 MHz, the devices’ unwanted emission shall not exceed -27 dBm/MHz e.i.r.p. outside the band 5150-5350 MHz and its power shall comply with the spectral power density for operation within the band 5150-5250 MHz. The device shall be labelled “for indoor use only.” Emissions outside the band 5470-5725 MHz shall not exceed -27 dBm/MHz e.i.r.p. UNII-3: F…
