CONFIDENTIAL 1 / 18 [Sensor Tag] User Manual Model name: LBBC0ZZ2AM CONFIDENTIAL 2 / 18 Revision History Date Revision Change point 1.0 Original CONFIDENTIAL 3 / 18 Table of contents 1 Description ........................................................................................................................................ 4 2 Product specification ........................................................................................................................ 5 2.1 Hardware specification .............................................................................................................. 5 2.2 Body shape and dimensions ...................................................................................................... 6 2.3 Block diagram ............................................................................................................................ 7 2.4 Operation Mode ......................................................................................................................... 8 2.5 Label ........................................................................................................................................... 8 2.6 Package ...................................................................................................................................... 9 3 Appendix ......................................................................................................................................... 10 3.1 Antenna Specification ............................................................................................................. 10 3.2 Antenna Setup ......................................................................................................................... 10 3.3 Antenna directivity .................................................................................................................. 10 3.4 Tx timing chart ........................................................................................................................ 10 4 Information of importer, manufacturer and factory ....................................................................... 11 5 Applicable standards and certification .......................................................................................... 12 6 NOTICE .......................................................................................................................................... 14 6.1 Storage and operation conditions ........................................................................................... 14 6.2 Caution for use ........................................................................................................................ 14 6.3 Limitation of applications ....................................................................................................... 15 7 Note on safety ................................................................................................................................. 16 8 Warranty for product ...................................................................................................................... 17 8.1 Warranty period and its scope ................................................................................................ 17 8.2 Warranty exception ................................................................................................................. 18 CONFIDENTIAL 4 / 18 1 Description - LBBC0ZZ2AM is the wireless sensor tag for wireless sensor network. This product can send the sensor data to the gateway (LBAE0ZZ2AG). - IEEE802.15.4 frequency band is 2405MHz~2480MHz. - Battery is CR2450R(Coin Battery) - Waterproof performance equivalent to IP54. - It is used in the transportation of pharmaceutical products and medical equipment, and is not intended to be used in environments that require high reliability such as automobiles, and power plants. - No accessories or peripherals. Not required. CONFIDENTIAL 5 / 18 2 Product specification 2.1 Hardware specification Model Name LBBC0ZZ2AM Wireless communication Interface IEEE802.15.4 Frequency 2405MHz - 2480MHz +/-9ppm (+/-30ppm@-30°C~+85°C) Channel BW 5MHz Modulation OQPSK Antenna Monopole pattern antenna (less than 0.3dBi) RF output power Less than 6dBm Peak e.i.r.p. Power supply Battery CR2450R(500mAh) Hardware Human interface Push switch*1 LED*2 (Red & Green) Accessory - Operating environment IP grade IP54 Temperature -20degC ~ +70degC Humidity 0%RH ~ 90%RH (non-condensing) Case Material Polycarbonate Flame retardancy UL94 V-0 Minimum Thickness 0.6mm CONFIDENTIAL 6 / 18 2.2 Body shape and dimensions External Internal Label IEEE802.15.4 RF IC (Under the battery) IEEE802.15.4 antenna CONFIDENTIAL 7 / 18 2.3 Block diagram Block Diagram of product Block Diagram of RF device Clock frequency (Maximum) CONFIDENTIAL 8 / 18 2.4 Operation Mode Mode Sensor IEEE802.15.4 Sleep OFF OFF Measuring ON OFF 802.15.4 Tx OFF Tx 802.15.4 Rx OFF Rx 2.5 Label To p Label Bottom Label UUID: ABCDEFGHIJKLMNOPQRSTUVWXYZ123456 Serial： MTZZ11A000001 CONFIDENTIAL 9 / 18 2.6 Package 100 tags packed in the box. ×25pcs/sheet ×4sheets/box cover sheet CONFIDENTIAL 10 / 18 3 Appendix 3.1 Antenna Specification Model name IEEE802.15.4 antenna Frequency 2405MHz...2480MHz Antenna Type Pattern antenna Connector type - Peak gain 0.3dBi Photo 3.2 Antenna Setup The antenna of this product is built-in pattern antenna for IEEE802.15.4.. 3.3 Antenna directivity Omnidirectional antenna. 3.4 Tx timing chart *The Conducted power test was modified to allow measurements under 100% continuous radiation conditions as a conservative condition. The maximum duty ratio in actual use is less than 8.361msec/1.79sec = 0.5%. CONFIDENTIAL 11 / 18 4 Information of importer, manufacturer and factory - Information of the importer Company name: Address: - Information of the manufacturer Company name: Murata manufacturing Co., Ltd. Address: 1-10-1 Higashikotari, …

Text truncated - open the document above for the full version.

External Photo Product Name LBBC0ZZ2AM Width61mm Depth53mm Height16.8mm 61mm 53mm 16.8mm

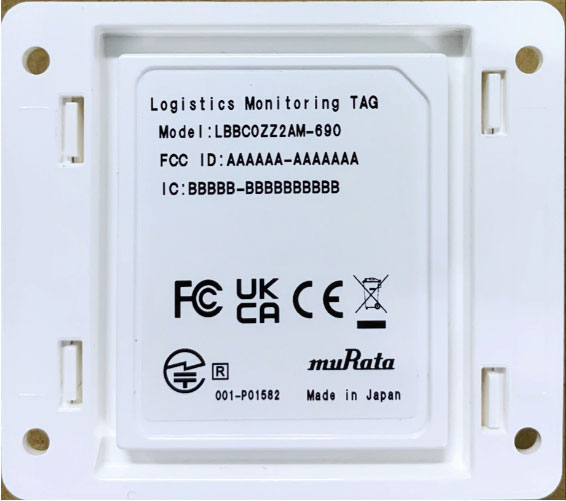

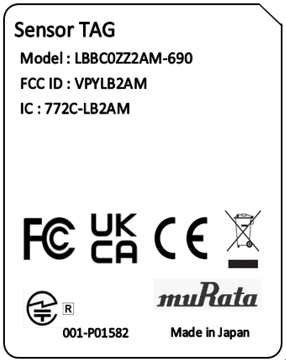

Front Side Label Design Back Side Label Design UUID:ABCDEFGHIJKLMNOPQRSTUVWXYZ123456 Serial ： MTZZ11A000001 2D code Serial ： MTZZPA11A000001UUID:ABCDEFGHIJKLMNOPQRSTUVWXYZ123456 Front Side Label Layout Back Side Label Layout

Internal Photo Product NameLBBC0ZZ2AM Width38mm Depth44mm Height7.2mm Antenna Position Battery removed

January 28, 2021 FCC ID: VPYLB2AM To whom it may concern, We, UL Japan, Inc, hereby declare that Sensor tag, model: LBBC0ZZ2AM-690 (FCC ID: VPYLB2AM) of Murata Manufacturing Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/( min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power was 3 mW So for this device: 3 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.9 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Takayuki Shimada Leader of Ise EMC Lab. Consumer Technology Division UL Japan, Inc.

Test report No. : 13629400H-A Page : 1 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Report Cover Page - 13-EM-F0429 Issue # 17.0 RADIO TEST REPORT Test Report No. : 13629400H-A Applicant : Murata Manufacturing Co., Ltd. Type of EUT : Sensor tag Model Number of EUT : LBBC0ZZ2AM-690 FCC ID : VPYLB2AM Test regulation : FCC Part 15 Subpart C: 2021 Test Result : Complied (Refer to SECTION 3.2) Date of test: January 14, to January 25, 2021 Representative test engineer: Hiroki Numata Engineer Consumer Technology Division Approved by: Takayuki Shimada Leader Consumer Technology Division CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation body. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) 7. The all test items in this test report are conducted by UL Japan, Inc. Ise EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 9. The information provided from the customer for this report is identified in Section 1. Test report No. : 13629400H-A Page : 2 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 13629400H-A Revision Test report No. Date Page revised Contents - (Original) 13629400H-A January 28, 2021 - - Test report No. : 13629400H-A Page : 3 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13629400H-A Page : 4 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information....................................................................................................... 5 SECTION 2: Equipment under test (EUT) ............................................................................................ 5 SECTION 3: Test specification, procedures & results.......................................................................... 6 SECTION 4: Operation of EUT during testing ................................................................................... 10 SECTION 5: Radiated Spurious Emission ......................................…

Text truncated - open the document above for the full version.

Test report No. : 13629400H-A Page : 36 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 13629400H-A Page : 37 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position Below 1GHz Horizontal: X-axis / Vertical: X-axis Above 1GHz: Horizontal: X-axis / Vertical: Z-axis X-axis Y-axis Z-axis Test report No. : 13629400H-A Page : 38 of 38 Issued date : January 28, 2021 FCC ID : VPYLB2AM UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Antenna Terminal Conducted Tests Photo 1 End of Report
