VPYLBEE6XX1URCommunication module

1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 LBEE6XX1UR User Manual for FCC ModelName:LBEE6XX1UR FCC ID: VPYLBEE6XX1UR Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure) The OEM integrator has tobe aware not to provide information to the end user regarding how to install or remove this RF module in the end user’s manual of the end productwhich integrates this module. The end user manual shall include all required regulatory information/warning as shown in User manual. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device maynot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with below part 15 of the FCC Rules. Part 15 Subpart C Part 15 Subpart E Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. This module designed for mounting inside of the end product by us professionally. Therefore, it complies with the antenna and transmission system requirements of §15.203. Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. LBEE6XX1UR User Manual for FCC 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 This manual is based on KDB 996369, which is designed to ensure that module manufacturer correctly communication the necessary information to host manufacturers that incorporate their modules. INTEGRATION INSTRUCTIONS 1. General: Applicable Sections 2 through 10 describe the items that must be provided in the integration instructions for host product manufacturers(e.g., OEM instruction manual) to use when integrating a module in a host product. This Modular transmitter applicant(muRata) should include information in their instructions for all these items indicating clearly when they are not applicable. 2. List of applicable FCC rules: Applicable This devicecomplies with below part 15 of FCC Rules. Part 15 Subpart C Part 15 Subpart E LBEE6XX1UR User Manual for FCC 4 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 3. Summarize the specific operational use conditions : Applicable 4. Limited module procedures : Applicable This module designed for mounting inside of the end product by us professionally. Therefore, it complies with the antenna and transmission system requirements of §15.203. This module needs to supply a regulated voltage from host device. Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. LBEE6XX1UR User Manual for FCC 5 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 5. Trace antenna designs : Applicable Please perform the Trace antenna design that followed the specifications of the antenna. The concrete contents of a check are the following three points. １）It is the same type as the antenna type of antenna specifications. Confirm the same size as the Gerber file. ２）An antenna gain is lower than a gain given in antenna specifications. Measure the gain, and confirm the peak gain is less than the application value. ３）The emission level is not getting worse. Measure the spurious, and confirm degradation of less than 3dB than spurious value of worst of report used for the application. However it is spurious defined below. Please send those reports to Murata. And pleasereferAntenna in Section 6 of the installation manual. LBEE6XX1UR User Manual for FCC 6 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 6. RF exposure considerations : Applicable This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm. It is necessary to take a SAR test with your set mounting this module (except to use only Bluetooth). Class II permissive change application is necessary using the SAR report. Please contact Murata. And an application for a Class II permissive change from a Mobile equipment to a Port…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: March 3, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing [Murata Manufacturing Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, [Murata Electronics North America, Inc.] is our designated U.S. agent for service of process.[Murata Manufacturing Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [Murata Electronics North America, Inc.] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process. Sincerely, Designated U.S. Agent Information: Name: Murata Electronics North America, Inc. FRN: 0024753089 Contact Person: Mark E Tucker Address: 2200 Lake Park Drive Smyma, GA 30080-7604 United States Tel.: (678)684-2009 Email: [email protected] Mark E. Tucker 3/3/2023 U.S. Agent Signature: Applicant: Company Name: Murata Manufacturing Co., Ltd. FRN: 0017033432 Contact Person: Kenji Hayashikoshi Address: 1-10-1, Higashikotari, Nagaokakyo-shi, Kyoto 617-8555 Japan Tel.: +81-75-955-6736 Email: [email protected] Applicant Signature:

Federal Communications Commission Date: 2023-09-07 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Authorization Letter for FCC ID: VPYLBEE6XX1UR To Whom It May Concern: We, the undersigned, hereby authorize following person to act as our agent on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. Compliance Certification Service Address : No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan, R.O.C. Name : Mr. Kevin Tsai Job Title : Manager e-mail : [email protected] This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, _________________________________ Kenji Hayashikoshi Senior Manager

MODULAR APPROVAL LETTER Federal Communications Commission Date: 2023-09-07 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Module Approval request letter for FCC ID: VPYLBEE6XX1UR Modular Approval Requirement Yes No (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The EUT provides the RF shielding. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. The module and data input(s) are buffered. The EUT has buffered data inputs, it is integrated in IC chip. (iii) The modular transmitter must have its own power supply regulation. The module has own power supply regulation. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The EUT meets the FCC antenna requirements; unique antenna connector / permanently attached antenna Please refer to photo of antenna are shown in the test report. (v) The modular transmitter must be tested in a stand-alone configuration The EUT was testes in a stand-alone configuration. Please see section photographs of test configuration in the test report. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Please see label application document for the FCC ID of this module. And also in the exhibition User’s manual, there are instructions gives to the OEM on how to label the end product. Modular Approval Requirement Yes No (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are given in the User Manual. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The EUT is comply with RF exposure re requirement. RF exposure is addressed in the User Manual. _________________________________ Kenji Hayashikoshi Senior Manager

Federal Communications Commission Date: 2023-10-05 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: FCC Request for confidentiality for FCC ID: VPYLBEE6XX1UR To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, _________________________________ Kenji Hayashikoshi Senior Manager

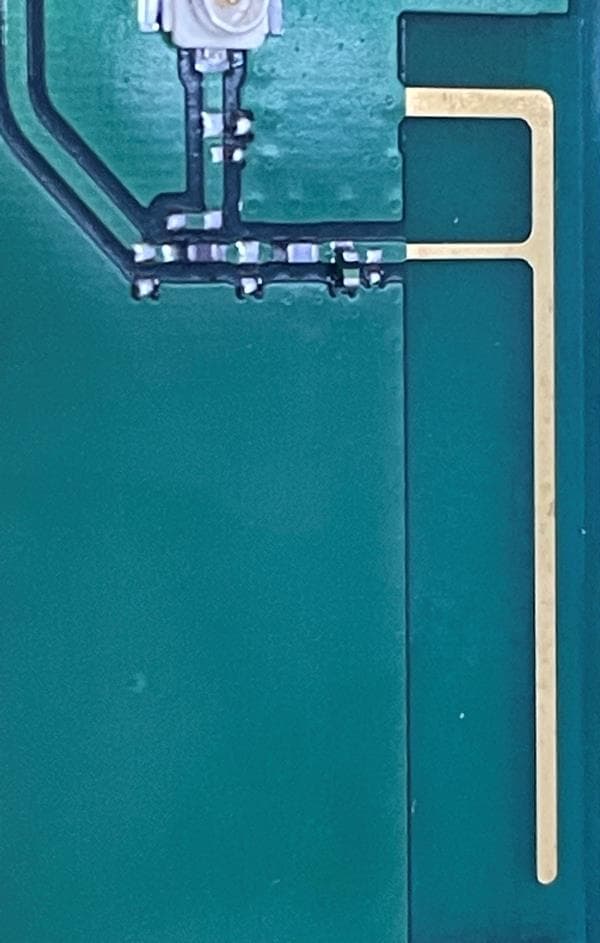

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2308000057P Page: 1 / 4 Rev.: 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Top Long Side Bottom Short Side This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2308000057P Page: 2 / 4 Rev.: 00 WIFI Antenna BT Antenna This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2308000057P Page: 3 / 4 Rev.: 00

1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 LBEE6XX1UR LWT 12.211.41.8 Dimensions MarkingMeaning APin1Marking BMurataLogo CInspectionNumber DModuleType ESerialNumber F2Dcode T (Unit: mm) L W C M SSXXXXXXX 1UR849 XXXXXXXXXXXXXXXX B C A D E F 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 29 September 2023 LBEE6XX1UR •Label to package There is no space to describe the Certification Number. Therefore, it is described on the manual.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Project No.: TM-2308000057P Page: 4 / 4 Rev.: 00 INTERNAL PHOTOGRAPHS OF EUT RF IC

Project No.: TM-2308000057P FCC ID: VPYLBEE6XX1UR Page 1 / 15 Report No.: TMWK2308002693KS Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RF Exposure Evaluation Report FCC 47 CFR § 2.1091 for Communication module Model Name.: LBEE6XX1UR Prepared for: Murata maufacturing co., ltd. 1-10-1, Higashikotari, Nagaokakyou-shi, Kyoto 617-8555 Japan Prepared by Compliance Certification Services Inc. Wugu Laboratory No.11, Wugong 6th Rd., Wugu Dist., New Taipei City, Taiwan. Issue Date: September 22, 2023 Note: This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NIST or any government agencies. The test results in the report only apply to the tested sample. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 2 / 15 Report No.: TMWK2308002693KS Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 22, 2023 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 3 / 15 Report No.: TMWK2308002693KS Rev.: 00 Table of Contents 1 ATTESTATION OF TEST RESULTS ................................................................... 4 2 TEST SPECIFICATION, METHODS AND PROCEDURES ................................. 5 3 DEVICE UNDER TEST (DUT) INFORMATION .................................................... 6 3.1 DUT DESCRIPTION .............................................................................................................. 6 3.2 WIRELESS TECHNOLOGIES ............................................................................................... 7 4 MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 9 4.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................... 9 4.2 MPE CALCULATION METHOD ........................................................................................... 10 4.3 MPE EXEMPTION ............................................................................................................... 11 4.4 MULTIPLE RF SOURCES ................................................................................................... 12 5 MPE EXEMPTION OPTION B ............................................................................ 13 6 SIMULTANEOUS TRANSMISSION EXEMPT ................................................... 14 6.1 SUM OF THE WIFI 5GHZ & BLUETOOTH ......................................................................... 14 7 FACILITIES ........................................................................................................ 15 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 4 / 15 Report No.: TMWK2308002693KS Rev.: 00 1 Attestation of Test Results Applicant Name Murata maufacturing co., ltd. Model Name LBEE6XX1UR Applicable Standards FCC 47 CFR § 2.1091 FCC 47 CFR § 1.1307 FCC 47 CFR § 1.1310 Published RF exposure KDB procedures Receive EUT Date: August 7, 2023 Compliance Certification Services Inc. , tested the above equipment in accordance with the requirements set forth in the above standards. Determination of compliance is based on the results of the compliance measurement,not taking into account measurement instrumentation uncertainy.All indications of Pass/Fail in this report are opinions expressed by Compliance Certification Services Inc, based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved & Released By: Sky Zhou Asst. Section Manager Compliance Certification Services Inc. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 5 / 15 Report No.: TMWK2308002693KS Rev.: 00 2 Test Specification, Methods and Procedures The tests documented in this report were performed in accordance with FCC 47 CFR § 2.1091, the following FCC Published RF exposure KDB procedures: o 447498 D04 Interim General RF Exposure Guidance v01 o 865664 D02 RF Exposure Reporting v01r02 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 6 / …

Text truncated - open the document above for the full version.

Project No.: TM-2308000057P FCC ID: VPYLBEE6XX1UR Page: 1 / 25 Report No.: TMWK2308002692KR IC: 772C-LBEE6XX1UR Rev.: 00 No.11, Wugong 6th Rd., Wugu Dist., New Taipei City , Taiwan /新北市五股區五工六路11號 t:(886-2) 2299-9720 f:(886-2) 2299-9721 www.sgs.com.tw Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 除非另有說明，此報告結果僅對測試之樣品負責，同時此樣品僅保留90天。本報告未經本公司書面許可，不可部份複製。 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com.tw/Terms-and-Conditions and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com.tw/Terms-and-Conditions. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Compliance Certification Services Inc. 程智科技股份有限公司 Member of the SGS Group RADIO TEST REPORT FCC 47 CFR PART 15 SUBPART E INDUSTRY CANADA RSS-247 Test Standard FCC Part 15.407 RSS-247 issue 2 and RSS-GEN issue 5 Brand name muRata Applicant Murata maufacturing co., ltd. Product name Communication module Model No. LBEE6XX1UR Test Result Pass Statements of Conformity Determination of compliance is based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. The test Result was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were given in ANSI C63.10: 2013 and compliance standards. The test results of this report relate only to the tested sample (EUT) identified in this report. The test Report of full or partial shall not copy. Without written approval of Compliance Certification Services Inc.(Wugu Laboratory) Approved by: Shawn Wu Supervisor This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 2 / 25 Report No.: TMWK2308002692KR Rev.: 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 September 22, 2023 Initial Issue ALL Allison Chen This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 3 / 25 Report No.: TMWK2308002692KR Rev.: 00 Table of contents 1. GENERAL INFORMATION ........................................................................................ 4 1.1 EUT INFORMATION .................................................................................................. 4 1.2 EUT CHANNEL INFORMATION ................................................................................ 5 1.3 ANTENNA INFORMATION ........................................................................................ 6 1.4 MEASUREMENT UNCERTAINTY .............................................................................. 7 1.5 FACILITIES AND TEST LOCATION .......................................................................... 8 1.6 INSTRUMENT CALIBRATION ................................................................................... 9 1.7 SUPPORT AND EUT ACCESSORIES EQUIPMENT ............................................... 10 1.8 TEST METHODOLOGY AND APPLIED STANDARDS ........................................... 10 2. TEST SUMMARY ..................................................................................................... 11 3. DESCRIPTION OF TEST MODES............................................................................ 12 3.1 THE WORST MODE OF OPERATING CONDITION ................................................ 12 4. DYNAMIC FREQUENCY SELECTION ..................................................................... 13 4.1 TEST LIMIT .............................................................................................................. 13 4.2 TEST PROCEDURE ................................................................................................. 17 4.3 TEST SETUP ............................................................................................................ 21 APPENDIX 1 - PHOTOGRAPHS OF EUT This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 4 / 25 Report No.: TMWK2308002692KR Rev.: 00 1. GENERAL INFORMATION 1.1 EUT INFORMATION Applicant Murata maufacturing co., ltd. 1-10-1, Higashikotari, Nagaokakyou-shi, Kyoto 617-8555 Japan Manufacturer Murata maufacturing co., ltd. 1-10-1, Higashikotari, Nagaokakyou-shi, Kyoto 617-8555 Japan Equipment Communication module Model No. LBEE6XX1UR Model Discrepancy N/A Trade Name muRata Received Date August 7, 2023 Date of Test August 31, 2023 Power Supply Powered from power supply. (DC 3.3V) HW Version 1.0 SW Version 1.0 Remark: 1. For more details, please refer to the User’s manual of the EUT. 2. Disclaimer: Antenna information is provided by the applicant, test results of this report are applicable to the sample EUT received. This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page: 5 / 25 Report No.: TMWK2308002692KR Rev.: 00 1.2 EUT CHANNEL INFORMATION Frequency Range UNII-2a IEEE 802.11a 5260 ~ 5320 MHz IEEE 802.11n HT20 5260 ~ 5320 MHz IEEE 80…

Text truncated - open the document above for the full version.

This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 139 / 391 Report No.: TMWK2308002691KR Rev.: 00 Project Number :TM-2308000057P Test Date :2023-08-30 Operation Band :802.11ac80/Band3 Temp./Humi. :24.4/57 Frequency :5530 MHz Antenna Pol. :HORIZONTAL Operation Mode :Bandedge Engineer :Ray.Li EUT Pol :E2 Test Chamber : 966A Setting :51 Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 5448.900 Peak 51.97 12.37 64.35 74.00 -9.65 5455.500 Average 40.25 12.39 52.65 54.00 -1.35 5460.600 Peak 50.45 12.41 62.86 68.20 -5.34 5530.000 Peak 84.92 12.77 97.69 -- -- 5530.000 Average 77.33 12.77 90.10 -- -- 5831.400 Peak 41.87 14.07 55.94 68.20 -12.26 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 140 / 391 Report No.: TMWK2308002691KR Rev.: 00 Project Number :TM-2308000057P Test Date :2023-08-30 Operation Band :802.11ac80/Band3 Temp./Humi. :24.4/57 Frequency :5610 MHz Antenna Pol. :VERTICAL Operation Mode :Bandedge Engineer :Ray.Li EUT Pol :E2 Test Chamber : 966A Setting : Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 5451.000 Peak 41.47 12.38 53.85 74.00 -20.15 5460.000 Average 31.87 12.41 44.28 54.00 -9.72 5464.800 Peak 41.36 12.43 53.79 68.20 -14.41 5610.000 Peak 85.00 12.92 97.92 -- -- 5610.000 Average 76.88 12.92 89.80 -- -- 5763.600 Peak 42.23 13.91 56.14 68.20 -12.06 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 141 / 391 Report No.: TMWK2308002691KR Rev.: 00 Project Number :TM-2308000057P Test Date :2023-08-30 Operation Band :802.11ac80/Band3 Temp./Humi. :24.4/57 Frequency :5610 MHz Antenna Pol. :HORIZONTAL Operation Mode :Bandedge Engineer :Ray.Li EUT Pol :E2 Test Chamber : 966A Setting : Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 5449.200 Peak 43.27 12.37 55.65 74.00 -18.35 5457.300 Average 32.71 12.40 45.11 54.00 -8.89 5462.100 Peak 41.86 12.42 54.28 68.20 -13.92 5610.000 Peak 84.91 12.92 97.83 -- -- 5610.000 Average 76.41 12.92 89.33 -- -- 5750.400 Peak 42.32 13.82 56.14 68.20 -12.06 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 142 / 391 Report No.: TMWK2308002691KR Rev.: 00 Project Number :TM-2308000057P Test Date :2023-08-29 Operation Band :802.11a/Band4 Temp./Humi. :24.4/57 Frequency :5745 MHz Antenna Pol. :VERTICAL Operation Mode :Bandedge Engineer :Tony.Chao EUT Pol :E2 Test Chamber : 966A Setting : Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 5539.423 Peak 41.78 12.84 54.62 68.20 -13.58 5699.700 Peak 41.63 13.56 55.19 104.98 -49.79 5711.952 Peak 47.41 13.62 61.04 108.55 -47.51 5724.704 Peak 53.70 13.69 67.39 121.53 -54.13 5745.000 Peak 89.07 13.79 102.86 -- -- 5745.000 Average 81.73 13.79 95.53 -- -- 5853.726 Peak 40.48 14.02 54.50 113.70 -59.20 5861.727 Peak 40.40 14.02 54.42 108.91 -54.49 5892.982 Peak 41.23 14.03 55.26 91.86 -36.59 5947.991 Peak 40.66 14.15 54.81 68.20 -13.39 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 143 / 391 Report No.: TMWK2308002691KR Rev.: 00 Project Number :TM-2308000057P Test Date :2023-08-29 Operation Band :802.11a/Band4 Temp./Humi. :24.4/57 Frequency :5745 MHz Antenna Pol. :HORIZONTAL Operation Mode :Bandedge Engineer :Tony.Chao EUT Pol :E2 Test Chamber : 966A Setting : Freq. Detector Mode Spectrum Read Level Factor Actual FS Limit Margin MHz PK/QP/AV dBμV dB dBμV/m dBμV/m dB 5633.939 Peak 41.36 13.14 54.50 68.20 -13.70 5699.950 Peak 41.93 13.56 55.49 105.16 -49.67 5717.953 Peak 44.32 13.65 57.97 110.23 -52.26 5724.704 Peak 50.37 13.69 64.05 121.53 -57.47 5745.000 Peak 87.46 13.79 101.25 -- -- 5745.000 Average 80.07 13.79 93.87 -- -- 5852.726 Peak 39.70 14.02 53.72 115.98 -62.26 5869.228 Peak 41.22 14.02 55.25 106.81 -51.57 5904.984 Peak 42.16 14.04 56.21 82.97 -26.77 5978.997 Peak 41.37 14.15 55.52 68.20 -12.68 This document cannot be reproduced except in full, without prior written approval of the Company. 本報告未經本公司書面許可，不可部份複製。 Page 144 / 391 Report No.: TMWK2308002691KR Rev.: 00 Project Number :TM-2308000057P Test…

Text truncated - open the document above for the full version.
