VPYLBCA1ZZ2DVCommunication Module

1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device maynot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ModelName:2DV FCC ID: VPYLBCA1ZZ2DV FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This device complies with below part 15 of the FCC Rules. Part 15 Subpart C Since there is no space which indicates FCC ID on this module, FCC ID is indicated in a manual. If the FCC ID is not visible when the module is installed inside another device, then the module is installed must also display a label referring to the enclosed module. The modular transmitter is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant,and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. The final host product still requires Part 15 Subpart B compliance testing with the modular transmitter installed. This device is the bluetoothlow energy module. User Manual 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 *If it is difficult to describe this statement on the host device due to the size, please describe in the user's manual and also either describe on the device packaging or on a removable label attached to thedevice. or Contains Transmitter Module FCC ID：VPYLBCA1ZZ2DV Contains FCC ID：VPYLBCA1ZZ2DV FCC Compliance Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ●The following information must be indicated on the host device of this module. ●The following statements must be described on the user manual of the host device of this module; FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines as this equipment has very low levels of RF energy. ［※］ ※But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person's body. Part numberVendorPeak Gain(dBi)TypeConnector Internal Trace AntennaMurata+1.0λ/4Monopole- ●Antenna list. User Manual 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 Dimensions, Marking 9.4 mm 2.7mm 2.7mm 0.8mm 0.8mm 1.3mm 5.6 mm markingMeaning AMurata Logo BModule Type CPin 1 Marking D2D Code MarkdimensionsMarkdimensionsMarkdimensions L5.6±0.25W9.4±0.25T2.2max A B C D T Installation Manual 4 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 Terminal Configurations (Top vew) NoTerminal NameNoTerminal NameNoTerminal NameNoTerminal NameNoTerminal Name A-1GNDC-9P1_15G-9P1_04L-9P0_31Q-9GND A-2LED_6_P0_28C-10GNDG-10P1_11L-10P0_11_M33_SWCLKQ-10ANT_OUT A-3LED_4_P0_19D-1P1_13_GPADC_4H-1P1_12_GPADC_5M-1P0_09_UART_BOOT_TXR-1GND A-4LED_2_P0_21D-2P1_20H-2P1_02M-2P0_26R-2GND A-5LED_1_P0_24D-9P1_14H-9P1_04M-9P0_12_CMAC_SWDIOR-3GND A-6LED_5_P0_29D-10LXH-10P0_02M-10P0_10_M33_SWDIOR-4GND A-7LED_3_P0_20E-1P1_19_GPADC_7J-1GNDN-1P0_16R-5GND A-8LED_0_P0_13E-2P1_22J-2P1_06N-2P0_07R-6GND A-9GNDE-9P1_16J-9P0_01N-9GNDR-7GND A-10GNDE-10LYJ-10P0_00N-10GNDR-8GND B-1USBP_P0_14F-1P1_09_GPADC_7K-1P0_08_UART_BOOT_RXP-1P0_06R-9GND B-2LED_7_P0_27F-2P1_10K-2P1_00P-2P0_17R-10GND B-9GNDF-9P0_30K-9P1_03P-9GND B-10VBATF-10P1_17K-10P1_05P-10ANT_IN C-1USBM_P0_15G-1P1_18_GPADC_6L-1P0_25_GPADC_1Q-1ＲＳＴn C-2P1_21G-2P1_07L-2P1_01Q-2P0_18 Installation Manual 5 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 Land Pattern TOP View (Recommended) Installation Manual 6 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 Operating condition *The output level can be varied by changing the value of the power index within the scope of the application. (power setting: -18, -12, -8, -6, -3, -2, -1, 0, 1.5, 2, 3, 4, 4.5, 5dBm) Installation Manual 7 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 30 January 2023 Recommended pattern for antenna part Recommended pattern (green) between these terminals as follow. ANT_OUT ANT_IN Installation Manual 0.2mm The distance (thickness) between the green pattern and the lower ground is 200 microns. IC301: Flash memory ANT_OUTANT_IN 0.3mm 0.3mm 1.2mm 0.5mm 0.2mm 0.2mm 0.25mm 0.2mm 0.25mm 0.25mm 0.3mm *Consideration should be given to change applications for traces other than the design specified in the manual.

CFR 47 §2.911 (d)(5) Attestation Date: 02-07-2023 FCC ID: VPYLBCA1ZZ2DV To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA Murata Manufacturing Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Murata Manufacturing Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Kenji Hayashikoshi Job Title: Senior Manager Company Name: Murata Manufacturing Co., Ltd.

CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation Date: June 15, 2023 FCC ID: VPYLBCA1ZZ2DV Grantee FRN: 0017033432 To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA FCC US Agent Agent Company Name: Murata Electronics North America, Inc. FRN: 0024753089 Agent US Address: 2200 Lake Park Drive, Smyrna, GA 30080-7604, USA. Agent Contact Person: Mark Tucker Agent Email Address: [email protected] This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Murata Manufacturing Co., Ltd. (“the applicant”) for the above referenced FCC ID. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely yours, Signature: Mark Tucker Murata Electronics North America, Inc.

CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: June 15, 2023 FCC ID: VPYLBCA1ZZ2DV Grantee FRN: 0017033432 To: Federal Communications Commission 45 L Street NE Washington, DC 20554 USA Murata Manufacturing Co., Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. US Agent Information: Agent Company Name: Murata Electronics North America, Inc. FRN: 0024753089 Agent US Address: 2200 Lake Park Drive, Smyrna, GA 30080-7604, USA. Agent Contact Person: Mark Tucker Agent Email Address: [email protected] Sincerely yours, Kenji Hayashikoshi Murata Manufacturing Co., Ltd.

Letter of Authorization Date: January 17, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant: Murata Manufacturing Co., Ltd. FCC ID: VPYLBCA1ZZ2DV To whom it may concern: We, the undersigned, hereby authorize Shuichi Ohyama of Consumer, Medical & Information Technologies Division, UL Japan, Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Japan, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. The application for the subject equipment has not been submitted to another TCB for certification. Sincerely Yours, Kenji Hayashikoshi Murata Manufacturing Co., Ltd.

Request for Modular Transmitter Approval January 17, 2023 FCC ID : VPYLBCA1ZZ2DV Applicant : Murata Manufacturing Co.,Ltd. This transmitter, model: 2DV is designed by us. It complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular approval requirement Yes No (2)Have buffered modulation/data inputs. (3)Have its own power supply regulation. (4)Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). (5)Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. (6)Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Since this module is so small to label with a font size that is four-points or larger and it does not utilize electronic labeling, the FCC ID is placed in the user manual and the packaging according to KDB784748. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Kenji Hayashikoshi Murata Manufacturing Co., Ltd. (1) Have its own RF shielding.

Request for Confidentiality Date: January 17, 2023 UL Verification Services Inc. 47173 Benicia Street, Fremont, CA 94538 Applicant : Murata Manufacturing Co., Ltd. FCC ID : VPYLBCA1ZZ2DV To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Bl ock Diagram Theory of Operation Schematics The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Kenji Hayashikoshi Murata Manufacturing Co., Ltd.

2DV 6 Dimension photo 5.6mm 2.2mm(max) Weight : 0.303g Surface mount type : 9,4 x 5.6 mm (Typical), H = 2.2 mm (Max) Side(left) Side(Top) Top View Side(right) Side(Bottom) Bottom view Side antenna Location of the pattern antenna (*Refer Internal Photo) 2DV External photo [top view] 2DV External photo [bottom view] ANT_OUT ANT_IN The location of the indicated wiring pattern is the location of the figure and the photograph.

1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 26 January 2023 CONFIDENTIAL 2DV Model Name Murata trademark Pin 1 marking 2D Code 2DV Label (Marking)information 5.6 mm 9.4 mm 2.7mm 2.7mm 0.8mm 0.8mm 1.3mm 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 26 January 2023 CONFIDENTIAL 2DV Labelinformation Apply radio wave certification label only to moisture-proof bags (do not attach to reels) Example) XXXXXXXXXXXXXX XXXXXXX 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 26 January 2023 CONFIDENTIAL Due to the difficulty of displaying in the module, Make labeling in instruction manual and packing material 2DV Labelinformation Rxxx-xxxxxx FCC ID : VPYLBCA1ZZ2DV IC : 772C-LBCA1ZZ2DV HVIN :2DV This device complies with part 15 of the FCC Rules and Innovation, Science and Economic Development Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme à la partie 15 des règles de la FCC et aux normes des CNR d'Innovation, Sciences et Développement économique Canadaapplicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'a ppareil ne doit pas produire de brouillage, et (2) l'appareil doit accepter tout brouillage subi, même si lebrouillage est susceptible d'en compromettre le fonctionnement.

Date: January 20, 2023 Federal Communications Commission 45 L Street NE Washington, DC 20554 FCC ID Applicant : VPYLBCA1ZZ2DV : Murata Manufacturing Co., Ltd. To whom it may concern: Since this module is so small to label with a font size that is four-points or larger and it does not utilize electronic labeling, the FCC ID is placed in the user manual and the packaging according to KDB784748. For the details, please refer to the other “Label and Location” document(s) and “External Photo”. Sincerely Yours, Kenji Hayashikoshi Murata Manufacturing Co., Ltd.

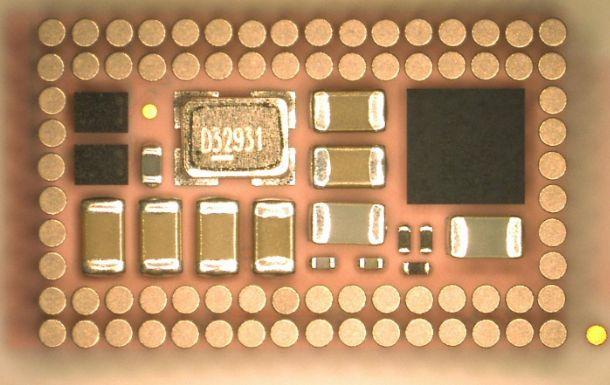

2DV Internal photo [top view] pattern antenna 2DV Internal photo [bottom view]

UL Japan, Inc. Ise EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: japan.ul.com January 17, 2023 FCC ID: VPYLBCA1ZZ2DV To whom it may concern, We, UL Japan, Inc, hereby declare that Communication Module, model: 2DV (FCC ID: VPYLBCA1ZZ2DV) of Murata Manufacturing Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(v06). KDB 447498D01(v06) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ꞏ[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.48 GHz and distance = 5 mm (minimum separation distance: 5 mm was used in the calculation) and the maximum average output power was 3 mW So for this device: 3 mW[maximum average output power]/5 mm[minimum separation distance]*√2.48 = 0.9 *This is less than 3.0, so no SAR is required. Even taking into account the tolerance, this device can be satisfied with the limits. Thank you for your attention to this matter. Takumi Shimada Engineer

06 February 2023 1 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 2DV Antenna specification 2 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 Confidential 1.Antenna perfomance 2DV •AntennaP/N:Internal Trace Antenna monopole •Type:PatternAntennamonopole •AntennaGain:+ 1.0dBi •Frequency:2400-2484MHz XY plane[dBi]YZ plane[dBi]ZX plane[dBi] HOR.VER.HOR.VER.HOR.VER. MAX -12.2-10.2 MAX 1.0-15.5 MAX -0.1-4.7 AVE -16.8-13.4 AVE -7.1-22.7 AVE -7.5-9.3 -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 hori zon tal vertical -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 hori zon tal vertical -30 -25 -20 -15 -10 -5 0 5 0 90 180 270 hori zon tal vertical [dBi] [dB] hor. ver. hor. ver. hor. ver. MAX. -14.1 -12.7 -1.8 -19.6 -2.8 -7.8 AVE. -18.6 -16.4 -9.8 -26.1 -10.4 -11.7 -9.6 MAX. -12.2 -10.5 0.3 -16.7 -0.7 -5.4 AVE. -16.9 -14.0 -7.6 -23.6 -8.2 -9.8 -7.5 MAX. -12.2 -10.2 1.0 -15.5 -0.1 -4.7 AVE. -16.8 -13.4 -7.1 -22.7 -7.5 -9.3 -6.9 LINEAR XY-plane YZ-plane ZX-plane Total Ef f iciency POLARIZATION 2400 MHz 2442 MHz 2484 MHz 3 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 Confidential 2. Antenna structure Shield Resin Side antenna Pattern antenna line Substrate The antenna consists of chips on the surface of the board, an electrode line, and a wall surface. Structure of module Structure of antenna 4 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 Confidential Side antenna Pattern antennaline 5.60mm 1.46mm Size of side-antenna 3. Antenna Size (Dimension) 5 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 Matching Parts 1 st layer (Matching parts) 2 nd layer 3 rd layer 4 th layer 4. Antenna Size (Dimension) 2.65mm 0.5 mm 0.3 mm 0.5 mm 0.5 mm 0.525 mm 0.525 mm 6 murata.comCopyright © Murata Manufacturing Co., Ltd. All rights reserved.06 February 2023 6 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. Measurement Conditions for Antenna Kanazawa Murata Mfg. Co., Ltd Antenna Technical Support Section 7 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 Test method for antenna gain measurement •Test method for antenna gain measurement: Standard antenna method (comparative method) * Comparing a measured antenna to a standard antenna with a known gain factor •Equipment used for antenna gain measurement (model name, serial number, calibration date, etc.); -Measurement system Microwave Vision Group (former SATIMO) SG32 (details next page) -Equipment PAC (MW 000021H-0068) E4438C (MY45090139) E4428C (MY45280466)-Calibration date October 25, 2022 -Antenna gain measurement date / Measurement person October 28, 2022 / Rie Ichimura 8 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 Details of SG32 Peak gain variation is secured within ±0.75 dB by system calibration. Anechoic chamber sizeApproximately 3.5m x 3.5m x 3m (H) Frequency band 800~6000MHz (18~40GHz compatible with Option) Measurement time Elevation 1 cutReal time Global surface measurement < Approx. 20 seconds (when measuring 10 frequencies) Measurement uncertainty Peak gain < +/-0.75dB (1.0~6.0GHz) < +/-1.0dB (0.8~1.0GHz) Low gain< +/-2dB (@-20dB from peak) Dynamic range70dB Cross Polar Isolation> 45dB DUT size 0.8 GHz1.8 GHz2.5 GHz6 GHz 75 cm75 cm65 cm30 cm 9 Copyright © Murata Manufacturing Co., Ltd. All rights reserved. 06 February 2023 [ 2DV ]

Test Report No. : 14499085H-A Page : 1 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 RADIO TEST REPORT Test Report No.: 14499085H-A Customer Murata Manufacturing Co., Ltd. Description of EUT Communication Module Model Number of EUT 2DV FCC ID VPYLBCA1ZZ2DV Test Regulation FCC Part 15 Subpart C Test Result Complied (Refer to SECTION 3) Issue Date December 22, 2022 Remarks - Representative Test Engineer Approved By Tetsuro Yoshida Engineer Takumi Shimada Engineer CERTIFICATE 5107.02 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan, Inc. There is no testing item of "Non-accreditation". Report Cover Page - Form-ULID-003532 (DCS:13-EM-F0429) Issue# 21.0 Test Report No. : 14499085H-A Page : 2 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 ANNOUNCEMENT REVISION HISTORY Original Test Report No.: 14499085H-A Revision Test Report No. Date Page Revised Contents - (Ori ginal) 14499085H-A December 22, 2022 -  This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc.  The results in this report appl y only to the sample tested. (Laboratory was not involved in sampling.)  This sample tested is in compliance with the limits of the above re gulation.  The test results in this test report are traceable to the national or international standards.  This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y.  This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable)  The all test items in this test report are conducted b y UL Japan, Inc Ise EMC Lab.  The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan, Inc. has been accredited.  The information provided from the custome r for this report is identified in Section 1.  For test report(s) referred in this report, the latest version (includin g any revisions) is always referred. Test Report No. : 14499085H-A Page : 3 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation ICES Interference-Causing Equipment Standard AC Alternating Current IEC International Electrotechnical Commission AFH Adaptive Frequency Hopping IEEE Institute of Electrical and Electronics En gineers AM Amplitude Modulation IF Intermediate Frequency Amp, AMP Amplifier ILAC International Laboratory Accreditation Conference ANSI American National Standards Institute ISED Innovation, Science and Economic Develo pment Canada Ant, ANT Antenna ISO International Organization for Standardization AP Access Point JAB Japan Accreditation Board ASK Amplitude Shift Keying LAN Local Area Network Atten., ATT Attenuator LIMS Laboratory Information Management System AV Average MCS Modulation and Coding Scheme BPSK Binary Phase-Shift Keying MRA Mutual Recognition Arrangement BR Bluetooth Basic Rate N/A Not Applicable BT Bluetooth NIST National Institute of Standards and Technolo gy BT LE Bluetooth Low Energy NS No signal detect. BW BandWidth NSA Normalized Site Attenuation Cal Int Calibration Interval NVLAP National Voluntary Laboratory Accreditation Pro gram CCK Complementary Code Keying OBW Occupied Band Width Ch., CH Channel OFDM Orthogonal Frequency Division Multiplexing CISPR Comite International Special des Perturbations Radioelectriques P/M Power meter CW Continuous Wave PCB Printed Circuit Board DBPSK Differential BPSK PER Packet Error Rate DC Direct Current PHY Physical Layer D-factor Distance factor PK Peak DFS Dynamic Frequency Selection PN Pseudo random Noise DQPSK Differential QPSK PRBS Pseudo-Random Bit Sequence DSSS Direct Sequence Spread Spectrum PSD Power Spectral Density EDR Enhanced Data Rate QAM Quadrature Amplitude Modulation EIRP, e.i.r.p. Equivalent Isotropically Radiated Power QP Quasi-Peak EMC ElectroMagnetic Compatibility QPSK Quadri-Phase Shift Keying EMI ElectroMagnetic Interference RBW Resolution Band Width EN European Norm RDS Radio Data System ERP, e.r.p. Effective Radiated Power RE Radio Equipment EU European Union RF Radio Frequency EUT Equipment Under Test RMS Root Mean Square Fac. Factor RSS Radio Standards Specifications FCC Federal Communications Commission Rx Receiving FHSS Frequency Hopping Spread Spectrum SA, S/A Spectrum Analyzer FM Frequency Modulation SG Signal Generator Freq. Frequency SVSWR Site-Voltage Standing Wave Ratio FSK Frequency Shift Keying TR Test Receiver GFSK Gaussian Frequency-Shift Keying Tx Transmitting GNSS Global Navigation Satellite System VBW Video BandWidth GPS Global Positioning System Vert. Vertical Hori. Horizontal WLAN Wireless LAN Test Report No. : 14499085H-A Page : 4 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 CONTENTS PAGE SECTION 1: Customer Information ...................................................................................................... 5 SECTION 2: Equipment Under Test (EUT) .......................................................................................... 5 SECTION 3: Test Specification, Procedures & Results ....................................................................... 6 SECTION 4: Operation of EUT during testing ..................................................................................... 9 SECTION 5: Conducted Emission ....................................................................................................... 13 SECTION 6: Radiated Spurious Emission .......................................................................................... 14 SECTION 7: Antenna Terminal Conduc…

Text truncated - open the document above for the full version.

Test Report No. : 14499085H-A Page : 45 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 APPENDIX 3: Photographs of Test Setup Conducted Emission Photo 1 Photo 2 Test Report No. : 14499085H-A Page : 46 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Radiated Spurious Emission Photo 1 Photo 2 Test Report No. : 14499085H-A Page : 47 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Worst Case Position Below 1 GHz (Horizontal: X-axis/ Vertical:X-axis) Above 1 GHz (Horizontal: X-axis/ Vertical:Z-axis) X-axis Y-axis Z-axis Test Report No. : 14499085H-A Page : 48 of 48 UL Japan, Inc. Ise EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan / +81-596-24-8999 Antenna Terminal Conducted Tests Photo 1 Photo 2 End of Report
