VPYLBKVWIRELESS LAN MODULE

Users Manual MURATA WIRELESS LAN MODULE MODEL LBWA1WPKV6 The purpose of this manual is to explain correct way how to integrate module LBWA1WPKV6 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. The MURATA WIRELESS LAN MODULE, model LBWA1WPKV6 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Regulatory Information USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labeling MURATA WIRELESS LAN MODULE LBWA1WPKV6 labeled as below. FCC ID: VPYLBKV The proposed with FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: VPYLBKV” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with RF exposure compliance requirements, a separation distance of at Least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Canada-Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. L ‘ utilization de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres afinde Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence. Caution: Exposure to Radio Frequency Radiation. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb . IMPORTANT The antennas are not user selectable and the product may be used only with the antennas provided.

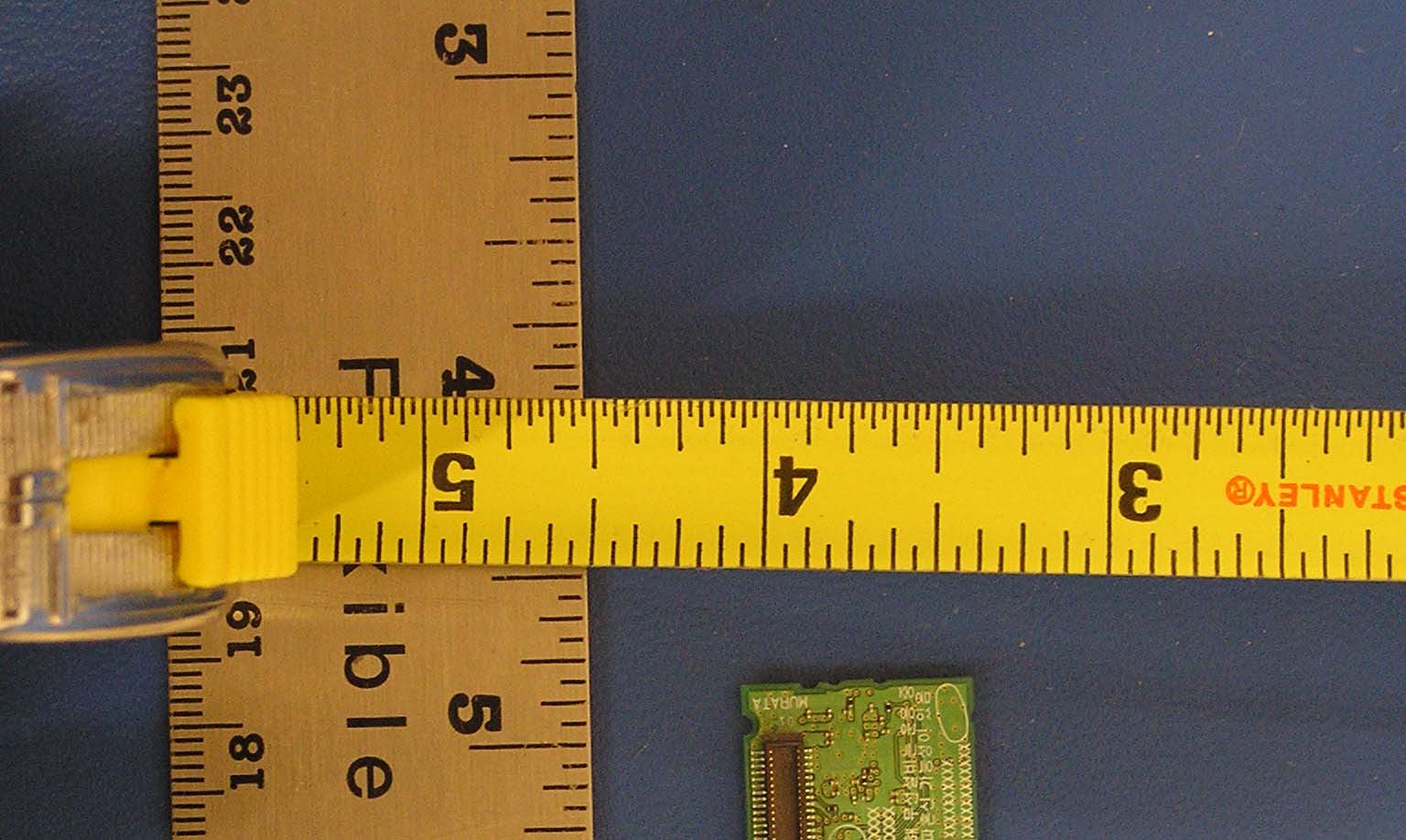

Murata Manufacturing Co., Ltd. FCC ID: VPYLBKV Request for transmitter modular approval Transmitter Module Characteristics Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic (AR6031G) inputs. 3 Have it own power supply regulation Internal Regulator is inside RF Chipset (AR6031G). Refer to Block Diagram. 4 Meet the antenna requirements of Section 15.203 The Device is approved with two different antennas; MITSUMI_DCA-P02 (Sleeve Antenna), YI CHANG HSIANG INDUSTRIAL R-AN2400- 5701RS (Monopole Antenna. One of these approved antennas will be used with this device. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside of the desktop PC for full modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: VPYLBKV” shall be placed on the outside of final host system. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Meet RF exposure compliance requirement

Format 1 Format 2 <Front><Rear> <Label> FCC ID: VPYLBKVIC: 772C-LBKV <Serigraph> Proposed Label Format OR PROPOSED FCC ID LABEL FOR HOST DEVICE This device contains FCC ID: VPYLBKV IC: 772C-LBKV

REPORT NO: 07J11366-1B DATE: NOVEMBER 6, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 78 of 78 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 07J11366-1B DATE: NOVEMBER 6, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 79 of 79 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 07J11366-1B DATE: NOVEMBER 6, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 80 of 80 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations, rearranging the terms to express the distance as a function of the remaining variables, changing to units of Power to mW and Distance to cm, and substituting the logarithmic form of power and gain yields: d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) The power density in units of mW/cm^2 is converted to units of W/m^2 by multiplying by a factor of 10. REPORT NO: 07J11366-1B DATE: NOVEMBER 6, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 81 of 81 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 RESULTS (MPE distance equals 20 cm) NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. ModeBandMPEOutputAntennaFCC PowerIC Power DistancePowerGainDensityDensity (cm)(dBm)(dBi)(mW/cm^2)(W/m^2) WLAN2.4 GHz20.04.892.760.000.01

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR WIRELESS LAN MODULE MODEL NUMBER: LBWA1WPKV6 FCC ID: VPYLBKV IC: 772C-LBKV REPORT NUMBER: 07J11366-1, REVISION C ISSUE DATE: NOVEMBER 7, 2007 Prepared for MURATA MANUFACTURING COMPANY, LTD. 10-1, HIGASHIKOTARI 1 – CHOME NAGAOKAKYO-SHI, KYOTO 617-8555 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07J11366-1C DATE: NOVEMBER 7, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 2 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 10/31/07 Initial Issue Hsin Fu Shih B 11/06/07 Corrected applicant name T. Hong C 11/07/07 Replaced 6dB BW low channel plot on page 29 V. Tran REPORT NO: 07J11366-1C DATE: NOVEMBER 7, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 3 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION..................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................ 5 4.2. MEASUREMENT UNCERTAINTY ................................................................................. 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT ................................................................................................. 6 5.2. MAXIMUM OUTPUT POWER ........................................................................................ 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 6 5.4. SOFTWARE AND FIRMWARE ...................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE............................................................ 6 5.6. DESCRIPTION OF TEST SETUP .................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT........................................................................ 10 7. ANTENNA PORT TEST RESULTS ..................................................................................... 11 7.1. 802.11b MODE IN THE 2.4 GHz BAND ....................................................................... 11 7.1.1. 6 dB BANDWIDTH ................................................................................................ 11 7.1.2. 99% BANDWIDTH ................................................................................................ 14 7.1.3. OUTPUT POWER ................................................................................................. 17 7.1.4. AVERAGE POWER .............................................................................................. 20 7.1.5. POWER SPECTRAL DENSITY ............................................................................ 21 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 24 7.2. 802.11g MODE IN THE 2.4 GHz BAND ....................................................................... 28 7.2.1. 6 dB BANDWIDTH ................................................................................................ 28 7.2.2. 99% BANDWIDTH ................................................................................................ 31 7.2.3. OUTPUT POWER ................................................................................................. 34 7.2.4. AVERAGE POWER .............................................................................................. 37 7.2.5. POWER SPECTRAL DENSITY ............................................................................ 38 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................... 41 8. RADIATED TEST RESULTS ............................................................................................... 45 8.1. LIMITS AND PROCEDURE ......................................................................................... 45 8.2. TRANSMITTER ABOVE 1 GHz ................................................................................... 46 8.2.1. TRANSMITTER ABOVE 1 GHz FOR 802.11b MODE IN THE 2.4 GHz BAND .... 46 8.2.2. TRANSMITTER ABOVE 1 GHz FOR 802.11g MODE IN THE 2.4 GHz BAND .... 57 8.3. RECEIVER ABOVE 1 GHz........................................................................................... 68 8.3.1. RECEIVER ABOVE 1 GHz IN THE 2.4 GHz BAND.............................................. 68 8.4. WORST-CASE BELOW 1 GHz .................................................................................... 70 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 74 10. MAXIMUM PERMISSIBLE EXPOSURE .......................................................................... 78 11. SETUP PHOTOS ............................................................................................................. 82 REPORT NO: 07J11366-1C DATE: NOVEMBER 7, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 4 of 87 COMPLIANCE CERTIFICATION SERVICES FORM N…

Text truncated - open the document above for the full version.

REPORT NO: 07J11366-1 DATE: OCTOBER 31, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 82 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 07J11366-1 DATE: OCTOBER 31, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 83 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP SLEEVE -0.73 dBi ANTENNA X-AXIS PHOTO Y-AXIS PHOTO REPORT NO: 07J11366-1 DATE: OCTOBER 31, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 84 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. WORST CONFIGURATION Z-AXIS FRONT PHOTO Z-AXIS CLOSE UP PHOTO REPORT NO: 07J11366-1 DATE: OCTOBER 31, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 85 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. MONOPOLE 2.67 dBi ANTENNA Y-AXIS RIGHT PHOTO Y-AXIS LEFT PHOTO REPORT NO: 07J11366-1 DATE: OCTOBER 31, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 86 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS BACK PHOTO REPORT NO: 07J11366-1 DATE: OCTOBER 31, 2007 FCC ID: VPYLBKV IC: 772C-LBKV Page 87 of 87 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT LINE CONDUCTED FRONT PHOTO LINE CONDUCTED BACK PHOTO
