VPYLBTNCommunication Module

LBEE5ZSTNC User Manual Introduction For OEM integration only – device cannot be sold to general public. Therefore we will not supply the User’s manual. However, we will ask OEM to include the following statements required by FCC on the product and in the User’s manual. Notice-1 Notice Please describe the following warning on the final product which contains this module. Contains Transmitter Module FCC ID:VPYLBTN or Contains FCC ID:VPYLBTN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Notice-2 Please describe the following warning to the manual. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. When installing it in a mobile equipment, This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles) Notice-3 When installing it in a portable equipment The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure of low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. [Model Name] has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The maximum SAR levels tested for [Model Name] has been shown to be[SAR measurement value] W/kg at Body. Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.

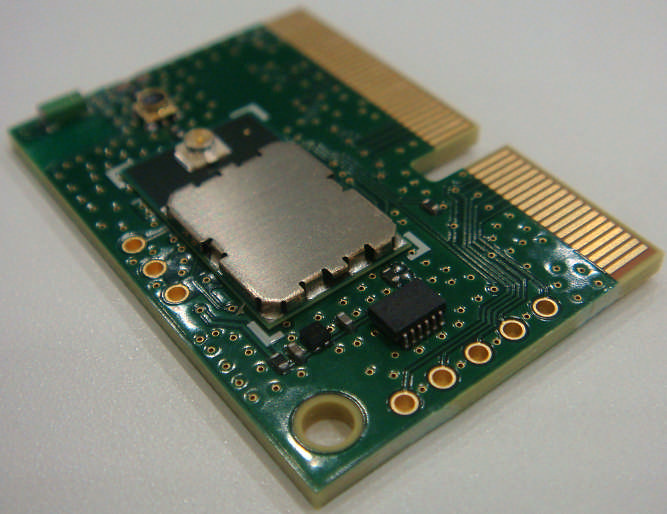

LBEE5ZSTNC Product Photos LBEE5ZSTNC Photos 2011/07/27 front back internal side LBEE5ZSTNC with Antenna Photos 2011/07/27 front back internal side Antenna

LBEE5ZSTNC FCC Label example FCC Label Example Item(1)(2)(3)(4)(5) Display ItemTypeAttestation ID etc. CodeDirection markLogo of Manufacture ContentTYAYWW TY FCC ID: VPYLBTN (1) (2) (3) (5) (4)

UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Murata Manufacturing Co., Ltd. T ype of Equipment : Communication Module (WLAN part) Model No. : LBEE5ZSTNC FCC ID: VPYLBTN Murata Manufacturing Co., Ltd. declares that Model : LBEE5ZSTNC ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091 (for mobile). RF Ex posure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “LBEE5ZSTNC“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 264.24 mW (Maximum peak output power) G = 1.20 Numerical Antenna gain; equal to0.80dBi r =20.0 cm For: LBEE5ZSTNCS =0.06320 mW/cm 2 No. : 31KE0354-HO RF Exposure / MPE Calculation

Test report No. : 31KE0354-HO-01-A Page : 2 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Photographs of test setup ............................................................................................... 12 Conducted Emission ......................................................................................................................... 12 Radiated Spurious Emission ............................................................................................................. 13 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 14 APPENDIX 2: Data of EMI test .............................................................................................................. 15 Conducted Emission ......................................................................................................................... 15 6dB Bandwidth ................................................................................................................................. 17 Maximum Peak Output Power .......................................................................................................... 19 Radiated Spurious Emission ............................................................................................................. 21 Conducted Spurious Emission .......................................................................................................... 31 Conducted Emission Band Edge compliance ................................................................................... 43 Power Density ................................................................................................................................... 44 99%Occupied Bandwidth ................................................................................................................. 46 APPENDIX 3: Test instruments ............................................................................................................. 47 Test report No. : 31KE0354-HO-01-A Page : 3 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Co., Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6735 Facsimile Number : +81-75-955-6634 Contact Person : Takaharu Kawakatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : LBEE5ZSTNC Serial No. : Refer to Section 4, Clause 4.2 Rating : DC1.8V/3.6V Receipt Date of Sample : July 11, 2011 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : REF_CLK: 38.4MHz, SLOW_CLK: 32.768kHz Operating temperature range : -30 to +75 deg. C Radio Specification WLAN 11b/g/n-20 Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : 11b: DSSS, 11g/n-20: OFDM Power Supply (radio part input) : DC3.6V Antenna type : Mono-pole antenna Antenna Gain : +0.8dBi Bluetooth Radio Type : Transceiver Frequency of Operation : 2402-2480MHz Modulation : FHSS Power Supply (radio part input) : DC3.6V Antenna type : Mono-pole antenna Antenna Gain : +0.8dBi Test report No. : 31KE0354-HO-01-A Page : 4 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2010, final revised on December 6, 2010 and effective January 5, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 16.8dB, 4.81988MHz, L AV 16.1dB 11.80706MHz, N 4.81988MHz, L Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducted IC: RSS-Gen 4.8 IC: RSS-210 A8…

Text truncated - open the document above for the full version.

Test report No. : 31KE0354-HO-01-A Page : 15 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2011/07/21 Company :株式会社村田製作所Report No. : 31KE0354-HO-01 Kind of EUT : WLAN 11b/g/n・Bluetooth module Power : AC 120V / 60Hz Model No. : Temp./Humi. : 24deg. C / 62% RH Serial No. : RE sample Engineer : Takayuki Shimada Mode / Remarks : Tx 11g, 9Mbps, 2437MHz, Power Suppuly:3.6V LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT=READING+C.F(LISN LOSS+ATT LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500024.39.613.237.522.866.056.028.533.2N 4.8198925.015.513.838.829.356.046.017.216.7N 5.0995426.816.513.940.730.460.050.019.319.6N 5.3085727.216.813.941.130.760.050.018.919.3N 9.9900721.517.814.235.732.060.050.024.318.0N 11.8070622.819.414.537.333.960.050.022.716.1N 0.1500024.29.613.237.422.866.056.028.633.2L 4.8198825.416.113.839.229.956.046.016.816.1L 5.0989427.017.113.940.931.060.050.019.119.0L 5.3087727.116.813.941.030.760.050.019.019.3L 9.9893521.217.514.235.431.760.050.024.618.3L 10.8328021.617.214.335.931.560.050.024.118.5L Test report No. : 31KE0354-HO-01-A Page : 16 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Conducted Emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2011/07/21 Company :株式会社村田製作所Report No. : 31KE0354-HO-01 Kind of EUT : WLAN 11b/g/n・Bluetooth module Power : AC 120V / 60Hz Model No. : Temp./Humi. : 24deg. C / 62% RH Serial No. : RE sample Engineer : Takayuki Shimada Mode / Remarks : Tx 11g, 9Mbps, 2437MHz, Power Suppuly:1.8V LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT=READING+C.F(LISN LOSS+ATT LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1500012.97.013.226.120.266.056.039.935.8N 4.8218823.714.613.837.528.456.046.018.517.6N 5.1713625.315.113.939.229.060.050.020.821.0N 5.3108125.515.713.939.429.660.050.020.620.4N 10.2025221.417.714.335.732.060.050.024.318.0N 11.0414521.918.714.436.333.160.050.023.716.9N 0.1500012.87.013.226.020.266.056.040.035.8L 4.8220024.115.113.837.928.956.046.018.117.1L 5.1709425.815.413.939.729.360.050.020.320.7L 5.3106926.716.413.940.630.360.050.019.419.7L 10.1324020.616.714.234.830.960.050.025.219.1L 11.0414520.617.214.435.031.660.050.025.018.4L Test report No. : 31KE0354-HO-01-A Page : 17 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth Test place Head Office EMC Lab. No.6 Measurement Room Report No. 31KE0354-HO-01 Date 07/12/2011 Temperature/ Humidity 22 deg.C / 58% RH Engineer Hiroshi Kukita Mode Tx 11b Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 8.758 >500 2437 7.995 >500 2462 8.845 >500 11g Frequency 6dB Bandwidth Limit [MHz] [MHz] [kHz] 2412 15.180 >500 2437 15.095 >500 2462 15.460 >500 Test report No. : 31KE0354-HO-01-A Page : 18 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 6dB Bandwidth 11b 11g 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Test report No. : 31KE0354-HO-01-A Page : 19 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power Test place Head Office EMC Lab. No.2 Measurement Room Report No. 31KE0354-HO-01 Date 07/11/2011 Temperature/ Humidity 20 deg. C / 68% RH Engineer Katsunori Okai Mode 11b Tx Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 24129.940.5010.0720.51112.4630.0010009.49 243710.090.5010.0720.66116.4130.0010009.34 246210.080.5010.0720.65116.1430.0010009.35 Sample Calculation: Result = Reading + Cable Loss (including the cable(s) customer supplied) + Attenuator 2437MHz RateReadingRemar k [Mbps][dBm] 19.48 210.09* 5.59.74 119.62 *: Worst Rate All comparizon were carried out on same frequency and measurement factors. ResultLimit Test report No. : 31KE0354-HO-01-A Page : 20 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Maximum Peak Output Power Test place Head Office EMC Lab. No.2 Measurement Room Report No. 31KE0354-HO-01 Date 07/11/2011 Temperature/ Humidity 20 deg.C / 68% RH Engineer Katsunori Okai Mode 11g/n-20 Tx 11g Freq.ReadingCableAtten.Margin Loss [MHz][dBm][dB][dB][dBm][mW][dBm][mW][dB] 241213.010.5010.0723.58228.0330.0010006.42 243713.650.5010.0724.22264.2430.0010005.78 246212.870.5010.0723.44220.8030.0010006.56 11n-20 Freq.ReadingCableAtten.Margin Loss Loss [MHz][dBm][dB][dB][dBm][m…

Text truncated - open the document above for the full version.

Test report No. : 31KE0354-HO-01-A Page : 12 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 31KE0354-HO-01-A Page : 13 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 31KE0354-HO-01-A Page : 14 of 48 Issued date : July 26, 2011 FCC ID : VPYLBTN UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 1GHz: Horizontal: X-axis/ Vertical:X-axis Above 1GHz: Horizontal: X-axis/ Vertical:Z-axis X-axis Y-axis Z-axis
