VPYLBWLCommunication Module

Murata Manufacturing Co., Ltd.
Communication Module - FCC ID VPYLBWL - Murata Manufacturing Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 13, 2012
Application Purpose
Original Equipment
Date of Application
Jun 13, 2012
Equipment Note
Communication Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Murata Manufacturing Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 2012/05/31 For OEM integration only – device cannot be sold to general public. Therefore we will ask OEM to include the following statements required by FCC on the product and in the User’s manual. LBWA1ZZWL6 User’s Manual FCC ID of this product is as follows. FCC ID:VPYLBWL 2 2. Notice Please describe the following warning on the final product which contains this module. Contains Transmitter Mobile FCC ID:VPYLBWL Contains FCC ID:VPYLBWL or 3 When installing it in a portable equipment When installing it in a mobile equipment Please describe the following warning to the manual. Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.

External Photos

LBWA1ZZWL6 Photos 2012/06/08 front back internal The content of the silk mark has the change. Please refer to the label design chart.

ID Label/Location Info

FPC Connector 1 15 Shield case LBWA1ZZWL6 Label Design 2012/06/08 Position in which seal is put. Murata Management Code, and QR-Code-MAC Address back front

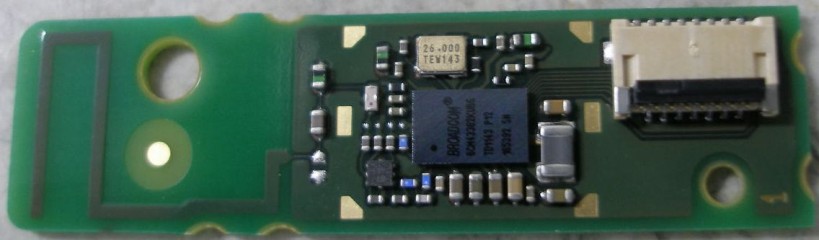

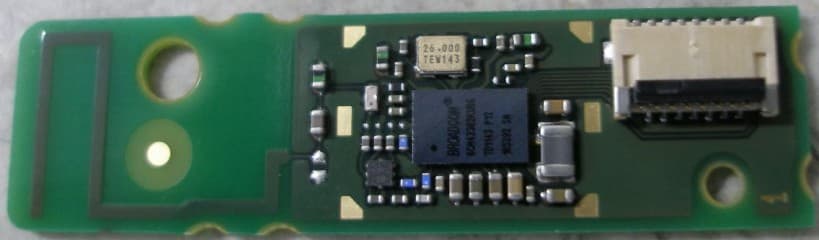

Internal Photos

LBWA1ZZWL6 Photos 2012/06/08 front back internal The content of the silk mark has the change. Please refer to the label design chart.

RF Exposure Info

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8116 / F:: +81.596.24.8124 / W:: ul.com/jp June 11, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: VPYLBWL To whom it may concern, We, UL Japan, Inc, hereby declare that Communication Module, model: LBWA1ZZWL6 (FCC ID: VPYLBWL) of Murata Manufacturing Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Masanori Nishiyama Leader of Head Office EMC Lab. EMC Services Division UL Japan, Inc.

Test Report

Test report No. : 32HE0238-HO-03-A Page : 2 of 68 Issued date : June 11, 2012 FCC ID : VPYLBWL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 6dB Bandwidth ................................................................................................................................. 24 Maximum Peak Output Power .......................................................................................................... 27 Average Output Power ...................................................................................................................... 30 Radiated Spurious Emission ............................................................................................................. 31 Conducted Spurious Emission .......................................................................................................... 41 Conducted Emission Band Edge compliance ................................................................................... 59 Power Density ................................................................................................................................... 60 99%Occupied Bandwidth ................................................................................................................. 63 APPENDIX 2: Test instruments ............................................................................................................. 65 APPENDIX 3: Photographs of test setup ............................................................................................... 66 Conducted Emission ......................................................................................................................... 66 Radiated Spurious Emission ............................................................................................................. 67 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 68 Test report No. : 32HE0238-HO-03-A Page : 3 of 68 Issued date : June 11, 2012 FCC ID : VPYLBWL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Co., Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6375 Facsimile Number : +81-75-955-6634 Contact Person : Takaharu Kawakatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : LBWA1ZZWL6 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 2.85, DC 3.4V Receipt Date of Sample : May 15, 2012 Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 26MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : 11b: DSSS CCK, DQPSK, DBPSK 11g/n: OFDM-CCK 64QAM, 16QAM, QPSK, BPSK Power Supply (radio part input) : DC 2.85V, DC 3.4V Antenna type : Print Pattern Antenna Antenna Gain : -1.2dBi Operating temperature range : -20 to +55 deg. C. Test report No. : 32HE0238-HO-03-A Page : 4 of 68 Issued date : June 11, 2012 FCC ID : VPYLBWL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on March 30, 2012 and effective April 30, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 14.5dB, 24.93800MHz, N AV 6.3dB, 24.93800MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducted IC: RSS-Gen 4.8 IC: RSS-210 A8.4(4) Power Density FCC: "Guidance on Measurem…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 32HE0238-HO-03-A Page : 66 of 68 Issued date : June 11, 2012 FCC ID : VPYLBWL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 32HE0238-HO-03-A Page : 67 of 68 Issued date : June 11, 2012 FCC ID : VPYLBWL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 32HE0238-HO-03-A Page : 68 of 68 Issued date : June 11, 2012 FCC ID : VPYLBWL UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis

Contact Information

Applicant

KENJI HAYASHIKOSHI(SENIOR MANAGER)
[email protected]81-75-955-6173Fax: 81-75-955-7097

Technical Contact

UL Japan, Inc.Masanori Nishiyama
[email protected]81-596-24-8116

4383-326 Asama-cho, Ise-shi · Mie-ken · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz33.60 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular approval. Output power listed is Conducted (Maximum peak). Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific operating instructions for satisfying RF exposure compliance. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
