VPYLBYMCommunication Module

2013/9/30 1 For OEM integration only - device cannot be sold to general public. Therefore we will ask OEM to include the following statements required by FCC on the product and in the User’s manual. LBWA1ZZYM6 User’s Manual FCC ID of this product is as follows. FCC ID:VPYLBYM 2013/9/30 2 Notice Please describe the following warning on the final product which contains this module. Contains Transmitter Mobile FCC ID:VPYLBYM Contains FCC ID:VPYLBYM or This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2013/9/30 3 W hen installing it in a mobile equipment Please describe the following warning to the manual. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. 2013/9/30 4 W hen installing it in a portable equipment This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation du débit d’absorption spécifique (DAS). Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.

2013/9/30 LBWA1ZZYM6 External Photos Module(Top --- Shielded) Please refer to the label figure for the contents of the label notation. 1 2013/9/30 LBWA1ZZYM6 External Photos Module(Back) 2 Please refer to the label figure for the contents of the label notation. 2013/9/30 LBWA1ZZYM6 External Photos Module(Top --- Shielded, Bird’s-eyes view) 3 2013/9/30 LBWA1ZZYM6 External Photos Module (Back --- Shielded, Bird’s-eyes view) 4

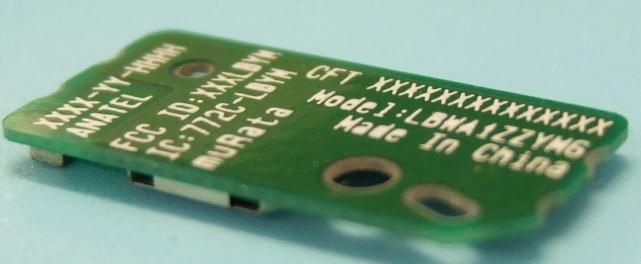

LBWA1ZZYM6 Label design 2013/10/08 FCC ID:VPYLBYM IC Number:772C-LBYM TOP View Photo BACK View (Label Design side) ●QR Code ・・・Lot Trace information ●3H5 ・・・Product control code ●muRata ・・・ Module Maker Logo ●Model：LBWA1ZZYM6 ・・・Model Name ●Made In China ・・・ Country of manufacture

2013/9/30 LBWA1ZZYM6 Internal Photos Module(Top --- Unshielded) 5 2013/9/30 LBWA1ZZYM6 Internal Photos Module(Top --- Unshielded) 6

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8999 / F:: +81.596.24.8124 / W:: ul.com/jp November 26, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 Japan FCC ID: VPYLBYM To whom it may concern, We, UL Japan, Inc, hereby declare that Communication Module, model: LBWA1ZZYM6 (FCC ID: VPYLBYM) of Murata Manufacturing Co., Ltd. is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in KDB 447498D01(V05). KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.46 GHz and distance = 5 mm (minimum separation distance: 5mm was used in the calculation) and the maximum tune-up tolerance limit was 9.23 mW So for this device: 9.23mW[maximum tune-up tolerance limit]/5mm[minimum separation distance]*√2.46 = 2.9 *This is less than 3.0, so no SAR is required. Thank you for your attention to this matter. Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 10059672H-A-R1 Page : 2 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10059672H-A Revision Test report No. Date Page revised Contents - (Original) 10059672H-A October 29, 2013 - - 1 10059672H-A-R1 November 12, 2013 P. 8 Correction of “Details of Operating mode for WLAN table” 1 10059672H-A-R1 November 12, 2013 P. 27-28 Correction of spurious emission test data on 11n-20 mode Test report No. : 10059672H-A-R1 Page : 3 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 14 Maximum Peak Output Power .......................................................................................................... 17 Average Output Power ...................................................................................................................... 20 Radiated Spurious Emission ............................................................................................................. 21 Conducted Spurious Emission .......................................................................................................... 30 Power Density ................................................................................................................................... 31 99%Occupied Bandwidth ................................................................................................................. 34 APPENDIX 2: Test instruments ............................................................................................................. 36 APPENDIX 3: Photographs of test setup ............................................................................................... 38 Conducted Emission ......................................................................................................................... 38 Radiated Spurious Emission ............................................................................................................. 39 Worst Case Position (Horizontal: Y-axis/ Vertical:Y-axis) .............................................................. 40 Test report No. : 10059672H-A-R1 Page : 4 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Company, Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6375 Facsimile Number : +81-75-955-6634 Contact Person : Takaharu Kawakatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : LBWA1ZZYM6 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3V, 2.85V Receipt Date of Sample : August 26, 2013 Country of Mass-production : China, Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification The EUT is WLAN Module which is installed in Digital camera. Specification of WLAN (IEEE802.11b/g/n) Type of radio Wireless LAN (IEEE802.11b/g) Wireless LAN (IEEE802.11n) 2.4G Band SISO (20M Band) Equipment Type Transceiver Frequency of Operation 2412MHz - 2462MHz Bandwidth & Channel spacing Bandwidth : 20MHz Ch spacing : 5MHz Type of Modulation 11b: DSSS 11g: OFDM OFDM Antenna Type / Antenna GainMonopole (pattern) Antenna: -0.3dBi (Peak) Power Supply (inner) PAVDD: DC 2.85V VBAT: DC 3.3V Operating temperature range -20 to +80 deg. C. Test report No. : 10059672H-A-R1 Page : 5 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation…

Text truncated - open the document above for the full version.

Test report No. : 10059672H-A-R1 Page : 38 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10059672H-A-R1 Page : 39 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10059672H-A-R1 Page : 40 of 40 Issued date : October 29, 2013 Revised date : November 12, 2013 FCC ID : LBWA1ZZYM6 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Z-axis) X-axis Y-axis Z-axis End of Report
