VPYLBYR650Communication Module

Murata Manufacturing Co., Ltd.
Communication Module - FCC ID VPYLBYR650 - Murata Manufacturing Co., Ltd.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 09, 2013
Application Purpose
Original Equipment
Date of Application
Jun 09, 2013
Equipment Note
Communication Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Murata Manufacturing Co., Ltd.
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2013/04/25 1 For OEM integration only –device cannot be sold to general public. Therefore we will ask OEMto include the following statements required by FCC on the product and in the Installation manual Notice. LBWA1U5YR1InstallationManual FCC ID of this product is as follows. FCC ID:VPYLBYR650 Contents 1.Land Pattern(Recommended) 2.Supply Voltage 3.Antenna 4.Notice 2013/04/25 4 4. Notice Please describe the following warning on the final product which contains this module. Contains Transmitter Mobile FCC ID:VPYLBYR650Contains FCC ID:VPYLBYR650 or 2013/04/25 5 When installing it in a mobile equipment Please describethe following warning to the manual. When installing it in a portable equipment [ModelName] Note) Portable equipment : Equipment for which the spaces between human body and antenna are used within 20cm. Mobile equipment : Equipment used at position in which the spaces between human body and antenna exceeded 20cm.

External Photos

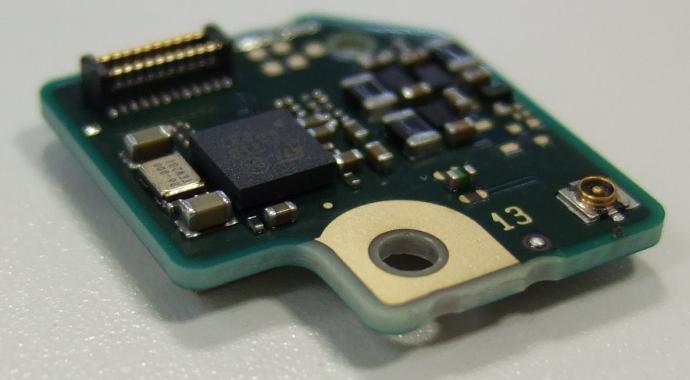

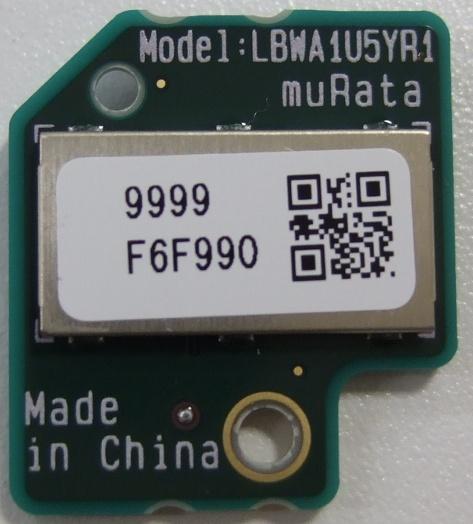

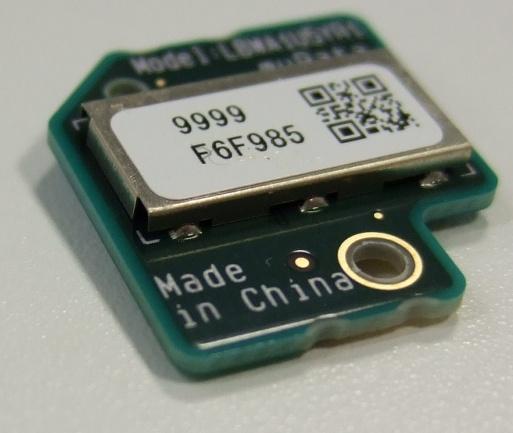

LBWA1U5YR1 External photos Module(Top) 1/5 15.4mm Height3.72mm Weight1.0g 2013/4/26 Module(Back) 2/5 2013/4/26 LBWA1U5YR1 External photos 3/5 2013/4/26 LBWA1U5YR1 External photos Module(Top---Bird’s-eyes view) 4/5 2013/4/26 LBWA1U5YR1 External photos Module(Back ---Bird’s-eyes view)

ID Label/Location Info

2013/04/25 FCC ID: VPYLBYR650 Since there is no space which indicates FCC ID, FCC ID is indicated in a manual. QR Code containing the information on a serial number. The information of Lot trace. (10 figures.) Label size : 12 * 5.2mm Label design to FCC 1 10.5cm 15.4cm 17cm 2.7cm 2.7cm 6.9cm 13.8cm 7.3cm Model name Name of manufacture Country of manufacture 2 2013/04/25 Since there is no space which indicates FCC ID, FCC ID is indicated in a manual. Label Unit : mm RF connecter B to B connecter External view 2013/04/25 3 Since there is no space which indicates FCC ID, FCC ID is indicated in a manual.

Internal Photos

Module(Top) 5/5 2013/4/26 LBWA1U5YR1 Internal photos

Test Report

Test report No. : 10009666H-A-R2 Page : 2 of 41 Issued date : May 27, 2013 Revised date : June 10, 2013 FCC ID : VPYLBYR650 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10009666H-A Revision Test report No. Date Page revised Contents - (Original) 10009666H-A May 27, 2013 - - 1 10009666H-A-R1 June 7, 2013 P.6, 12, 13 Change to latest version of Guidance 1 10009666H-A-R1 June 7, 2013 P.23-28 Addition of Duty Factor in calculating formula 2 10009666H-A-R2 June 10, 2013 P.12 Change to latest version of Guidance Test report No. : 10009666H-A-R2 Page : 3 of 41 Issued date : May 27, 2013 Revised date : June 10, 2013 FCC ID : VPYLBYR650 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 9 SECTION 5: Conducted Emission .......................................................................................................... 11 SECTION 6: Radiated Spurious Emission ............................................................................................ 12 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 13 APPENDIX 1: Data of EMI test .............................................................................................................. 14 Conducted Emission ......................................................................................................................... 14 6dB Bandwidth ................................................................................................................................. 15 Maximum Peak Output Power .......................................................................................................... 18 Radiated Spurious Emission ............................................................................................................. 23 Duty rate confirmation ...................................................................................................................... 31 Conducted Spurious Emission .......................................................................................................... 32 Power Density ................................................................................................................................... 33 99%Occupied Bandwidth ................................................................................................................. 36 APPENDIX 2: Test instruments ............................................................................................................. 38 APPENDIX 3: Photographs of test setup ............................................................................................... 39 Conducted Emission ......................................................................................................................... 39 Radiated Spurious Emission ............................................................................................................. 40 Worst Case Position .......................................................................................................................... 41 Test report No. : 10009666H-A-R2 Page : 4 of 41 Issued date : May 27, 2013 Revised date : June 10, 2013 FCC ID : VPYLBYR650 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Murata Manufacturing Company, Ltd. Address : 10-1, Higashikotari 1-chome, Nagaokakyo-shi, Kyoto 617-8555 Japan Telephone Number : +81-75-955-6375 Facsimile Number : +81-75-955-6634 Contact Person : Takaharu Kawakatsu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Communication Module Model No. : LBWA1U5YR1 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : April 22, 2013 Country of Mass-production : China Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification The EUT is WLAN Module which is installed in Digital camera. Specification of WLAN (IEEE802.11b/g/n) Type of radio Wireless LAN (IEEE802.11b/g) Wireless LAN (IEEE802.11n) 2.4G Band SISO (20M Band) Equipment Type Transceiver Frequency of Operation 2412MHz - 2462MHz Bandwidth & Channel spacing Bandwidth : 20MHz Ch spacing : 5MHz Type of Modulation 11b: DSSS 11g: OFDM OFDM Antenna Type / Antenna Gain Monopole (pattern) Antenna: -2.7dBi (Peak) Power Supply (inner) DC 5.0V Operating temperature range -10 to +50 deg. C. Test report No. : 10009666H-A-R2 Page : 5 of 41 Issued date : May 27, 2013 Revised date : June 10, 2013 FCC ID : VPYLBYR650 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247…

Text truncated - open the document above for the full version.

Contact Information

Applicant

KENJI HAYASHIKOSHI(SENIOR MANAGER)
[email protected]81-75-955-6173Fax: 81-75-955-7097

Technical Contact

UL Japan, Inc.Masanori Nishiyama
[email protected]81-596-24-8116

4383-326 Asama-cho, Ise-shi · Mie-ken · Japan

Test Firm

UL Japan, Inc. Head office EMC Lab.Tetsuya Hashimoto
[email protected]+81-596-24-8116Fax: +81-596-24-8095

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz70.30 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular approval. Output power listed is Conducted. FCC ID must be indicated in the user manual. Compliance of this device in all final host configurations is the responsibility of the Grantee. OEM integrators and end-users must be provided with specific operating instructions for satisfying RF exposure compliance. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter. OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
