VQSAMN3622301RxGrizzlyPro

Amimon Ltd.
RxGrizzlyPro - FCC ID VQSAMN3622301 - Amimon Ltd.
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Feb 05, 2013
Application Purpose
Original Equipment
Date of Application
Feb 05, 2013
Equipment Note
RxGrizzlyPro
Frequency Range
5755.00000000 - 5795.00000000
Company
Amimon Ltd.
Country
Israel

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Important Information Please read this user manual before you use this product, it contains all the notes, and instructions regarding the operating this product. In accordance with safety precautions and operating instructions listed on this user manual applies, provided the product is handled properly for its intended use, but may not apply to the cases below: • Repairs of product modification and alternations have been executed by unauthorized personnel. • The damages are caused by accidents including but not limited to lightning, fire, exposed to rain, water or moisture. • The damages are caused by the use of the provided power adapter with power voltages which are not compliant with the rated voltage range in the attached label of the power adapter in the package. • The model label on the product has been modified or the warranty tag has been removed by unauthorized personnel. Safety Precaution To reduce the risks of electricity, do not remove or open the cover. No use serviceable parts are inside. Please return to original factory for maintenance. To reduce the risks of electricity, do not remove or open the cover. No use serviceable parts are inside. Please return to original factory for maintenance. Please use our standard power adapter. For detailed information, please refer to the rated voltage range showed on the label at the back of power adapter. Danger: Be careful with electricity • As connecting any equipment (such as any player or TV, etc.), please turn off the power of the product before any operation is undertaken. • Power outlet: to prevent electric shock, fire or short circuit, please make sure the type of electrical plug used on the receiver’s and transmitter’s power cord are compliant with the rated voltage range in the attached label of the power adapter in the package. • Power cord: Do not place any heavy articles on top of the power cord. To avoid being stepped on or pinched by heavy items, the power cord should not be located in a place where people pass by frequently. • Power overloading: Avoid overloading wall’s electrical outlets and extension cord or other multi-socket; otherwise could result in electric shock or fire. • FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the equipment and the user’s body. Warning • This product should not be exposed to dripping or splashing. Don not place any object filled with liquid on the product (eg. Vases). • Please place the receiver/ transmitter on a flat and stable surface. • Ventilation: please do not block the air vents on the receiver/ transmitter, or place any heavy objects on top of them. Blocking the air flow can damage the product. Please make sure there is adequate ventilation distance between the receiver and TV. • Please put the product away from direct sunlight or any source of heat. • Water exposure: to reduce the risk of electric shock or fire, please do not expose the receiver/ transmitter to rain or moisture. • We assume no responsibility for any damage or result caused by using other adapters instead of the standard adapter provided in the package. Special Notice • Although the product has provided the function of data encryption when transmitting, you still need to pay attention to deliberate signal interception. There will be the possibility of a third party intentionally intercept the transmission signal since the product adopt wireless communication. Please do not use the product on confidential communication, or life-related communication. The main concern is that the content of wireless communication might be received by the third party’s wireless devices deliberately or accidentally. • The impact of radio waves (such as the following environments) may cause abnormal audio and video (blocked image, noise, etc.) o Transmit through a brick wall. o Transmit close to a refrigerator, metal objects, or a crowded environment. • This product has been tested and manufactured to comply with national electrical safety rules, however, there will be noise caused by interference with other machines in rare cases. If the interference is present, please keep a certain distance away from other machines. • The product is susceptible to interference from 5GHz wireless local area network or other wireless devices. • Optimal range between transmitter and receiver is between 1 meter and 30 meters within line of sight in an indoor environment. • Please do not set up the transmitter and receiver in metal shelf or it will hinder the wireless communications. • 1080p/60 Hz Wireless transmitting. • It will take 15-20 seconds to boot the system before wireless communication start, the media receiver can not be operated during this time. • Keep the product 20cm away from the body. • Indoor use only. • No enclosure provided. Need to add a complete enclosure. 1. AMN31292 Block Diagram 2. Features 1. Uncompressed and uncompromised FHD video quality 2. Supports 40MHz channels for supreme video quality and high rate video/audio signals 3. Supports WHDI, Unicast, Multicast 4. Supports HDMI 5. Strong 256-bit/128-bit AES based encryption 6. Supports MIMO technology 7. Supports OSD display 8. Supports HDCP 3. Performance parameters Number Item Unit Specification 1 Transmitter & Receiver Frequency GHz 5.15~5.25, 5.25~5.35, 5.47~5.725, 5.725~5.825 2 RF Communication System MIMO 3 Modulation Mode OFDM 4 Frequency Stability PPM +-20 5 Operating Bandwidth MHz 40 6 Typical Transmit Power dBm 16(MAX) 7 Receiver Sensitivity dBm -70 8 System Delay Ms <1 9 Transmit Channel & Receive Channel 2 & 1 10 HD Video System HD: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p PC: VGA (640x480), SVGA (800x600), XGA (1024x768) Panel: 854x800, 1280x768, 1366x768, 1920x1080 11 HD Video Encryption HDCP 1.2 12 Multi-path Transmission Distance M 50 13 Consumption Current mA 14 Power Supply VDC 5 …

Text truncated - open the document above for the full version.

External Photos

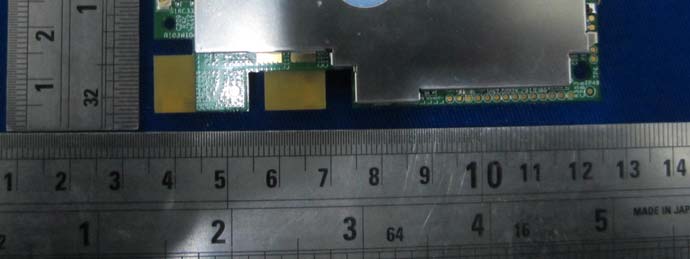

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View

ID Label/Location Info

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

Internal Photos

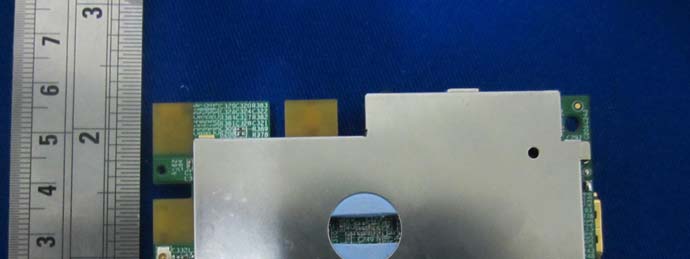

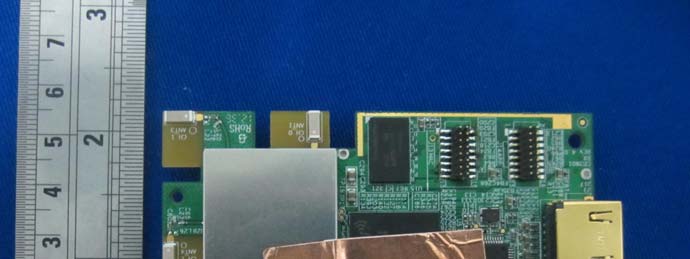

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top Cover Off View EUT – Bottom Cover Off View DFS antenna TX antenna

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R1DG121224005-00 FCC Part 15.407 Page 9 of 45 FCC §15.407 (f), §2.1091, §1.1307(b) (1) – RF EXPOSURE EVALUATION Applicable Standard According to subpart 15.407(f)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4SR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency Antenna Gain Conducted Power Evaluation Distance Power Density MPE Limit (MHz) (dBi) (numeric) (dBm)(mW)(cm) (mW/cm2) (mW/cm2) 5230 2 1.58 15.8238.19 20.00 0.01205 1.0 Result: The device meet FCC MPE at 20cm distance

Test Report

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). FCC PART 15.407 TEST REPORT For Amimon Ltd. 2 Maskit St. Herzlia, Israel Report Type: Original Report Product Type: RxGrizzlyPro Test En gineer: Ares Liu Re port Number: R1DG121224005-00 Re port Date: 2013-01-11 Reviewed By: Ivan Cao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: VQSAMN3622301 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R1DG121224005-00 FCC Part 15.407 Page 2 of 45 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT ....................................................................................................................................... 6 EXTERNAL CABLE ........................................................................................................................................................ 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.407 (f), §2.1091, §1.1307(b) (1) – RF EXPOSURE EVALUATION ............................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.407 (b) (6) §15.207 (a) – CONDUCTED EMISSIONS ............................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.407(b) (1) (6) (7) – UNDESIRABLE EMISSION & RESTRICTED BANDS ....... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASUREMENT UNCERTAINTY .................................................................................................................................. 15 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .......................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions –Side View Radiated Emissions Below 1G- Front View Radiated Emissions Below 1G - Rear View Radiated Emissions Above 1G- Front View Radiated Emissions Above 1G- Rear View

Contact Information

Applicant

Gabi Nocham
[email protected]972-53-2334456Fax: 972-9-956-5467

Test Firm

Bay Area Compliance Laboratories Corp. (Dongguan)John Chan
[email protected]86-769-86858888

Technical Specifications

#Rule PartsFrequency RangePower Output
215E5.75 GHz - 5.79 GHz36.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular Approval. Output power listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators must be provided with antenna installation instructions as defined in this filing. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
