14 October, 2012 Amimon Ltd. ADD: 2 Maskit St. Herzlia, Israel Tel: +972-5-4334-3515 Fax: +972-9-956-5467 Limited Modular Approval Request Letter Date: 2012-10-11 To whom it may concern: We, Amimon Ltd., hereby request Limited Modular Approval for Product: RGB (Model number: AMN31200-IR, FCC ID: VQSCB890802120528). This module complies with the Limited Modular Approval basic requirements in FCC Part 15 Subpart C Section 15.212 and clearly explained below: 1. Have its own RF shielding: The shielding of the radio portion can be demonstrated in EXHIBIT B External Photo. 2. The modular transmitter has buffered modulation/data inputs, Buffered data inputs stage has been integrated in chip (Model: AMN2120_A4W_PB). 3. The modular transmitter has its own power supply regulation. Please refer to the Block Diagram. 4. Comply with the antenna requirements of Section 15.203 and 15.204(c), the module has 5 printer antennas with 2.9dBi antenna gain. 5. Test fixer should be linked to the EUT. 6. Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC Identification number. FCC ID is shown on the label and permanently affixed to this modular transmitter, please refer to the User Manual. 7. Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The necessary explanation to be complied with this requirement is contained in the user manual, and please refers to the User Manual. 8. Comply with any applicable RF exposure requirements in its final configuration. Sincerely, Signature: Guy Dar Director of Operation

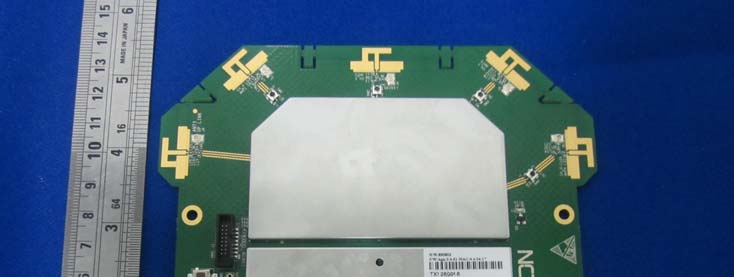

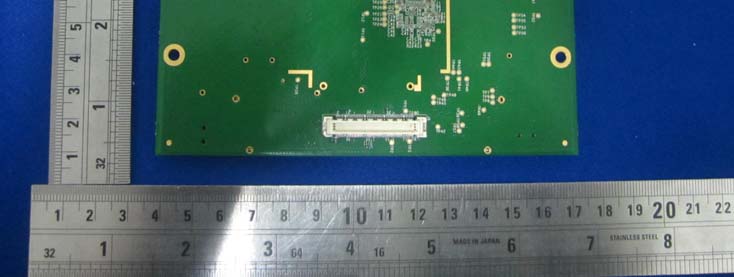

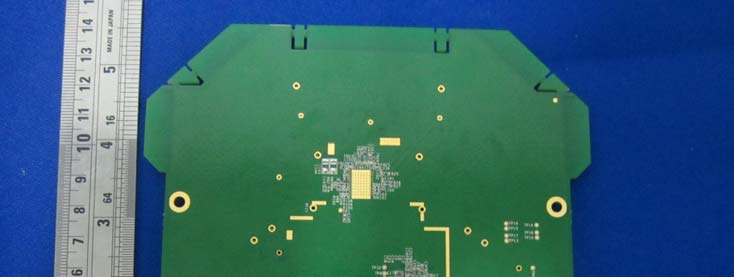

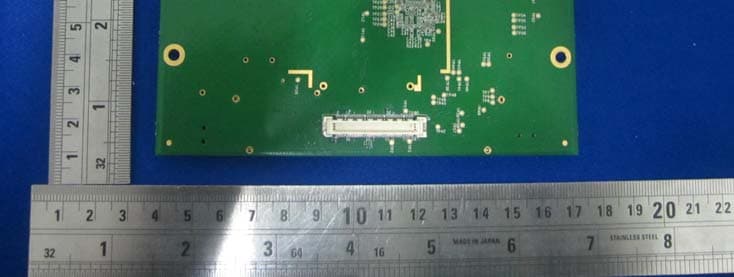

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Proposed FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label Here

EUT – Top Cover off View EUT – Main Chip View TX antenna RX antenna EUT – RF Part View

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R1DG120621003-00 FCC Part 15.407 Page 9 of 145 FCC §15.407 (f) & §2.1091 – RF EXPOSURE EVALUATION Applicable Standard According to subpart 15.407(f)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4R² Where S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 5755 2.9 1.95 17.69 58.75 20 0.0228 1.0 Result: The device meet FCC MPE at 20cm distance

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Dongguan). FCC PART 15.407 TEST REPORT For Amimon Ltd. 2 Maskit St. Herzlia, Israel Report Type: Original Report Product Type: RGB Test Engineer: Bin Jiang Re port Number: R1DG120621003-00 Re port Date: 2012-09-14 Reviewed By: Ivan Cao EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industrial Zone, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn FCC ID: VQSCB890802120528 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: R1DG120621003-00 FCC Part 15.407 Page 2 of 145 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 7 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 FCC §15.407 (f) & §2.1091 – RF EXPOSURE EVALUATION .................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.407 (b) (6) & §15.207 (a) – CONDUCTED EMISSIONS ......................................................................... 11 APPLICABLE STANDARD ............................................................................................................................................ 11 MEASUREMENT UNCERTAINTY .................................................................................................................................. 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC §15.209, §15.205 & §15.407(b)(1)(6)(7) – UNDESIRABLE EMISSION & RESTRICTED BANDS .......... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 MEASUREMENT UNCERTAINTY .................................................................................................................................. 15 EUT SETUP ................................................................................................................................................................ 16 EMI TEST RECEIVER & SPECTRUM ANALYZER SETUP .................................................................................…
