WEC-W6Professional weather station

3390TX(W6)Manual Page|1 PROFESSIONALWEATHERSTATION 3390TX(W6)Manual Page|2 Features:  PerpetualCalendarUptoYear2099  Automaticcalibrationofnetworktimeservice  Dayofweekin8languagesuserselectable:English,German,Italian,French,Spanish,Dutch,DanishandRussian  Twodailyalarms Automaticsnoozefunction(OFFor5~60min)  Temperature: —Indoortemperaturemeasurementranges:0°C(32°F)to50°C(122°F) —Outdoortemperaturemeasurementranges:-40°C(-40°F)to70°C(158°F) Humidity: —Indoorandhumiditymeasurementranges:20%to95%  Airpressure: —Airpressurerange:600to1100hPa(17.72to32.48inHgor450to825.1mmHg)  Rain —Rainrange:0to9999mm(0-393.6inches) Wind —Windspeedrange:0to180km/h(0to111mph) —Winddirectionrange:0to359degrees  LightandUVindex —Lightrange:0to128klux(0to1378kfc) —UVindex:0to15level  WirelessOutdoorSensor: —433.92MHzRFtransmittingfrequency —100meters(300feet)transmissionrangeinanopenarea,notincludingwallsorfloors.  Recordoftemperature,humidity,windspeedandrainfall Displayoffeelsliketemperature,windchilltemperature,heatindex,dewpointtemperature  Futureweatherforecastandforecasttemperaturefunction,weatherforecastinformationprovidedbythenetwork  ConnectsdirectlytoWi-Finetwork  Level3displaybacklight USBchargingfunction  PowerSupply: Weatherstation: PowerAdapter:DC5V1.2A Battery:2xLR6AA1.5V Multi-combinationWirelessRemoteSensor: Battery:3xLR6AAA1.5V Temperature|HumidityWirelessRemoteSensor Battery:2xLR6AAA1.5V F.Y.I.: 3390TX(W6)Manual Page|3 Thewirelessremotesensorcanworkat-30°Cto+70°C.Pleasechoosetherightbatteryaccordingtothelimit temperatureofthewirelesssensor:Alkalinezincmanganesebatterycanworkat-20°Cto+60°C Polymerlithiumionrechargeablebatterycanworkat-40°Cto+70°C. 3390TX(W6)Manual Page|4 WeatherStationAppearance PartA-PositiveLCD A1:WeatherforecastA2:Valueofwindspeed A3:WinddirectionsteeringwheelA4:Winddirectionorwindtopspeedof1Hr A5:FeelsliketemperatureA6:Today'sforecasthighestandlowesttemperature A7:CalendarA8:Dayoftheweek A9:RainfallA10:Outdoortemperature A11:OutdoorhumidityA12:Outdoorwirelesschannel A13:IndoortemperatureA14:Indoorhumidity A15:AirpressureandlightintensityA16:UVindex A17:TimeA18:Rainfallpredictionprobability PartB–Buttons B1:“”snoozeandbacklighttouchlocationB5:“”downandwifibutton B2:“”and“”setandbrightnessofthebacklight button B6:“”windbutton NetworktimeIcon:Wirelessreceivingicon Summertimeicon :Wirelesschannelloopicon Alarm1icon :WIFIicon Alarm2icon :WIFIsignalstrengthindicator Monday-FridayrepeatalarmiconWindicon Saturday-SundayrepeatalarmiconTemperature|humidityuptrendarrow AlarmsnoozeiconTemperature|humiditydowntrendarrow :Batterylowpressureicon 3390TX(W6)Manual Page|5 B3: “”alarmbutton B7:“”rainbutton B4:“”upandtemperaturerecordbuttonB8:“”channelbutton PartC–Exterior C1: Hanginghole C2: Batterycompartment C3:USBchargingsocketC4: Powersupplysocket C5: Supportframe Multi-combinationWirelessRemoteSensorAppearance PartD–Exterior D1:Solarpanel D2: Rainfunnel D3:Windcups D4: Bubblelevel D5:Temperature|humidityinductionboxD6:WindDirectionalVane D7:ResetbuttonD8:LEDindicator D9:ManualtransmitsignalbuttonD10: Batterycompartment D11:SupportrodD12:Fixedbase D13:SocketheadcapscrewsD14:DrainventsForrainsensor D15:NorthdirectionmarkD16:Rainfunnelrotationmark D17:LargenutforfixingthesupportrodandthebaseD18:LightingandUVsensors 3390TX(W6)Manual Page|6 Temperature|HumidityWirelessRemoteSensorAppearance PartE–Exterior E1:HangingholeE2:LCDdisplay E3:LEDindicator E4:Temperature|Humiditysensinglouver E5:Batterycompartment E6:Manualtransmitsignalbutton“TX” E7:“CHANNEL1or2or3”switch E8:Resetbutton 3390TX(W6)Manual Page|7 SetupPreparation Itemsyouwillneedtosetupyourstation(notincluded): 1.Crossheadscrewdriverandhexdriverforassembly. 2.FreshBatteries: 2(two)AAalkalineorlithiumbatteriesfortheweatherstation. 3(three)AAalkalineorlithiumbatteriesforthemulti-combinationsensor. 2(three)AAalkalineorlithiumbatteriesforthetemperature|humiditysensor(Optional) Forbestresults: •Removeweatherstationandsensorsfromthepackageandplacetogetheronatableorbench,withineasyreach. •Placebatteriesandscrewdriverwithinreachofsetuplocation. •Keepsensorsandweatherstation0.15-0.3meteror5-10feetforatleast15minutesafterinstallingbatteries,to allowthesensorsandstationtoconnectrepeatedly. QuickSetup 1.Insert3AAbatteriesintothemulti-combinationwirelessremotesensor 2.3-AAbatteryentrytemperature|humiditywirelessremotesensor 3.Thenplugthepowercordintotheweatherstation 4.DownloadthecorrespondingAPPonthemobilephone,opentheAPP,registertheuserandlogin,andpairtheweather stationwiththeWIFIandserverinformationaccordingtothepromptoftheAPP. 5.Configurebasicsettings.Settime,date,unit,etc. 6.Insert2AAbatteriesintotheweatherstation(whenthepoweradapterisunexpectedlypoweredoff,thesettingswillnot belost) 7.Movetheremotesensortooutdoororotherlocationafter5minutes Pairingweatherstationdevicewithsmartphone  APPsoftwareinstallingforsmartphone DOWNLOADAPP: HardwareRequirements:iPhone 6S (orabove)enabledsmartdevice SoftwareRequirements:iOS8.0(orabove)orAndroid6.0(orabove) DownloadAPP(WeatherSense) DownloadIOSAPPapplicationsoftwareURL: https://itunes.apple.com/cn/app/weathersense/id1273633929?mt=8 3390TX(W6)Manual Page|8 DownloadAndroidAPPapplicationsoftwareURL: https://play.google.com/store/apps/details?id=com.emax.weahter  Userregistration： Followin-appinstructionstocreateanaccount,afterregistrationiscompleted,enterthemailboxforaccountactivation AccountloginandregisterAccountregistrationmailboxaccountactivation  Pairingwithweatherstationdevice 1.Loginuseraccount 2.Makesureyourphoneisconnectedtoa2.4GHzWi-Finetwork.andBluetoothfunctionisturnedon. (WiFiweatherstationcurrentlyonlysupport2.4GHzWi-Finetworkduringconfiguration) 3.PluginweatherstationwithAC/DCpower,Pressandhold“”buttonfor3secondsuntil“WI-FIAP”blinking onthedevicedisplay.Ifthedeviceisfirstenabled,itwillautomaticallyenterAPmode,and“WI-FIAP”blinks onthedisplay. 4.Pleaseselect“W003”fortheconnectionmethod.Afterthenewdevicesearchiscompleted,pleasefindand select“WeatherType”. 5.Selectthecorrec…

Text truncated - open the document above for the full version.

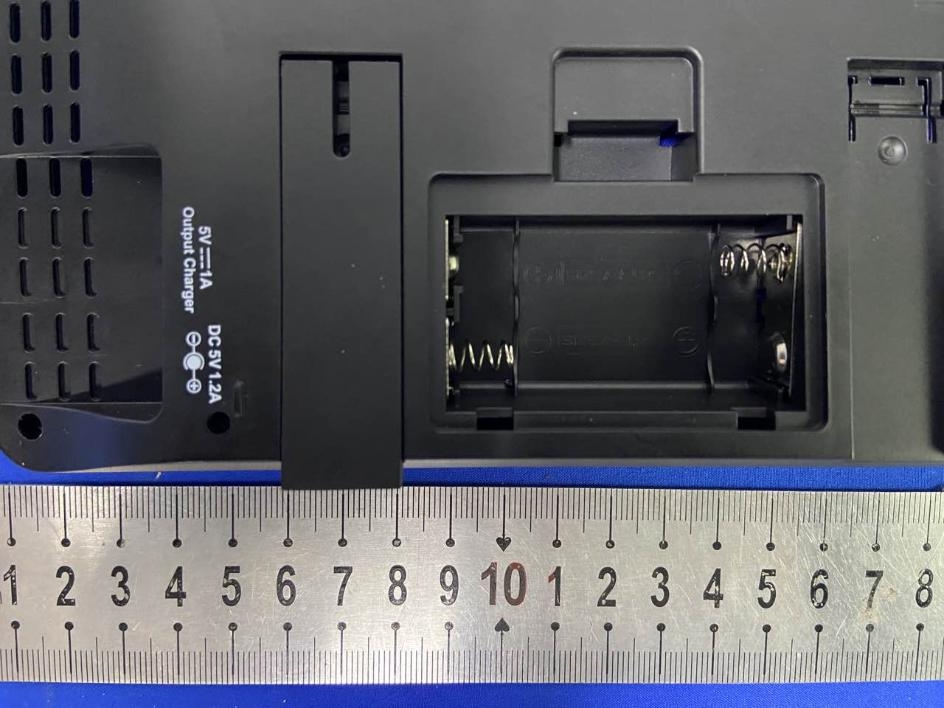

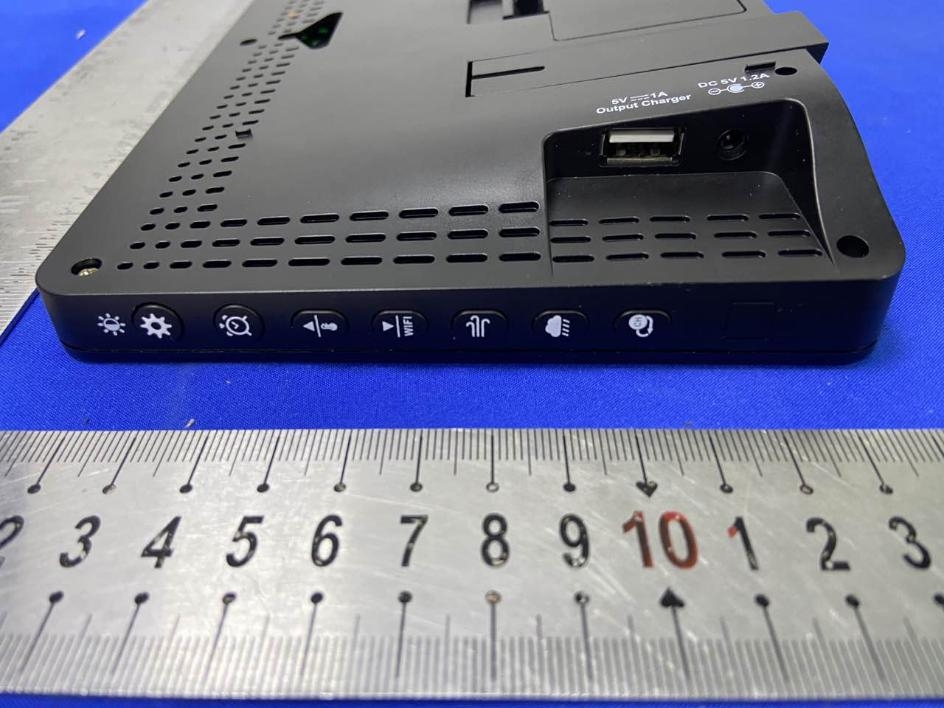

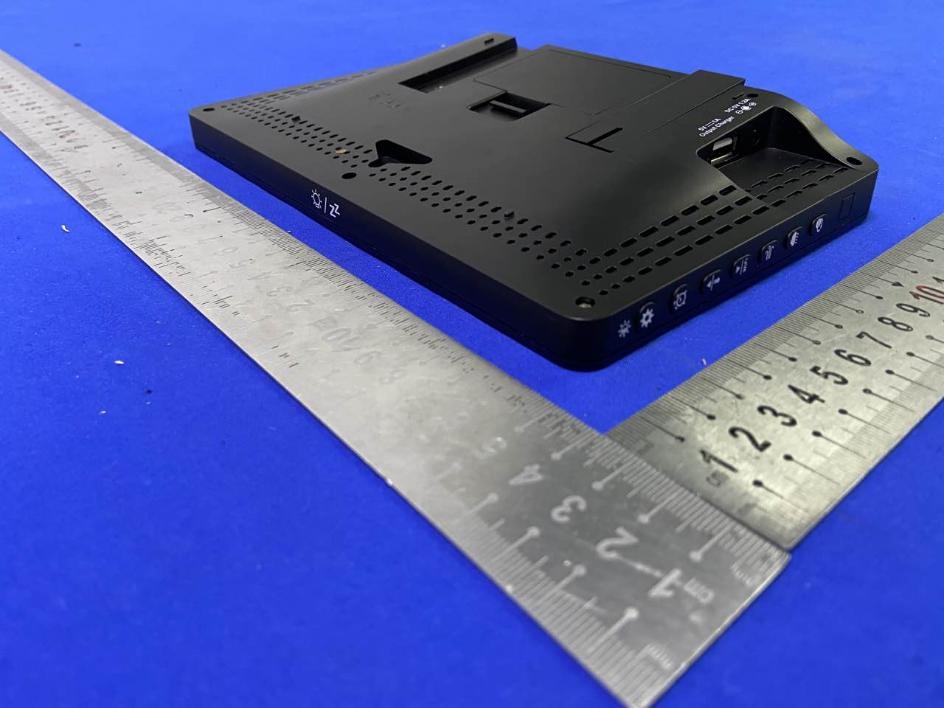

FCCID:WEC-W6 Externalphotos FCCID:WEC-W6 FCCID:WEC-W6

W6 21.1mm 60.7mm W6 W003 PAI R I NG MO D E

FCCID:WEC-W6 Internalphotos FCCID:WEC-W6 FCCID:WEC-W6 FCCID:WEC-W6 FCCID:WEC-W6

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V03 ReportTemplateRevisionDate:Mar.1st,2017 TestReport *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlytothesample(s) tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.: CQASZ20210300189E-02 Applicant: FUZHOUEMAXELECTRONICCO.,LTD. AddressofApplicant:Building#12-#16,CangshanIndustrialArea,Juyuanzhou,JinshanDistrict, Fuzhou,China. EquipmentUnderTest(EUT): Product:Professionalweatherstation ModelNo.:W6 BrandName:N/A FCCID:WEC-W6 Standards:47CFRPart15,SubpartC DateofTest:2021-3-2to2021-4-28 DateofIssue:2021-4-28 TestResult:PASS* TestedBy： (LewisZhou) ReviewedBy: (RockHuang) ApprovedBy: (JackAi) . ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-02 Page:2of83 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20210300189E-02Rev.01 Initialreport 2021-4-28 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-02 Page:3of83 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.102013PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.102013PASS ConductedPeak& AverageOutputPower 47CFRPart15,SubpartCSection 15.247(b)(3) ANSIC63.102013PASS 6dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.247(a)(2) ANSIC63.102013PASS PowerSpectralDensity 47CFRPart15,SubpartCSection 15.247(e) ANSIC63.102013PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-02 Page:4of83 3Contents Page 1VERSION.......................................................................................................................................................................2 2TESTSUMMARY.........................................................................................................................................................3 3CONTENTS...................................................................................................................................................................4 4GENERALINFORMATION........................................................................................................................................5 4.1CLIENTINFORMATION.............................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT...........................................................................................................................5 4.3TESTENVIRONMENTANDMODE............................................................................................................................7 4.4DESCRIPTIONOFSUPPORTUNITS........................................................................................................................8 4.5TESTLOCATION......................................................................................................................................................8 4.6TESTFACILITY........................................................................................................................................................8 4.7STATEMENTOFTHEMEASUREMENTUNCERTAINTY..............................................................................................9 4.8DEVIATIONFROMSTANDARDS...............................................................................................................................9 4.9ABNORMALITIESFROMSTANDARDCONDITIONS...................................................................................................9 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER....................................................................................9 4.11EQUIPMENTLIST.................................................................................................................................................10 5TESTRESULTSANDMEASUREMENTDATA..................................................................................................11 5.1ANTENNAREQUIREMENT......................................................................................................................................11 5.2CONDUCTEDEMISSIONS......................................................................................................................................12 5.3CONDUCTEDPEAK&AVERAGEOUTPUTPOWER..............................................................................................18 5.46DBOCCUPYBANDWIDTH...................................................................................................................................20 5.5POWERSPECTRALDENSITY................................................................................................................................32 5.6BAND-EDGEFORRFCONDUCTEDEMISSIONS...................................................................................................39 5.7RFCONDUCTEDSPURIOUSEMISSIONS.............................................................................................................44 5.8RADIATEDSPURIOUSEMISSIONS........................................................................................................................63 5.8.1Radiatedemissionbelow1GHz...................................................................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V03 ReportTemplateRevisionDate:Mar.1st,2017 TestReport *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonly tothesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. 1Coverpage ReportNo.: CQASZ20210300189E-01 Applicant: FUZHOUEMAXELECTRONICCO.,LTD. AddressofApplicant:Building#12-#16,CangshanIndustrialArea,Juyuanzhou,JinshanDistrict, Fuzhou,China. EquipmentUnderTest(EUT): Product:Professionalweatherstation ModelNo.:W6 BrandName:N/A FCCID:WEC-W6 Standards:47CFRPart15,SubpartC DateofTest:2021-3-2to2021-4-28 DateofIssue:2021-4-28 TestResult:PASS* TestedBy： (LewisZhou) ReviewedBy: (RockHuang) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-01 Page: 2 of 46 2Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20210300189E-01Rev.01 Initialreport 2021-4-28 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-01 Page: 3 of 46 3TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.102013PASS ACPowerLine Conducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.102013PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(3) ANSIC63.102013PASS 6dBOccupied Bandwidth 47CFRPart15,SubpartCSection 15.247(a)(2) ANSIC63.102013PASS PowerSpectralDensity 47CFRPart15,SubpartCSection 15.247(e) ANSIC63.102013PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.102013PASS RadiatedSpurious Emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.102013PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-01 Page: 4 of 46 4Contents Page 1COVERPAGE.................................................................................................................................................................1 2VERSION..........................................................................................................................................................................2 3TESTSUMMARY............................................................................................................................................................3 4CONTENTS......................................................................................................................................................................4 5GENERALINFORMATION...........................................................................................................................................5 5.1CLIENTINFORMATION.................................................................................................................................................5 5.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 5.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 5.4TESTENVIRONMENT....................................................................................................................................................8 5.5DESCRIPTIONOFSUPPORTUNITS................................................................................................................................8 5.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 5.7TESTLOCATION.........................................................................................................................................................10 5.8TESTFACILITY...........................................................................................................................................................10 5.9DEVIATIONFROMSTANDARDS..................................................................................................................................10 5.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 5.11EQUIPMENTLIST......................................................................................................................................................11 6TESTRESULTSANDMEASUREMENTDATA......................................................................................................12 6.1ANTENNAREQUIREMENT..........................................................................................................................................12 6.2CONDUCTEDEMISSIONS............................................................................................................................................13 6.3CONDUCTEDPEAKOUTPUTPOWER..........................................................................................................................16 6.46DBOCCUPYBANDWIDTH........................................................................................................................................19 6.5POWERSPECTRALDENSITY.......................................................................................................................................22 6.6BAND-EDGEFORRFCONDUCTEDEMISSIONS...........................................................................................................25 6.7SPURIOUSRFCONDUCTEDEMISSIONS......................…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V04 ReportTemplateRevisionDate:2018-07-06 RFExposureEvaluationReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20210300189E-04 Applicant: FUZHOUEMAXELECTRONICCO.,LTD. AddressofApplicant:Building#12-#16,CangshanIndustrialArea,Juyuanzhou,JinshanDistrict, Fuzhou,China. EquipmentUnderTest(EUT): EUTName: Professionalweatherstation ModelNo.: W6 BrandName: N/A FCCID: WEC-W6 Standards: 47CFRPart1.1307 47CFRPart2.1093 KDB447498D01GeneralRFExposureGuidancev06 DateofReceipt:2021-3-2 DateofTest:2021-3-2to2021-4-28 DateofIssue:2021-4-28 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove TestedBy： (LewisZhou) ReviewedBy: (RockHuang) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-04 Page:2of10 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20210300189E-04Rev.01 Initialreport 2021-4-28 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-04 Page:3of10 2Contents Page 1VERSION.............................................................................................................................................................................2 2CONTENTS.........................................................................................................................................................................3 ..................................................................................................................................................................................................3 3GENERALINFORMATION..............................................................................................................................................4 3.1CLIENTINFORMATION....................................................................................................................................................4 3.2GENERALDESCRIPTIONOFEUT....................................................................................................................................4 3.3GENERALDESCRIPTIONOFWIFI...................................................................................................................................5 3.4GENERALDESCRIPTIONOFBLE....................................................................................................................................5 3.5GENERALDESCRIPTIONOF433.92MHZ........................................................................................................................5 4MPEEVALUATION...........................................................................................................................................................6 4.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................6 4.1.1Limits....................................................................................................................................................................6 4.1.2EUTRFExposure..............................................................................................................................................7 4.1.3EUTRFExposureEvaluationsimultaneoustransmissionoperations....................................................10 ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-04 Page:4of10 3GeneralInformation 3.1ClientInformation Applicant: FUZHOUEMAXELECTRONICCO.,LTD. AddressofApplicant:Building#12-#16,CangshanIndustrialArea,Juyuanzhou,JinshanDistrict, Fuzhou,China. Manufacturer: FUZHOUEMAXELECTRONICCO.,LTD. AddressofManufacturer:Building#12-#16,CangshanIndustrialArea,Juyuanzhou,JinshanDistrict, Fuzhou,China. Factory: FUZHOUEMAXELECTRONICCO.,LTD. AddressofFactory:Building#12-#16,CangshanIndustrialArea,Juyuanzhou,JinshanDistrict, Fuzhou,China. 3.2GeneralDescriptionofEUT ProductName: Professionalweatherstation ModelNo.: W6 TradeMark: N/A HardwareVersion: V1.0 SoftwareVersion: V1.0 PowerSupply:EUTispoweredby2*AAsizebatteries Adapter Model:GQ07-050120-AUU Input:AC100-240V~50/60Hz0.3AMax Output:DC5V1.2A6.0W ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-04 Page:5of10 3.3GeneralDescriptionofWIFI OperationFrequency:IEEE802.11b/g/n(HT20):2412MHzto2462MHz ChannelNumbers: IEEE802.11b/g,IEEE802.11nHT20:11Channels ChannelSeparation: 5MHz TypeofModulation: IEEEfor802.11b:DSSS(CCK,DQPSK,DBPSK) IEEEfor802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEEfor802.11n(HT20):OFDM(64QAM,16QAM,QPSK,BPSK) TransferRate: IEEEfor802.11b: 1Mbps/2Mbps/5.5Mbps/11Mbps IEEEfor802.11g: 6Mbps/9Mbps/12Mbps/18Mbps/24Mbps/36Mbps/48Mbps/54Mbps IEEEfor802.11n(HT20): 6.5Mbps/13Mbps/19.5Mbps/26Mbps/39Mbps/52Mbps/58.5Mbps/65Mbps ProductType:MobilePortableFixLocation AntennaType:PCBantenna AntennaGain:0dBi 3.4GeneralDescriptionofBLE OperationFrequency:2402MHz~2480MHz ModulationType:GFSK TransferRate:1Mbps NumberofChannel:40 ProductType:MobilePortableFixLocation AntennaType:PCBantenna AntennaGain:0dBi 3.5GeneralDescriptionof433.92MHz FrequencyRange:433.92MHz ModulationType:PSK NumberofChannels:1 ProductType:MobilePortableFixLocation AntennaType:PCBantenna AntennaGain:0dBi . ShenzhenHuaxiaTestingTechnologyCo.,Ltd ReportNo.:CQASZ20210300189E-04 Page:6of10 4MPEEvaluation 4.1RFExposureComplianceRequirement 4.1.1Limits AccordingtoFCCPart1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluatethe environmentimpactofhumanexposuretoradiofrequency(RF)radiationasspecifiedinpart1.1307(b) F=FrequencyinMHz FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R 2 ) Where Pd=powerdensityinmW/cm2 Pout=outputpowertoanten…

Text truncated - open the document above for the full version.

FCCID:WEC-W6 Setupphotos 1.1RadiatedSpuriousEmission 9KHz~30MHz: 30MHz~1GHz: FCCID:WEC-W6 Above1GHz: 1.2 ConductedEmission
