X3ZBTMOD2Bluetooth Module

BT23 Bluetooth Module OEM General User and Installation Guide I. OEM Usage Instructions Installation The BT23 is a surface mount Bluetooth module supplied on a 14 pin, 6-layer PCB. The final assembly recommended reflow profiles are: For RoHS/Pb-free applications, Sn96.5/Ag3.0/Cu0.5 solder is recommended. ƒ Maximum peak temperature of 230° - 240°C (below 250°C). ƒ Maximum rise and fall slope after liquidous of < 2°C/second. ƒ Maximum rise and fall slope after liquidous of < 3°C/second. ƒ Maximum time at liquidous of 40 – 80 seconds. Layout The area around the BT23 module should be free of any ground planes, trace routings, or metal for at least 6mm from the antenna in all directions. Traces should not be routed underneath the module. Crystal Tuning and Power Calibration These steps are performed by the manufacturer, and must NOT be modified from the settings applied during manufacturing. Any changes to these settings may void the user’s authority to operate this equipment. Operating Conditions The permitted operating and storage temperatures, power supply requirements, and I/O tolerances are specified in the BT23 Datasheet. RF Exposure Warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device's external antenna must be installed in accordance with provided instructions and it must be operated with a minimum of 20 cm spacing between antennas and all persons’ bodies (excluding extremities of hands, wrists and feet) during wireless mode of operation. Further, this transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. II. Notice of FCC Regulatory Compliance This module has been tested and found to comply with the FCC Part15 Rules. These limits are designed to provide reasonable protection against harmful interference in approved installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications or changes to this equipment not expressly approved by Amp’ed RF Technology Inc. may void the user’s authority to operate this equipment. III. Limited Modular Approval FCC ID: X3ZBTMOD2 In accordance with FCC Part 15, the BT23 is listed above as a Limited Modular Transmitter device. In support of the Modular Transmitter Approval, the following is stated: 1. The module does have buffered modulation / data inputs. 2. The module does regulate its own power supply. 3. The module does have a permanently attached antenna. 4. The module can be tested as a stand-alone device. 5. The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6. The module does have instruction for proper use. 7. The module does meet the FCC RF regulations. Limited Modular Transmitter Approval, is requested, instead of Modular Transmitter Approval, because the following condition is not met: 1. The module does not have its own RF shielding. Amp’ed RF Technology, Inc. Rev: 1.0 1/20/2010 IV. FCC Label Instructions The outside of final products that contain a BT23 device must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: X3ZBTMOD2” or “Contains FCC ID: X3ZBTMOD2.” Any similar wording that expresses the same meaning may be used. An example of this label is figure 1 below: Figure 1: External Device FCC Label Sample This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any in received, including interference that may cause undesired ope terference ration. Contains Transmitter Module FCC ID: X3ZBTMOD2 Amp’ed RF Technology Input 3VDC 60mA Made in China Model: BT23

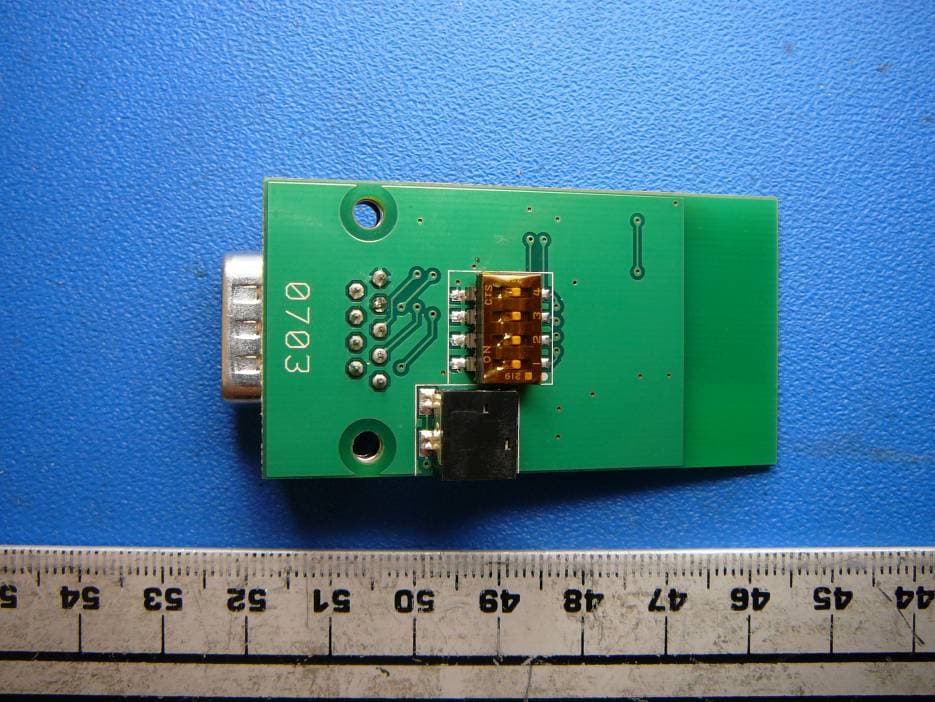

Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 53 of 55 FCC Part15.247 & IC RSS-210 Test Report 18 EXHIBIT C - EUT PHOTOGRAPHS 18.1 EUT – Top View 18.2 EUT – Bottom View Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 54 of 55 FCC Part15.247 & IC RSS-210 Test Report 18.3 Supported Board Top View 18.4 Supported Board Back View Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 55 of 55 FCC Part15.247 & IC RSS-210 Test Report 18.5 EUT on the Supported Board View 18.6 AC/DC Power Adapter ***** END OF REPORT *****

Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 47 of 55 FCC Part15.247 & IC RSS-210 Test Report 16 EXHIBIT A – FCC & IC Labeling Requirement 16.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 16.2 IC Label Requirements As per IC RSS-Gen §5, the certification number shall appear as follows: IC: XXXXXX-YYYYYYYY Where: • "XXXXXX-YYYYYYYY" is the certification number • "XXXXXX" is the Certificate Holder Number (CHN), made of at most 6 alphanumeric characters (A-Z, 0-9), assigned by Industry Canada; and • "YYYYYYYY" is the Unique Product Number (UPN), made of at most 11 alphanumeric characters (A-Z, 0-9) assigned by the applicant. • Note 1: The term "IC" before the equipment certification number only signifies that the Industry Canada technical specifications were met. • Note 2: Note 1 shall be conspicuously placed in the equipment user manual. • Note 3: Permitted alphanumeric characters used in the CHN and UPN are limited to capital letters (A-Z) and digits (0-9). Other characters, such as "#", "/" or "-", shall not be used. Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 48 of 55 FCC Part15.247 & IC RSS-210 Test Report As per RSS-Gen §5.2 Equipment Labeling: Equipment subject to certification under the applicable RSS, shall be permanently labeled on each item, or as an inseparable combination. The label must contain the following information for full compliance: (a) the certification number, prefixed by the term “IC:”; (b) the manufacturer's name, trade name or brand name; and (c) a model name or number. Equipment for which a certificate has been issued is not considered certified if it is not properly labeled. The information on the Canadian label can be combined with the manufacturer’s other labeling requirements. If the device size is too small to put a label, the label can be included in the user’s manual, upon agreement with Industry Canada. 16.3 FCC ID & IC Label Content 16.4 FCC ID & IC Label on the System Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 49 of 55 FCC Part15.247 & IC RSS-210 Test Report 16.5 FCC ID & IC Label Location on EUT Label here

Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 53 of 55 FCC Part15.247 & IC RSS-210 Test Report 18 EXHIBIT C - EUT PHOTOGRAPHS 18.1 EUT – Top View 18.2 EUT – Bottom View

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 IC RSS-210, ISSUE 7, JUNE 2007 TEST AND MEASUREMENT REPORT For Amp’ed RF Technology, Inc 1722 Ringwood Ave, Suite 250, San Jose, CA 95131, USA FCC ID: X3ZBTMOD2 IC: 8828A-MOD2 Report Type: Original Report Product Type: Bluetooth Intercom Module Test Engineer: Jack Liu Report Number: R1001251-247 Report Date: 2010-02-05 Reviewed By: Boni Baniqued EMC/RF Supervisor Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 2 of 55 FCC Part15.247 & IC RSS-210 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION.............................................................................................................................. 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................ 6 1.2 MECHANICAL DESCRIPTION OF EUT .............................................................................................................. 6 1.3 EUT PHOTOGRAPH......................................................................................................................................... 6 1.4 OBJECTIVE...................................................................................................................................................... 6 1.5 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................... 7 1.6 TEST METHODOLOGY..................................................................................................................................... 7 1.7 MEASUREMENT UNCERTAINTY...................................................................................................................... 7 1.8 TEST FACILITY............................................................................................................................................... 7 2 SYSTEM TEST CONFIGURATION ................................................................................................................. 8 2.1 JUSTIFICATION................................................................................................................................................ 8 2.2 EUT EXERCISE SOFTWARE............................................................................................................................. 8 2.3 SPECIAL ACCESSORIES................................................................................................................................... 8 2.4 EQUIPMENT MODIFICATIONS.......................................................................................................................... 8 2.5 POWER SUPPLY INFORMATION....................................................................................................................... 8 2.6 LOCAL SUPPORT EQUIPMENT......................................................................................................................... 8 2.7 EUT INTERNAL CONFIGURATION................................................................................................................... 8 2.8 INTERFACE PORTS AND CABLING................................................................................................................... 8 3 SUMMARY OF TEST RESULTS ...................................................................................................................... 9 4 FCC §15.203 & IC RSS-GEN §7.1.4 - ANTENNA REQUIREMENT........................................................... 10 4.1 APPLICABLE STANDARD...............................................................................................................................10 4.2 ANTENNA CONNECTED CONSTRUCTION....................................................................................................... 10 5 FCC §15.207 & IC RSS-GEN §7.2.2 – CONDUCTED EMISSIONS............................................................. 11 5.1 APPLICABLE STANDARD...............................................................................................................................11 5.2 EUT SETUP................................................................................................................................................... 11 5.3 TEST PROCEDURE......................................................................................................................................... 11 5.4 TEST EQUIPMENT LIST AND DETAILS........................................................................................................... 11 5.5 TEST SETUP BLOCK DIAGRAMS.................................................................................................................... 12 5.6 TEST ENVIRONMENTAL CONDITIONS............................................................................................................ 12 5.7 TEST RESULT:............................................................................................................................................... 12 5.8 CONDUCTED EMISSIONS TEST DATA............................................................................................................ 12 6 FCC §15.205, §15.209 & §15.247(D) & IC RSS-210 §2.2, §8.5 – RESTRICT BAND AND UNWANTED EMISSIONS.................................................................................…

Text truncated - open the document above for the full version.

Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 50 of 55 FCC Part15.247 & IC RSS-210 Test Report 17 EXHIBIT B - TEST SETUP PHOTOGRAPHS 17.1 Conducted Emissions – Front View 17.2 Conducted Emissions – Side View Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 51 of 55 FCC Part15.247 & IC RSS-210 Test Report 17.3 Radiated Emissions – Front View (below 1 GHz) 17.4 Radiated Emissions – Rear View (below 1 GHz) Amp’ed RF Technology, Inc FCC ID: X3ZBTMOD2, IC: 8828A-MOD2 Report Number: R1001251-247 Page 52 of 55 FCC Part15.247 & IC RSS-210 Test Report 17.5 Radiated Emissions – Front View (Above 1 GHz) 17.6 Radiated Emissions – Rear View (Above 1 GHz)
