X3ZWFMOD9Wi-Fi Module

WF43 Datasheet Amp’ed RF Technology, Inc. Phone: +1 408 213-9530 | E-mail: [email protected] Address : 2674 N. First Street, ste 220, San Jose, CA 95134 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） WF43 Product Specification 14.6mm x 13.5mm x 2.8 mm Description Amp’ed RF Tech presents the WF43 Wi-Fi Stand-alone module: 802.11bgn + Host MCU with Wi-Fi protocol stack. The WF43 is a small footprint low cost RF module including chip antenna, 7 general purpose and ADC/DAC IO lines, several serial interface options, and up to 12M bps data throughput using the SPI interface. The complete stack, TCP/IP with WLAN, is hosted on the integrated MCU. A simple AT command interface, artSerial, allows users to easily configure and operate the WF43. WLAN features
802.11b/g/n, 802.11d Regulatory Domain, 802.11r
Power savings mode
Transmit power back-off
Wi-Fi Direct (concurrent)
Wi-Fi Display
Wi-Fi Protected Setup
Soft Access Point
Hotspot 2.0
Security: WPAI/WPA2, AES, WEP Hardware configuration
Cortex-M4 microprocessor up to 82MHz
256K bytes Flash memory
64K bytes RAM memory
UART, up to 2.25M baud
SPI and I2C interfaces
7 general purpose I/O
5x12-bit A/D inputs
1 DAC output
1 LPO input
Standby current, 40 μA
RoHS conformance
FCC/IC certified (pending) Embedded software
Amp’edUP WiFi stack
artSerial, AT command set, SDK, Software Development Kit (Optional)
Mobile application software (Optional) Phone: +1 408 213-9530 | E-mail: [email protected] Address : 2674 N. First Street, ste 220, San Jose, CA 95134 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） 3 Table of Contents WF43 Product Specification ............................................................................................................................................... 2 1 Software Architecture ................................................................................................................................................. 4 1.1 Protocol stack diagram............................................................................................................................................... 4 1.2 Wi-Fi features ............................................................................................................................................................. 4 2 Hardware Specifications ............................................................................................................................................ 5 2.1 Recommended Operating Conditions ........................................................................................................................ 5 2.2 Absolute Maximum Ratings ....................................................................................................................................... 5 2.3 I/O Operating Conditions............................................................................................................................................ 5 2.4 Current Consumption ................................................................................................................................................. 6 2.5 Selected RF Characteristics ...................................................................................................................................... 7 2.6 Transmit Power Back-off ............................................................................................................................................ 7 2.7 Pin Assignment .......................................................................................................................................................... 9 2.8 Pin Placement Diagram (Top View) ......................................................................................................................... 10 2.9 Layout Drawing ........................................................................................................................................................ 11 3 Hardware Design ..................................................................................................................................................... 12 3.1 Block Diagram .......................................................................................................................................................... 12 3.2 Layout....................................................................................................................................................................... 12 3.3 Module Reflow ......................................................................................................................................................... 12 3.4 GPIO Interface ......................................................................................................................................................... 12 3.5 UART Interface ........................................................................................................................................................ 13 3.6 PCB Layout Guidelines ............................................................................................................................................ 14 3.7 Reset Circuit ............................................................................................................................................................. 14 3.7.1 External Reset Circuit ............................................................................................................................................ 14 3.7.2 Internal Reset Circuit ............................................................................................................................................. 15 4 Regulatory Compliance ........................................................................…

Text truncated - open the document above for the full version.

Amp’ed RF Technology, Inc. Date: August 5, 2015 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Amp’ed RF Technology, Inc. FCC ID: X3ZWFMOD9 FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Amp’ed RF Technology, Inc. requests that the following documents regarding this submission for FCC ID: X3ZWFMOD9 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pd f Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Amp’ed RF Technology, Inc. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Amp’ed RF Technology, Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Name ：Annie Cai Title：Operation Manager Company：Amp’ed RF Technology, Inc.

Amp’ed RF Technology, Inc. Date: August 5, 2015 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Amp’ed RF Technology, Inc. the undersigned, hereby authorizes Mr. Elliot Zhang of TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the Amp’ed RF Technology, Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: X3ZWFMOD9 including the signing of documents in connection with this Application. Necessary acts carried out by Amp’ed RF Technology, Inc. on our behalf of the Amp’ed RF Technology, Inc.in connection with the Application shall have the same effect as acts of the Amp’ed RF Technology, Inc. The Amp’ed RF Technology, Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Name ：Annie Cai Title：Operation Manager Company：Amp’ed RF Technology, Inc.

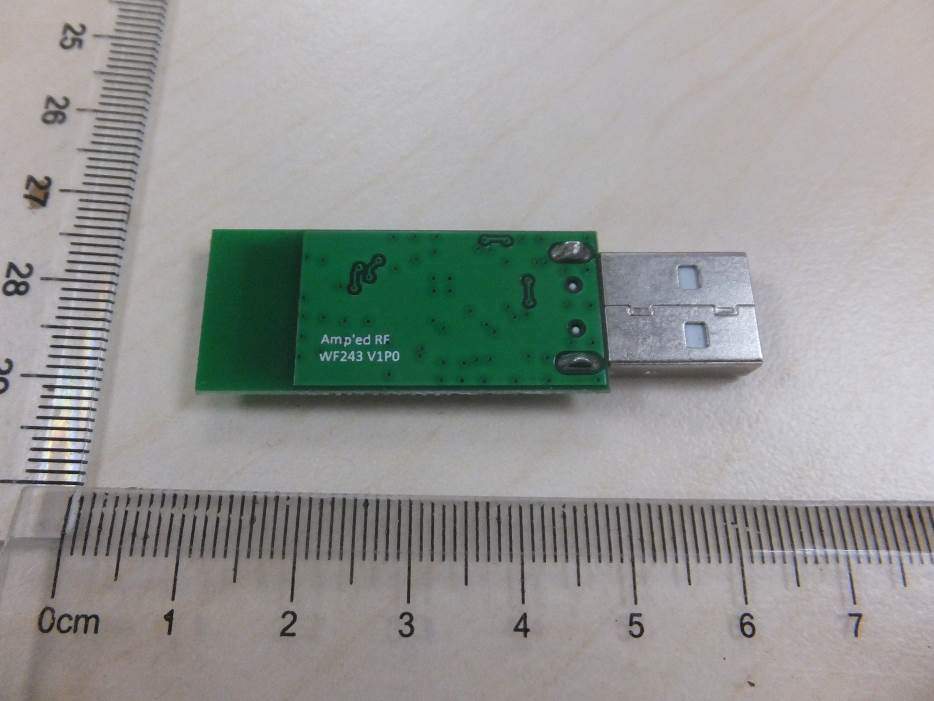

Produkte Products Prüfbericht - Nr.: Test Report No. 15080186 001 Seite 1 von 1 Page 1 of 1 Appendix III- External Photos Photograph 1: Front view of the EUT Photograph 2: Rear view of the EUT Note: The EUT as shown above consists of a modular and a USB dongle, but the USB dongle is only used for test.

Produkte Products Prüfbericht - Nr.: Test Report No. 15080186 001 Seite 1 von 1 Page 1 of 1 Appendix IV- Internal Photos

Produkte Products Prüfbericht - Nr.: Test Report No. 15084102 001 Seite 1 von 1 Page 1 of 1 Appendix I- RF Exposure statement FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 30 IC Requirement According to RSS-102 (Issue 5), clause 2.5.2, no routine RF exposure evaluation is required if the transmitter power (e.i.r.p.) is below the following threshold: ‘at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; ’ Here f = 2450MHz, so Max EIRP should ≤ 2.7129 W = 2712.9 mW Measurement Result The maximum measured transmitter power is the following: Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = ( P out · G) / (4π · D 2 ), where S = power density in mW /cm 2 P out = antenna conducted output power in mW G = antenna gain in linear scale (here: 1.86dBi=10log(G)) D = distance between observation point and radiating structure in cm (here: 20cm) Conclusion The device complies with the FCC and IC RF exposure requirements since the maximum transmitter power density is below the FCC limit and the e.i.r.p. power is below the IC RF exposure evaluation exemption threshold. Conducted Output Power P out [dBm] Conducted Output Power P out [mW] Maximum Antenna Gain [dBi] P out EIRP [mW] Power Density at 20cm [mW/cm2] 19.5289.540.5100.460.020

2015.08.11 Sam Lin / TC Produkte Products Prüfbericht-Nr.: Test Report No.: 15080186 001 Auftrags-Nr.: Order No.: 154086041 Seite 1 von 56 Page 1 of 56 Kunden-Referenz-Nr.: Client Reference No.: 460398 Auftragsdatum: Order date: 2015.02.03 Auftraggeber: Client: Amp’ed RF Technology, Inc. 1879 Lundy Ave, Suite 138, San Jose, CA, 95131 Prüfgegenstand: Test item: Wi-Fi module Bezeichnung / Typ-Nr.: Identification / Type No.: WF43 FCC ID: X3ZWFMOD9 IC: 8828A-MOD9 Auftrags-Inhalt: Order content: Complete test Prüfgrundlage: Test specification: FCC CFR47 Part 15, Subpart C Section 15.247 ANSI C63.10: 2013 KDB 558074 D01 DTS Meas Guidance v03r03 RSS-Gen Issue 4, November 2014 RSS-247 Issue 1, May 2015 Wareneingangsdatum: Date of receipt: 2015.01.26 Prüfmuster-Nr.: Test sample No.: A000242600-001 Prüfzeitraum: Testing period: 2015.01.26 to 2015.08.01 Ort der Prüfung: Place of testing: MRT Technology(Suzhou) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 2015.08.11 Elliot Zhang / PE kontrolliert von / reviewed by: Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland LGA Products GmbH
Tillystraße 2
D - 90431 Nürnberg
Tel.: +49 911 655 5225
Fax: +49 911 655 5226 Mail: [email protected]
Web: www.tuv.comom Produkte Products Prüfbericht - Nr.: Test Report No. 15080186 001 Seite 2 von 56 Page 2 of 56 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 PEAK OUTPUT POWER RESULT: Pass 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Pass 5.1.4 CONDUCTED SPURIOUS EMISSIONS RESULT: Pass 5.1.5 POWER SPECTRAL DENSITY RESULT: Pass 5.1.6 SPURIOUS EMISSION RESULT: Pass 5.1.7 CONDUCTED EMISSIONS RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 15080186 001 Seite 3 von 56 Page 3 of 56 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 T RACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 R ATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 S UBMITTED DOCUMENTS .................................................................................................. 8 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 T EST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ....................................................... 10 5. T EST RESULTS ............................................................................................................... 11 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .................................................................. 11 5.1.1 Antenna Requirement ................................................................................................................ 11 5.1.2 Peak Output Power .................................................................................................................... 12 5.1.3 6dB Bandwidth and 99% Bandwidth .......................................................................................... 13 5.1.4 Conducted Spurious Emissions .....................................................................................…
