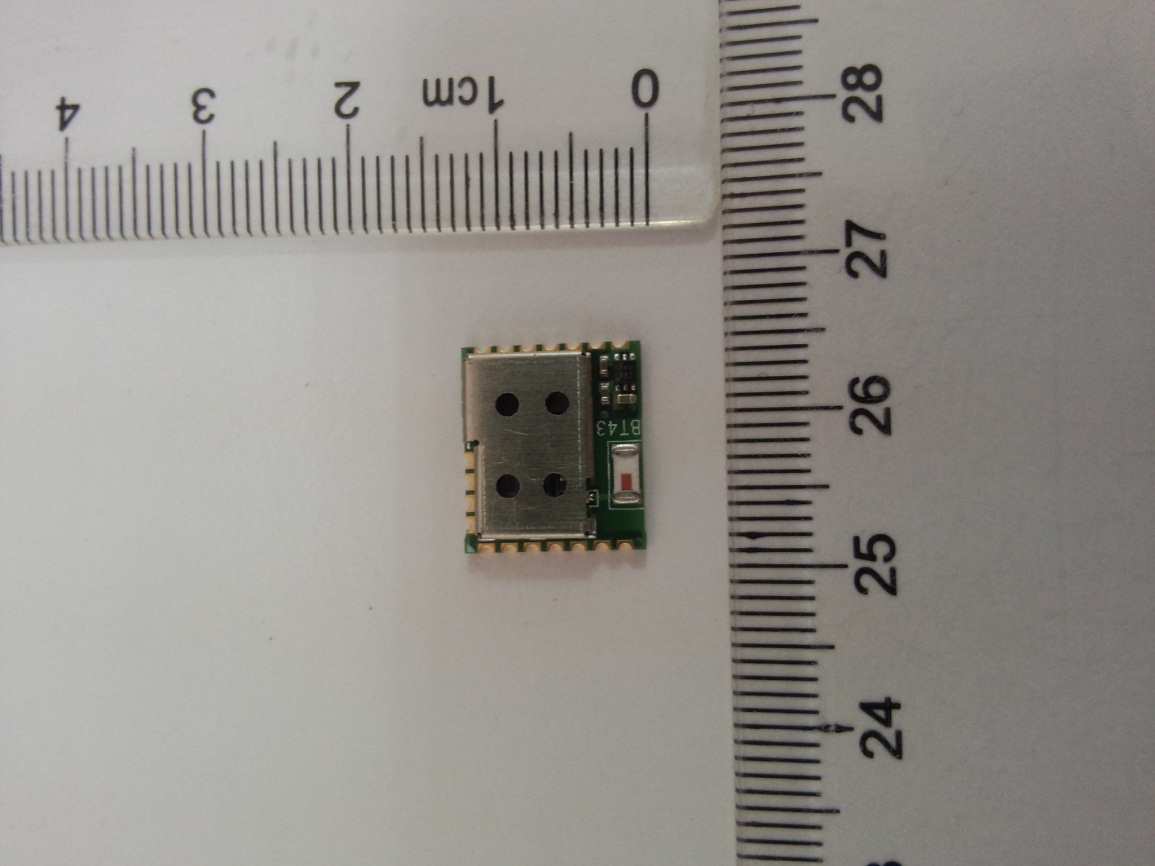

Jan 16, 2013 BT43 Datasheet Preliminary Amp’ed RF Technology, Inc. Jan 16, 2013 BT43LT Product Specification 11.6mm x 13.5mm Description Our micro-sized Bluetooth module, with integrated antenna, is the smallest form factor available providing a complete RF platform. The BT43 is supports both Bluetooth Classic and Low Energy, version v4.0. The BT43 is a surface mount PCB module that provides fully embedded, ready to use Bluetooth wireless technology. Our standard abSerial and Amp’edUP Stack are pre-flashed into the integrated flash memory, supporting the SPP profile. Other popular Bluetooth profiles, such as OBEX, are also available. Customized firmware for peripheral device interaction, power optimization, security, and other proprietary features may be supported and can be ordered pre-loaded and configured. BT43 Features Bluetooth features  FCC &Bluetooth licensed radio  Bluetooth v4.0  Class 1 radio  Range up to 80m LOS  1Mbps data throughput  128-bit encryption security Hardware configuration  Cortex-M3 microprocessor up to 72MHz  128K bytes Flash memory  20K bytes RAM memory  UART, up to 2M baud  SPI and I2C interfaces  7 general purpose I/O  4x12-bit A/D inputs  1 LPO input Embedded software  Amp’edUP dual mode Bluetooth stack: BT Classic and BT Low Energy  abSerial, AT command set  SDK, Software Development Kit (Optional)  BlueGuard, data encryption software (Optional)  Mobile application software (Optional) Additional documentation  abSerial User Guide  abSerial Reference Guide  abSerial Configuration Guide Phone: +1 408 213-9530 | Fax: 408-213-9533 | E-mail: [email protected] Address : 1879 Lundy Ave, ste. 138, San Jose, CA 95131 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） 3 Table of Contents 1 Software Architecture 1.1 Lower Layer Stack  Bluetooth v4.0, Classic and Low Energy  Device power modes: active, sleep and deep sleep  Wake on Bluetooth feature optimized power consumption of host CPU  Authentication and encryption  Encryption key length from 8 to 128 bits  Persistent FLASH memory for BD Address and user parameter storage  All ACL packet types.  Bluetooth test modes per Bluetooth specification  802.11b/g/n co-existence: AFH  Vendor specific HCI commands to support device configuration and certification test modes 1.2 Upper Layer Stack: Amp’ed UP  SPP, GAP, ATT, GATT  RFComm, SDP, and L2CAP 1.3 HCI Interface  Bluetooth v4.0 specification compliant  HCI UART transport layer (H4) 1.4 AT Command Set: abSerial  Please see abSerial Reference Guide for details Phone: +1 408 213-9530 | Fax: 408-213-9533 | E-mail: [email protected] Address : 1879 Lundy Ave, ste. 138, San Jose, CA 95131 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） 4 Phone: +1 408 213-9530 | Fax: 408-213-9533 | E-mail: [email protected] Address : 1879 Lundy Ave, ste. 138, San Jose, CA 95131 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） 5 2 Hardware Specifications General Conditions (V IN = 2.5V and 25°C) 2.1 Recommended Operating Conditions Rating Min Typical Max Unit Operating Temperature Range -40 - 85 °C Supply Voltage V IN 2.1 2.5 3.6 Volts Signal Pin Voltage - 2.1 - Volts RF Frequency 2400 - 2483.5 MHz 2.2 Absolute Maximum Ratings Rating Min Typical Max Unit Storage temperature range -55 - +150 °C Supply voltage V IN -0.3 - +5.0 Volts I/O pin voltage V IO -0.3 - +5.5 Volts RF input power - - -5 dBm 2.3 Current Consumption Standard CPU Mode, 8 MHz  UART supports up to 115 Kbps  Data throughput up to 200 Kbps  abSerial v1.5 (installed firmware)  Shallow Sleep enabled Modes (Typical Power Consumption) Avg Unit ACL data 115K Baud UART at max throughput (Master) 17.5 mA ACL data 115K Baud UART at max throughput (Slave) 19.5 mA Connection, no data traffic, master 5.2 mA Connection, no data traffic, slave 7.4 mA Connection, 375ms sniff, slave (external LPO required) 590 μA Standby, without deep sleep 5.2 mA Standby, with deep sleep, no external LPO 1.7 mA Standby, with deep sleep, with external LPO 140 uA Page/Inquiry Scan, with deep sleep, no external LPO 2.6 mA Page/Inquiry Scan, with deep sleep, with external LPO 720 μA BLE Advertising, 1.28s, non-connectable, with external LPO 195 μA BLE Advertising, 1.28s, discoverable, with external LPO 215 μA Bluetooth power down / CPU standby 11 μA Phone: +1 408 213-9530 | Fax: 408-213-9533 | E-mail: [email protected] Address : 1879 Lundy Ave, ste. 138, San Jose, CA 95131 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） 6 2.4 Selected RF Characteristics Parameters Conditions Typical Unit Antenna load 50 ohm Radio Receiver Sensitivity level BER < .001 with DH5 -92 dBm Maximum usable level BER < .001 with DH1 0 dBm Input VSWR 2.5:1 Radio Transmitter Maximum output power 50 Ω load +9 dBm Initial Carrier Frequency Tolerance 0 kHz 20 dB Bandwidth for modulated carrier 935 kHz 2.5 I/O Operating Characteristics Symbol Parameter Min Max Unit Conditions V IL Low-Level Input Voltage - 0.6 Volts V IN , 2.1V V IH High-Level Input Voltage 1.4 - Volts V IN , 2.1V V OL Low-Level Output Voltage - 0.4 Volts V IN , 2.1V V OH High-Level Output Voltage 1.8 - Volts V IN , 2.1V I OL Low –Level Output Current - 4.0 mA V OL = 0.4 V I OH High-Level Output Current - 4.0 mA V OH = 1.8V R PU Pull-up Resistor 80 120 KΩ Resistor Turned On R PD Pull-down Resistor 80 120 KΩ Resistor Turned On Phone: +1 408 213-9530 | Fax: 408-213-9533 | E-mail: [email protected] Address : 1879 Lundy Ave, ste. 138, San Jose, CA 95131 电话：+86 022-83945100 | 传真：+86 022-83945100转111 | E-mail: [email protected] 地址：天津市华苑产业区海泰西路18号西3B-202（300384） 7 2.6 Pin Assignment Name Type Pin # Description ALT Function 5V Tolerant Initial State UART Interface RXD I 13 Receive data Y TXD O 14 Transmit data Y RTS O 12 Reque…

Text truncated - open the document above for the full version.

Amp'ed RF Technology,Inc. Date: December 31, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Amp'ed RF Technology,Inc., the undersigned, hereby authorizes Mr. Jesse Huang of TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the Amp'ed RF Technology,Inc. solely in matters relating to the application for an FCC equipment authorization for FCC ID: X3ZBTMOD7 including the signing of documents in connection with this Application. Necessary acts carried out by Amp'ed RF Technology,Inc. on our behalf of the Amp'ed RF Technology,Inc. in connection with the Application shall have the same effect as acts of the Amp'ed RF Technology,Inc.. The Amp'ed RF Technology,Inc. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Name： Annie Cai Title： Operations Manager Company：Amp'ed RF Technology,Inc.

Amp'ed RF Technology,Inc. Date: December 31, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Amp'ed RF Technology,Inc. FCC ID: X3ZBTMOD7 FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Amp'ed RF Technology,Inc. requests that the following documents regarding this submission for FCC ID: X3ZBTMOD7 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Amp'ed RF Technology,Inc. considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Amp'ed RF Technology,Inc. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Name ：Annie Cai Title：Operations Manager Company：Amp'ed RF Technology,Inc.

Part Number: BT43 FCC ID: X3ZBTMOD7 Request for Modular Approval 11.03．2014 In accordance with FCC Part 15, we, Amp’ed RF Technology Inc, hereby request a modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the Single Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation / data inputs. 2) The module does regulate its own power supply. 3) The module does have a permanently attached antenna. 4) The module can be tested as a stand-alone device. 5) The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6) The module does have instruction for proper use. 7) The module does meet the FCC RF regulations. 8) The module does have its own RF shielding. Signature: Annie Cai Operations Manager Amp’ed RF Technology Inc.

Amp’ed RF Technology BT43 Input 2.5VDC 50mA Made in China FCC ID: X3ZBTMOD7 IC: 8828A-MOD7 Model: BT43 Input 2.5VDC 50mA Made in China Amp’ed RF Technology Contains Transmitter Module FCC ID: X3ZBTMOD7 IC: 8828A-MOD7 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Produkte Products RF Exposure Statement: Page 1 of 1 Client: Amp’ed RF Technology Inc. 1879 Lundy Ave, Suite 138, San Jose, CA95131, USA Test item: Bluetooth Module Identification: BT43 FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 6 IC Requirement According to RSS-102 (Issue 4), clause 2.5.2, no routine RF exposure evaluation is required if the transmitter power (e.i.r.p.) is below the following threshold: Frequency Range SAR Limitation [W] Above 1.5GHz 5 Measurement Result The maximum measured transmitter power is the following: Conducted Output Power P out [mW] Maximum Antenna Gain [dBi] P out EIRP [mW] Power Density at 20cm [mW/cm 2 ] 7.74 0.5 8.69 0.0019 Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = (P S = power density in mW/cm 2 P out = antenna conducted output power in mW G = antenna gain in linear scale (here: 0.5dBi=10log(G)) D = distance between observation point and radiating structure in cm (here: 20cm) out · G) / (4π · D 2 ), where Conclusion The device complies with the FCC and IC RF exposure requirements since the maximum transmitter power density is below the FCC limit and the e.i.r.p. power is below the IC RF exposure evaluation exemption threshold. Refer to test repo rt 15068732 001 for more details. TÜV Rheinland (Shanghai) Co., Ltd. 10-15/F, Huatsing Building, No.88, Lane 777, Guangzhong Road West, Shanghai 200072, P.R. China

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.comom Prüfbericht-Nr.: Test Report No.: 15068732 001 Auftrags-Nr.: Order No.: 154036791 Seite 1 von 70 Page 1 of 70 Kunden-Referenz-Nr.: Client Reference No.: 460398 Auftragsdatum: Order date: 2013.10.17 Auftraggeber: Client: Amp’ed RF Technology Inc. 1879 Lundy Ave, Suite 138, San Jose, CA95131, USA Prüfgegenstand: Test item: Bluetooth module Bezeichnung / Typ-Nr.: Identification / Type No.: BT43 FCC ID :X3ZBTMOD7 IC :8828A-MOD7 Auftrags-Inhalt: Order content: Complete test Prüfgrundlage: Test specification: FCC CFR47 Part 15, Subpart C, §15.247 ANSI C63.10-2009 ANSI C63.10-2009 KDB 558074 D01 DTS Meas Guidance v03 Public Notice DA 00-705：Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems (March 30, 2000) Wareneingangsdatum: Date of receipt: 17.10.2013 Prüfmuster-Nr.: Test sample No.: A000028691-001 Prüfzeitraum: Testing period: 09.08.2013 – 01.03.2014 Ort der Prüfung: Place of testing: QuieTek Technology(Suzhou)Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 11.03.2014 ShiLi / Project Engineer kontrolliert von / reviewed by: 11.03.2014 Jesse huang / Project Manager Datum Date Name / Stellung Name / Position Unterschrift Signature Datum Date Name / Stellung Name / Position Unterschrift Signature Sonstiges / Other: Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No.: 15068732 001 Seite 2 von 70 Page 2 of 70 TEST SUMMARY 3.2.1 VOLTAGE REQUIREMENTS, FCC 15.31(E) RESULT: PASS 3.2.2 ANTENNA REQUIREMENTS, FCC 15.203, FCC 15.204 AND RSS-GEN 7.1.4 RESULT: PASS 5.1.1 CONDUCTED OUTPUT POWER, FCC 15.247(B)(1)& (3) AND RSS-210 A8.4(2) RESULT: PASS 5.1.2 CARRIER FREQUENCY SEPARATION, FCC 15.247(A)(1) AND RSS-210 A8.1(B) RESULT: PASS 5.1.3 20DB BANDWIDTH AND 6DB&99% BANDWIDTH, FCC 15.247(A)(1)& (2) AND RSS- 210 A8.2(A) 5.1.4 NUMBER OF HOPPING FREQUENCIES, FCC 15.247(A)(1)(III) AND RSS-210 A8.1(D) RESULT: PASS 5.1.5 AVERAGE TIME OF OCCUPANCY, FCC 15.247(A)(1)(III) AND RSS-210 A8.1(D) RESULT: PASS 5.1.6 POWER SPECTRAL DENSITY (PSD), FCC 15.247(E) AND RSS-210 A8.2 RESULT: PASS 5.1.7 CONDUCTED SPURIOUS EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 5.1.8 BAND EDGE COMPLIANCE OF RF CONDUCTED EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 6.1.1 BAND EDGE RADIATED EMISSION, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: Pass 6.1.2 RADIATED SPURIOUS EMISSION OF TRANSMITTER, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: PASS 6.2.1 RADIATED SPURIOUS EMISSION OF RECEIVER, FCC 15.109, RSS-210 2.2, RSS- 210 2.6, RSS-210 A8.5, RSS-GEN 7.2.3.2 RESULT: PASS Produkte Products Prüfbericht - Nr.: Test Report No.: 15068732 001 Seite 3 von 70 Page 3 of 70 CONTENTS 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 MEASUREMENT UNCERTAINTY ................................................................................. 6 3. GENERAL PRODUCT INFORMATION ........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .................................................................. 7 3.2 SYSTEM DETAILS .................................................................................................... 7 3.2.1 Voltage Requirements, FCC 15.31(e).......................................................................................... 7 3.2.2 Antenna Requirements, FCC 15.203, FCC 15.204 and RSS-Gen 7.1.4 ..................................... 8 3.3 INDEPENDENT OPERATION MODES ........................................................................... 8 3.4 NOISE SUPPRESSING PARTS .................................................................................... 9 4. TEST SET-UP AND OPERATION MODES ................................................................... 10 4.1 TEST METHODOLOGY ............................................................................................ 10 4.2 PHYSICAL CONFIGURATION FOR TESTING ............................................................... 10 4.3 TEST OPERATION AND TEST SOFTWARE ................................................................. 10 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 10…
