XPYIRISW1Stand-alone Tri-radio wireless MCU module

UBX-23003263 - R04 C1 - Public www.u-blox.com IRIS-W10 series Stand-alone multi-radio module with dual band Wi-Fi 6, Bluetooth® Low Energy 5.3 or IEEE 802.15.4 System integration manual 0 3 Abstract This manual provides a functional overview combined with best-practice design guidelines for integrating IRIS-W10 in customer applications. Targeted towards hardware and software engineers, the document describes the hardware design-in, software, component handling, regulatory compliance and testing of the module. It also includes a list of approved external antennas for use with the module. IRIS-W10 provides tri-radio Wi-Fi 6, Bluetooth® 5.3 low energy and 802.15.4. IRIS- W10 has an open CPU architecture with a powerful MCU for customer applications. The module series also includes variants with or without an internal antenna. IRIS-W10 series - System integration manual UBX-23003263 - R04 Document information Page 2 of 74 C1 - Public Document information Title IRIS-W10 series Subtitle Stand-alone multi-radio module with dual band Wi-Fi 6, Bluetooth® Low Energy 5.3 or IEEE 802.15.4 Document type System integration manual Document number UBX-23003263 Revision and date R04 20-Nov-2023 Disclosure restriction C1 - Public Document status description Draft For functional testing. Revised and supplementary data will be published later. Objective Specification Target values. Revised and supplementary data will be published later. Advance Information Data based on early testing. Revised and supplementary data will be published later. Early Production Information Data from product verification. Revised and supplementary data may be published later. Production Information Document contains the final product specification. This document applies to the following products: Product name Document status IRIS-W101 Advance Information IRIS-W106 Advance Information ☞ IRIS-W101 is under definition and all related information in this document is subject to change. For information about the related hardware, software, and status of listed product types, see also the data sheet [2]. u -blox or third parties may hold intellectual property rights in the products, names, logos and designs included in this document. Copying, reproduction, or modification of this document or any part thereof is only permitted with the express written permission of u-blox. Disclosure to third parties is permitted for clearly public documents only. The information contained herein is provided “as is”. No warranty of any kind, either express or implied, is made in relation to the accuracy, reliability, fitness for a particular purpose or content of this document. This document may be revised by u-blox at any time. For most recent documents, please visit www.u-blox.com. Copyright © u-blox AG. IRIS-W10 series - System integration manual UBX-23003263 - R04 Contents Page 3 of 74 C1 - Public Contents 1.1 Module Architecture .......................................................................................................................... 6 1.1.1 Block diagram ...................................................................................................................................... 7 1.2 Software options ................................................................................................................................ 8 1.2.1 Open CPU.............................................................................................................................................. 8 2.1 Power supply interface ...................................................................................................................... 9 2.1.1 Digital I/O interfaces reference voltage, VCCIO ......................................................................... 10 2.2 Configuration pins ............................................................................................................................ 10 2.3 Antenna interface .............................................................................................................................. 11 2.3.1 Internal antenna (IRIS-W106) .......................................................................................................... 12 2.3.2 Antenna reference design (IRIS-W101) ......................................................................................... 13 2.4 Module reset ...................................................................................................................................... 14 2.5 Low power clock ................................................................................................................................ 14 2.5.1 External clock source, TCXO ........................................................................................................... 14 2.6 Communication interfaces ............................................................................................................. 14 2.6.1 USB 2.0................................................................................................................................................ 15 2.6.2 RMII ...................................................................................................................................................... 15 2.6.3 SDIO 3.0 .............................................................................................................................................. 15 2.7 Serial interfaces ................................................................................................................................ 16 2.7.1 Serial peripheral interface (SPI) ..................................................................................................... 16 2.7.2 Universal synchronous asynchronous serial interface (USART) ............................................. 17 2.7.3 I2C interface .............................................................................................................…

Text truncated - open the document above for the full version.

UBXDOC-1023859458-42580 C3-Confidential 1/1 04.06.2024 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC Covered Equipment To whom it may concern: We, u-blox AG hereby certify that the equipment for which authorization is sought (FCC ID: XPYIRISW1) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. u-blox AG (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment . By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signed for and on behalf of u-blox AG : Name Giulio Comar Position Certification Manager Date of issue 4 June 2024 Signature Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected]

UBX-23002526 – R1.0 U.S. Agent Designation 1/2 C1-Public U.S. Agent Designation Applicant name: u-blox AG Address: Zuercherstrasse 68, CH-8800 Thalwil, Switzerland Contact: [email protected] Subject: U.S. Agent Designation To: Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch Address: 7435 Oakland Mills Road Columbia, MD 21046 u-blox AG, as applicant, acknowledges their consent for the following contact located in the United States to act as their agent for service of process for all applications for which authorization is sought FCC ID: XPYIRISW1 FRN: 0019077858 Name and company of U.S. agent: Dave Carey, u-blox San Diego, Inc. Physical U.S. address of agent: 12626 High Bluff Drive Suite 200 San Diego, CA 92130, United States FRN of U.S. agent: 0022185367 Email address of U.S. agent: [email protected] u-blox San Diego, Inc acknowledges their obligation to accept service of process on behalf of u-blox AG. u-blox AG accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. UBX-23002526 – R1.0 U.S. Agent Designation 2/2 C1-Public Sincerely, Signed for and on behalf of u-blox AG: Name Giulio Comar Position Certification Manager Date of issue 12 March 2024 Signature Signed for and on behalf of u-blox San Diego, Inc.: Name Dave Carey Position Senior Vice President Date of issue 12 March 2024 Signature

UBXDOC-1023859458-43161 C3-Confidential 1/2 IRIS-W1 - Block diagrams Figure 1: Block diagram for IRIS-W101-00B (RW612), IRIS-W101-10B (RW612), IRIS-W101-30B (RW610) Figure 2: Block diagram for IRIS-W106-00B (RW612), IRIS-W106-10B (RW612), IRIS-W106-30B (RW610) Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected] UBXDOC-1023859458-43161 C3-Confidential 2/2 Figure 3: Block diagram for IRIS-W161-00B (RW610) Figure 4: Block diagram for IRIS-W166-00B (RW610)

UBXDOC-1023859458-39695 C3-Confidential 1/1 11.06.2024 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Permanent Confidentiality Company name: u-blox AG FCC ID: XPYIRISW1 FCC Part 15 Certification To whom it may concern: In accordance with CFR 47 § 0.457 and CFR 47 § 0.459 u-blox AG hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed operational descriptions, (3) Software security and software configuration description incl. software configuration control declaration (4) Parts lists These documents contain detailed system and equipment description and related information about the product which u-blox AG considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, u-blox AG considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, _______________________________ Filip Kruzela, Certification Manager, u-blox AG Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected]

UBXDOC-1023859458-43159 C3-Confidential 1/2 04.07.2024 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Mode Function Declaration To whom it may concern: We, the undersigned, declare that the device described as follows: Model/HVIN FCC ID ISED Certification number IRIS-W101-00B XPYIRISW1 8595A-IRISW1 IRIS-W101-10B XPYIRISW1 8595A-IRISW1 IRIS-W101-30B XPYIRISW1 8595A-IRISW1 IRIS-W106-00B XPYIRISW1 8595A-IRISW1 IRIS-W106-10B XPYIRISW1 8595A-IRISW1 IRIS-W106-30B XPYIRISW1 8595A-IRISW1 IRIS-W161-00B XPYIRISW1 8595A-IRISW1 IRIS-W166-00B XPYIRISW1 8595A-IRISW1 1. Does not initiate transmission within the frequency band 5600 – 5650 MHz. The module is configured to function under the definition of a client in 47 CFR §15.202 As a DFS client without radar detection using passive scan IRIS-W1 is not able to select channel or initiate a network. 2. Is a client without DFS detection capability. 3. Is not able to operate on non- US/Canadian frequencies within USA/Canada. 4. In non-associated mode, that software and associated drives will not initiate any transmission on DFS frequencies. Frequency band [MHz] Active scanning (the device can transmit a probe) Passive scanning (the device is listen only with no probe) Access point capability 2412 – 2462  - Yes,  - No  - Yes,  - No  - Yes,  - No 2467 – 2472  - Yes,  - No  - Yes,  - No  - Yes,  - No 5180 – 5240  - Yes,  - No  - Yes,  - No  - Yes,  - No 5280 – 5320  - Yes,  - No  - Yes,  - No  - Yes,  - No 5500 – 5700  - Yes,  - No  - Yes,  - No  - Yes,  - No 5745 – 5825  - Yes,  - No  - Yes,  - No  - Yes,  - No Table 1 Active/Passive scanning, Ad-hoc mode/Access point capability of the IRIS-W1 series modules Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected] UBXDOC-1023859458-43159 C3-Confidential 2/2 Sincerely, _______________________________ Filip Kruzela, Certification Manager, u-blox AG

UBXDOC-1023859458-41072 C3-Confidential 1/2 04.07.2024 PHOENIX TESTLAB GmbH Product Certification Department Koenigswinkel 10 32825 Blomberg, Germany Request for Part 15 Single-Modular Transmitter Approval To whom it may concern: We, u-blox AG, hereby requests for modular transmitter approval of our IRIS-W1 module series. The equipment is described as follows: Model FCC ID IRIS-W101-00B XPYIRISW1 IRIS-W101-10B XPYIRISW1 IRIS-W101-30B XPYIRISW1 IRIS-W106-00B XPYIRISW1 IRIS-W106-10B XPYIRISW1 IRIS-W106-30B XPYIRISW1 IRIS-W161-00B XPYIRISW1 IRIS-W166-00B XPYIRISW1 In CFR Title 47 Chapter I Subchapter A Part 15 Subpart C Section 15.212 there are eight numbered requirements that our device complies with: 1. The modular transmitter must have its own RF shielding Yes. The module has its RF-parts enclosed by a shield cover soldered onto the module ground plane. 2. The modular transmitter must have buffered modulation/data inputs Yes. The module do not have modulation inputs. The electrical interface available to the module integrator consists of Power supply, UART, RMII, SPI and I/O signals. The interface signals are internally buffered by the module System on Chip and cannot affect the modulation. Detailed instructions on how to connect these interface signals are given in the integration manual. 3. The modular transmitter must have its own power supply regulation Yes. The module SoC (System on Chip) has its own internal voltage regulators. In case the supply voltage fluctuates internal voltages will be kept unaffected. 4. The modular transmitter must comply with the antenna requirements of Section 15.203, 15.204(b) and 15.204(c) Yes. The RF-port of module versions of IRIS-W101-00B, IRIS-W101-10B, IRIS-W101-30B and IRIS-W161-00B is available at a solder land and the antenna trace reference design guides the module integrator how to connect this solder land to a U.FL connector. Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected] UBXDOC-1023859458-41072 C3-Confidential 2/2 The module versions IRIS-W106-00B, IRIS-W106-10B, IRIS-W106-30B and IRIS-W166-00B and are equipped with an integrated antenna. On these module versions, the RF-port is not available for external antenna connection. 5. The modular transmitter must be tested in a stand-alone configuration Yes. The module was soldered onto the evaluation board EVB-IRIS-W1 and tested in a stand-alone configuration. The antenna trace reference design connecting the RF-port of IRIS-W101-00B, IRIS- W101-10B, IRIS-W101-30B and IRIS-W161-00B to a U-FL connector was implemented on the EVB-IRIS- W1 evaluation board. 6. The modular transmitter must be labelled with its own FCC ID number Yes. The module is labelled with its own FCC ID number. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. Yes. Detailed instructions to the module integrator are presented in the User’s Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes. The IRIS-W1 modules complies with the RF exposure limits when integrated into host devices categorized as mobile and/or portable. See separate document for RF exposure calculations. Sincerely, _______________________________ Filip Kruzela, Certification Manager, u-blox AG

NXP Semiconductors, 350 Holger Way, San Jose, CA 95134, USA www.nxp.com Product Equality Declaration Date: December 13, 2023 NXP Product Family: RW612, RW610 We, NXP Semiconductors, hereby declare under our responsibility that the product families described above are related in the following way. • The RW612 devices are superset devices that encompasses all of the circuitry and electrical, mechanical and physical construction of the RW610 devices. • The RW610 devices are identical to a subset of the circuitry and electrical, mechanical and physical construction of the RW612 superset devices. IEEE 802.15.4 circuitry in RW610 is disabled through OTP programming. The difference between model numbers is only for different target markets and use cases. Name and Job Title : Ryan Kelly Product Management Wireless Connectivity Solutions NXP Semiconductors E-mail : [email protected]

UBXDOC-1023859458-41066 C3-Confidential 1/1 07.05.2024 PHOENIX TESTLAB GmbH Product Certification Department Koenigswinkel 10 32825 Blomberg, Germany Power of Attorney To whom it may concern: Please be advised that we, u-blox AG, authorize the following persons from PHOENIX TESTLAB GmbH: • Sabrina Berghahn • Bernd Steiner to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters in the following countries: USA and Canada PHOENIX TESTLAB GmbH has our permission to use our technical documents for the approvals for the following name device: HVIN PMN Certification Number FCC ID IRIS-W101-00B IRIS-W101-00B 8595A-IRISW1 XPYIRISW1 IRIS-W101-10B IRIS-W101-10B 8595A-IRISW1 XPYIRISW1 IRIS-W101-30B IRIS-W101-30B 8595A-IRISW1 XPYIRISW1 IRIS-W106-00B IRIS-W106-00B 8595A-IRISW1 XPYIRISW1 IRIS-W106-10B IRIS-W106-10B 8595A-IRISW1 XPYIRISW1 IRIS-W106-30B IRIS-W106-30B 8595A-IRISW1 XPYIRISW1 IRIS-W161-00B IRIS-W161-00B 8595A-IRISW1 XPYIRISW1 IRIS-W166-00B IRIS-W166-00B 8595A-IRISW1 XPYIRISW1 Unless future correspondence from u-blox AG, please extend your full cooperation to PHOENIX TESTLAB GmbH regarding matters to the above mentioned products to 12 months after the signatory date of this authorization. Sincerely, _______________________________ Filip Kruzela, Certification Manager, u-blox AG Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected]

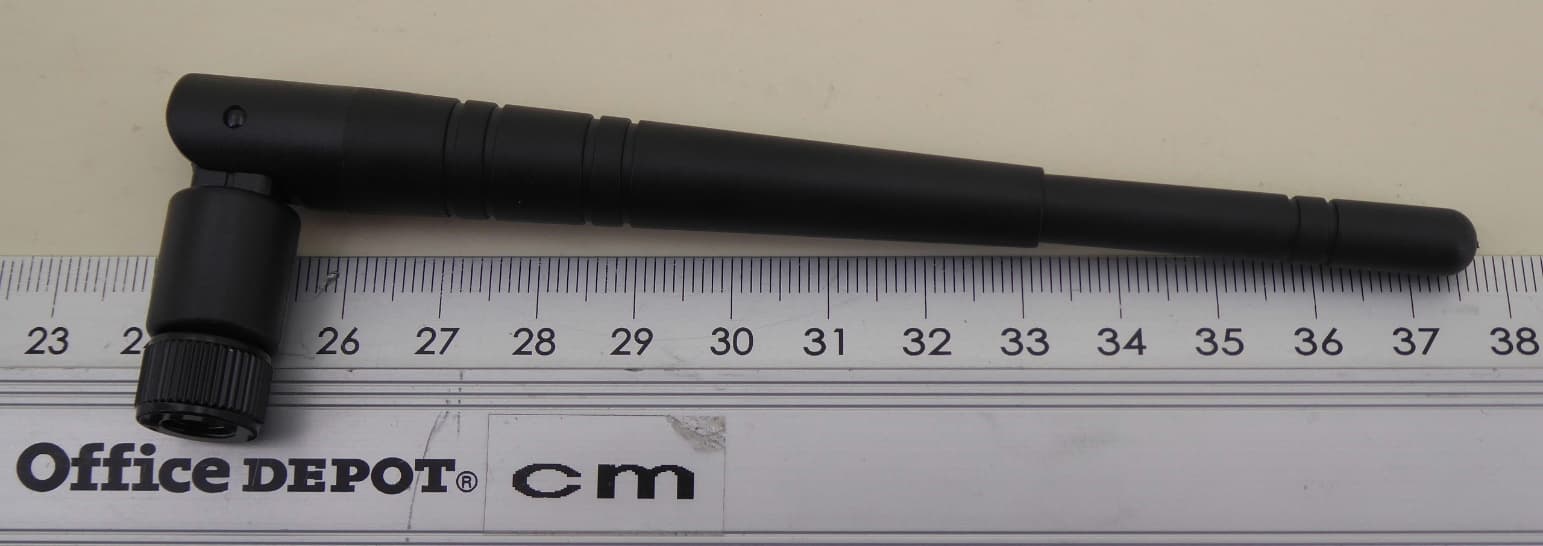

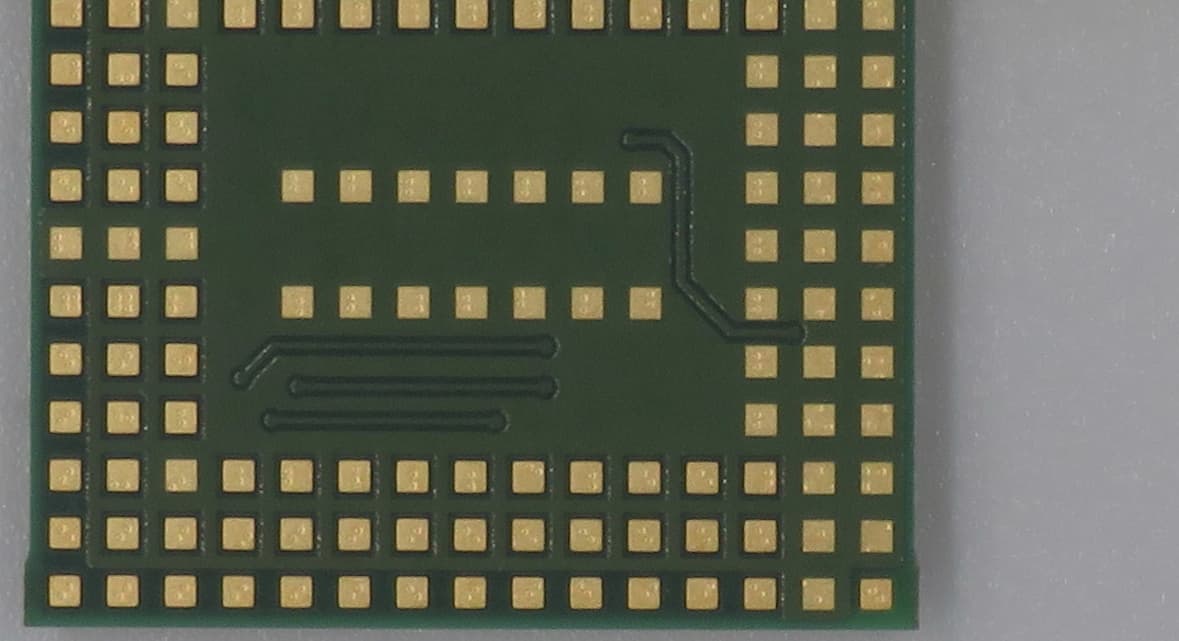

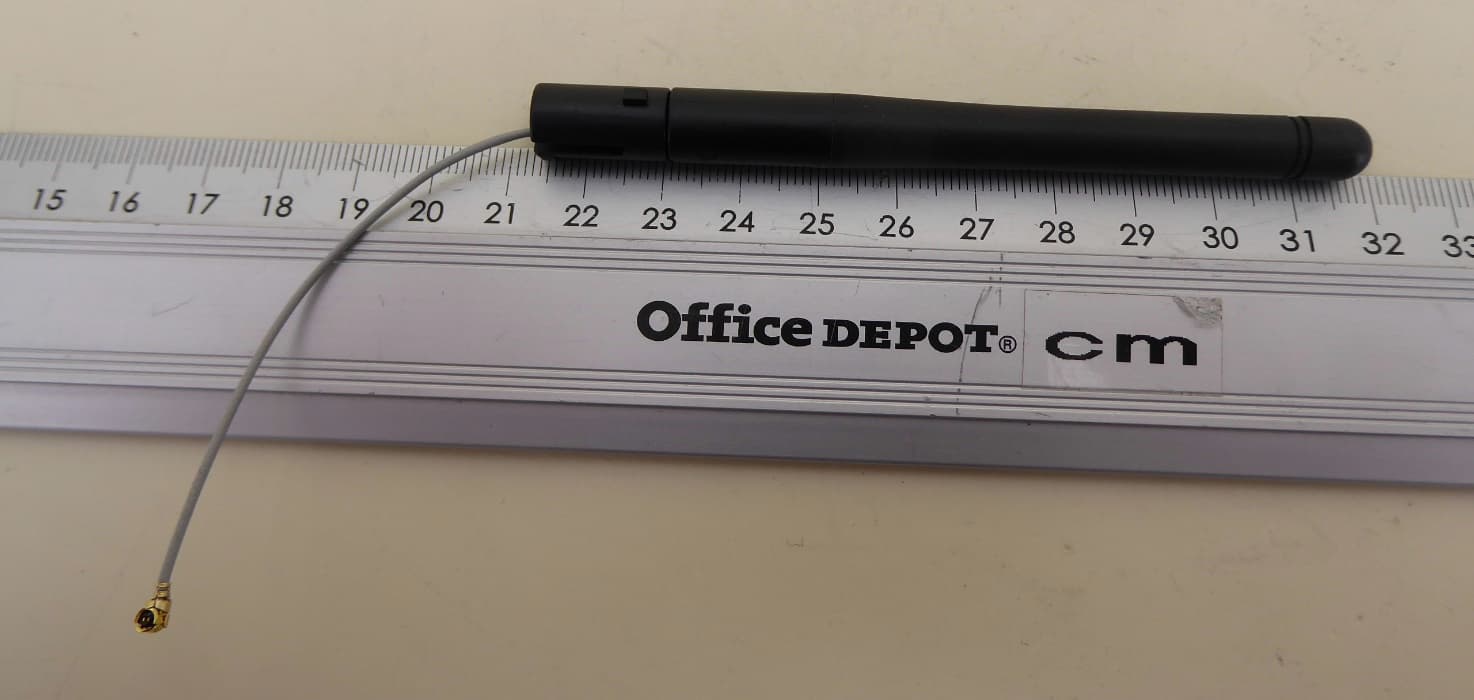

External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 1 of 9 IRIS-W101-00B – top view External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 2 of 9 IRIS-W101-00B – bottom view External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 3 of 9 IRIS-W106-00B – top view External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 4 of 9 IRIS-W106-00B – bottom view External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 5 of 9 Abracon PCB trace antenna (On-board antenna on the IRIS-W106-00B) External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 6 of 9 PCB Patch antenna PRO-IS-432 by Abracon External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 7 of 9 PCB Patch antenna ANTX100P002B24553 by Pulse Electronics / Yageo External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 8 of 9 Monopole (¼ wave) antenna W1039B030 by Pulse Electronic / Yageo External Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 9 of 9 Monopole (½ wave) antenna GW.59.3153 by taoglas

UBXDOC-1023859458-42619 C3-Confidential 1/10 10.06.2024 HVIN PMN Certification Number FCC ID IRIS-W101-00B IRIS-W101-00B 8595A-IRISW1 XPYIRISW1 IRIS-W101-10B IRIS-W101-10B 8595A-IRISW1 XPYIRISW1 IRIS-W101-30B IRIS-W101-30B 8595A-IRISW1 XPYIRISW1 IRIS-W106-00B IRIS-W106-00B 8595A-IRISW1 XPYIRISW1 IRIS-W106-10B IRIS-W106-10B 8595A-IRISW1 XPYIRISW1 IRIS-W106-30B IRIS-W106-30B 8595A-IRISW1 XPYIRISW1 IRIS-W161-00B IRIS-W161-00B 8595A-IRISW1 XPYIRISW1 IRIS-W166-00B IRIS-W166-00B 8595A-IRISW1 XPYIRISW1 IRIS-W1 series photos 1 Top view 1.1 External photos Figure 1: IRIS-W101-00B Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected] UBXDOC-1023859458-42619 C3-Confidential 2/10 Figure 2: IRIS-W101-10B Figure 3: IRIS-W101-30B UBXDOC-1023859458-42619 C3-Confidential 3/10 Figure 4: IRIS-W161-00B Figure 5: IRIS-W106-00B UBXDOC-1023859458-42619 C3-Confidential 4/10 Figure 6: IRIS-W106-10B Figure 7: IRIS-W106-30B UBXDOC-1023859458-42619 C3-Confidential 5/10 Figure 8: IRIS-W166-00B 1.2 Internal photos Figure 9: IRIS-W101-00B UBXDOC-1023859458-42619 C3-Confidential 6/10 Figure 10: IRIS-W101-10B Figure 11: IRIS-W101-30B UBXDOC-1023859458-42619 C3-Confidential 7/10 Figure 12: IRIS-W161-00B Figure 13: IRIS-W106-00B UBXDOC-1023859458-42619 C3-Confidential 8/10 Figure 14: IRIS-W106-10B Figure 15: IRIS-W106-30B UBXDOC-1023859458-42619 C3-Confidential 9/10 Figure 16: IRIS-W166-00B 2 Bottom view Figure 17: IRIS-W101-00B, IRIS-W101-10B, IRIS-W101-30B, IRIS-W161-00B UBXDOC-1023859458-42619 C3-Confidential 10/10 Figure 18: IRIS-W106-00B, IRIS-W106-10B, IRIS-W106-30B, IRIS-W166-00B

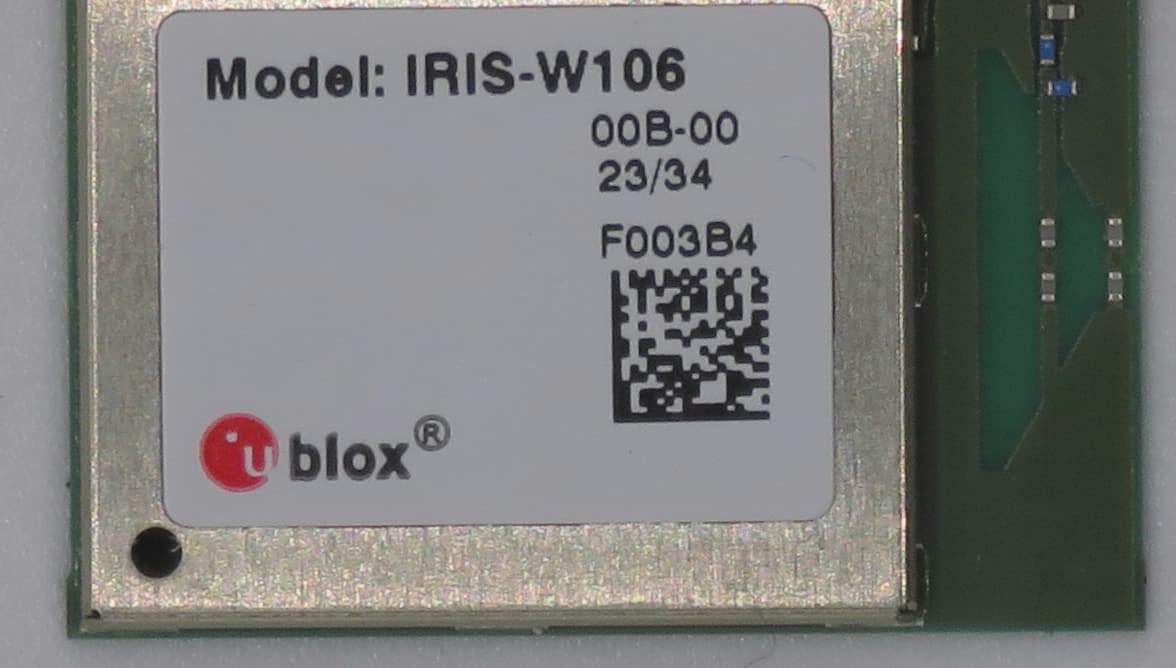

UBXDOC-1023859458-41773 C3-Confidential 1/3 07.05.2024 HVIN PMN Certification Number FCC ID IRIS-W101-00B IRIS-W101-00B 8595A-IRISW1 XPYIRISW1 IRIS-W101-10B IRIS-W101-10B 8595A-IRISW1 XPYIRISW1 IRIS-W101-30B IRIS-W101-30B 8595A-IRISW1 XPYIRISW1 IRIS-W106-00B IRIS-W106-00B 8595A-IRISW1 XPYIRISW1 IRIS-W106-10B IRIS-W106-10B 8595A-IRISW1 XPYIRISW1 IRIS-W106-30B IRIS-W106-30B 8595A-IRISW1 XPYIRISW1 IRIS-W161-00B IRIS-W161-00B 8595A-IRISW1 XPYIRISW1 IRIS-W166-00B IRIS-W166-00B 8595A-IRISW1 XPYIRISW1 Label location information for IRIS-W1 series modules The product label is affixed on to the module shield cover as shown in the figures below. The size of the label is 17 x 11 mm and contains the following information: • A Data Matrix formatted bar code, with a unique serial number • Date of unit production formatted YY/WW (year/week) • Major and minor product version info • Product marketing name (e.g. IRIS-W101-00B, IRIS-W101-10B, IRIS-W101-30B, IRIS-W106-00B, IRIS-W106-10B, IRIS-W106-30B, IRIS-W161-00B, IRIS-W166-00B) Figure 1: IRIS-W101-00B Figure 2: IRIS-W101-10B Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected] UBXDOC-1023859458-41773 C3-Confidential 2/3 Figure 3: IRIS-W101-30B Figure 4: IRIS-W106-00B Figure 5: IRIS-W106-10B Figure 6: IRIS-W106-30B UBXDOC-1023859458-41773 C3-Confidential 3/3 Figure 7: IRIS-W161-00B Figure 8: IRIS-W166-00B

Internal Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 1 of 2 IRIS-W101-00B – shielding removed Internal Photographs Examiner:Paul NEUFELDRevision:00 Date of issue: 10.07.2024Order Number: 23-111636page 2 of 2 IRIS-W106-00B – shielding removed

UBXDOC-1023859458-42619 C3-Confidential 1/10 10.06.2024 HVIN PMN Certification Number FCC ID IRIS-W101-00B IRIS-W101-00B 8595A-IRISW1 XPYIRISW1 IRIS-W101-10B IRIS-W101-10B 8595A-IRISW1 XPYIRISW1 IRIS-W101-30B IRIS-W101-30B 8595A-IRISW1 XPYIRISW1 IRIS-W106-00B IRIS-W106-00B 8595A-IRISW1 XPYIRISW1 IRIS-W106-10B IRIS-W106-10B 8595A-IRISW1 XPYIRISW1 IRIS-W106-30B IRIS-W106-30B 8595A-IRISW1 XPYIRISW1 IRIS-W161-00B IRIS-W161-00B 8595A-IRISW1 XPYIRISW1 IRIS-W166-00B IRIS-W166-00B 8595A-IRISW1 XPYIRISW1 IRIS-W1 series photos 1 Top view 1.1 External photos Figure 1: IRIS-W101-00B Registered office: u-blox AG Zürcherstrasse 68 8800 Thalwil Switzerland [email protected] [email protected] UBXDOC-1023859458-42619 C3-Confidential 2/10 Figure 2: IRIS-W101-10B Figure 3: IRIS-W101-30B UBXDOC-1023859458-42619 C3-Confidential 3/10 Figure 4: IRIS-W161-00B Figure 5: IRIS-W106-00B UBXDOC-1023859458-42619 C3-Confidential 4/10 Figure 6: IRIS-W106-10B Figure 7: IRIS-W106-30B UBXDOC-1023859458-42619 C3-Confidential 5/10 Figure 8: IRIS-W166-00B 1.2 Internal photos Figure 9: IRIS-W101-00B UBXDOC-1023859458-42619 C3-Confidential 6/10 Figure 10: IRIS-W101-10B Figure 11: IRIS-W101-30B UBXDOC-1023859458-42619 C3-Confidential 7/10 Figure 12: IRIS-W161-00B Figure 13: IRIS-W106-00B UBXDOC-1023859458-42619 C3-Confidential 8/10 Figure 14: IRIS-W106-10B Figure 15: IRIS-W106-30B UBXDOC-1023859458-42619 C3-Confidential 9/10 Figure 16: IRIS-W166-00B 2 Bottom view Figure 17: IRIS-W101-00B, IRIS-W101-10B, IRIS-W101-30B, IRIS-W161-00B UBXDOC-1023859458-42619 C3-Confidential 10/10 Figure 18: IRIS-W106-00B, IRIS-W106-10B, IRIS-W106-30B, IRIS-W166-00B

Königswinkel 10 32825 Blomberg, Germany Phone: +49 (0) 52 35 / 95 00-0 Fax:+49 (0) 52 35 / 95 00-10 [email protected] www.phoenix-testlab.de FCC RF Exposure Evaluation Report Number: F231636 Equipment under Test (EUT): Dual band Wi-Fi 6 / Bluetooth 5.3 low energy module IRIS-W1 Applicant: u-blox AG Examiner:Paul NEUFELDReport Number: F236136 Date of Issue: 10.07.2024Order Number: 23-111636Page 2 of 17 References [1] CFR 47 Rule part 1Practice and Procedure [2] CFR 47 Rule part 2Frequency Allocations and Radio Treaty Matters; General Rules and Regulations [3] KDB 447498 D04 Interim General RF Exposure Guidance v01 This test report is only valid in its original form. Any reproduction of its contents in extracts without written permission of the accredited test laboratory PHOENIX TESTLAB GmbH is prohibited. The test results herein refer only to the tested sample. PHOENIX TESTLAB GmbH is not responsible for any generalisations or conclusions drawn from these test results concerning further samples. Any modification of the tested samples is prohibited and leads to the invalidity of this test report. Each page necessarily contains the PHOENIX TESTLAB Logo and the TEST REPORT NUMBER. Assessed and written by: Signature Reviewed and approved by: Signature Examiner:Paul NEUFELDReport Number: F236136 Date of Issue: 10.07.2024Order Number: 23-111636Page 3 of 17 Contents:Page 1Identification ................................................................................................................................. 4 1.1Applicant ................................................................................................................................................... 4 1.2Manufacturer ............................................................................................................................................ 4 1.3Test Laboratory ........................................................................................................................................ 4 1.4EUT (Equipment under Test) ................................................................................................................... 5 1.5Technical Data of Equipment ................................................................................................................... 5 1.6Additional Information .............................................................................................................................. 9 2Evaluation Methods .................................................................................................................... 10 2.1RF exposure test exemptions for single sources ................................................................................... 10 2.1.1General Exemption 1.1307(b)(3)(i)(A) ........................................................................................... 10 2.1.2SAR Based Exemption 1.1307(b)(3)(i)(B) ..................................................................................... 10 2.1.3MPE Based Exemption 1.1307(b)(3)(i)(C) .................................................................................... 10 2.1.4Stand alone MPE evaluation limits ................................................................................................ 11 2.2RF exposure test exemptions for simultaneous transmission sources .................................................. 12 2.2.11 mW Test Exemption for simultaneous transmission sources ..................................................... 12 2.2.2Simultaneous transmission SAR based and MPE based test exemptions ................................... 12 2.2.3Test exemption based on the SAR to Peak Location Separation Ratio ........................................ 13 3Results of evaluation ................................................................................................................... 14 3.1Used evaluation methods ....................................................................................................................... 14 3.2Evaluation Distance ............................................................................................................................... 14 3.3WLAN 2.4 GHz Emissions ..................................................................................................................... 15 3.4Bluetooth LE - 2.4 GHz Emissions ......................................................................................................... 15 3.5802.15.4 - 2.4 GHz Emissions ............................................................................................................... 16 3.6WLAN 5 GHz Emissions ......................................................…
