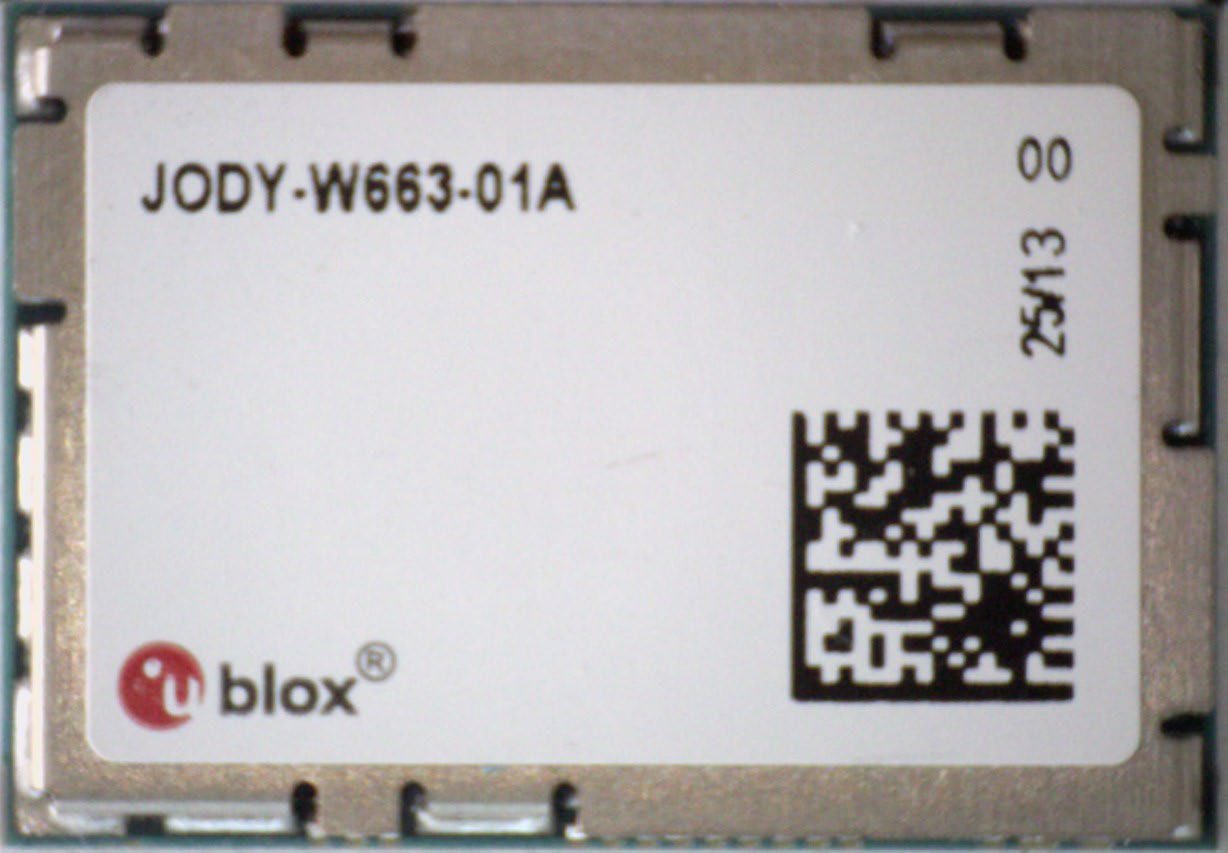

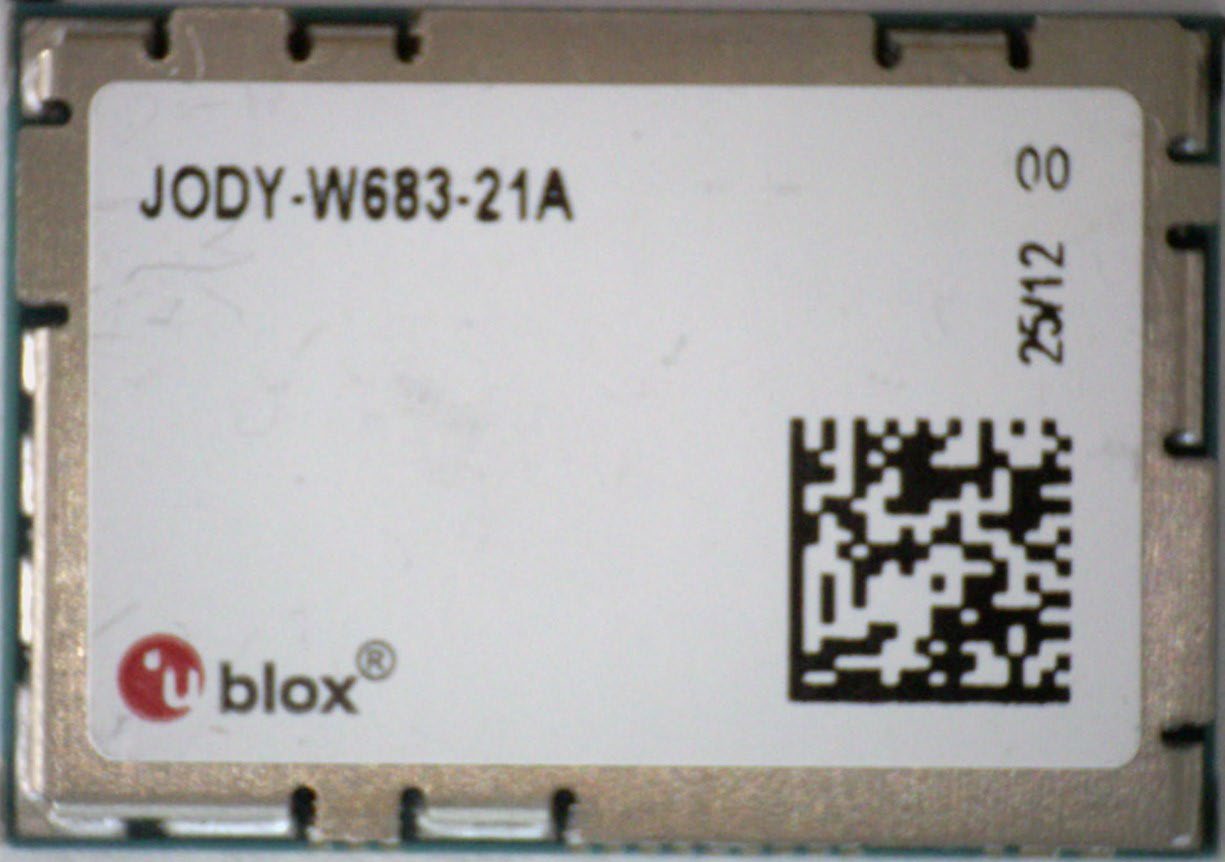

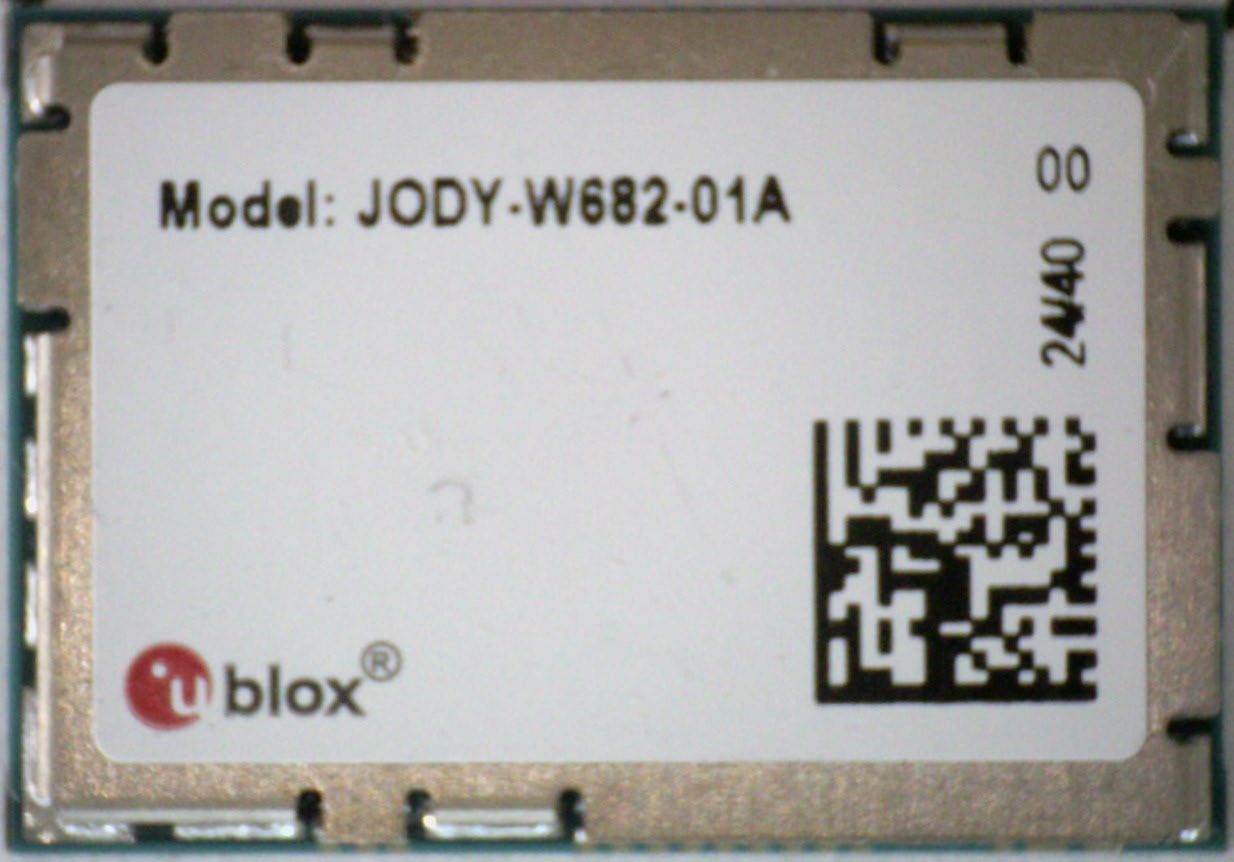

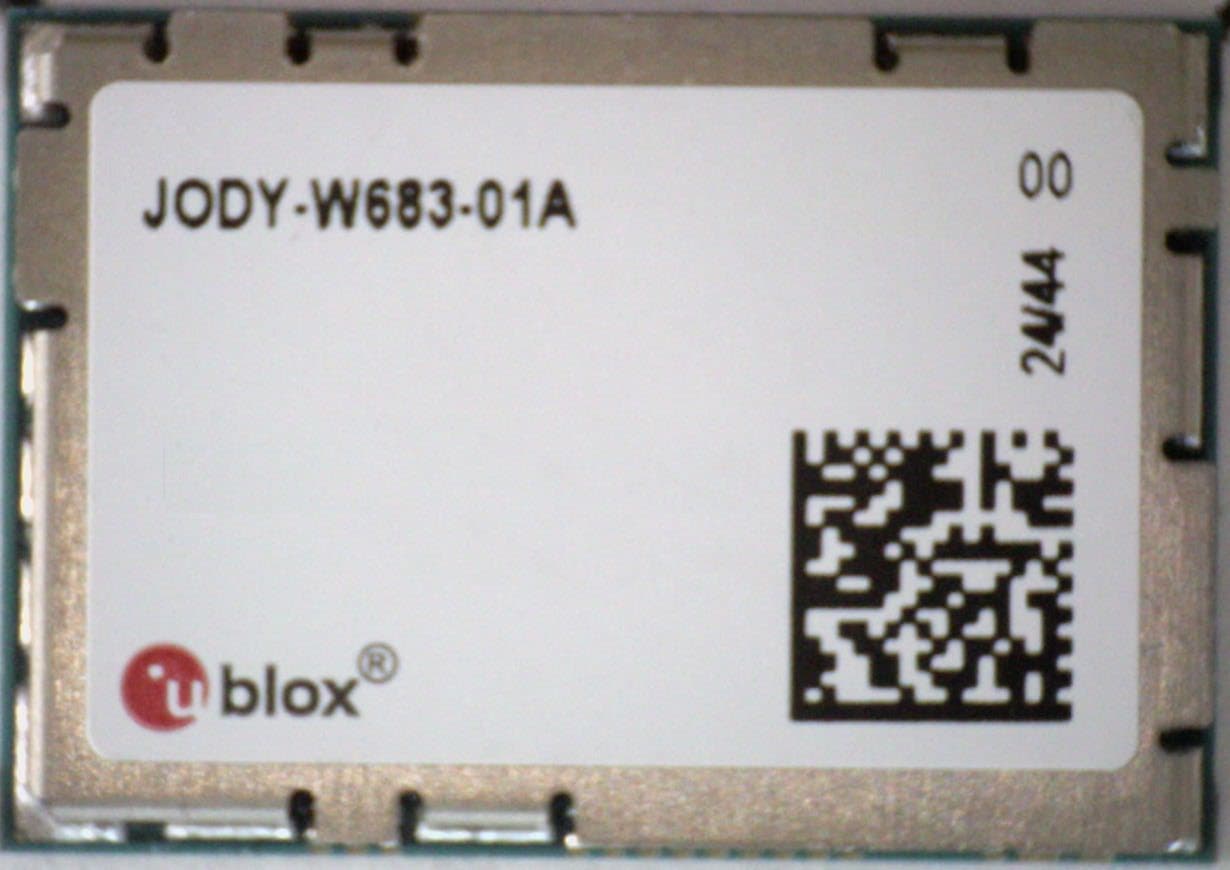

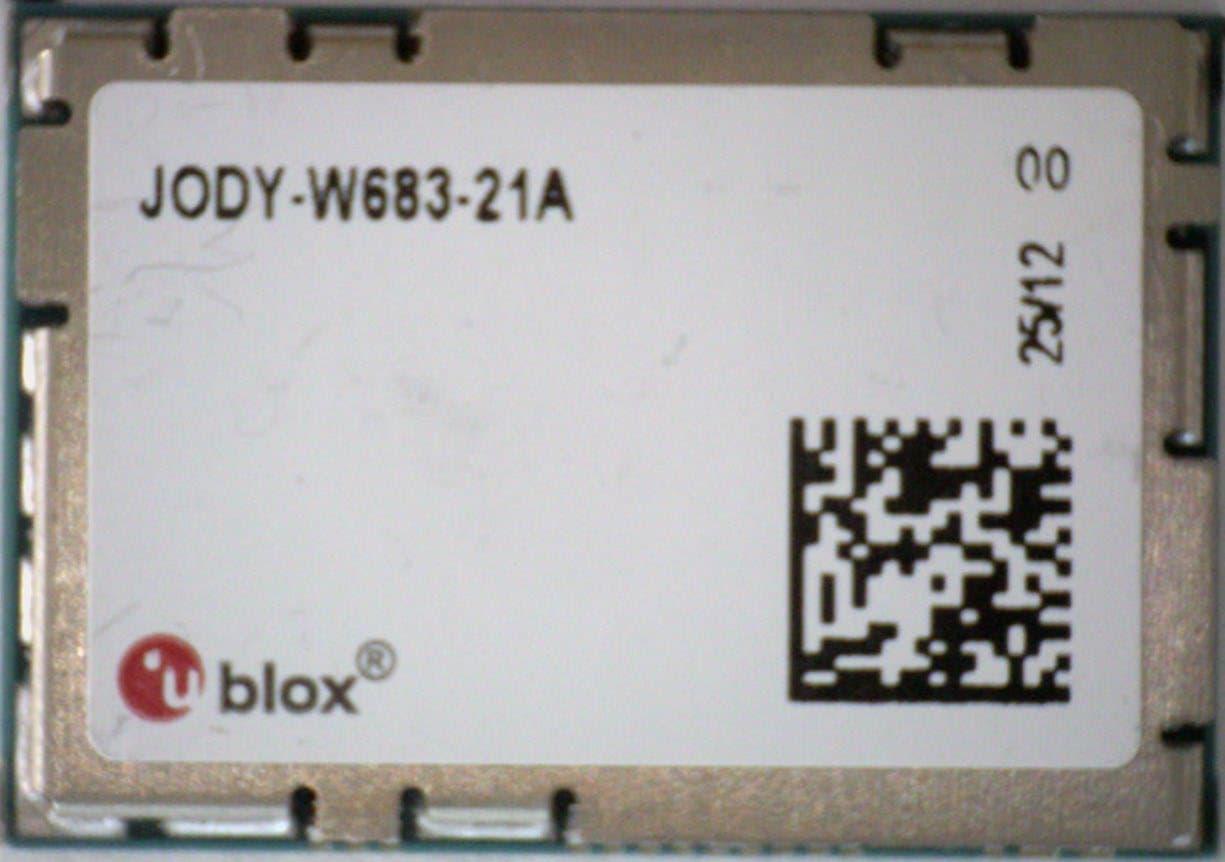

XPYJODYW6AWLAN and Bluetooth module

UBX-23010573 - R01 C2-Restricted www.u-blox.com JODY-W6 series Host-based automotive modules with Wi-Fi 6E and Bluetooth 5.3 System integration manual Abstract Targeted towards hardware and software application engineers, this document describes how to integrate JODY-W6 modules in application products and explains the hardware design-in, software, component handling, regulatory compliance, and production testing. It also lists the external antennas approved for use with the module.  JODY-W6 series - System integration manual UBX-23010573 - R01 Document information Page 2 of 53 C2-Restricted Document information Title JODY-W6 series Subtitle Host-based automotive modules with Wi-Fi 6E and Bluetooth 5.3 Document type System integration manual Document number UBX-23010573 Revision and date R01 4-Mar-2024 Disclosure restriction C2-Restricted Document status description Draft For functional testing. Revised and supplementary data will be published later. Objective Specification Target values. Revised and supplementary data will be published later. Advance Information Data based on early testing. Revised and supplementary data will be published later. Early Production Information Data from product verification. Revised and supplementary data may be published later. Production Information Document contains the final product specification. This document applies to the following products: Product name Type number Chipset JODY-W662-A JODY-W662-01A-00 NXP AW692 JODY-W663-A JODY-W663-01A-00 NXP AW692 JODY-W682-A JODY-W682-01A-00 NXP AW693 JODY-W682-A JODY-W682-11A-00 NXP AW693 JODY-W683-A JODY-W683-01A-00 NXP AW693 JODY-W683-A JODY-W683-11A-00 NXP AW693 JODY-W683-A JODY-W683-21A-00 NXP AW693 JODY-W683-B JODY-W683-00B-00 NXP AW693 ☞ For information about the related hardware, software, and status of listed product types, see also the respective data sheets [1]. u-blox or third parties may hold intellectual property rights in the products, names, logos, and designs included in this document. Copying, reproduction, or modification of this document or any part thereof is only permitted with the express written permission of u-blox. Disclosure to third parties is permitted for clearly public documents only. The information contained herein is provided “as is” and u-blox assumes no liability for its use. No warranty, either express or implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability, and fitness for a particular purpose of the information. This document may be revised by u-blox at any time without notice. For the most recent documents, visit www.u-blox.com. Copyright © u-blox AG. JODY-W6 series - System integration manual UBX-23010573 - R01 Document information Page 3 of 53 C2-Restricted JODY-W6 series - System integration manual UBX-23010573 - R01 Contents Page 4 of 53 C2-Restricted Contents Document information ................................................................................................................................ 2 Contents .......................................................................................................................................................... 4 1 System description ............................................................................................................................... 6 1.1 Overview ........................................................................................................................................................ 6 1.2 Module architecture ................................................................................................................................... 6 2 Module integration ................................................................................................................................ 8 2.1 Power supply interface............................................................................................................................... 9 2.1.1 Digital I/O interfaces reference voltage (VIO) ............................................................................. 10 2.2 Antenna interfaces ................................................................................................................................... 10 2.2.1 RF pins and connectors ................................................................................................................... 10 2.2.2 Approved antenna designs .............................................................................................................. 11 2.2.3 Integrated antennas ......................................................................................................................... 11 2.2.4 External antennas ............................................................................................................................. 11 2.3 System function interfaces .....................................................................................................................12 2.3.1 Power-up sequence ...........................................................................................................................12 2.3.2 Reset ....................................................................................................................................................12 2.3.3 Power-off sequence .......................................................................................................................... 13 2.3.4 Wake-up signals ................................................................................................................................ 13 2.3.5 Configuration pins ............................................................................................................................ 13 2.3.6 Power states ...................................................................................................................................... 14 2.4 Host interfaces ...........................…

Text truncated - open the document above for the full version.

TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 387 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 26GHz - 40GHz, Subband = U-NII-2C (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 388 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 9kHz - 30MHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 389 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 30MHz - 1GHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 390 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 1GHz - 26GHz, Subband = U-NII-3 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 391 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 392 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 26GHz - 40GHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 393 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = mid, Measurement range = 9kHz - 30MHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 394 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = mid, Measurement range = 30MHz - 1GHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 395 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = mid, Measurement range = 1GHz - 26GHz, Subband = U-NII-3 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 396 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 397 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = mid, Measurement range = 26GHz - 40GHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 398 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 9kHz - 30MHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 399 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 30MHz - 1GHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 400 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 1GHz - 26GHz, Subband = U-NII-3 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 401 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 402 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 26GHz - 40GHz, Subband = U-NII-3 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 403 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 9kHz - 30MHz, Subband = U-NII-4 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 404 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 30MHz - 1GHz, Subband = U-NII-4 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 405 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 1GHz - 26GHz, Subband = U-NII-4 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 406 of 719 Path B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 407 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = low, Measurement range = 26GHz - 40GHz, Subband = U-NII-4 (S01_AC01) Path A Path B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 408 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 9kHz - 30MHz, Subband = U-NII-4 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 409 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 30MHz - 1GHz, Subband = U-NII-4 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 410 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 1GHz - 26GHz, Subband = U-NII-4 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 411 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 412 of 719 Radio Technology = WLAN ax 20 MHz, Operating Frequency = high, Measurement range = 26GHz - 40GHz, Subband = U-NII-4 (S01_AC01) Port A Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 413 of 719 Radio Technology = WLAN ax 40 MHz, Operating Frequency = low, Measurement range = 1GHz - 26GHz, Subband = U-NII-1 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 414 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 415 of 719 Radio Technology = WLAN ax 40 MHz, Operating Frequency = low, Measurement range = 26GHz - 40GHz, Subband = U-NII-1 (S01_AC01) Path A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 416 of 719 Radio Technology = WLAN ax 40 MHz, Operating Frequency = high, Measurement range = 1GHz - 26GHz, Subband = U-NII-1 (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 417 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 418 of 719 Radio Technology = WLAN ax 40 MHz, Operating Frequency = high, Measurement range = 26GHz - 40GHz, Subband = U-NII-1 (S01_AC01) Path A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 419 of 719 Radio Technology = WLAN ax 40 MHz, Operating Frequency = low, Measurement range = 1GHz - 26GHz, Subband = U-NII-2A (S01_AC01) Port A TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 420 of 719 Port B TEST REPORT REFERENCE: MDE_UBLOX_2411_FCC_02_rev02 Page 421 of 719 Radio Technology = WLAN ax 40 MHz,…

Text truncated - open the document above for the full version.

PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 1 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC TITLE WIFI 6E FLEX CABLE BALANCE ANTENNA TABLE OF CONTENTS 1. SCOPE 2. PRODUCT DESCRIPTION 3. GENERAL SPECIFICATION 4. PRODUCT STRUCTURE INFORMATION 5. APPLICABLE DOCUMENTS 6. ANTENNA SPECIFICATION 7. MECHANICAL SPECIFICATION 8. ENVIRONMENTAL SPECIFICATION 9. PACKING 10. OTHER MOLEX ANTENNA PRODUCTS 11. CHANGE HISTORY PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 2 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC WIFI 6E FLEX CABLE BALANCE ANTENNA 1.0 SCOPE This Product Specification covers the mechanical, electrical and environmental performances specification for WiFi 6E flex cable balance antenna. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: WiFi 6E flex cable balance antenna Series Number: 146153 Series 2.2 DESCRIPTION Series 146153 is a balanced, dipole-type, high efficiency antenna for 2.4/5/6 GHz applications, including WiFi 6E, Bluetooth, Zigbee and others. This antenna is made from poly flexible material with small size 35*9*0.1mm and has double-sided adhesive tape for easy “peel and stick” mounting. This balanced antenna with ground plane independent design offers various cable length options for ease of integration into various devices. 2.3 FEATURES  2400~2500MHz,5150~5850MHz,5925~7125MHz, linear polarization  Ground plane independent, balanced dual band antenna  Flex size 35 x 9 x 0.1mm (not contain solder area)  MHF & U.FL compatible connector (Such as MHF1/MHF4)  Cable Ø1.13mm, 6 standard length options (50/100/150/200/250/300mm)  Cable and connector can be customized Molex 146153 SERIES 3D VIEW PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 3 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 3.0 GENERAL SPECIFICATION Product name WIFI 6E FLEX CABLE BALANCE ANTENNA Part number 146153 Frequency 2.4GHz-2.5GHz 5.15GHz- 5.85GHz 5.925GHz- 7.125GHz Polarization Linear Operating with matching -40°C to 85°C Storage with matching -40°C to 85°C RF Power 2 Watts Impedance with matching 50 Ohms Antenna type Flex Connector type 146153 0XXX 146153 1XXX Compatible MHF1 Compatible MHF4L User Implementation type Adhesive 3M9077 Cable diameter Ø1.13mm Cable length 50 mm (P/N for 1461530050/1461531050) 100 mm (P/N for 1461530100/1461531100) 150 mm (P/N for 1461530150/1461531150) 200 mm (P/N for 1461530200/1461531200) 250 mm (P/N for 1461530250/1461531250) 300 mm (P/N for 1461530300/1461531300) Adhesive Application Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure helps develop better adhesive contact and improves bond strength. To obtain optimum adhesion, the bonding surfaces must be clean, dry, and well unified. Some typical surface cleaning solvents are isopropyl alcohol/water mixture or heptane. Ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. However, once properly applied, low temperature holding is generally satisfactory. PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 4 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 4.0 PRODUCT STRUCTURE INFORMATION P/N 146153 0XXX Mechanical Structure Information for 1461530XXX PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 5 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC P/N 146153 1XXX Mechanical Structure Information for 1461531XXX PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 6 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 5.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-1461530050 Mechanical Dimension of the product SD-1461531050 Application Guide (AS) AS-1461530100 Antenna Application and surrounding Packing Drawing (PK) PK-1461530100 Product packaging specifications 6.0 ANTENNA SPECIFICATION All measurements are done of the antenna mounted on a PC/ABS material block of 1.5 mm thickness with VNA Agilent E5071C and Over-The-Air (OTA) chamber. All measurements in this document are done with the part no.1461530100 for different cable length. 6.1 ELECTRICAL REQUIREMENT 6.1.1 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 50mm P/N 1461530050 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 3.2dBi 4.25dBi 5.8dBi Average Total efficiency >78% >79% >75% Return Loss < -10 dB < -10 dB < -10 dB 6.1.2 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 100mm P/N 1461530100 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 3.0dBi 4.0dBi 5.5dBi Average Total eff…

Text truncated - open the document above for the full version.

APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPLICATION SPECIFICATION SHEET No. E EC No: 644053 1 of 28 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-2042810100 Liu Hai 2020/08/26 Cheng Kang 2020/08/26 Andy Zhang 2020/08/26 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC TITLE WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS 4.0 ANTENNA PERFORMANCE 5.0 ASSEMBLY GUIDELINE 6.0 RF PERFORMANCE AS A FUNCTION OF IMPLEMENTATION 7.0 THE ANTENNA PERFORMANCE VARIATION WITH CABLE LENGTH 8.0 CHANGE HISTORY APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPLICATION SPECIFICATION SHEET No. E EC No: 644053 2 of 28 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-2042810100 Liu Hai 2020/08/26 Cheng Kang 2020/08/26 Andy Zhang 2020/08/26 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA 1.0 SCOPE This specification describes the antenna application and surrounding. The information in this document is for reference and benchmark purposes only. The user is responsible for validating antenna rf performance based on the user’s actual implementation. Antenna illustrations in this document are generic representations. They are not intended to be an image of any antenna listed in the scope. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: WiFi 6E Flex Cabled Side-fed Balanced Antenna Series Number: 204281 2.2 DESCRIPTION Series 204281 is a balanced, dipole-type, high efficiency antenna for 2.4/5/6 GHz applications, including Wi-Fi 6E, Bluetooth, Zigbee and others. This antenna is made from poly flexible material with small size 35*11*0.1mm and has double-sided adhesive tape for easy “peel and stick” mounting. This balanced antenna with ground plane independent design offers various cable length options for ease of integration into various devices. 2.3 PRODUCT STRUCTURE INFORMATION Please refer to PS-2042810100 for full information. Molex Antenna 3D View APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPLICATION SPECIFICATION SHEET No. E EC No: 644053 3 of 28 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-2042810100 Liu Hai 2020/08/26 Cheng Kang 2020/08/26 Andy Zhang 2020/08/26 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 3.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-2042810050 Mechanical Dimension of the product SD-2042811050 Product Specification (PS) PS-2042810100 Product Specification Packing Drawing (PK) PK-2042810100 Product packaging specifications 4.0 ANTENNA PERFORMANCE 4.1 RF TEST CONDITIONS All measurements are done of the antenna mounted on a PC/ABS material block of 1.5mm thickness with VNA Agilent E5071C and Over-The-Air (OTA) chamber. All measurements in this document are done with the part no.2042810100 with a cable length of 100mm. FIGURE4.1.1 ANTENNA LOADED WITH PC/ABS BLOCK OF 1.5 MM THICKNESS APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPLICATION SPECIFICATION SHEET No. E EC No: 644053 4 of 28 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-2042810100 Liu Hai 2020/08/26 Cheng Kang 2020/08/26 Andy Zhang 2020/08/26 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC FIGURE4.1.2 ANTENNA LOADED WITH PC/ABS BLOCK OF 1.5 MM THICKNESS WITH VNA FIGURE4.1.3 ANTENNA LOADED WITH PC/ABS BLOCK OF 1.5 MM THICKNESS WITH OTA CHAMBER DUT DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPLICATION SPECIFICATION SHEET No. E EC No: 644053 5 of 28 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-2042810100 Liu Hai 2020/08/26 Cheng Kang 2020/08/26 Andy Zhang 2020/08/26 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.2 ANTENNA PERFORMANCE DESCRIPTION EQUIPMENT REQUIREMENT Frequency Range VNA E5071C 2.4-2.5GHz 5.15-5.85GHz 5.925- 7.125GHz Return Loss VNA E5071C < -10 dB < -10 dB < -5 dB Peak Gain (Max) OTA Chamber 2.0dBi 3.3dBi 4.5dBi Average Total Efficiency OTA Chamber >65% >68% >50% Polarization OTA Chamber Linear Input Impedance VNA E5071C 50 ohms Note that the above antenna performance is measured with just the antenna mounted on a PC/ABS block to similar a free-space condition. When implement into the system, the frequency resonant might be off-tune due to the loading of surrounding components especially metal plane. This off-tune can be compensated through matching. Although module manufacturers specify a peak gain limit, it is based on free-space conditions. The peak gain will be degraded by 1 to 2dBi in the actual implementation as the radiation pattern will change due to the surround components. As such, during selection of antenna, you can select one with high peak gain to compensate for the loss. Molex can offer assistant to choose the best location and best tuning in-order to meet this peak gain requirement. APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPLICATION SPECIFICATION SHEET No. E EC No: 644053 6 of 28 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-2042810100 Liu Hai 2020/08/26 Cheng Kang 2020/08/26 Andy Zhang 2020/08/26 TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.3 RETURN LOSS PLOT All measurements in this document are done with a cable length of 100mm. FIGURE 4.3.1 RETURN LOSS OF ANTENNA AT 2.4GHZ BAND IN FREE SPACE FIGURE 4.3.2 RETURN LOSS OF ANTENNA AT 5GHZ BAND IN FREE SPACE APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA APPL…

Text truncated - open the document above for the full version.

PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATION SHEET No. E EC No: 644053 1 of 11 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2042810100 Kang Cheng 2020/08/26 Cooper Zhou 2020/08/26 Stary Song 2020/08/26 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC TITLE WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA TABLE OF CONTENTS 1. SCOPE 2. PRODUCT DESCRIPTION 3. GENERAL SPECIFICATION 4. PRODUCT STRUCTURE INFORMATION 5. APPLICABLE DOCUMENTS 6. ANTENNA SPECIFICATION 7. MECHANICAL SPECIFICATION 8. ENVIRONMENTAL SPECIFICATION 9. PACKING 10. CHANGE HISTORY PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATION SHEET No. E EC No: 644053 2 of 11 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2042810100 Kang Cheng 2020/08/26 Cooper Zhou 2020/08/26 Stary Song 2020/08/26 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA 1.0 SCOPE This Product Specification covers the mechanical, electrical and environmental performances specification for WIFI 6E flex cabled side-fed balanced antenna. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: WIFI 6E flex cabled side-fed balanced antenna Series Number: 204281 2.2 DESCRIPTION Series 204281 is a balanced, dipole-type, high efficiency antenna for 2.4/5/6 GHz applications, including Wi-Fi 6E, Bluetooth, Zigbee and others. This antenna is made from poly flexible material with small size 35*11*0.1mm and has double-sided adhesive tape for easy “peel and stick” mounting. This balanced antenna with ground plane independent design offers various cable length options for ease of integration into various devices. 2.3 FEATURES  Ground plane independent, balanced dual band antenna  Flex size 35 x 11 x 0.1mm (not contain solder area)  I-PEX MHF (U.FL compatible) connector (Such as MHF1/MHF4)  Cable OD1.13mm, 6 standard length options (50/100/150/200/250/300mm)  Cable and connector can be customized  RoHS Compliant Molex 204281 SERIES 3D VIEW PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATION SHEET No. E EC No: 644053 3 of 11 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2042810100 Kang Cheng 2020/08/26 Cooper Zhou 2020/08/26 Stary Song 2020/08/26 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 3.0 GENERAL SPECIFICATION Product name WIFI 6E flex cabled side-fed balanced antenna. Part number 204281 Frequency 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925GHz- 7.125GHz Polarization Linear Operating with matching -40°C to 85°C Storage with matching -40°C to 85°C RF Power 2 Watts Impedance with matching 50 Ohms Antenna type Flex Connector type 204281 0XXX 204281 1XXX Compatible MHF-1 Compatible MHF-4 User Implementation type Adhesive 3M9077 Cable diameter Ø1.13mm Cable length 50 mm (P/N for 2042810050/2042811050) 100 mm (P/N for 2042810100/2042811100) 150 mm (P/N for 2042810150/2042811150) 200 mm (P/N for 2042810200/2042811200) 250 mm (P/N for 2042810250/2042811250) 300 mm (P/N for 2042810300/2042811300) PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATION SHEET No. E EC No: 644053 4 of 11 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2042810100 Kang Cheng 2020/08/26 Cooper Zhou 2020/08/26 Stary Song 2020/08/26 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 4.0 PRODUCT STRUCTURE INFORMATION P/N 204281 0XXX Mechanical Structure Information for 204281 0XXX PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATION SHEET No. E EC No: 644053 5 of 11 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2042810100 Kang Cheng 2020/08/26 Cooper Zhou 2020/08/26 Stary Song 2020/08/26 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC P/N 204281 1XXX Mechanical Structure Information for 204281 1XXX PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATION SHEET No. E EC No: 644053 6 of 11 DATE: 2020/08/26 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2042810100 Kang Cheng 2020/08/26 Cooper Zhou 2020/08/26 Stary Song 2020/08/26 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 5.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-2042810050 Mechanical Dimension of the product SD-2042811050 Application Guide (AS) AS-2042810100 Antenna Application and surrounding Packing Drawing (PK) PK-2042810100 Product packaging specifications 6.0 ANTENNA SPECIFICATION All measurements are done of the antenna mounted on a PC/ABS material block of 1.5 mm thickness with VNA Agilent E5071C and Over-The-Air (OTA) chamber. All measurements in this document are done with the part no.2042810100 for different cable length. 6.1 ELECTRICAL REQUIREMENT 6.1.1 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 50mm P/N 2042810050 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 2.2dBi 3.5dBi 4.8dBi Average Total efficiency >68% >70% >54% Return Loss < -10 dB < -10 dB < -5 dB 6.1.2 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 100mm P/N 2042810100 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 2.0dBi 3.3dBi 4.5dBi Average Total efficiency >65% >68% >50% Return Loss < -10 dB < -10 dB < -5 dB 6.1.3 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 150mm P/N 2042810150 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 1.8dBi 3.0dBi 4.2dBi Average Total efficiency >62% >65% >46% Return Loss < -10 dB < -10 dB < -5 dB PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLED SIDE-FED BALANCED ANTENNA PRODUCT SPECIFICATI…
